Inventory # 47575

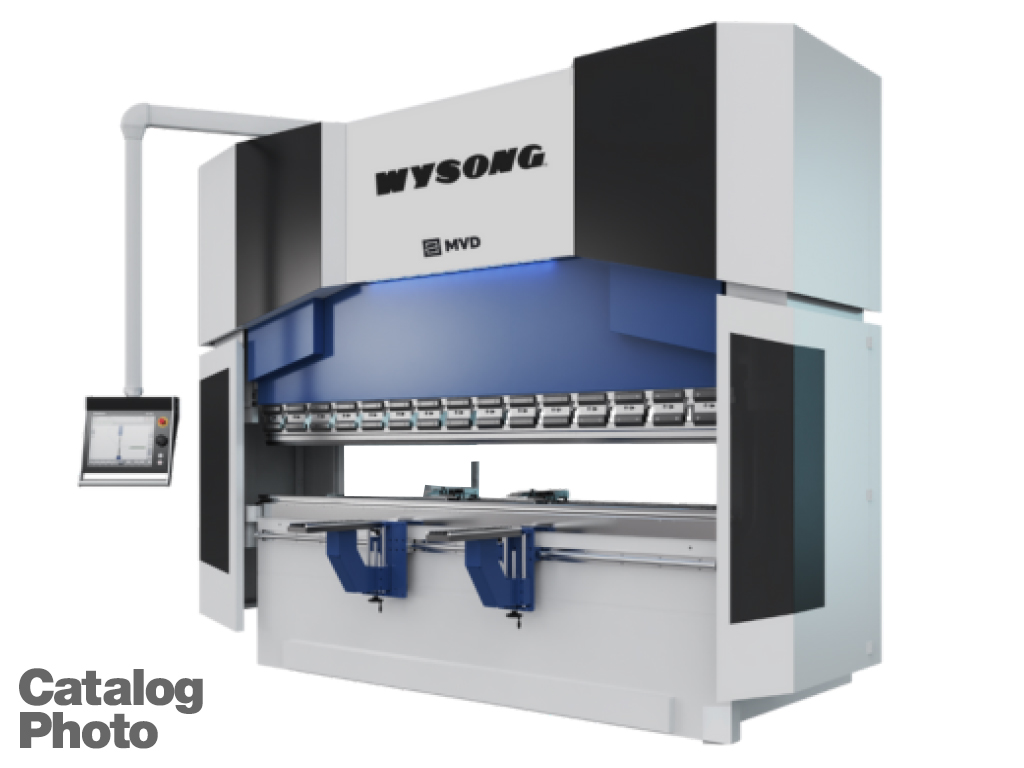

Wysong MD550-200 Hydraulic CNC Press Brake *New Machine*
Specifications
- Bending Capacity: 550 Tons
- Overall Length: 200" (Shorter/Longer Lengths Available)
- Distance Between Housings: 165"
- Stroke: 16" (Longer Stroke Available)
- Daylight: 25"
- Throat Depth: 20" (Larger Throat Available)
- Approach Speed: 189 IPM
- Working Speed: 19 IPM
- Return Speed: 165 IPM
- Oil Tank: 132 Gallons
- Motor: 50 HP
- Show More
- Show Less
- Bending Capacity: 498 Metric Tons
- Overall Length: 5080 mm (Shorter/Longer Lengths Available)
- Distance Between Housings: 4190 mm
- Stroke: 406 mm (Longer Stroke Available)
- Daylight: 635 mm
- Throat Depth: 508 mm (Larger Throat Available)
- Approach Speed: 80 mm/sec
- Working Speed: 8 mm/sec
- Return Speed: 70 mm/sec
- Oil Tank: 500 liters
- Motor: 37.29 kw
- Show More
- Show Less
Equipped With
- Delem DA-66S Touch Screen CNC Control
- Standard 2-Axis Backgauge (X, R)
- Optional 4-Axis Backgauge (X, R, Z1, Z2)
- Optional 6-Axis Backgauge (X1, X2, R1, R2, Z1, Z2)
- Flush Floor Design
- North American/EU Universal Quick Release Punch Holders
- Sliding Front Sheet Support Arms
- Linear Scales
- Hoerbiger Hydraulics
- Full Length Rolleri Punch
- 4-Way Rollier V-Die
- Fiessler Front Laser Safety
- Many Other Options Available
- Show More
- Show Less
- Delem DA-66S Touch Screen CNC Control
- Standard 2-Axis Backgauge (X, R)
- Optional 4-Axis Backgauge (X, R, Z1, Z2)
- Optional 6-Axis Backgauge (X1, X2, R1, R2, Z1, Z2)
- Flush Floor Design
- North American/EU Universal Quick Release Punch Holders
- Sliding Front Sheet Support Arms
- Linear Scales
- Hoerbiger Hydraulics
- Full Length Rolleri Punch
- 4-Way Rollier V-Die
- Fiessler Front Laser Safety
- Many Other Options Available
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Disclaimer: Preliminary Specifications....
