Inventory # 36680

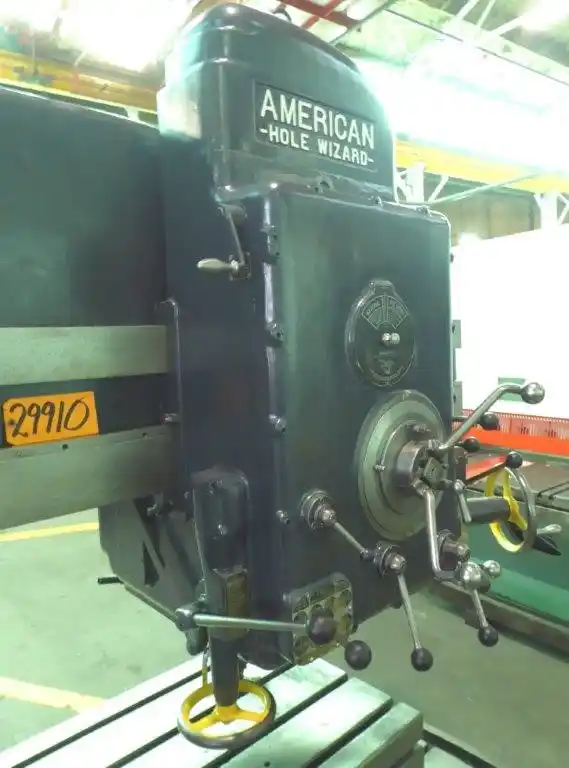

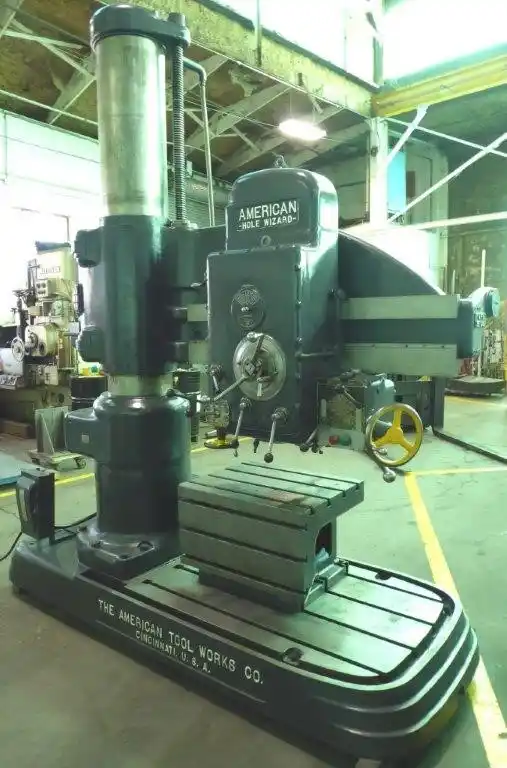

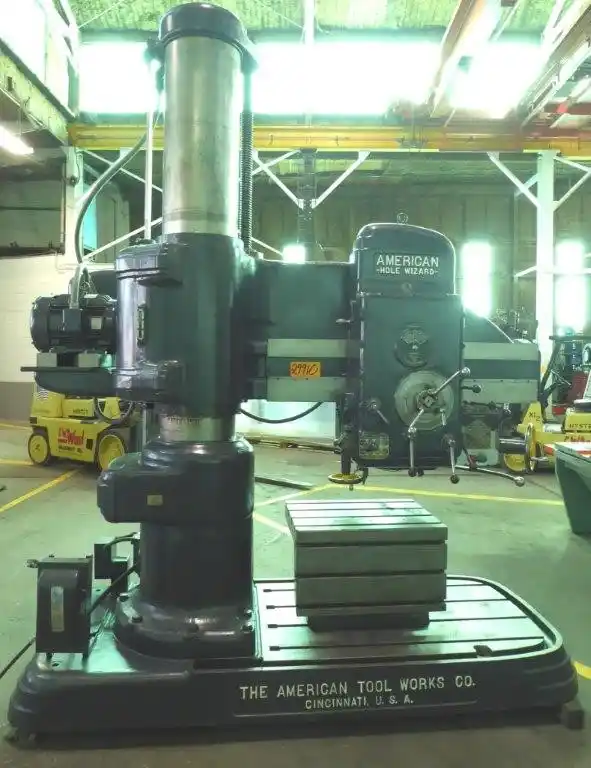

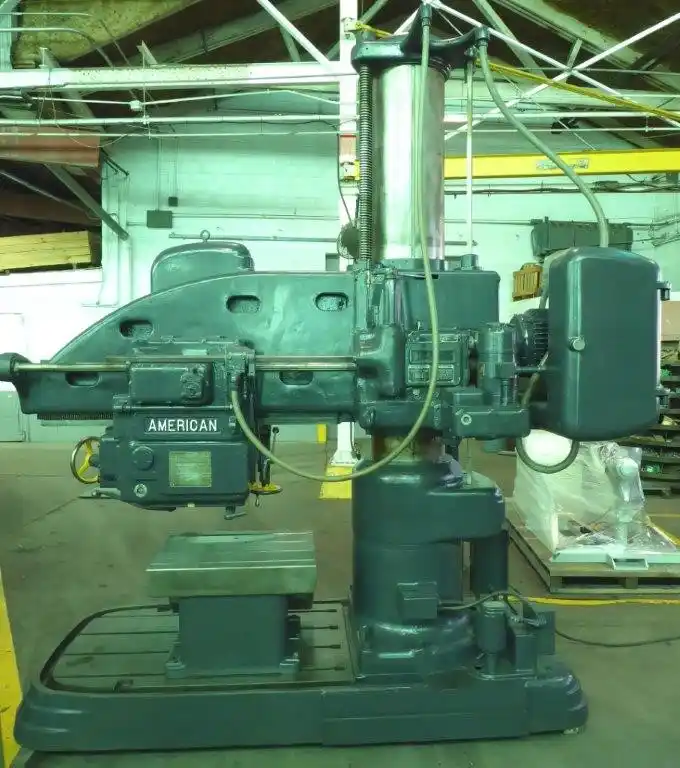

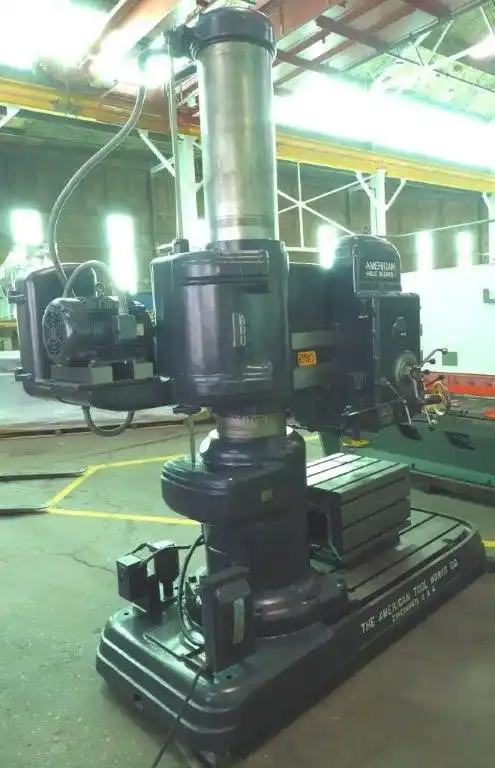

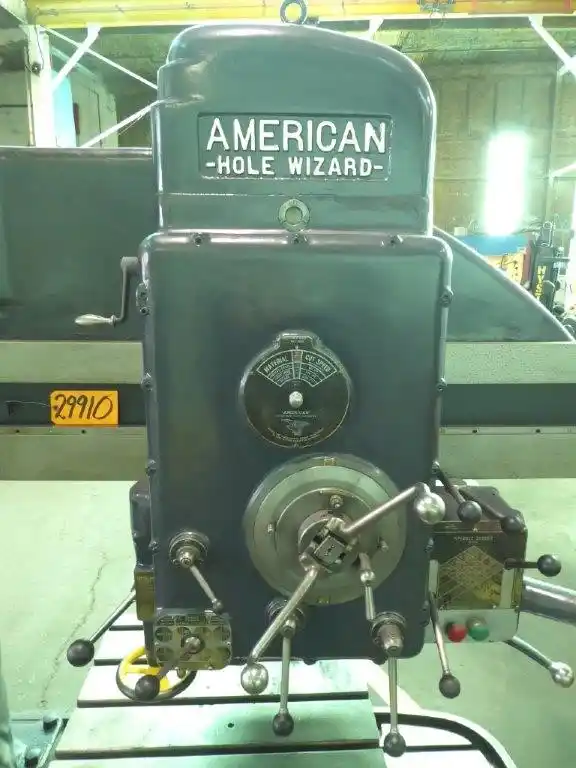

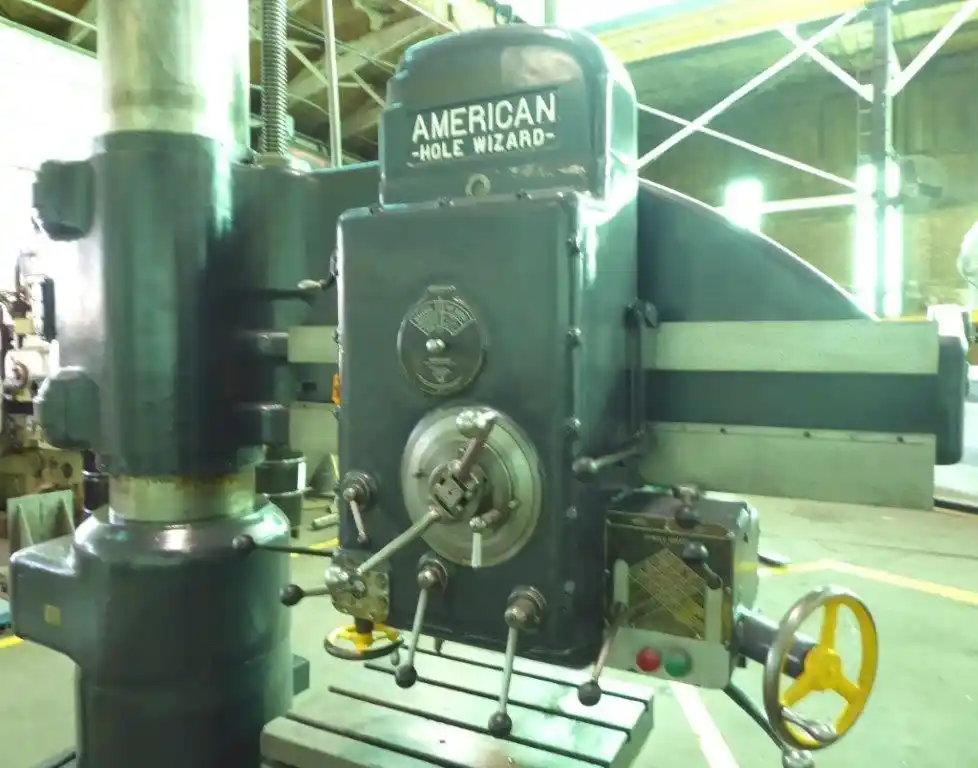

American Hole Wizard 4' X 15" Radial ARM Drill
Specifications
- Arm Length: 4'

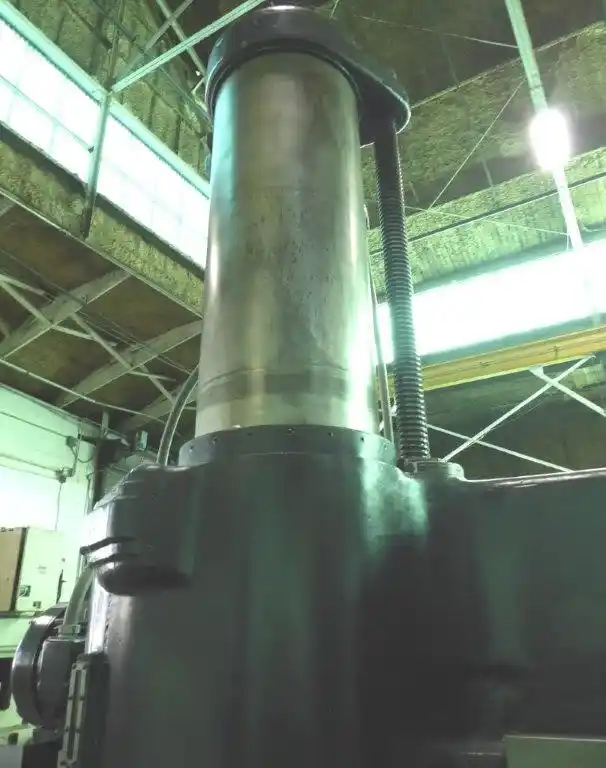

- Column Diameter: 15"
- Drills to Center of Circle on Base: 96"
- Maximum Distance, Spindle to Base: 66"
- Minimum Distance, Spindle to Base: 8.5"
- Traverse of Drill Head on Arm: 34"
- Traverse of Arm on Column: 39.5"

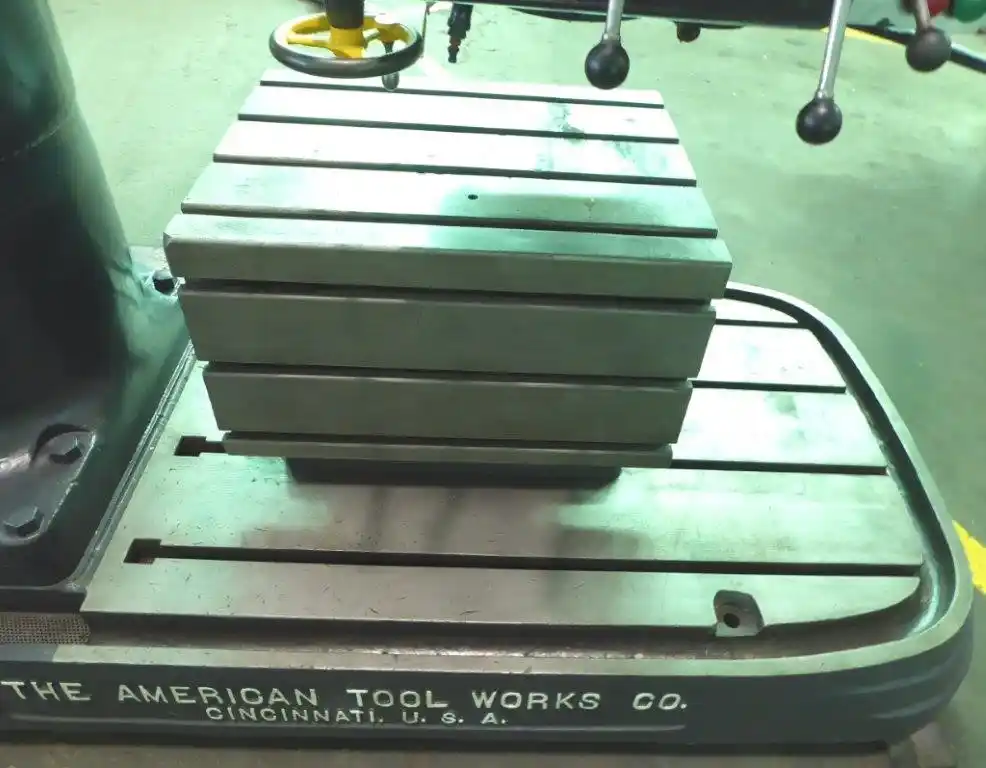

- Table Size: 30" L x 24" W x 20" H
- Height of Base: 9"
- Spindle Travel: 18"
- Spindle Taper: No. 5 Morse
- Spindle Speeds (32 settings): 20 - 1,600 RPM

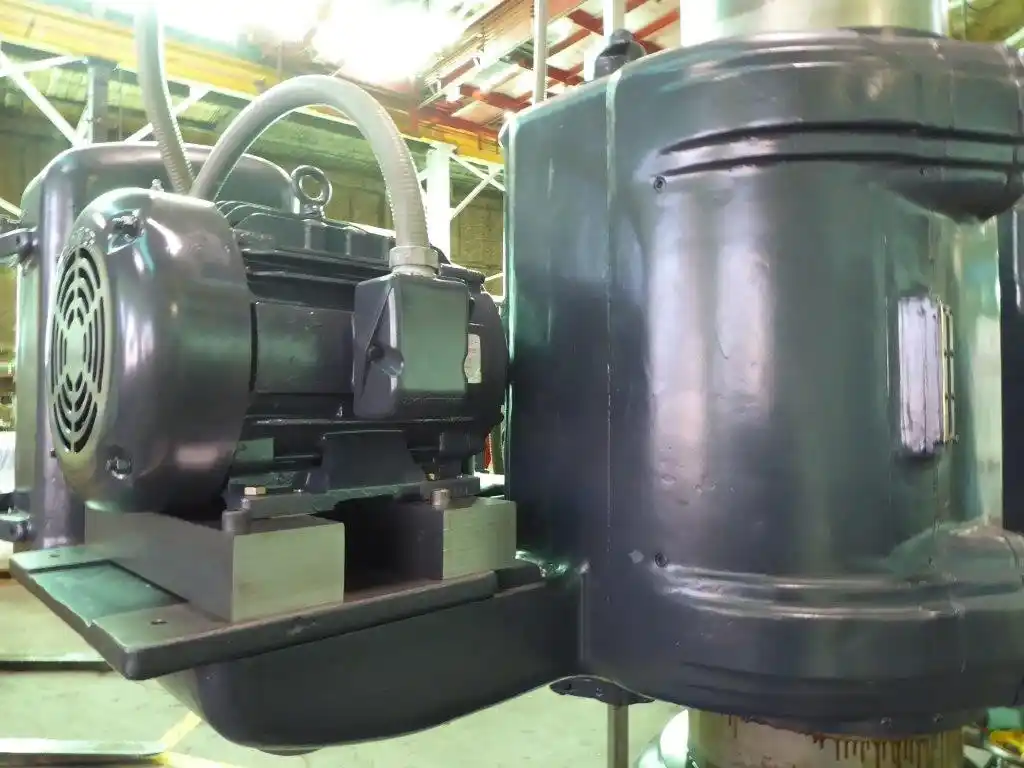

- Spindle Motor: 20 HP
- Spindle Feeds: 16
- Range of Feeds: .003" - .125"
- Tap Leads, Threads Per Inch: 8, 11.5, 14, 18
- Show More
- Show Less
- Arm Length: 1219.20mm
- Column Diameter: 381.00mm
- Drills to Center of Circle on Base: 2438.40mm
- Maximum Distance, Spindle to Base: 1676.40mm
- Minimum Distance, Spindle to Base: 215.90mm
- Traverse of Drill Head on Arm: 863.60mm
- Traverse of Arm on Column: 1003.30mm
- Table Size: 762.00mm L x 609.60mm W x 508.00mm H
- Height of Base: 228.60mm
- Spindle Travel: 457.20mm
- Spindle Taper: No. 5 Morse
- Spindle Speeds (32 settings): 20 - 1,600 RPM
- Spindle Motor: 14.91 kw
- Spindle Feeds: 16
- Range of Feeds: 0.08mm - 3.18mm
- Tap Leads, Threads Per Inch: 8, 11.5, 14, 18
- Show More
- Show Less
Equipped With
- Coolant Pump in Base
- Power Elevation
- Power Head Traverse
- Power Clamping
- Coolant Pump in Base
- Power Elevation
- Power Head Traverse
- Power Clamping
Location & Terms
- Terms: F.O.B.
- Location: Cincinnati, oh
- Disclaimer: Preliminary Specifications....
