Inventory # 48860

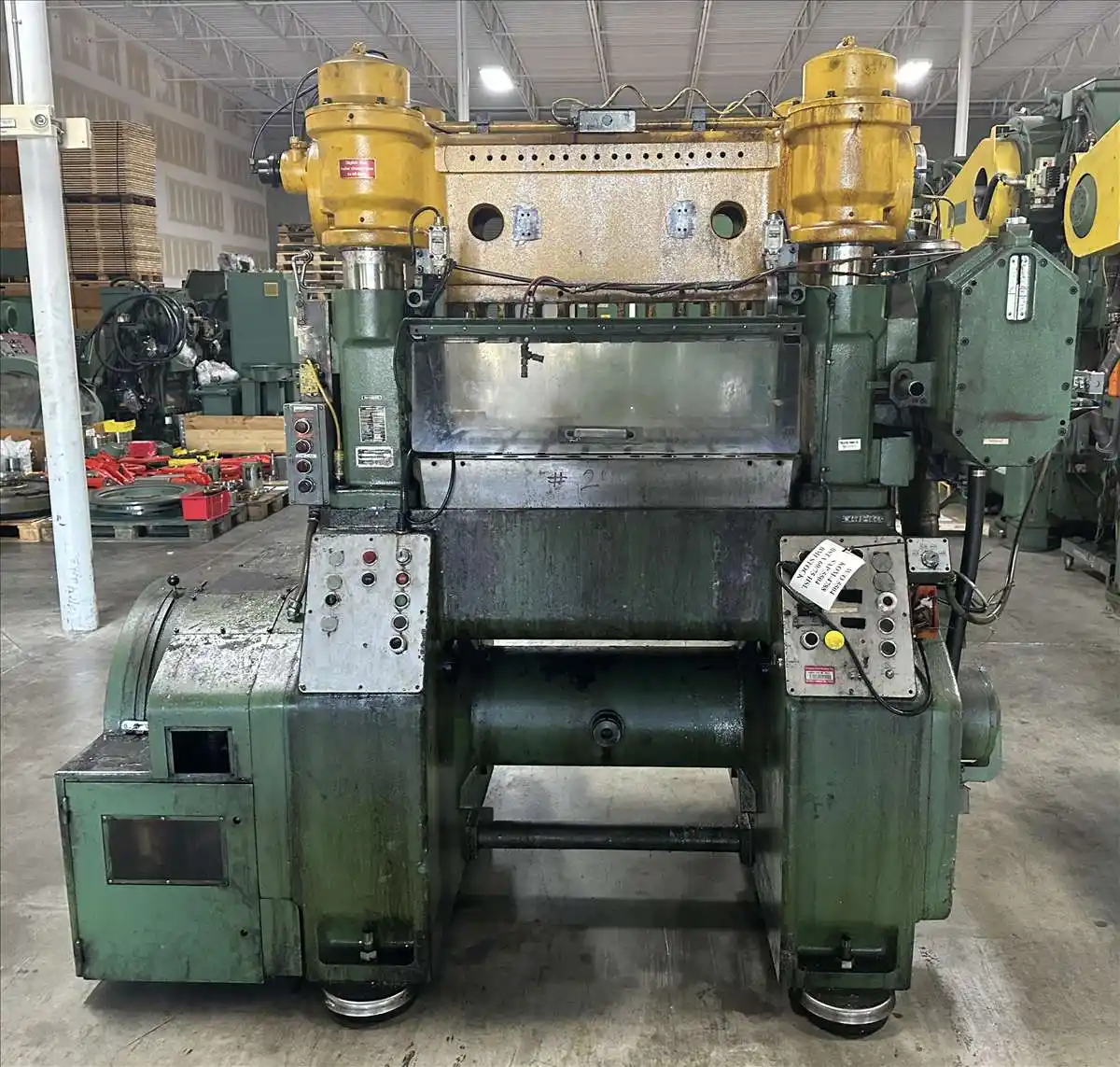

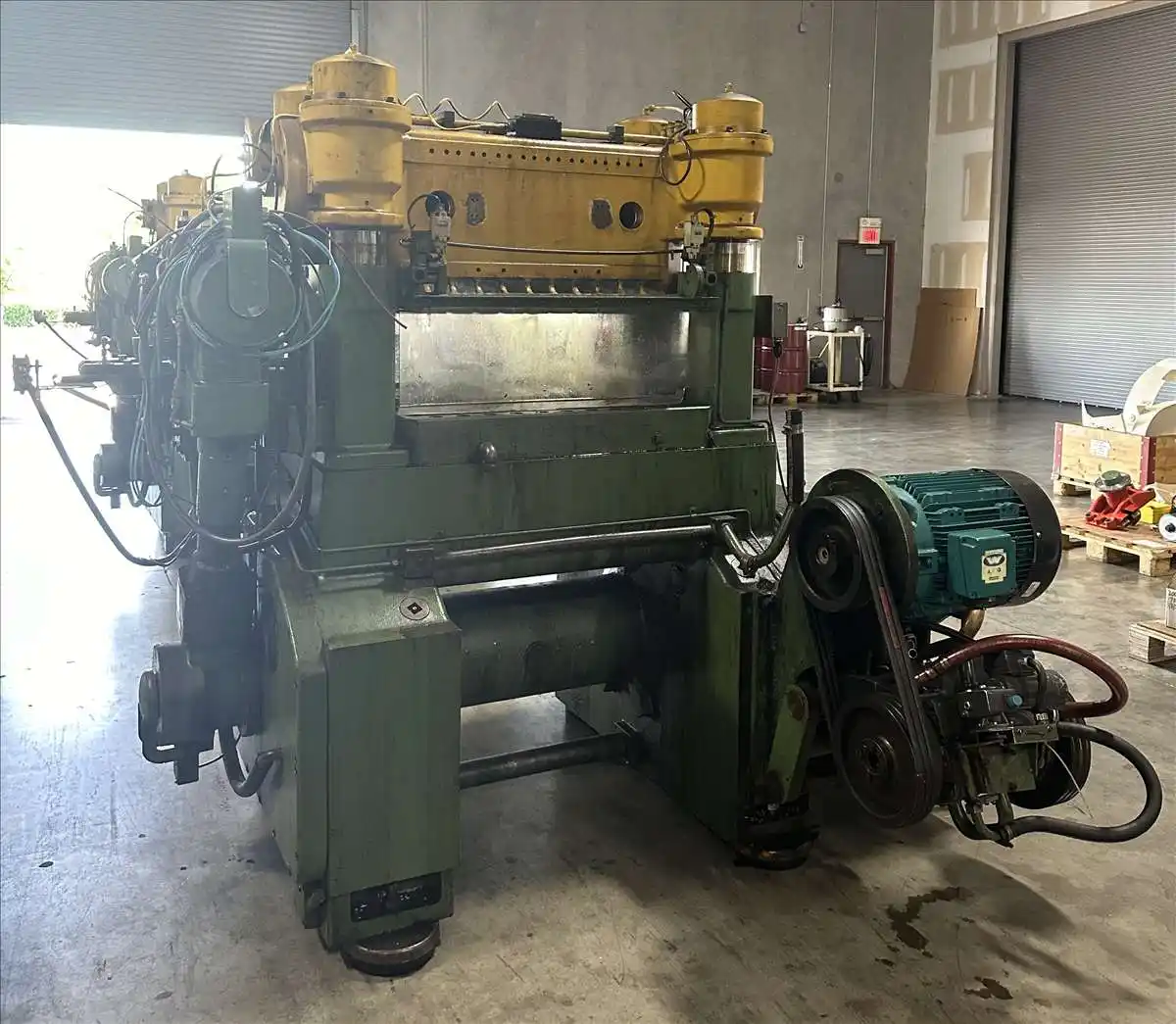

Bruderer BSTA 60/75HSL Precision High-Speed Straight-Side Punch Press
Specifications
- Tonnage Capacity: 75 Ton
- Adjustable Stroke: 3/4" - 3"
- Stroke Speed: 100 - 700
- Shut Height: 11-1/8" (@ 1-1/2" Stroke)
- Bed Area (L-R x F-B): 31-1/4" x 10-1/2"
- Bolster Area (L-R x F-B): 37" x 24"
- Bolster Thickness: 4-3/4"
- Ram Adjustment: 3-1/2"
- Motor: 30 HP
- Bruderer 202/120 Precision Cam Roll Feed
- Max. Material Width: 8"
- Feed Advance: 0 - 4.7"
- Material Thickness: 0.2"
- Show More
- Show Less
- Tonnage Capacity: 68 Metric Ton
- Adjustable Stroke: 8.4mm - 76mm
- Stroke Speed: 100 - 700
- Shut Height: 282.6mm (@ 38.1mm Stroke)
- Bed Area (L-R x F-B): 793.8mm x 266.7mm
- Bolster Area (L-R x F-B): 940mm x 610mm
- Bolster Thickness: 120.6mm
- Ram Adjustment: 88.9mm
- Motor: 22 kw
- Bruderer 202/120 Precision Cam Roll Feed
- Max. Material Width: 203mm
- Feed Advance: 0 - 120mm
- Material Thickness: 5.1mm
- Show More
- Show Less
Equipped With
- Bruderer 202/120 Precision Cam Roll Feed
- Free-Standing Cabinet w/ Heat Exchanger
- Air Clutch/Brake Combined
- Electro-Hydrostatic Variable Speed Drive
- Air Cleaner
- Oil Atomizer
- Show More
- Show Less
- Bruderer 202/120 Precision Cam Roll Feed
- Free-Standing Cabinet w/ Heat Exchanger
- Air Clutch/Brake Combined
- Electro-Hydrostatic Variable Speed Drive
- Air Cleaner
- Oil Atomizer
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Huntsville, AL
- Disclaimer: Preliminary Specifications....
