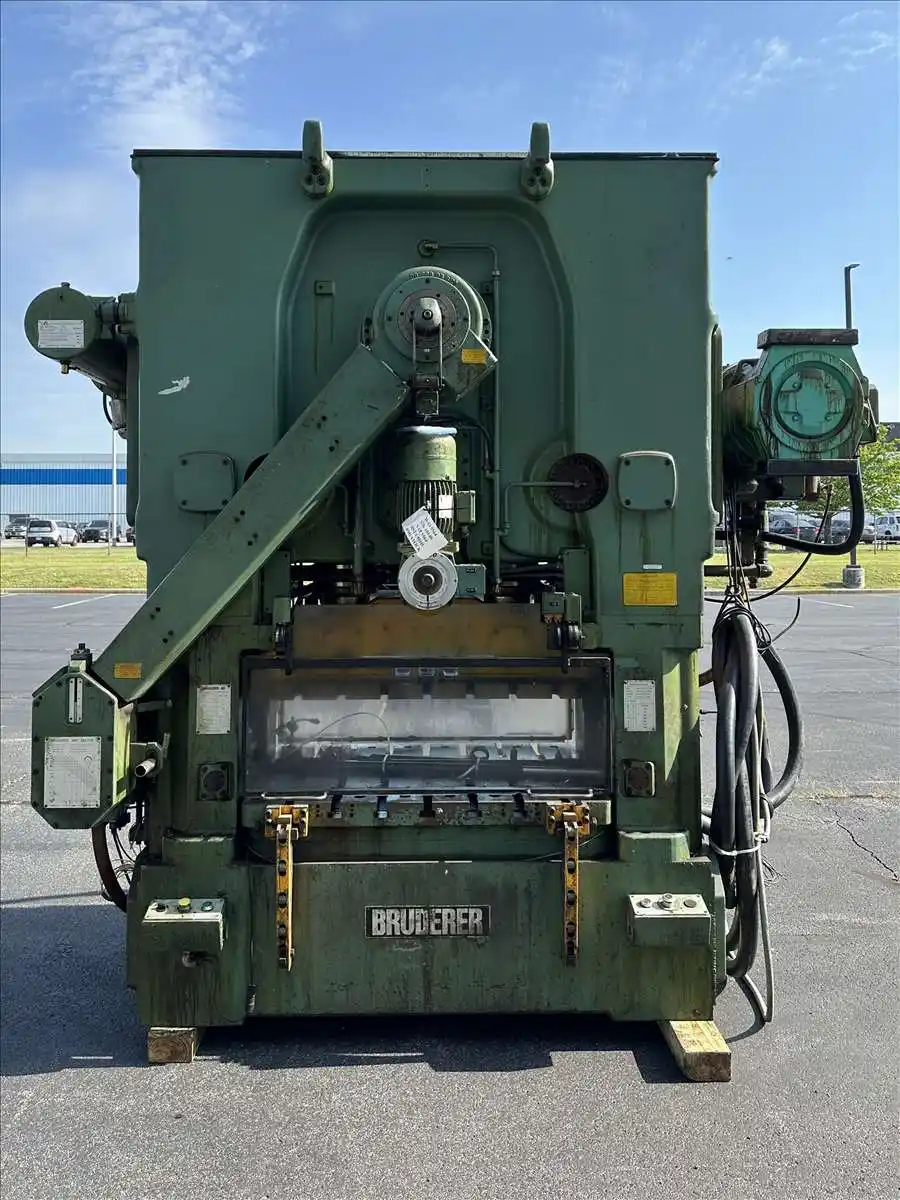

Perfection Global Equipment: https://perfectionglobal.com/used-inventory/bruderer-bsta90hl-48865/
Specifications
- Tonnage Capacity: 90 Ton
- Adjustable Stroke Length: 5/8" - 2-1/2" (8 Positions)
- Stroke Speed (Min - Max): 100-1000 SPM
- Bed Opening (L-R x F-B): 46.8" x 12.6"
- Bolster Area (L-R x F-B): 48" x 35.8"
- Ram Area (L-R x F-B): 41.7" x 20.1"
- Max. Tool Width Clearance: 48.8"
- Strip Inlet Height (Min - Max): 2.7" - 6.3"
- Max. Strip Inlet Width: 14.2"
- Power Supply: 57.6 HP
- Mains Voltage: 220/440V w/ Protective Conductor
- Show More
- Show Less
- Tonnage Capacity: 81.6 Metric Ton
- Adjustable Stroke Length: 16mm - 63.5mm (8 Positions)
- Stroke Speed (Min - Max): 100-1000 SPM
- Bed Opening (L-R x F-B): 1188.72mm x 320mm
- Bolster Area (L-R x F-B): 1220mm x 910mm
- Ram Area (L-R x F-B): 1060mm x 510.5mm
- Max. Tool Width Clearance: 1240mm
- Strip Inlet Height (Min - Max): 68.6mm - 160mm
- Max. Strip Inlet Width: 360.7mm
- Power Supply: 43 kw
- Mains Voltage: 220/440V w/ Protective Conductor
- Show More
- Show Less
Equipped With
- Bruderer BBV 202/120 Feed
- Bruderer BBV 202/120 Feed
Location & Terms
- Terms: As Is, Loaded On Truck
- Location: Huntsville, AL
- Disclaimer: Preliminary Specifications....
