Specifications
- Laser Power: 3000W
- Capacity: 5' x 10'
- Max. Workpiece Weight: 1,650 lb.
- Material Thickness Capacities
- Steel: 3/4"
- Stainless Steel: 1/2"
- Aluminum: 1/2"
- Copper: 1/4"
- Brass: 1/4"
- Max. Speed Positioning (X & Y): 3,937 IPM
- Max. Simultaneous Positioning Speed: 5,512 IPM
- Positioning Accuracy: ±0.004"
- Repeatability: ±0.002"

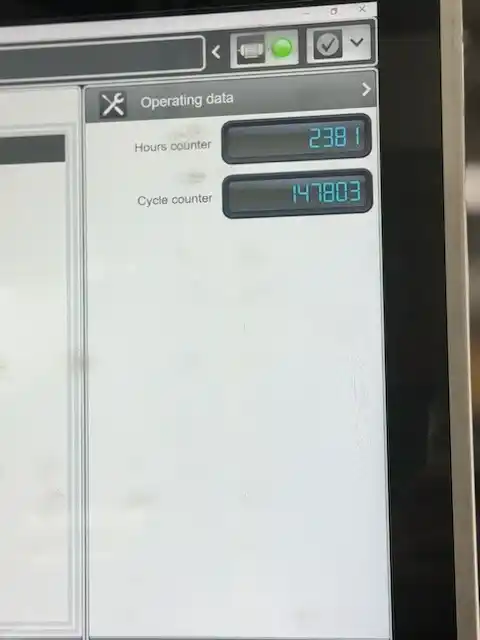

- Working Hours: 2,381 Hours
- Show More
- Show Less
- Laser Power: 3000W
- Capacity: 1524mmx3050mm
- Max. Workpiece Weight: 750 kg
- Material Thickness Capacities
- Steel: 19.05mm
- Stainless Steel: 12.70mm
- Aluminum: 12.70mm
- Copper: 6.35mm
- Brass: 6.35mm
- Max. Speed Positioning (X & Y): 3,396 mm/sec
- Max. Simultaneous Positioning Speed: 5,216 mm/sec
- Positioning Accuracy: ±0.10mm
- Repeatability: ±0.05mm
- Working Hours: 2,381 Hours
- Show More
- Show Less
Equipped With

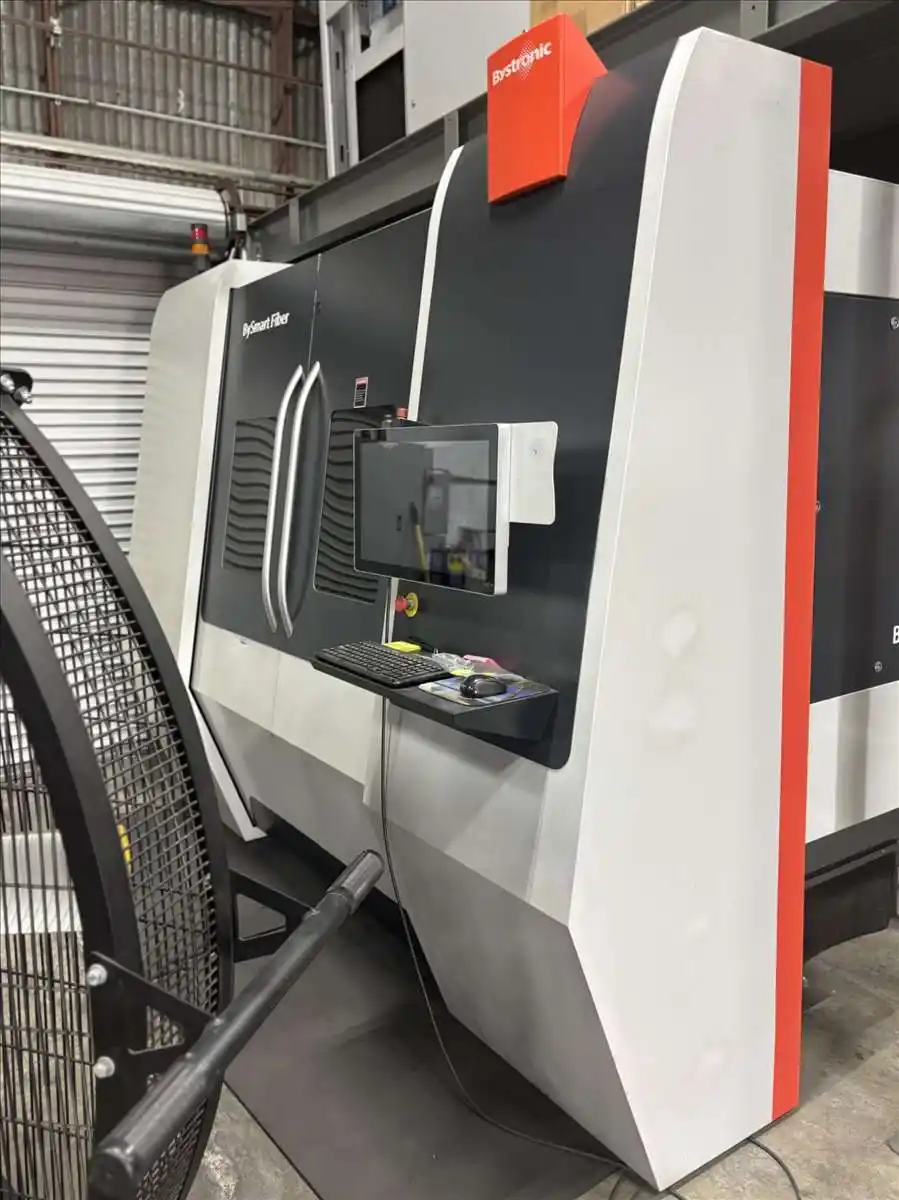

- ByVision 22" Touchscreen Control

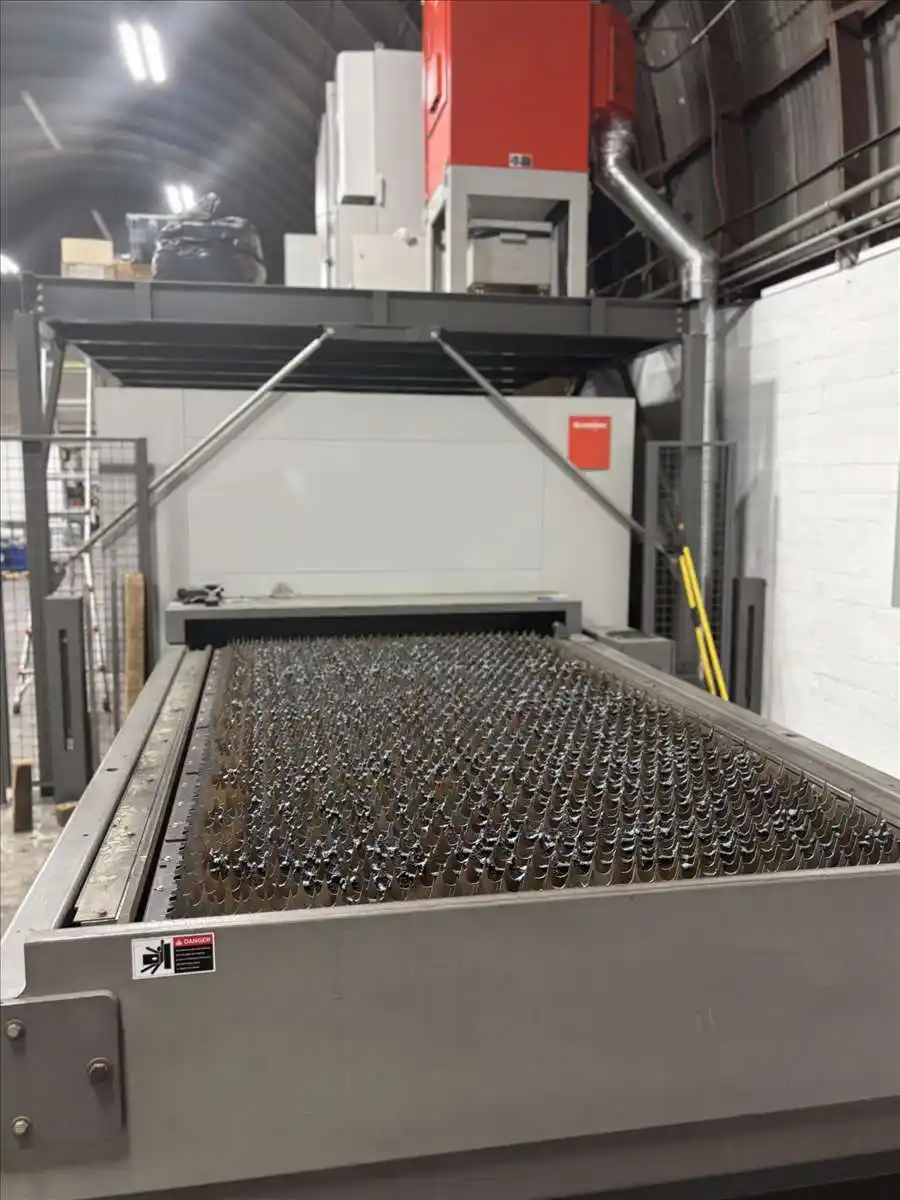

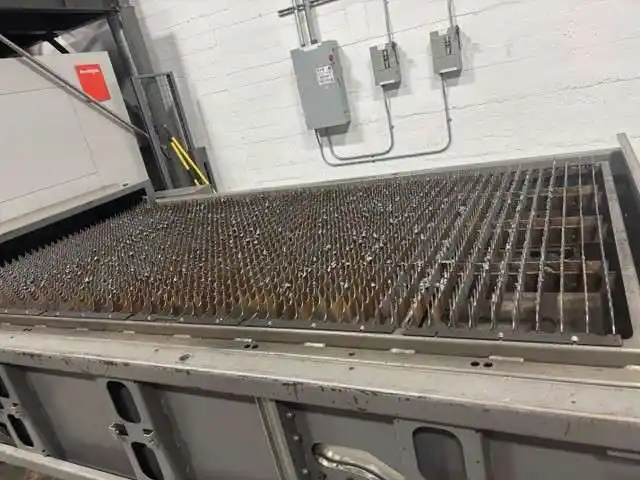

- Dual Shuttle Table
- ByVision 558mm Touchscreen Control
- Dual Shuttle Table
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
