Perfection Global Equipment: https://perfectionglobal.com/used-inventory/bystronic-byspeed-pro-3015-48915/
Specifications
- Nominal Sheet Size: 9'10" x 4'11"
- Cutting Area: 5' (X) x 10' (Y) x 3.9" (Z)
- Max. X, Y Parallel Axis Positioning Speed: 4,724 IPM
- Max. Simultaneous Positioning Speed: 5,472 IPM
- Positioning Accuracy Pa: +/- 0.004"
- Repeatability Ps: +/- 0.002"
- Edge Detection Accuracy: + / - 0.02"
- Max. Workpiece Weight: 1,962 lbs.
- Max. Sheet Thickness
- Steel: 0.98"
- Stainless Steel: 0.98"
- Aluminum: 0.59"

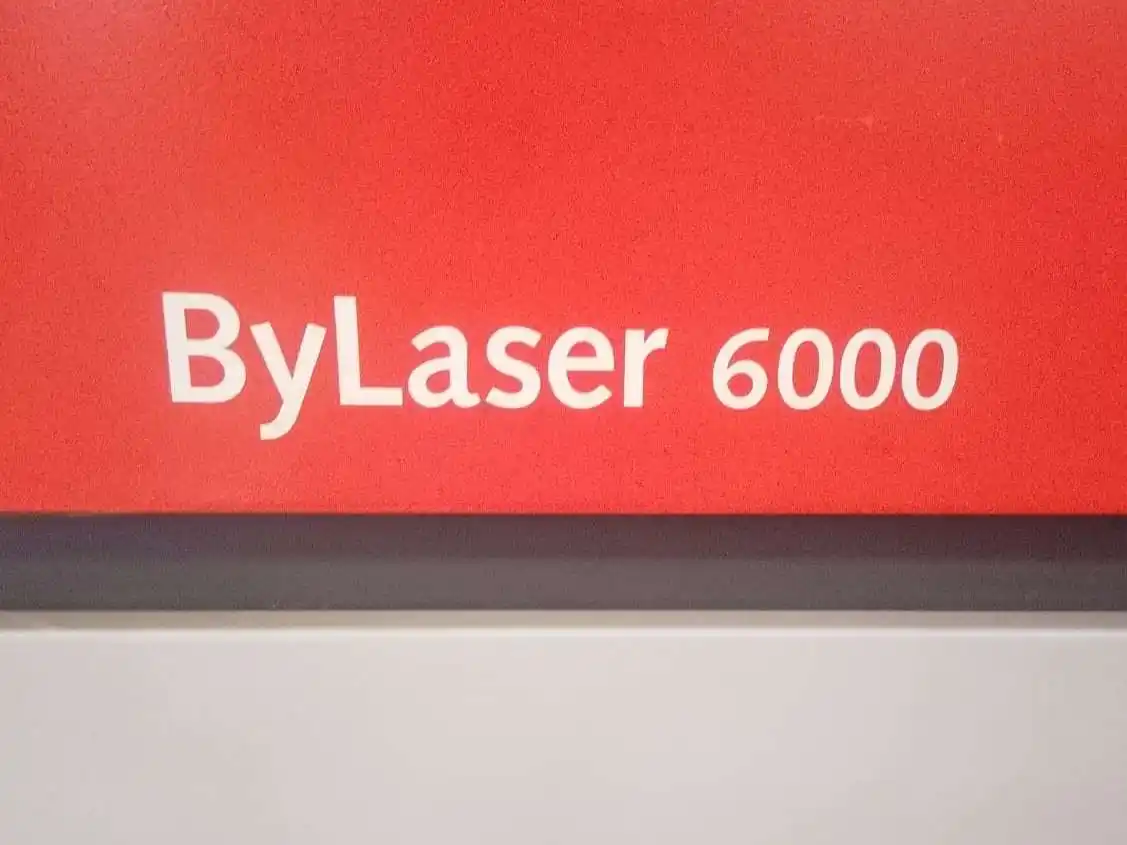

- ByLaser 6000 Resonator
- Laser Type: CO²
- Power: 6,000W
- Control Range: 150 - 6000W
- Wavelength: 10.6µm
- Polarization: Circular
- Total Electrical Consumption of System: 78 kW
- Laser Source Dimensions: 87.4" L x 43.3" W x 68.9" H
- Weight: 4,188 lbs.
- Show More
- Show Less
- Nominal Sheet Size: 3000mm x 1500mm
- Cutting Area: 1524mm(X) x 3048mm(Y) x 99mm (Z)
- Max. X, Y Parallel Axis Positioning Speed: 120m/min
- Max. Simultaneous Positioning Speed: 169m/min
- Positioning Accuracy Pa: +/- 0.10mm
- Repeatability Ps: +/- 0.05mm
- Edge Detection Accuracy: + / - 0.5mm
- Max. Workpiece Weight: 890 kg
- Max. Sheet Thickness
- Steel: 25mm
- Stainless Steel: 25mm
- Aluminum: 15mm
- ByLaser 6000 Resonator
- Laser Type: CO
- Power: 6,000W
- Control Range: 150 - 6000W
- Wavelength: 269.24mm m
- Polarization: Circular
- Total Electrical Consumption of System: 78 kW
- Laser Source Dimensions: 2220mm x 1100mm x 1750mm
- Weight: 1,900 kg
- Show More
- Show Less
Equipped With
- ByVision Touchscreen CNC Control
- 6000W Bystronic ByLaser Resonator
- ByVision Touchscreen CNC Control
- 6000W Bystronic ByLaser Resonator
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
