Inventory # 36798

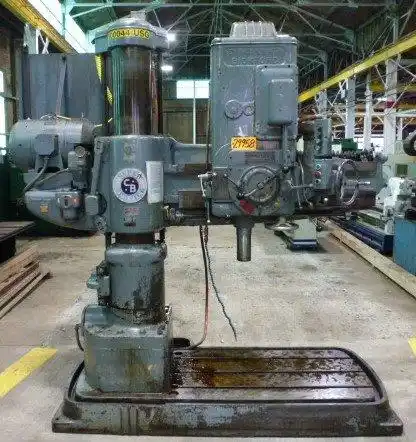

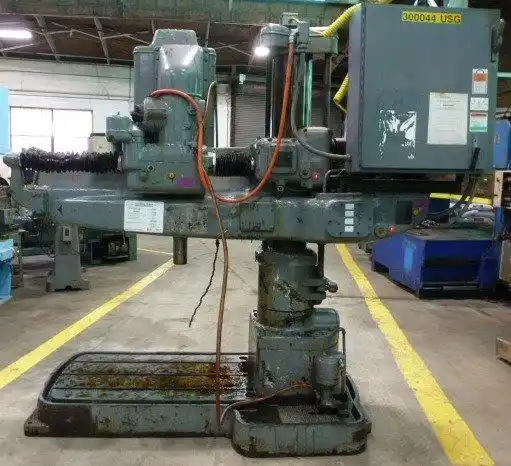

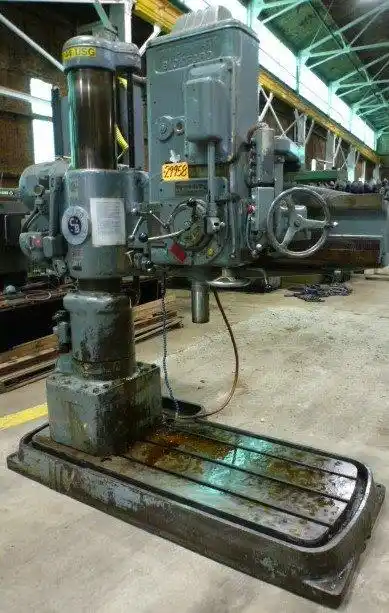

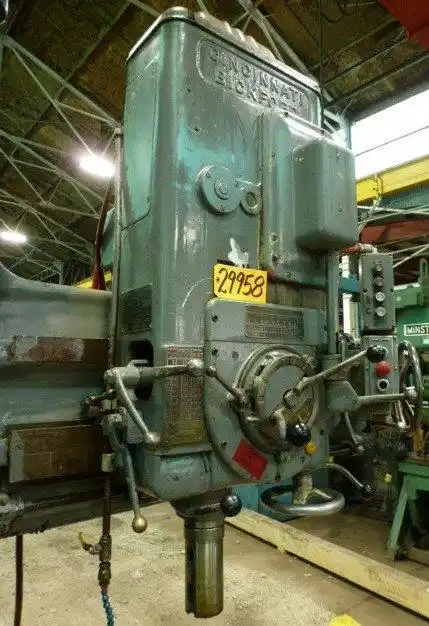

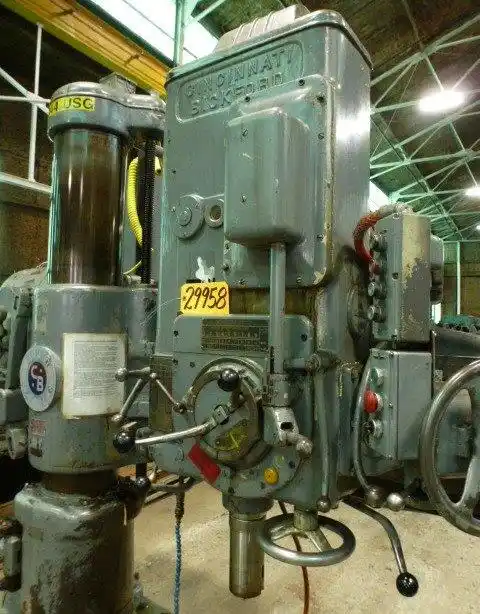

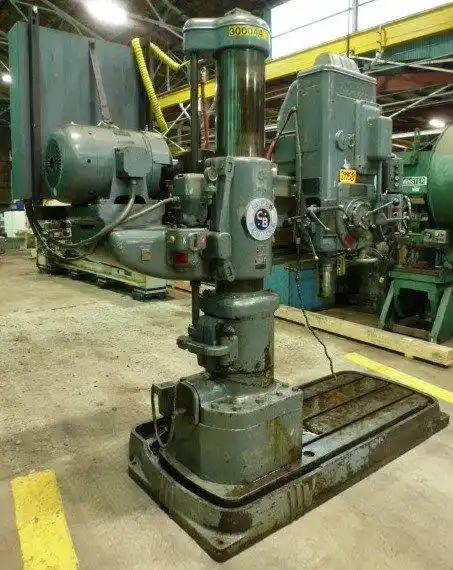

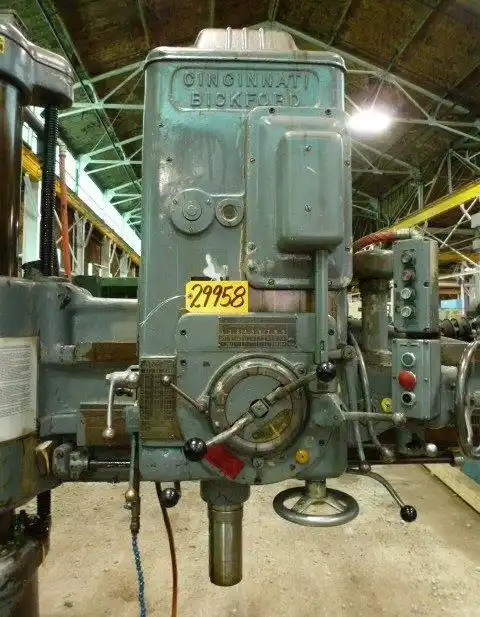

Cincinnati Bickford 2E 4' X 11" Radial Drill
Specifications
- Arm Length: 4'

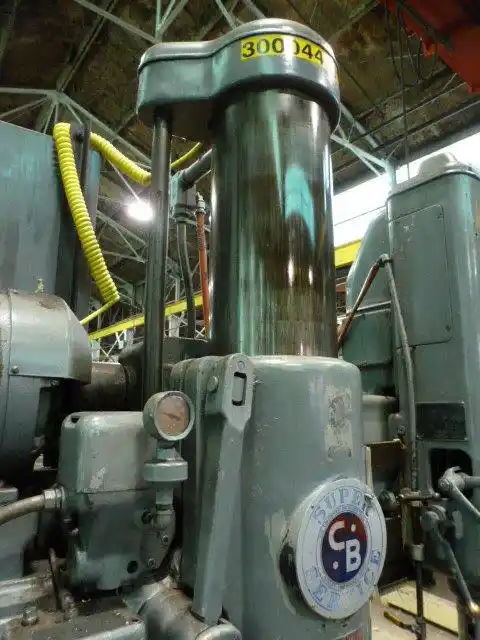

- Column Diameter: 11"
- Working Surface Of Base: 59" x 36"
- Drills In Plane Of Base To Center Of Circle: 8'
- Distance From Center Of Column To Face Of Column: 9-1/8"
- Minimum Distance Face Of Column To Spindle: 12-1/8"
- Horizontal Traverse Of Head On Arm: 33-3/8"
- Vertical Traverse Of Arm On Column: 25"
- Spindle Speeds: 14 - 1500 RPM
- Spindle Feeds: .004 IPR - .125 IPR
- Tap Leads: 8 - 27 TPI
- Spindle Stroke: 16"
- Spindle Taper: #5MT
- Show More
- Show Less
- Arm Length: 1219.20mm
- Column Diameter: 279.40mm
- Working Surface Of Base: 1498.60mm x 914.40mm
- Drills In Plane Of Base To Center Of Circle: 2438.40mm
- Distance From Center Of Column To Face Of Column: 231.78mm
- Minimum Distance Face Of Column To Spindle: 307.98mm
- Horizontal Traverse Of Head On Arm: 847.73mm
- Vertical Traverse Of Arm On Column: 635.00mm
- Spindle Speeds: 14 - 1500 RPM
- Spindle Feeds: .004 IPR - .125 IPR
- Tap Leads: 8 - 27 TPI
- Spindle Stroke: 406.40mm
- Spindle Taper: #5MT
- Show More
- Show Less
Equipped With
- 7.5 HP Motor
- 12" Riser Block
- Power Column Clamping
- Power Elevation
- Coolant
- Show More
- Show Less
- 5.59 kw Motor
- 304.80mm Riser Block
- Power Column Clamping
- Power Elevation
- Coolant
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Cincinnati, oh
- Disclaimer: Preliminary Specifications....
