Inventory # 30364 Year: 1987

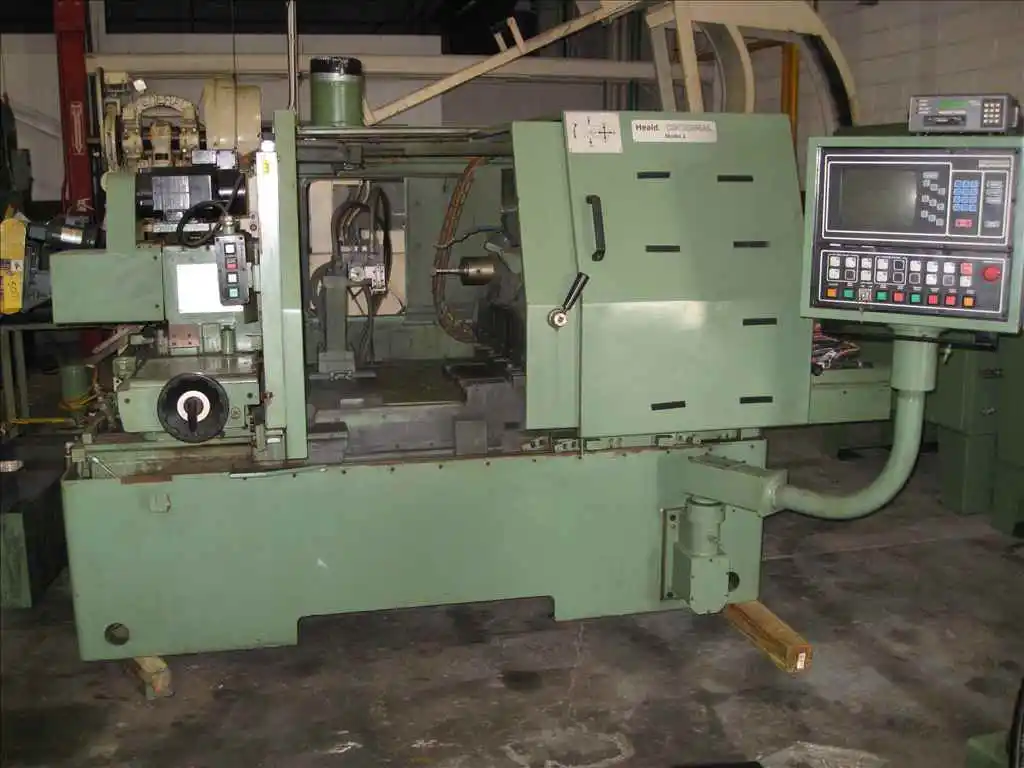

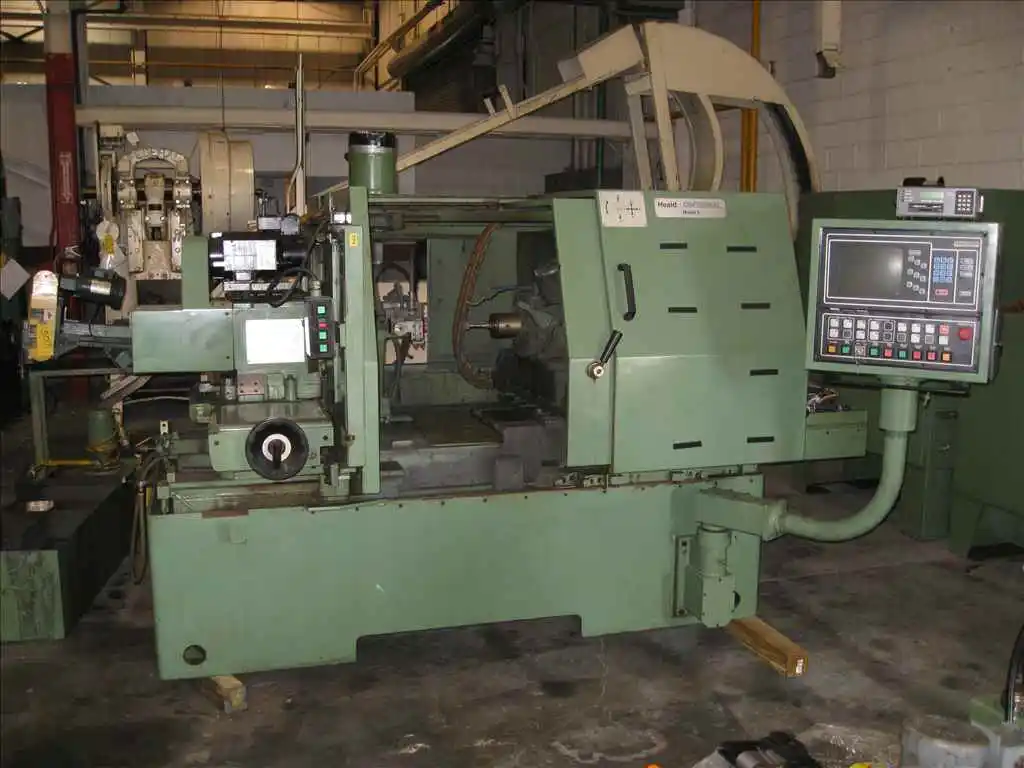

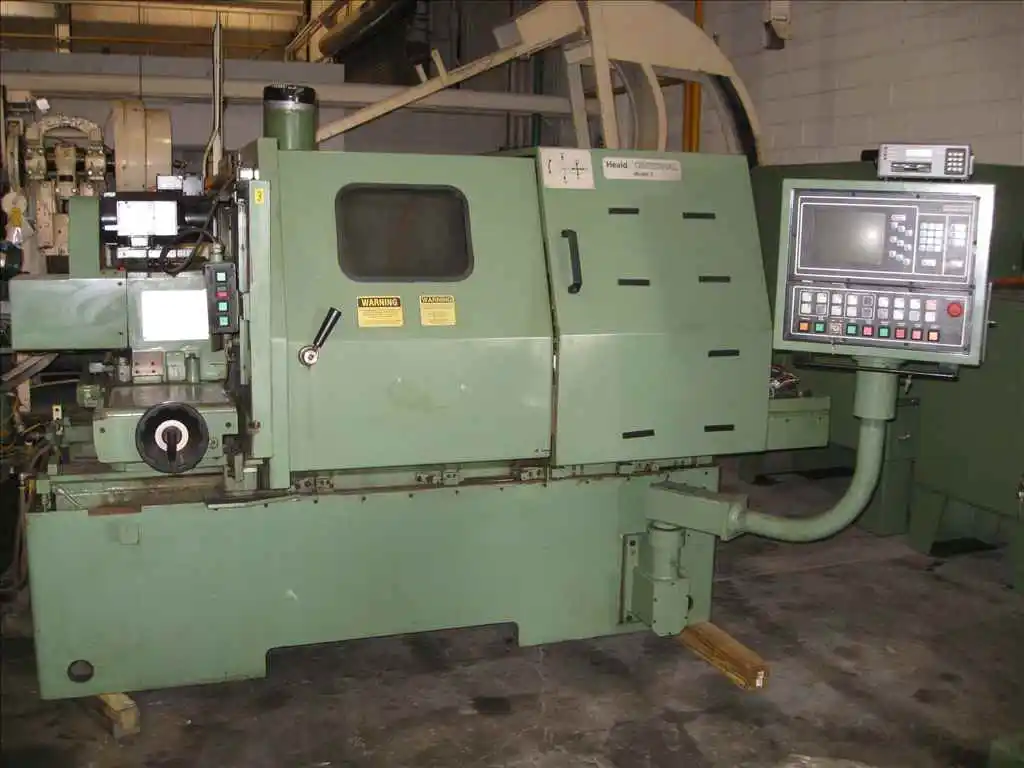

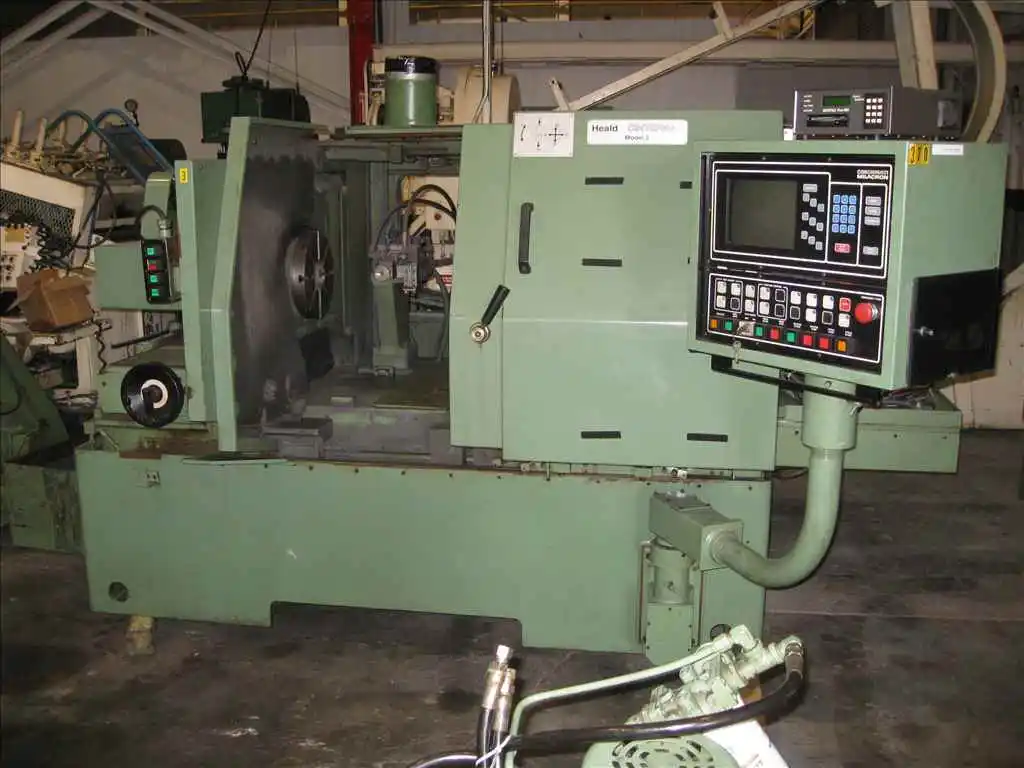

Cincinnati Milacron 2EF-750G CNC Internal Grinder
Specifications
- Work Head Capacity: 1,000 Lbs
- Swing over Table - Maximum: 28"
- Swing with Work Head @ 90°: 17"
- Grinding Stroke - Maximum: 17"
- Table Longitudinal Travel: 20"
- Wheel Head Cross Slide Travel: 9"
- Work Slide Travel: 16"
- Work Head Swivel Angle - Maximum: 0 - 90°
- Work Head Spindle Speeds - Reversible: 30 - 999 RPM
- Feed Rate - Infinite Range: .001 IPM - 999 IPM
- Show More
- Show Less
- Work Head Capacity: 453.50 kg
- Swing over Table - Maximum: 711.20mm
- Swing with Work Head @ 90°: 431.80mm
- Grinding Stroke - Maximum: 431.80mm
- Table Longitudinal Travel: 508.00mm
- Wheel Head Cross Slide Travel: 228.60mm
- Work Slide Travel: 406.40mm
- Work Head Swivel Angle - Maximum: 0 - 90°
- Work Head Spindle Speeds - Reversible: 30 - 999 RPM
- Feed Rate - Infinite Range: 0.0004 mm/sec - 422.91 mm/sec
- Show More
- Show Less
Equipped With

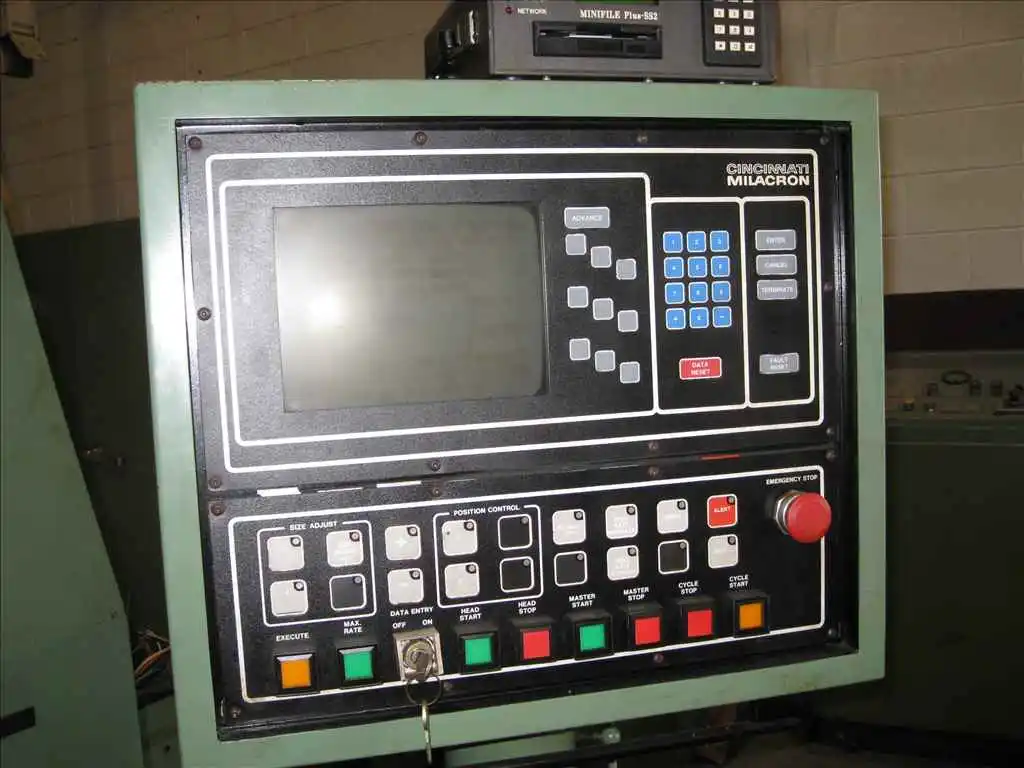

- Acramatic #750G CNC Control
- 10 HP Work Head Spindle Motor
- 4.5 HP Work Head Chuck Motor
- Cross Sliding Work Head
- 0-45° Sine Bar
- 2" Riser on Work Head

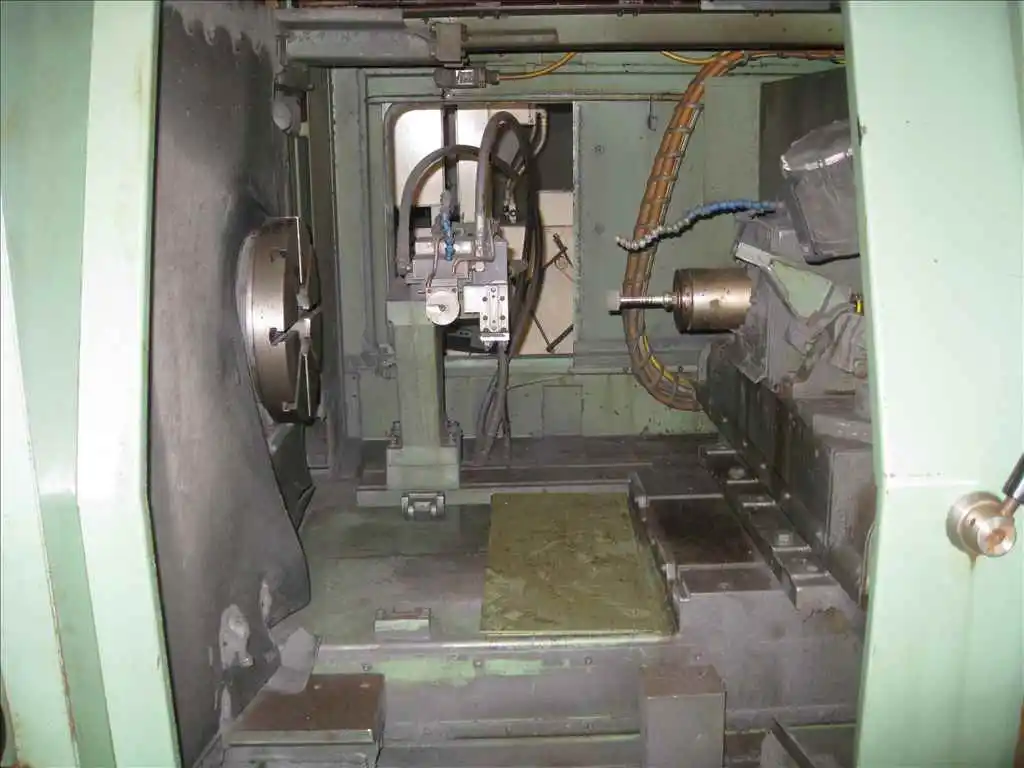

- Hydraulic Rotary Diamond Dresser
- 12" Extended Base

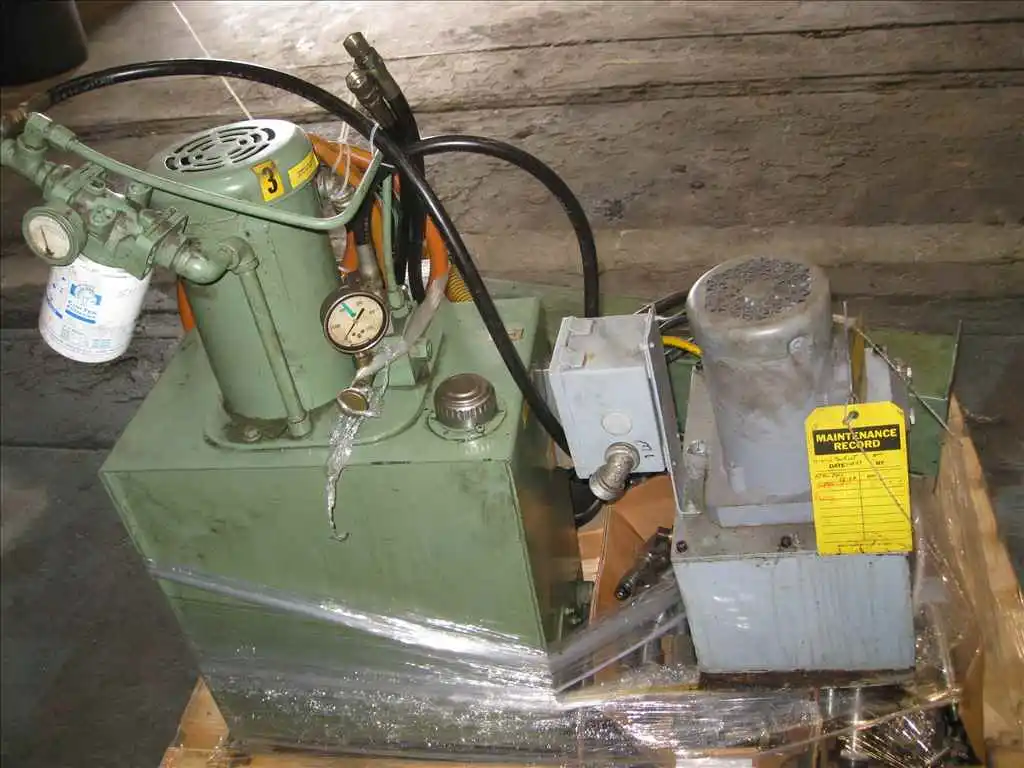

- Coolant Tank & Pump

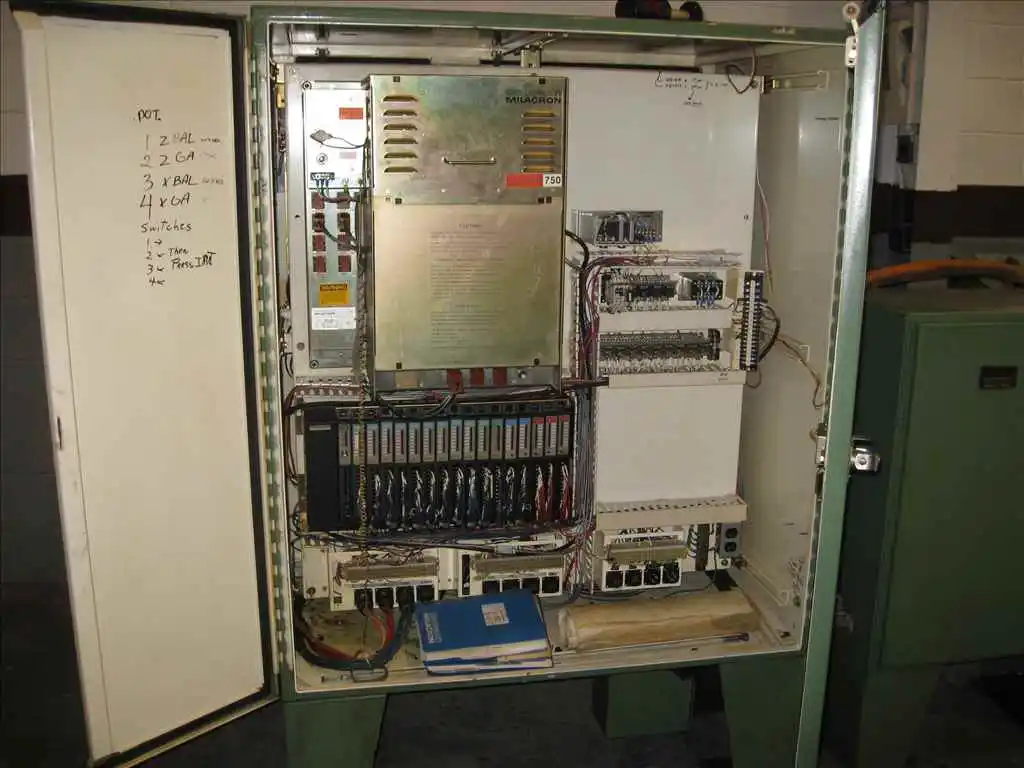

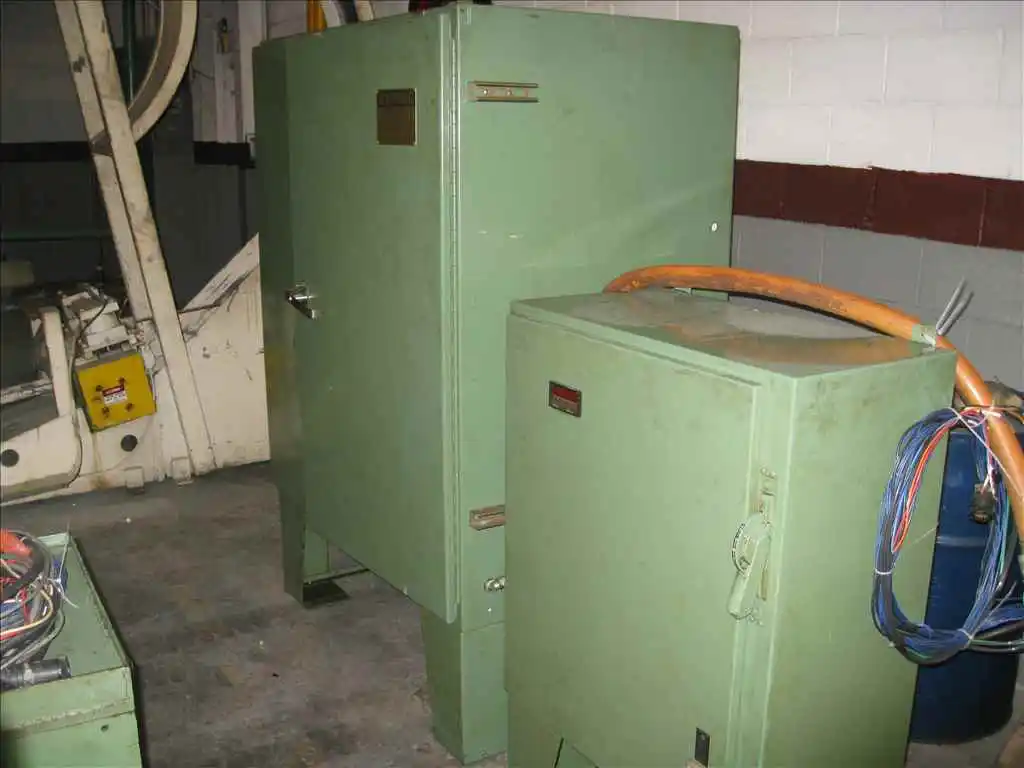

- Stand Alone Electrical Panel

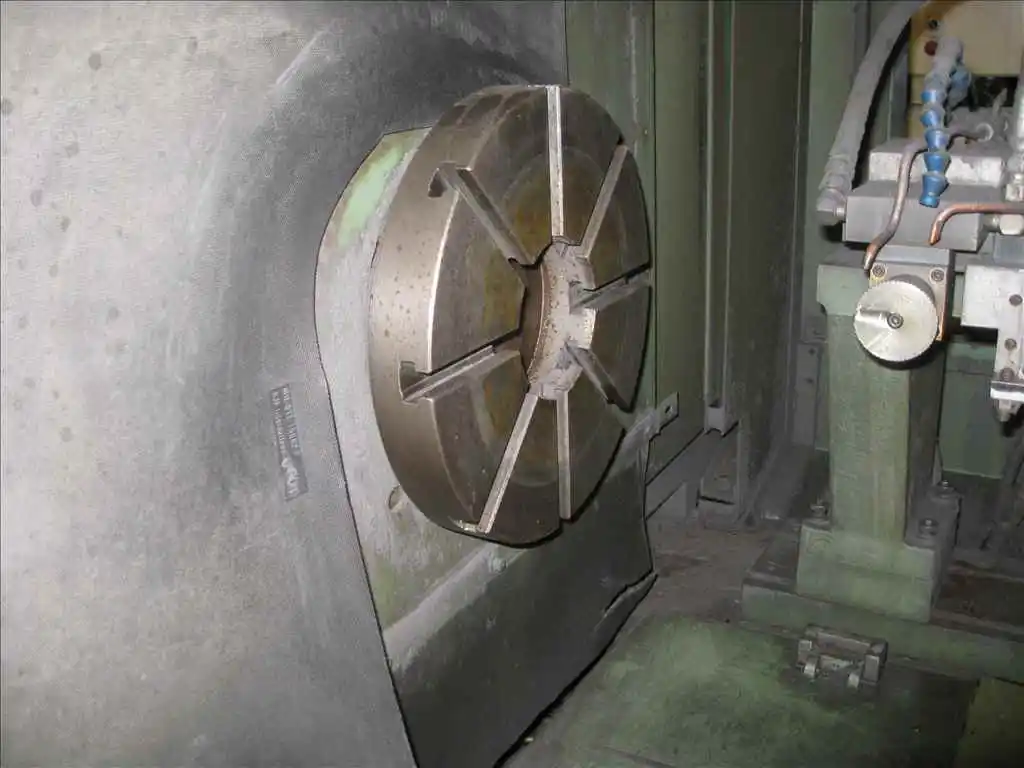

- Flange Style Work Head
- Full Guarding
- Show More
- Show Less
- Acramatic #750G CNC Control
- 7.46 kw Work Head Spindle Motor
- 3.36 kw Work Head Chuck Motor
- Cross Sliding Work Head
- 0-45° Sine Bar
- 50.80mm Riser on Work Head
- Hydraulic Rotary Diamond Dresser
- 304.80mm Extended Base
- Coolant Tank & Pump
- Stand Alone Electrical Panel
- Flange Style Work Head
- Full Guarding
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Location: Detroit, MI
- Disclaimer: Preliminary Specifications....
