Inventory # 45181

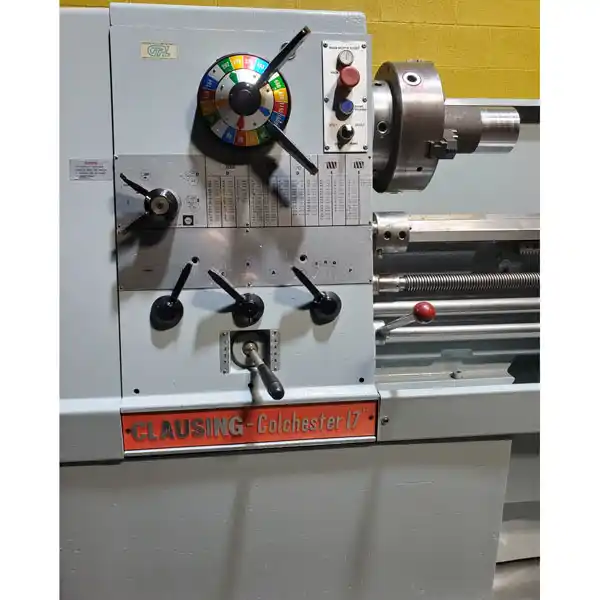

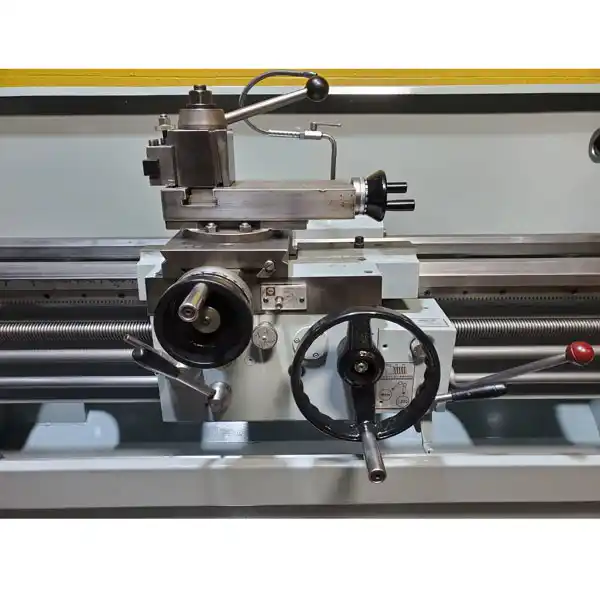

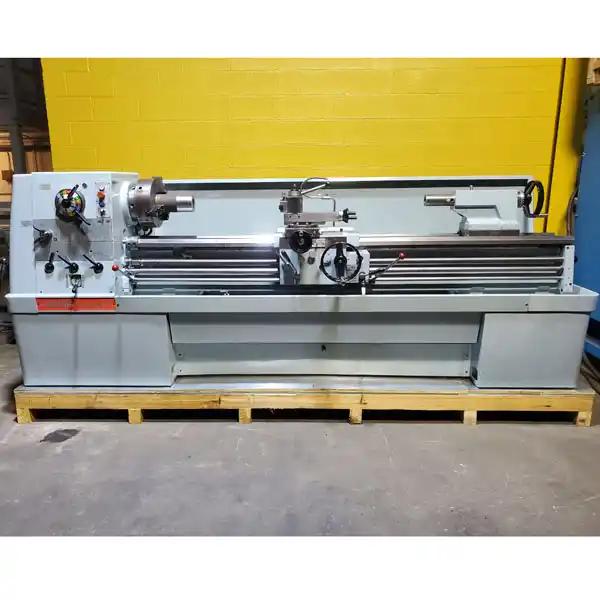

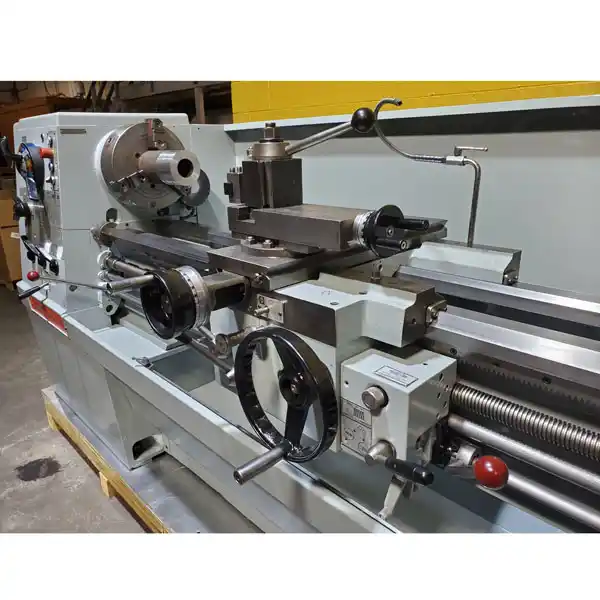

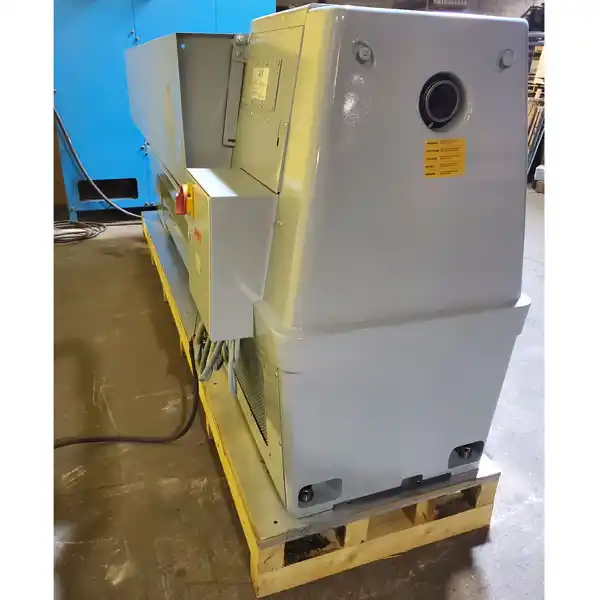

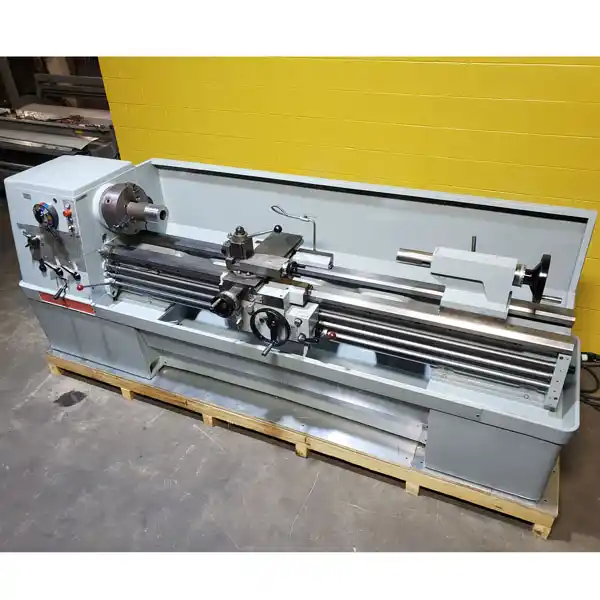

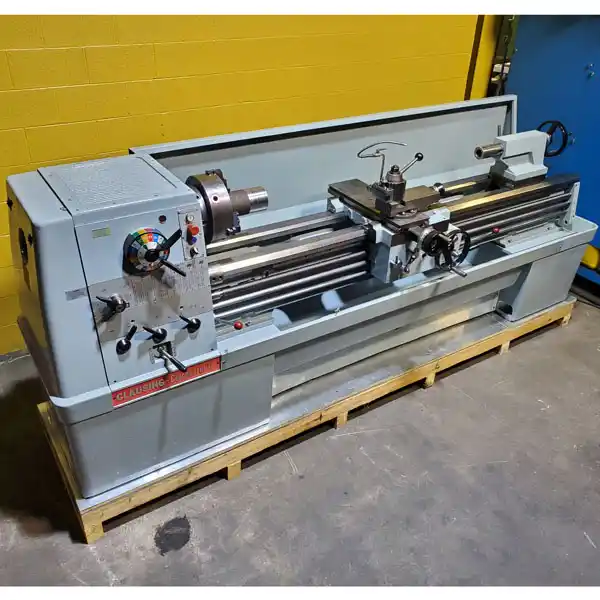

Clausing Colchester 17" x 80" Engine Lathe
Specifications
- Swing Over Bed: 17"
- Swing Over Gap Removed: 28"
- Swing Over Cross Slide: 10.5"
- Bar Capacity Thru Spindle: 3"
- Distance Between Centers: 80"
- Chuck: 3-Jaw 12"
- Spindle Nose: 9" D-1
- Spindle Center: 5 MT

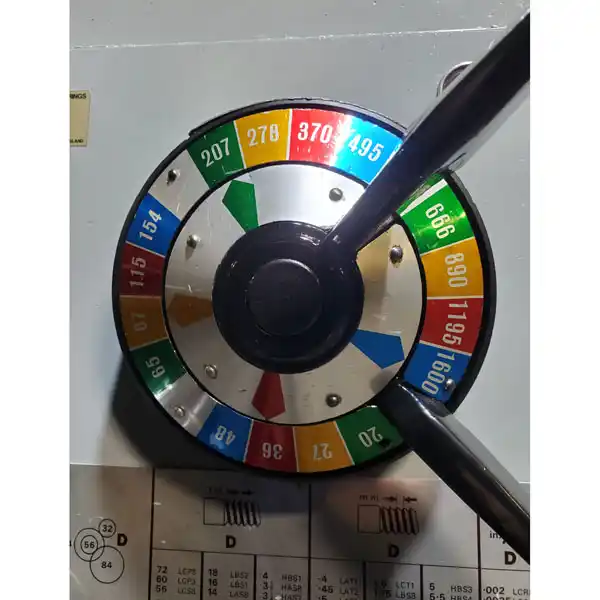

- Speeds: (16) 20 - 1600 RPM
- Threads: (38) 2 - 72
- Cross Slide Travel: 11"
- Compound Rest Travel: 6-5/8"
- Tailstock Spindle Diameter: 2-15/16"
- Tailstock Center: 5 MT
- Tailstock Spindle Travel: 6"
- Motor: 10 hp
- Show More
- Show Less
- Swing Over Bed: 431.80mm
- Swing Over Gap Removed: 711.20mm
- Swing Over Cross Slide: 266.70mm
- Bar Capacity Thru Spindle: 76.20mm
- Distance Between Centers: 2032.00mm
- Chuck: 3-Jaw 304.80mm
- Spindle Nose: 228.60mm D-1
- Spindle Center: 5 MT
- Speeds: (16) 20 - 1600 RPM
- Threads: (38) 2 - 72
- Cross Slide Travel: 279.40mm
- Compound Rest Travel: 168.28mm
- Tailstock Spindle Diameter: 74.61mm
- Tailstock Center: 5 MT
- Tailstock Spindle Travel: 152.40mm
- Motor: 7.46 kw
- Show More
- Show Less
Equipped With
- Cooling Pump Motor
- Hi-Speed Threading Attachment
- Cooling Pump Motor
- Hi-Speed Threading Attachment
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
