Inventory # 45118

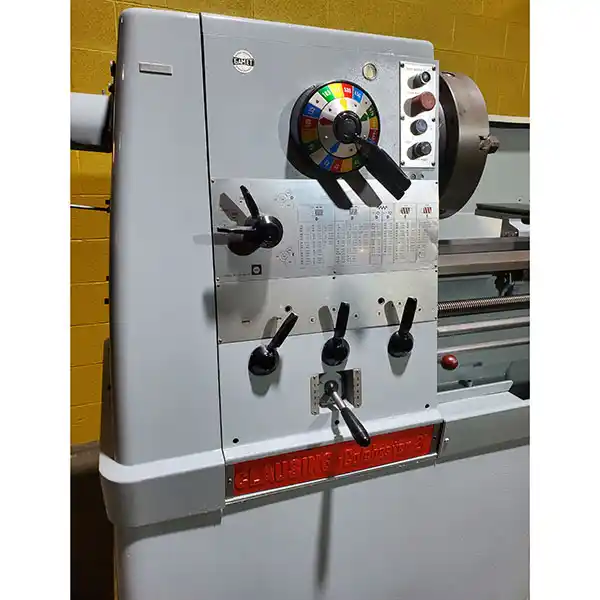

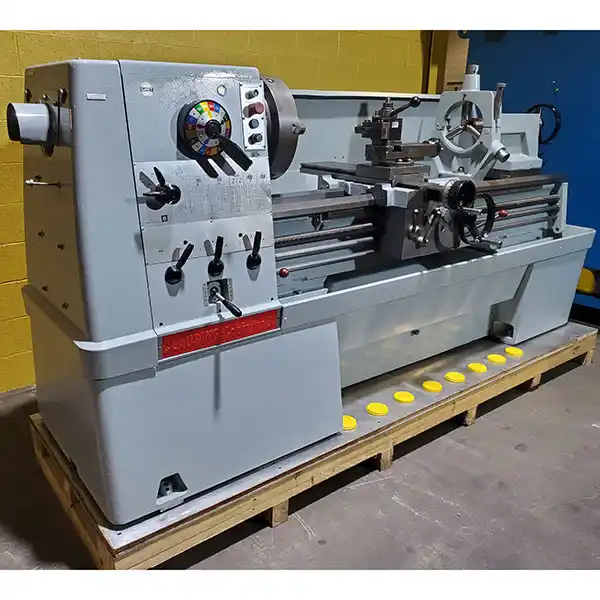

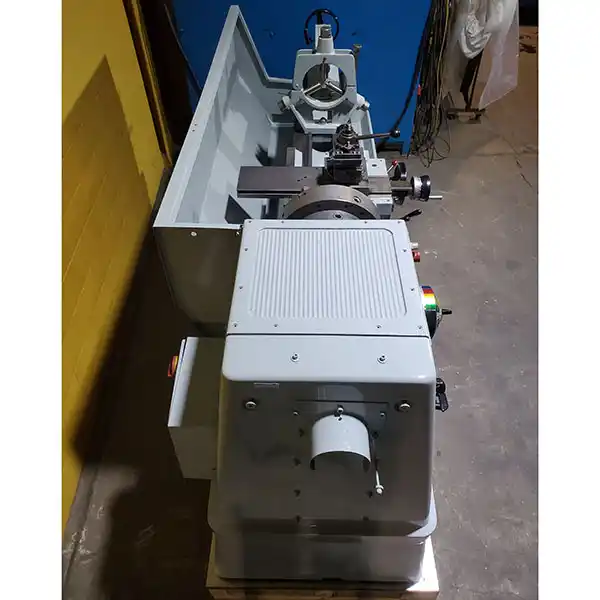

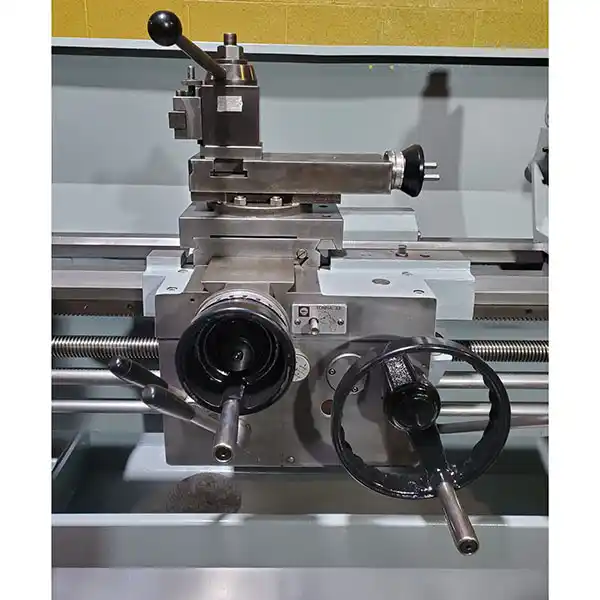

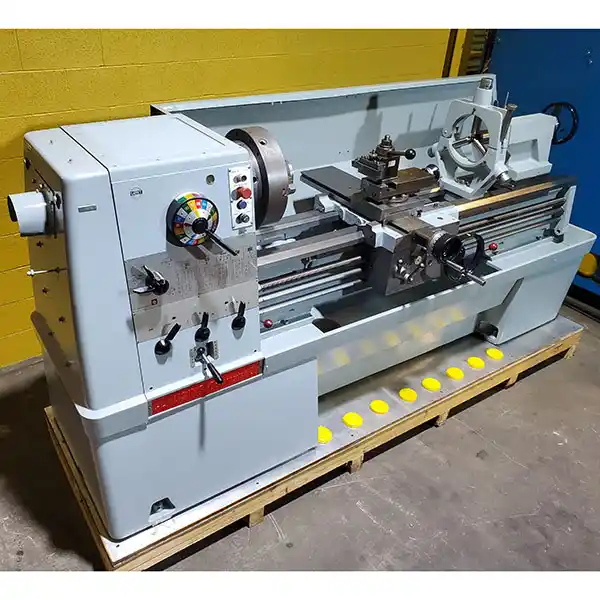

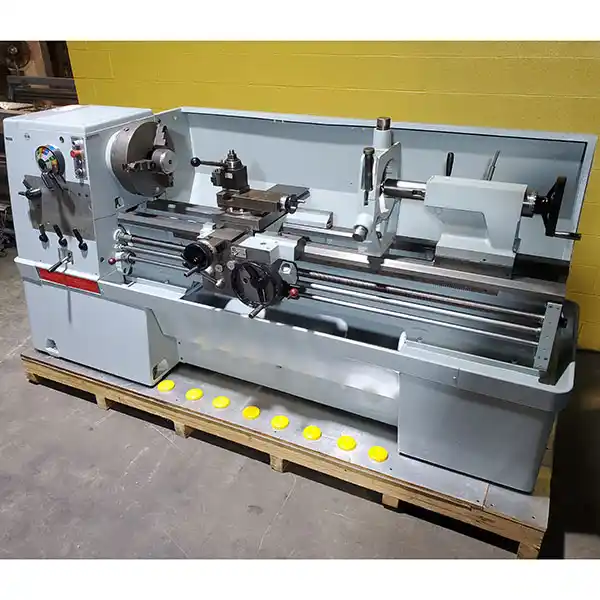

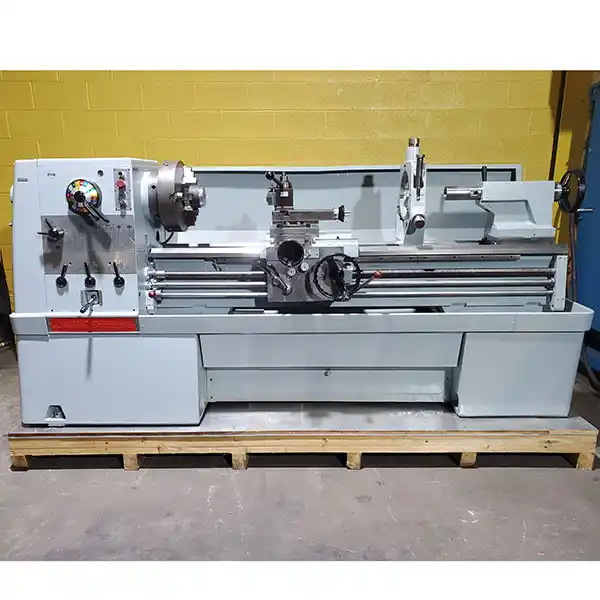

Clausing Colchester 21" x 60" Engine Lathe
Specifications
- Swing Over Bed: 21"
- Swing Over Gap Removed: 28"
- Swing Over Cross Slide: 14.5"
- Bar Capacity Thru Spindle: 3.5"
- Distance Between Centers: 60"
- Chuck: 3-Jaw 15"
- Spindle Nose: 11" D-1 CAMLOCK
- Spindle Center: 5 MT
- Speeds: (16) 18 - 1400 RPM
- Threads: (38) 2 - 72
- Leadscrew Diameter: 1.5" - 4 ACME
- Feed Rod Diameter: 1-1/8"
- Cross Slide Travel: 11"
- Compound Rest Travel: 6"
- Tailstock Spindle Diameter: 2-15/16"
- Tailstock Center: 5 MT
- Tailstock Spindle Travel: 5"
- Motor: 12.5 hp
- Show More
- Show Less
- Swing Over Bed: 533.40mm
- Swing Over Gap Removed: 711.20mm
- Swing Over Cross Slide: 368.30mm
- Bar Capacity Thru Spindle: 88.90mm
- Distance Between Centers: 1524.00mm
- Chuck: 3-Jaw 381.00mm
- Spindle Nose: 279.40mm D-1 CAMLOCK
- Spindle Center: 5 MT
- Speeds: (16) 18 - 1400 RPM
- Threads: (38) 2 - 72
- Leadscrew Diameter: 38.10mm - 4 ACME
- Feed Rod Diameter: 28.58mm
- Cross Slide Travel: 279.40mm
- Compound Rest Travel: 152.40mm
- Tailstock Spindle Diameter: 74.61mm
- Tailstock Center: 5 MT
- Tailstock Spindle Travel: 127.00mm
- Motor: 9.32 kw
- Show More
- Show Less
Equipped With
- 8" Compound Rest
- 3 Phase Coolant Pump
- Electric Control 120 VAC
- 203.20mm Compound Rest
- 3 Phase Coolant Pump
- Electric Control 120 VAC
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
