Inventory # 45295 Year: 1998

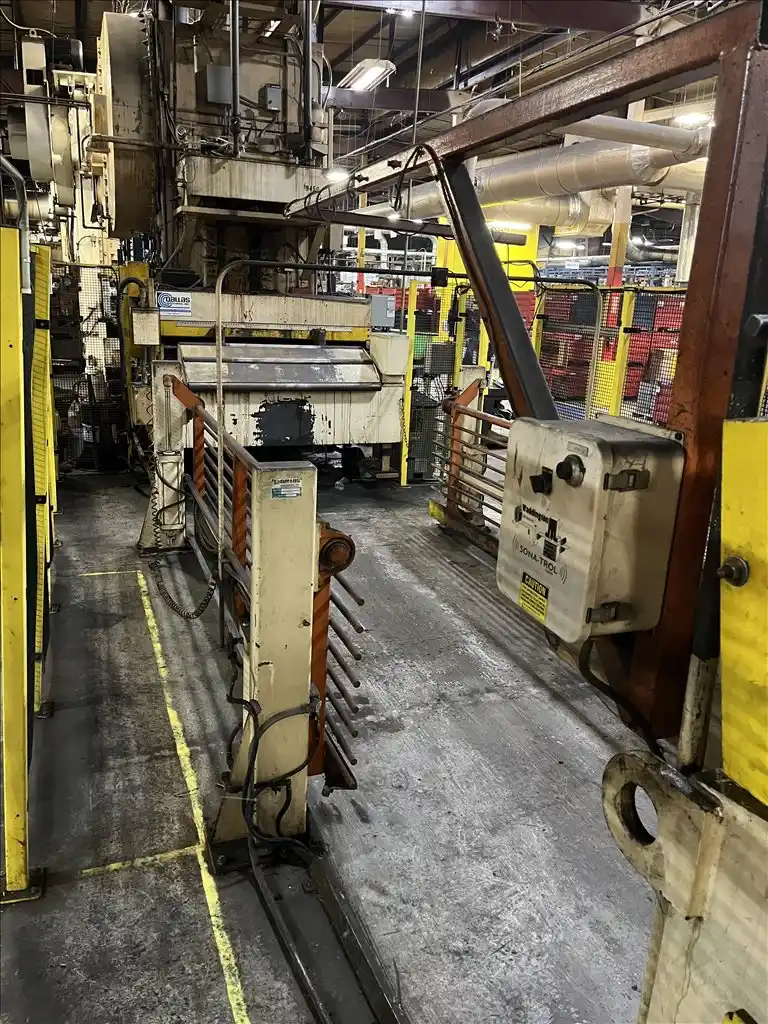

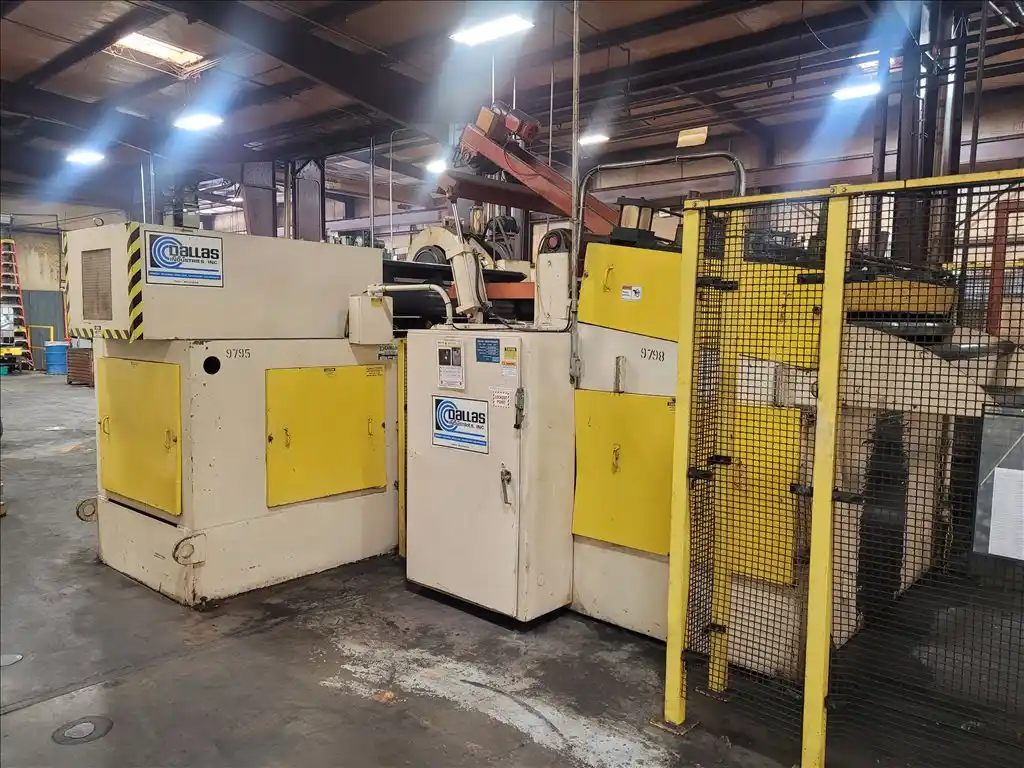

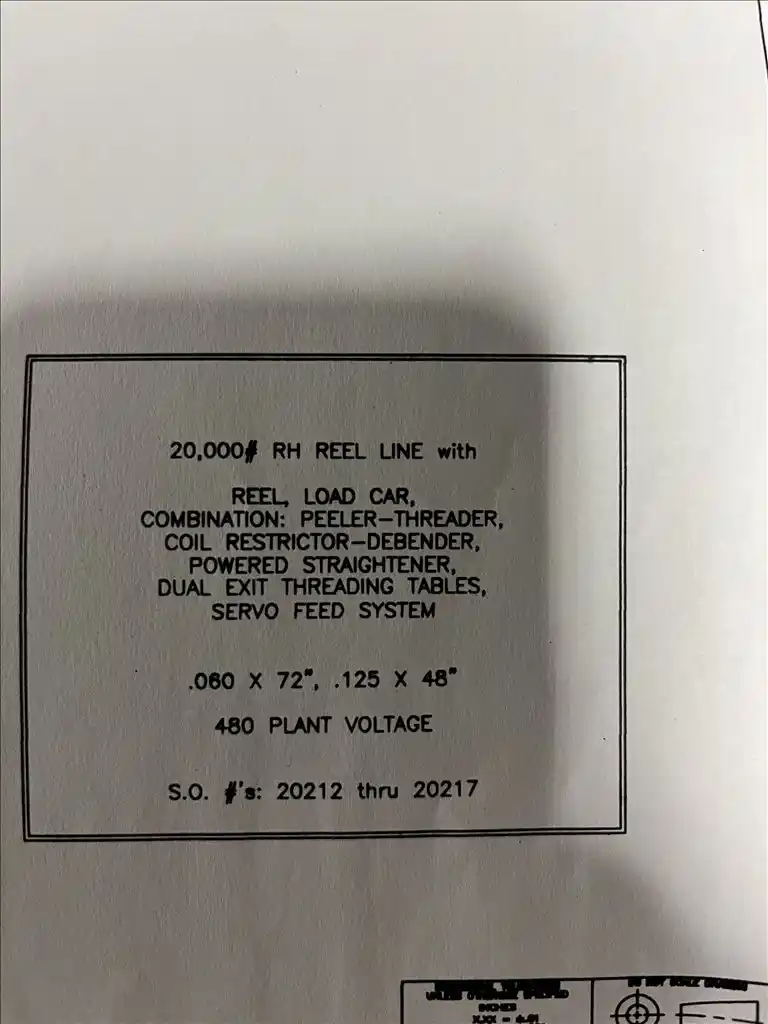

Dallas 20,000 LB. X 72" X .060" Servo Coil Feed Line
Specifications

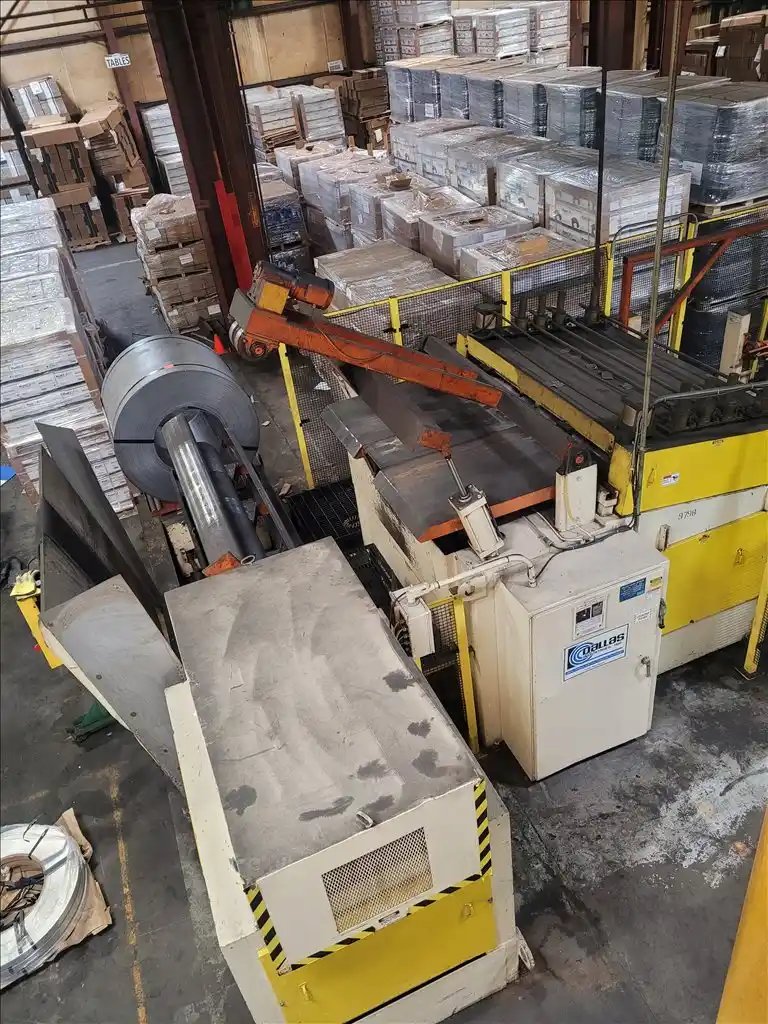

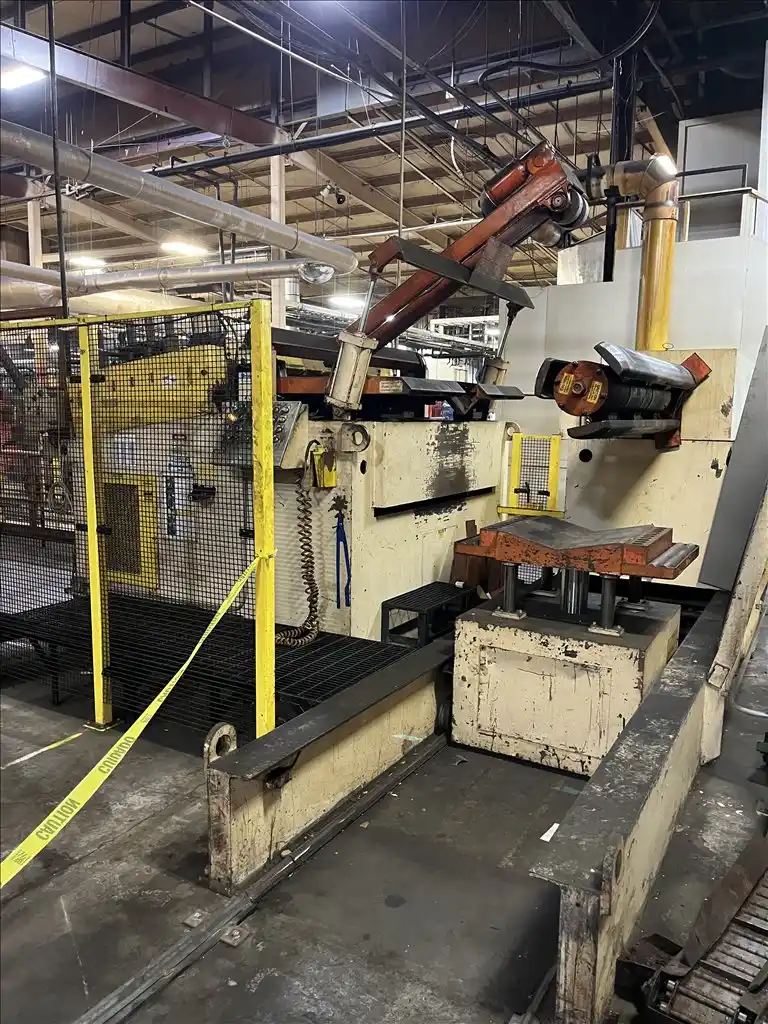

- 20,000 lbs DALLAS DJR-20,000#x72 Coil Reel, s/n 20212
- 72" Wide, 20"-24" I.D. / 72" Max O.D.
- Powered Jog Forward and Reverse
- 6 Keepers
- 20,000 lbs DALLAS LC-20,000#x72 Coil Lift, s/n 20213
- 42" Min O.D. / 72" Max O.D.
- 18" Lift Height

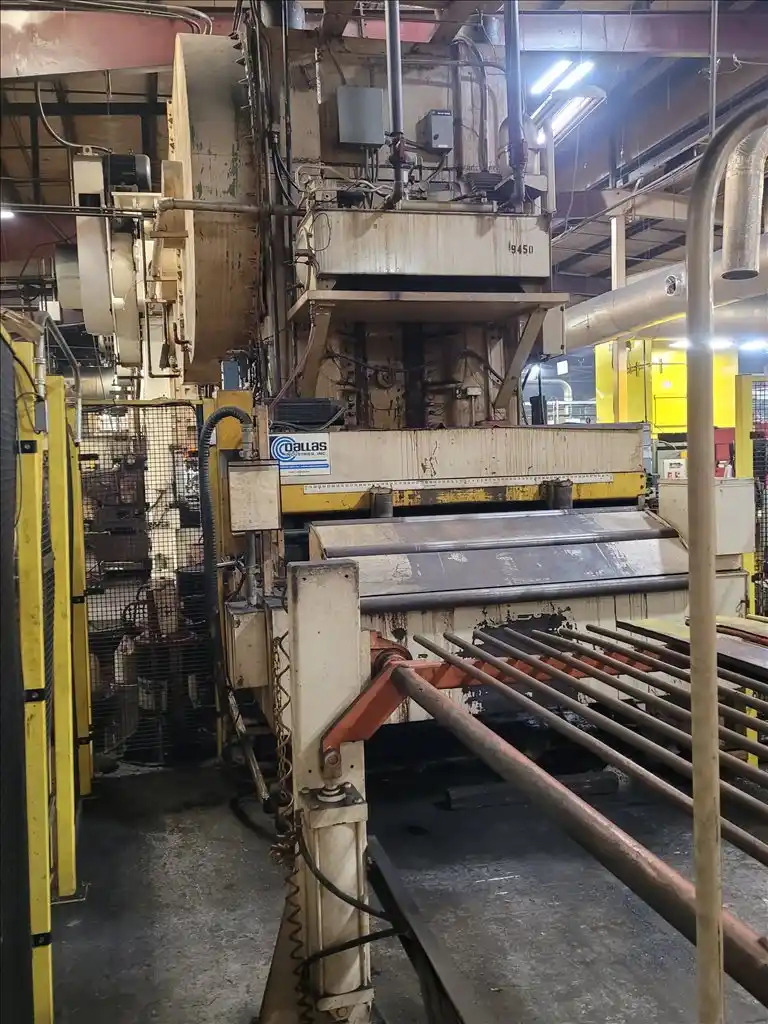

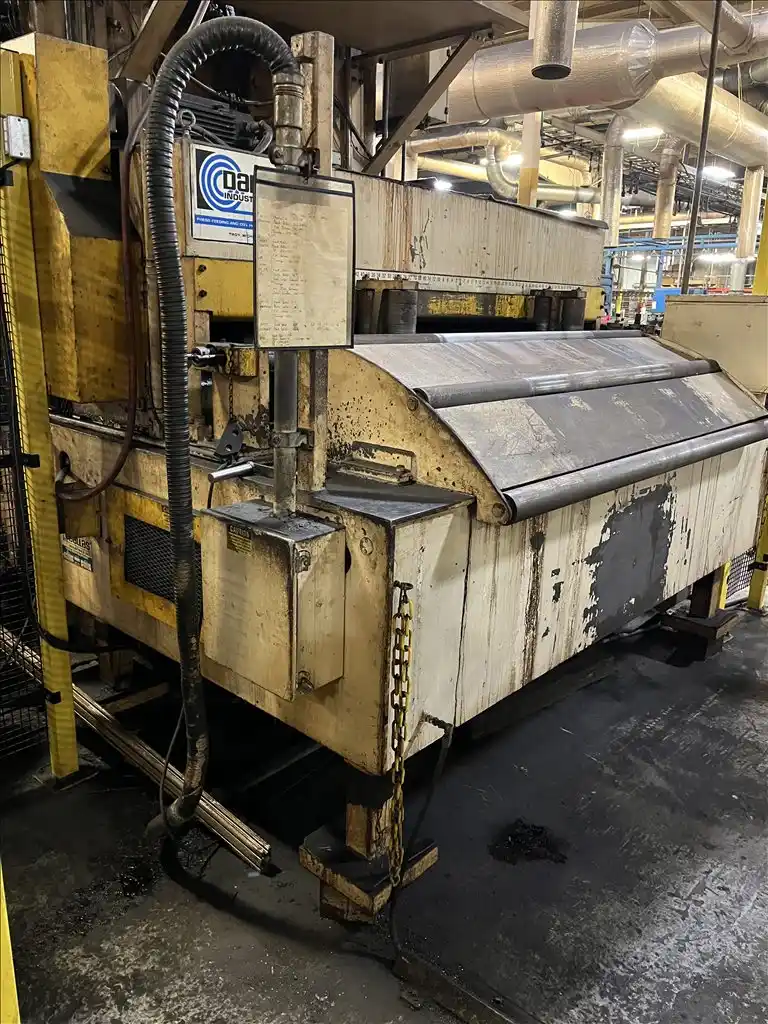

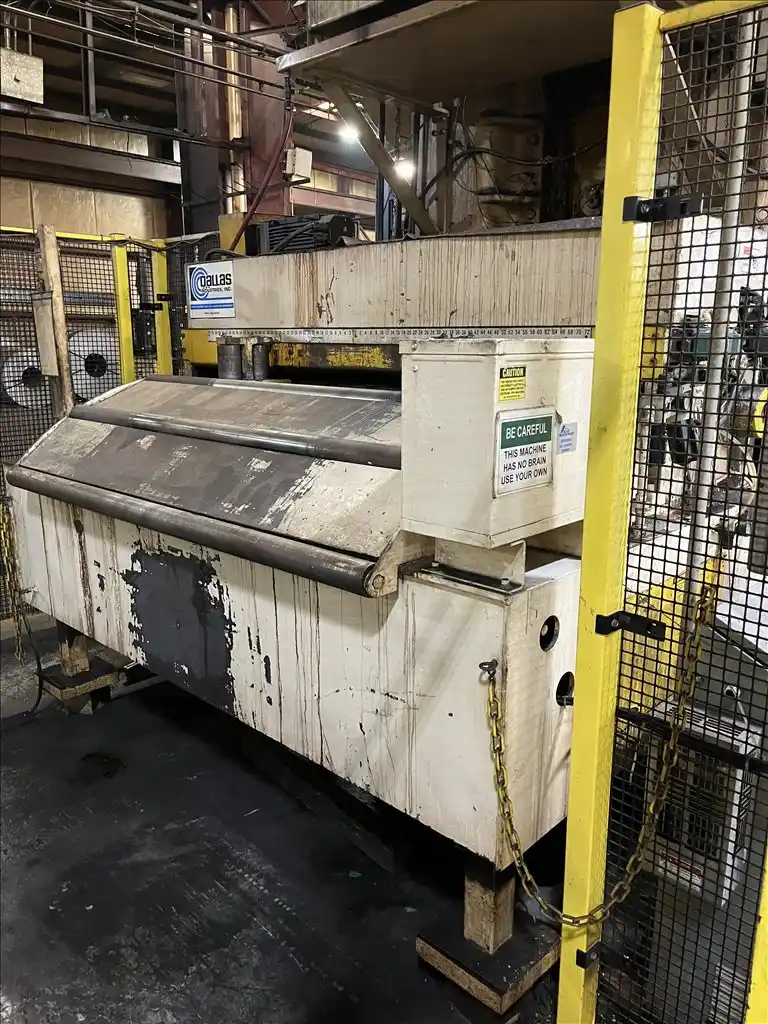

- DALLAS DPS-4 1/4-7-72 Powered Straightener, s/n 20215
- 72" x .060" Mild Steel, 48" x .125" Mild Steel Capacity
- 7 Straightening Rolls, 4-1/4" Diameter Rolls
- Entry and Exit Pinch Rolls
- Coil Restrictor-Debender, Peeler-Threader

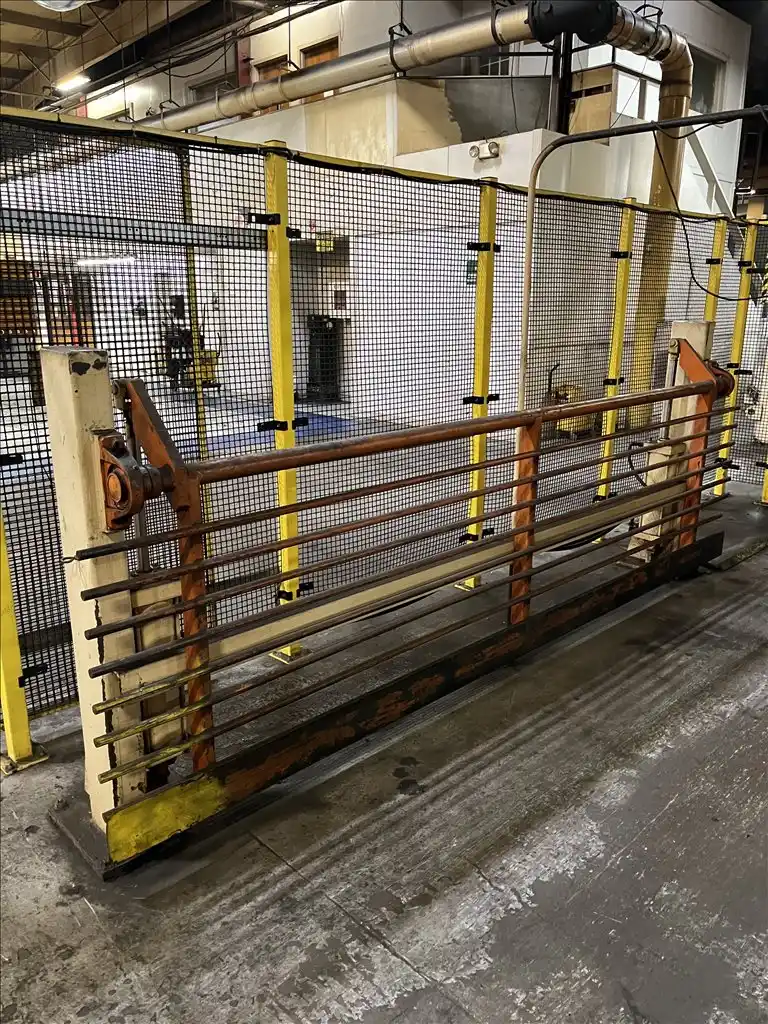

- Dual Exit Threading Tables

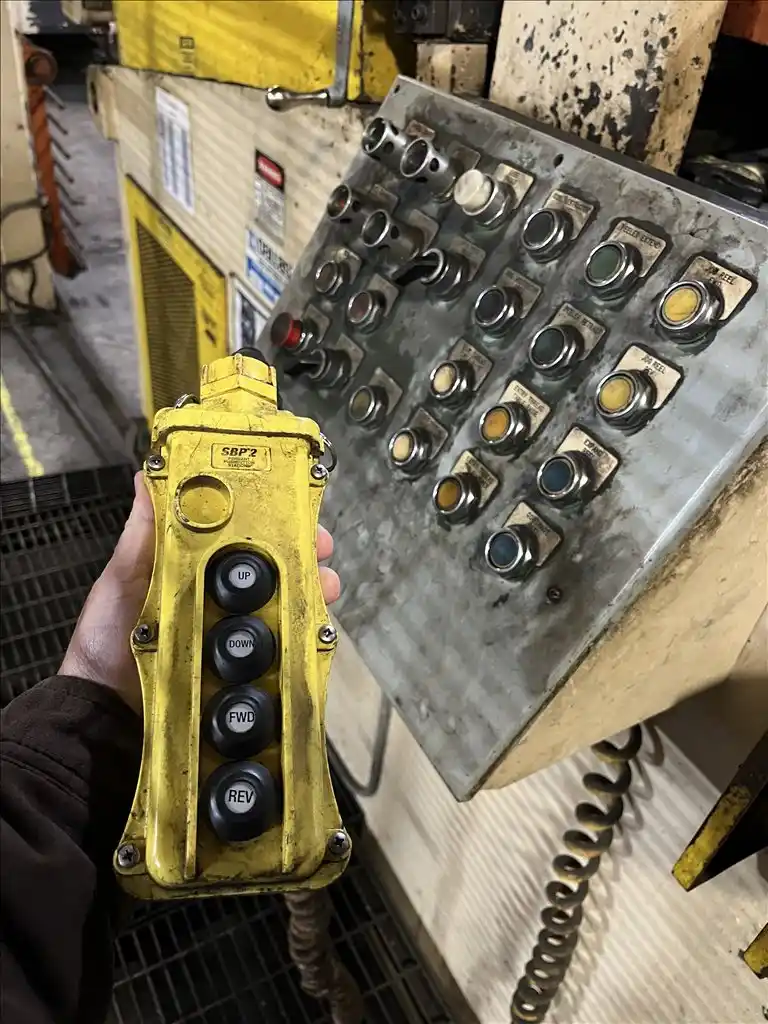

- Hand Held Pendant
- Sona-Trol Loop Eye

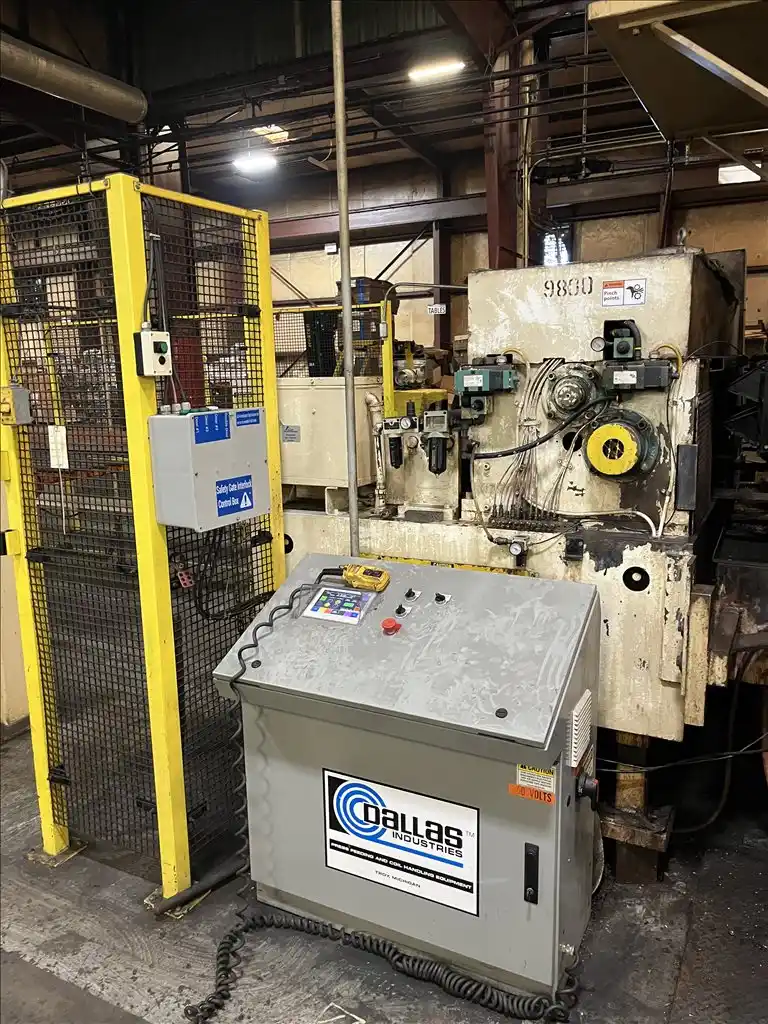

- DALLAS DRF-672 Servo Feed, s/n 20217
- 72" x .060" Mild Steel, 48" x .125" Mild Steel Capacity
- 6" Diameter Feed Rolls

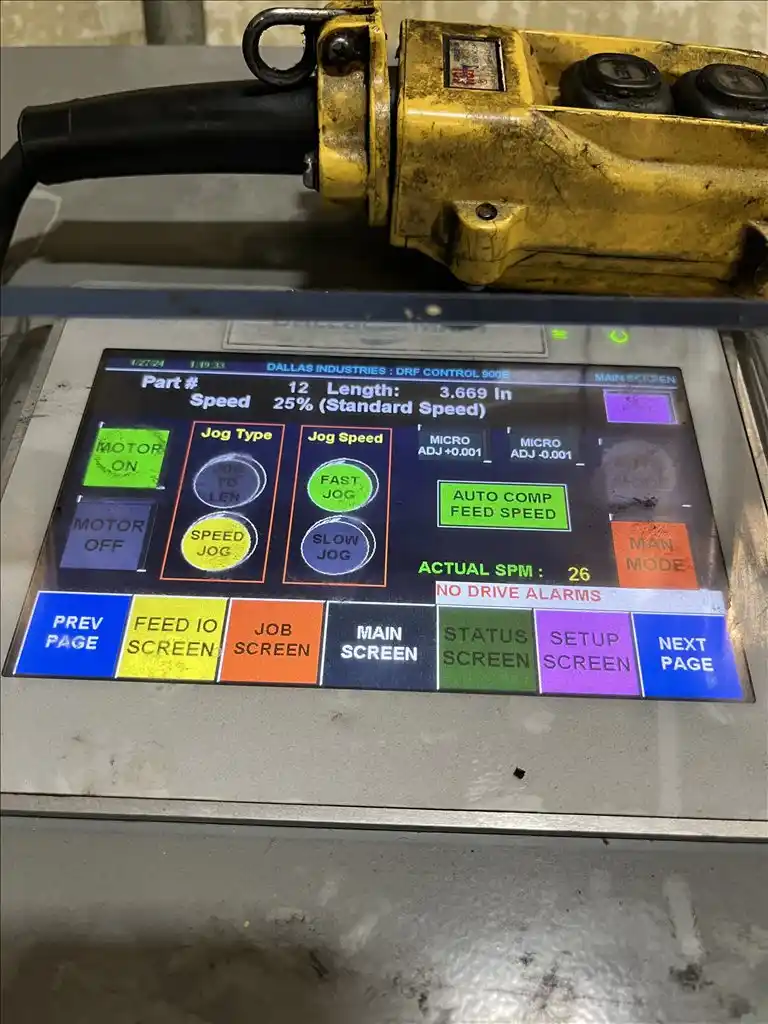

- Control Updated in 2015 DRF Control 900E
- Hand Held Pendant
- Adjustable Cabinet Base
- 480V/3ph/60Hz
- Right to Left Direction
- Show More
- Show Less
- 9070.00 kg DALLAS DJR-20,000#x72 Coil Reel, s/n 20212
- 1828.80mm Wide, 508.00mm - 609.60mm I.D. / 1828.80mm Max O.D.
- Powered Jog Forward and Reverse
- 6 Keepers
- 9070.00 kg DALLAS LC-20,000#x72 Coil Lift, s/n 20213
- 1066.80mm Min O.D. / 1828.80mm Max O.D.
- 457.20mm Lift Height
- DALLAS DPS-4 1/4-7-72 Powered Straightener, s/n 20215
- 1828.80mm x 1.52mm Mild Steel, 1219.20mm x 3.18mm Mild Steel Capacity
- 7 Straightening Rolls, 107.95mm Diameter Rolls
- Entry and Exit Pinch Rolls
- Coil Restrictor-Debender, Peeler-Threader
- Dual Exit Threading Tables
- Hand Held Pendant
- Sona-Trol Loop Eye
- DALLAS DRF-672 Servo Feed, s/n 20217
- 1828.80mm x 1.52mm Mild Steel, 1219.20mm x 3.18mm Mild Steel Capacity
- 152.40mm Diameter Feed Rolls
- Control Updated in 2015 DRF Control 900E
- Hand Held Pendant
- Adjustable Cabinet Base
- 480V/3ph/60Hz
- Right to Left Direction
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
