Inventory # 49000 Year: 2022

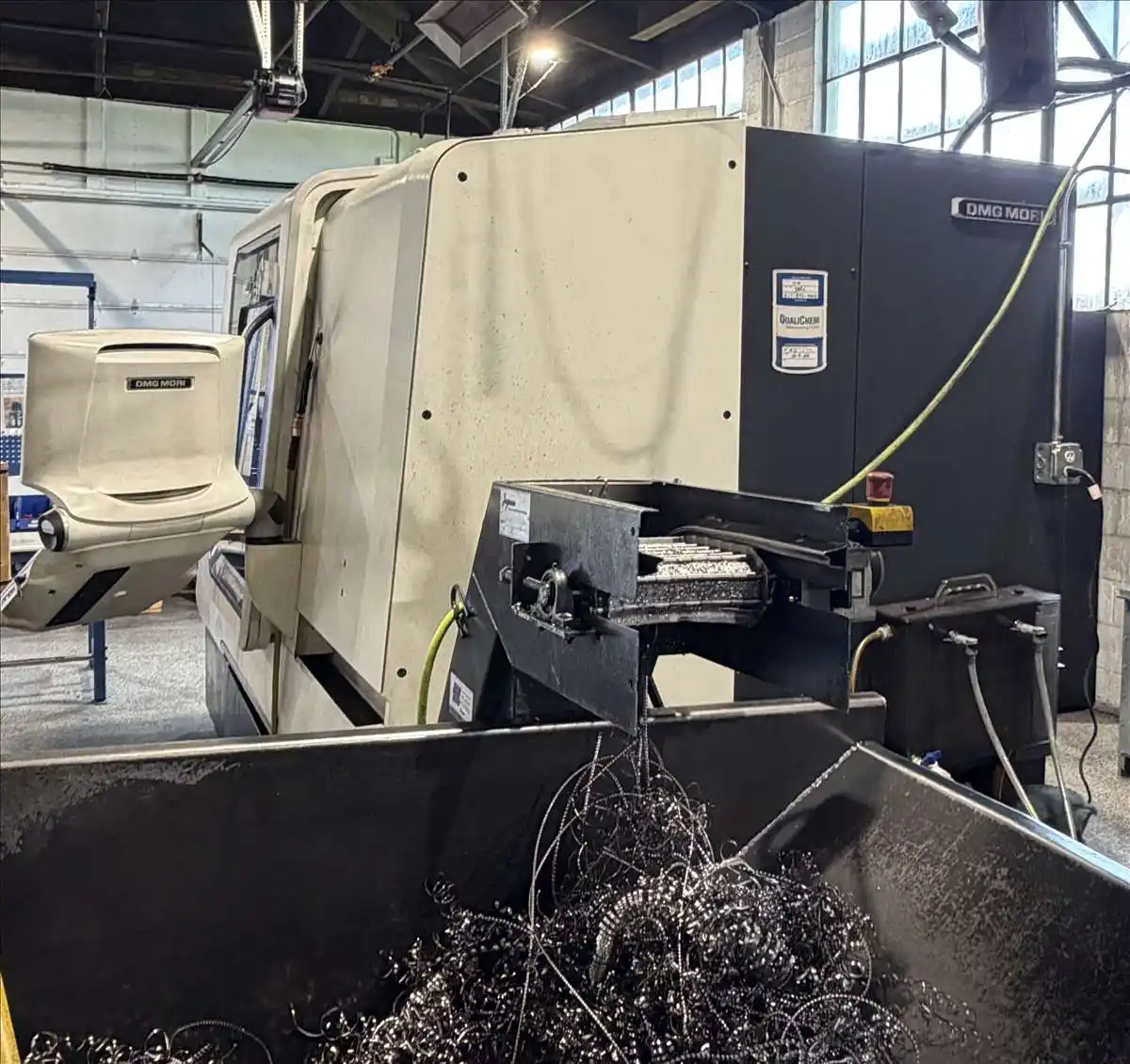

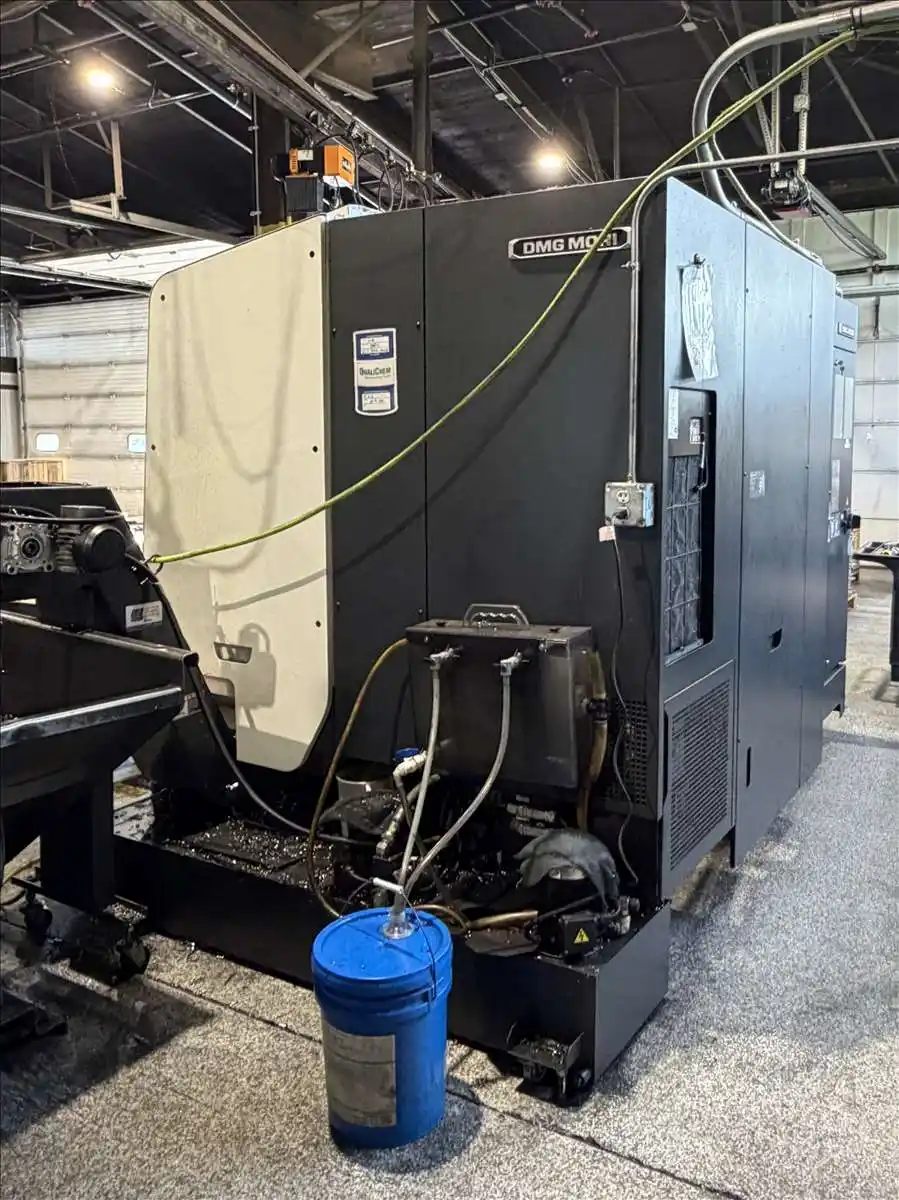

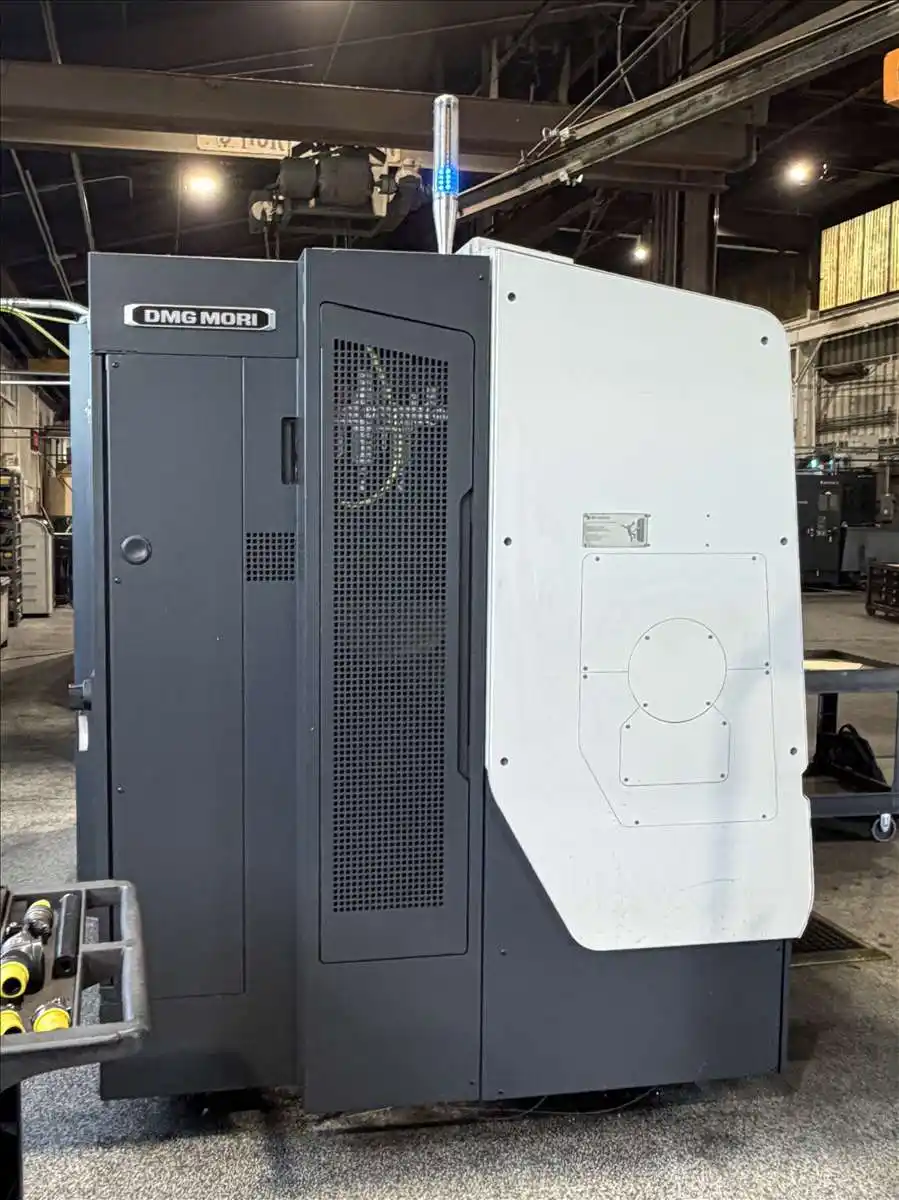

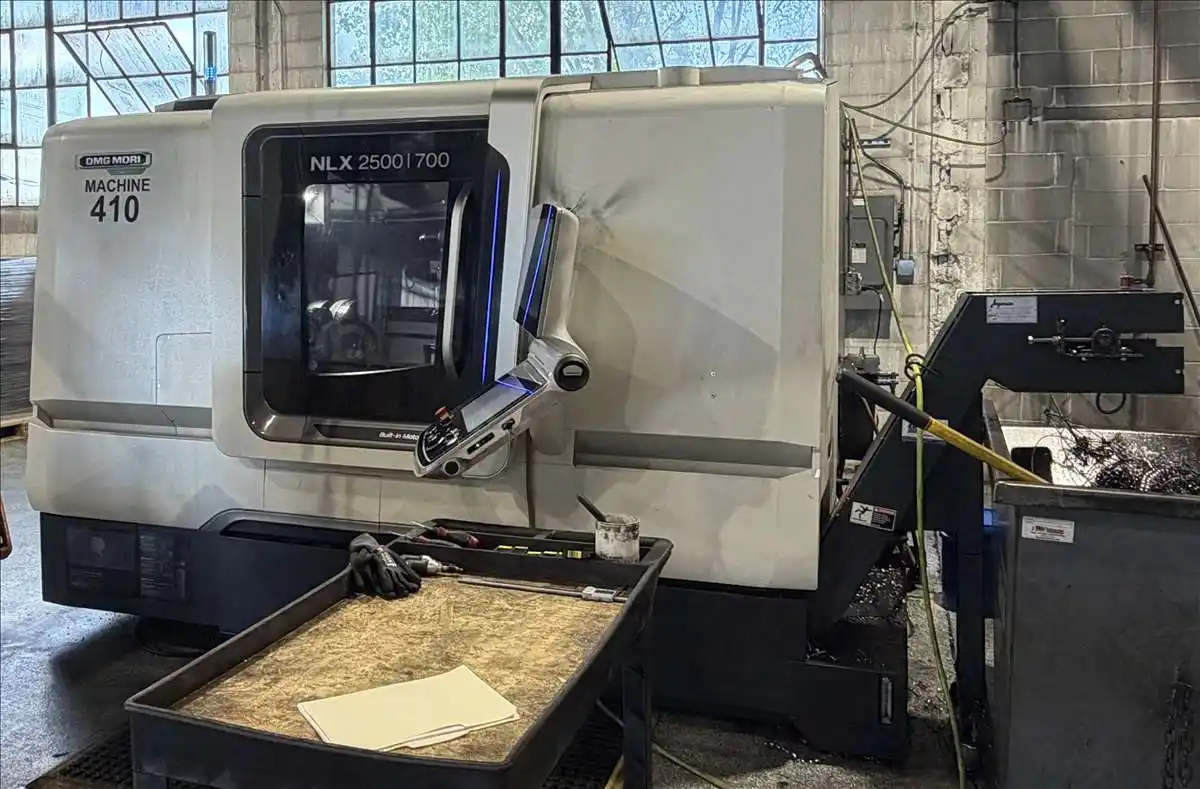

DMG Mori NLX2500Y/700 CNC Turning Center w/ Live Milling
Specifications
- Swing Over Bed: 36.2"
- Swing Over Cross Slide: 29.2"
- Max. Turning Length: 27.8"
- Max. Turning Diameter: 18.1"
- Max. Bar Diameter: 3.5"
- X-Axis Travel: 10.2"
- Y-Axis Travel: +/- 1.9"
- Z-Axis Travel: 31.2"
- Max. Spindle Speed: 4,000 RPM
- Spindle Nose: JIS A2-8
- Max. Rotary Tool Spindle Speed: 10,000 RPM

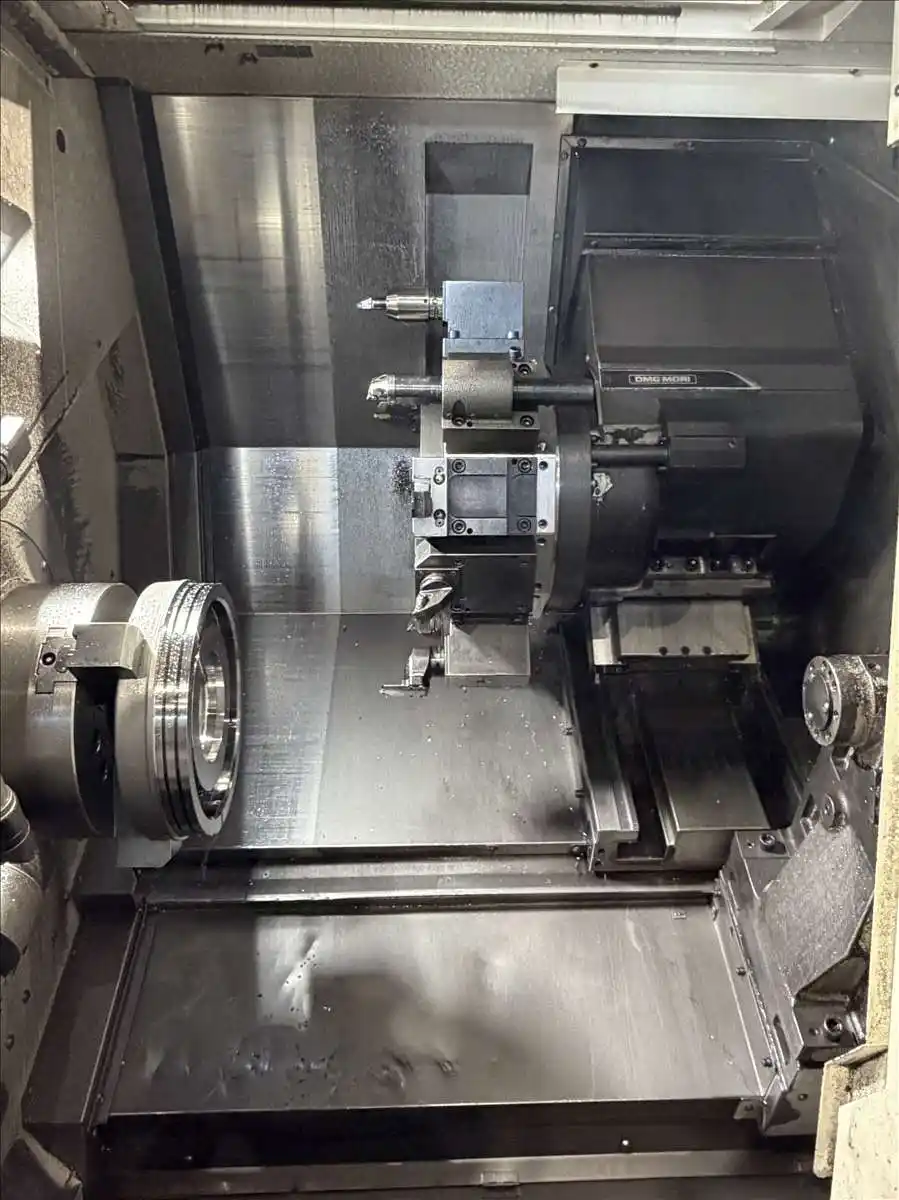

- Number of Turret Stations: 12

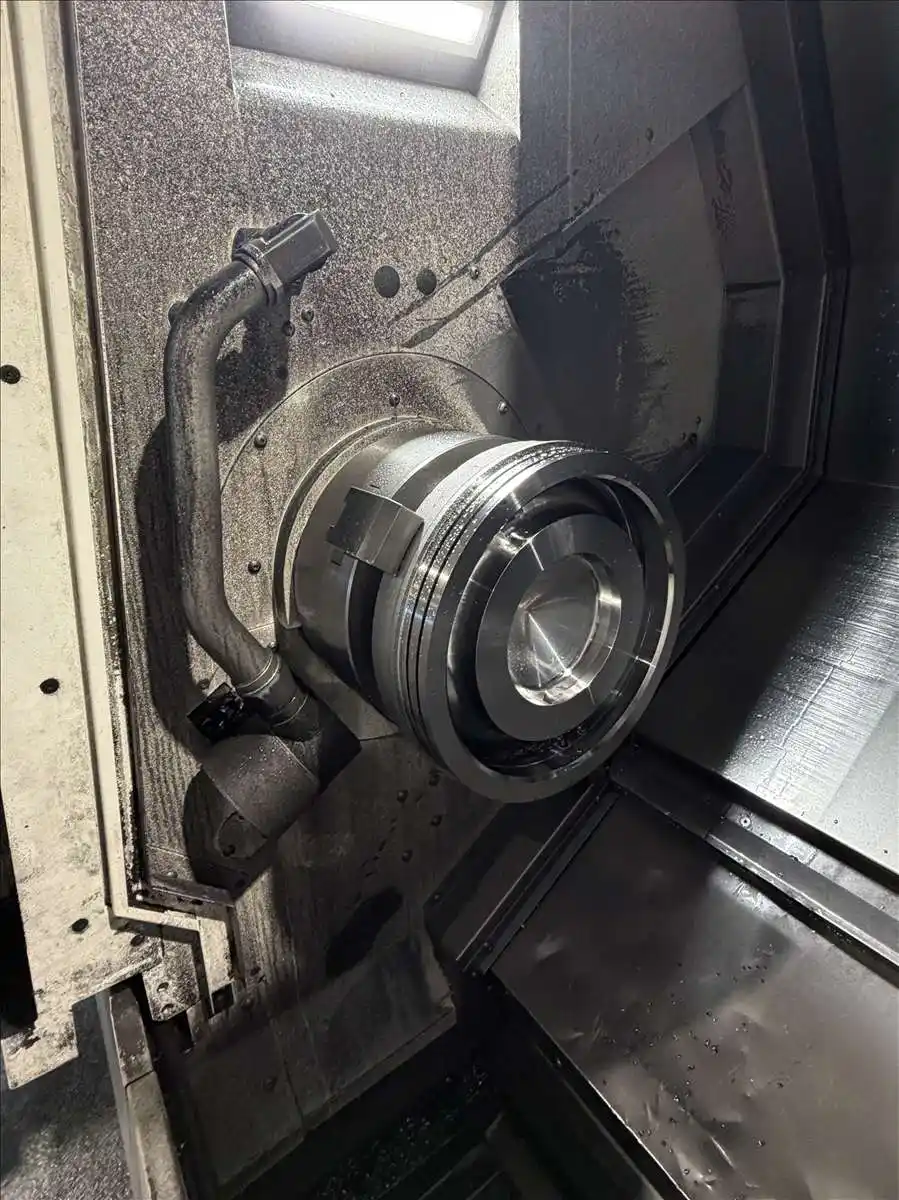

- Chuck: 10" Hollow
- Tailstock Travel: 28.8"
- Show More
- Show Less
- Swing Over Bed: 920mm
- Swing Over Cross Slide: 742mm
- Max. Turning Length: 706mm
- Max. Turning Diameter: 460mm
- Max. Bar Diameter: 88mm
- X-Axis Travel: 260mm
- Y-Axis Travel: +/- 50mm
- Z-Axis Travel: 795mm
- Max. Spindle Speed: 4,000 RPM
- Spindle Nose: JIS A2-8
- Max. Rotary Tool Spindle Speed: 10,000 RPM
- Number of Turret Stations: 12
- Chuck: 254mm Hollow
- Tailstock Travel: 730mm
- Show More
- Show Less
Equipped With

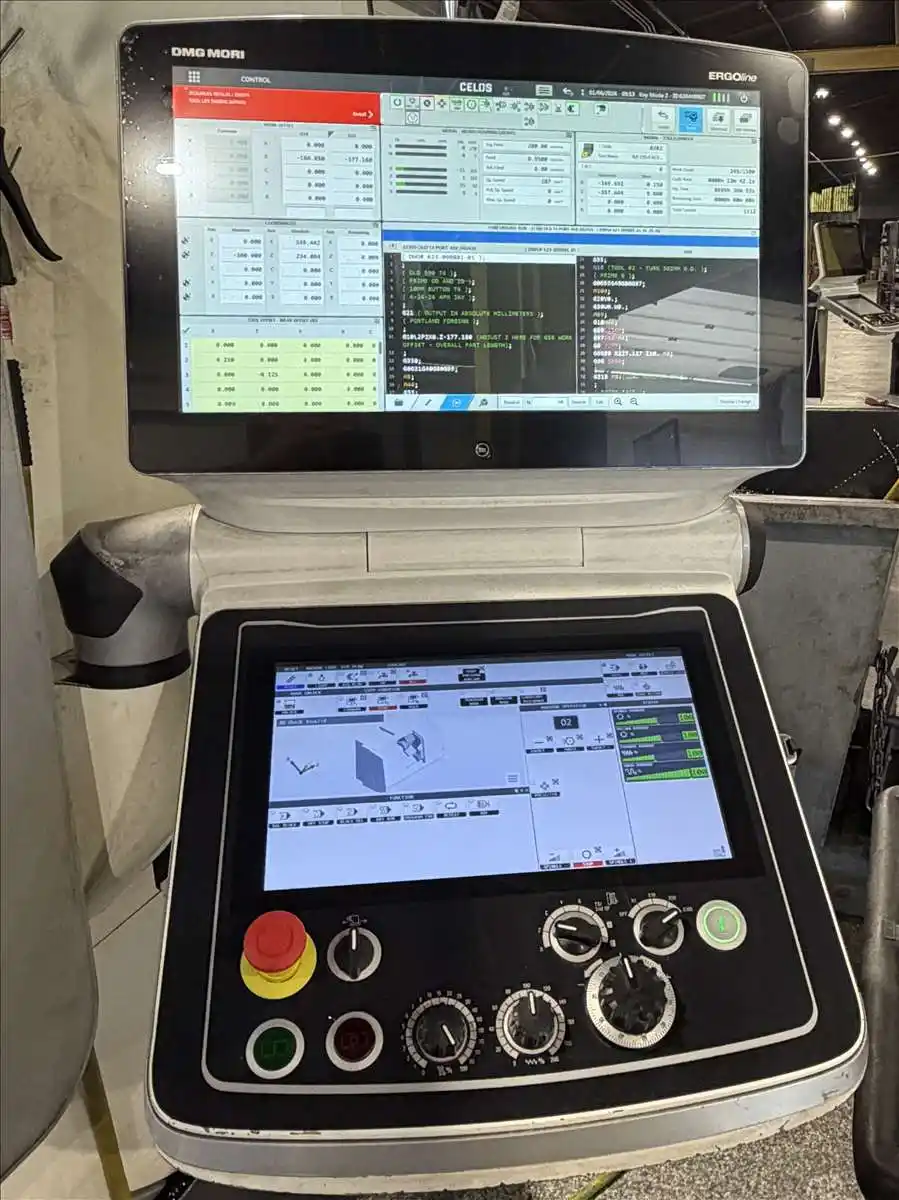

- Mitsubishi Celos M730UM CNC Control W/ Ergoline Touchscreen

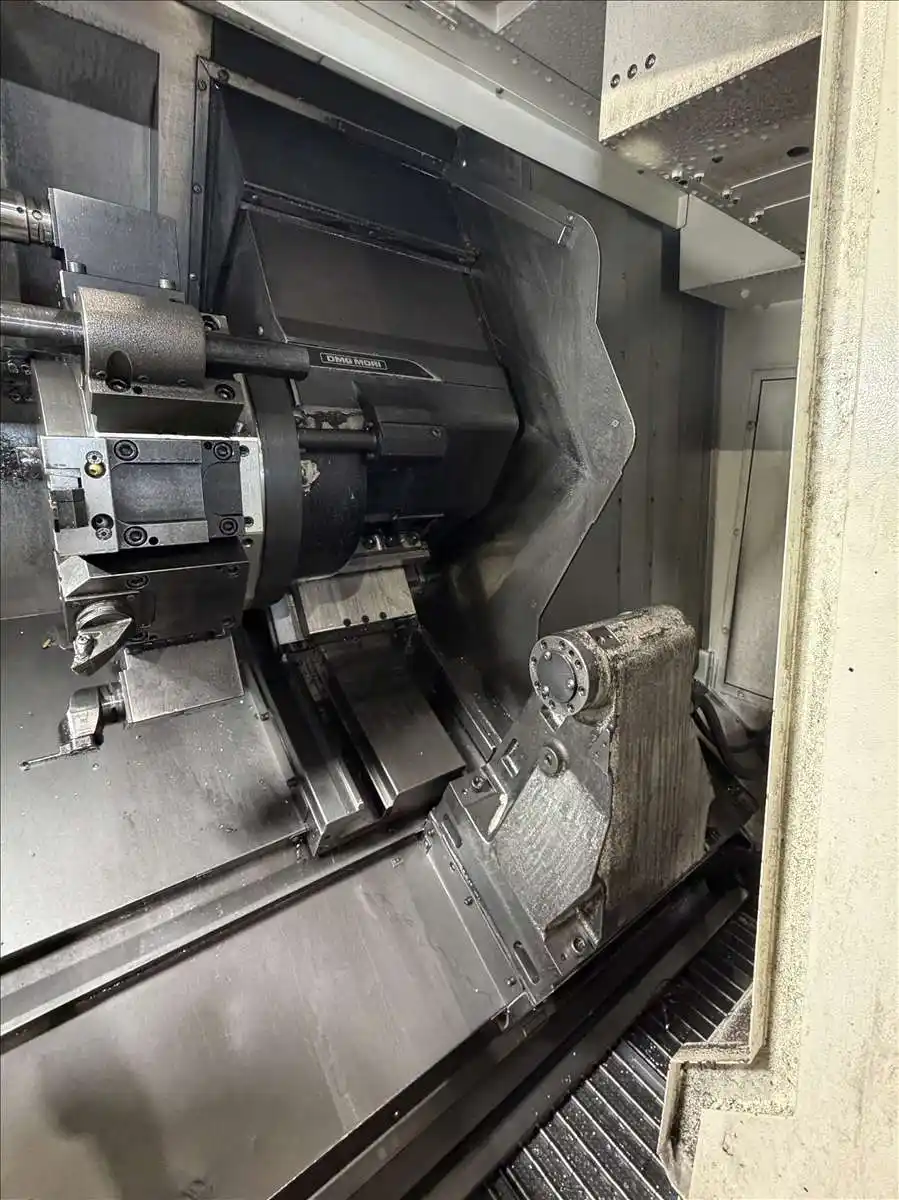

- Live Milling
- Tailstock w/ Live Center
- High Pressure Coolant
- Chip Conveyor
- Interface For Barfeeder
- Show More
- Show Less
- Mitsubishi Celos M730UM CNC Control W/ Ergoline Touchscreen
- Live Milling
- Tailstock w/ Live Center
- High Pressure Coolant
- Chip Conveyor
- Interface For Barfeeder
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
