Inventory # 32281 Year: 1991

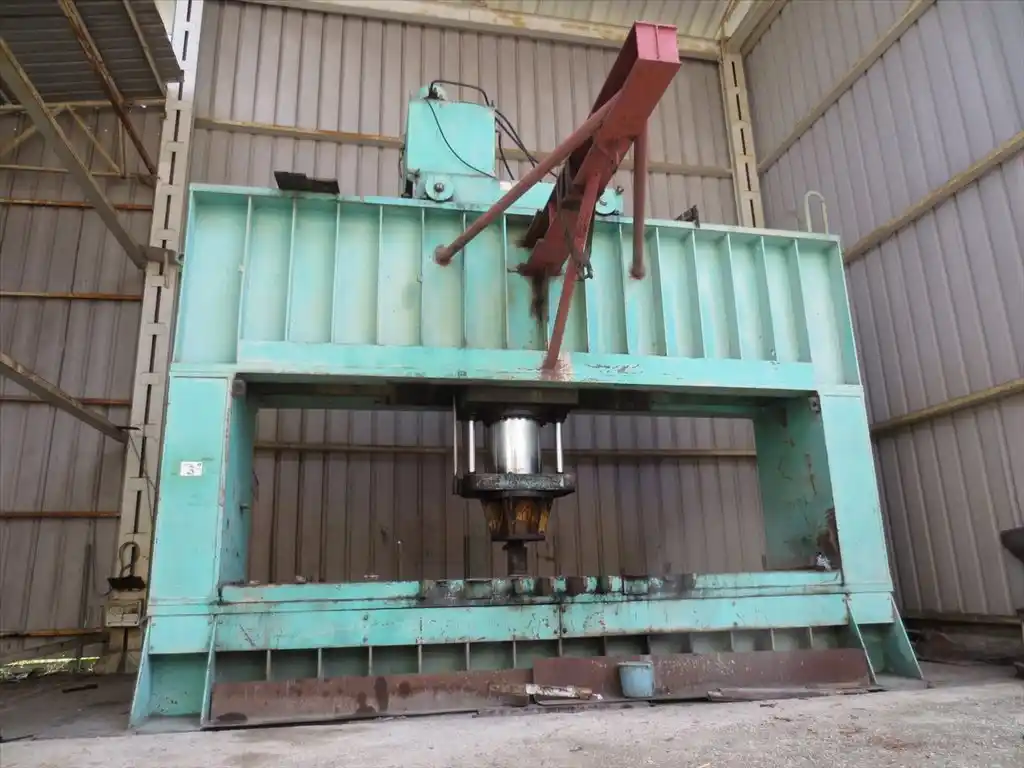

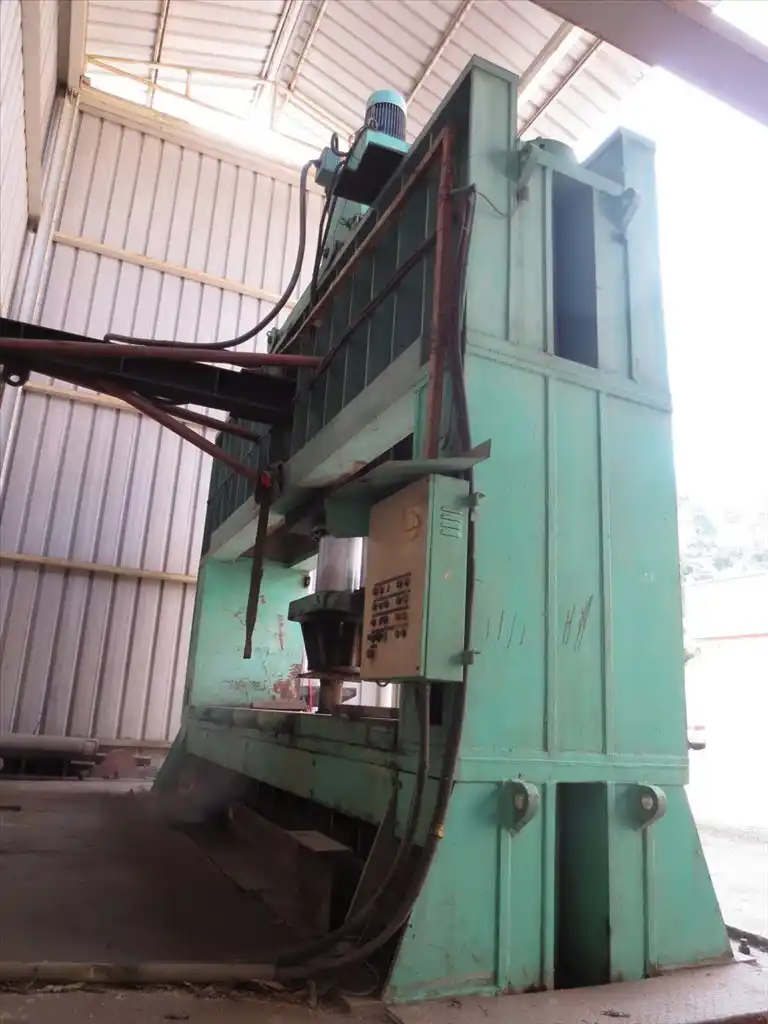

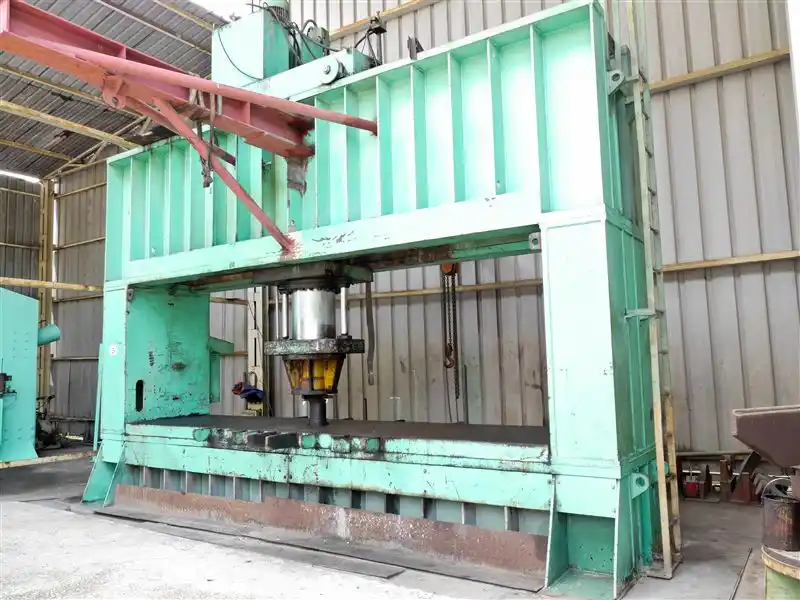

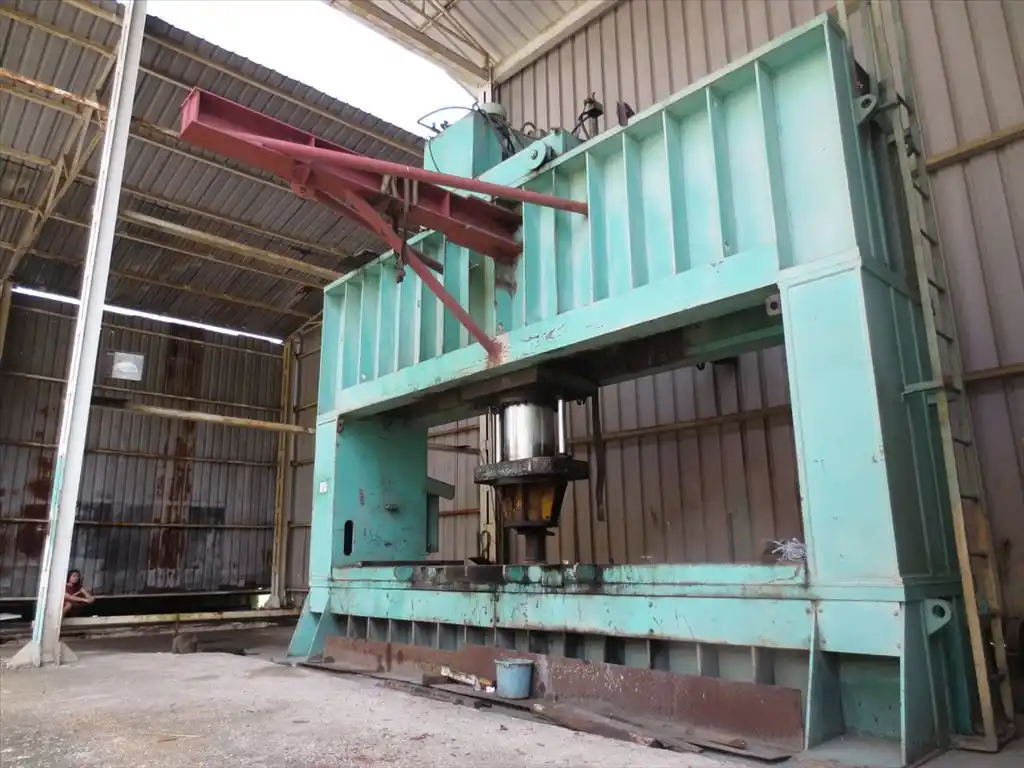

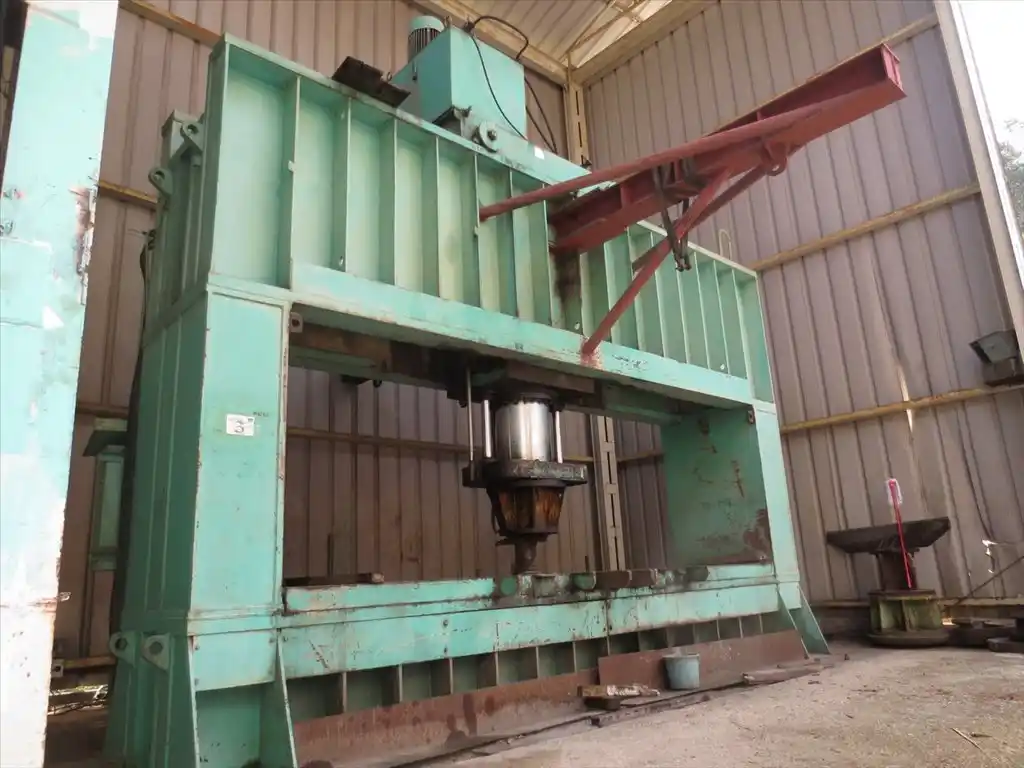

Faccin PPM 500 Ton Hydraulic Dishing Press
Specifications
- Tonnage Capacity: 550 Ton
- Maximum Blank Diameter: 196.85"
- Maximum Material Thickness: 1.57" Mild Steel
- Form Holder Size: 197" x 47"
- Slide Size: 37" x 25"
- Slide Motion: 31.5"
- Max Light Between the Uprights: 47.2"
- Forward Speed: 100 IPM
- Working Speed: 8 IPM
- Return Speed: 190 IPM
- Carriage Stroke: 158"
- Carriage Moving Speed: 47 IPM
- Show More
- Show Less
- Tonnage Capacity: 500 Metric Ton
- Maximum Blank Diameter: 5000 mm
- Maximum Material Thickness: 40mm Mild Steel
- Form Holder Size: 5000mm x 1200mm
- Slide Size: 950mm x 650mm
- Slide Motion: 800mm
- Max Light Between the Uprights: 1200mm
- Forward Speed: 42 mm/sec
- Working Speed: 3.3 mm/sec
- Return Speed: 80 mm/sec
- Carriage Stroke: 4000 mm
- Carriage Moving Speed: 20 mm/sec
- Show More
- Show Less
Equipped With

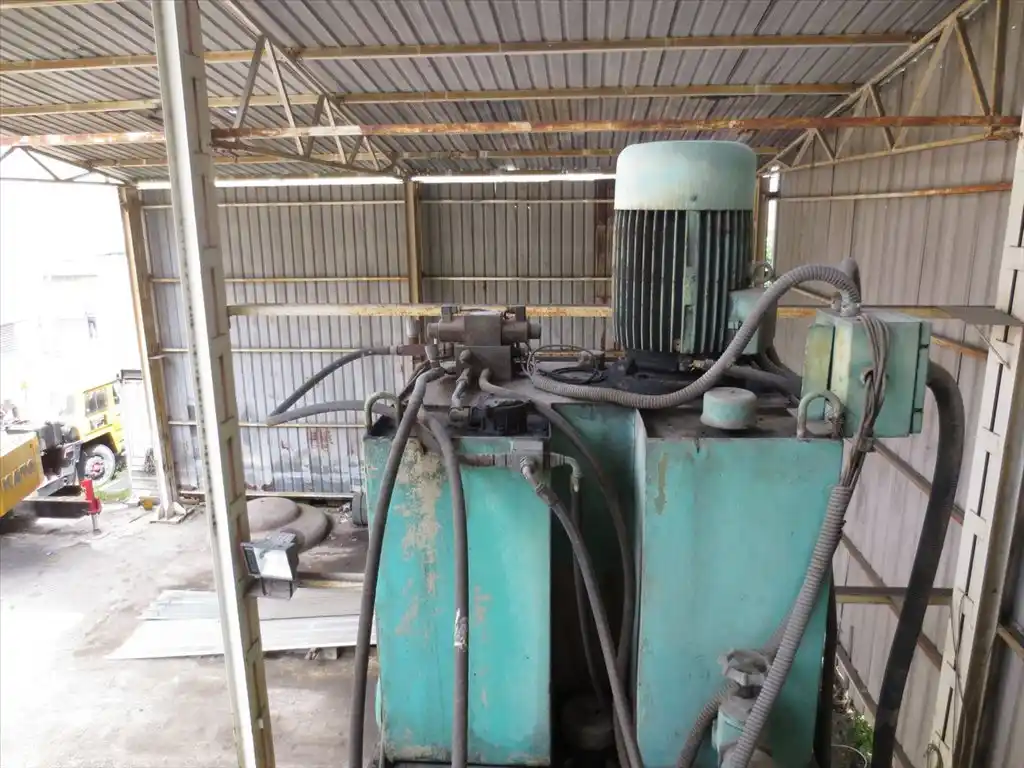

- 30 HP Main Motor

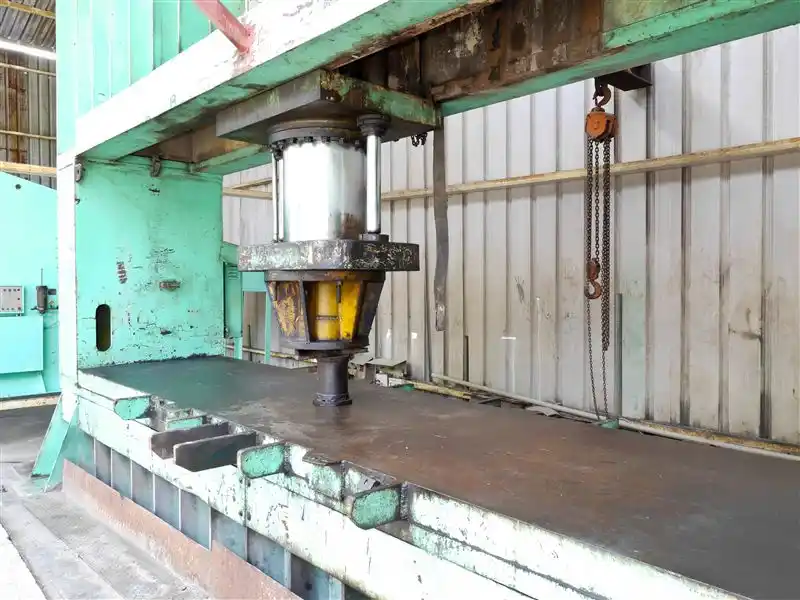

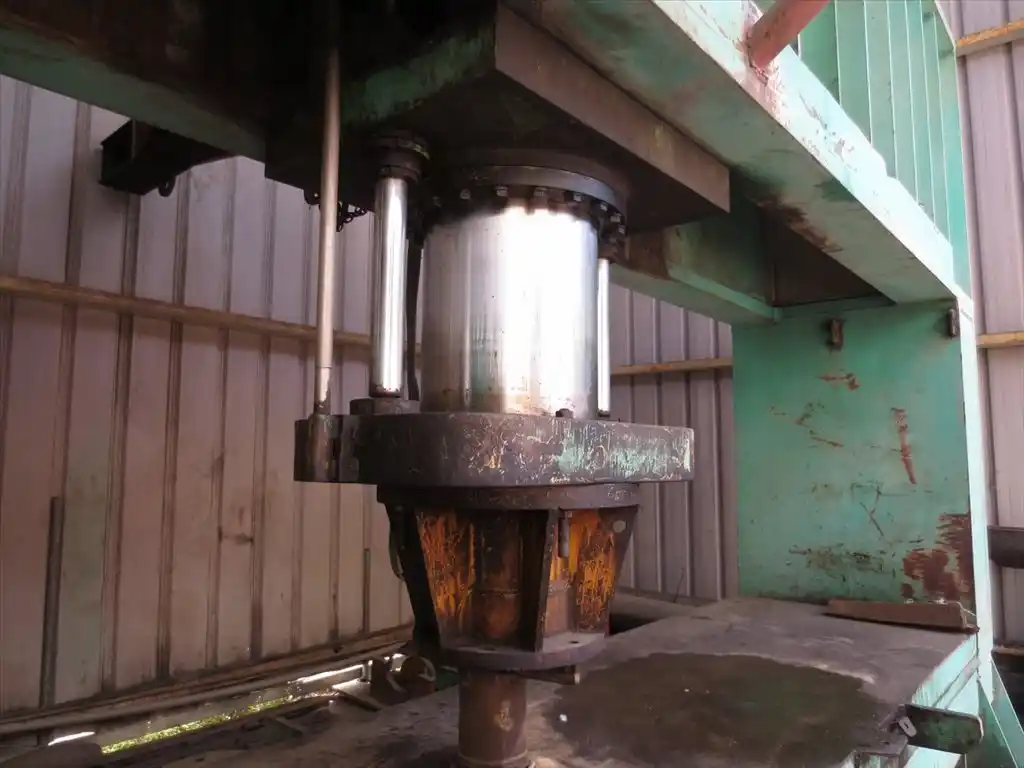

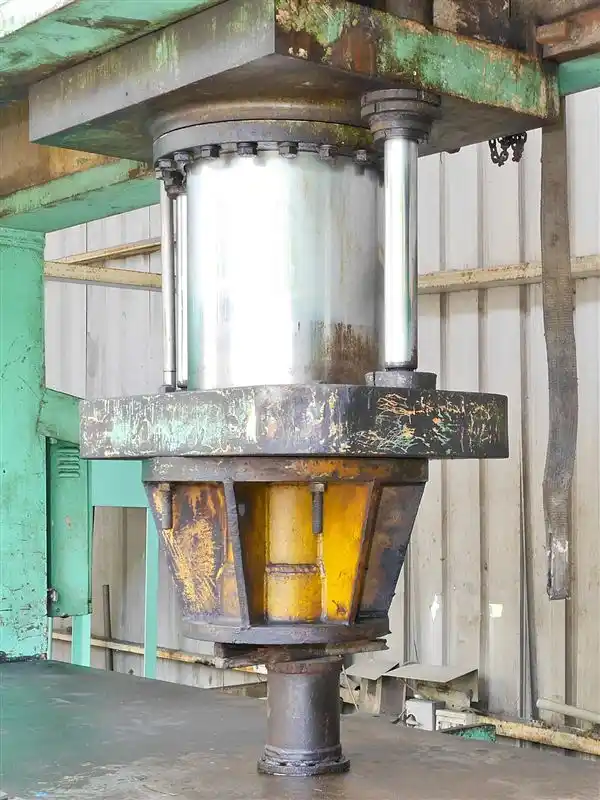

- Hydraulic Cylinder Can Be Re-Positioned Along the Bed, Fixed in Center at Present

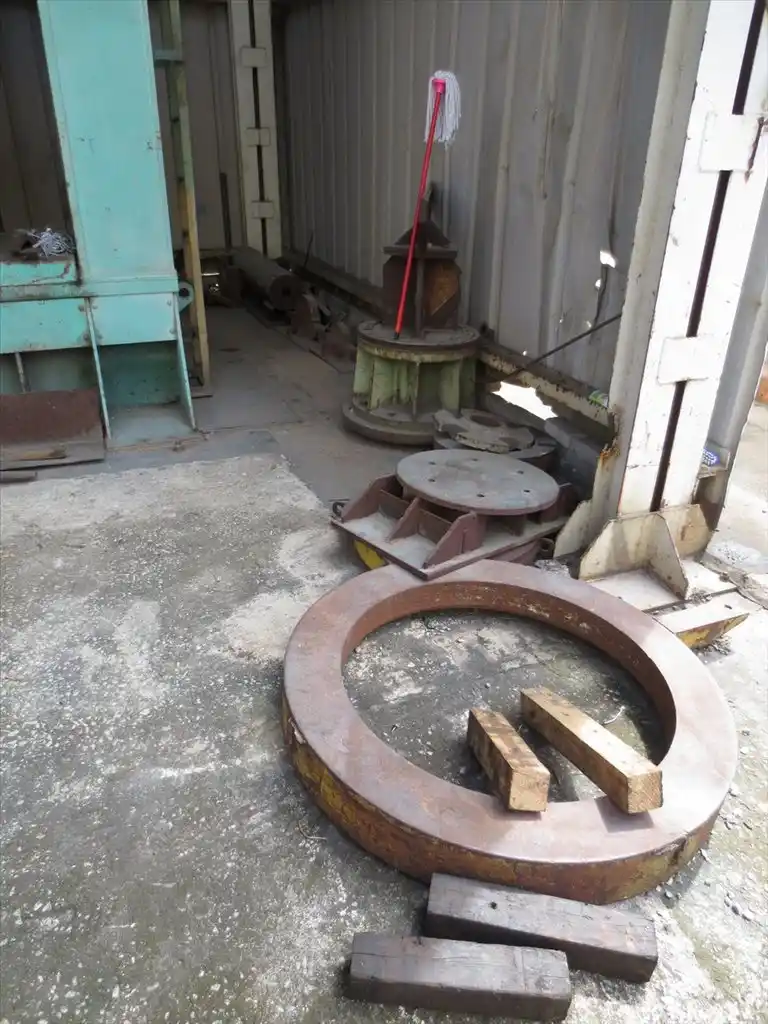

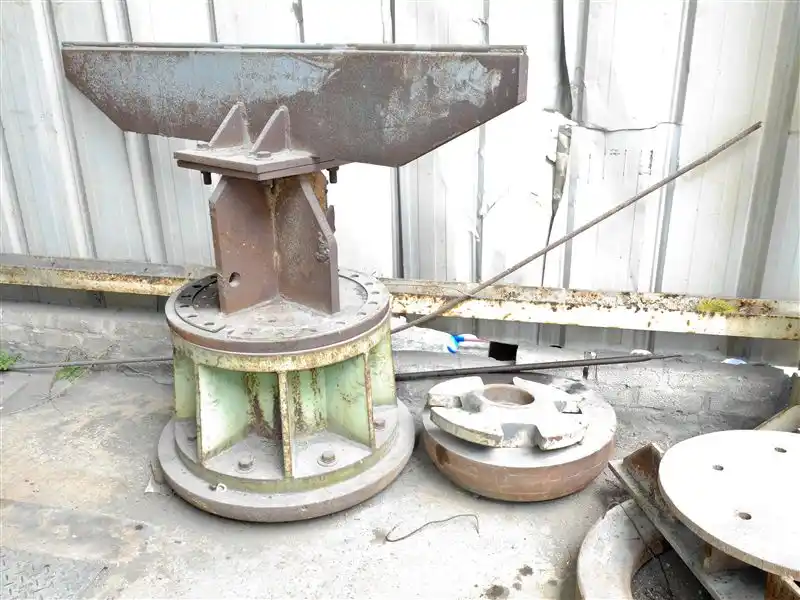

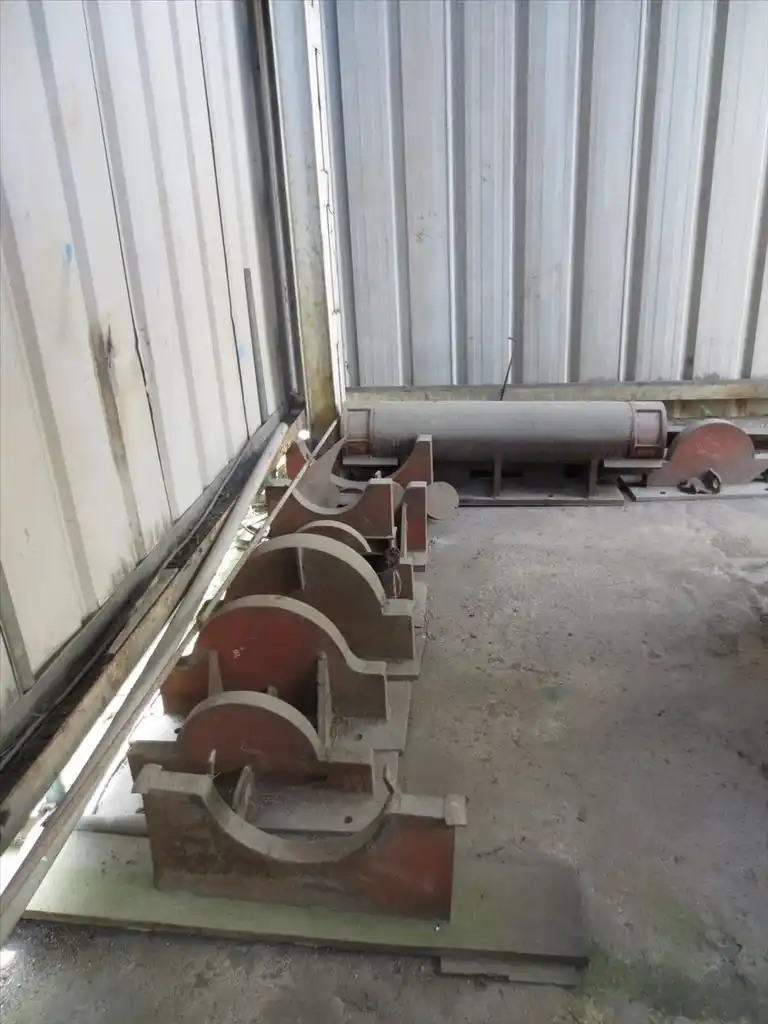

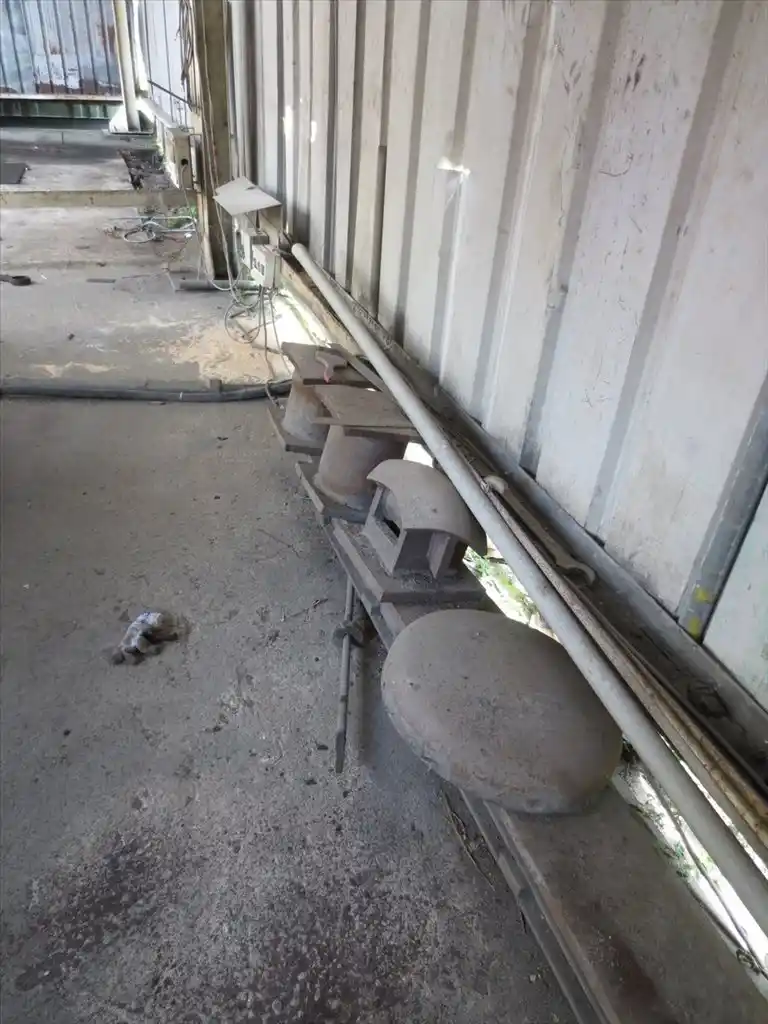

- Includes Some Tooling
- 22.37 kw Main Motor
- Hydraulic Cylinder Can Be Re-Positioned Along the Bed, Fixed in Center at Present
- Includes Some Tooling
Location & Terms
- Terms: As Is, Where Is
- Location: Plant Site, Malaysia, MALAYSIA-ASIA
- Disclaimer: Preliminary Specifications....
