Inventory # 47550 Year: 2022
Fom Industrie ARGO 70 CNC Profile Machining Center
Specifications
- X-Axis Travel: 261"
- Y-Axis Travel: 43.3"
- Z-Axis Travel: 16.7"
- Working Capacity (@ 90°): 261" x 21.4" x 11.6"
- Spindle Speed: 17,000 RPM

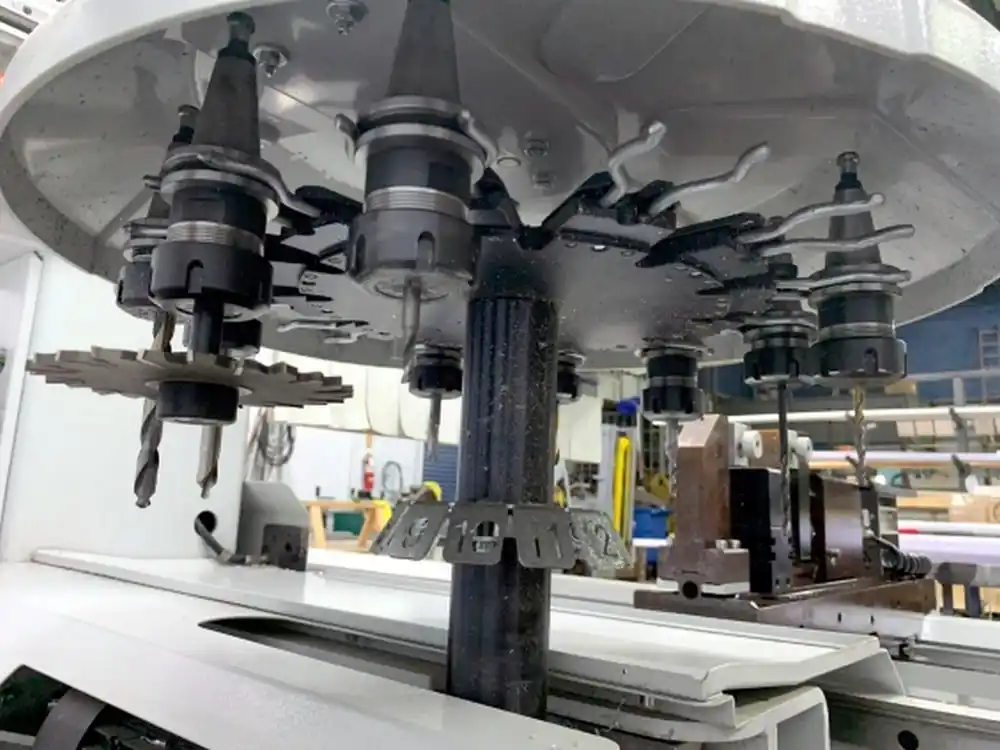

- Tooling: (12) ISO 30
- Max. Tool Diameter: 0.8"
- Max. Tool Length: 5.9"
- Max. Tool Blade Diameter: 8.7"
- Show More
- Show Less
- X-Axis Travel: 6629.40mm
- Y-Axis Travel: 1099.82mm
- Z-Axis Travel: 425 mm
- Working Capacity (@ 90°): 6629.40mm x 543.56mm x 294.64mm
- Spindle Speed: 17,000 RPM
- Tooling: (12) ISO 30
- Max. Tool Diameter: 20.32mm
- Max. Tool Length: 150 mm
- Max. Tool Blade Diameter: 220 mm
- Show More
- Show Less
Equipped With

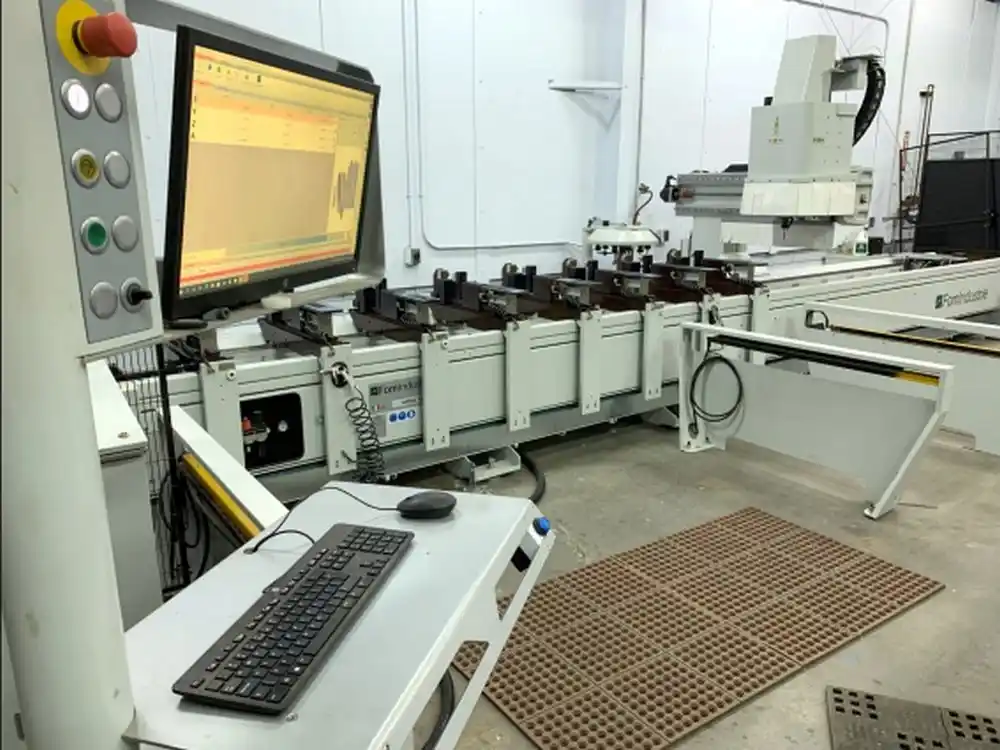

- 23" Touchscreen OMEGA 200 CNC Control

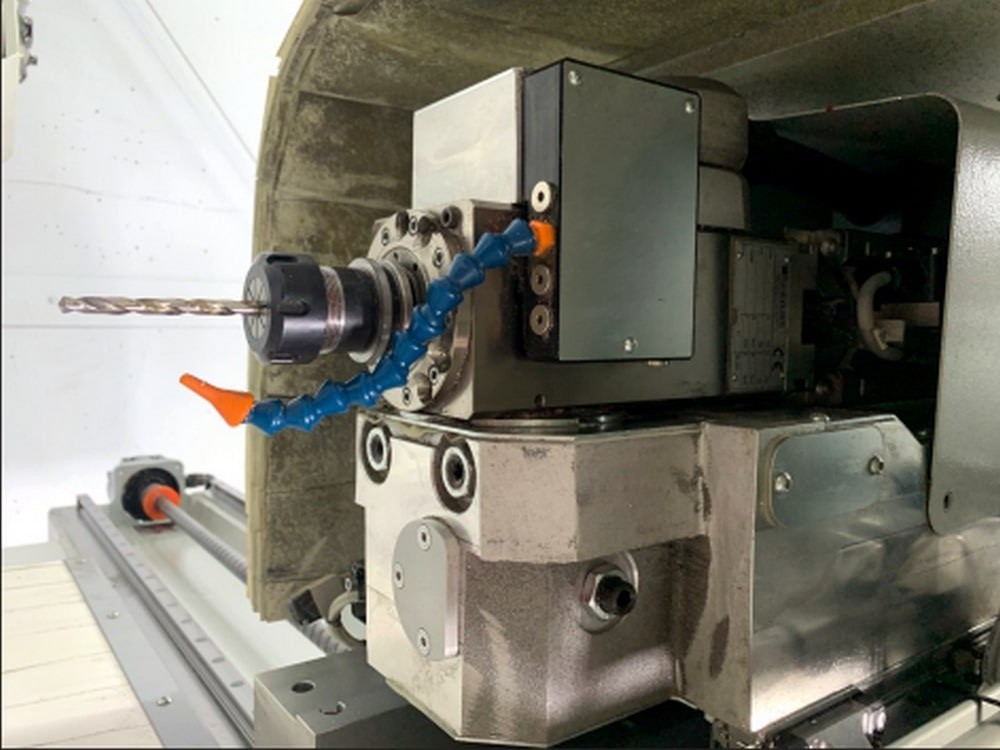

- Electrospindle Positioning (0°/90°/180°)
- FOMCAM Software
- Electric Cabinet Cooling
- Flow Drilling Kit
- Lubrication System Kit
- Chip Conveyor
- Retractable Pneumatic Stop
- Show More
- Show Less
- 584.20mm Touchscreen OMEGA 200 CNC Control
- Electrospindle Positioning (0°/90°/180°)
- FOMCAM Software
- Electric Cabinet Cooling
- Flow Drilling Kit
- Lubrication System Kit
- Chip Conveyor
- Retractable Pneumatic Stop
- Show More
- Show Less
More Info

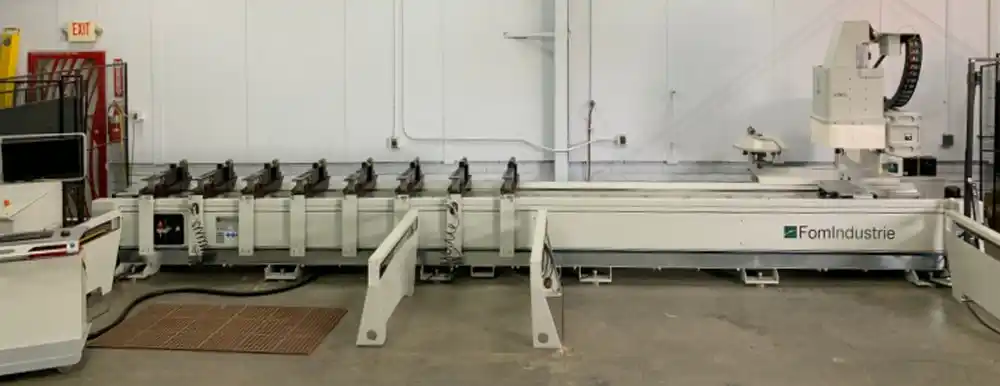

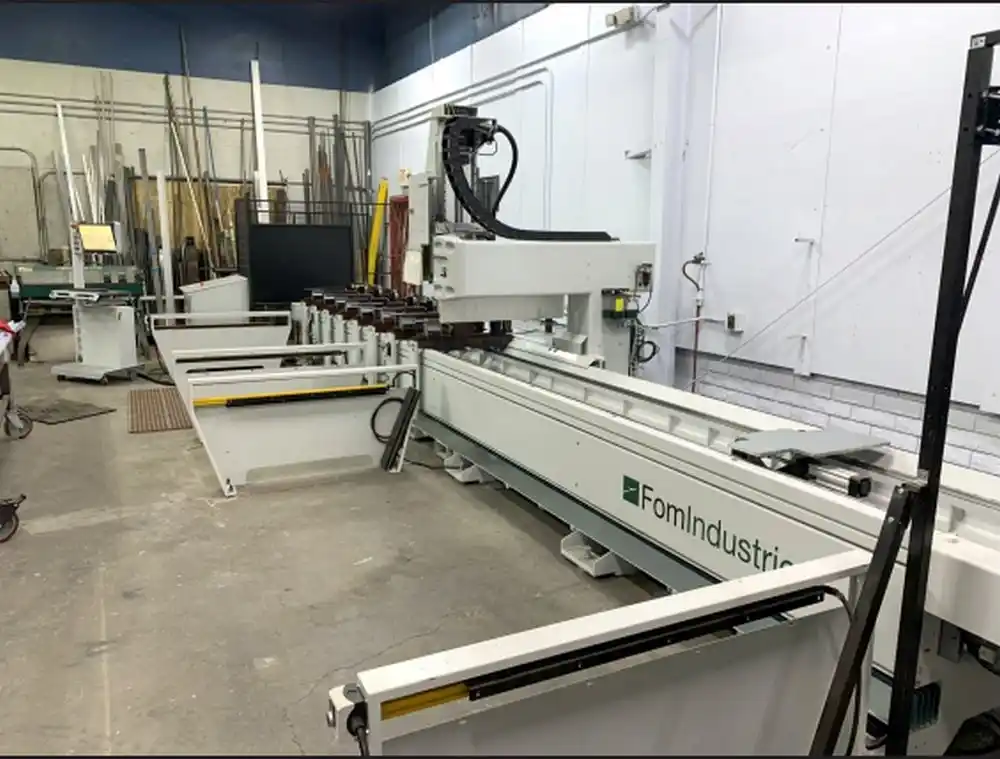

This FOM Industrie ARGO 70 is a 2022 CNC profile machining center engineered for fast, high-accuracy processing of long aluminum or composite extrusions. With an exceptional 261″ X-axis travel, 43.3″ Y and 16.7″ Z, a 17,000 RPM ISO 30 electro-spindle, and a 12-position tool changer, it excels at machining door and window frames, curtain-wall mullions, trailer rails, lighting housings, and other extended-length profiles. The machine is equipped with an OMEGA 200 touchscreen CNC, FOMCAM software, electro-spindle indexing (0°/90°/180°) for multi-side operations, a flow-drilling kit for threaded inserts, chip conveyor, and automatic lubrication—delivering precise, burr-free results in a single setup.
Looking for similar equipment?
Explore Perfection Global’s inventory of used profile machining centers.
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
