Inventory # 47550 Year: 2022

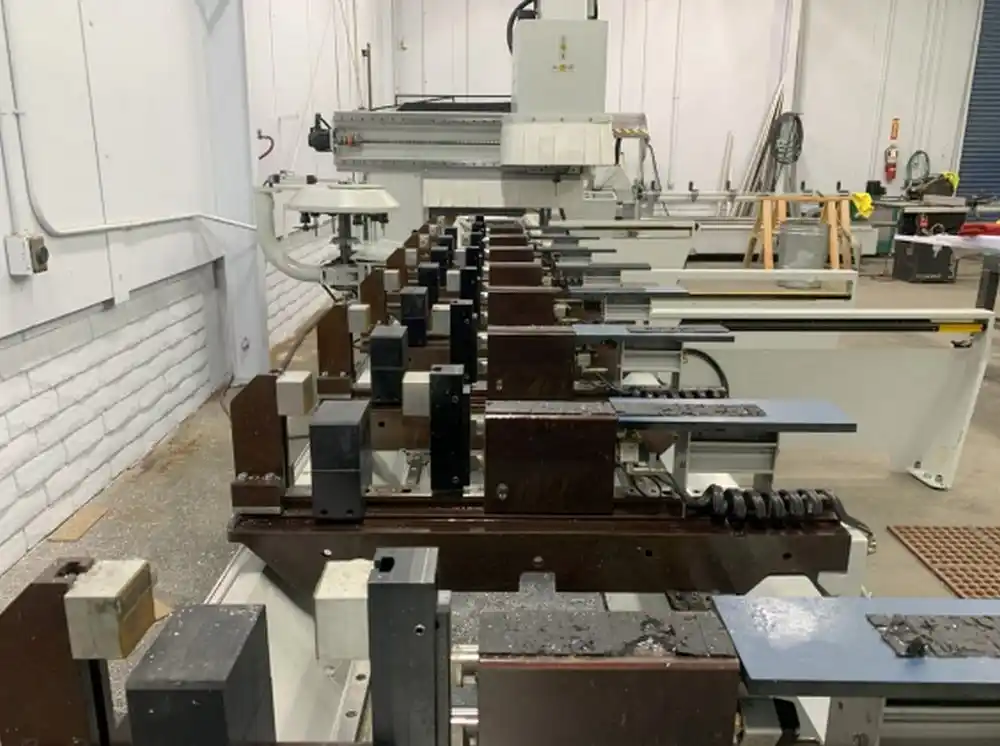

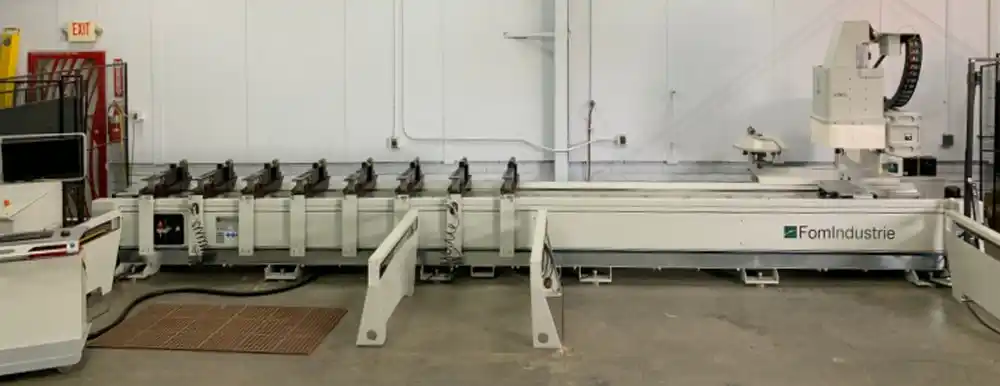

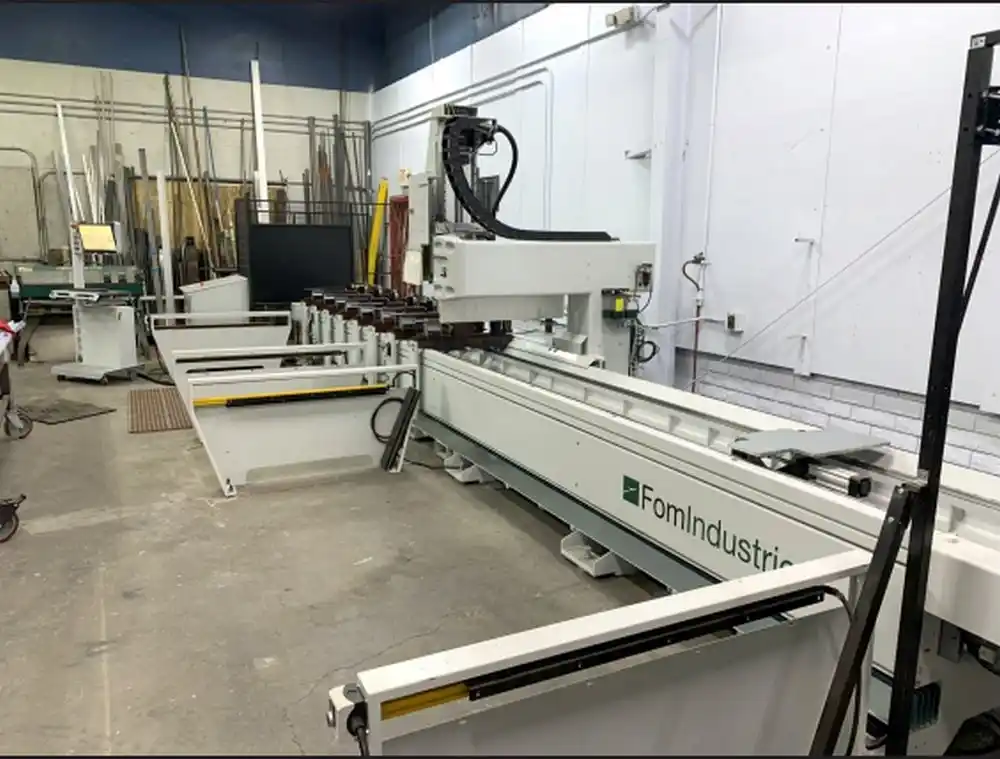

FOM ARGO 70 CNC Profile Machining Center
Specifications
- X-Travel: 22.2'
- Y-Travel: 43"
- Z-Travel: 16.7"
- Working Capacity @ 90° 22.2' x 21.4" x 11.6"
- Spindle Speed: 17,000 RPM

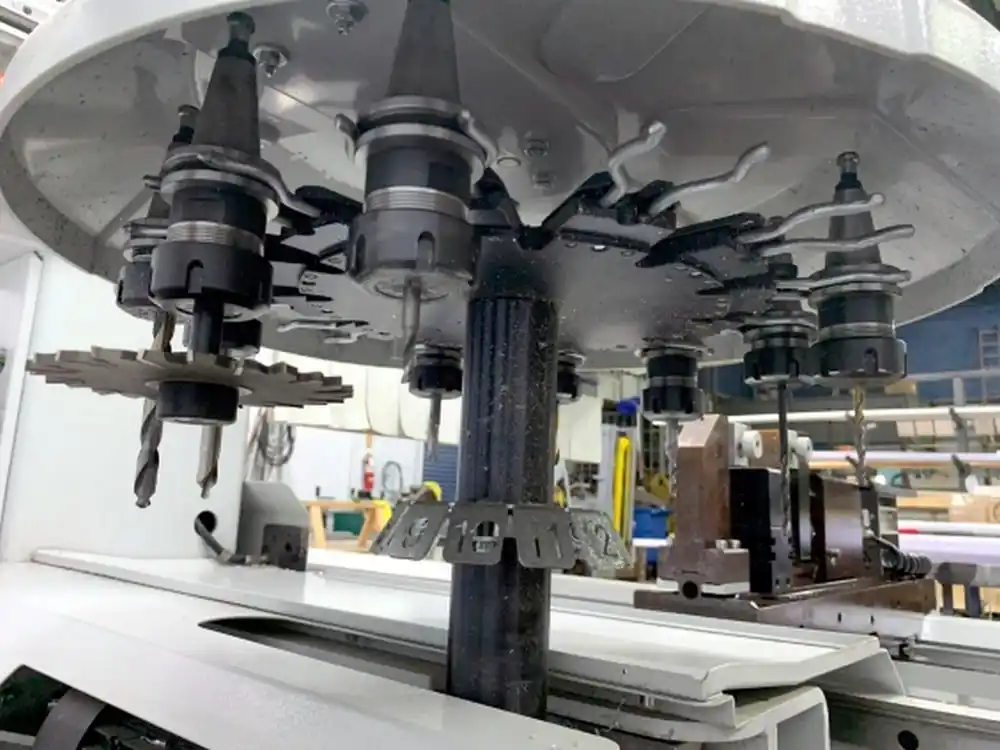

- Tooling: (12) ISO 30
- Max. Tool Diameter: .8"
- Max. Tool Length: 5.9"
- Max. Tool Diameter Blade: 8.7"
- Show More
- Show Less
- X-Travel: 6780 mm
- Y-Travel: 1100 mm
- Z-Travel: 425 mm
- Working Capacity @ 90° 6780 mm x 545 mm x 295 mm
- Spindle Speed: 17,000 RPM
- Tooling: (12) ISO 30
- Max. Tool Diameter: 20 mm
- Max. Tool Length: 150 mm
- Max. Tool Diameter Blade: 220 mm
- Show More
- Show Less
Equipped With

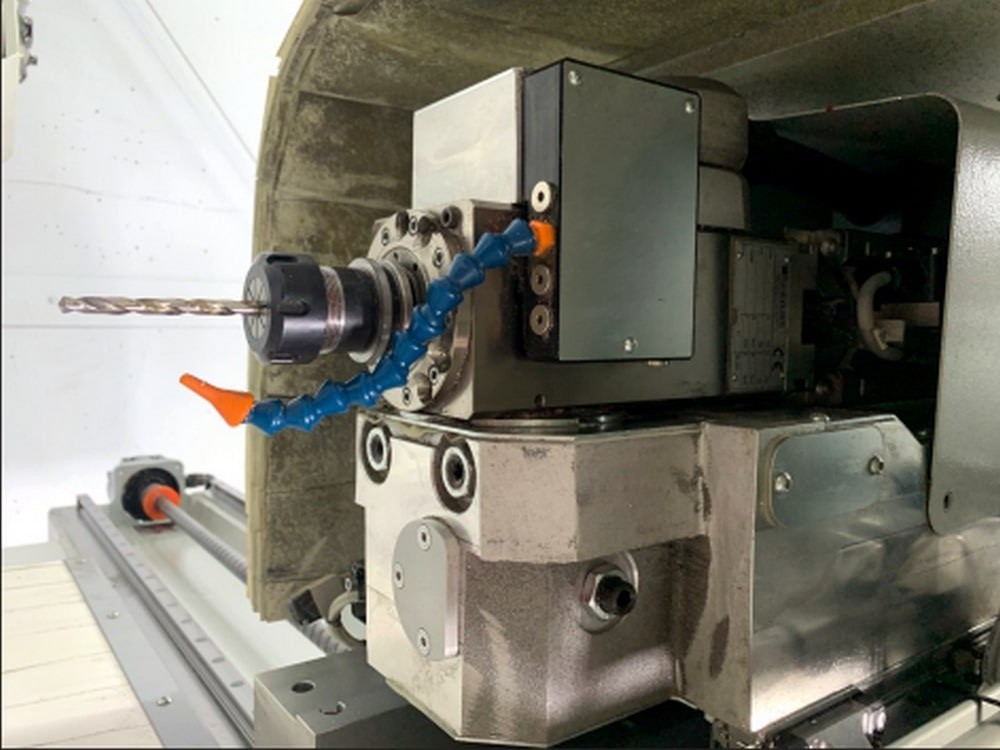

- Electrospindle Positioning (0°/90°/180°)

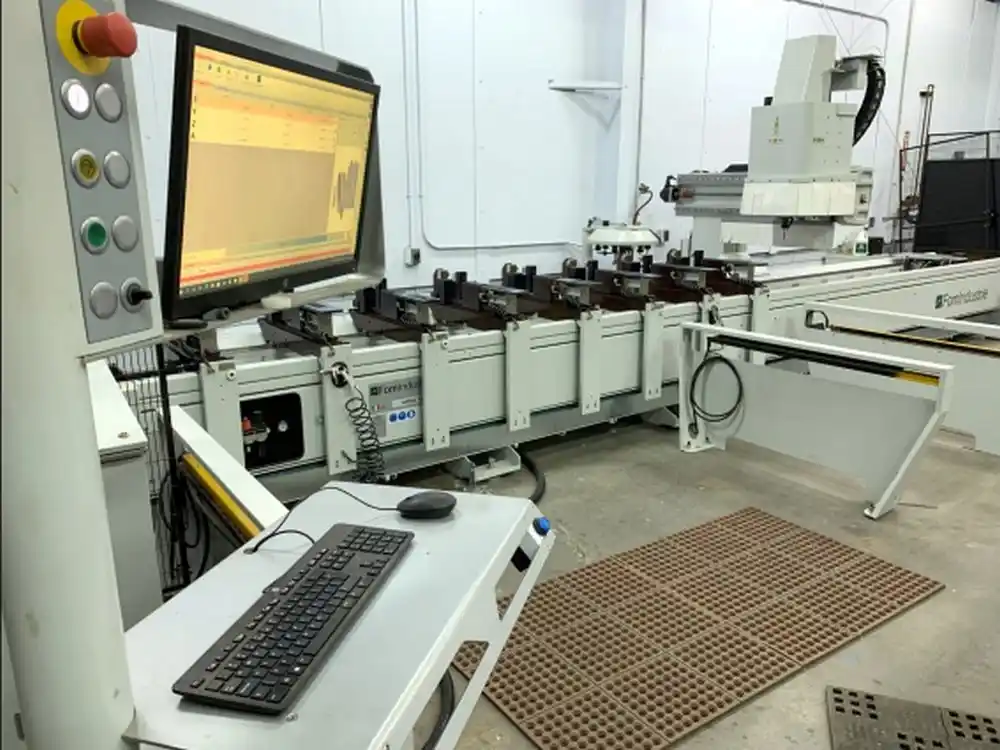

- 23" Touchscreen OMEGA 200 CNC Control
- FOMCAM Software
- Electric Cabinet Cooling
- Flow Drilling Kit
- Lubrication System Kit
- Chip Conveyor
- Retractable Pneumatic Stop
- Show More
- Show Less
- Electrospindle Positioning (0°/90°/180°)
- 584.20mm Touchscreen OMEGA 200 CNC Control
- FOMCAM Software
- Electric Cabinet Cooling
- Flow Drilling Kit
- Lubrication System Kit
- Chip Conveyor
- Retractable Pneumatic Stop
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
