Perfection Global Equipment: https://perfectionglobal.com/used-inventory/gasbarre-36e-5z-48839/
Inventory # 48839 Year: 2023

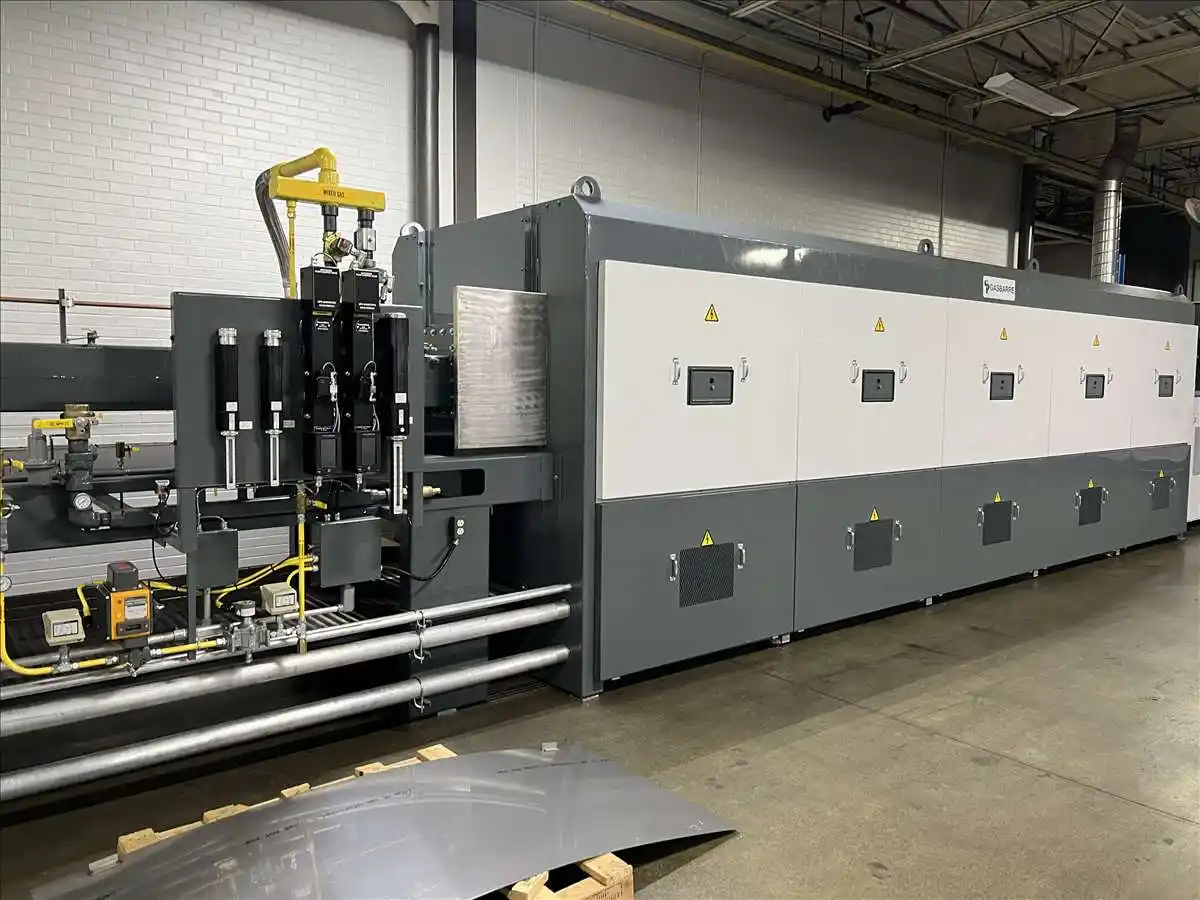

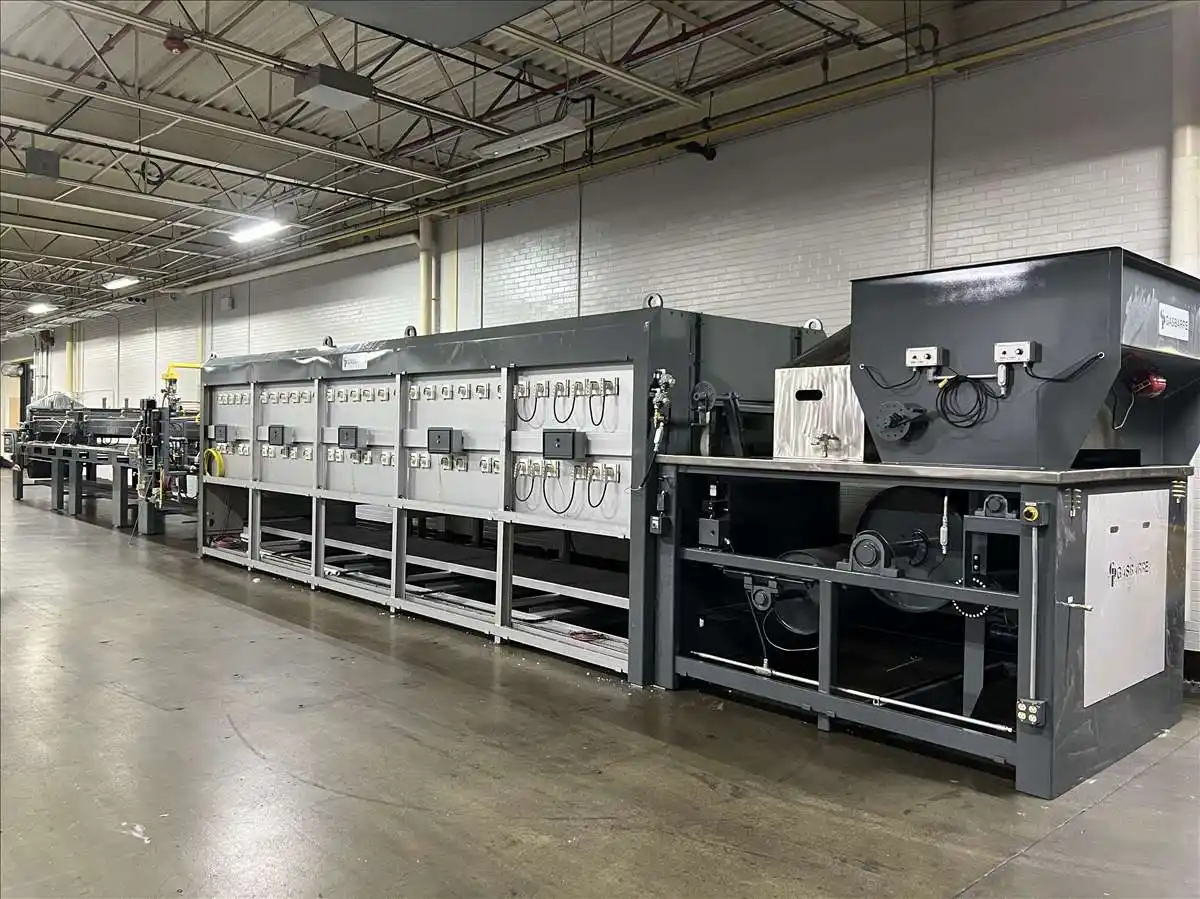

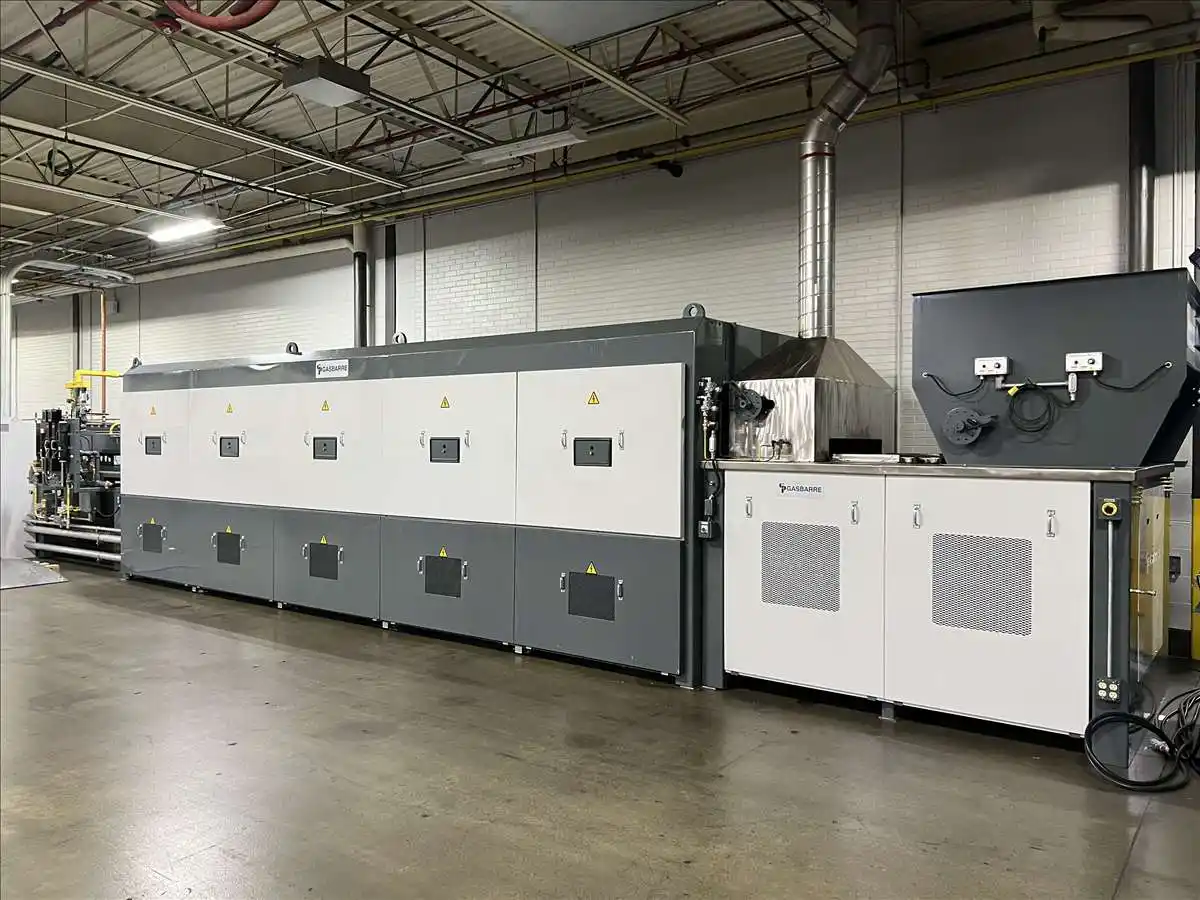

Gasbarre 36E-5Z 36" Continuous Belt-Fed Electric Atmosphere Annealing Furnace
Specifications
- Heat Type: Electric
- Max. Operating Temperature: 1,800°F
- Belt Width: 36"
- Belt Speed: 3-15 IPM
- Atmosphere: Hydrogen/Nitrogen Mix
- Work Area (Height Above Belt): 4-1/2"
- Number of Chambers: 1
- Outside Chamber Length: 27'
- Effective Internal Heating Length 25'
- Number of Heating Zones: 5
- Heated Zone Lengths: 60" Each | 300" Total
- Overall Furnace Length: Approx 73'6"
- Energy Requirements: 480V/3Ph/60Hz
- Connected Load: 600 kW
- Show More
- Show Less
- Heat Type: Electric
- Max. Operating Temperature: 1,800°F
- Belt Width: 914mm
- Belt Speed: 3-6.4 mm/sec
- Atmosphere: Hydrogen/Nitrogen Mix
- Work Area (Height Above Belt): 115mm
- Number of Chambers: 1
- Outside Chamber Length: 8,230mm
- Effective Internal Heating Length 7,620mm
- Number of Heating Zones: 5
- Heated Zone Lengths: 1,524mm Each | 7,620mm Total
- Overall Furnace Length: Approx 22,402mm
- Energy Requirements: 480V/3Ph/60Hz
- Connected Load: 600 kW
- Show More
- Show Less
Equipped With
- (5) Independently Controlled Heating Zones

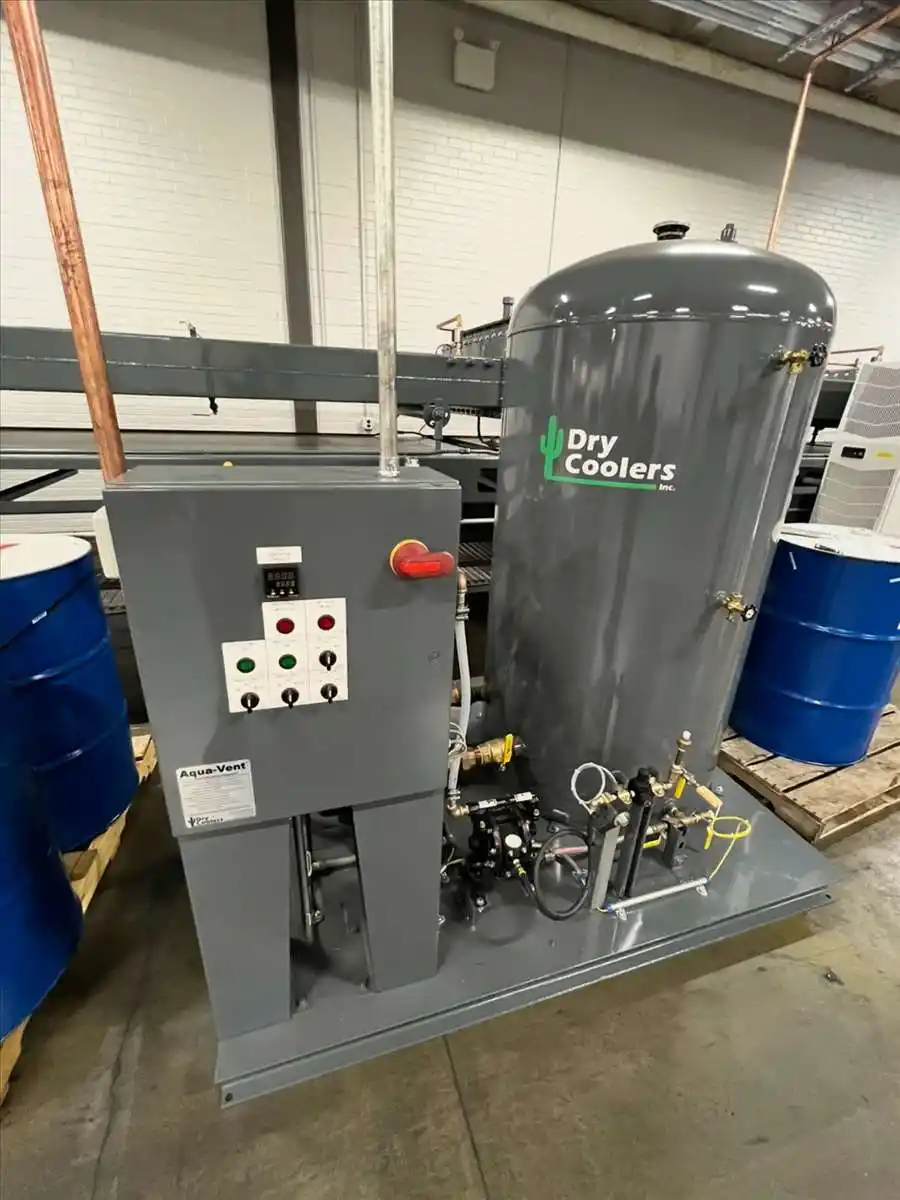

- 30' Closed Loop Water-Jacketed Controlled Cooling

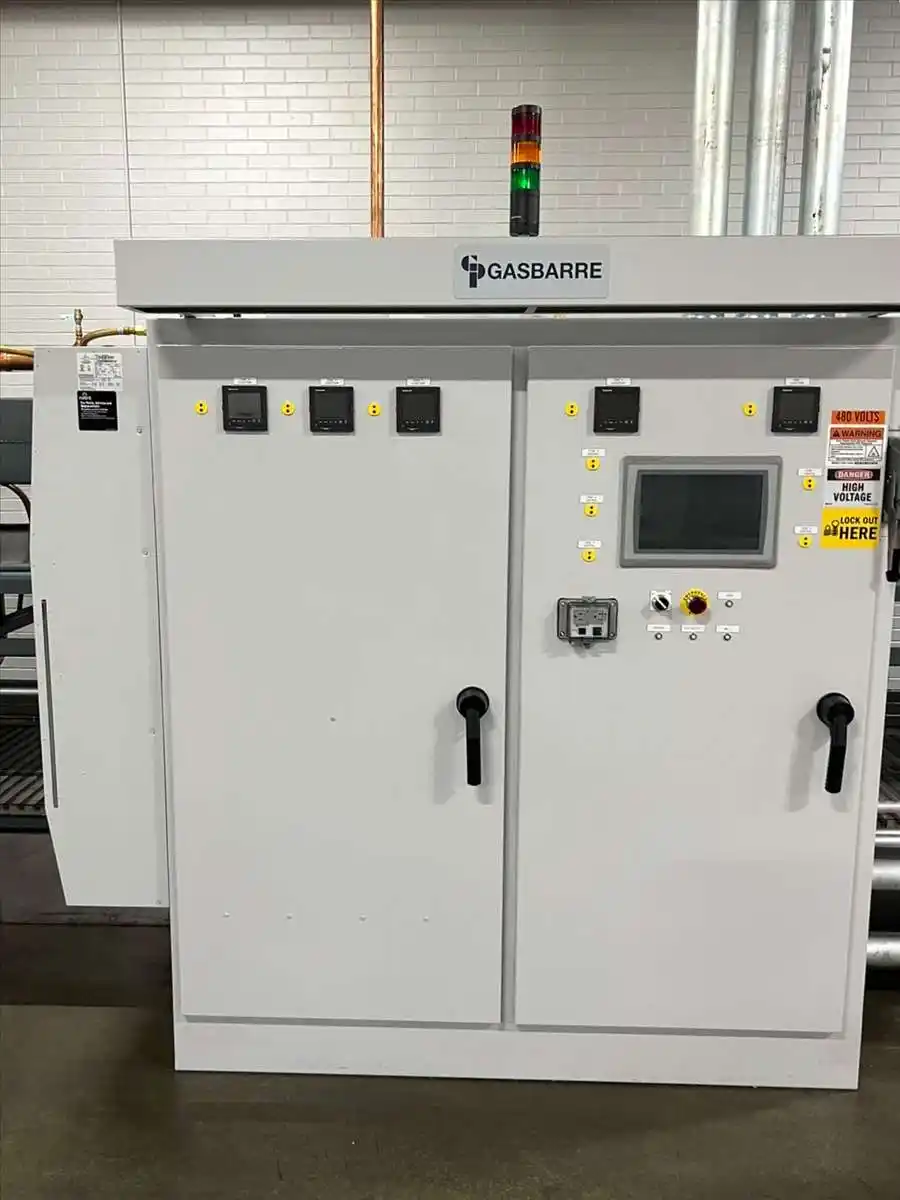

- Allen-Bradley PLC w/ HMI Touchscreen
- (5) Independently Controlled Heating Zones
- 9144.00mmClosed Loop Water-Jacketed Controlled Cooling
- Allen-Bradley PLC w/ HMI Touchscreen
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
