Inventory # 35847

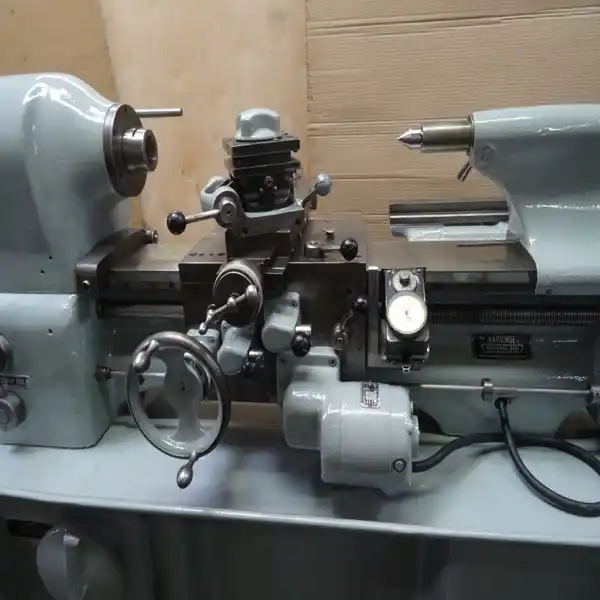

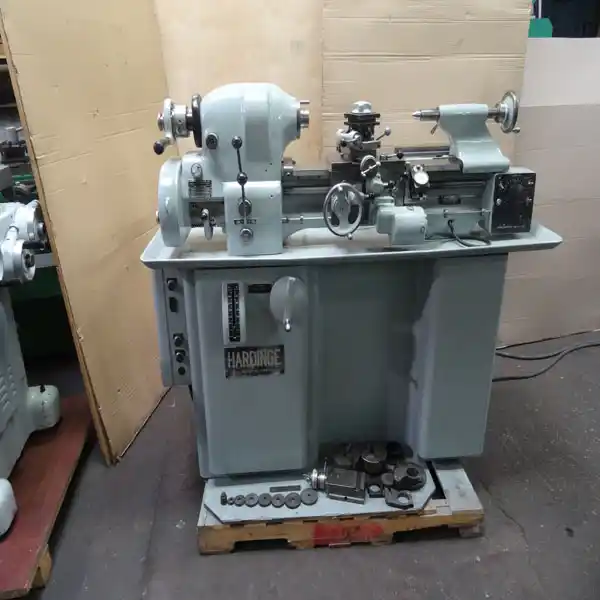

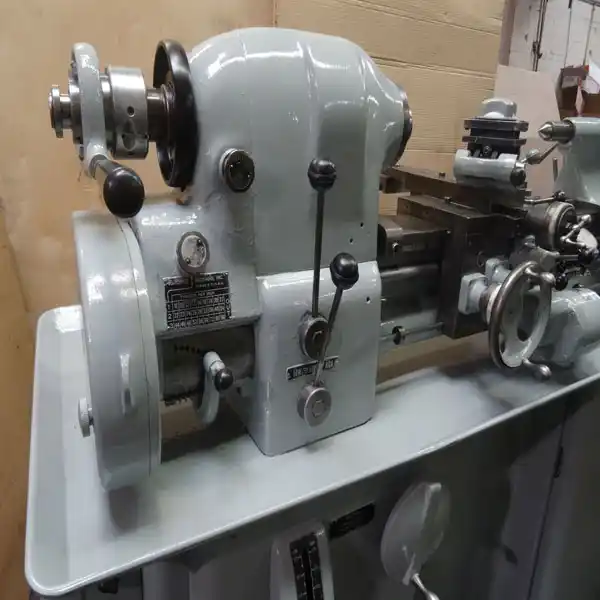

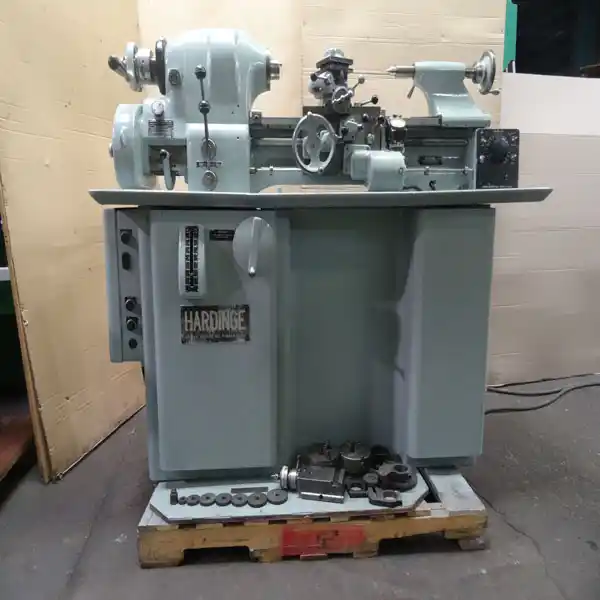

Hardinge HLV Super Precision Lathe
Specifications
- Max Swing Over Bed: 11"
- Max Swing Over Carriage: 9"
- Max Swing Over Cross Slide: 5.75"
- Compound Slide Travel: 3"
- DISTANCE BETWEEN CENTERS
- - Tailstock Flush: 18"
- - Tailstock Overhung: 20"
- Power Feed Range: 0.25 IPM - 7 PM
- Longitudinal Feed Rate: 0.31 IPM - 7 IPM
- Cross Feed Rate: 0.18 IPM to 4 IPM
- Tailstock Spindle Travel: 3.75"
- Tailstock Spindle Taper: No. 2 Morse
- Spindle Bore: 1.25"
- Spindle Speeds (Variable): 125 - 3000 RPM
- Spindle Nose: Hardinge Tapered
- SPINDLE CONSTRUCTION
- - With Step Chucks: 1" - 6"
- - With Jaw Chucks: 5"
- With Jaw Chucks Through Spindle: 1.15"
- With Round 5C Hardinge Collets: 1.06"
- With Hexagon 5C Hardinge Collets: 0.87"
- With Square 5C Hardinge Collets: 0.75"
- Range of Threads in Gear Box: 11 to 108
- Number of Thread Changes in Gear Box: 27
- Motor: 2-Speed, 530 / 1710 RPM
- Electricals: 220V AC Only / 3 PH / 60 Hz / 3.4 Amps
- Show More
- Show Less
- Max Swing Over Bed: 279.40mm
- Max Swing Over Carriage: 228.60mm
- Max Swing Over Cross Slide: 146.05mm
- Compound Slide Travel: 76.20mm
- DISTANCE BETWEEN CENTERS
- - Tailstock Flush: 457.20mm
- - Tailstock Overhung: 508.00mm
- Power Feed Range: 0.11 mm/sec - 7 PM
- Longitudinal Feed Rate: 0.13 mm/sec -2.96 mm/sec
- Cross Feed Rate: 0.08 mm/sec to1.69 mm/sec
- Tailstock Spindle Travel: 95.25mm
- Tailstock Spindle Taper: No. 2 Morse
- Spindle Bore: 31.75mm
- Spindle Speeds (Variable): 125 - 3000 RPM
- Spindle Nose: Hardinge Tapered
- SPINDLE CONSTRUCTION
- - With Step Chucks: 25.40mm - 152.40mm
- - With Jaw Chucks: 127.00mm
- With Jaw Chucks Through Spindle: 29.21mm
- With Round 5C Hardinge Collets: 26.92mm
- With Hexagon 5C Hardinge Collets: 22.10mm
- With Square 5C Hardinge Collets: 19.05mm
- Range of Threads in Gear Box: 11 to 108
- Number of Thread Changes in Gear Box: 27
- Motor: 2-Speed, 530 / 1710 RPM
- Electricals: 220V AC Only / 3 PH / 60 Hz / 3.4 Amps
- Show More
- Show Less

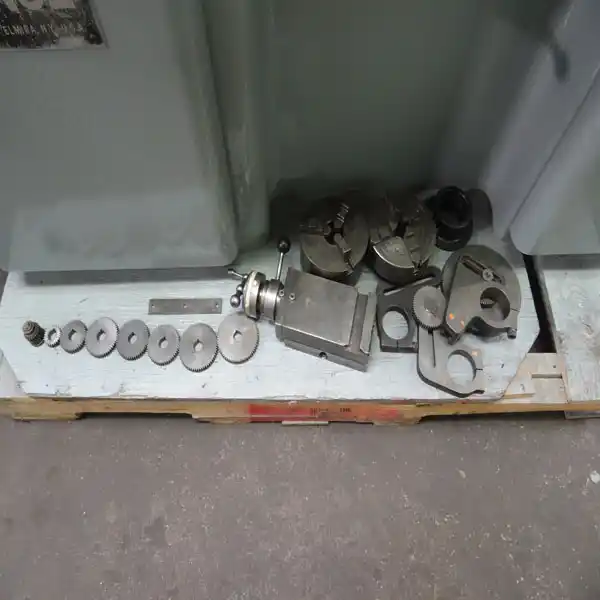

Equipped With
- Quick Acting Lever Type 5C Collet Closer
- 3-Jaw & 4-Jaw Chucks
- Tail Stock

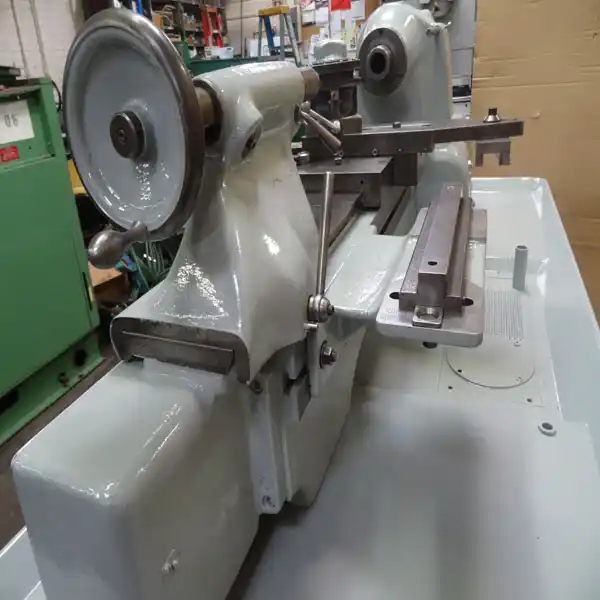

- Taper Turning Attachment
- Micrometer Carriage Stop with Dial Indicator
- Set of Gears
- Accessories and Attachments
- Operators Manuals
- Cabinet Base
- Show More
- Show Less
- Quick Acting Lever Type 5C Collet Closer
- 3-Jaw & 4-Jaw Chucks
- Tail Stock
- Taper Turning Attachment
- Micrometer Carriage Stop with Dial Indicator
- Set of Gears
- Accessories and Attachments
- Operators Manuals
- Cabinet Base
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
