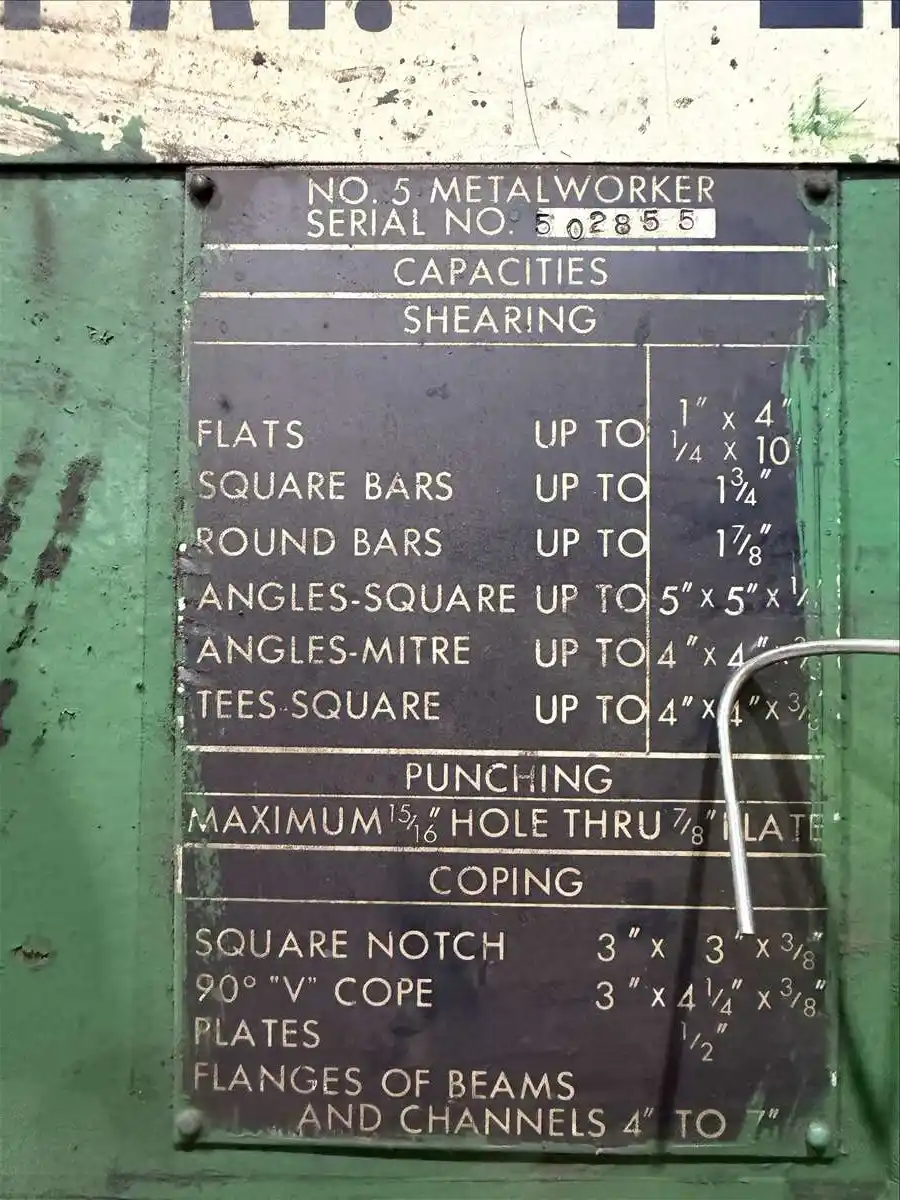

Specifications
- Shearing
- Flats: Up to 1" x 4" or 1/4" x 10"
- Square Bars: 1-3/4"
- Round Bars: 1-7/8"
- Angles - Square: 5" x 5" x 1-1/2"
- Angles - Mitre: 4" x 4" x 2/3"
- Tees - Square: 4" x 4" 3/8"
- Punching
- Capacity: 75 Ton
- Max. Diameter Thru Thickness: 1-1/4" Thru 3/4"
- Coping
- Square Notch: 3" x 3" x 3/8"
- 90° "V" Cope: 3" x 4-1/4" x 3/8"
- Plates: 1/2"
- Flanges of Beams & Channels: 4" to 7"
- Show More
- Show Less
- Shearing
- Flats: Up to 25.40mm x 101.60mm or 6.35mm x 254.00mm
- Square Bars: 44.45mm
- Round Bars: 47.63mm
- Angles - Square: 127.00mm x 127.00mm x 38.10mm
- Angles - Mitre: 101.60mm x 101.60mm x 16.93mm
- Tees - Square: 101.60mm x 101.60mm 9.53mm
- Punching
- Capacity: 68.03 Metric Ton
- Max. Diameter Thru Thickness: 31.75mm Thru 19.05mm
- Coping
- Square Notch: 76.20mm x 76.20mm x 9.53mm
- 90° V Cope: 76.20mm x 107.95mm x 9.53mm
- Plates: 12.70mm
- Flanges of Beams & Channels: 101.60mm to 177.80mm
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Disclaimer: Preliminary Specifications....
