Perfection Global Equipment: https://perfectionglobal.com/used-inventory/hill-acme-7-49130/

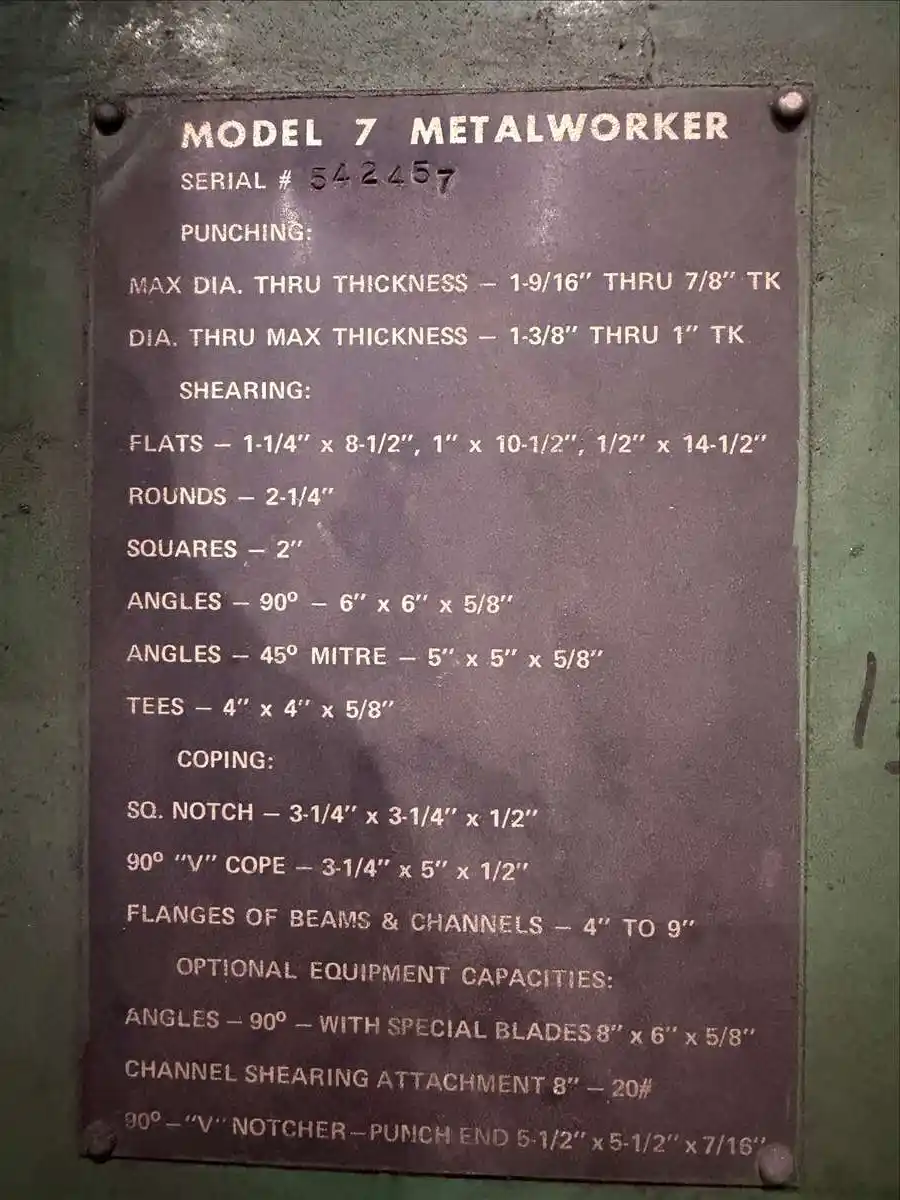

Specifications
- Shearing
- Flats: 1-1/4" x 8-1/2"
- Flats: 1" x 10-1/2"
- Flats: 1/2" x 14-1/2"
- Rounds: 2-1/4"
- Squares: 2"
- Angles 90°: 6" x 6" x 5/8"
- Angles 45° Mitre: 5" x 5" x 5/8"
- Tees: 4" x 4" x 5/8"
- Punching
- Capacity: 125 Ton
- Max. Diameter Thru Thickness: 1-9/16" Thru 7/8"
- Diameter Thru Thickness: 1-3/8" Thru 1"
- Coping
- Square Notch: 3-1/4" x 3-1/4" x 1/2"
- 90° "V" Cope: 3-1/4" x 5" x 1/2"
- Flanges of Beams & Channels: 4" to 9"
- Show More
- Show Less
- Shearing
- Flats: 31.75mm x 215.90mm
- Flats: 25.40mm x 266.70mm
- Flats: 12.70mm x 368.30mm
- Rounds: 57.15mm
- Squares: 50.80mm
- Angles 90°: 152.40mm x 152.40mm x 15.88mm
- Angles 45° Mitre: 127.00mm x 127.00mm x 15.88mm
- Tees: 101.60mm x 101.60mm x 15.88mm
- Punching
- Capacity: 113.39 Metric Ton
- Max. Diameter Thru Thickness: 39.69mm Thru 22.23mm
- Diameter Thru Thickness: 34.93mm Thru 25.40mm
- Coping
- Square Notch: 82.55mm x 82.55mm x 12.70mm
- 90° V Cope: 82.55mm x 127.00mm x 12.70mm
- Flanges of Beams & Channels: 101.60mm to 228.60mm
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Disclaimer: Preliminary Specifications....
