Perfection Global Equipment: https://perfectionglobal.com/used-inventory/kellenberger-600u-48077/
Inventory # 48077

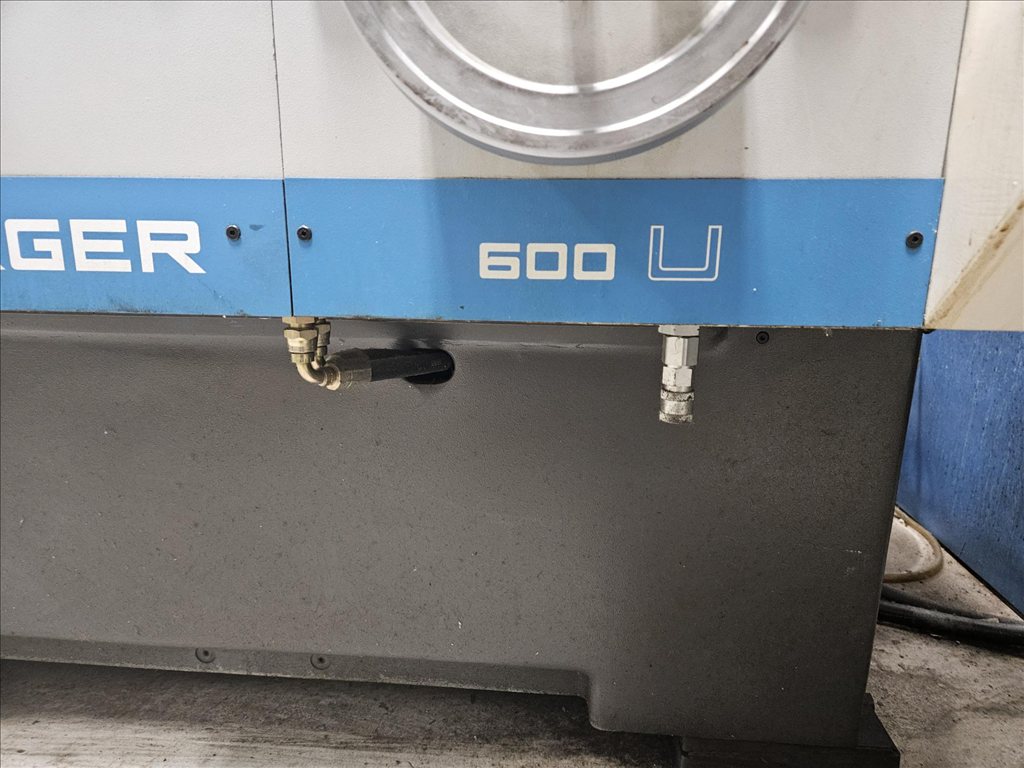

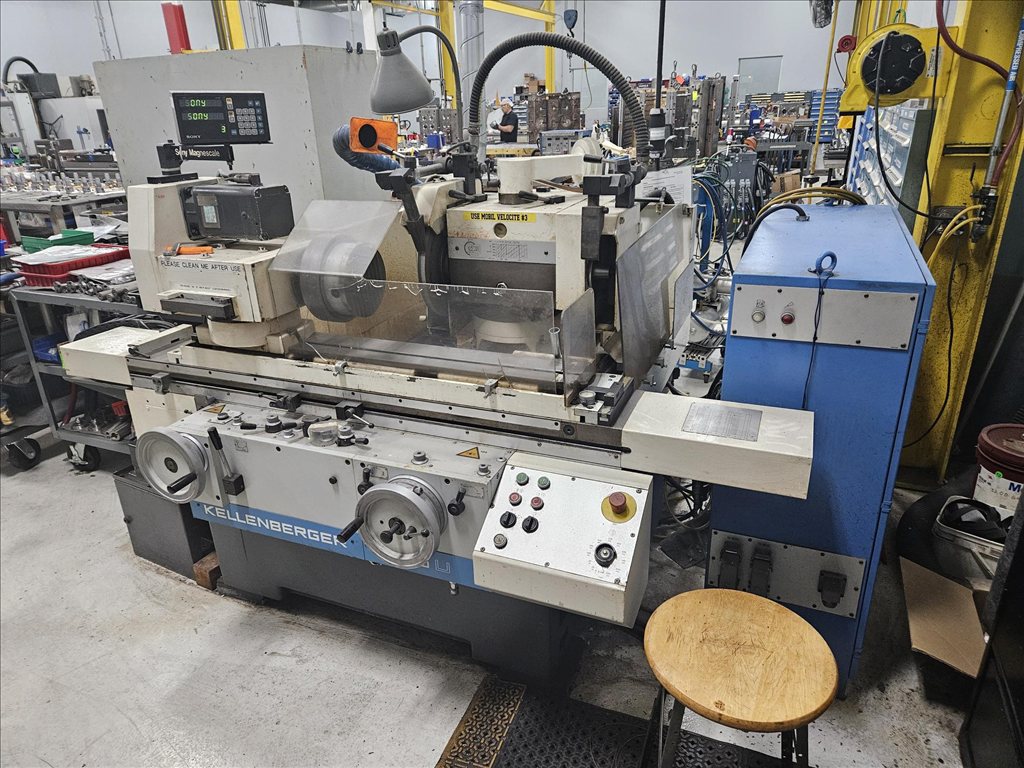

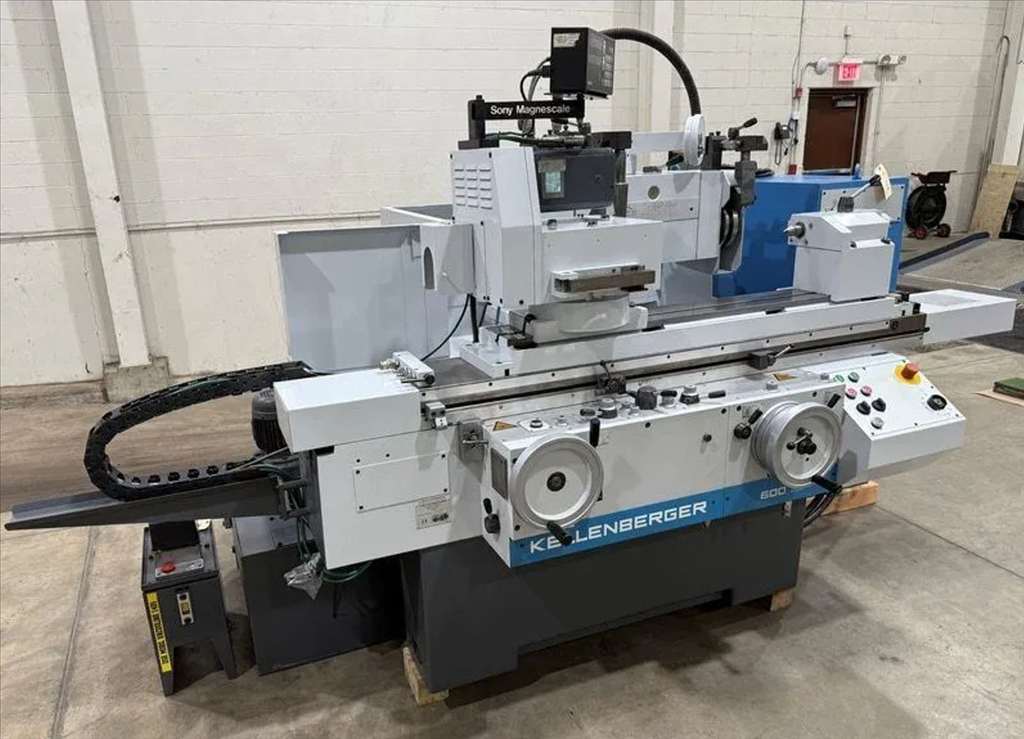

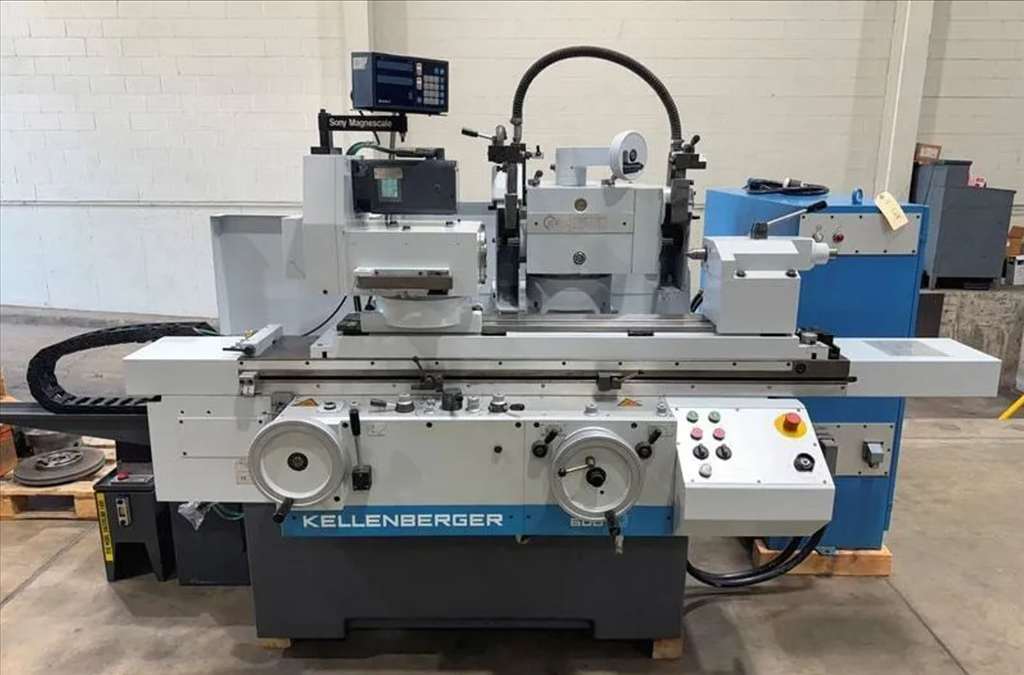

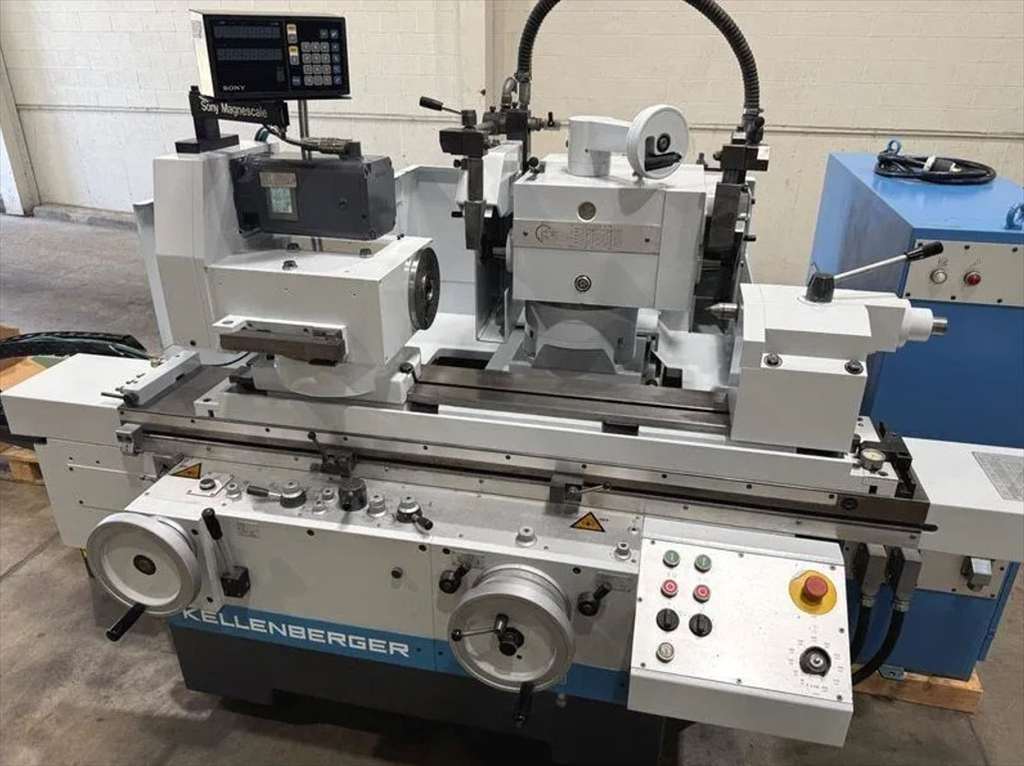

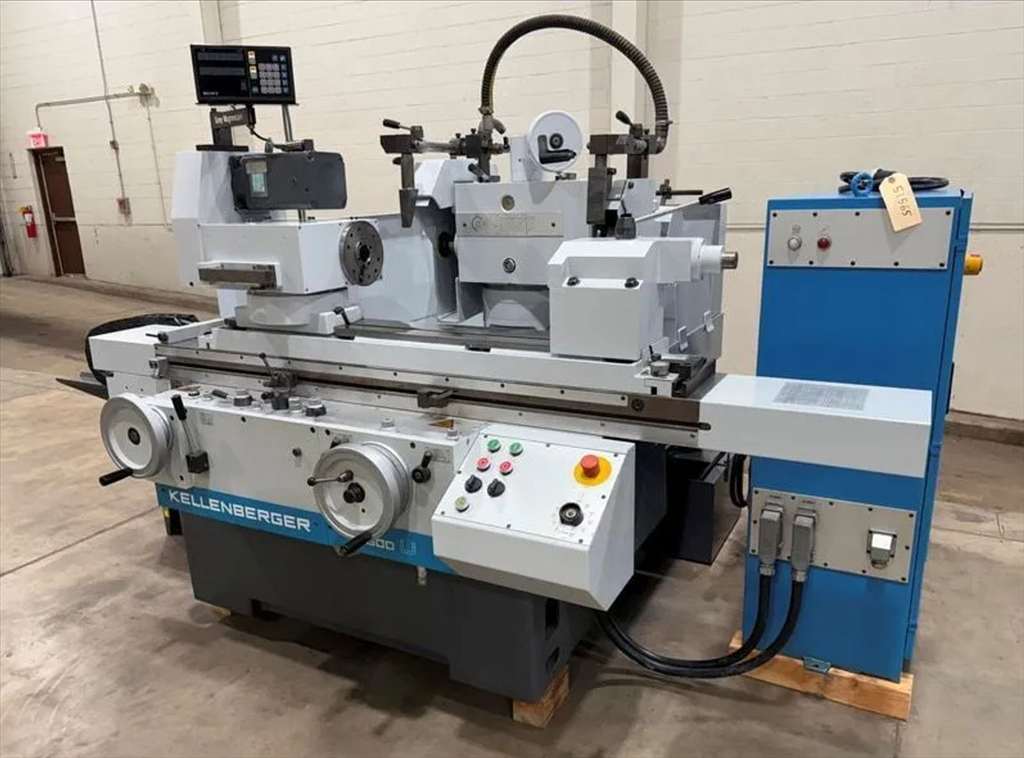

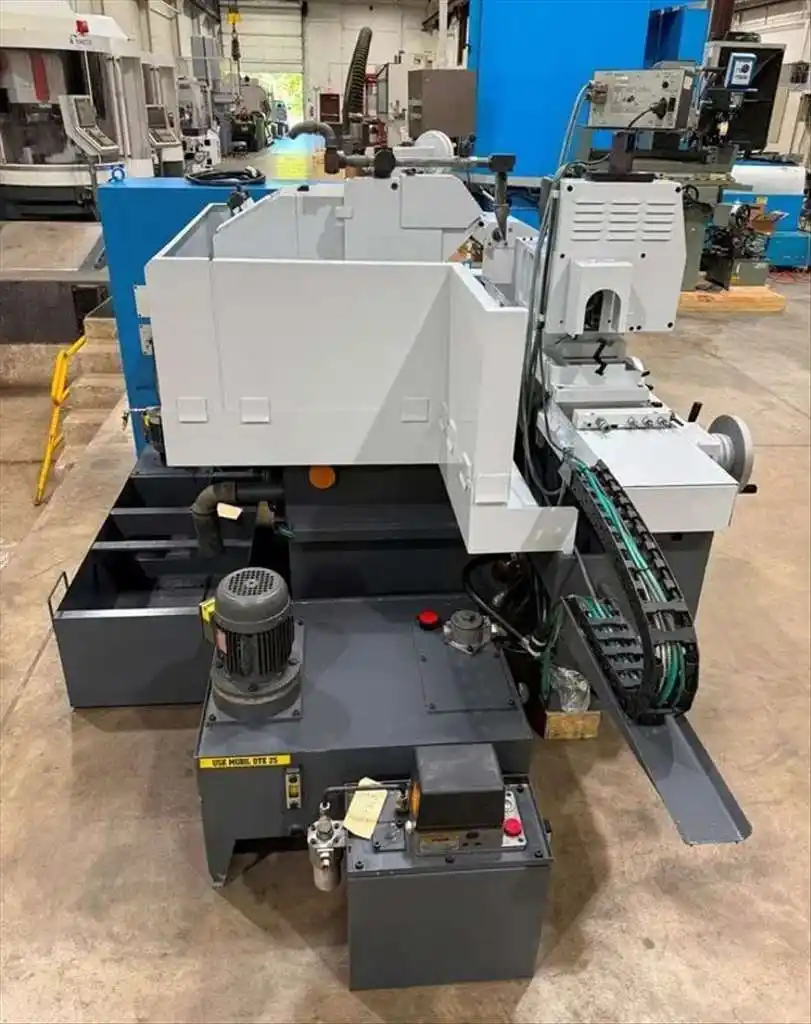

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com Kellenberger 600U 3-Wheel Universal Cylindrical Grinder
Specifications
- Swing: 13"
- Distance Between Centers: 24"
- Height of Centers: 7"
- Max. Table Slide Travel: 35-7/16"
- Table Swivel Range: 11°

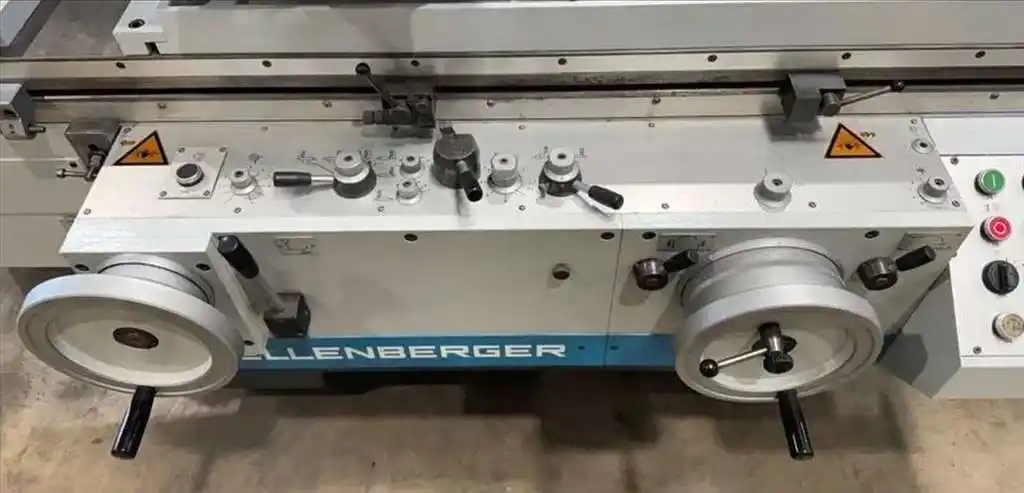

- Wheelslide
- Travel w/ Hand Wheel: 8-21/32"
- Infeed per Revolution of Hand Wheel (Coarse/Fine): 0.3" - 0.04" Ø
- Wheelhead
- O.D. Grinding Wheel: 16" x 2" x 5"
- Right-Hand Spindle End Grinding Wheel: 12" x 1-1/2" x 5"
- Spindle Speeds: 1500/1700/2200 RPM
- Swivel Range: +5°/-195°
- Motor: 5 HP
- Indexed Stop Position: 90°
- Workhead
- Swivel Range: +120°/-30°

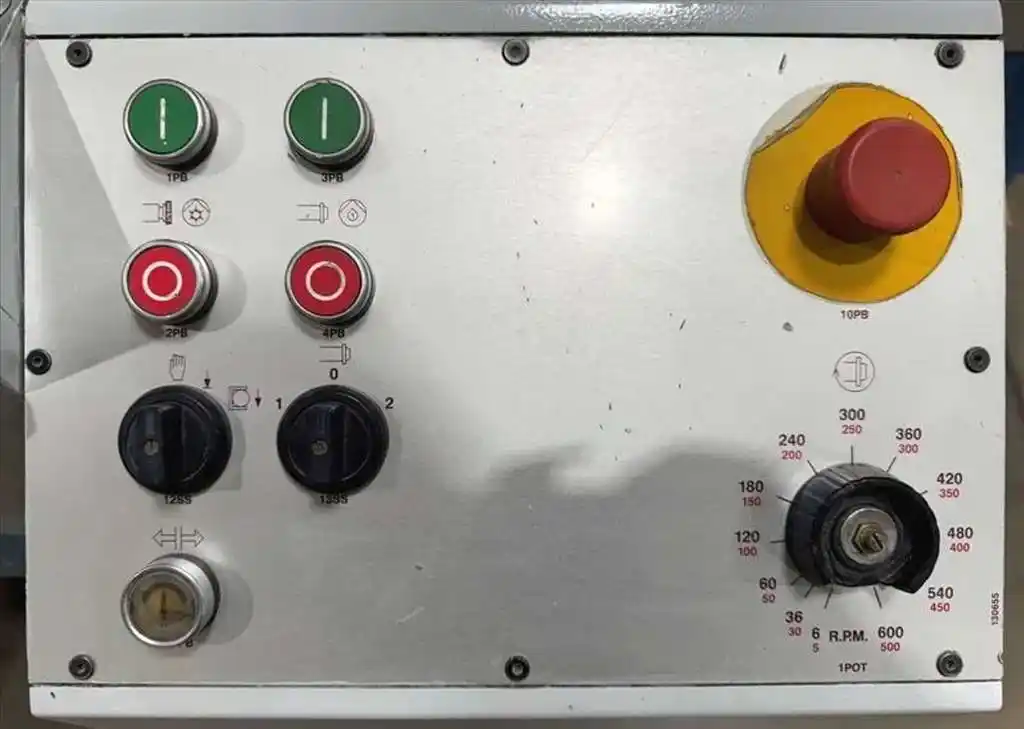

- Spindle Speeds (Infinitely Variable): 6 - 600 RPM
- Max. Working Capacity Between Centers: 330 lb.
- Work Spindle Internal Taper: #5 Morse
- Motor: 4 HP

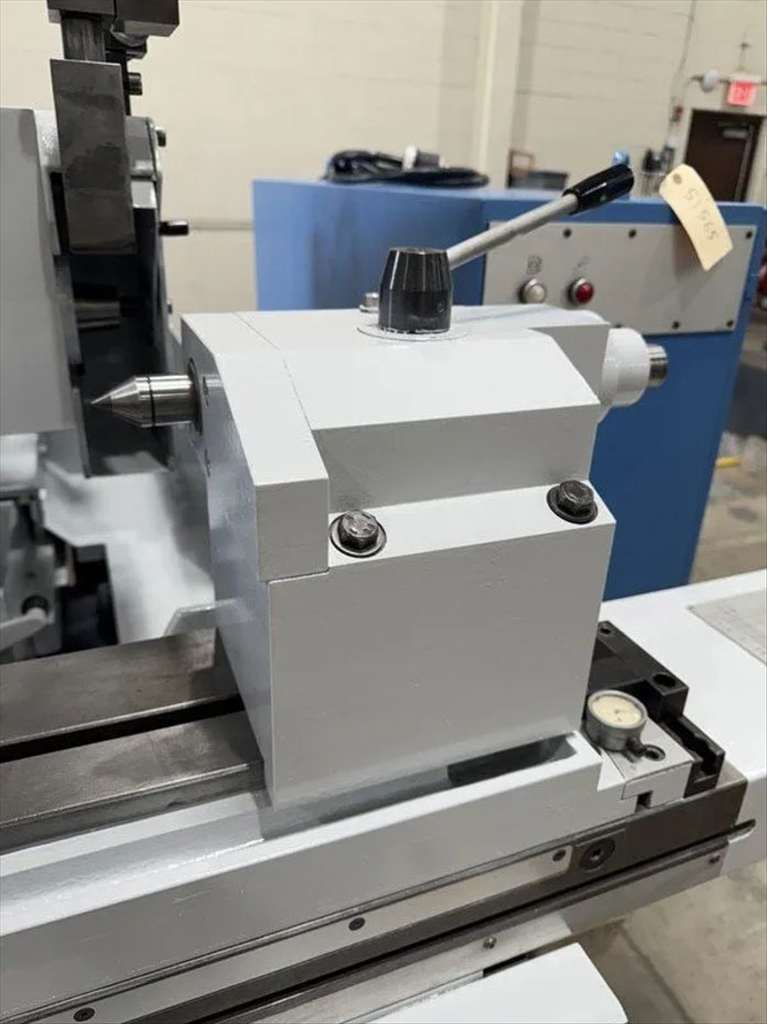

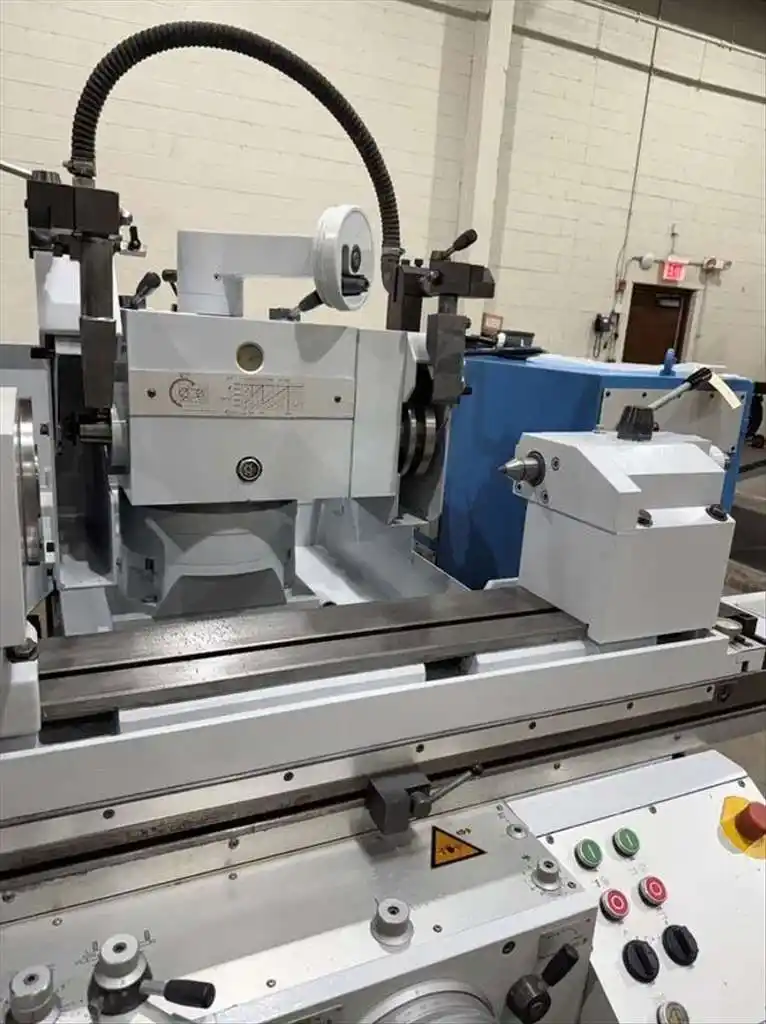

- Tailstock
- Sleeve Internal Taper: #4 Morse
- Sleeve Stroke: 1-3/16"
- Show More
- Show Less
- Swing: 330.20mm
- Distance Between Centers: 609.60mm
- Height of Centers: 177.80mm
- Max. Table Slide Travel: 900.11mm
- Table Swivel Range: 11°
- Wheelslide
- Travel w/ Hand Wheel: 219.87mm
- Infeed per Revolution of Hand Wheel (Coarse/Fine): 7.62mm - 1.02mm
- Wheelhead
- O.D. Grinding Wheel: 406.40mm x 50.80mm x 127.00mm
- Right-Hand Spindle End Grinding Wheel: 304.80mm x 38.10mm x 127.00mm
- Spindle Speeds: 1500/1700/2200 RPM
- Swivel Range: +5°/-195°
- Motor: 3.73 kw
- Indexed Stop Position: 90°
- Workhead
- Swivel Range: +120°/-30°
- Spindle Speeds (Infinitely Variable): 6 - 600 RPM
- Max. Working Capacity Between Centers: 150 kg
- Work Spindle Internal Taper: #5 Morse
- Motor: 2.98 kw
- Tailstock
- Sleeve Internal Taper: #4 Morse
- Sleeve Stroke: 30.16mm
- Show More
- Show Less

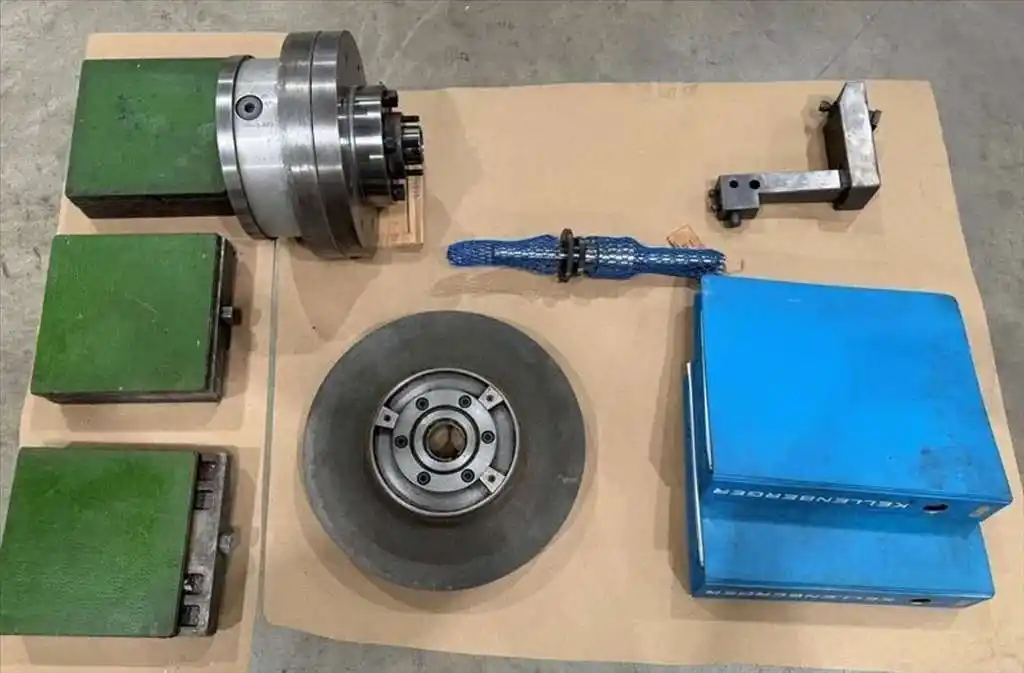

Equipped With
- Three Wheel Design - Universal OD, Face, & ID Grinding

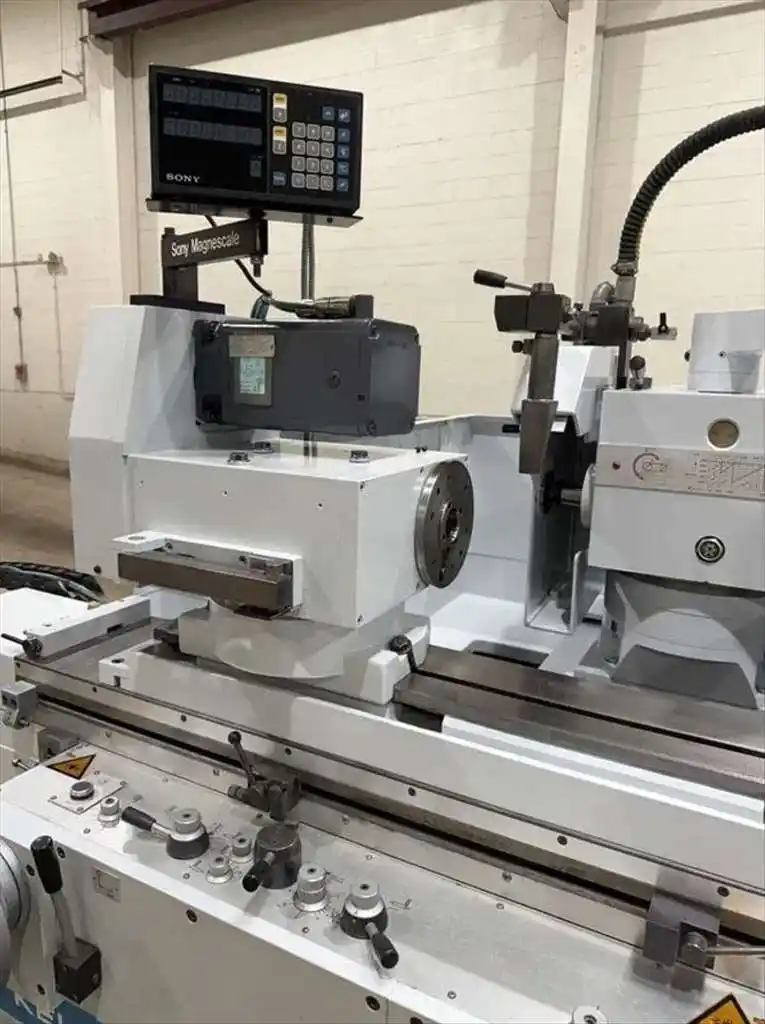

- Sony Magnescale LH32-2 2-Axis Digital Read Out System
- 60,000 RPM Fischer HJN 860 I.D. Grinding Spindle

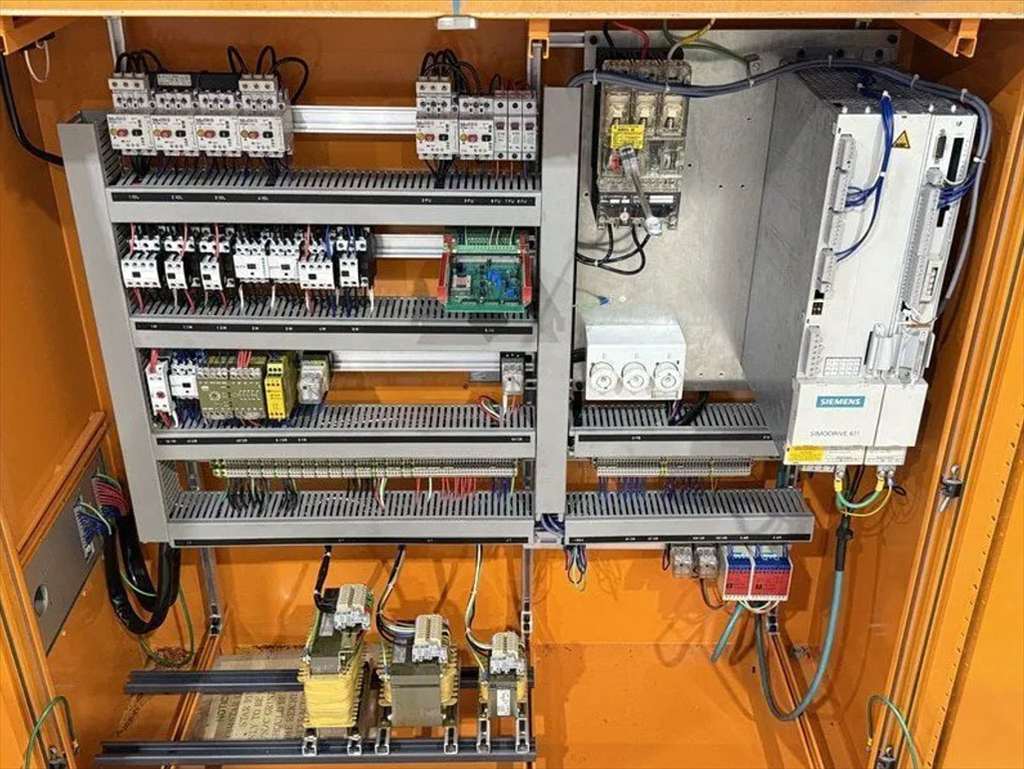

- Siemens A.C. Servo Drive Workhead
- Sine Bar Attachment
- Tailstock w/ Preloaded Sleeve
- 8" Magnetic Chuck

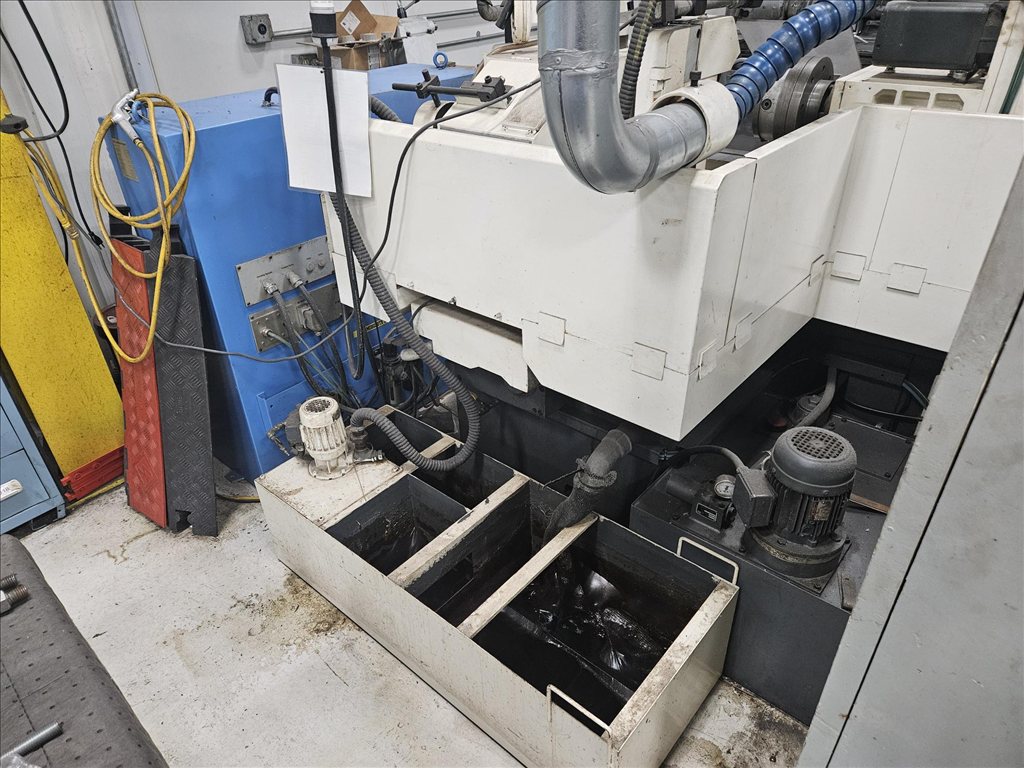

- Coolant Filtration System
- Table Mount Single Point Dressing Device
- Hydraulic System
- Automatic Central Lubrication System
- Dial-Gauge Stop for Table Swivel
- Show More
- Show Less
- Three Wheel Design - Universal OD, Face, & ID Grinding
- Sony Magnescale LH32-2 2-Axis Digital Read Out System
- 60,000 RPM Fischer HJN 860 I.D. Grinding Spindle
- Siemens A.C. Servo Drive Workhead
- Sine Bar Attachment
- Tailstock w/ Preloaded Sleeve
- 203.20mm Magnetic Chuck
- Coolant Filtration System
- Table Mount Single Point Dressing Device
- Hydraulic System
- Automatic Central Lubrication System
- Dial-Gauge Stop for Table Swivel
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Location: Lincolnshire, IL
- Disclaimer: Preliminary Specifications....
