Inventory # 43618 Year: 2013

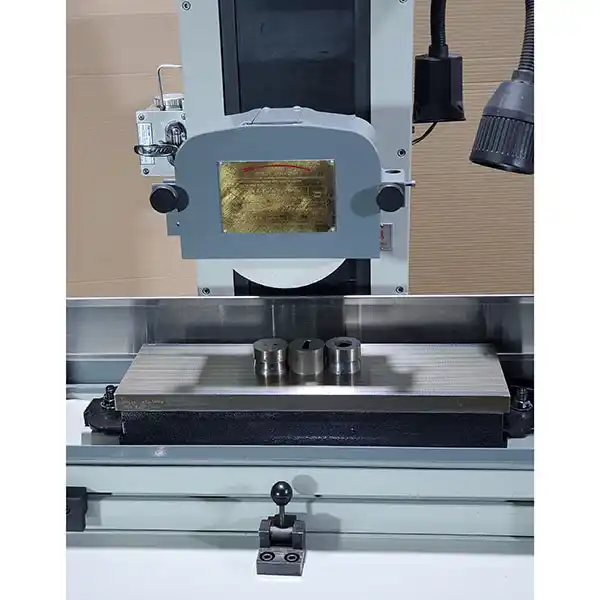

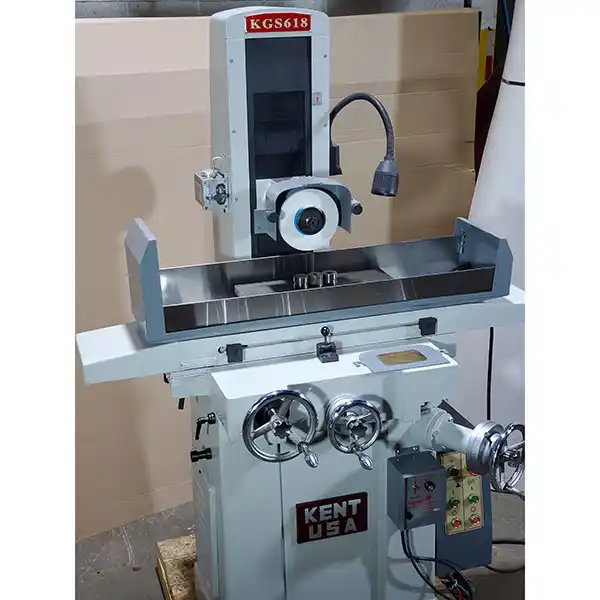

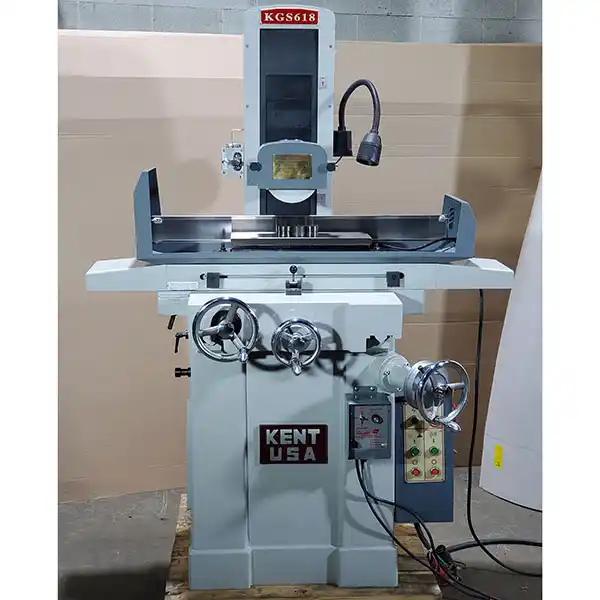

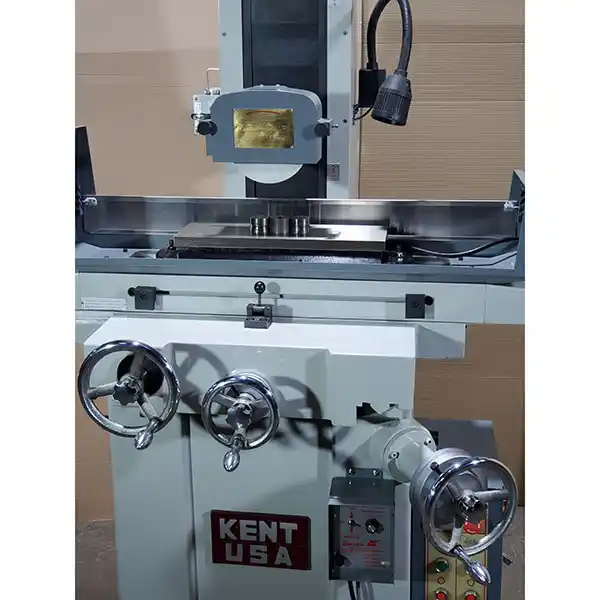

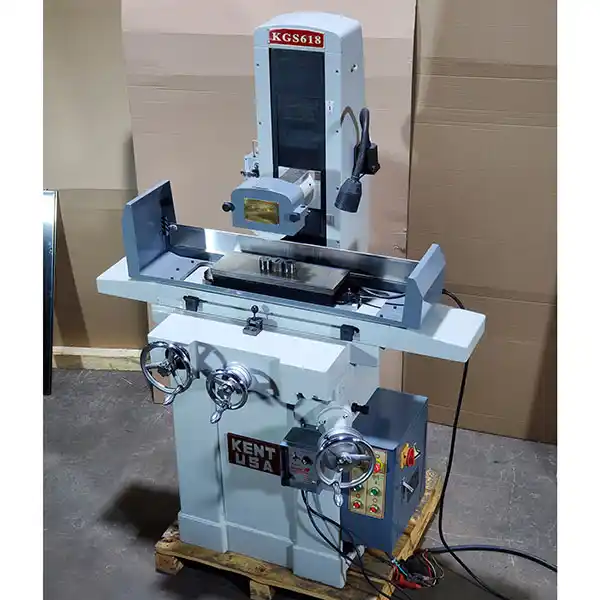

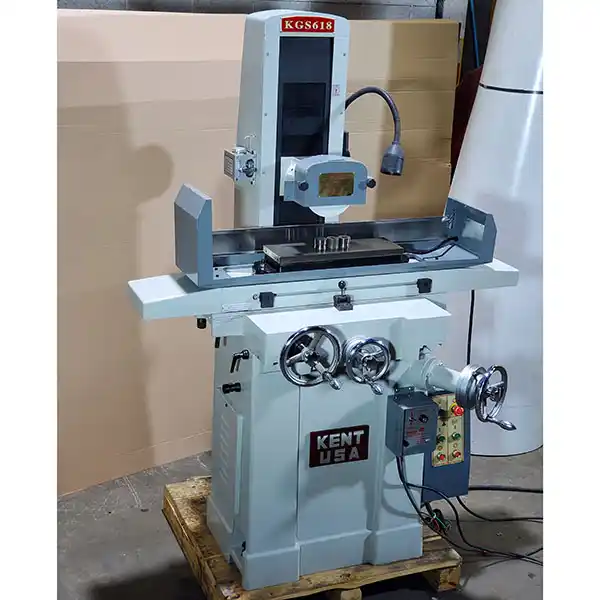

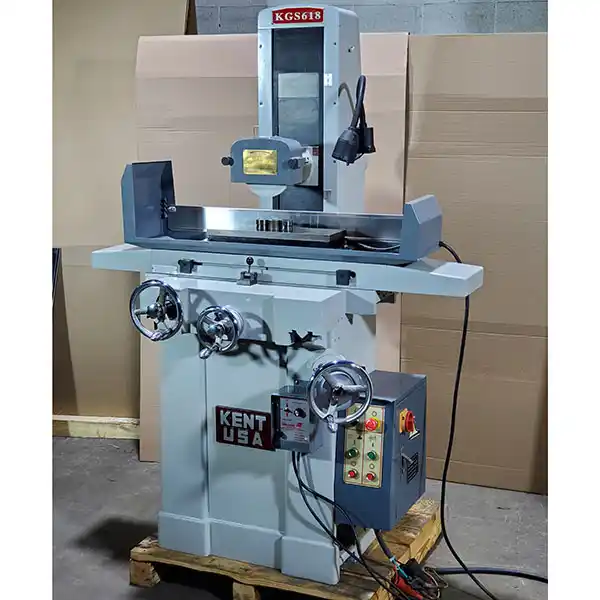

Kent KGS 618 Surface Grinder
Specifications
- Max. Grinding Surface: 6" x 18"
- Max. Horizontal Travel: 19"
- Max. Cross Travel: 7"
- Distance Between Table Surface and Spindle Center: 17.75"
- Downfeed Manual Fine: 0.0002" - 0.0004"
- Wheel Size: 8" x 1" x 1.25"
- Manual Varial Table Speed
- Crossing Table Manual
- 220 / 440 VAC 3 Phase 2 HP
- 5.59 / 2.79 Amps
- 3440 RPM
- Show More
- Show Less
- Max. Grinding Surface: 152.40mm x 457.20mm
- Max. Horizontal Travel: 482.60mm
- Max. Cross Travel: 177.80mm
- Distance Between Table Surface and Spindle Center: 450.85mm
- Downfeed Manual Fine: 0.01mm - 0.01mm
- Wheel Size: 203.20mm x 25.40mm x 31.75mm
- Manual Varial Table Speed
- Crossing Table Manual
- 220 / 440 VAC 3 Phase 1.49 kw
- 5.59 / 2.79 Amps
- 3440 RPM
- Show More
- Show Less
Equipped With
- Electromagnetic Table w/ Control
- Electromagnetic Table w/ Control
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
