Inventory # 44188 Year: 2022

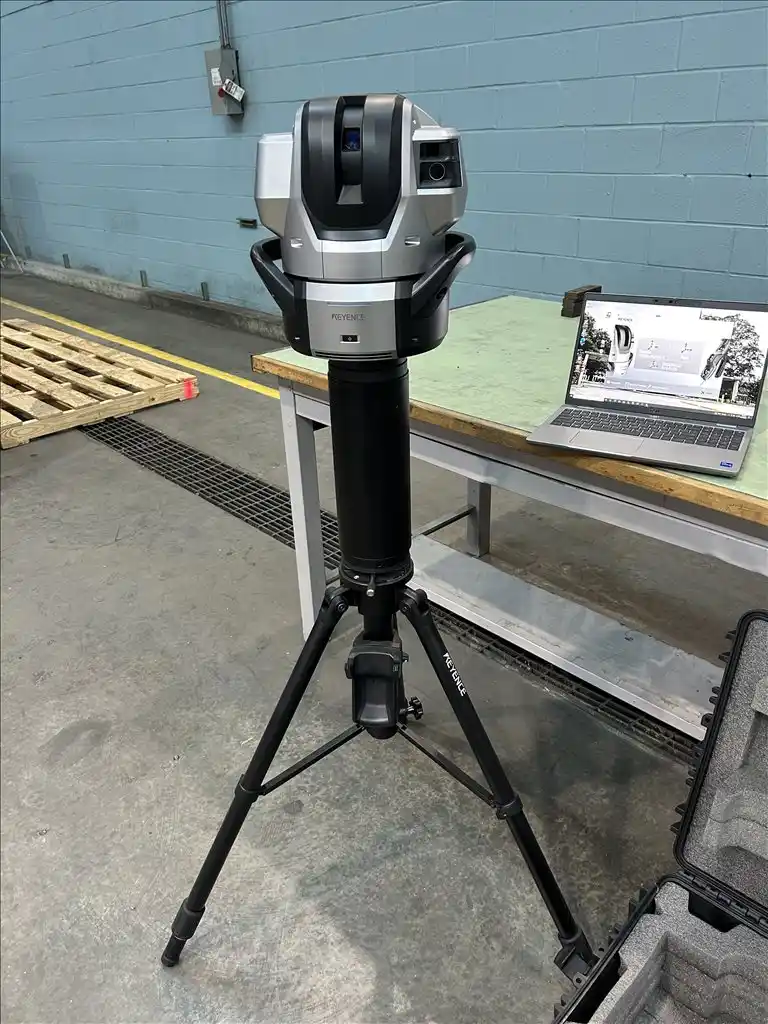

Keyence WM-3500 Wide Area Portable CMM
Specifications
- Max Measurement Length (W x D x H): 590" x 236" x 295"
- Minimum Display Unit Distance: 0.001 mm
- Minimum Display Angle: 0.001°
- Camera Unit Rotation Angle:
- Theta Rotation: +/-90°
- Tilt Rotation: +/-30°
- External Input: (2) Non-Voltage Inputs
- Tracking Camera
- Probe Search Camera
- Reference Camera
- Communication:
- Bluetooth: 5.0
- USB: 3.0
- Infrared: 945 nm
- Environmental Resistance:
- Operating Ambient Temperature: +50°F to 95°F
- Operating Ambient Humidity: 20 to 80% RH (No Condensation)
- Wireless Probe Model: WM-P3000
- Light Source: 870 nm
- Applicable Stylus: M5
- Display Resolution: 240 x 320 Pixels
- Show More
- Show Less
- Max Measurement Length (W x D x H): 14986.00mm x 5994.40mm x 7493.00mm
- Minimum Display Unit Distance: 0.001 mm
- Minimum Display Angle: 0.001°
- Camera Unit Rotation Angle:
- Theta Rotation: +/-90°
- Tilt Rotation: +/-30°
- External Input: (2) Non-Voltage Inputs
- Tracking Camera
- Probe Search Camera
- Reference Camera
- Communication:
- Bluetooth: 5.0
- USB: 3.0
- Infrared: 945 nm
- Environmental Resistance:
- Operating Ambient Temperature: +50°F to 95°F
- Operating Ambient Humidity: 20 to 80% RH (No Condensation)
- Wireless Probe Model: WM-P3000
- Light Source: 870 nm
- Applicable Stylus: M5
- Display Resolution: 240 x 320 Pixels
- Show More
- Show Less

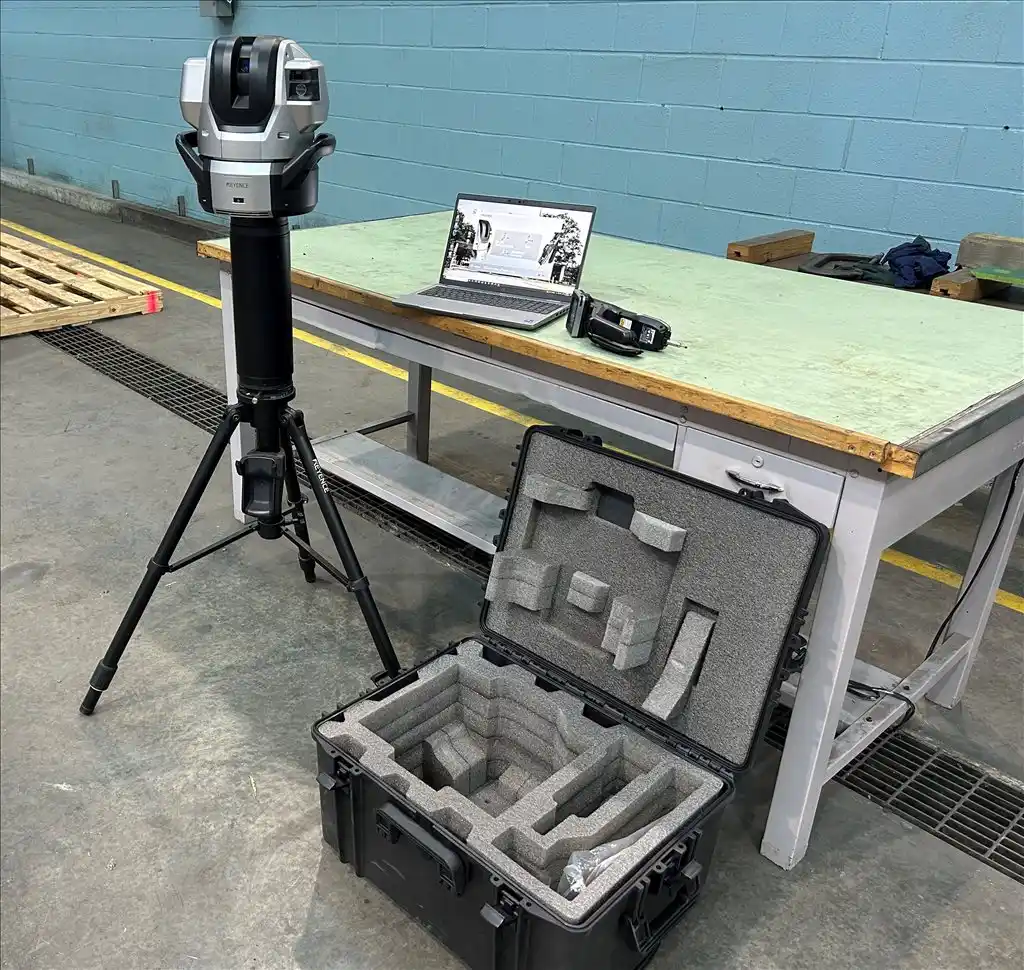

Equipped With
- Windows 10 Laptop & Software
- CAD Import Software
- Tripod
- Tripod Extension Pole
- Rechargeable Li-Ion Battery
- 4-Slot Battery Charger
- AC Cable
- Show More
- Show Less
- Windows 10 Laptop & Software
- CAD Import Software
- Tripod
- Tripod Extension Pole
- Rechargeable Li-Ion Battery
- 4-Slot Battery Charger
- AC Cable
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
