Inventory # 38295 Year: 1998

KOMATSU L2M400-3BM STRAIGHT SIDE DOUBLE CRANK PRESS

Request a Quote
Measurement

Specifications
  • Tonnage Capacity: 440 Tons
  • Stroke: 7.9"
  • Die Height (SDAU): 27.6"
  • Shut Height (Bed to Slide, SDAU): 38.6"
  • Slide Adjustment: 5.9"
  • Stroke Speeds: 30 - 80 SPM
  • Bolster Area: 96.5" L-R x 49.2" F-B
  • Slide Area: 96.5" L-R x 45.3" F-B
  • Bolster Thickness: 11"
  • Window Opening: 46.8"
  • Show More
  • Show Less
  • Tonnage Capacity: 399.12 Metric Tons
  • Stroke: 200.66mm
  • Die Height (SDAU): 701.04mm
  • Shut Height (Bed to Slide, SDAU): 980.44mm
  • Slide Adjustment: 149.86mm
  • Stroke Speeds: 30 - 80 SPM
  • Bolster Area: 2451.10mm L-R x 1249.68mm F-B
  • Slide Area: 2451.10mm L-R x 1150.62mm F-B
  • Bolster Thickness: 279.40mm
  • Window Opening: 1188.72mm
  • Show More
  • Show Less
Equipped With
  • Combination Wet-Type Clutch & Brake
  • Air Counterbalance
  • Hydraulic Overload Protection
  • Link Drive

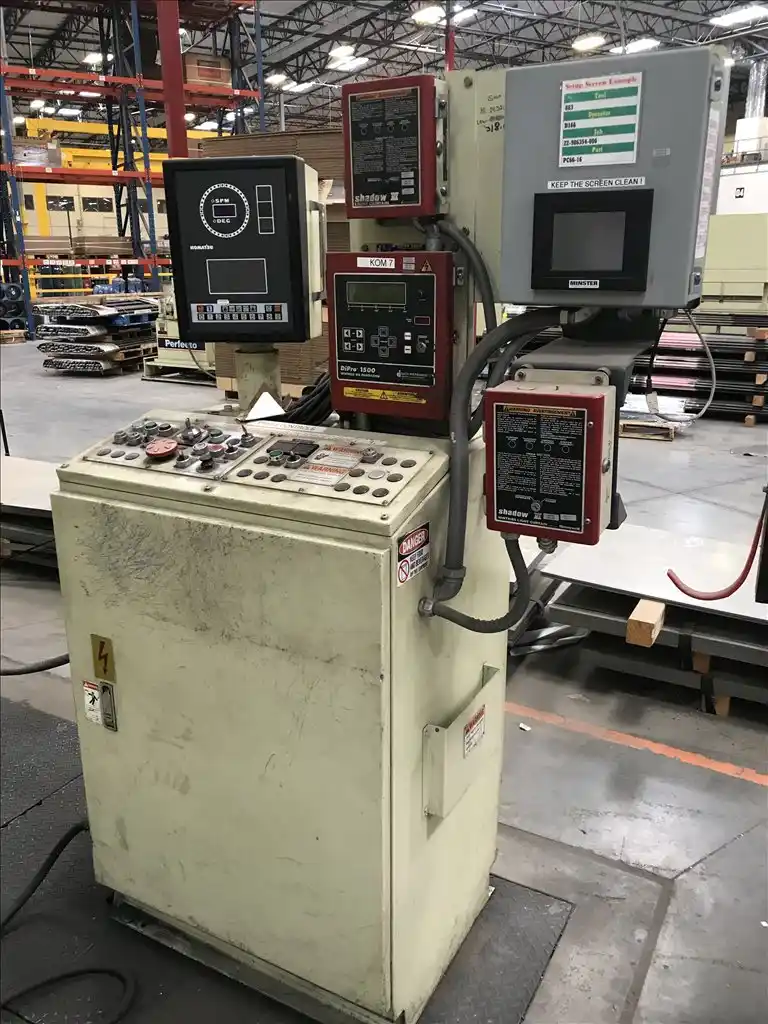

  • T-Stand w/ Dual Palm Buttons
  • Show More
  • Show Less
  • Combination Wet-Type Clutch & Brake
  • Air Counterbalance
  • Hydraulic Overload Protection
  • Link Drive
  • T-Stand w/ Dual Palm Buttons
  • Show More
  • Show Less
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
