Perfection Global Equipment: https://perfectionglobal.com/used-inventory/komatsu-obs35-34k2m-48814/
Inventory # 48814 Year: 2016

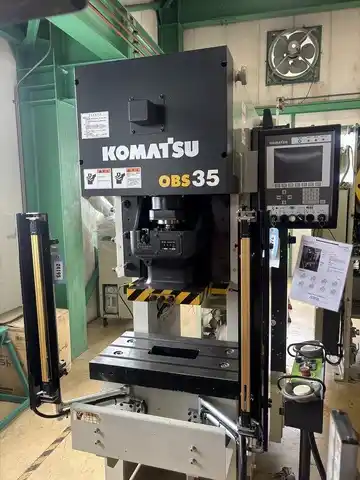

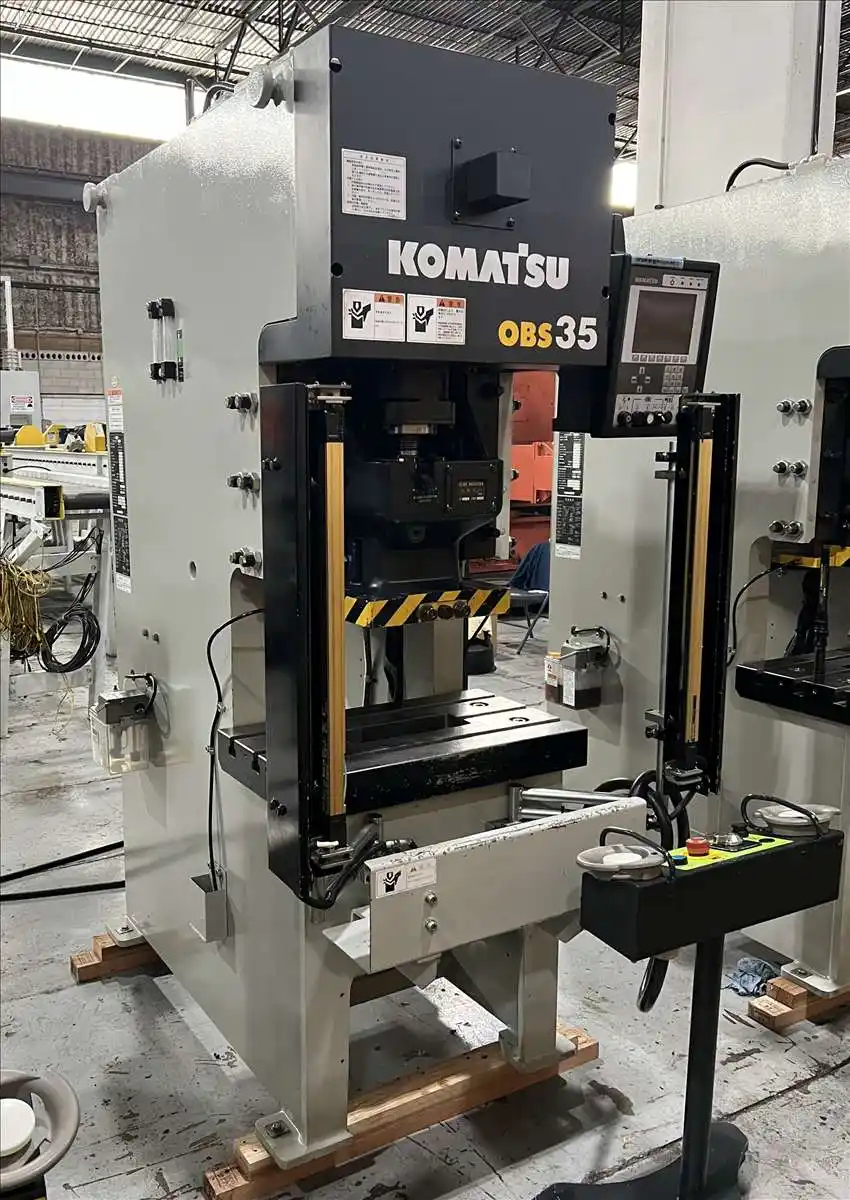

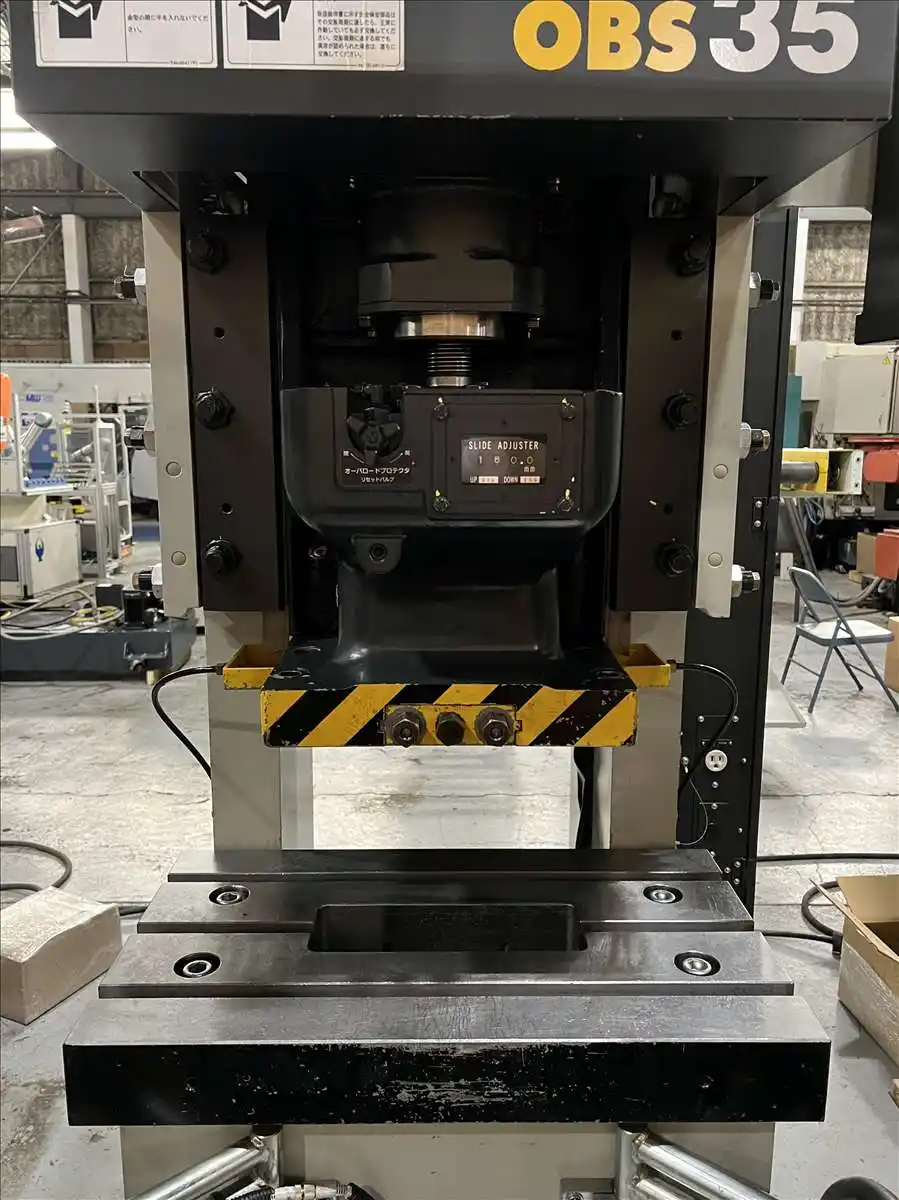

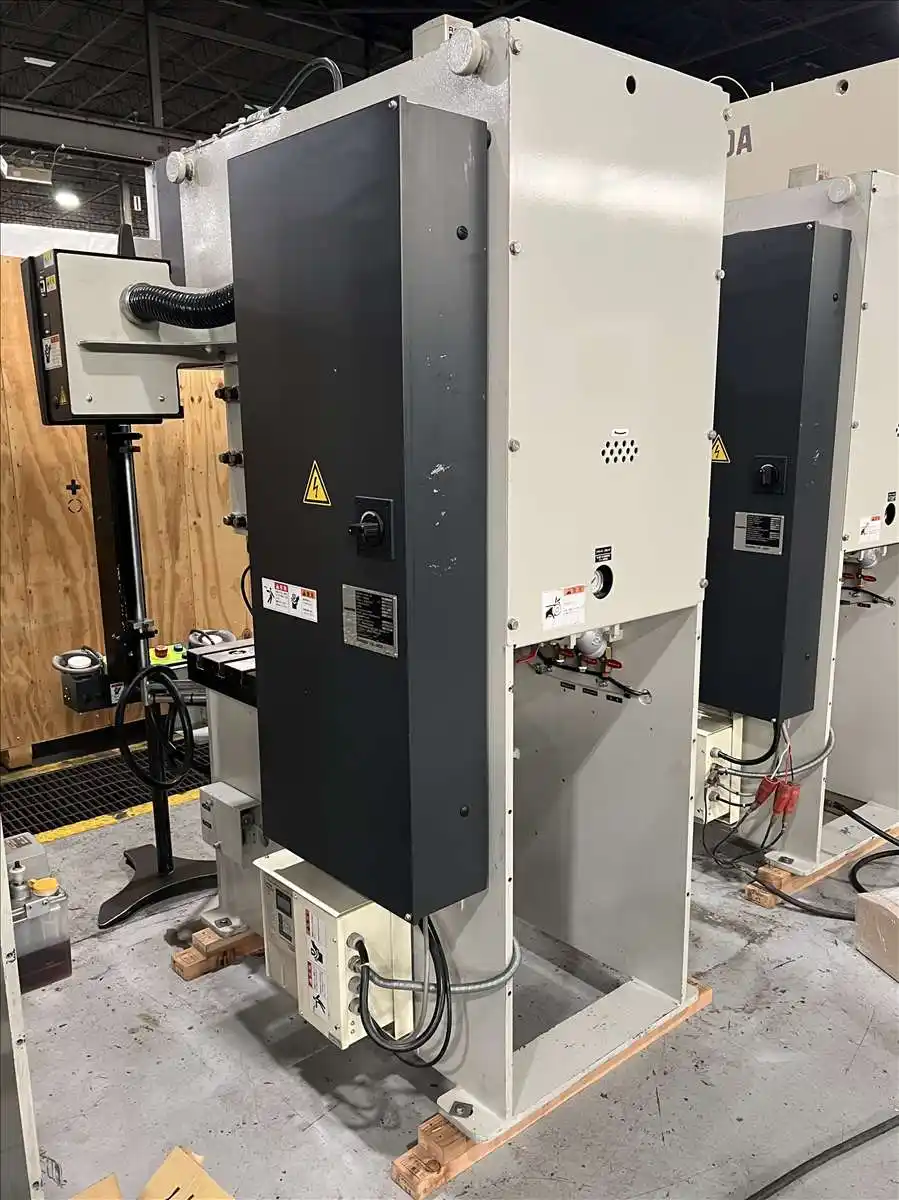

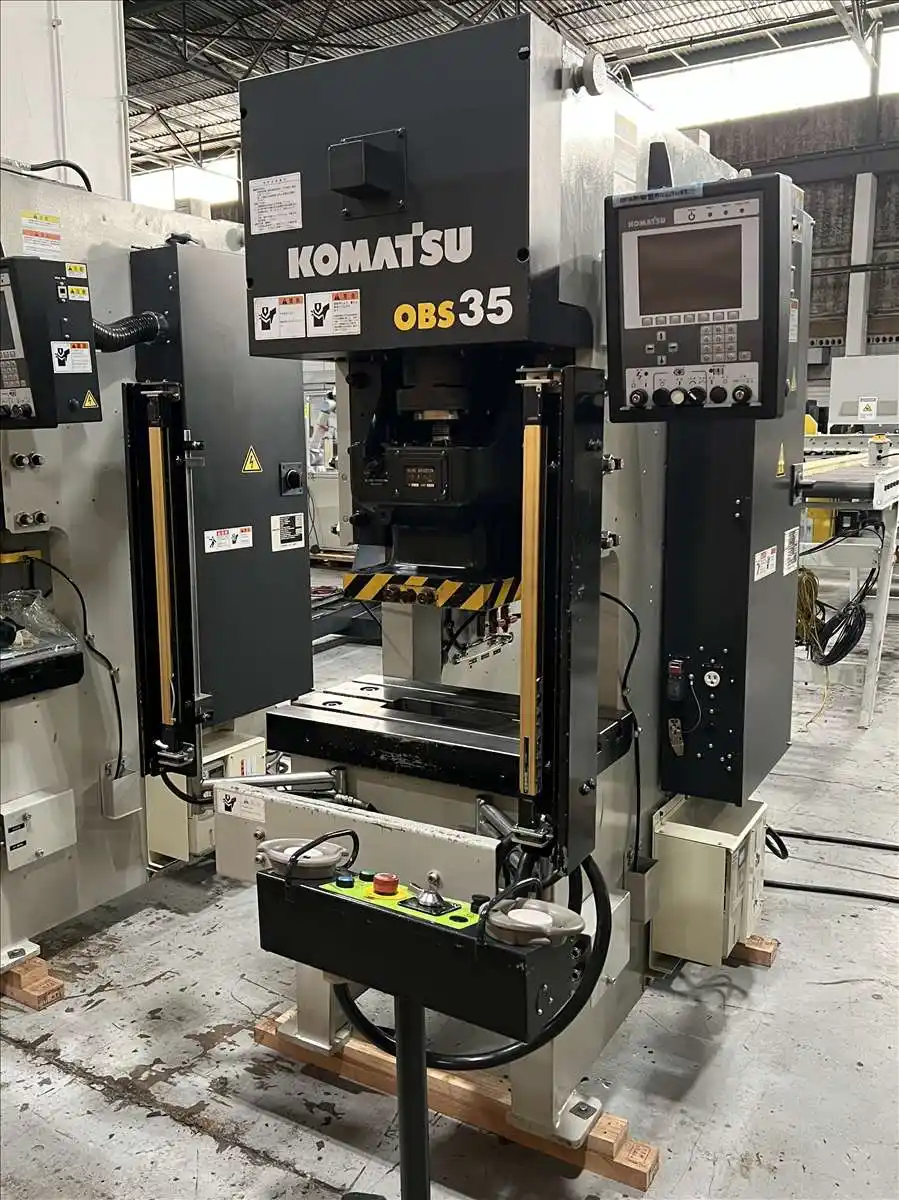

Komatsu OBS35-34K2M 38.5 Ton Single-Point Gap Frame Press
Specifications
- Tonnage Capacity: 38.5 Ton
- Stroke Length: 3.1"
- Stroke Speed: 64 - 128 SPM
- Die Height Over Bolster: 8.3"

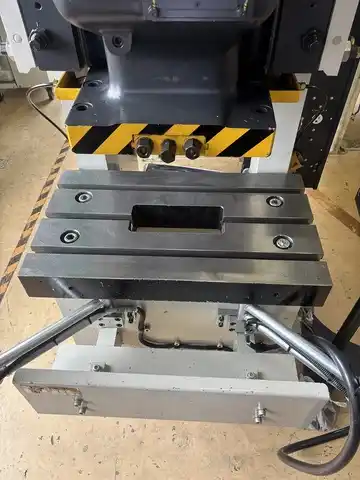

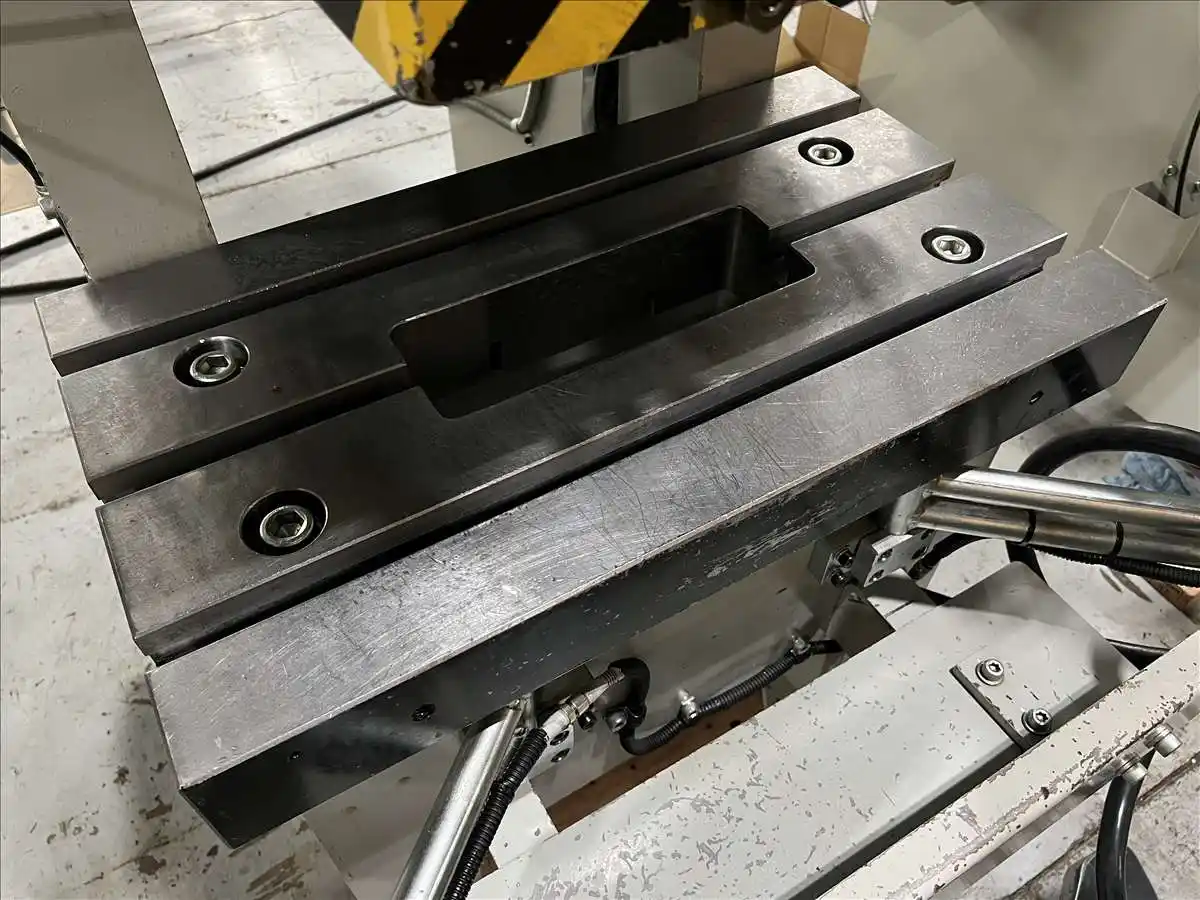

- Bolster Area (L-R x F-B): 27.6" x 15.7"
- Bolster Thickness: 3.4"
- Slide Area (L-R x F-B): 13.8" x 11.8"

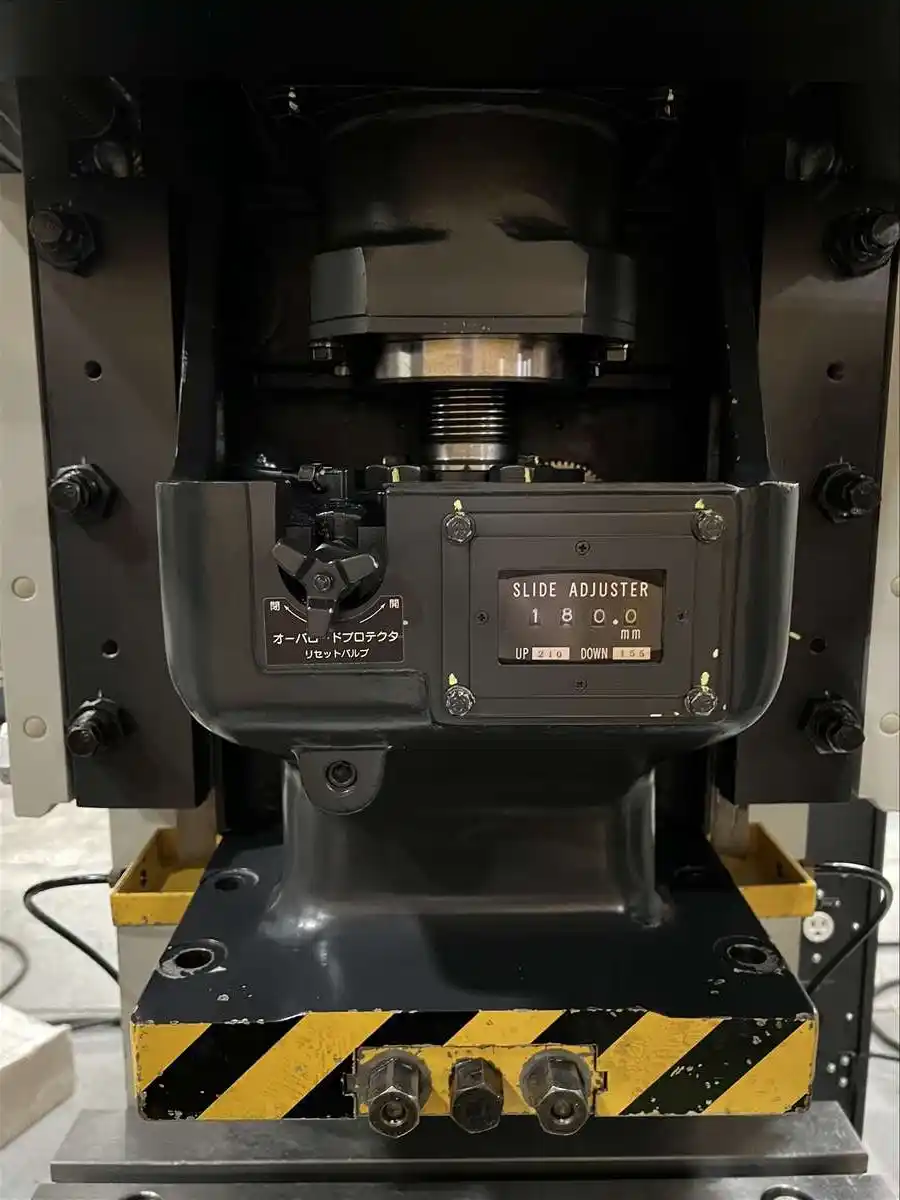

- Slide Adjustment: 2.2"
- Show More
- Show Less
- Tonnage Capacity: 35 Metric Ton
- Stroke Length: 78mm
- Stroke Speed: 64 - 128 SPM
- Die Height Over Bolster: 210mm
- Bolster Area (L-R x F-B): 700mm x 400mm
- Bolster Thickness: 86.36mm
- Slide Area (L-R x F-B): 350mm x 300mm
- Slide Adjustment: 55mm
- Show More
- Show Less
Equipped With

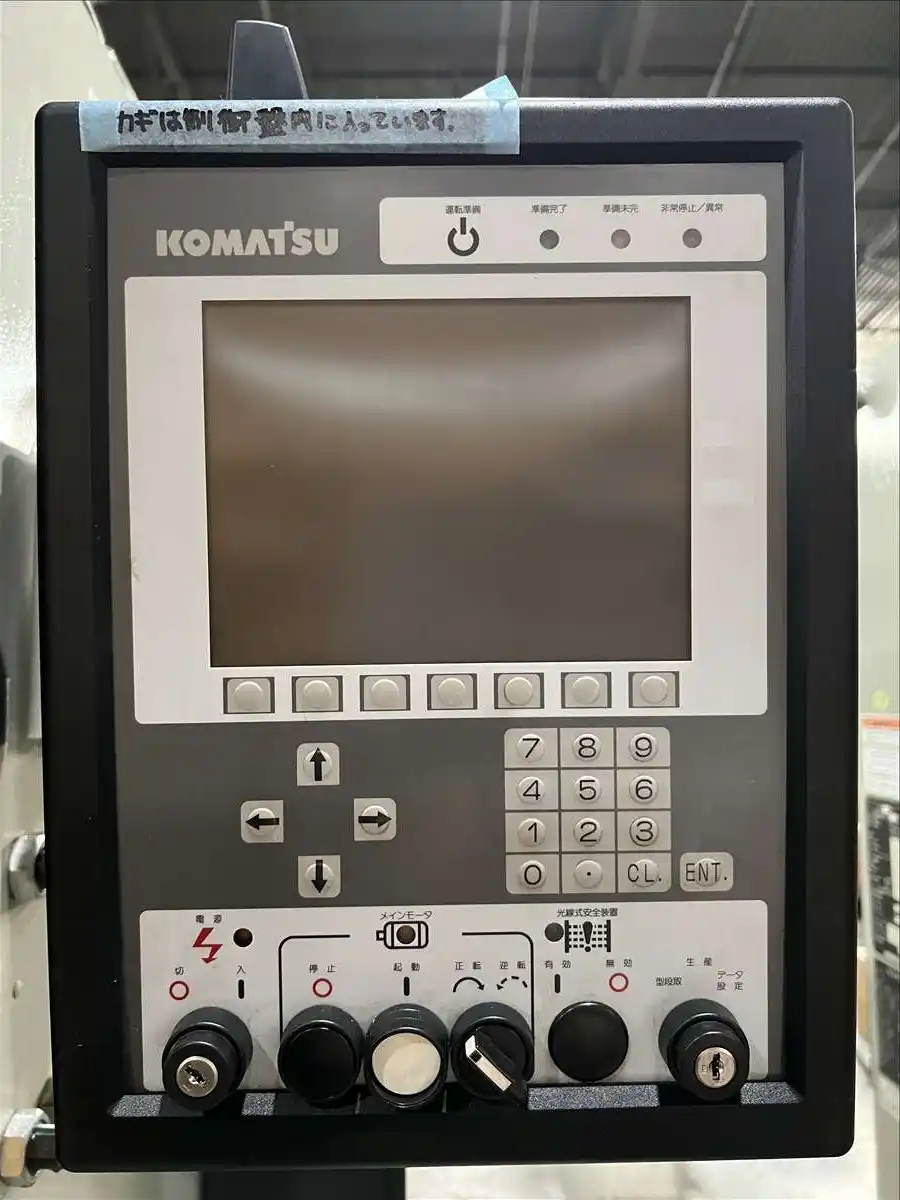

- Komatsu SIT IV Control

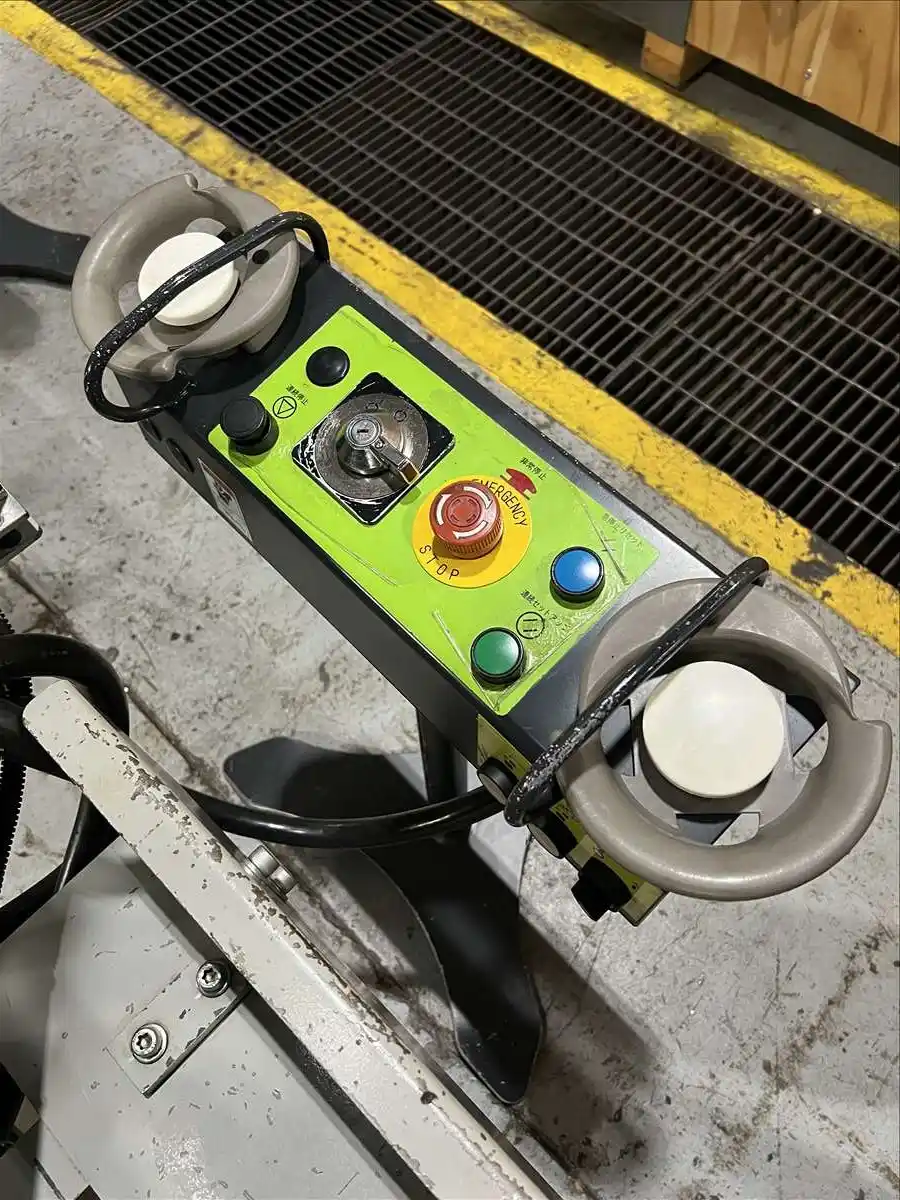

- T-Stand w/ Dual Palm Buttons
- Wet Type Clutch & Brake
- Hydraulic Overload Protection
- Komatsu SIT IV Control
- T-Stand w/ Dual Palm Buttons
- Wet Type Clutch & Brake
- Hydraulic Overload Protection
Location & Terms
- Terms: F.O.B.
- Location: ELK GROVE-ON ARRIVAL, IL
- Disclaimer: Preliminary Specifications....
