Specifications
- X-Axis Travel: 64.1"
- Y-Axis Travel: 25.1"
- Z-Axis Travel: 25.1"
- Throat: 26"
- Table Size: 67.5" x 25.1"
- Table Capacity: 2778 lb.
- Spindle Nose to Table Top Distance (Min./Max.): 7.1" - 32.2"
- Spindle Nose: CAT 50
- Spindle Speed: 6000 RPM
- Rapid Traverse (X/Y/Z): 1181 IPM
- Cutting Feed Rate: .04 IPM - 697.8 IPM
- Tooling: 24-ATC
- Tool Diameter (Min./Max.): 3.1" - 4.3"
- Max. Tool Weight: 17.8 lb.
- Max. Tool Length: 13.7"
- Motor: 30 HP
- Show More
- Show Less
- X-Axis Travel: 1628.14mm
- Y-Axis Travel: 637.54mm
- Z-Axis Travel: 637.54mm
- Throat: 660.40mm
- Table Size: 1714.50mm x 637.54mm
- Table Capacity: 1260 kg
- Spindle Nose to Table Top Distance (Min./Max.): 180.34mm - 817.88mm
- Spindle Nose: CAT 50
- Spindle Speed: 6000 RPM
- Rapid Traverse (X/Y/Z): 499.96 mm/sec
- Cutting Feed Rate: 0.02 mm/sec -295.40 mm/sec
- Tooling: 24-ATC
- Tool Diameter (Min./Max.): 78.74mm - 109.22mm
- Max. Tool Weight: 8 kg
- Max. Tool Length: 347.98mm
- Motor: 22.37 kw
- Show More
- Show Less
Equipped With

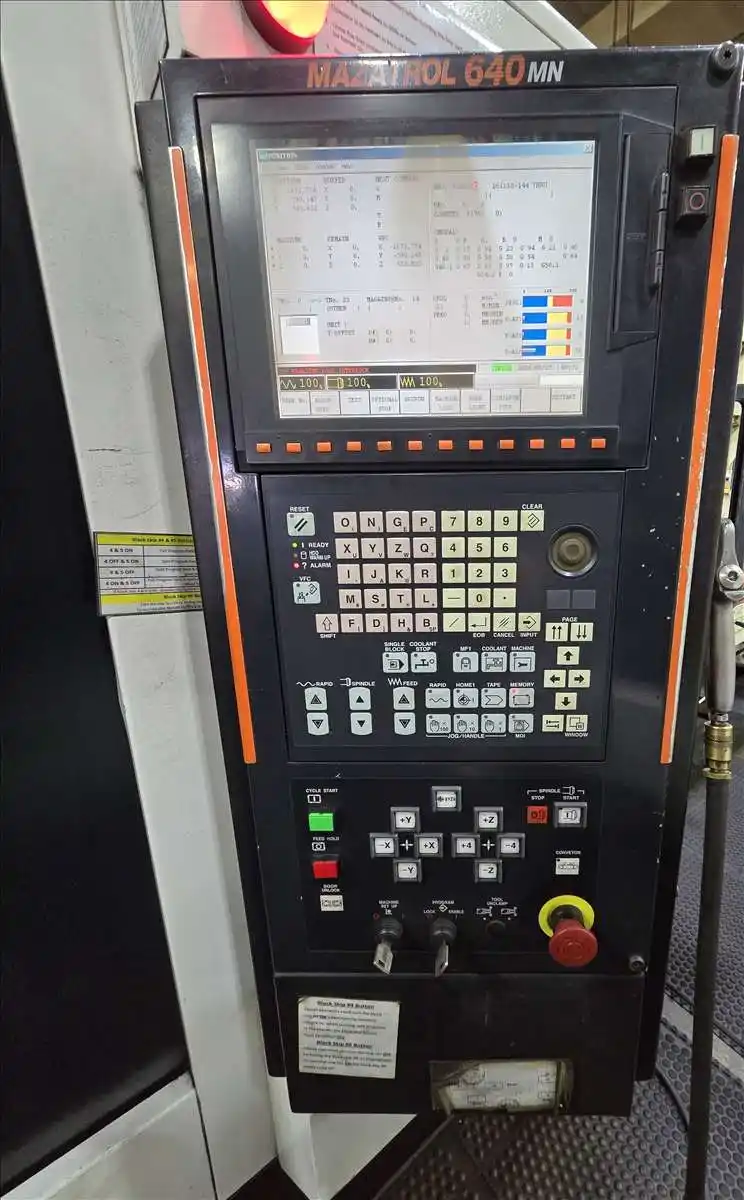

- Mazatrol 640MN CNC Control
- Spindle Thru Coolant
- Mayfran Chip Conveyor
- Mazatrol 640MN CNC Control
- Spindle Thru Coolant
- Mayfran Chip Conveyor
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
