Inventory # 46239 Year: 1997

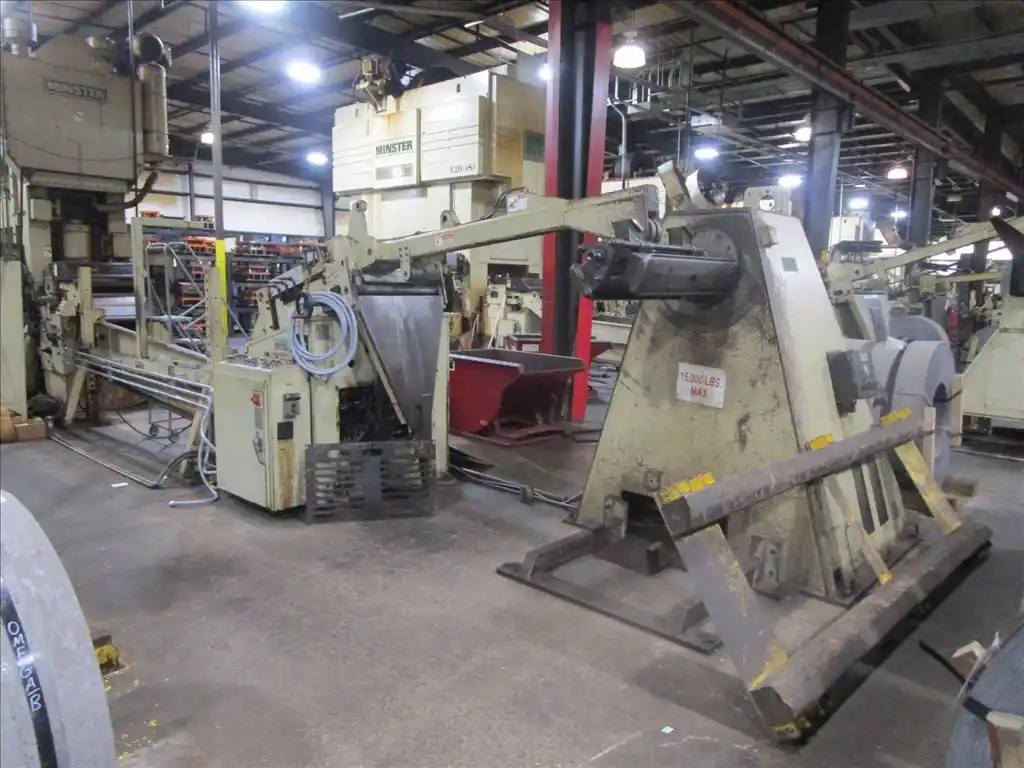

Minster 15,000 LB. X 26" X .350" Servo Feed Line
Specifications

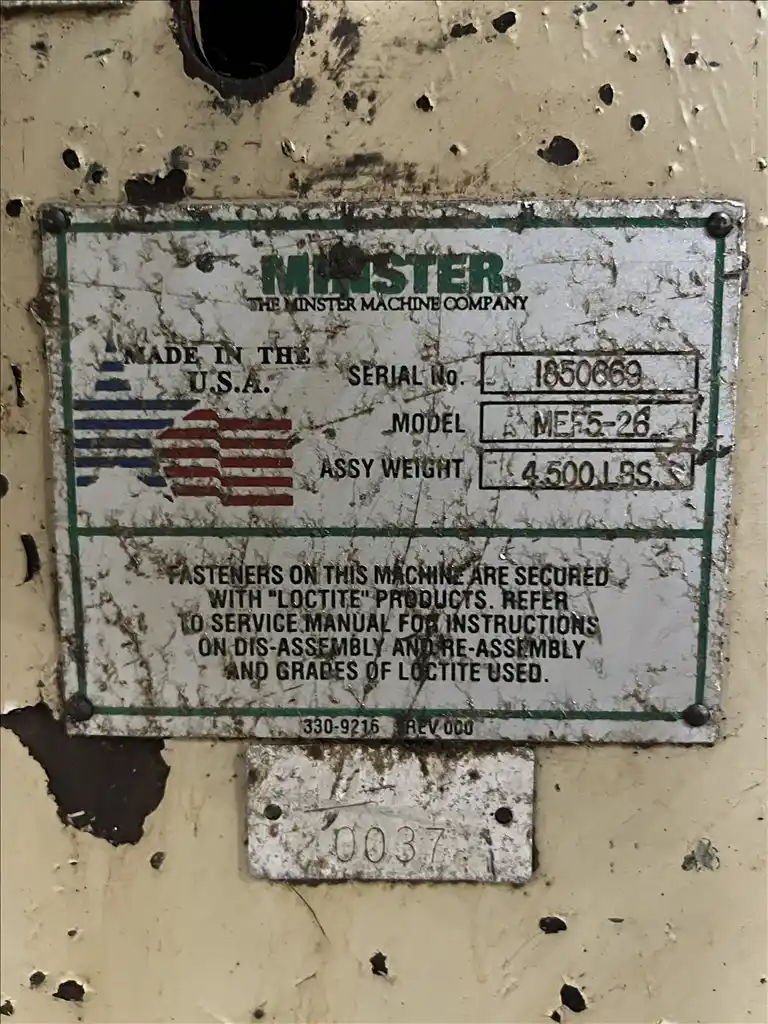

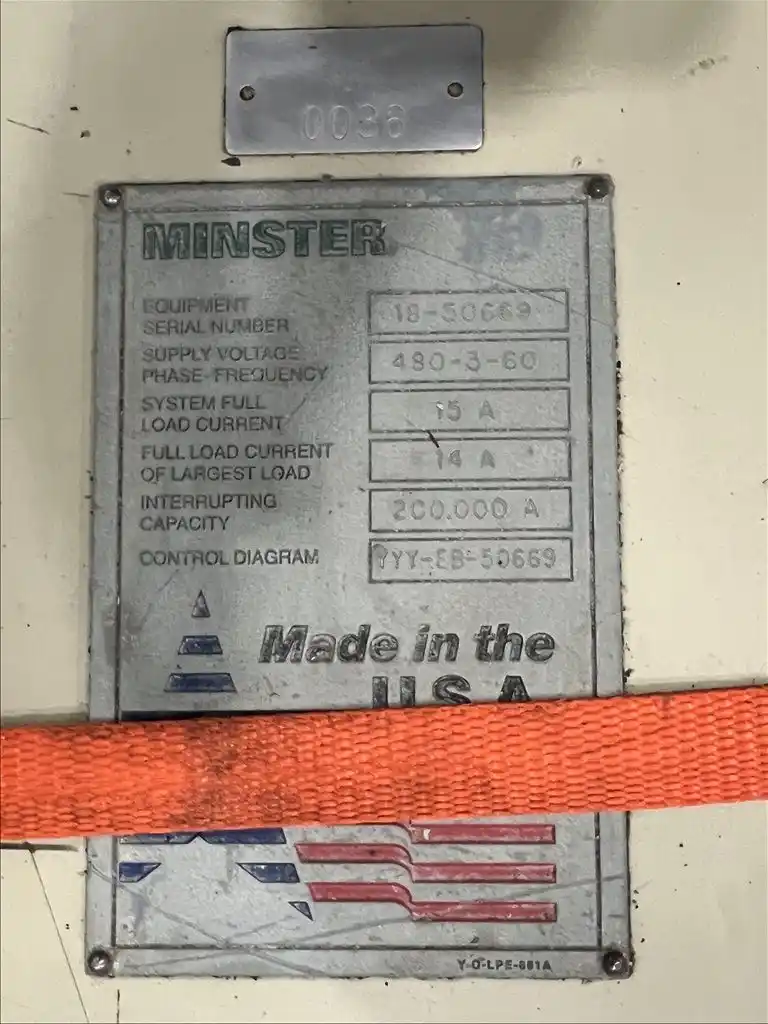

- MEF5-26 SINGLE ROLL ELECTRIC FEED (S/N 18-50669)
- Minimum Feed Line Over Floor: 52"
- Maximum Feed Line Over Floor: 61"
- Feed Roll Diameter: 5"
- Maximum Stock Width: 26"
- Minimum Stock Thickness: .03"
- Maximum Stock Thickness: .35"
- Maximum Thickness at Full Width: .151"
- Maximum Width at Full Thickness: 5"
- Roll Opening for Threading: 0.47"

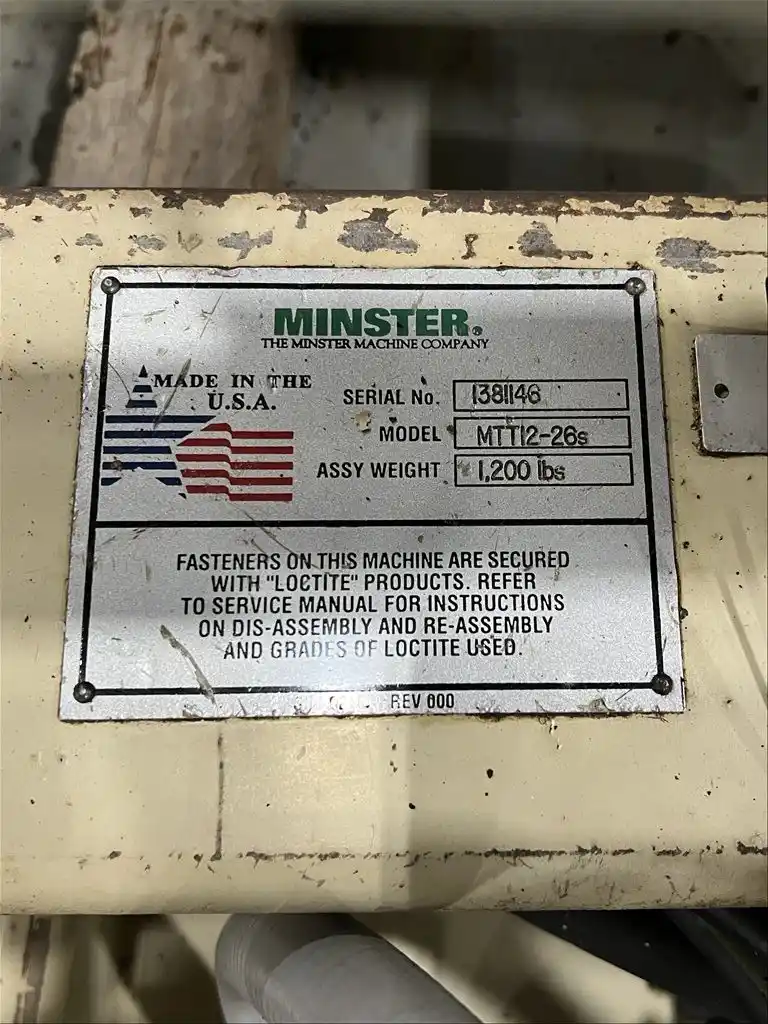

- MTT12-26 S THREADING TABLE (S/N 13-81146)
- Length of Table: 12'
- Maximum Stock Width: 26"

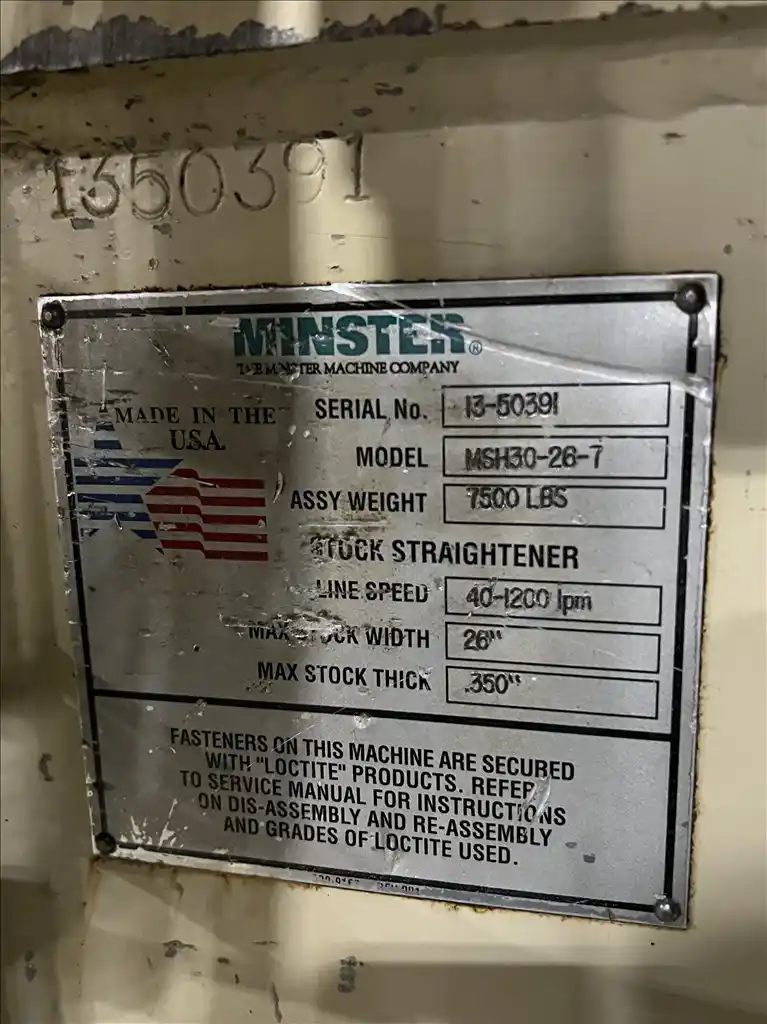

- MSH30-26-7 STRAIGHTENER (S/N 13-50391)
- Minimum Strip Thickness: 0.02"
- Maximum Strip Thickness: 0.35"
- Maximum Strip Width: 26"
- Maximum Width at Maximum Thickness: 5"
- Maximum Thickness at Full Width: 0.14"
- Line Speed: 40 - 1200 IPM

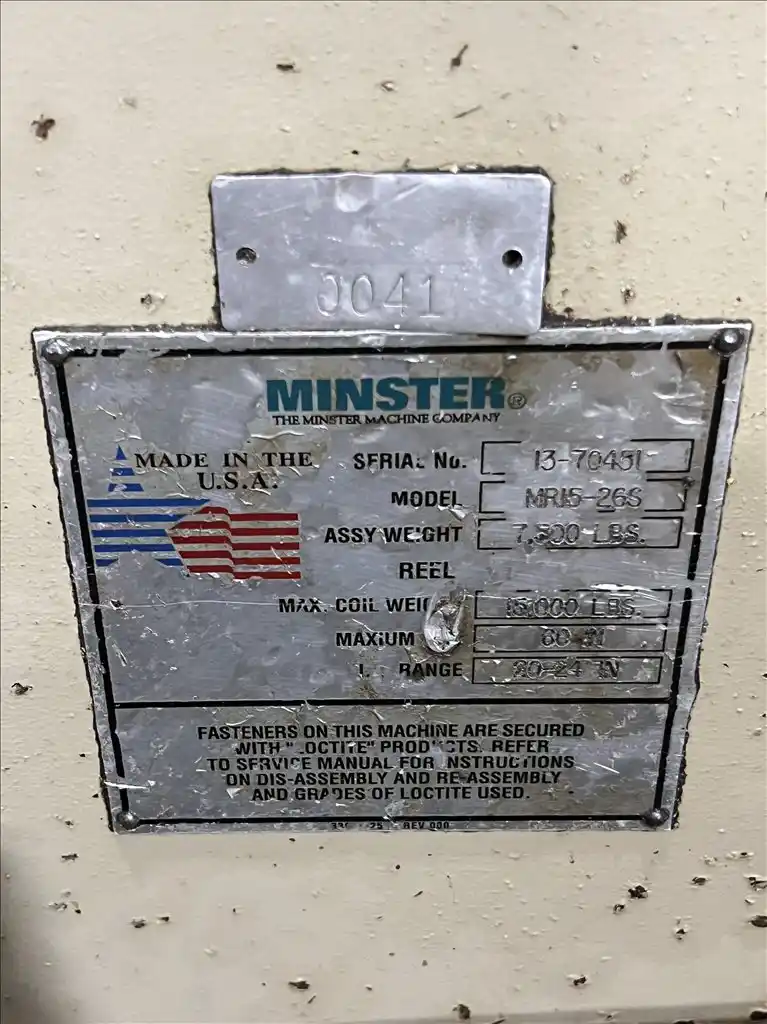

- MR 15-26S SINGLE REEL (S/N 13-70451)
- Coil Weight, Maximum on Center: 15,000 lbs
- Coil Width, Maximum: 26"
- Coil I.D. Range: 20" - 24"
- Coil O.D. Maximum: 60"
- Coil Load Position: Operator Side
- Show More
- Show Less
- MEF5-26 SINGLE ROLL ELECTRIC FEED (S/N 18-50669)
- Minimum Feed Line Over Floor: 1320.80mm
- Maximum Feed Line Over Floor: 1549.40mm
- Feed Roll Diameter: 127.00mm
- Maximum Stock Width: 660.40mm
- Minimum Stock Thickness: 0.76mm
- Maximum Stock Thickness: 8.89mm
- Maximum Thickness at Full Width: 3.84mm
- Maximum Width at Full Thickness: 127.00mm
- Roll Opening for Threading: 11.94mm
- MTT12-26 S THREADING TABLE (S/N 13-81146)
- Length of Table: 3657.60mm
- Maximum Stock Width: 660.40mm
- MSH30-26-7 STRAIGHTENER (S/N 13-50391)
- Minimum Strip Thickness: 0.51mm
- Maximum Strip Thickness: 8.89mm
- Maximum Strip Width: 660.40mm
- Maximum Width at Maximum Thickness: 127.00mm
- Maximum Thickness at Full Width: 3.56mm
- Line Speed: 40 -508.00 mm/sec
- MR 15-26S SINGLE REEL (S/N 13-70451)
- Coil Weight, Maximum on Center: 6802.50 kg
- Coil Width, Maximum: 660.40mm
- Coil I.D. Range: 508.00mm - 609.60mm
- Coil O.D. Maximum: 1524.00mm
- Coil Load Position: Operator Side
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
