Inventory # 47113 Year: 2012

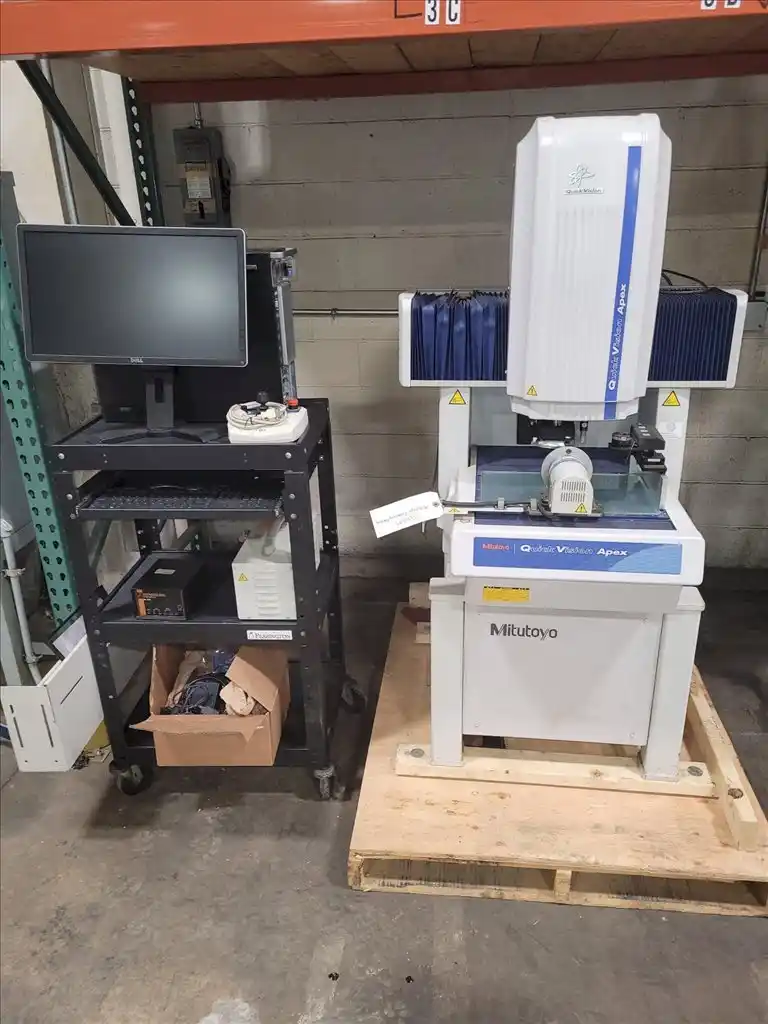

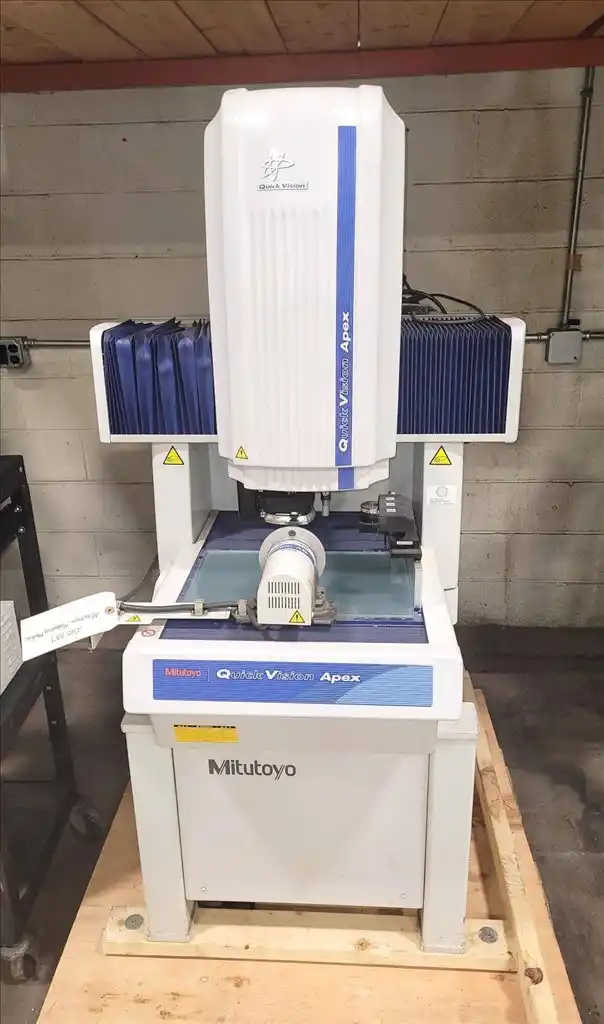

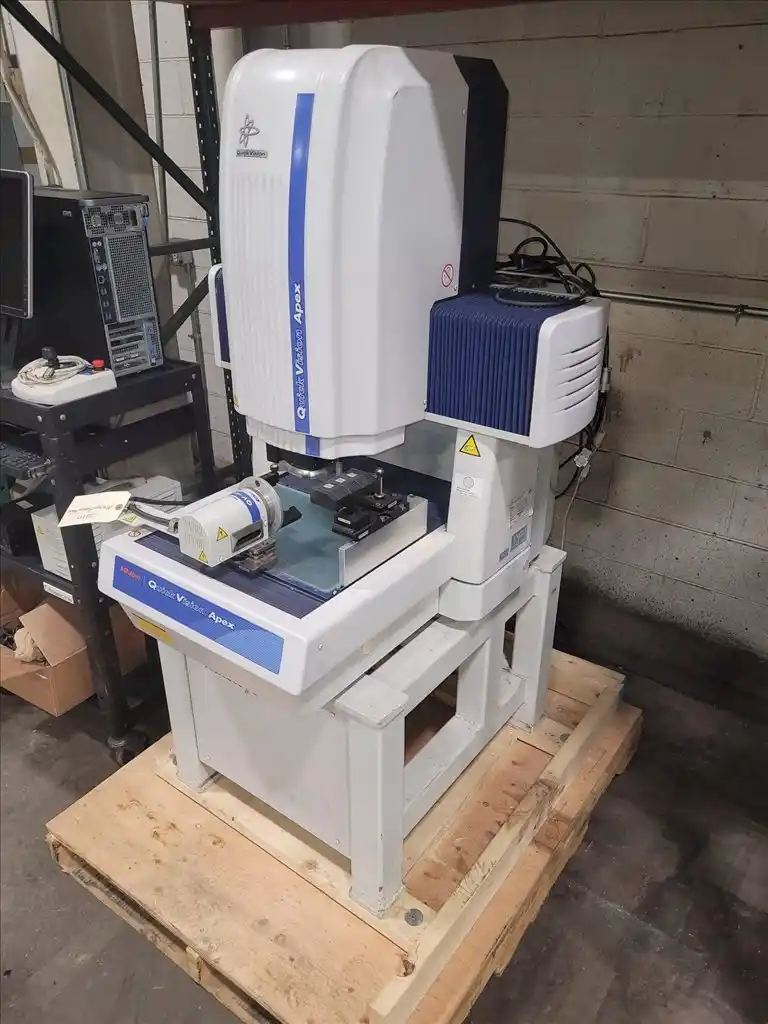

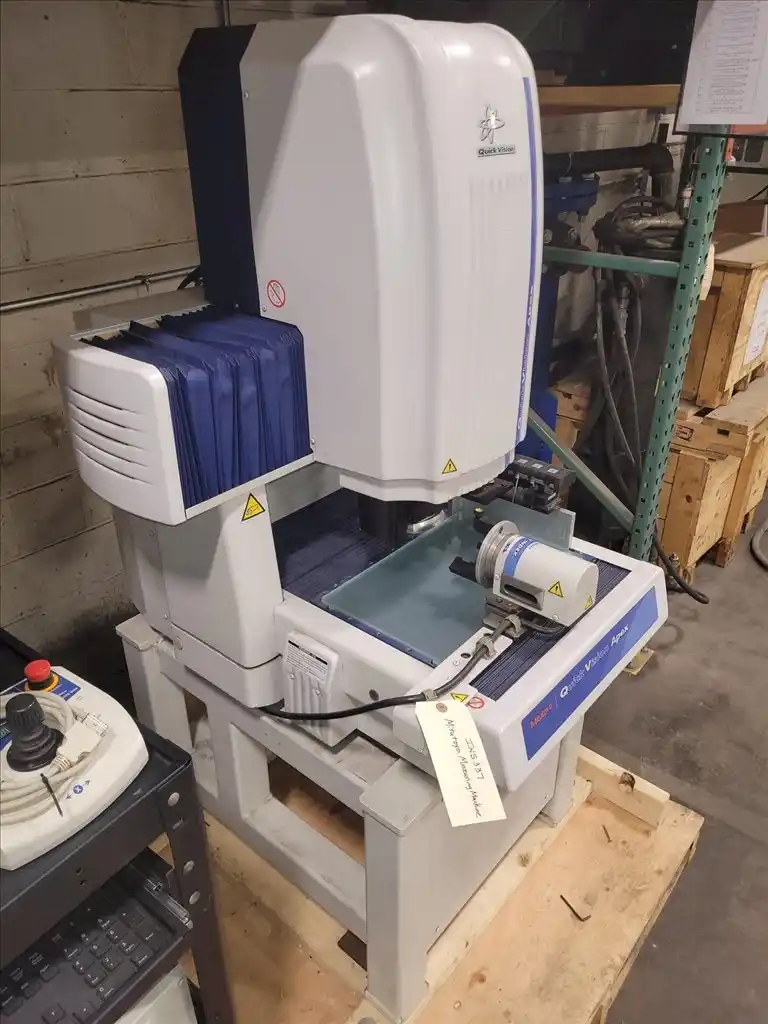

Mitutoyo Quick Vision Apex QVT1-X302P1L-C CNC Vision Measuring System
Specifications
- Measuring Range with Vision Mode (X-Axis): 11.81"
- Measuring Range with Vision Mode (Y-Axis): 7.87"
- Measuring Range with Vision Mode (Z-Axis): 7.87"
- Measuring Range with Touch Probe (X-Axis): 9.21"
- Measuring Range with Touch Probe (Y-Axis): 7.87"
- Measuring Range with Touch Probe (Z-Axis): 7.87"
- Illumination Unit (Co-Axial Light): White LED
- Illumination Unit (Transmitted Light): White LED
- Illumination Unit (PRL): White LED
- Accuracy (E1X, E1Y): (1.5+3L/1000) µm
- Accuracy (E1Z): (1.5+4L/1000) µm
- Accuracy (E2XY): (2+4L/1000) µm
- Operating Temperature Range (Ambient Temperature): 20+/- 1°C
- Operating Temperature Range (Temperature Variation): 2°C/8H
- Stage Glass Size: 15.71" x 10.67"
- Maximum Stage Loading: 44 lbs
- Show More
- Show Less
- Measuring Range with Vision Mode (X-Axis): 299.97mm
- Measuring Range with Vision Mode (Y-Axis): 199.90mm
- Measuring Range with Vision Mode (Z-Axis): 199.90mm
- Measuring Range with Touch Probe (X-Axis): 233.93mm
- Measuring Range with Touch Probe (Y-Axis): 199.90mm
- Measuring Range with Touch Probe (Z-Axis): 199.90mm
- Illumination Unit (Co-Axial Light): White LED
- Illumination Unit (Transmitted Light): White LED
- Illumination Unit (PRL): White LED
- Accuracy (E1X, E1Y): (1.5+3L/1000) m
- Accuracy (E1Z): (1.5+4L/1000) m
- Accuracy (E2XY): (2+4L/1000) m
- Operating Temperature Range (Ambient Temperature): 20+/- 1°C
- Operating Temperature Range (Temperature Variation): 2°C/8H
- Stage Glass Size: 399.03mm x 271.02mm
- Maximum Stage Loading: 19.95 kg
- Show More
- Show Less
Equipped With

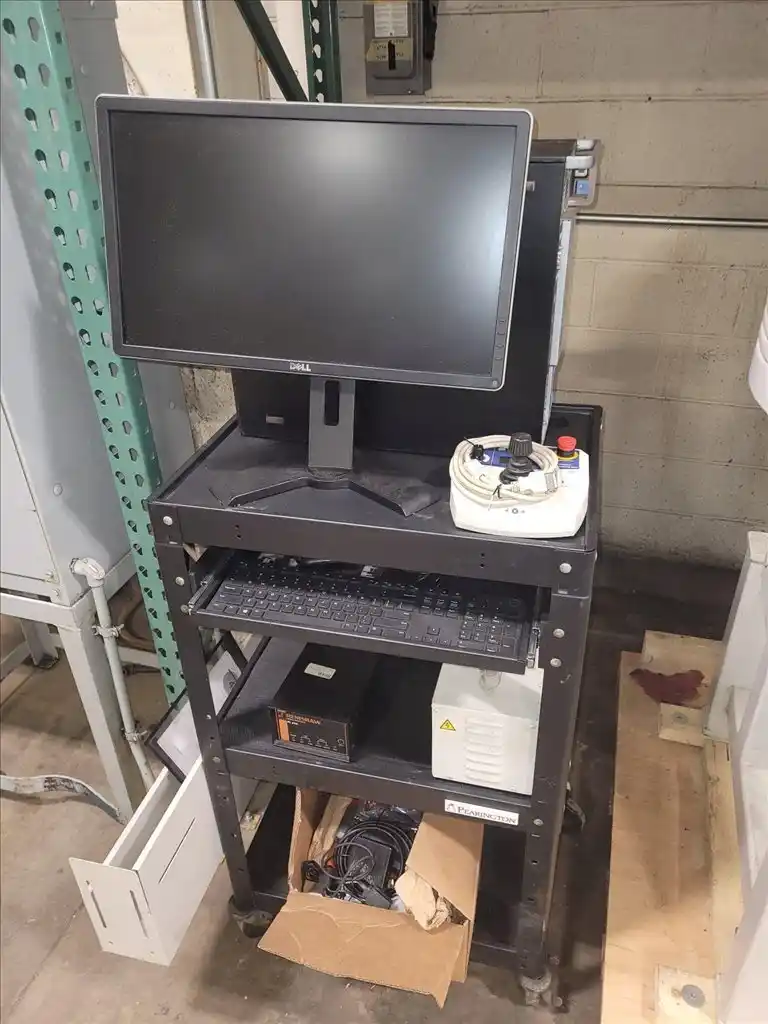

- Dell Computer
- Mitutoyo QV PAC Software

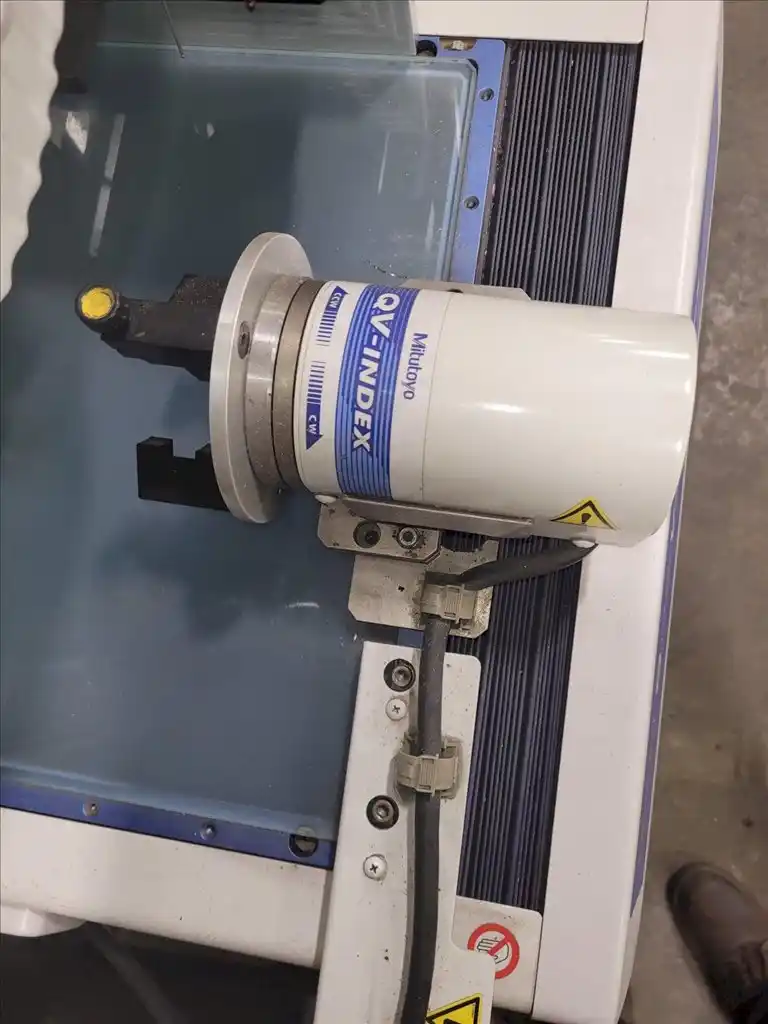

- QV Index 3C Head (option)
- Touch-Trigger Probe (option)
- Remote Control with Joystick
- Calibration Block

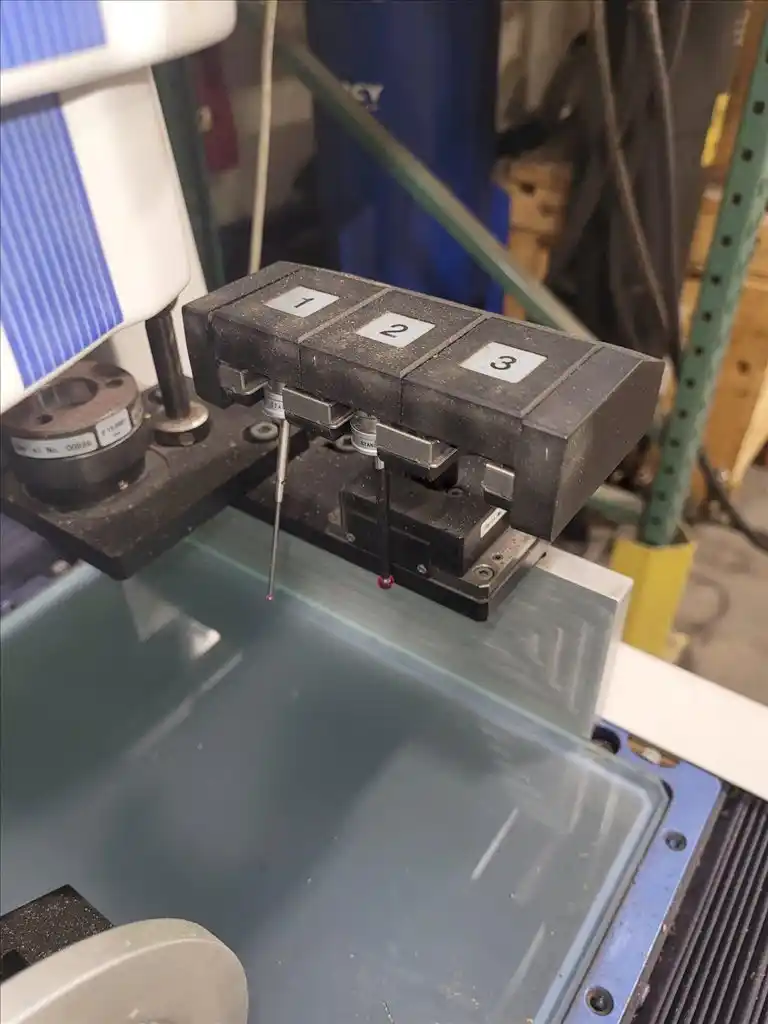

- Module Change Rack (MCR20)
- Renishaw PH6 Probe Head
- PI200 Probe Interface and Probes
- Mitutoyo QV Multi-Function Control Box
- Mitutoyo 600 Power Supply
- Mitutoyo Base
- Show More
- Show Less
- Dell Computer
- Mitutoyo QV PAC Software
- QV Index 3C Head (option)
- Touch-Trigger Probe (option)
- Remote Control with Joystick
- Calibration Block
- Module Change Rack (MCR20)
- Renishaw PH6 Probe Head
- PI200 Probe Interface and Probes
- Mitutoyo QV Multi-Function Control Box
- Mitutoyo 600 Power Supply
- Mitutoyo Base
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Falconer, NY
- Disclaimer: Preliminary Specifications....
