Inventory # 35846

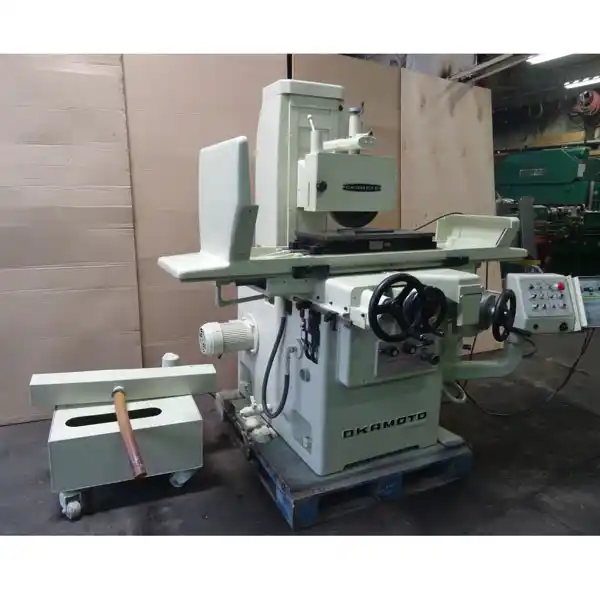

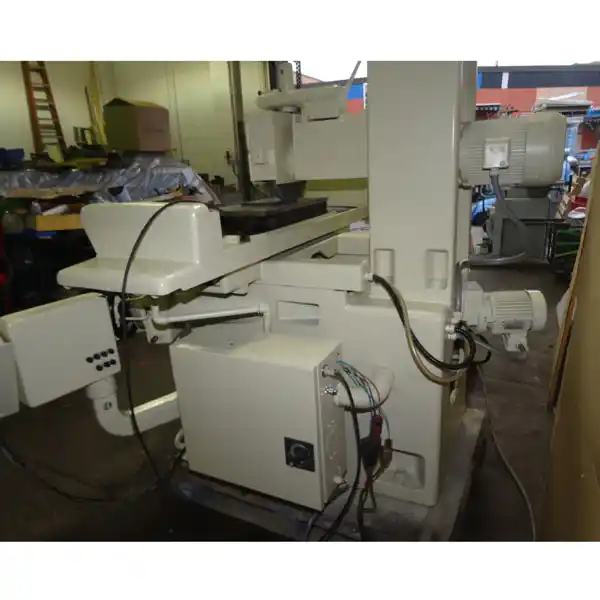

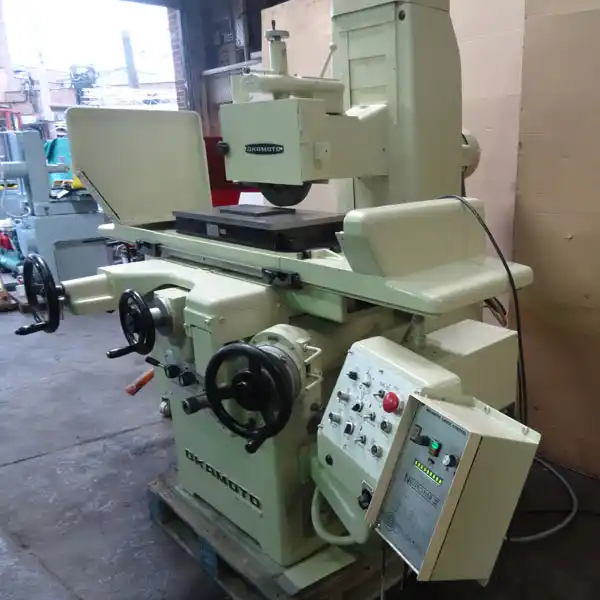

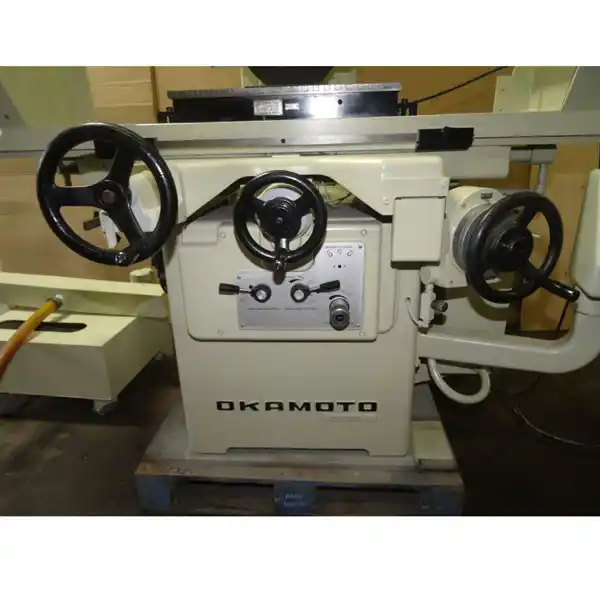

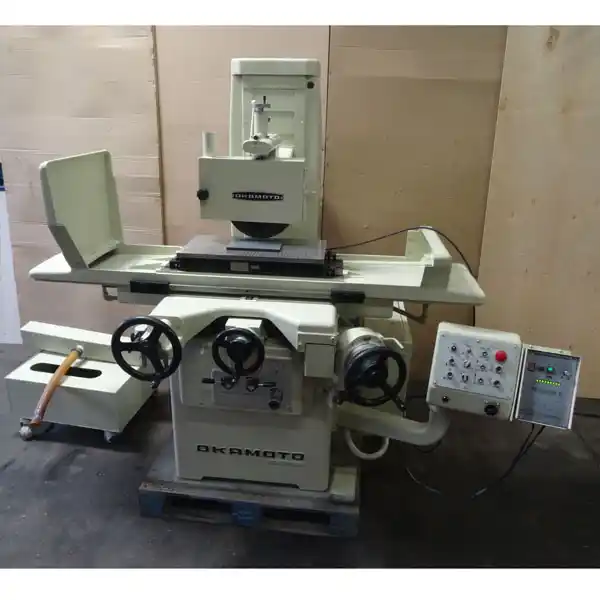

Okamoto Accugar-124N Hydraulic Surface Grinder
Specifications
- Table Surface: 12" x 24"
- Maximum Workpiece Height: 13.7"
- Table Longitudinal Travel: 29.5"
- Table Cross Travel: 13.6"
- Foot Pad: 30" x 42"
- TABLE LONGITUDINAL FEED
- - Hydraulic: 1 FPM - 100 FPM
- - Hand: 1.85"
- TABLE CROSS MOVEMENT
- - Hydraulic Increment: 0.2" - 0.8"
- - Hydraulic Continuous: 4 IPM - 40 IPM
- - Hand: 0.25"
- - Graduation of Handwheel: 0.001"
- Vertical Rapid Feed Rate: 19 IPM
- Grinding Wheel Size (OD x W x ID): 12" x 1.5" x 5"
- Spindle Speed: 1800 RPM
- Show More
- Show Less
- Table Surface: 304.80mm x 609.60mm
- Maximum Workpiece Height: 347.98mm
- Table Longitudinal Travel: 749.30mm
- Table Cross Travel: 345.44mm
- Foot Pad: 762.00mm x 1066.80mm
- TABLE LONGITUDINAL FEED
- - Hydraulic: 5.08 mm/sec - 508.00 mm/sec
- - Hand: 46.99mm
- TABLE CROSS MOVEMENT
- - Hydraulic Increment: 5.08mm - 20.32mm
- - Hydraulic Continuous: 1.69 mm/sec -16.93 mm/sec
- - Hand: 6.35mm
- - Graduation of Handwheel: 0.03mm
- Vertical Rapid Feed Rate: 8.04 mm/sec
- Grinding Wheel Size (OD x W x ID): 304.80mm x 38.10mm x 127.00mm
- Spindle Speed: 1800 RPM
- Show More
- Show Less
Equipped With

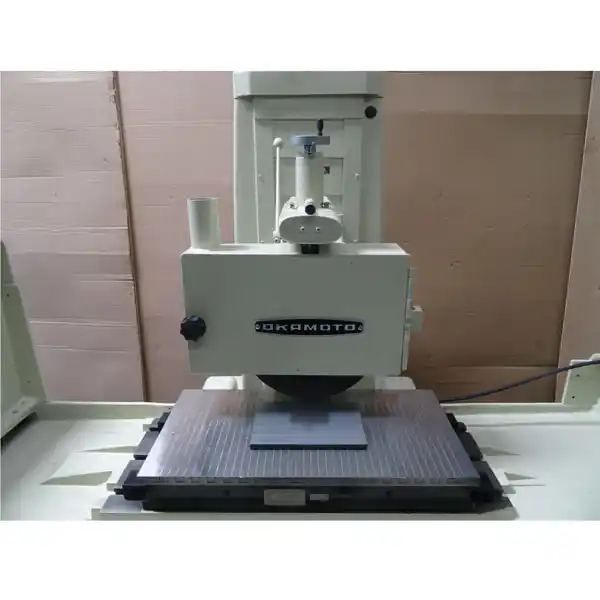

- Kanet Electromagnetic Chuck
- Auto Incremental Down Feed
- Hydraulic Longitudinal and Cross Feed
- Power Rapid Wheelhead Elevation
- Cross Feed Control
- Table Speed Control
- Step Feed Control
- Automatic Sparkout up to 5 Passes

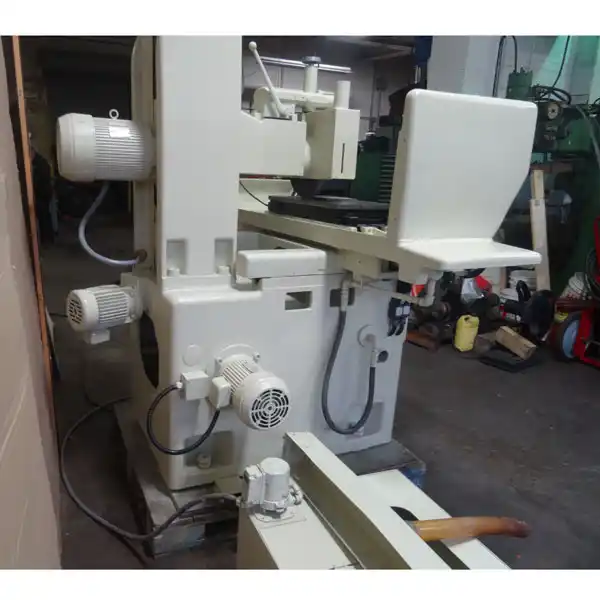

- 5 HP AC Main Drive Spindle Motor
- - 3/60/230-460 VAC, 12/6 Amps
- 2 HP AC Hydraulic Power Unit Motor
- Cooling Pump Unit
- - 230/460 VAC, 0.4 / 0.25 Amps

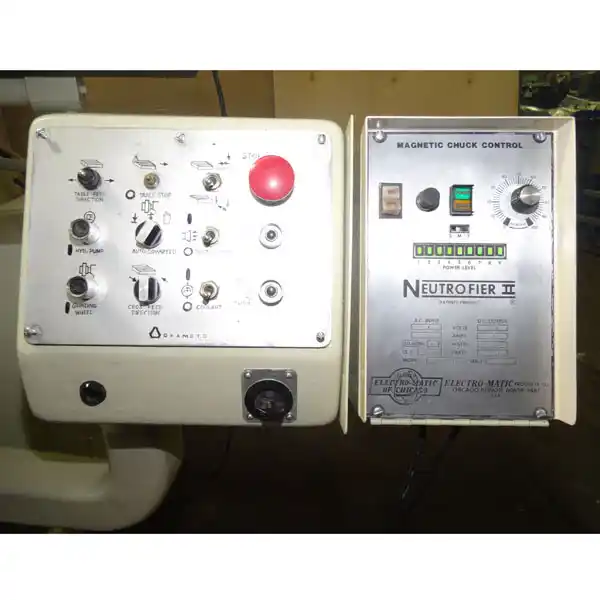

- Electrical Controls
- Show More
- Show Less
- Kanet Electromagnetic Chuck
- Auto Incremental Down Feed
- Hydraulic Longitudinal and Cross Feed
- Power Rapid Wheelhead Elevation
- Cross Feed Control
- Table Speed Control
- Step Feed Control
- Automatic Sparkout up to 5 Passes
- 3.73 kw AC Main Drive Spindle Motor
- - 3/60/230-460 VAC, 12/6 Amps
- 1.49 kw AC Hydraulic Power Unit Motor
- Cooling Pump Unit
- - 230/460 VAC, 0.4 / 0.25 Amps
- Electrical Controls
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
