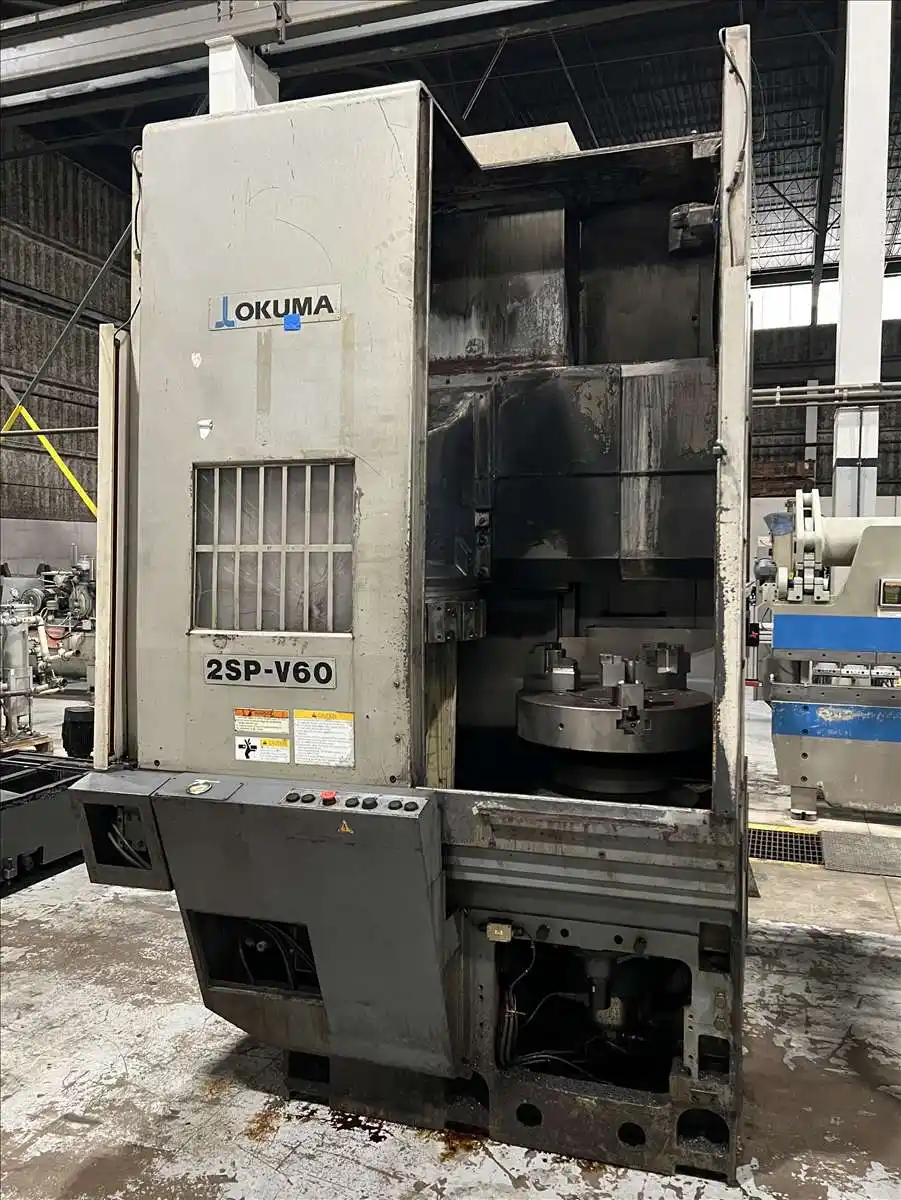

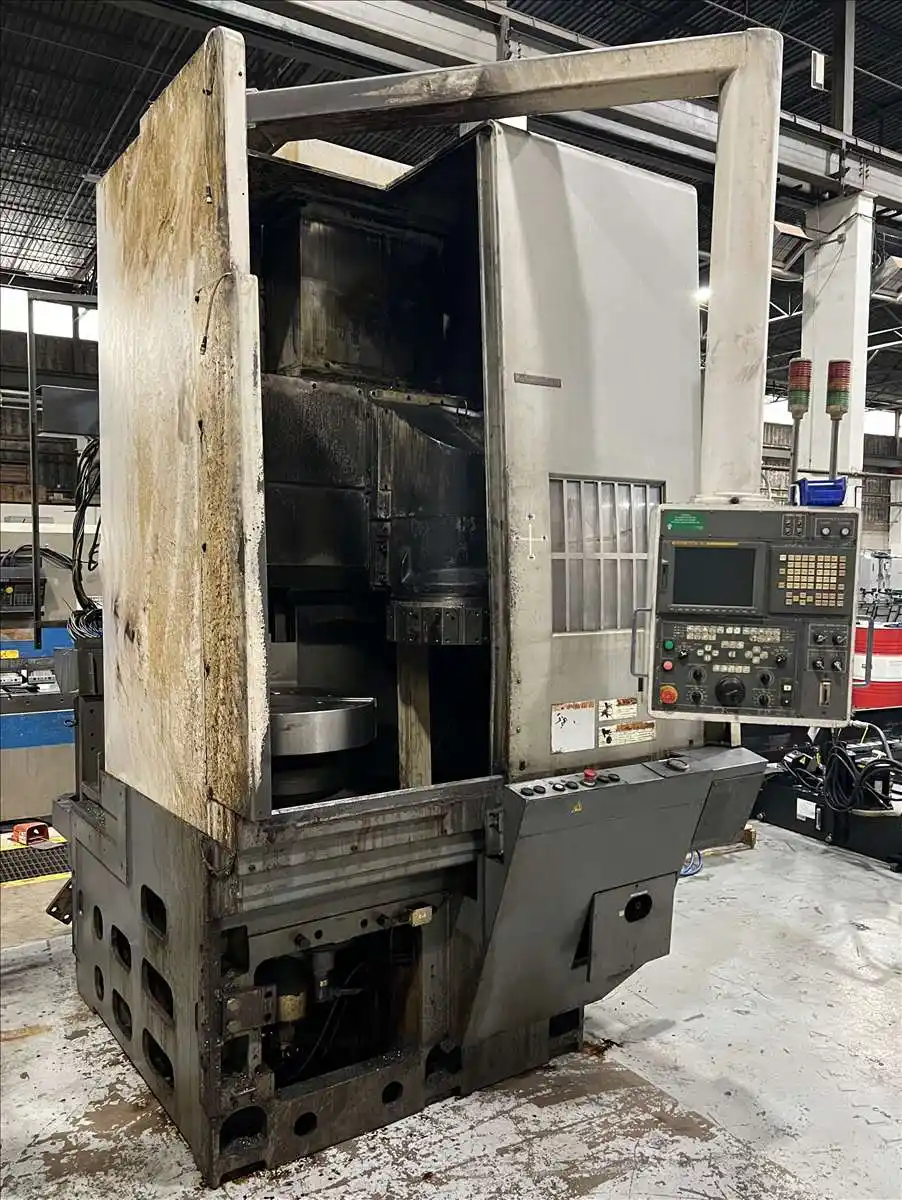

Perfection Global Equipment: https://perfectionglobal.com/used-inventory/okuma-2sp-v60-48784/
Specifications
- Max. Turning Diameter: 24"
- Max. Turning Length: 26"
- Max. Swing Diameter: 27.6"
- Distance Between Spindles: 31.5
- Spindle Center to Floor: 42.7"
- Workpiece Load Capacity: 1,100 lb.

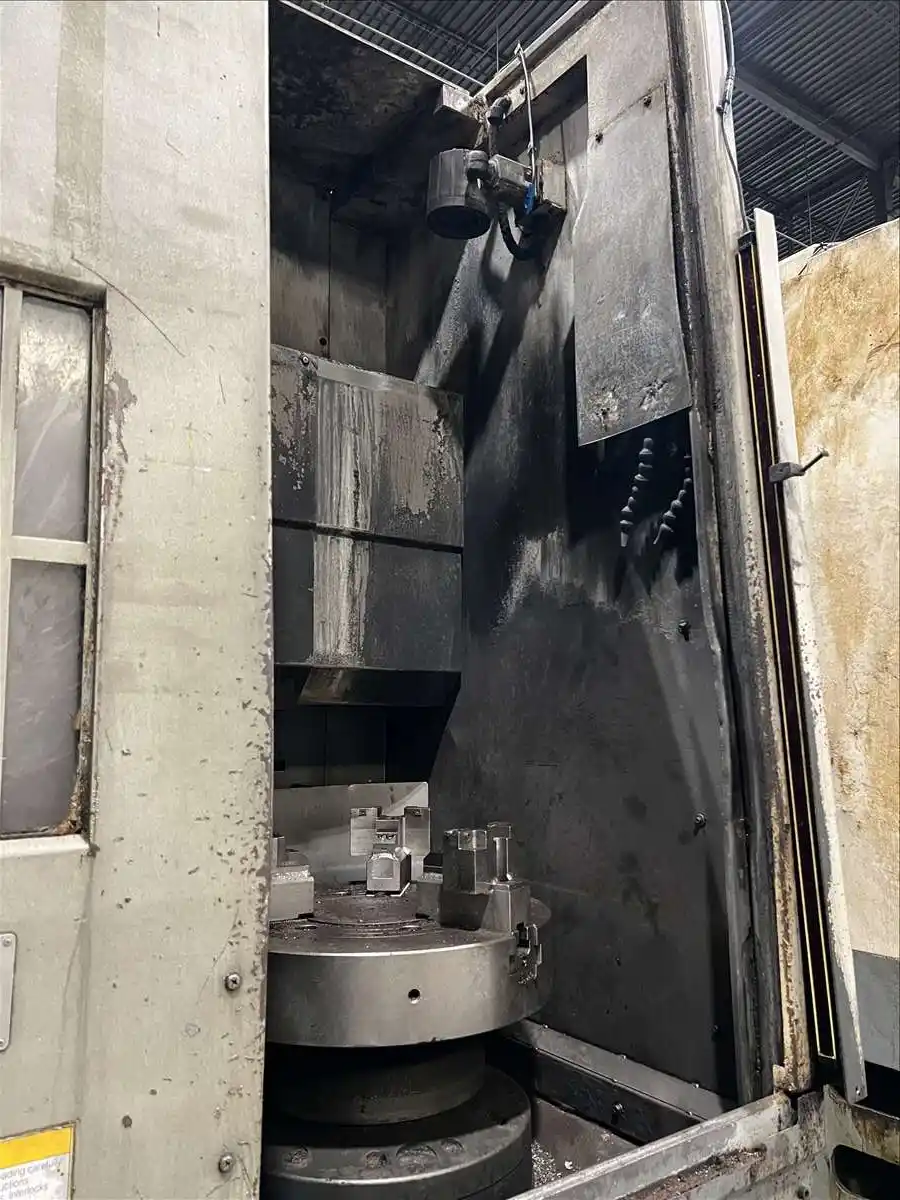

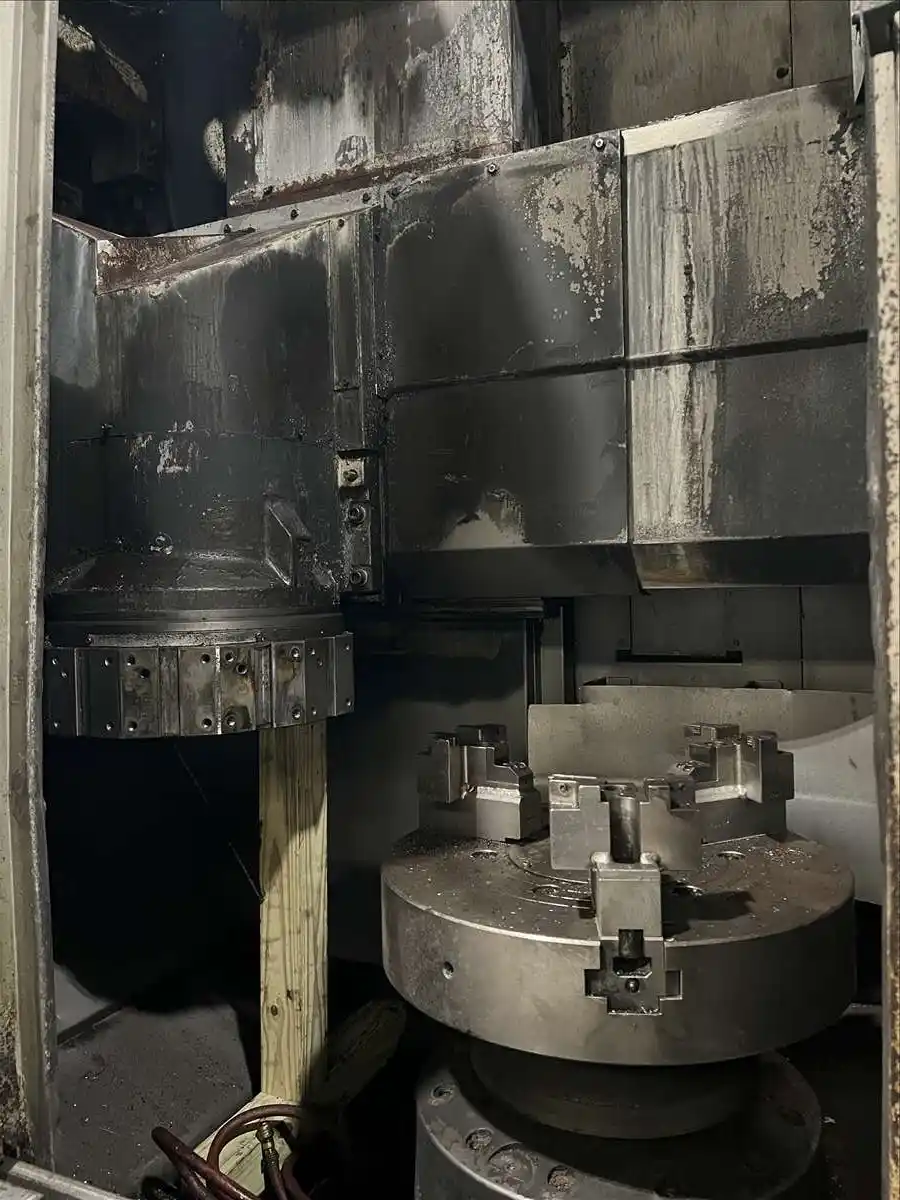

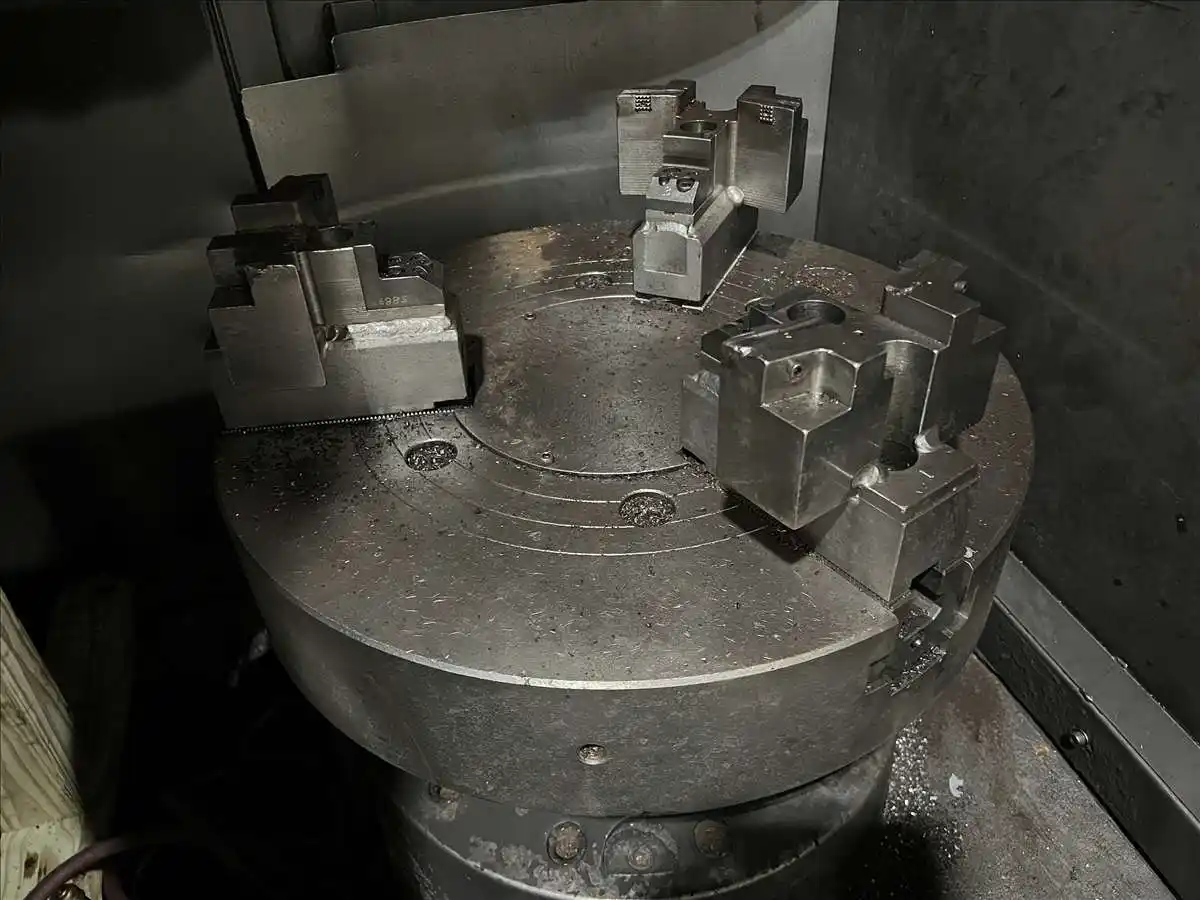

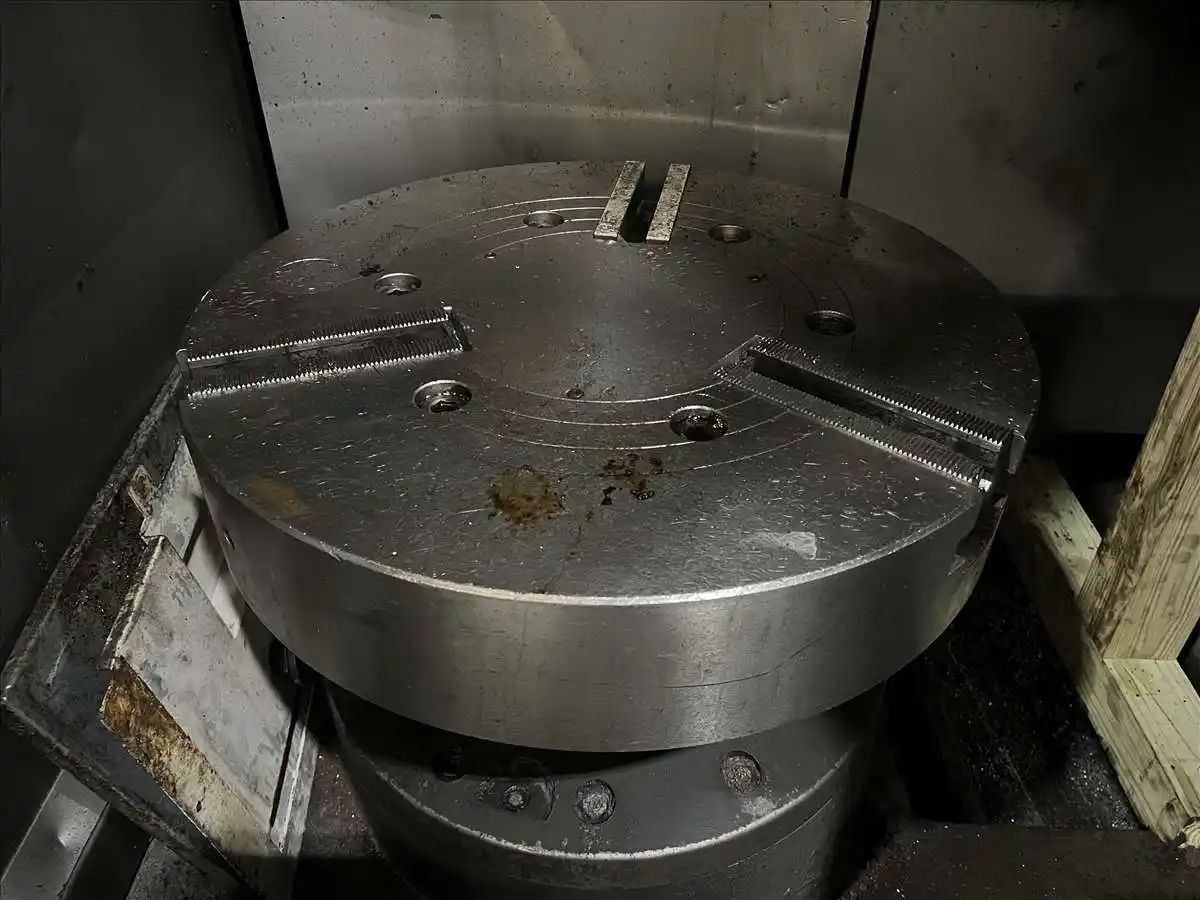

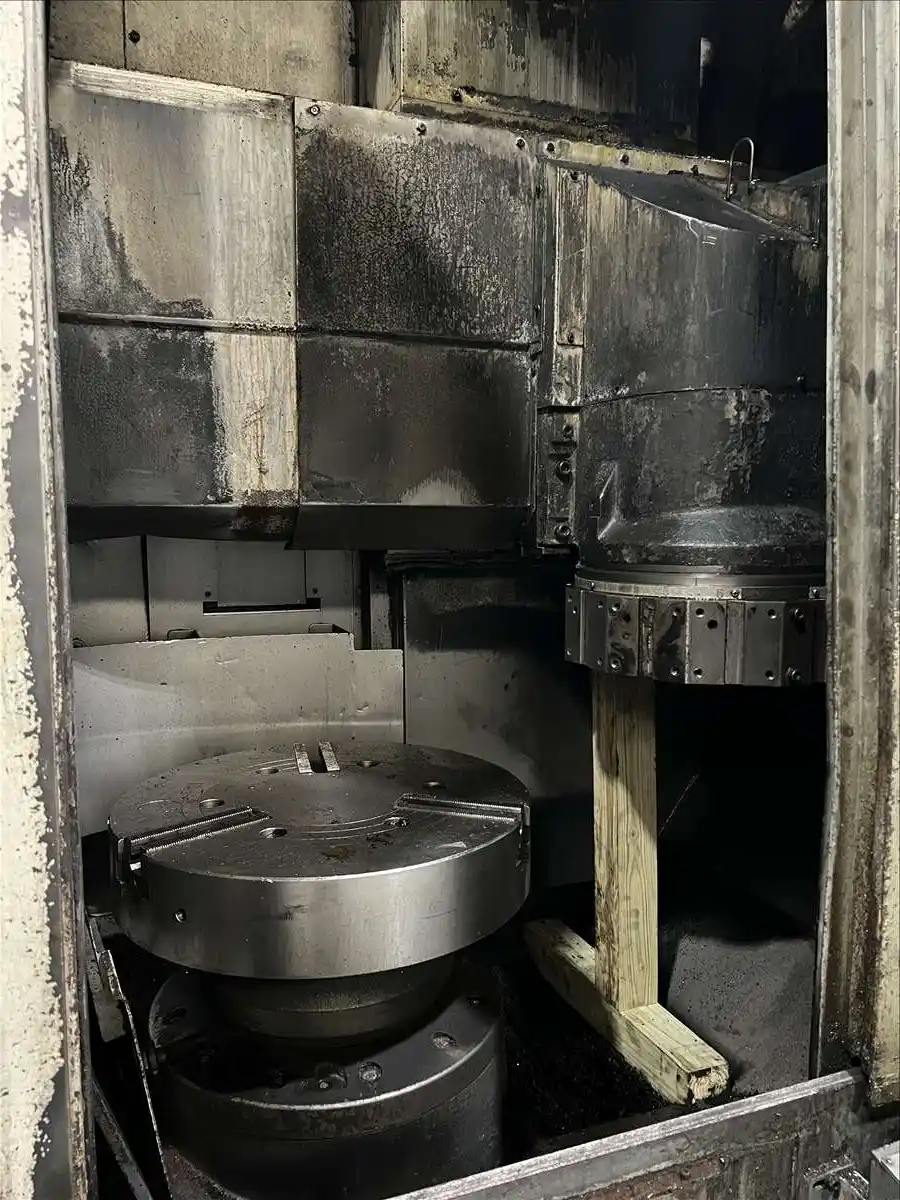

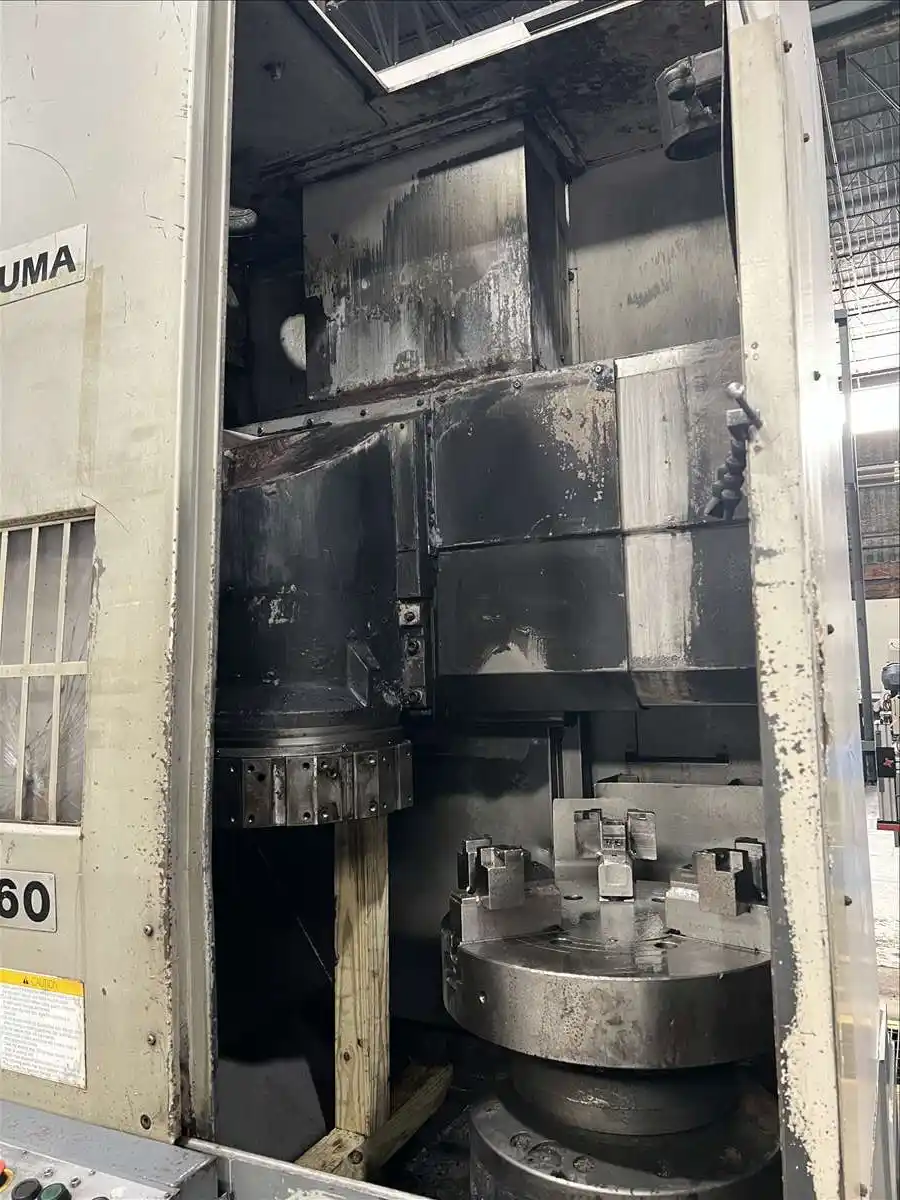

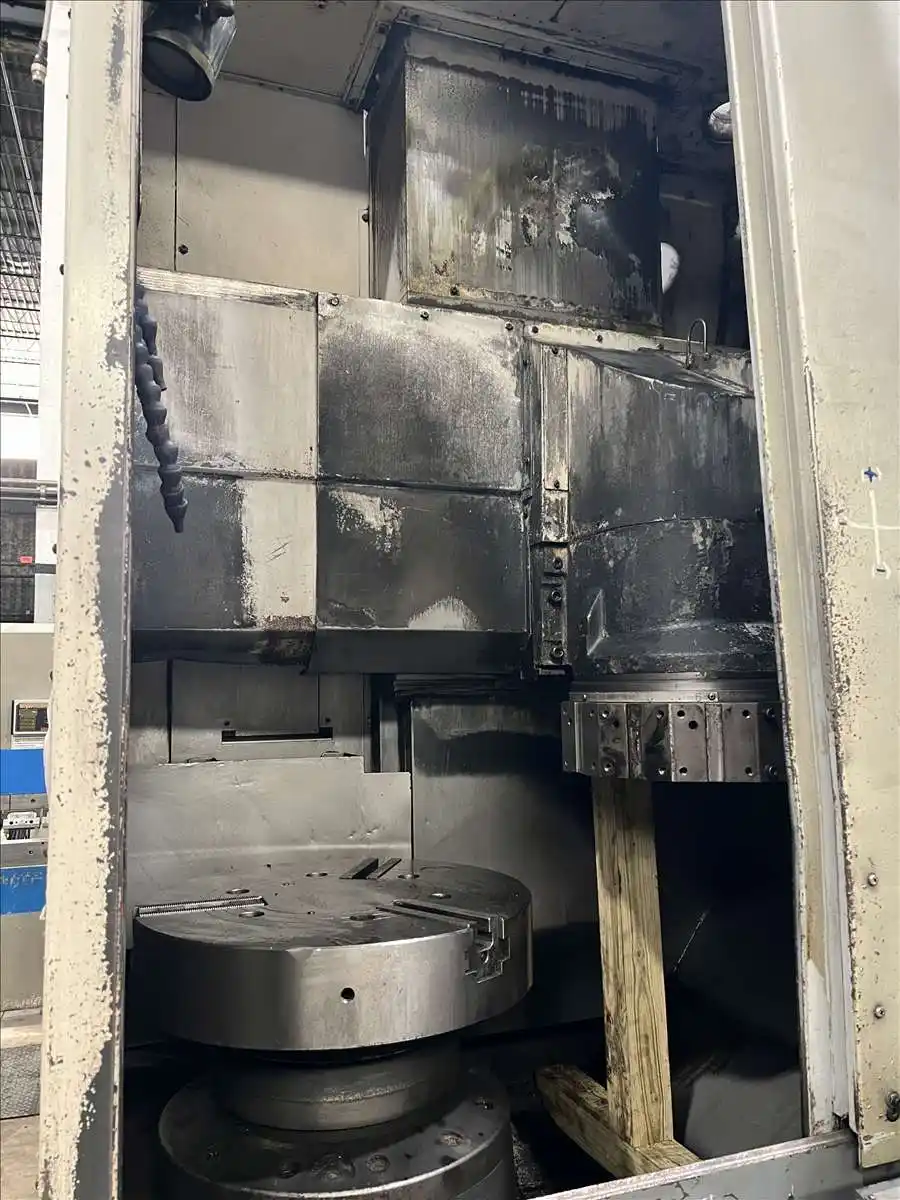

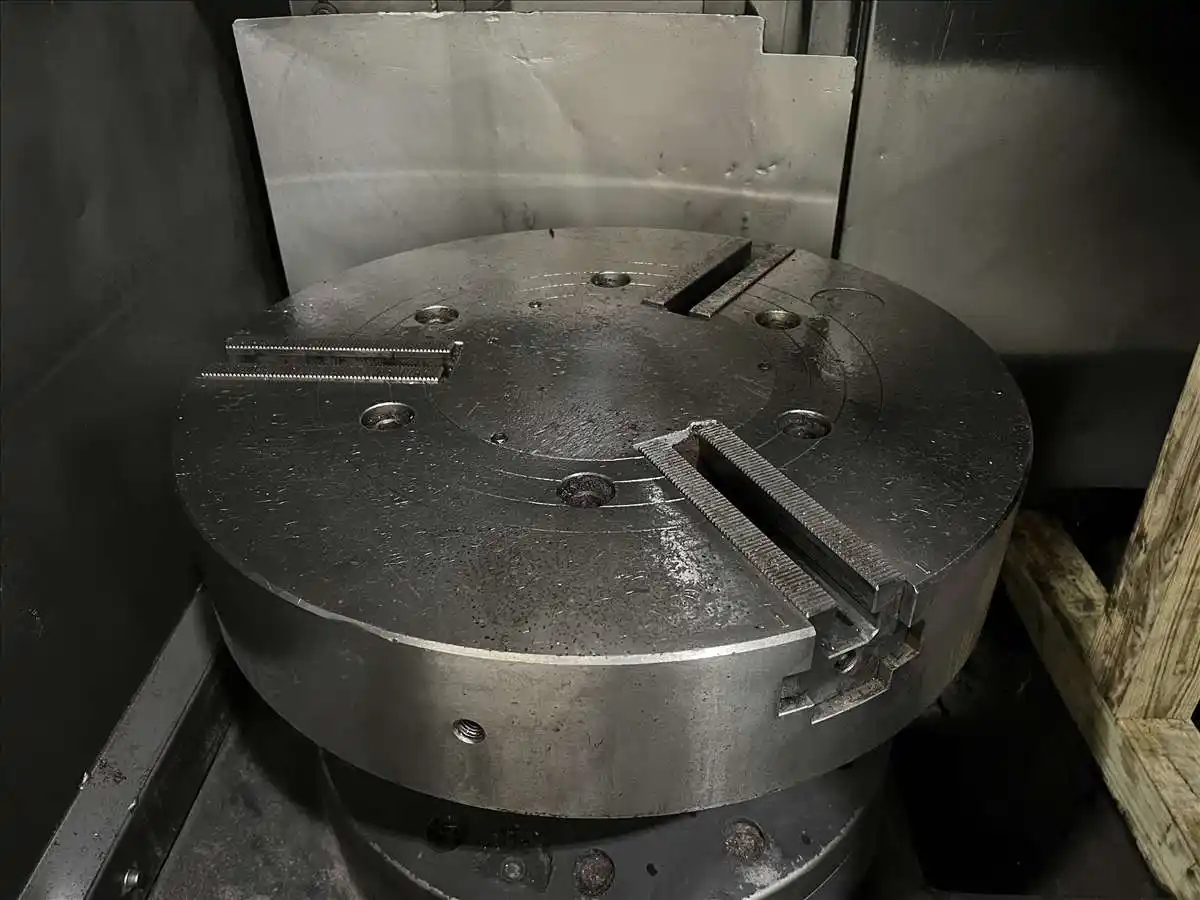

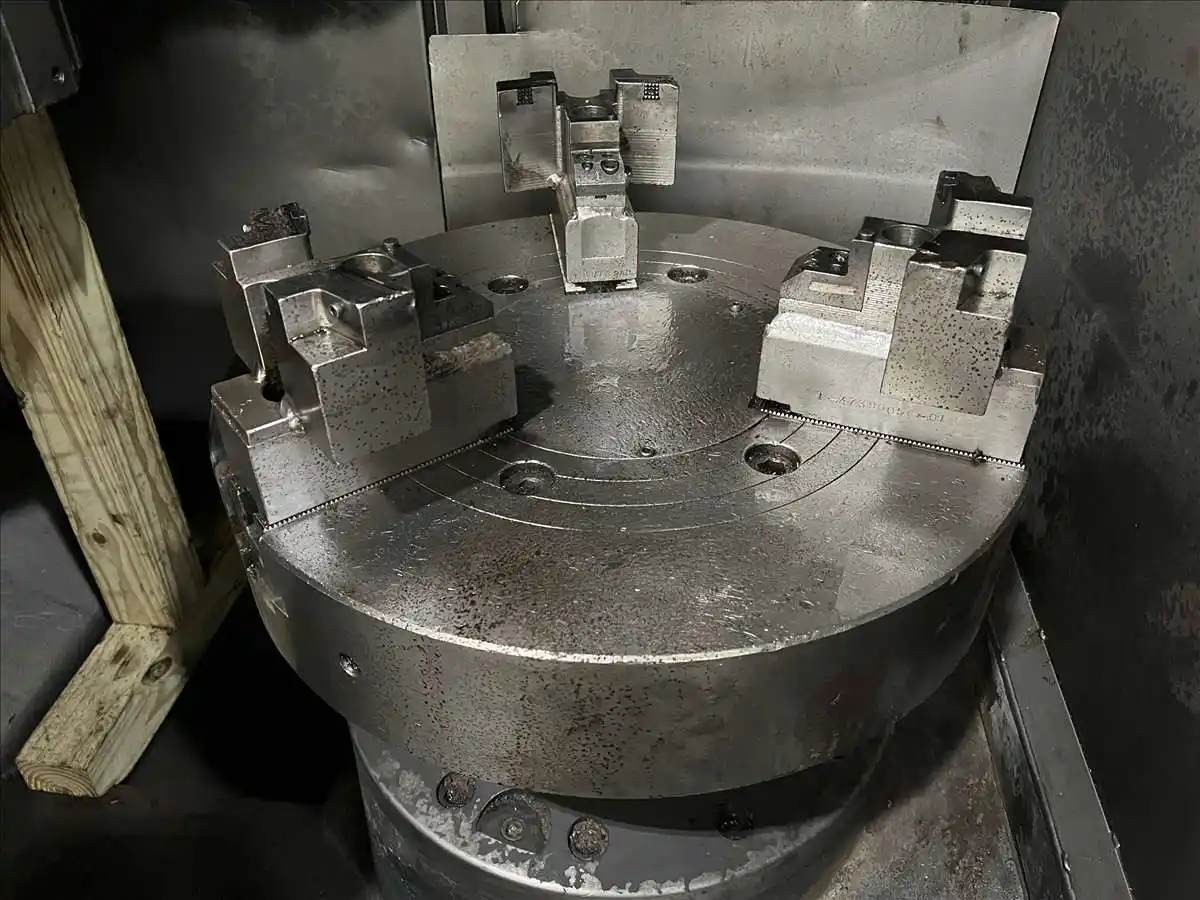

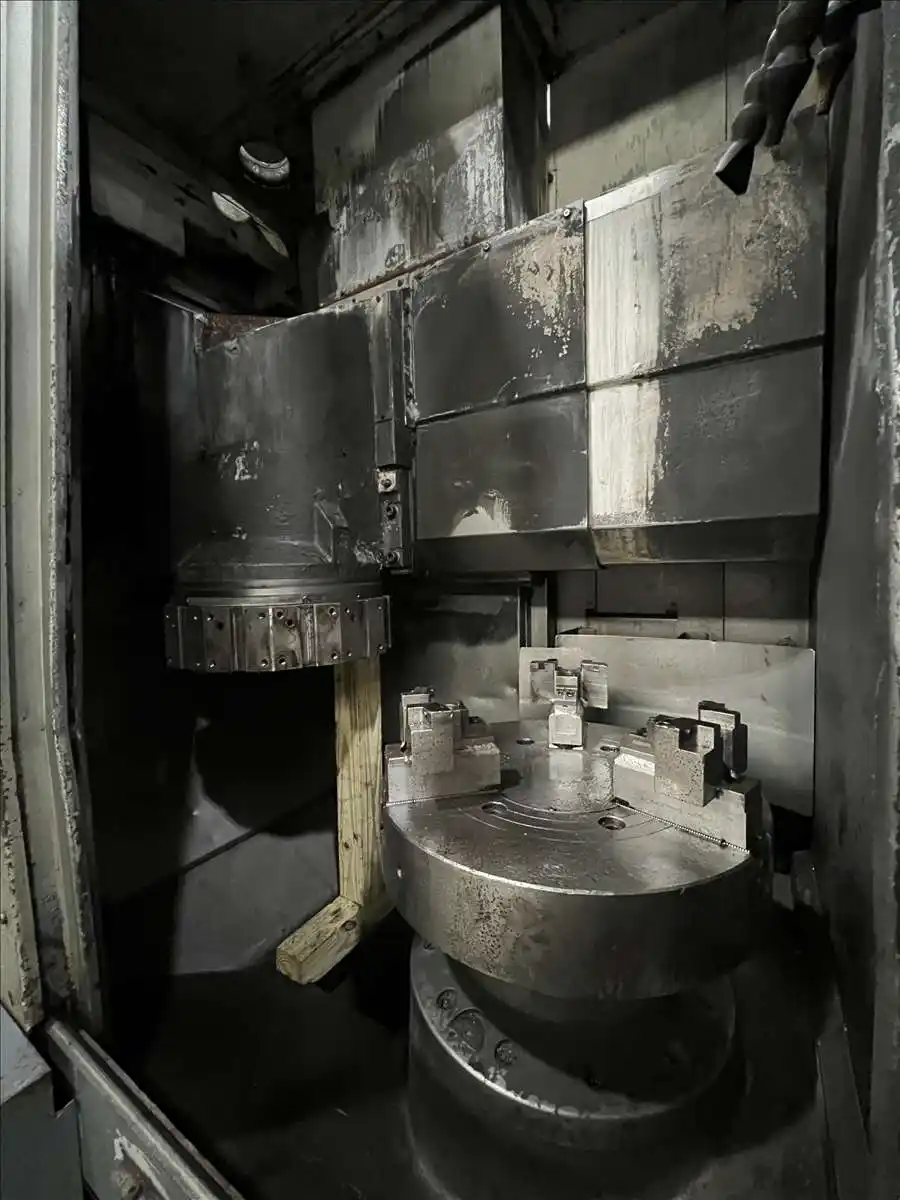

- Chucks: (2) 24" 3-Jaw
- Spindle Speed (Infinitely Variable): 20 - 2,000 RPM
- Hole-Through Spindle Diameter: 3.6"
- Spindle Nose: JIS A2-11
- Spindle Motors: (2) 30 HP

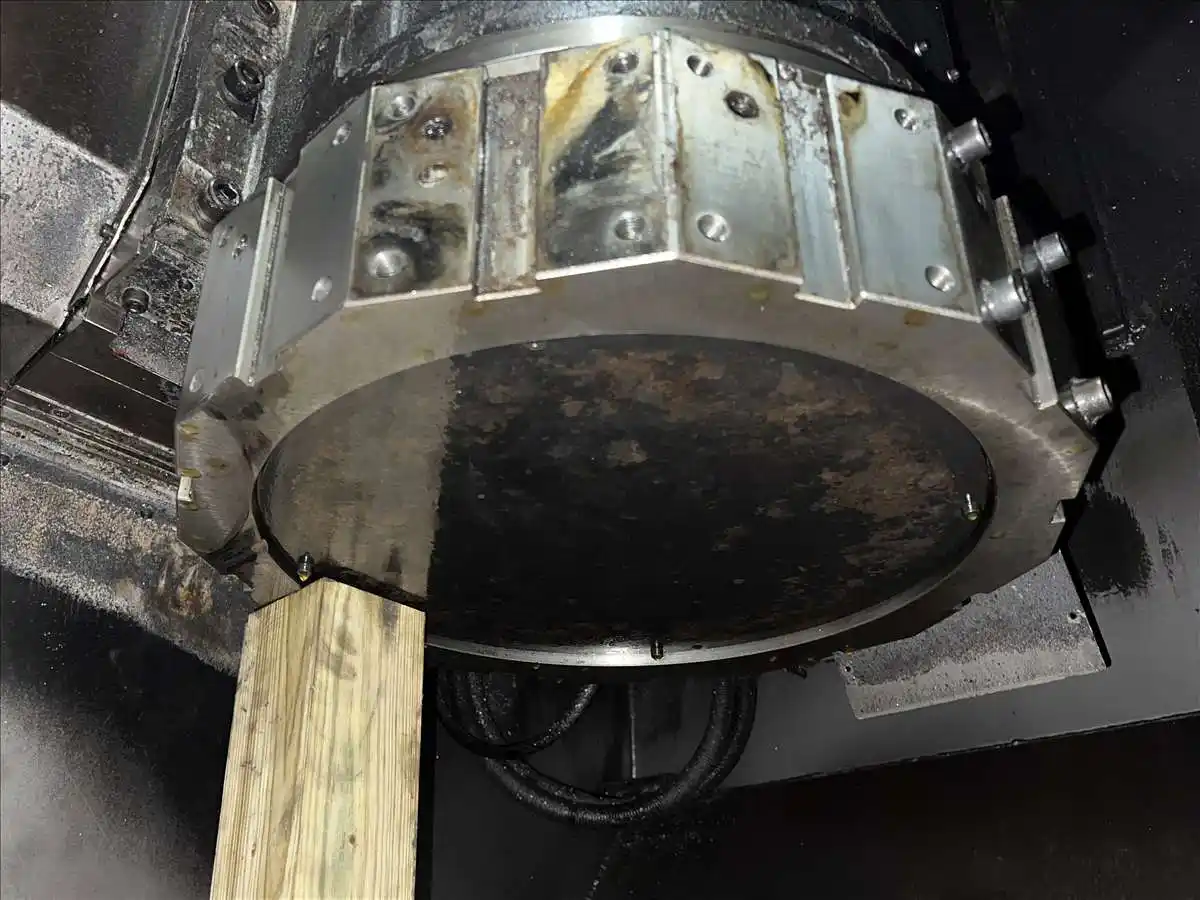

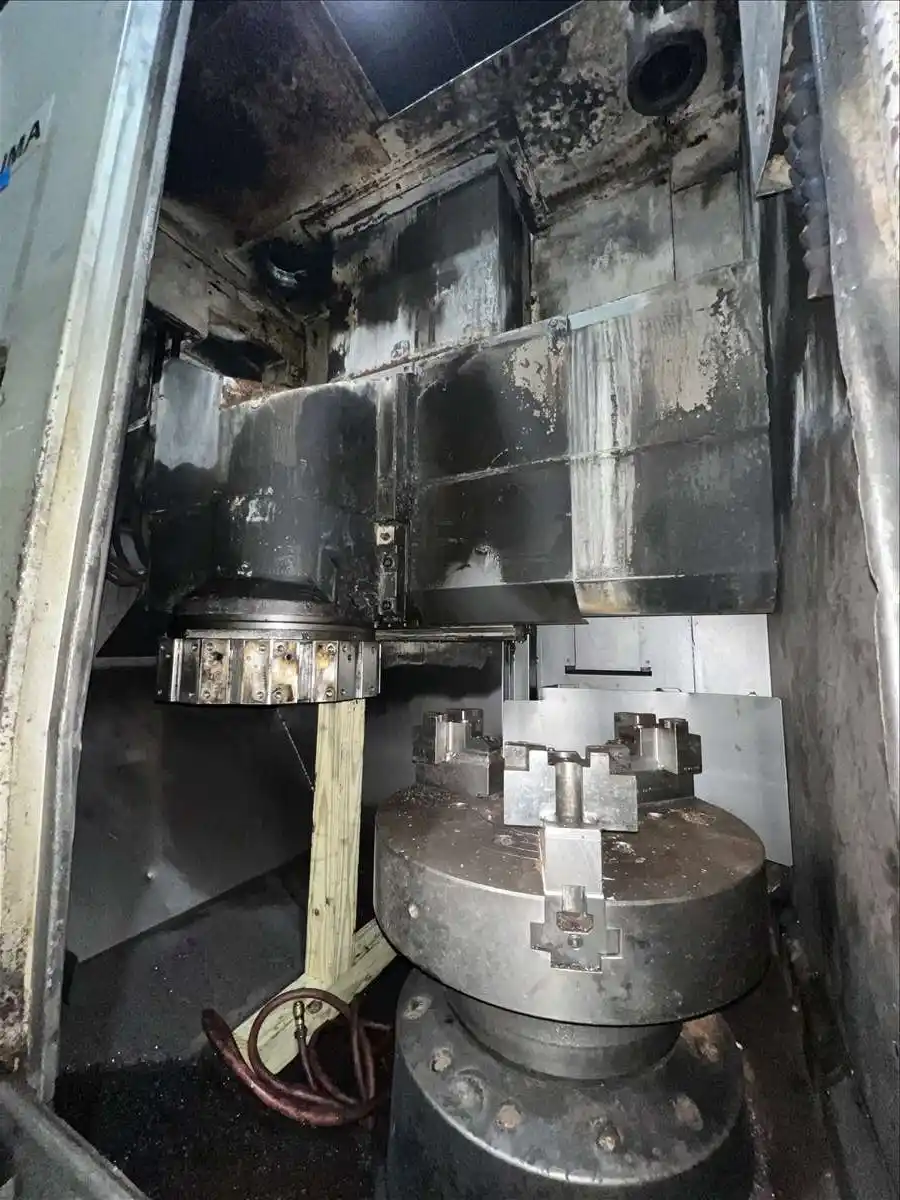

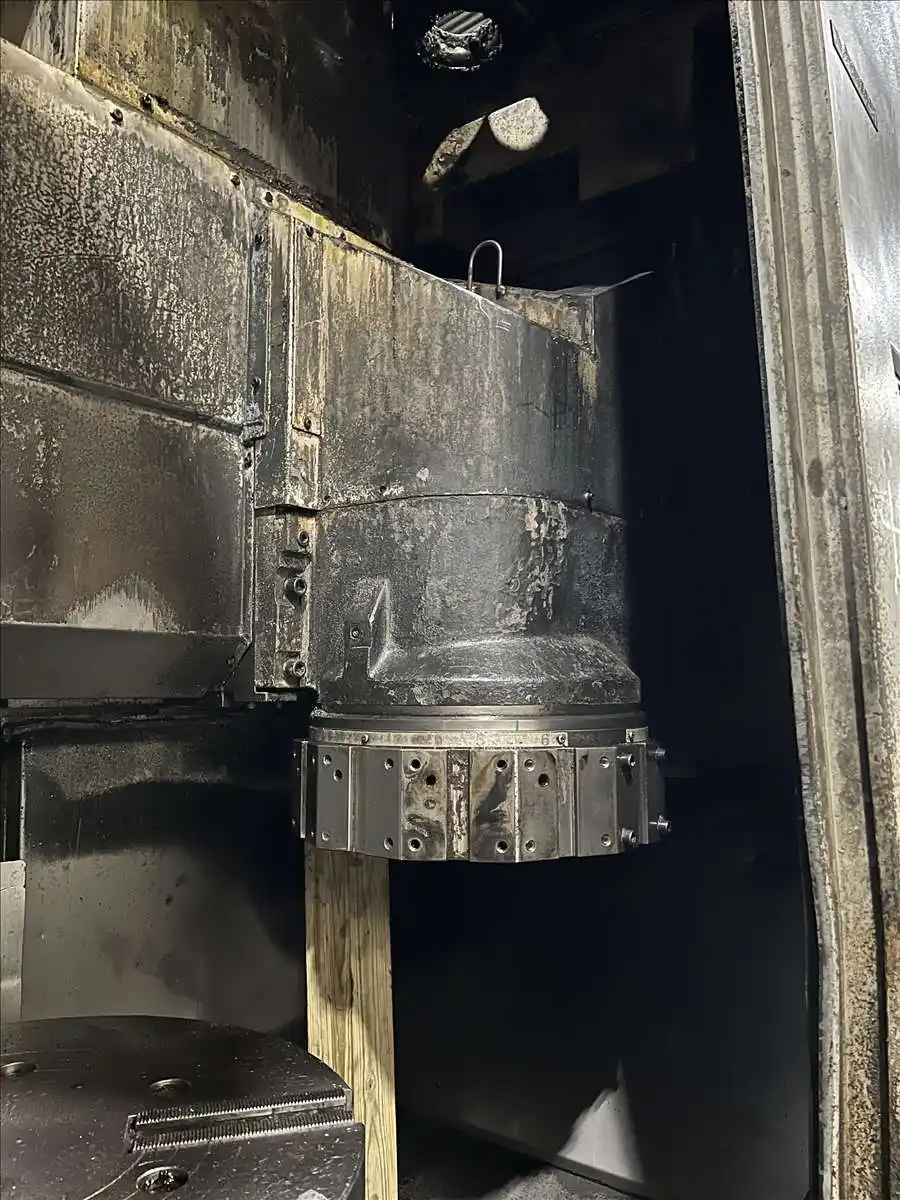

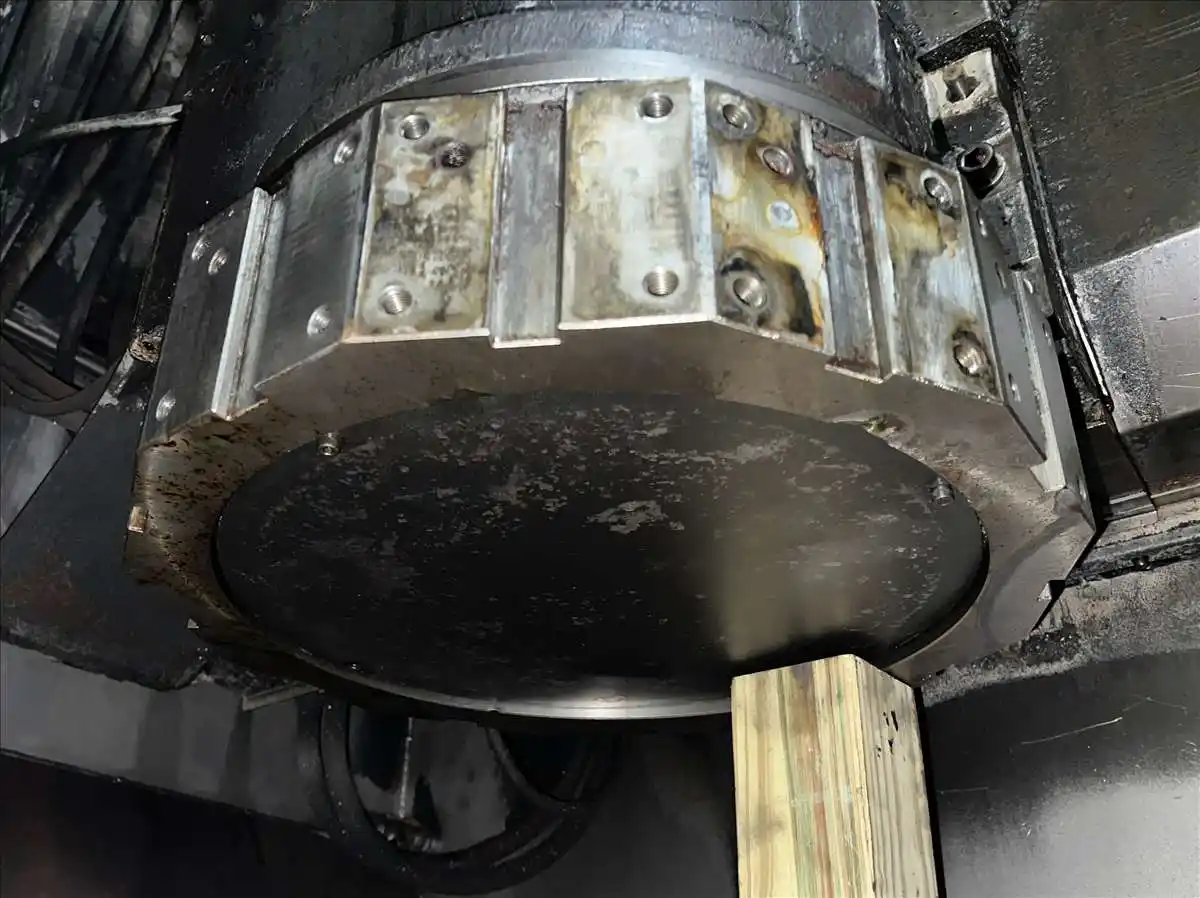

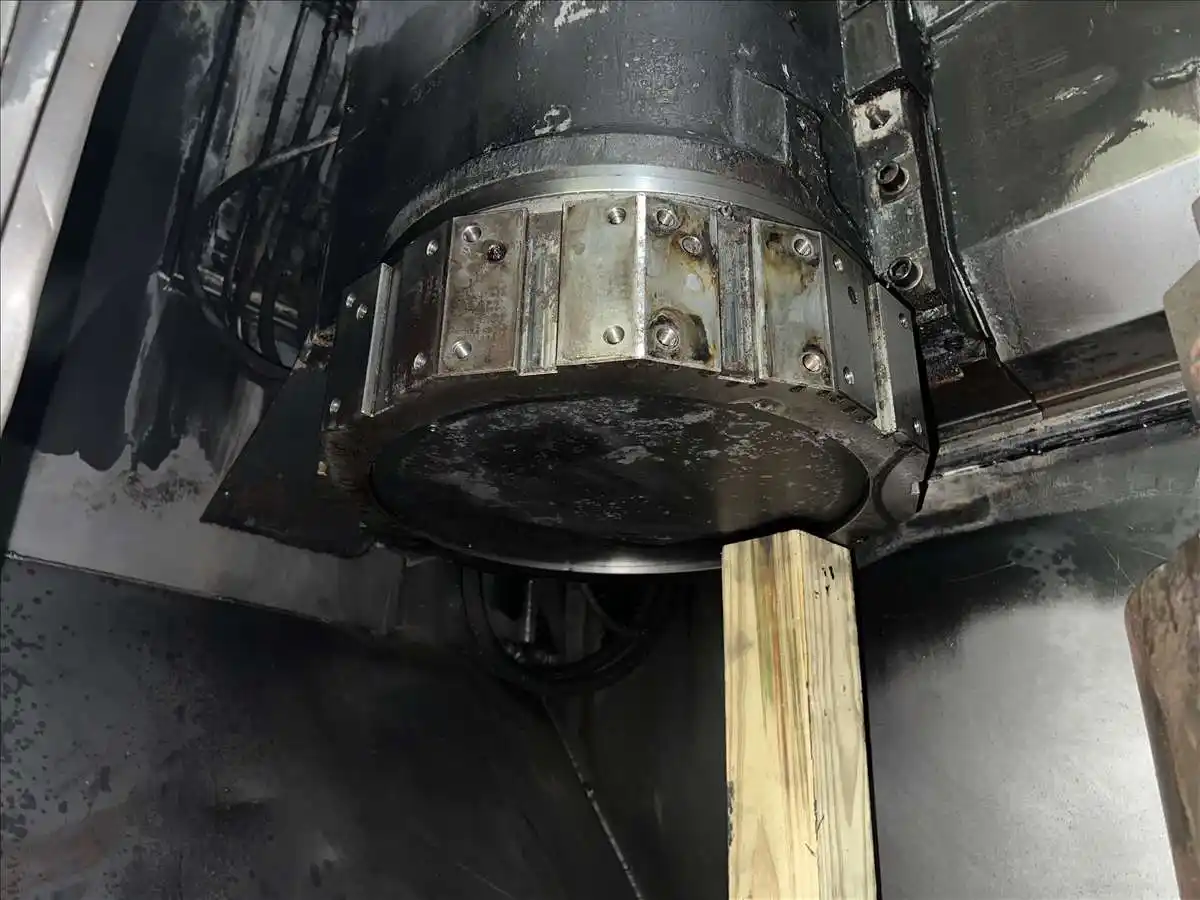

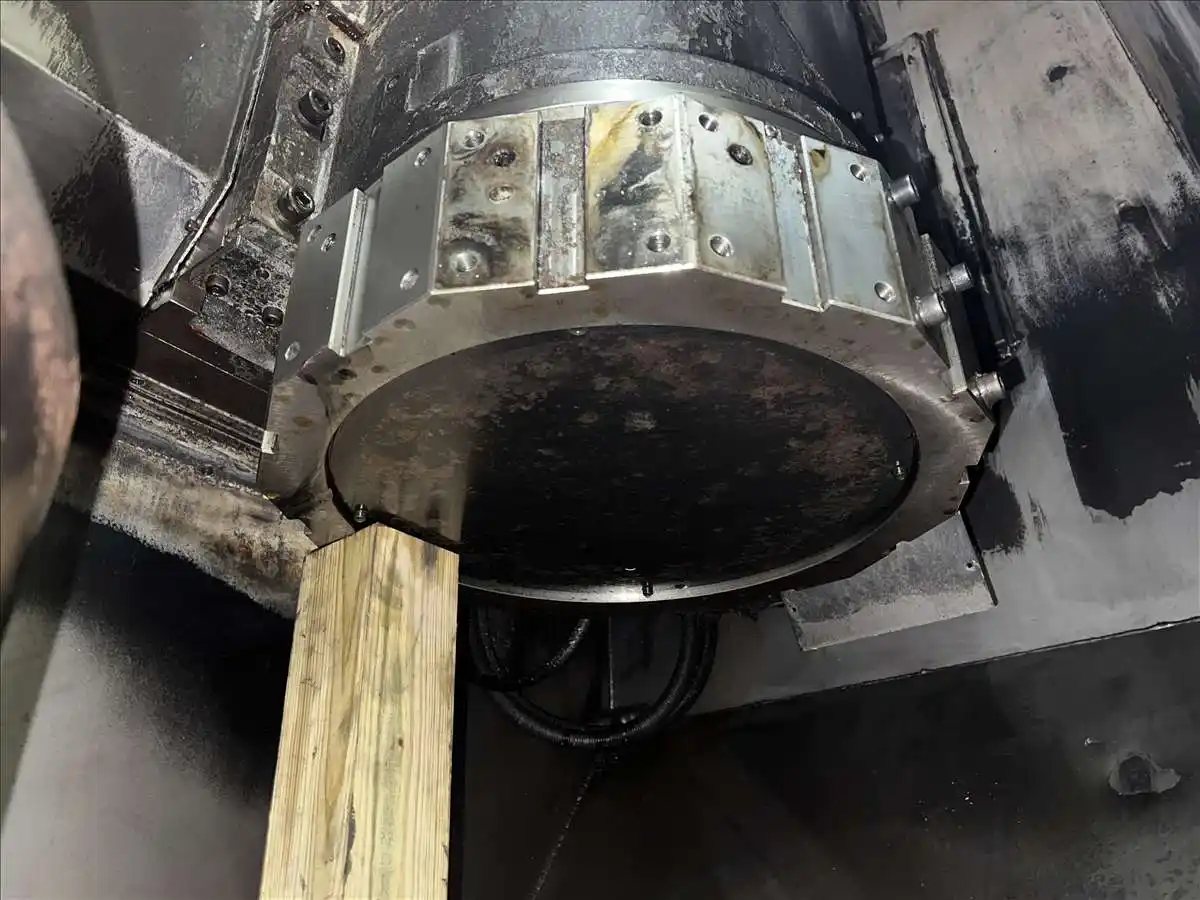

- Number of Turret Positions: (2) 12-Positions
- X-Axis Travel: 14.6"
- Z-Axis Travel: 26"
- Rapid Traverse (X): 78.7 FPM
- Rapid Traverse (Z): 78.7 FPM
- Show More
- Show Less
- Max. Turning Diameter: 610mm
- Max. Turning Length: 660mm
- Max. Swing Diameter: 700mm
- Distance Between Spindles: 31.5
- Spindle Center to Floor: 1085mm
- Workpiece Load Capacity: 500 kg
- Chucks: (2) 610mm 3-Jaw
- Spindle Speed (Infinitely Variable): 20 - 2,000 RPM
- Hole-Through Spindle Diameter: 91mm
- Spindle Nose: JIS A2-11
- Spindle Motors: (2) 22.37 kw
- Number of Turret Positions: (2) 12-Positions
- X-Axis Travel: 370mm
- Z-Axis Travel: 660mm
- Rapid Traverse (X): 24 m/min
- Rapid Traverse (Z): 24 m/min
- Show More
- Show Less
Equipped With

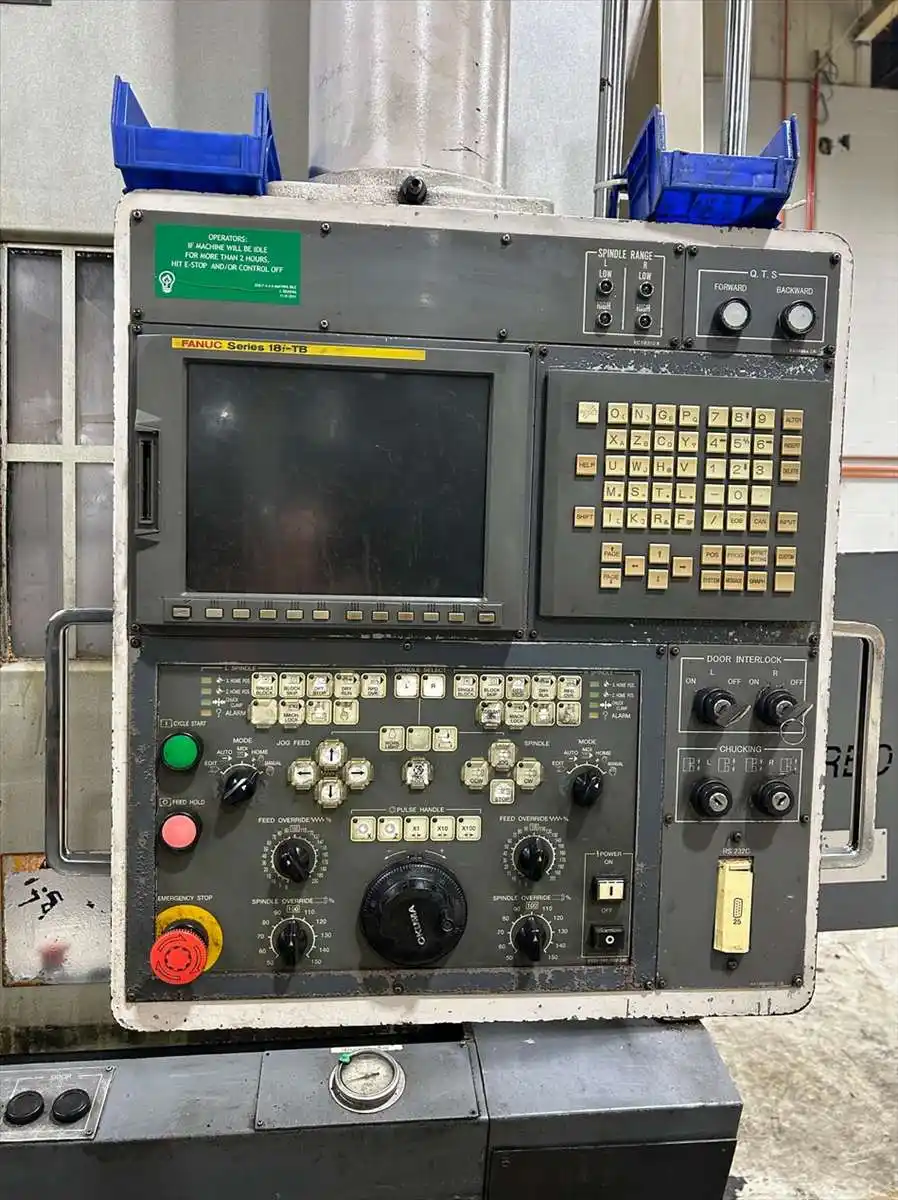

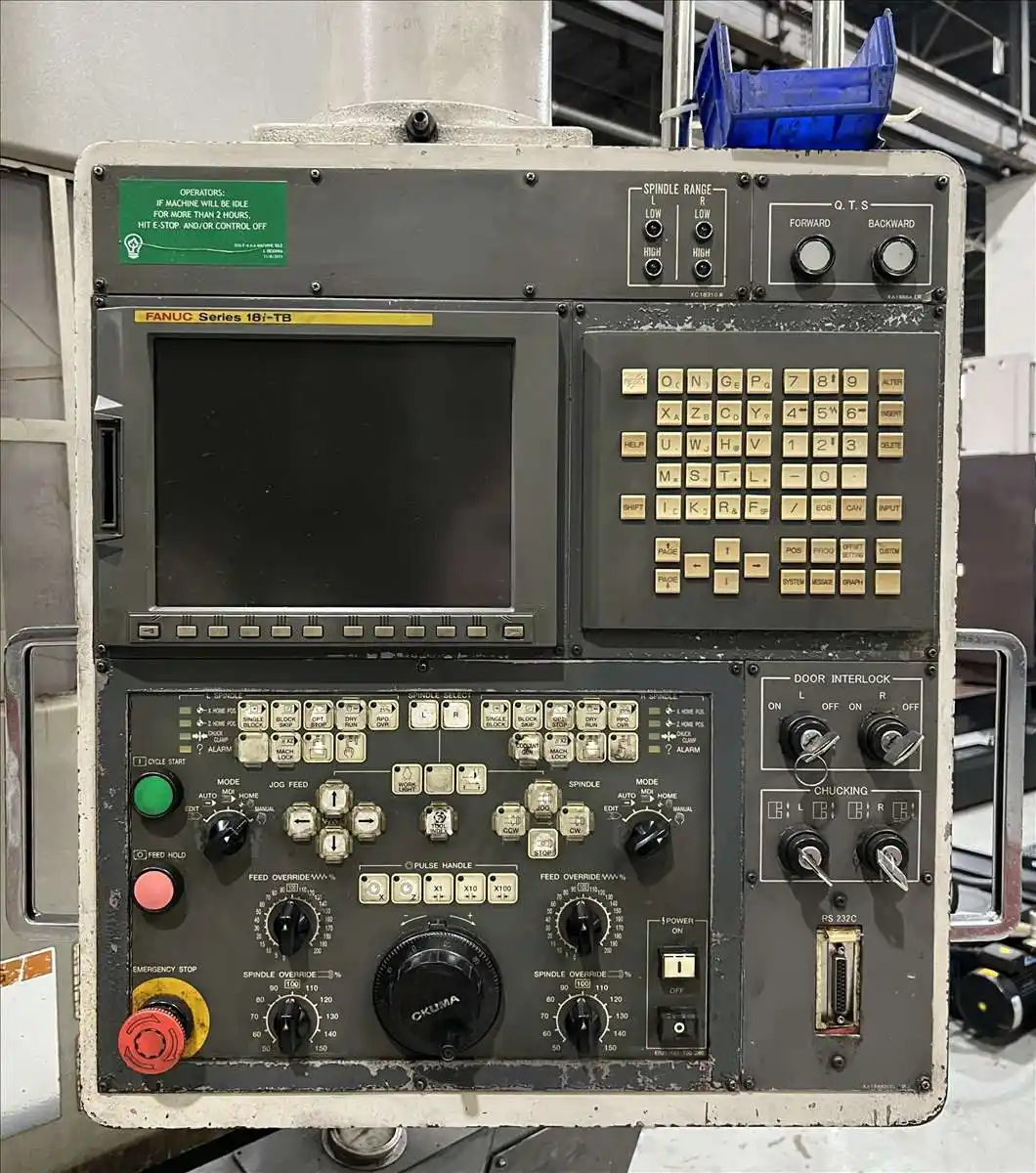

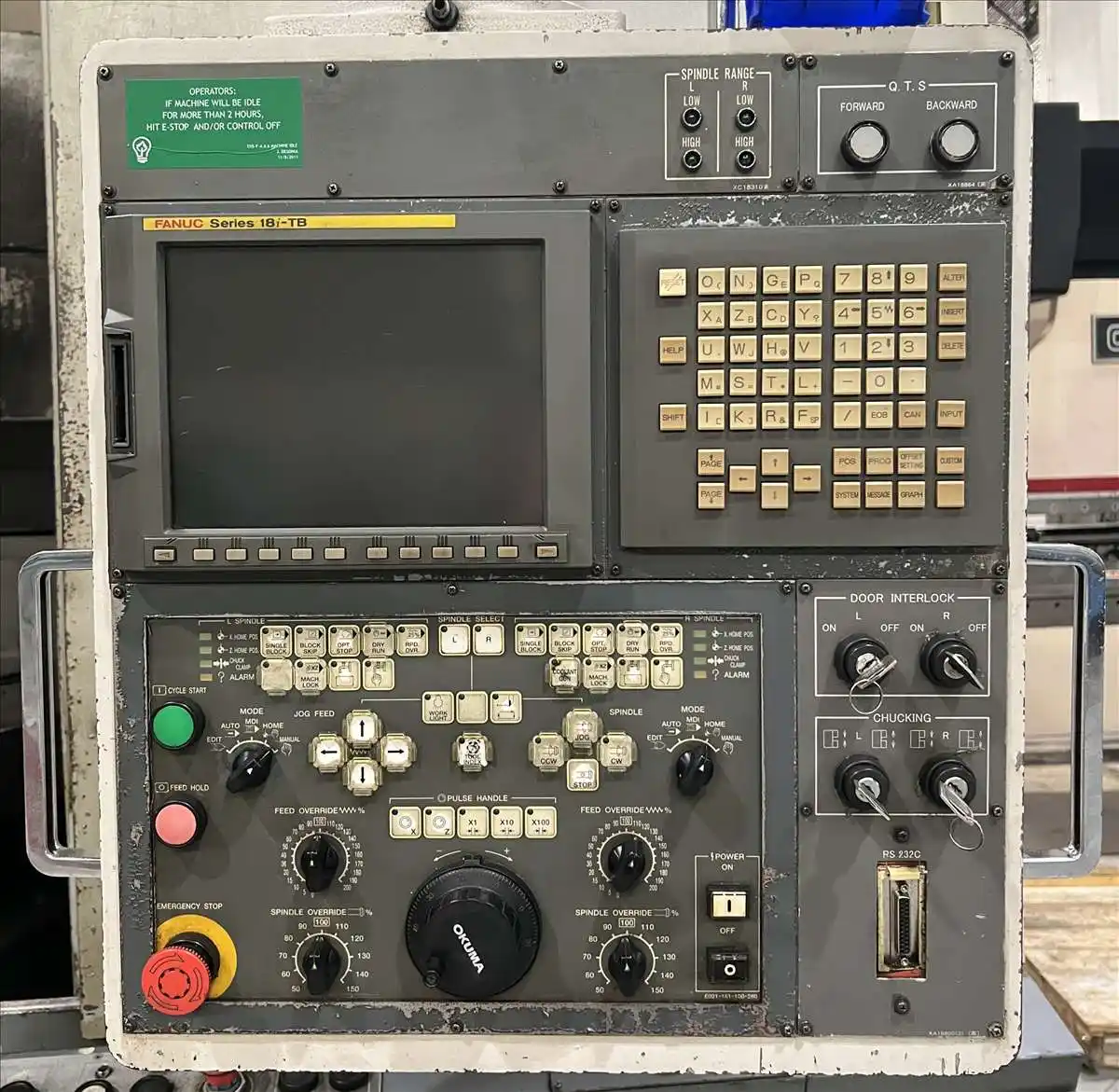

- Fanuc 18i-TB CNC Control

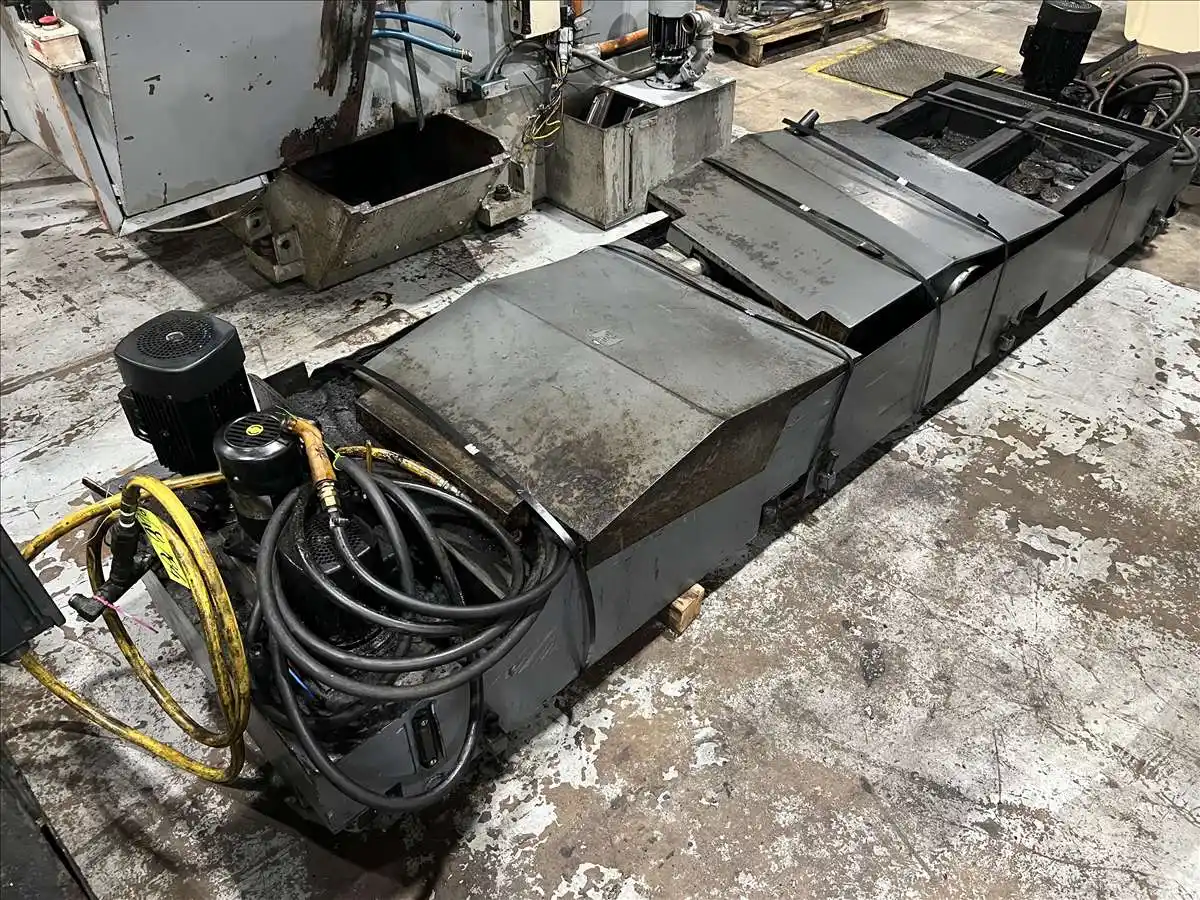

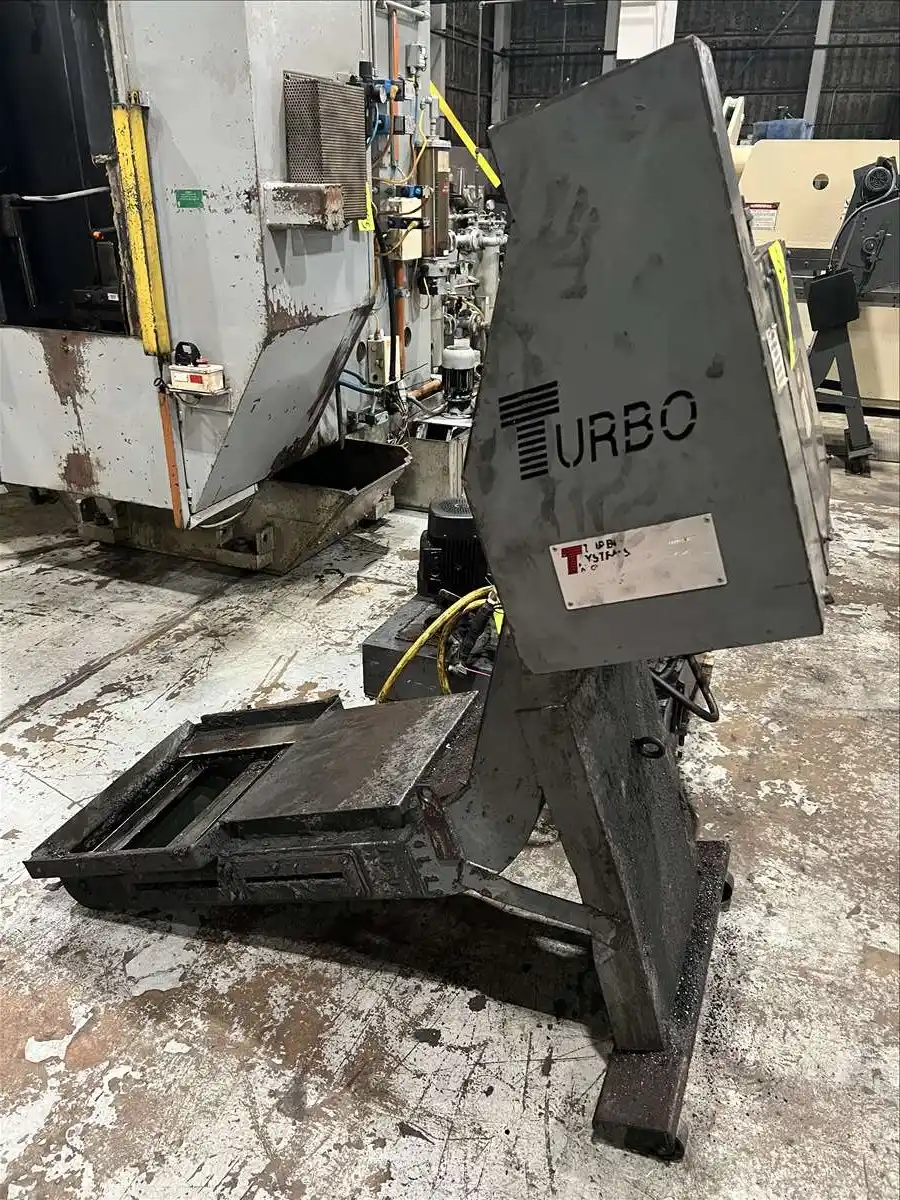

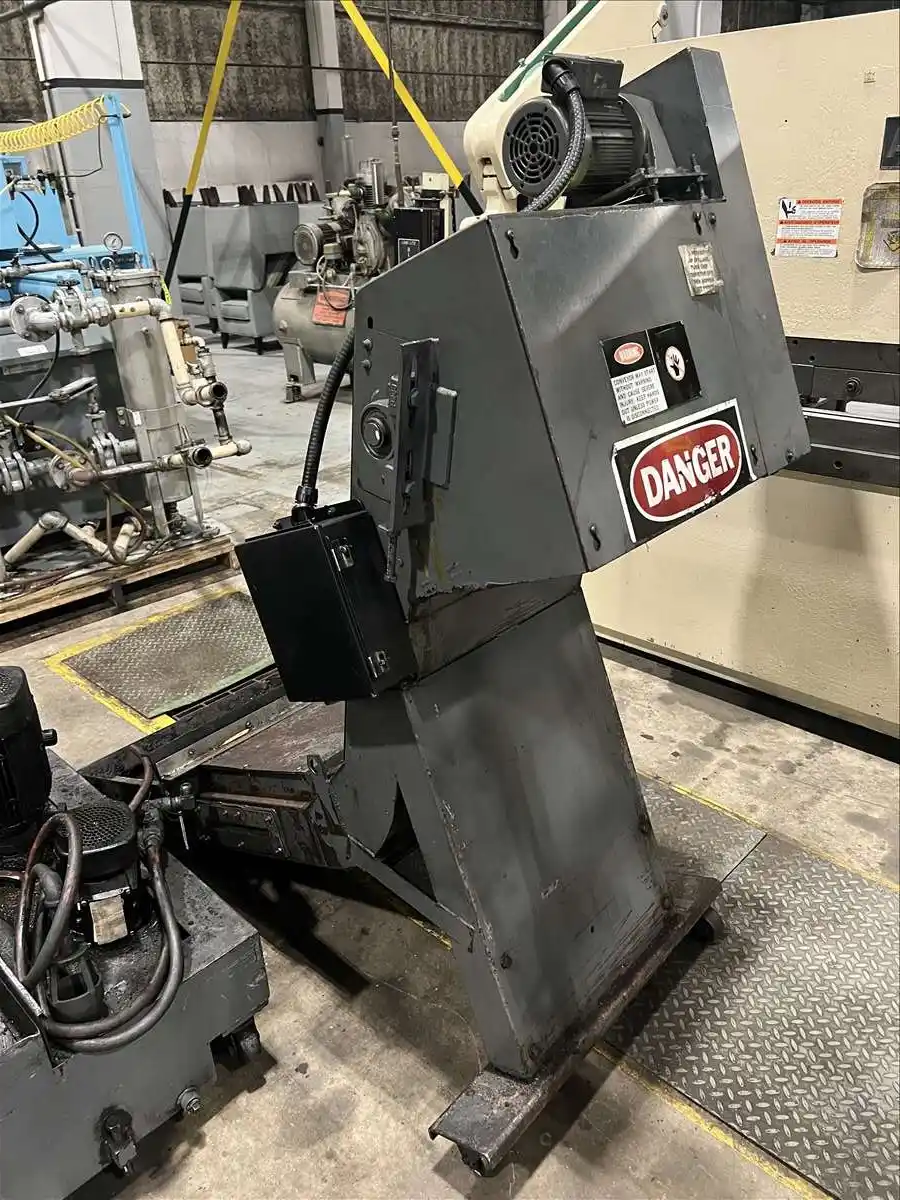

- Dual Chip Conveyors
- Coolant System
- Auto-Doors
- Fanuc 18i-TB CNC Control
- Dual Chip Conveyors
- Coolant System
- Auto-Doors
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
