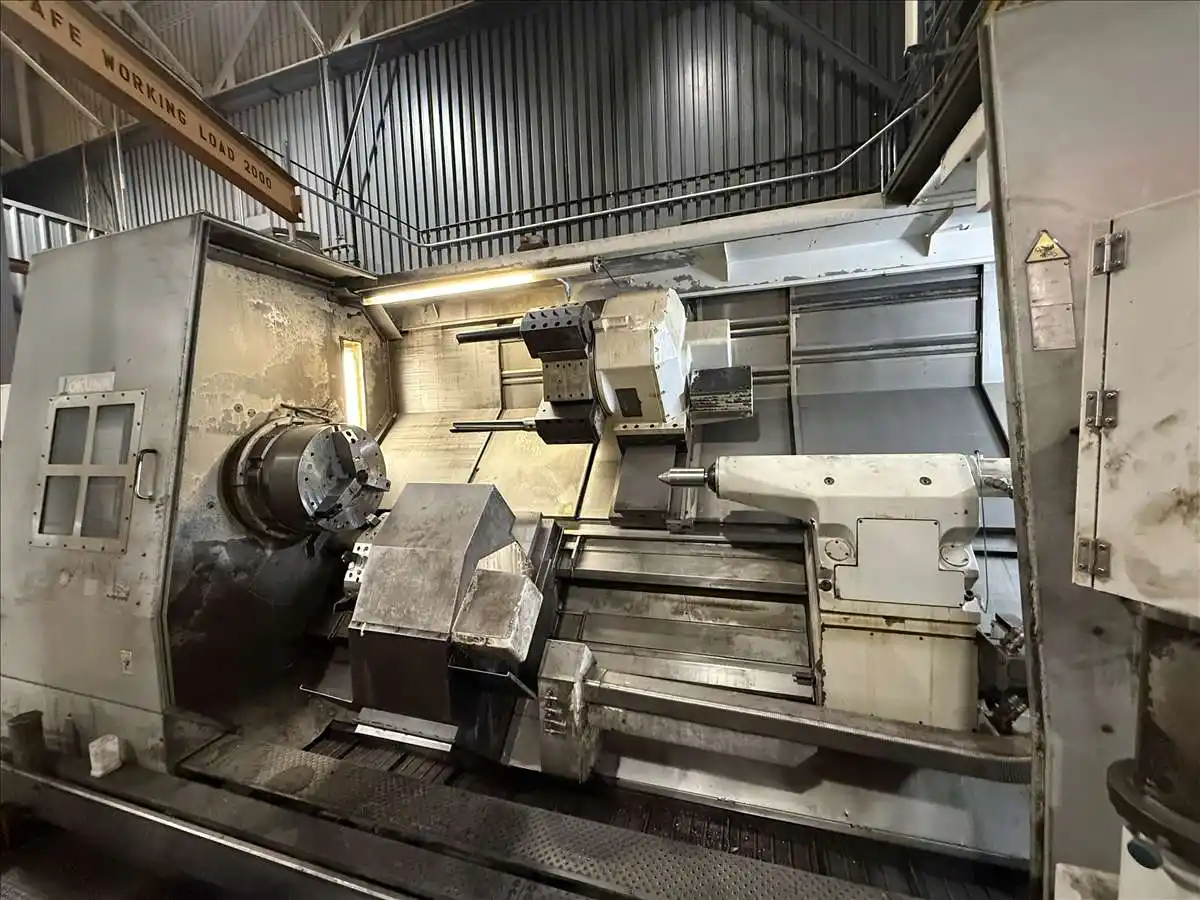

Specifications
- Swing Over Bed: 33"
- Swing Over Saddle: 21.9"
- Max. Turning Diameter: 25.6"
- Distance Between Centers: 118"

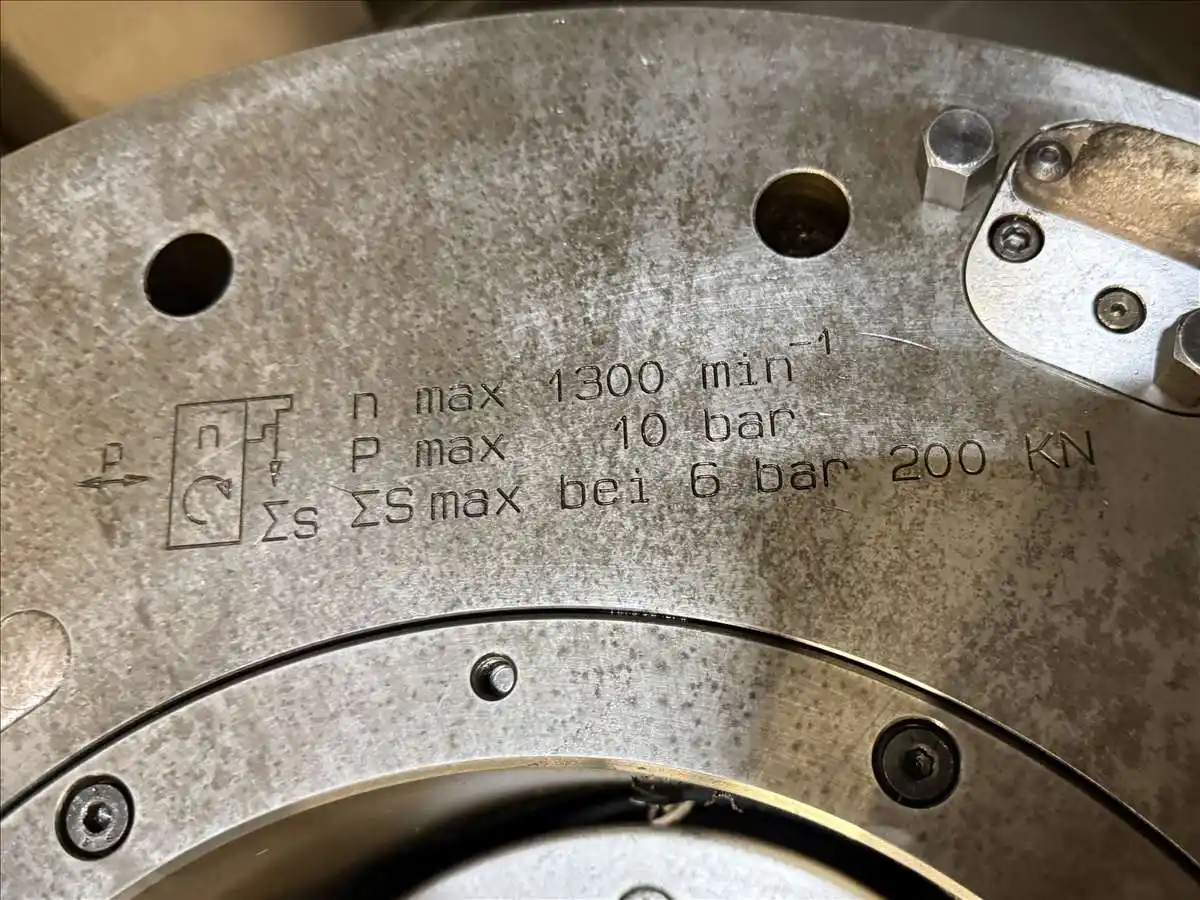

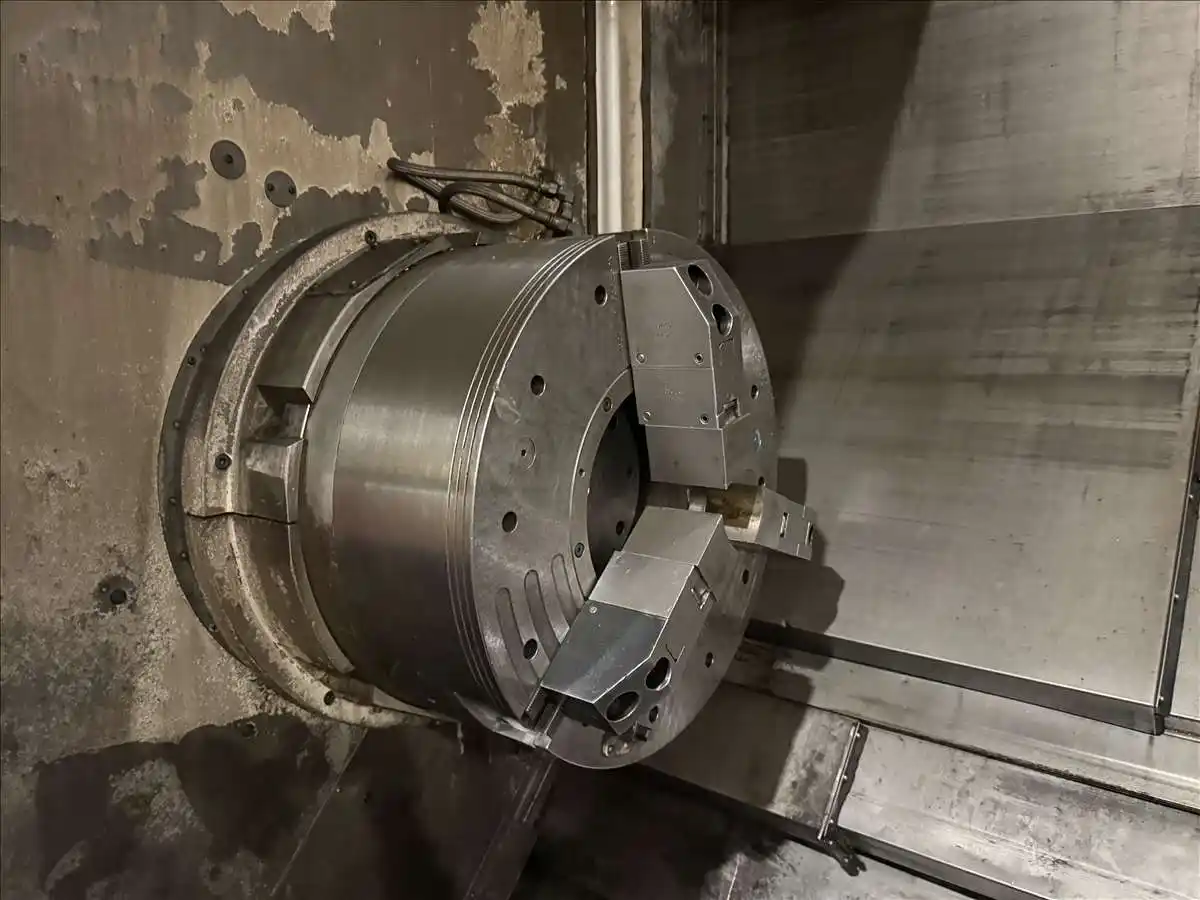

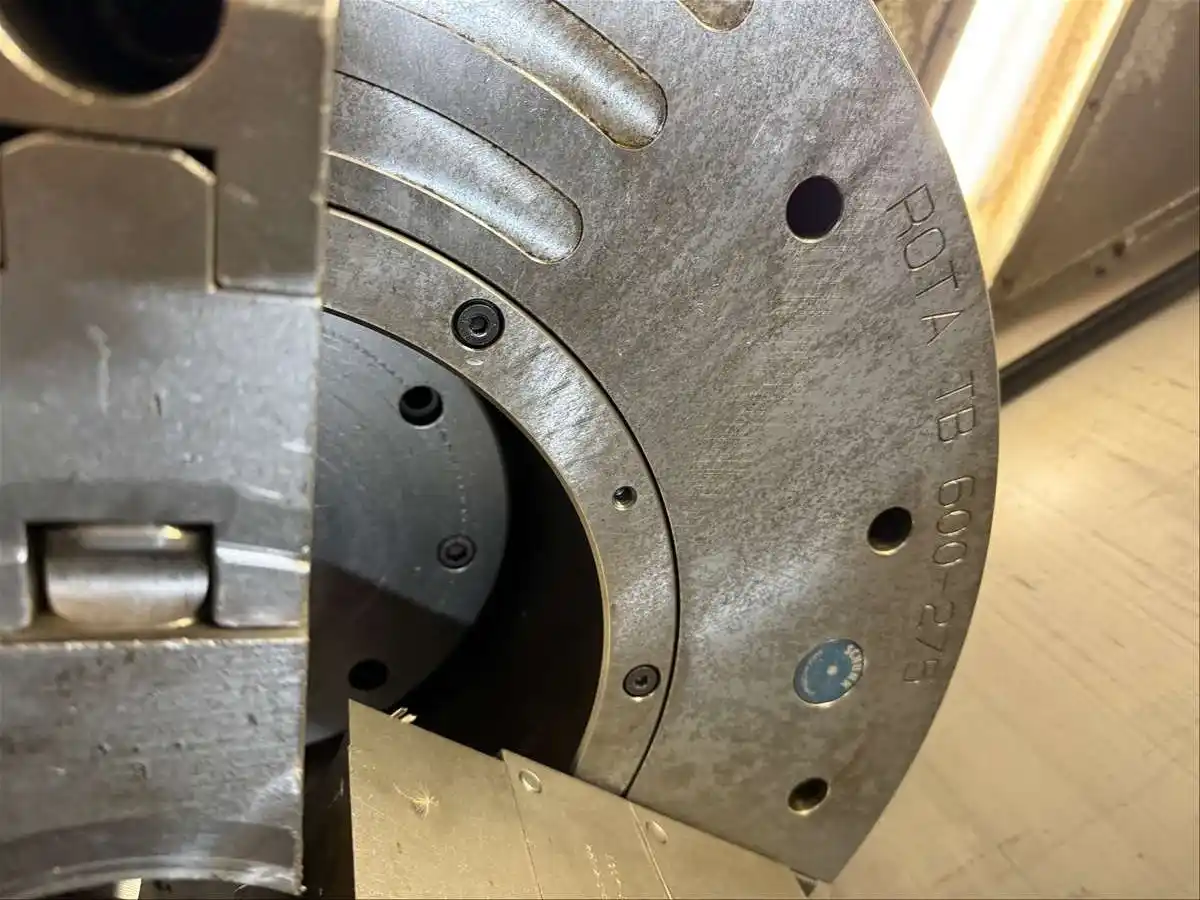

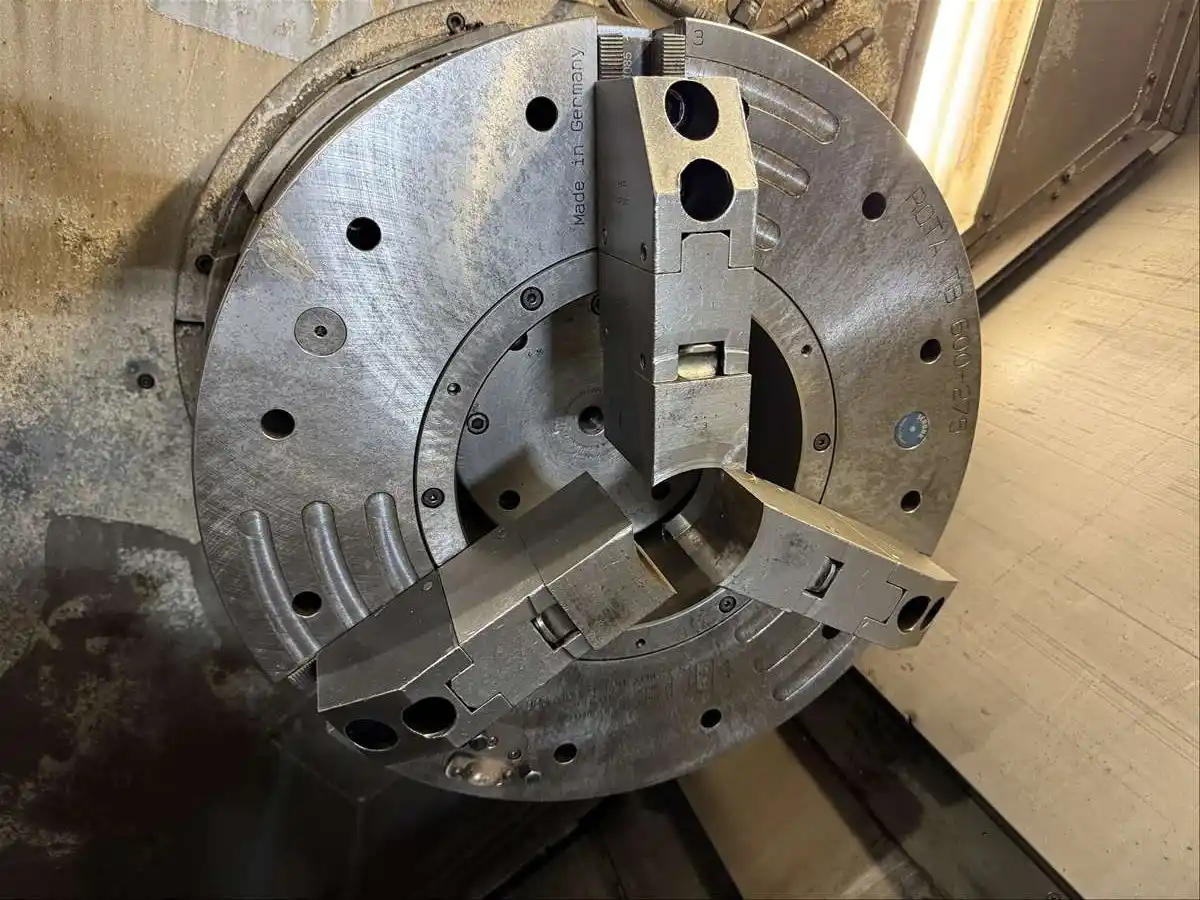

- Chuck: (2) 24" 3-Jaw Air Chuck
- X-Axis Travel
- Upper Turret: 17.3"
- Lower Turret: 12.2"
- Z-Axis Travel
- Upper Turret: 121.6"
- Lower Turret: 119"
- Hole Through Spindle: 10.25"
- Spindle Nose: A2-20

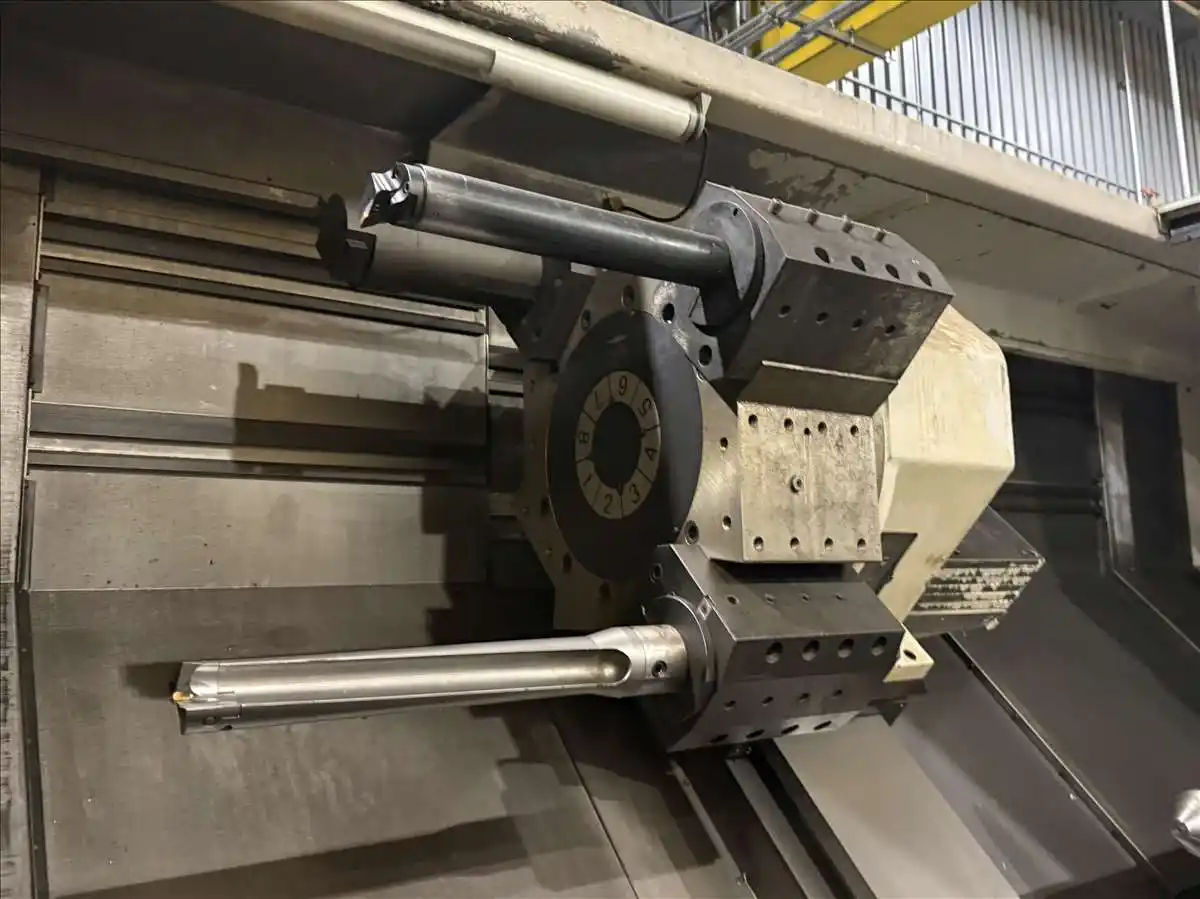

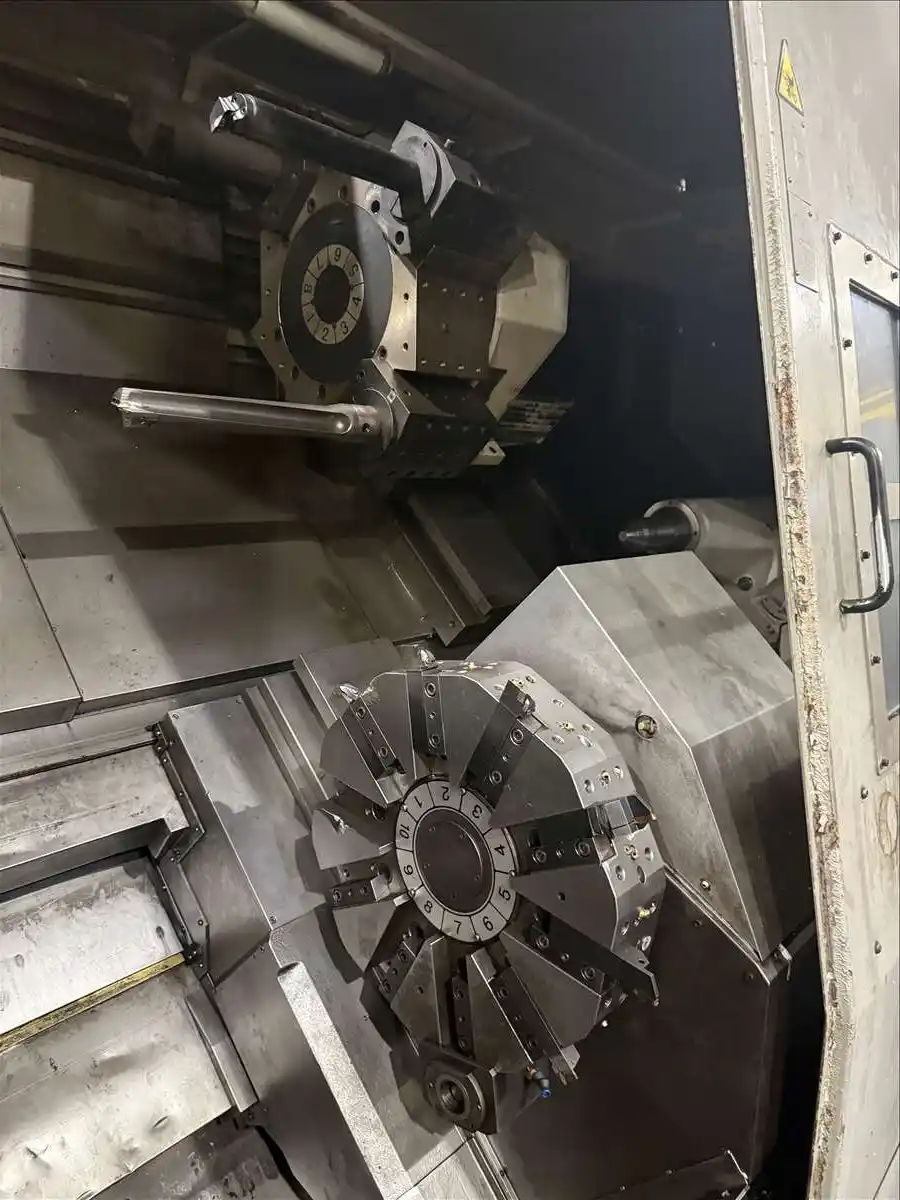

- Number of Upper Turret Positions: 8

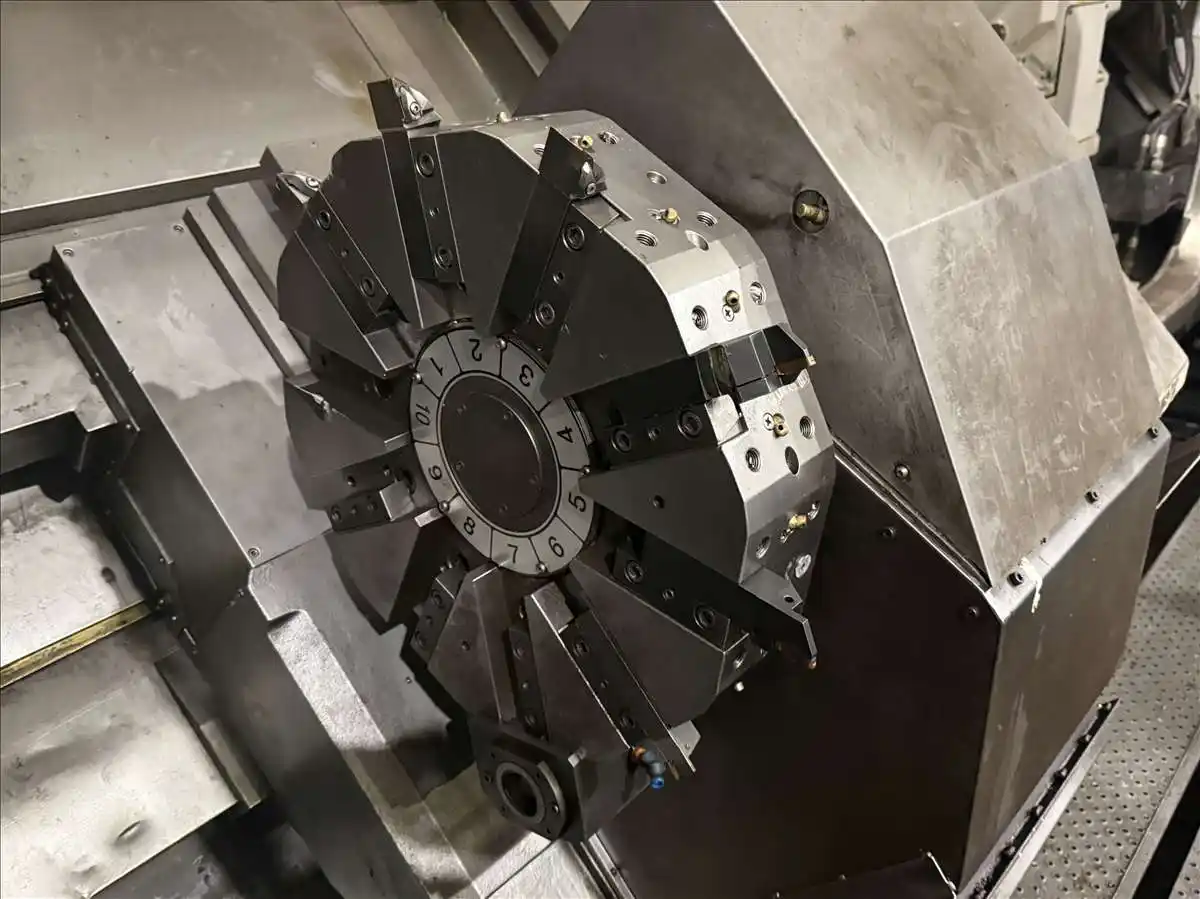

- Number of Lower Turret Positions: 10
- Tailstock Quill: 5.12"
- Tailstock Taper: MT 5
- Tailstock Quill Travel: 6.69"
- Show More
- Show Less
- Swing Over Bed: 838mm
- Swing Over Saddle: 555mm
- Max. Turning Diameter: 650mm
- Distance Between Centers: 3000mm
- Chuck: (2) 610mm 3-Jaw Air Chuck
- X-Axis Travel
- Upper Turret: 440mm
- Lower Turret: 310mm
- Z-Axis Travel
- Upper Turret: 3088mm
- Lower Turret: 3022mm
- Hole Through Spindle: 260mm
- Spindle Nose: A2-20
- Number of Upper Turret Positions: 8
- Number of Lower Turret Positions: 10
- Tailstock Quill: 130mm
- Tailstock Taper: MT 5
- Tailstock Quill Travel: 170mm
- Show More
- Show Less
Equipped With

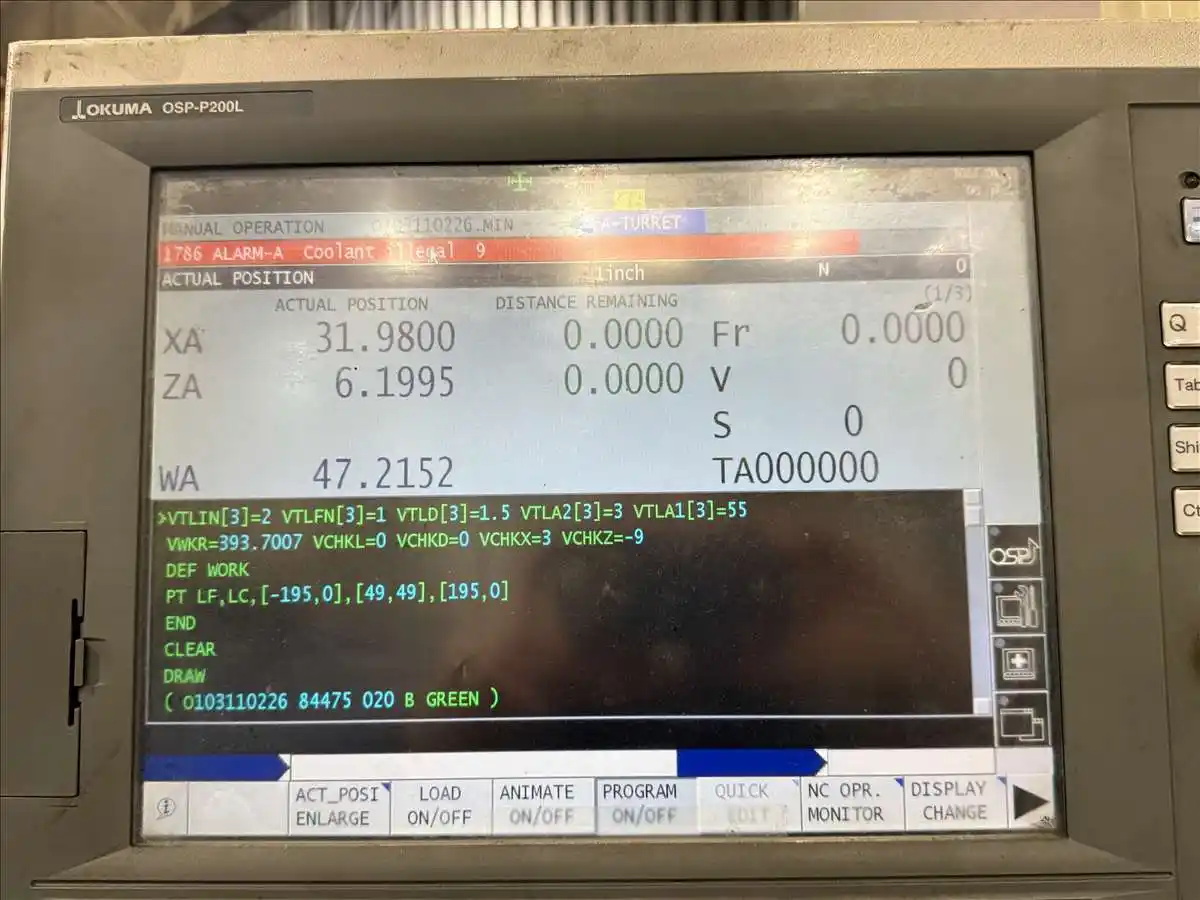

- Okuma OSP-P200L CNC Control

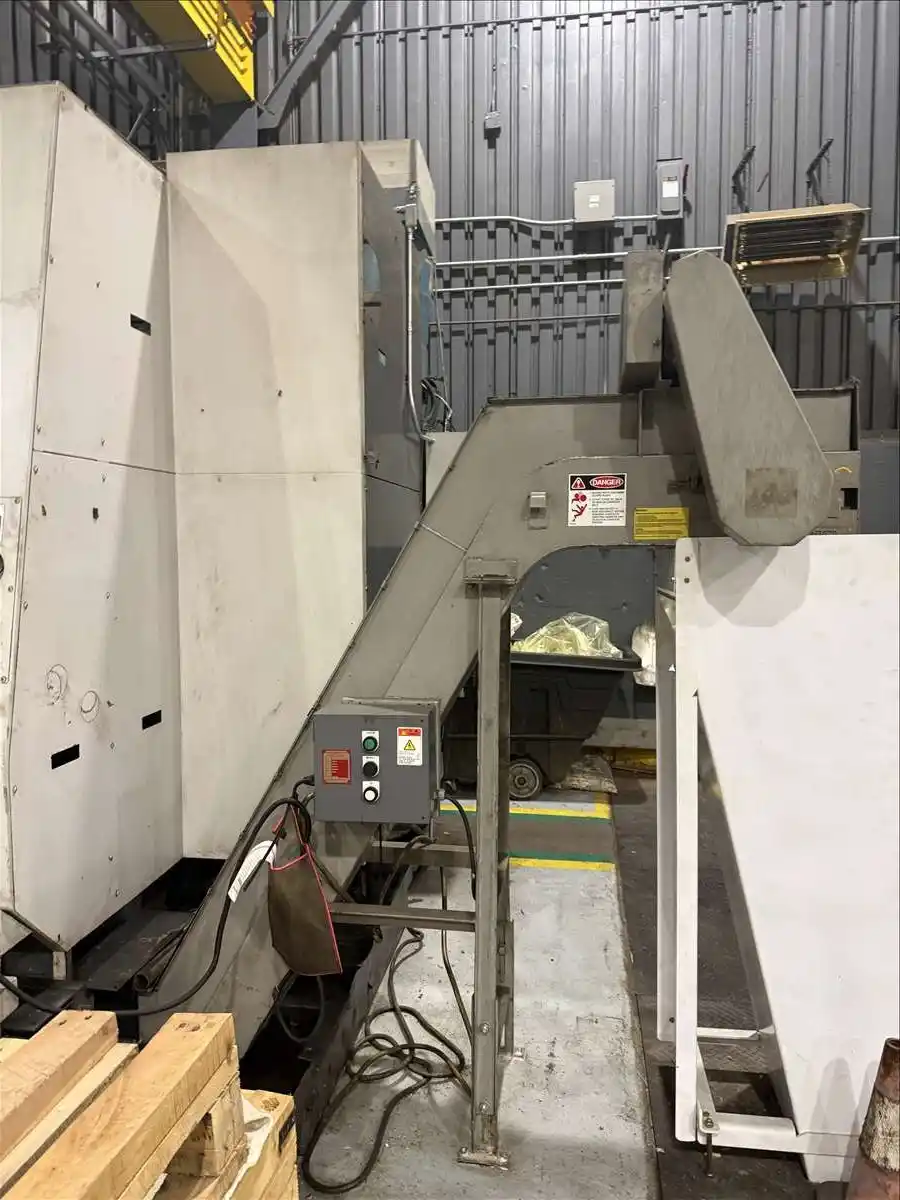

- Chip Conveyor

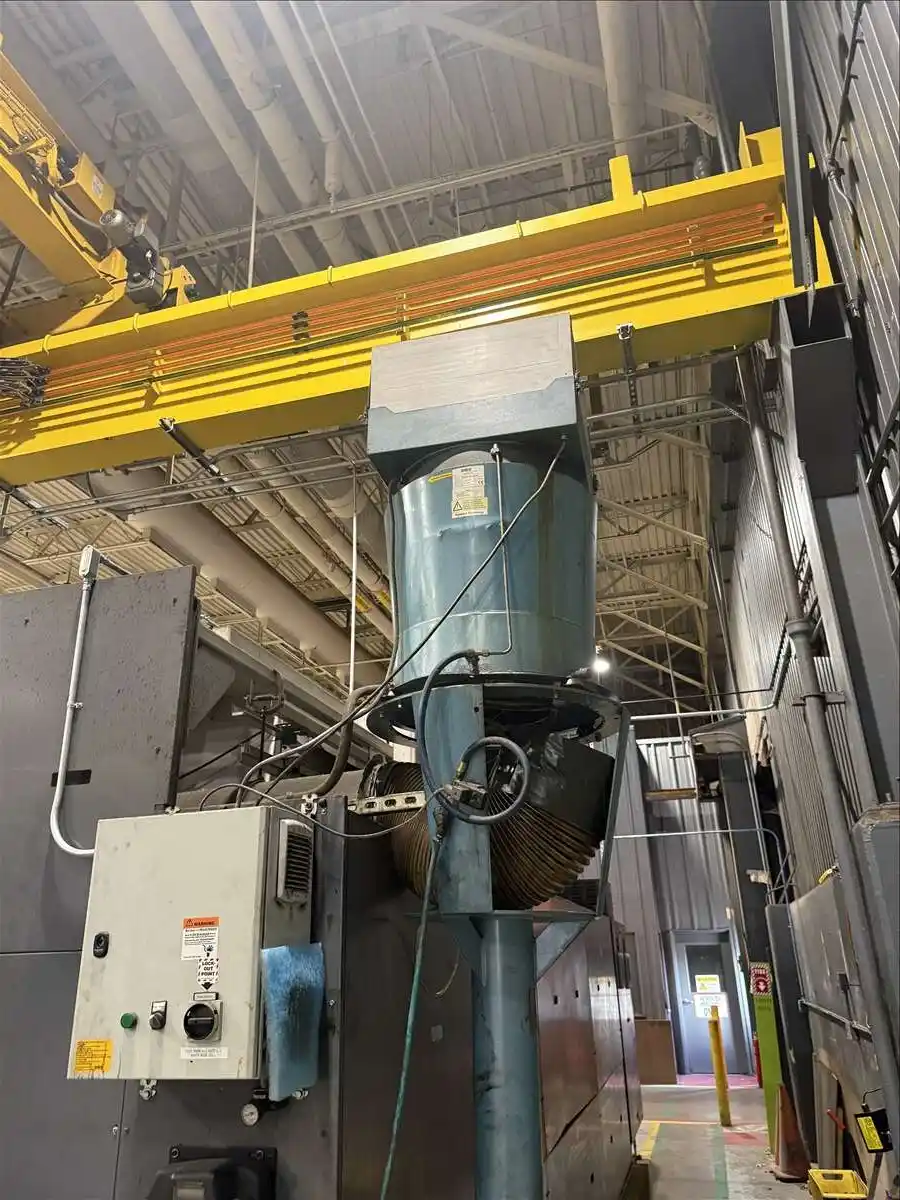

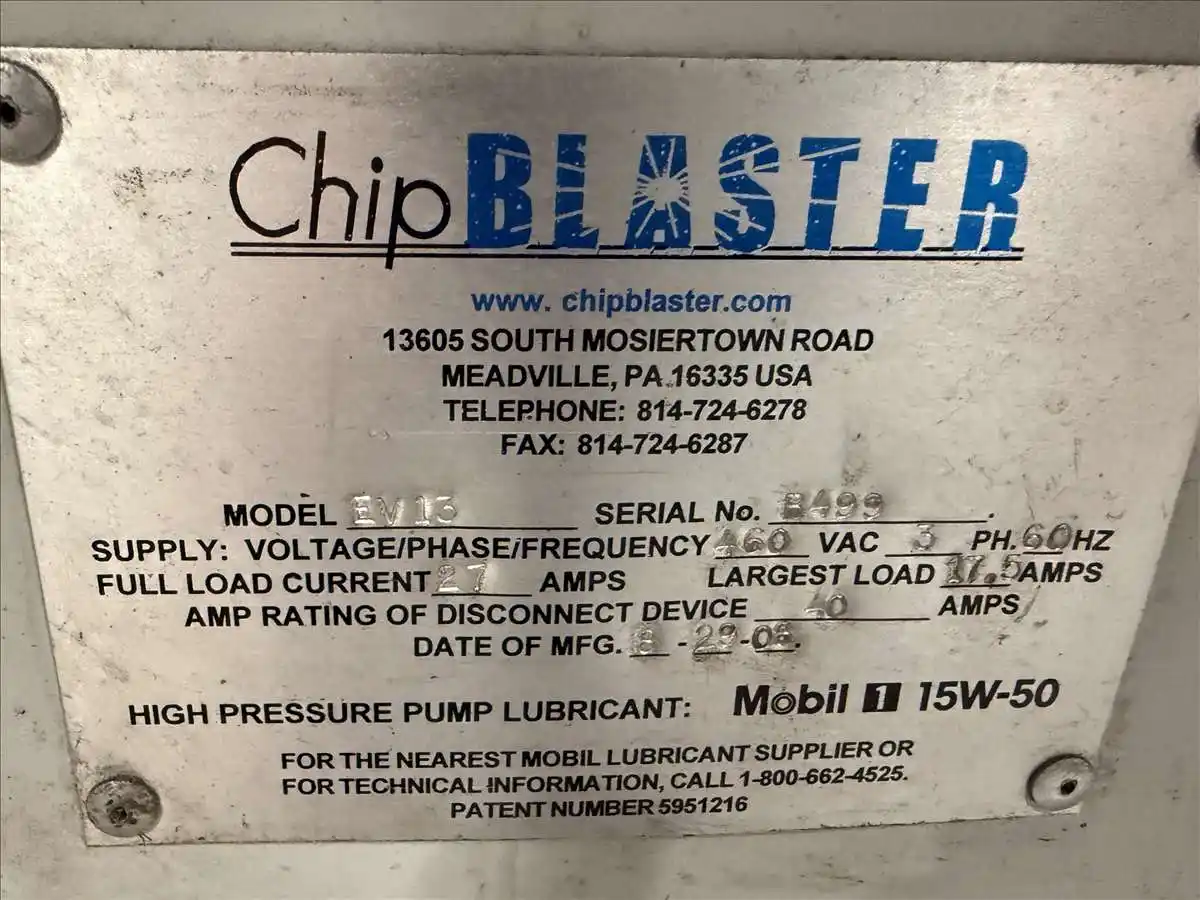

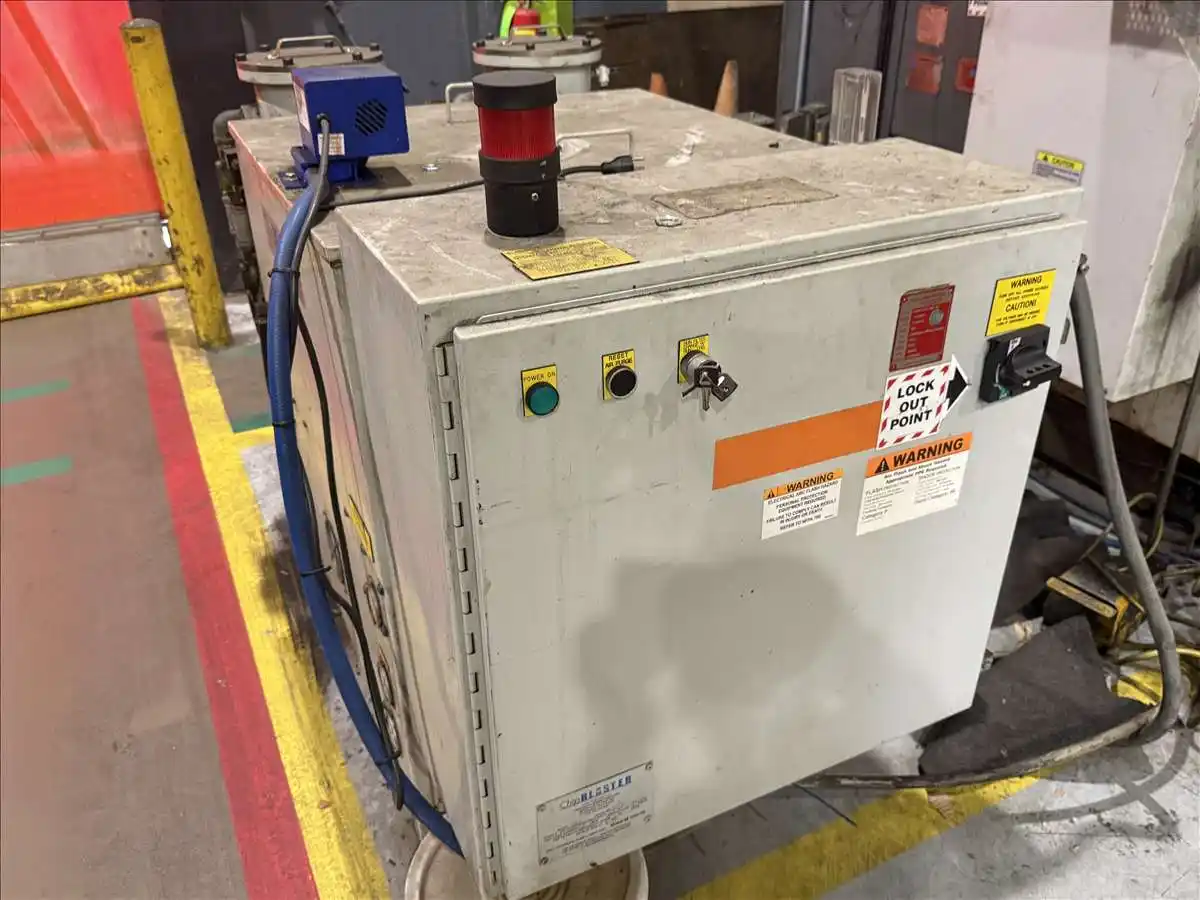

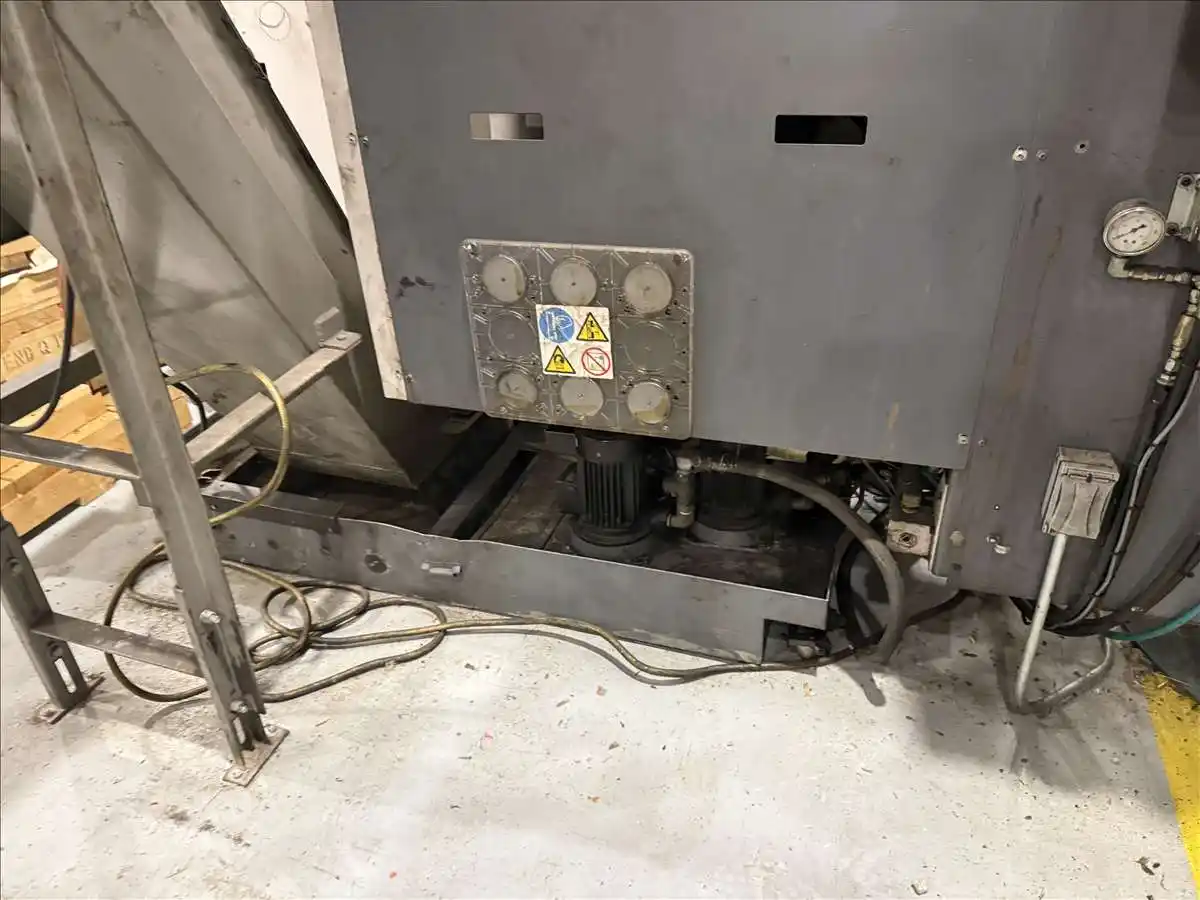

- Chip Blaster EV13 High Pressure Coolant System

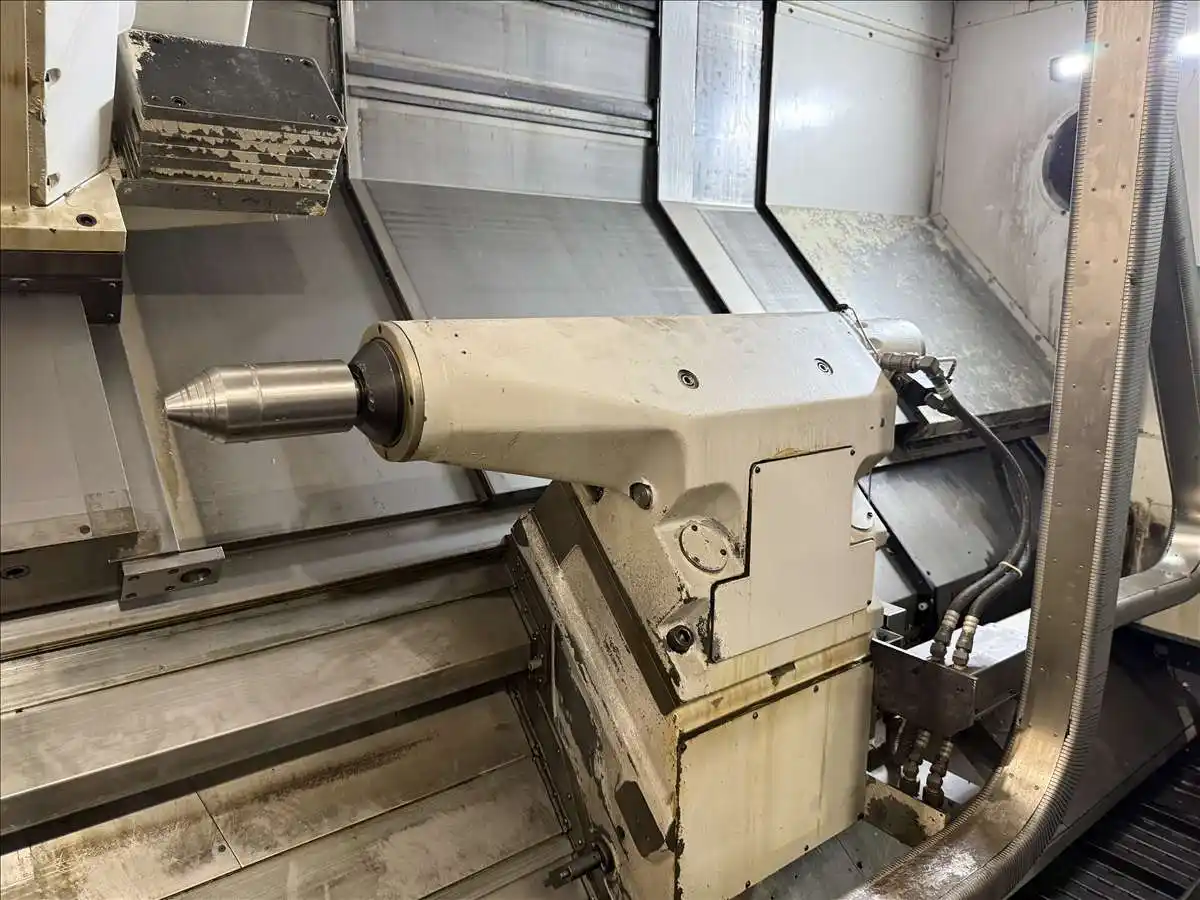

- Power Tailstock
- Okuma OSP-P200L CNC Control
- Chip Conveyor
- Chip Blaster EV13 High Pressure Coolant System
- Power Tailstock
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
