Specifications
- Distance Between Centers: 17.7"
- Distance Between Noses: 30.9"
- Swing Over Bed: 22.8"
- Swing Over Carriage: 18.5"
- Max. Turning Diameter: 13.4"

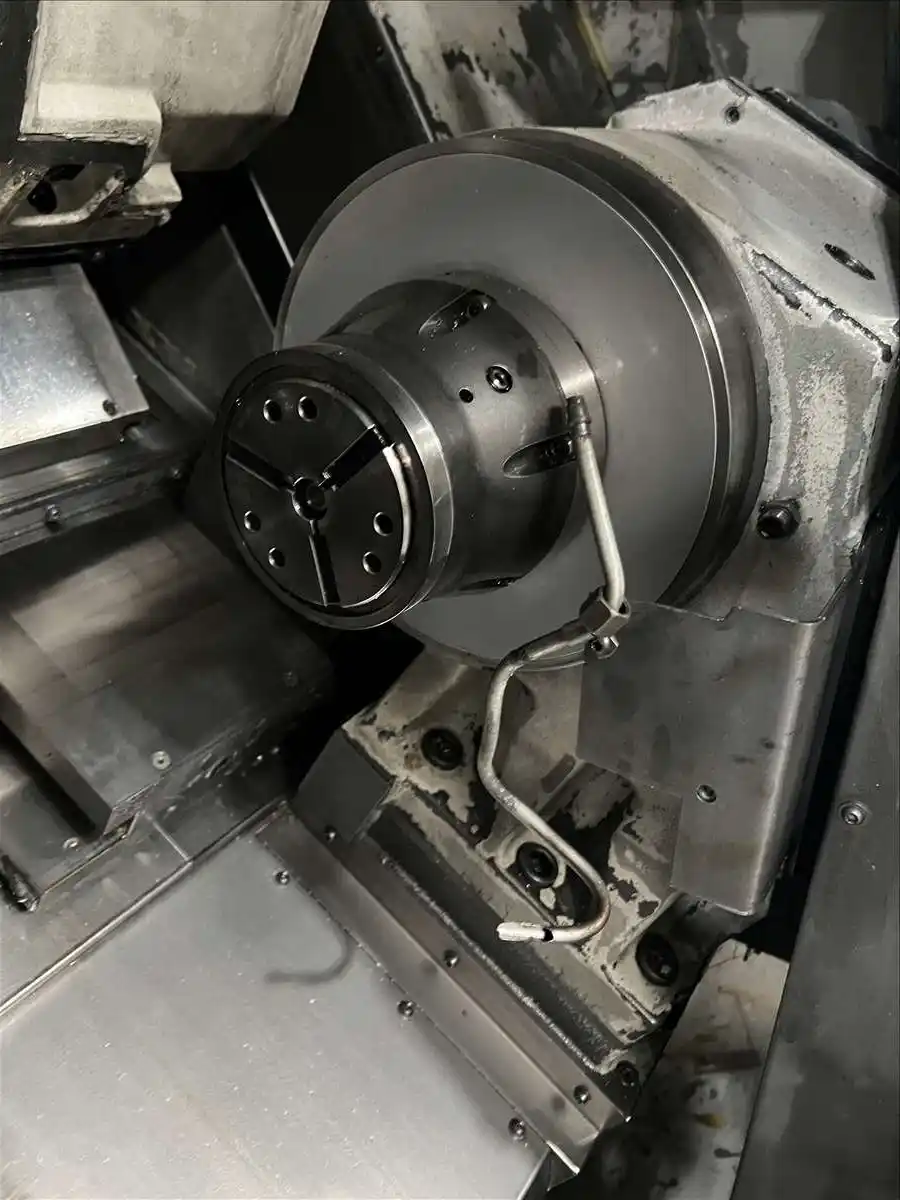

- Main-Spindle
- Spindle Diameter: 4.7"
- Spindle Speed: 5,000 RPM (Infinitely Variable)
- Spindle Nose: JIS A2-6
- Hole Through Spindle: 3.14"
- Hole Through Actuator: 2.75"
- Max. Workpiece Weight (Main-Spindle): 396 lb.

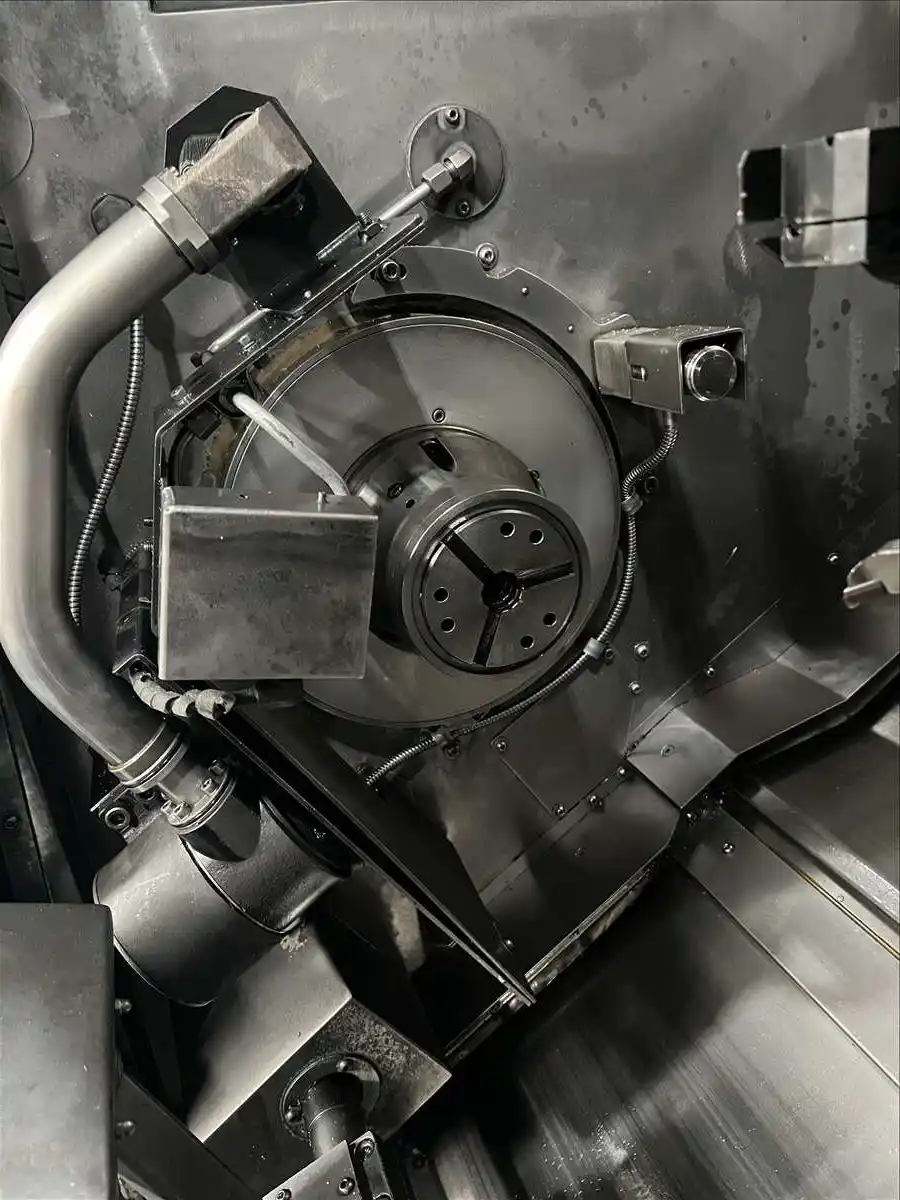

- Sub-Spindle
- Spindle Diameter: 3.9"
- Spindle Speed: 6,000 RPM (Infinitely Variable)
- Spindle Nose: 5.5" Flat
- Hole Through Spindle: 2.4"
- Max. Workpiece Weight (Sub-Spindle): 242 lb.
- Motor: 30/20 HP (15min/cont.)
- Number of Turret Positions: 12
- X-Axis Travel: 10.2"
- Y-Axis Travel: 4.5"
- Z-Axis Travel: 20.1"
- W-Axis Travel: 23.4"
- C-Axis Index: 360° (0.001° Increments)
- X-Axis Feedrate: 984 IPM
- Y-Axis Feedrate: 492 IPM
- Z-Axis Feedrate: 1,181 IPM
- W-Axis Feedrate: 1,181 IPM
- Show More
- Show Less
- Distance Between Centers: 450mm
- Distance Between Noses: 785mm
- Swing Over Bed: 580mm
- Swing Over Carriage: 470mm
- Max. Turning Diameter: 340.36mm
- Main-Spindle
- Spindle Diameter: 120mm
- Spindle Speed: 5,000 RPM (Infinitely Variable)
- Spindle Nose: JIS A2-6
- Hole Through Spindle: 80mm
- Hole Through Actuator: 70mm
- Max. Workpiece Weight (Main-Spindle): 180 kg
- Sub-Spindle
- Spindle Diameter: 100mm
- Spindle Speed: 6,000 RPM (Infinitely Variable)
- Spindle Nose: 140mm Flat
- Hole Through Spindle: 60mm
- Max. Workpiece Weight (Sub-Spindle): 110 kg
- Motor: 22/15 kw (15min/cont.)
- Number of Turret Positions: 12
- X-Axis Travel: 260mm
- Y-Axis Travel: 115mm
- Z-Axis Travel: 510mm
- W-Axis Travel: 594.36mm
- C-Axis Index: 360° (0.001° Increments)
- X-Axis Feedrate: 25,000 mm/min
- Y-Axis Feedrate: 12,500 mm/min
- Z-Axis Feedrate: 30,000 mm/min
- W-Axis Feedrate: 30,000 mm/min
- Show More
- Show Less
Equipped With
- NOTE: Specs provided may be impacted by currently installed components. Buyer encouraged to verify and inspect.

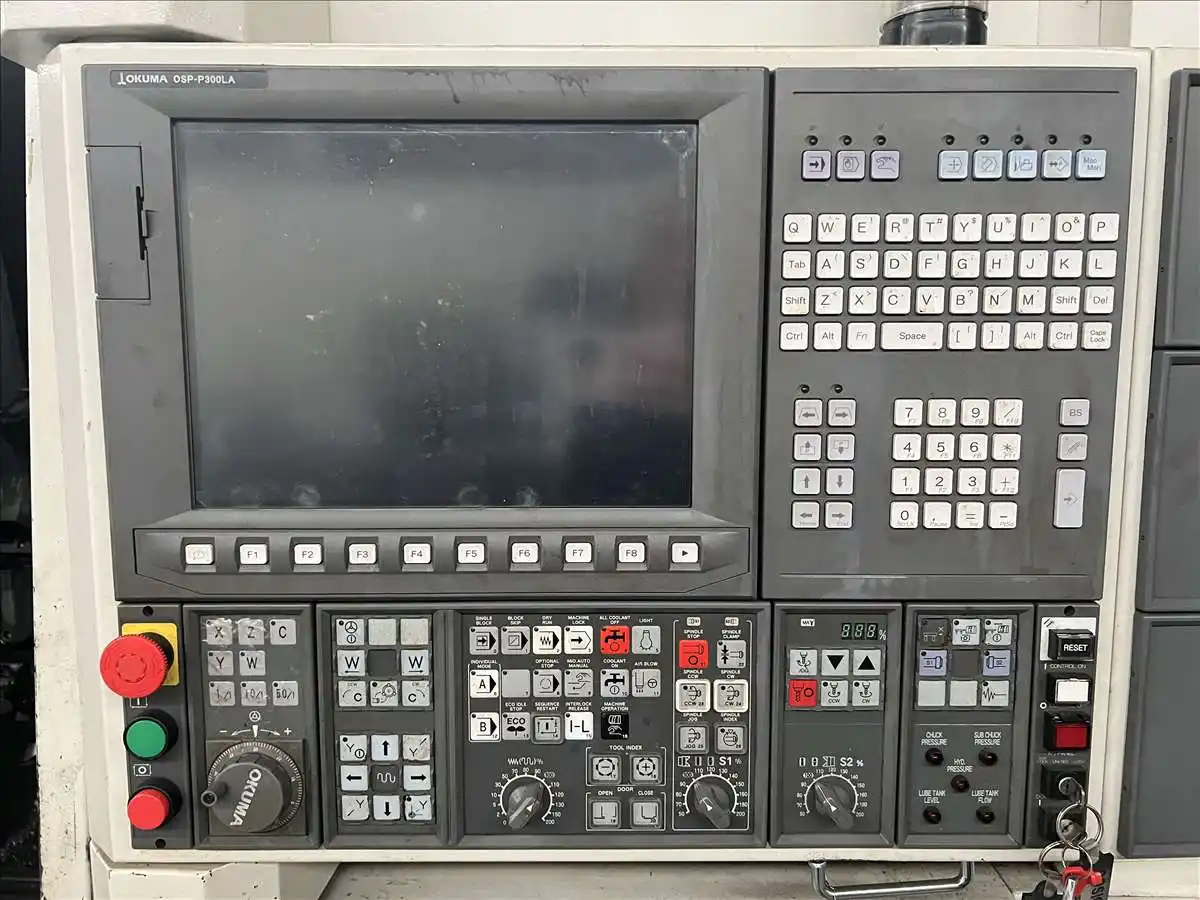

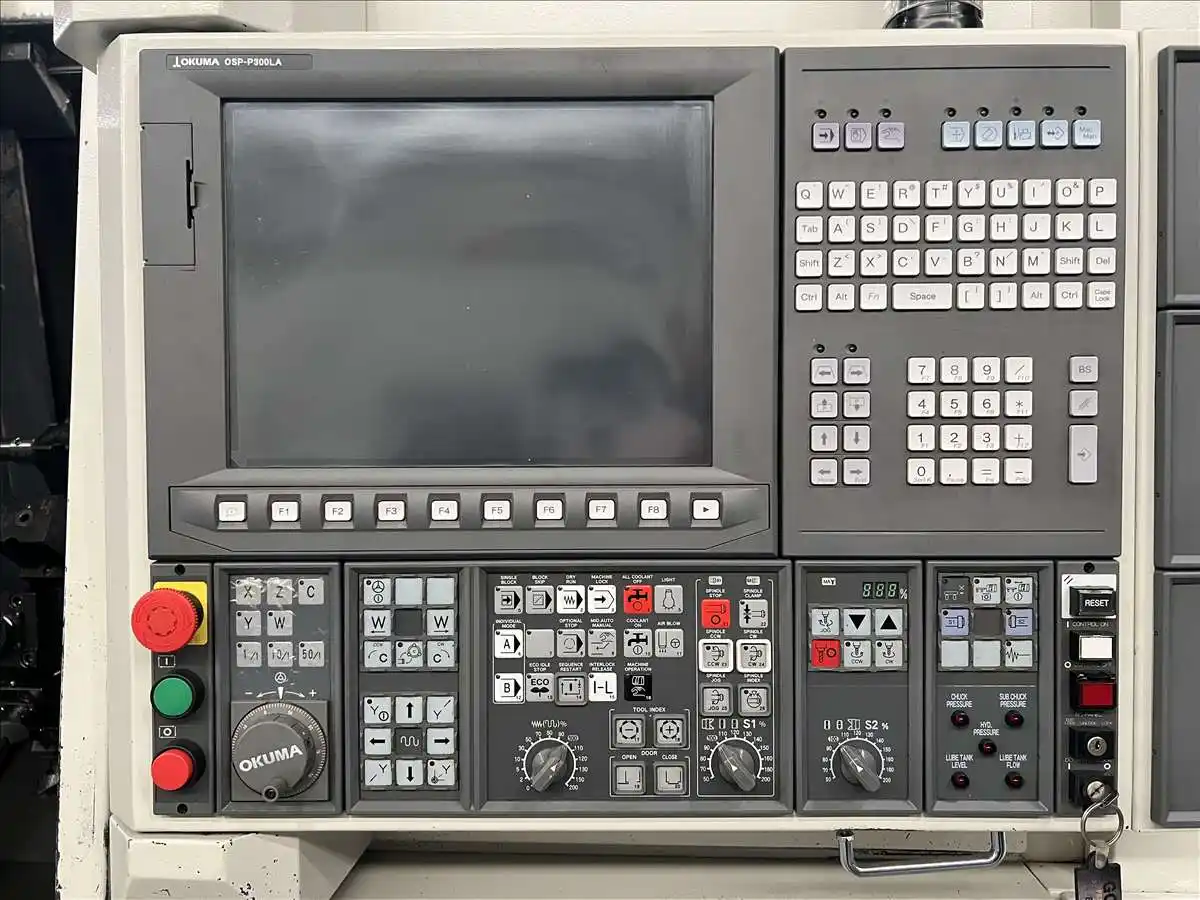

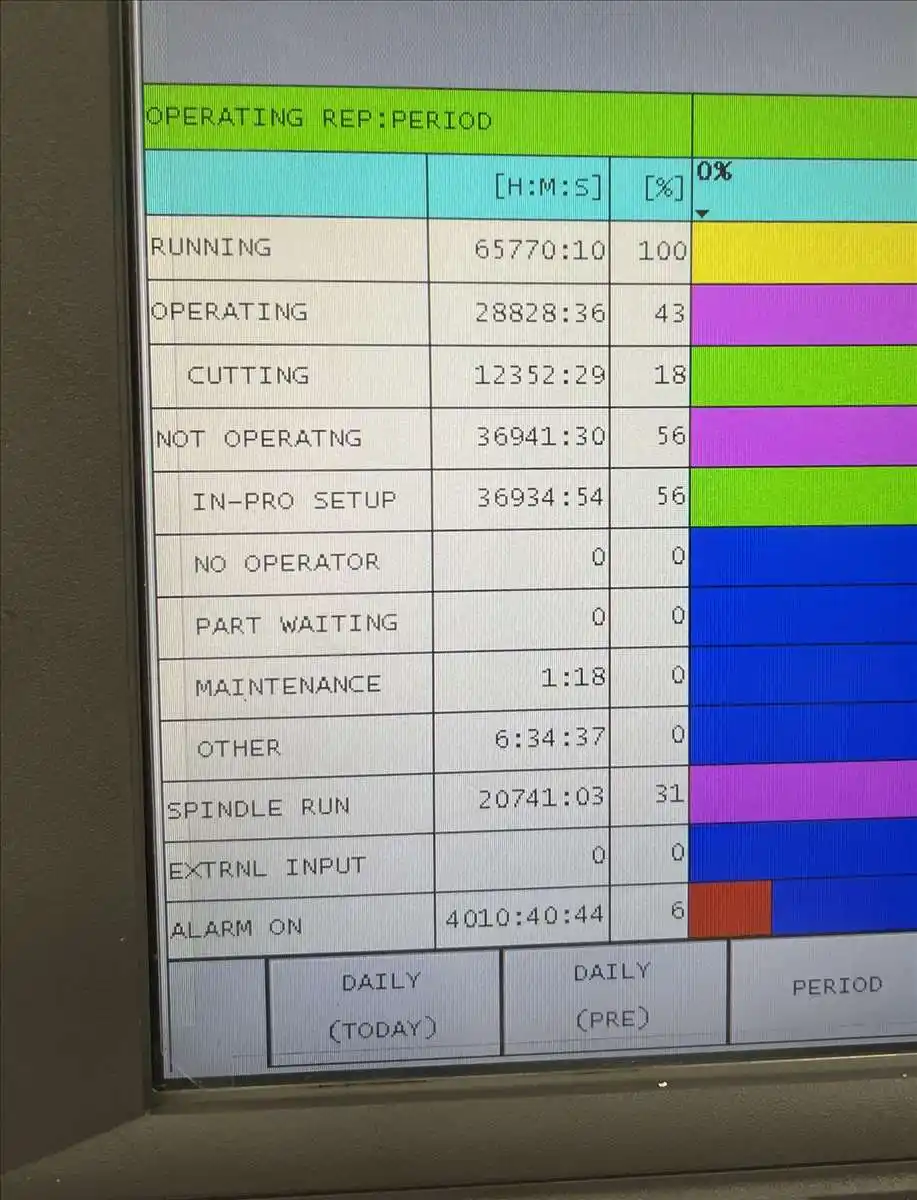

- Okuma OSP-P300LA CNC Control

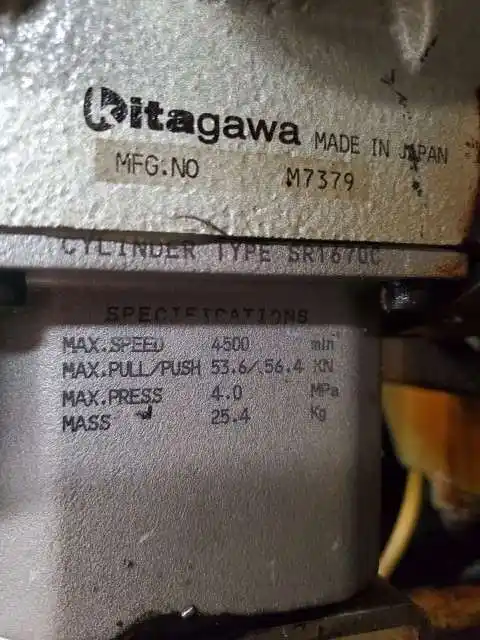

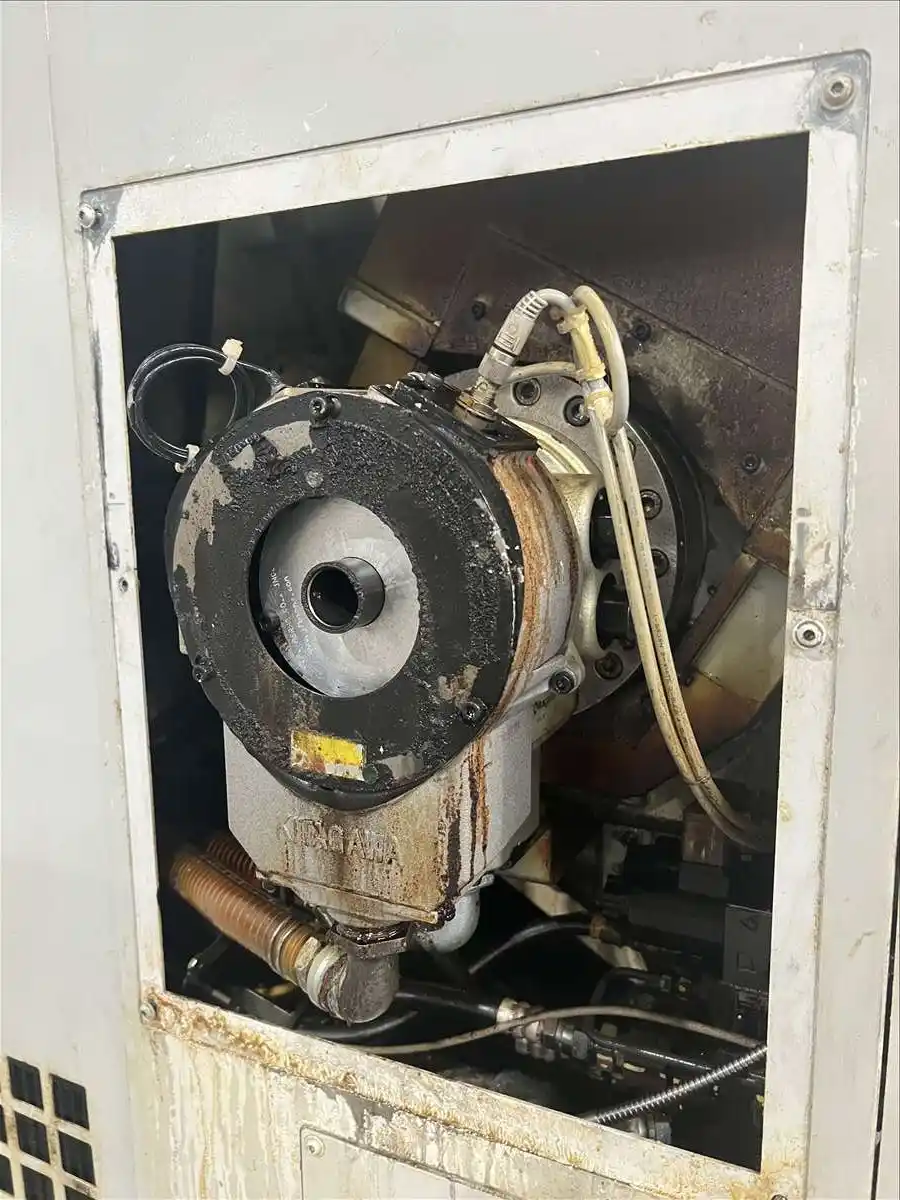

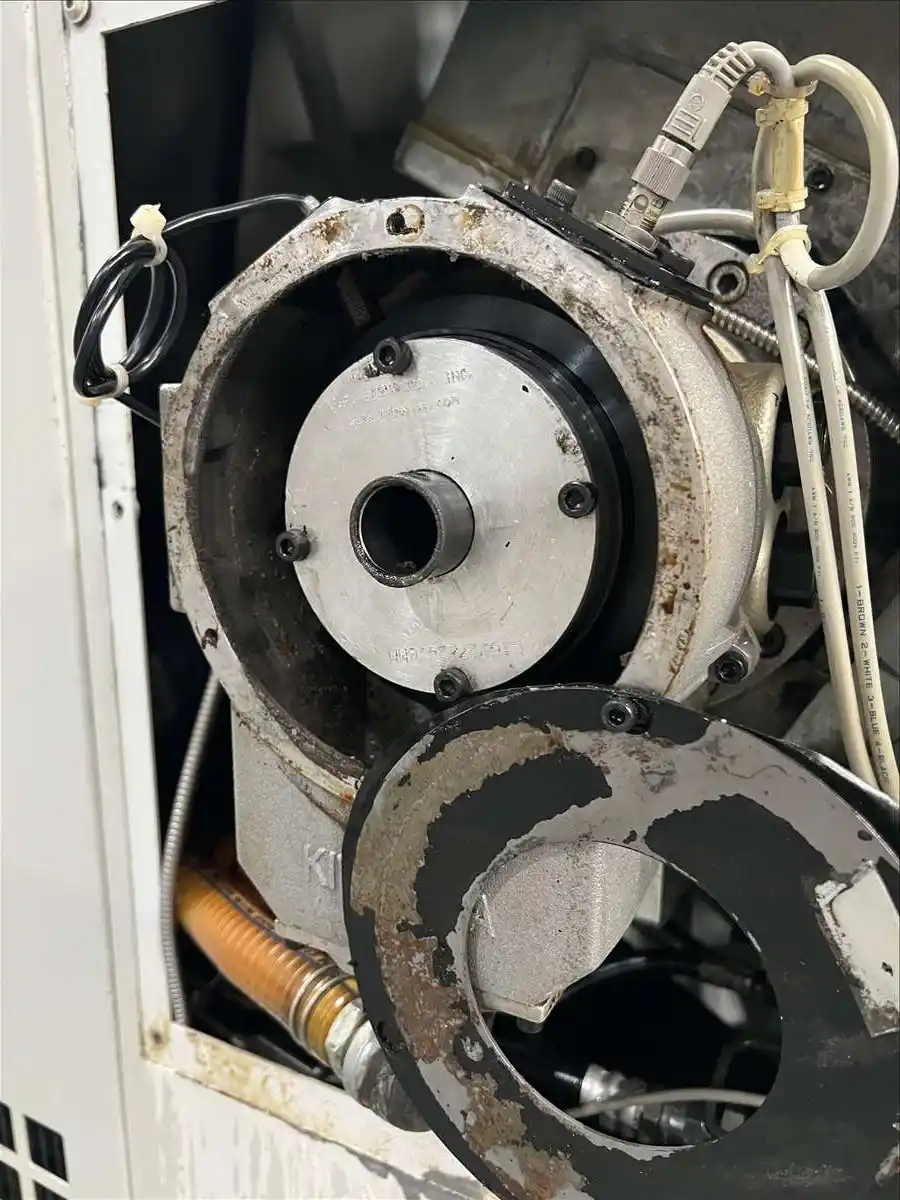

- Kitagawa SR1670C Actuator

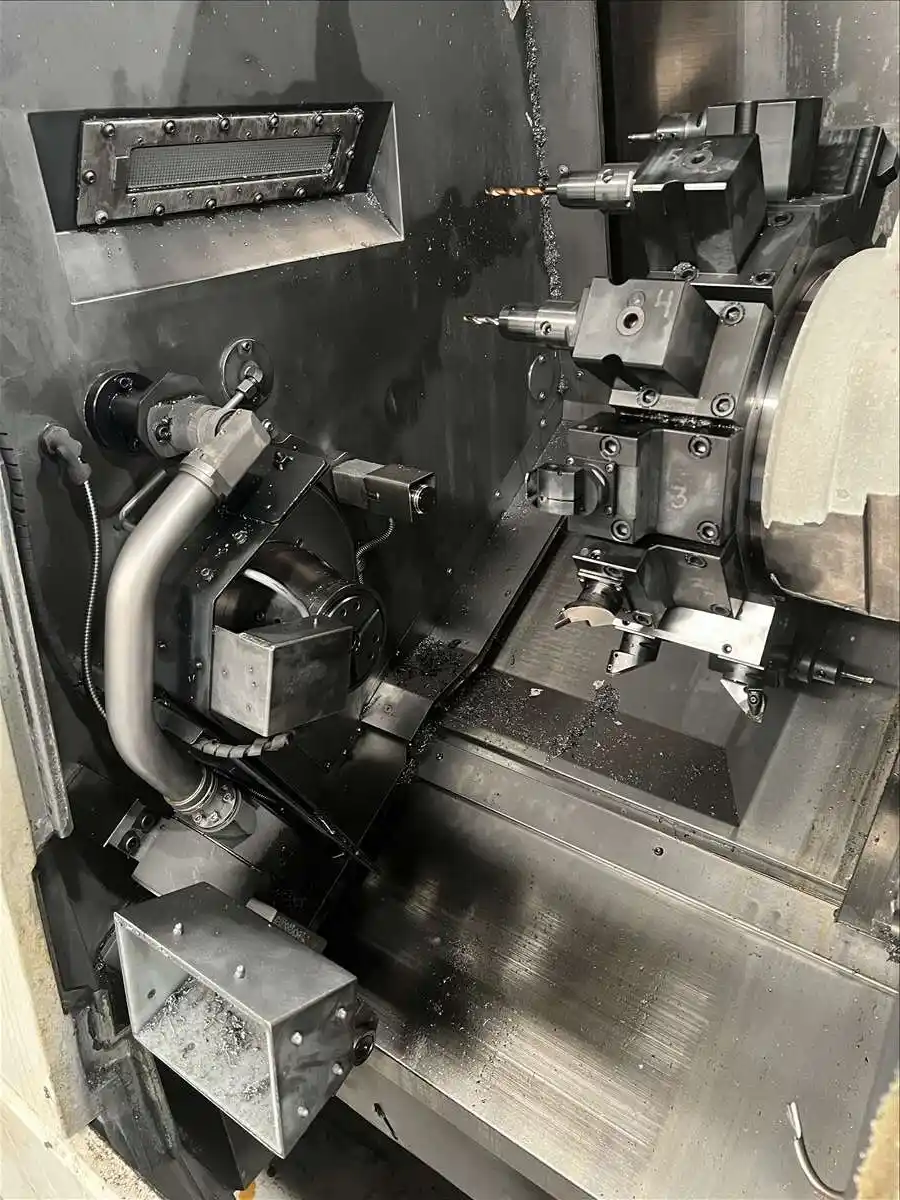

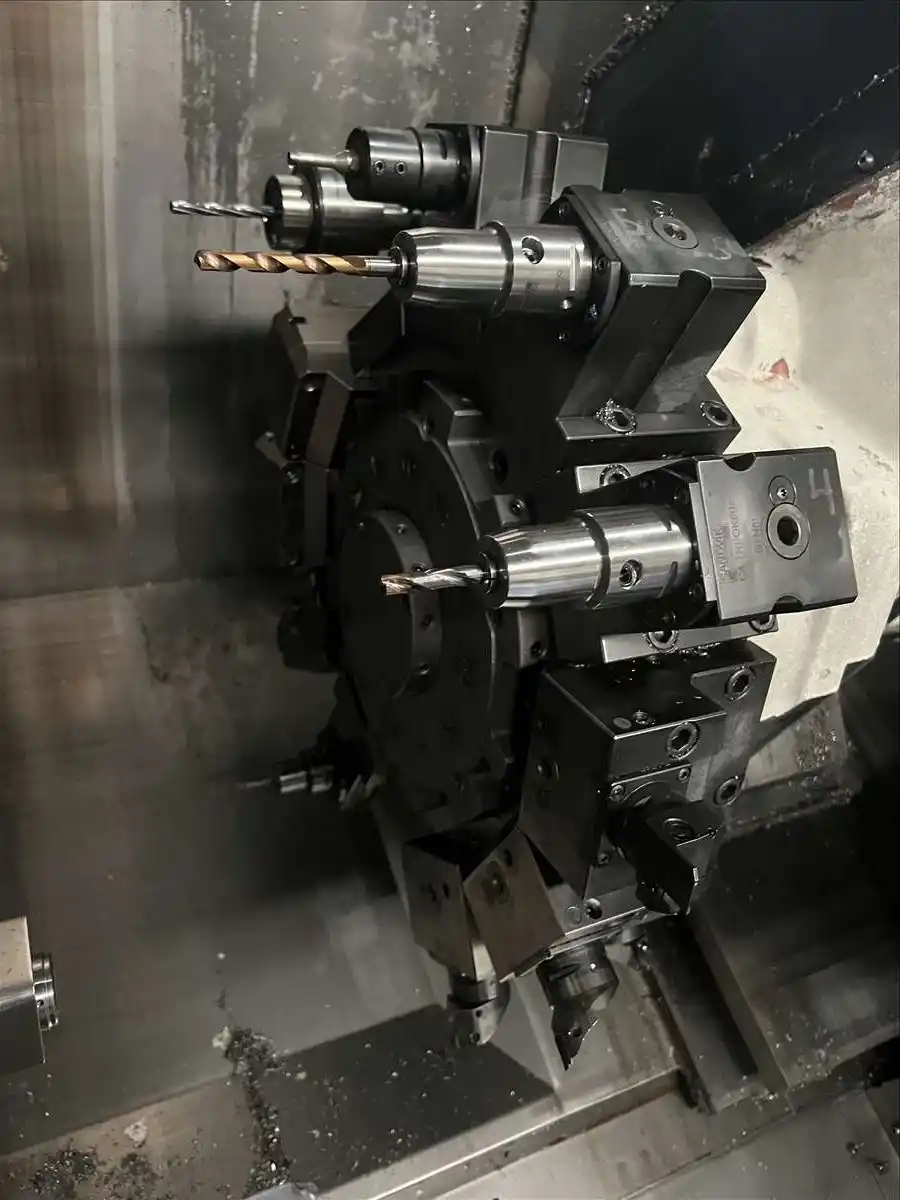

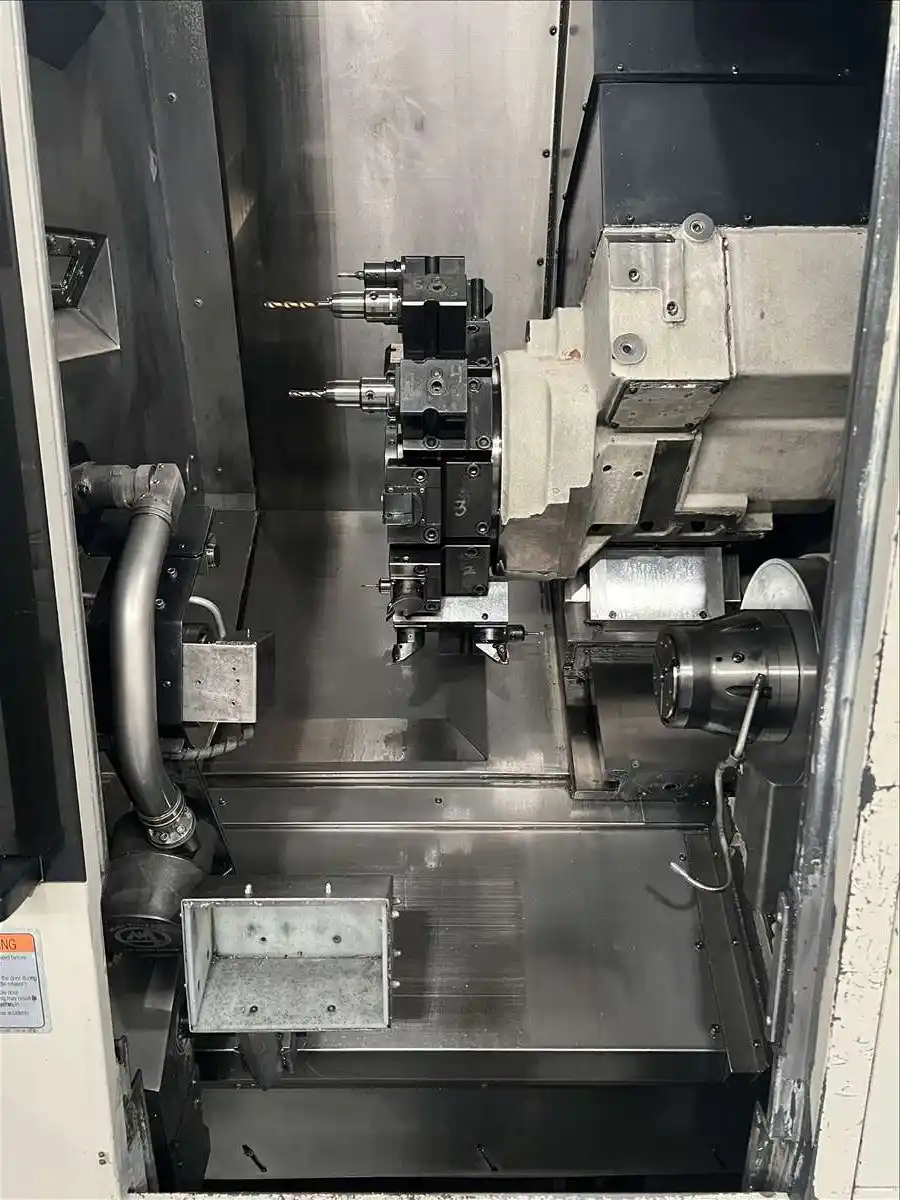

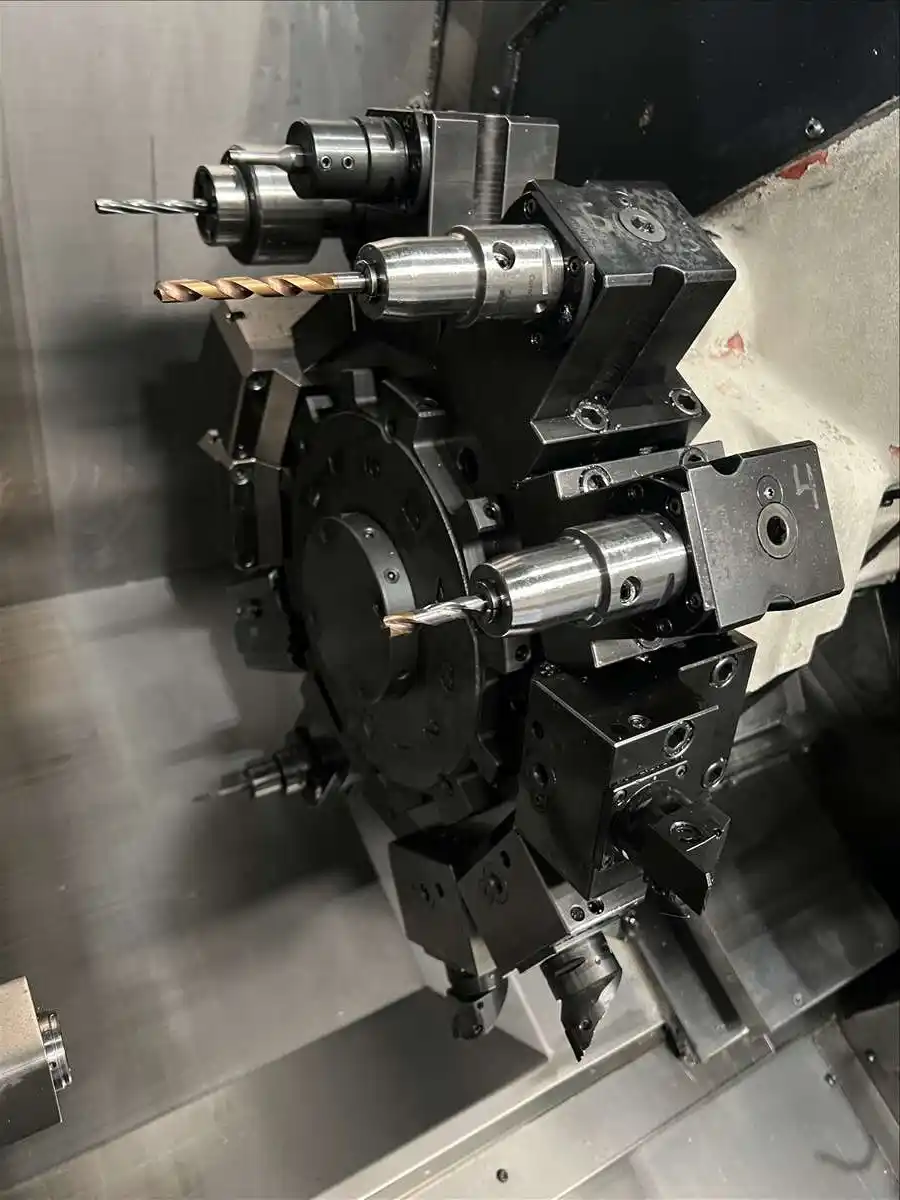

- Live & Static Tooling

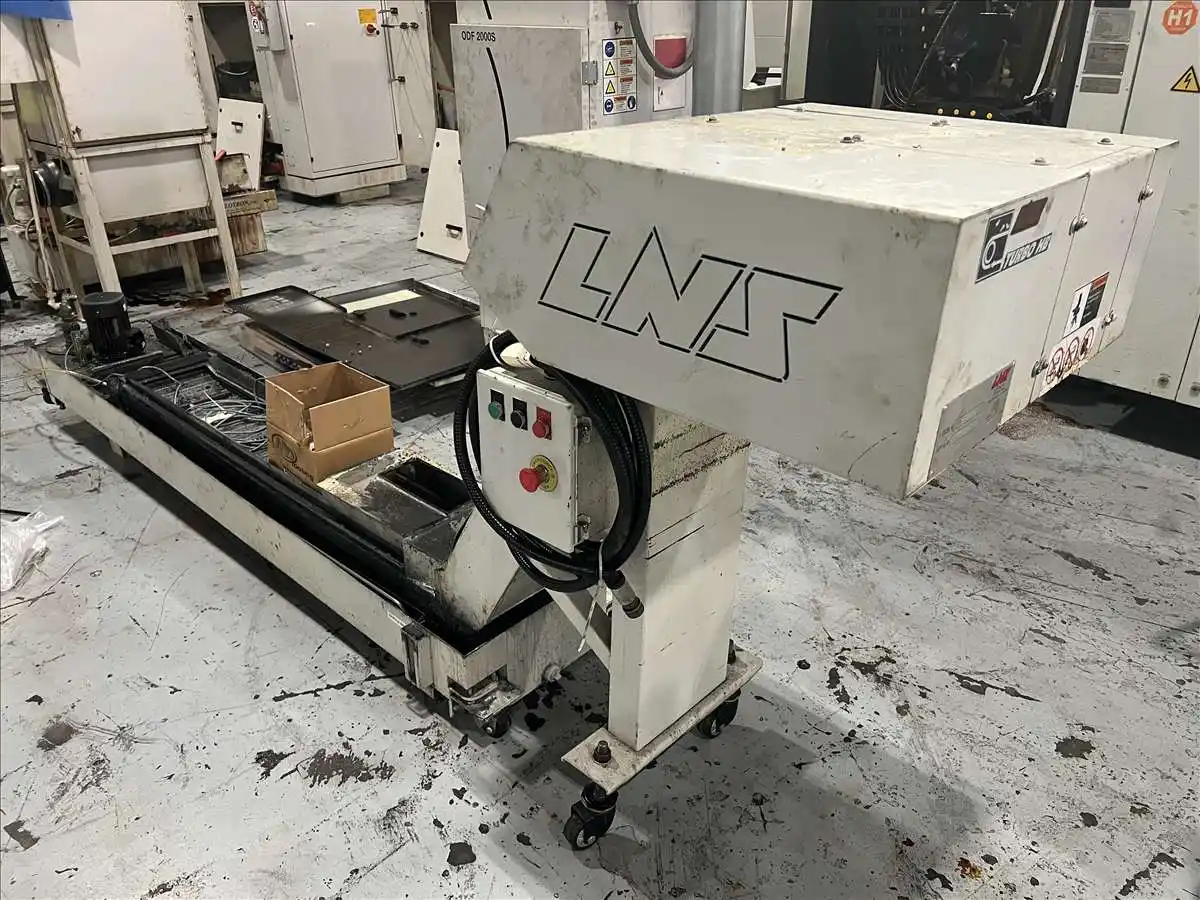

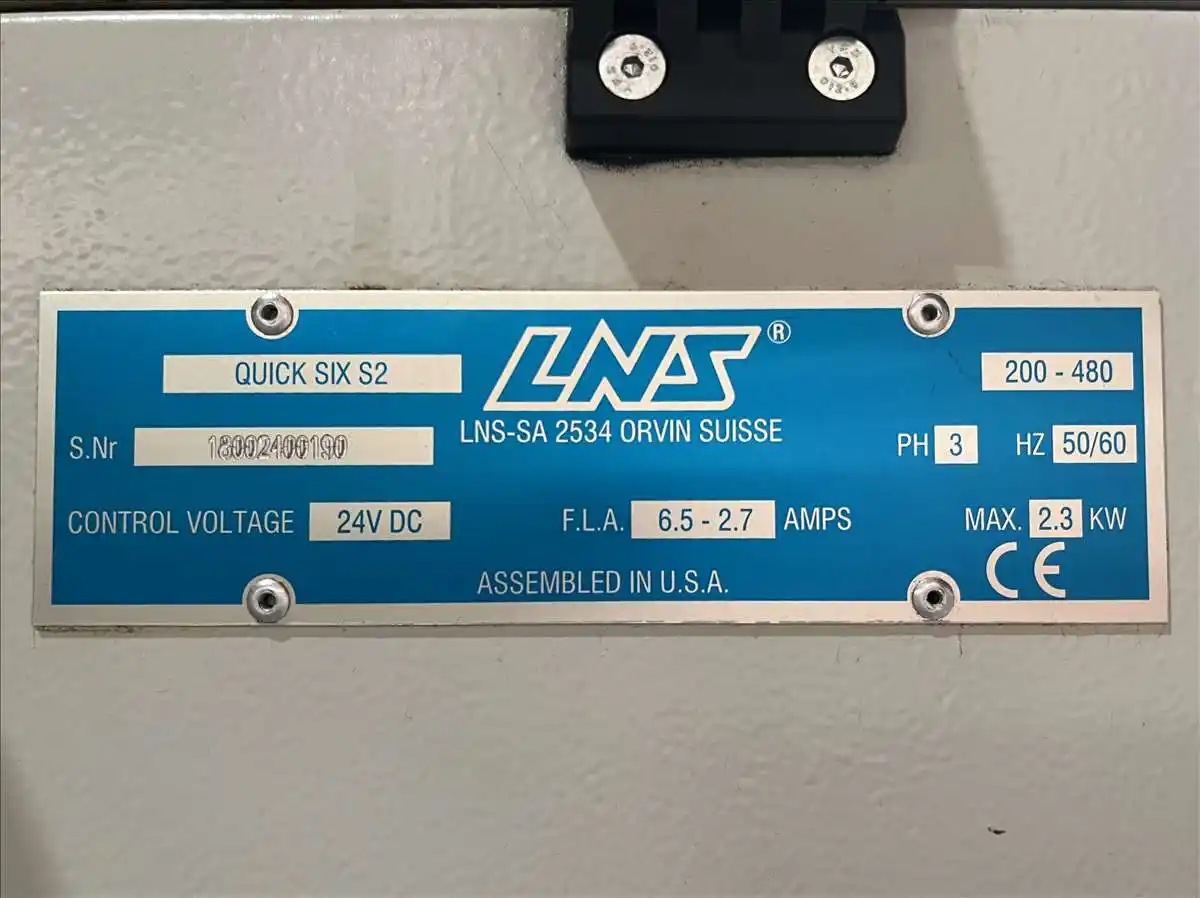

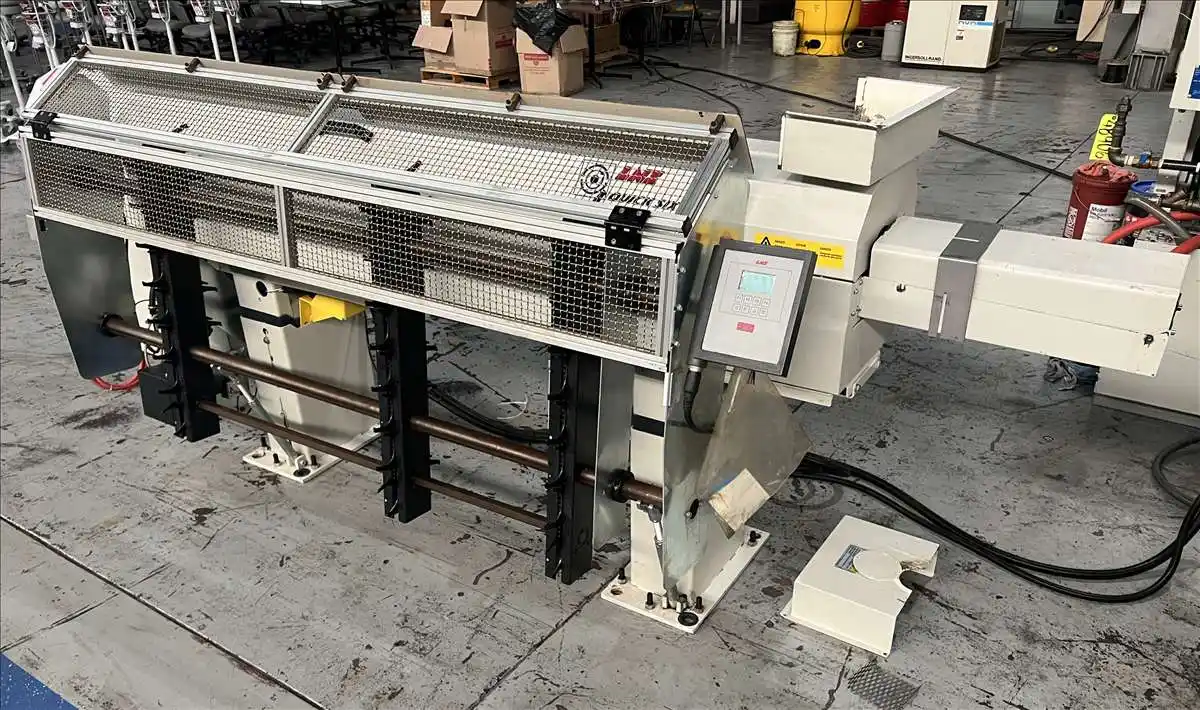

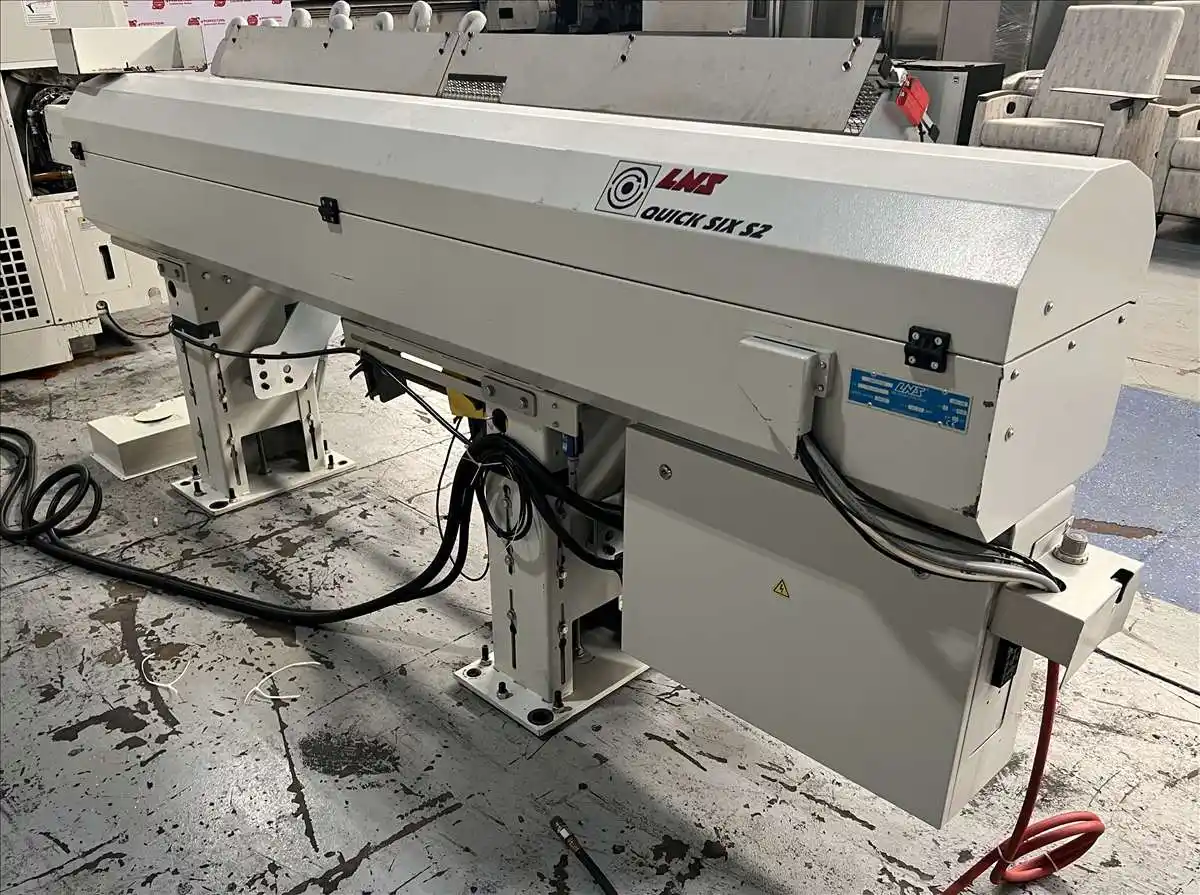

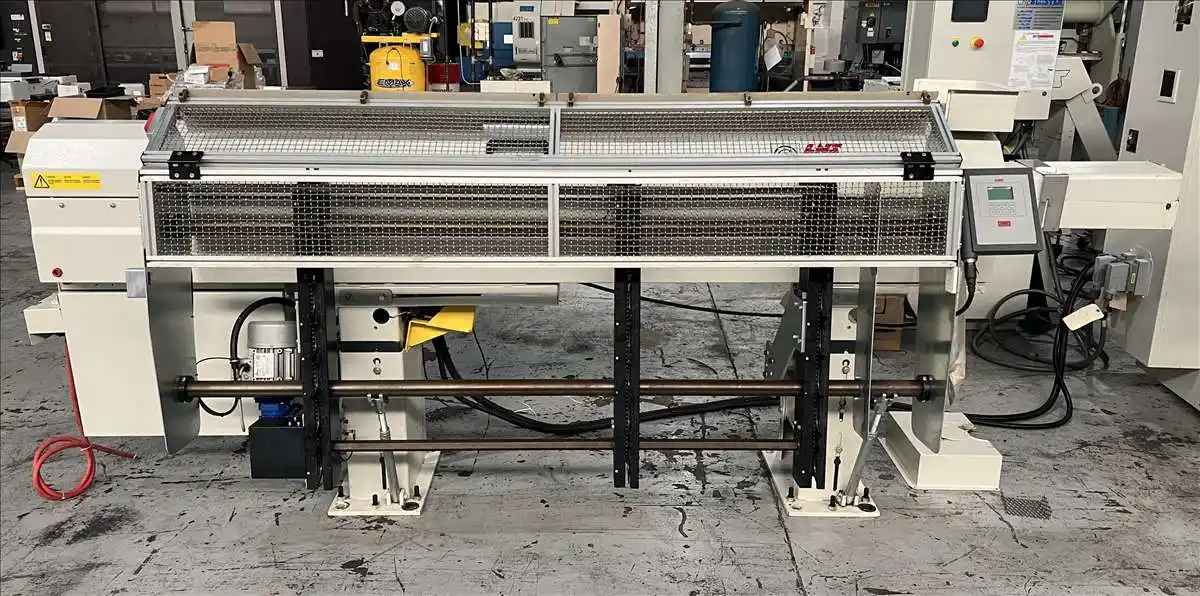

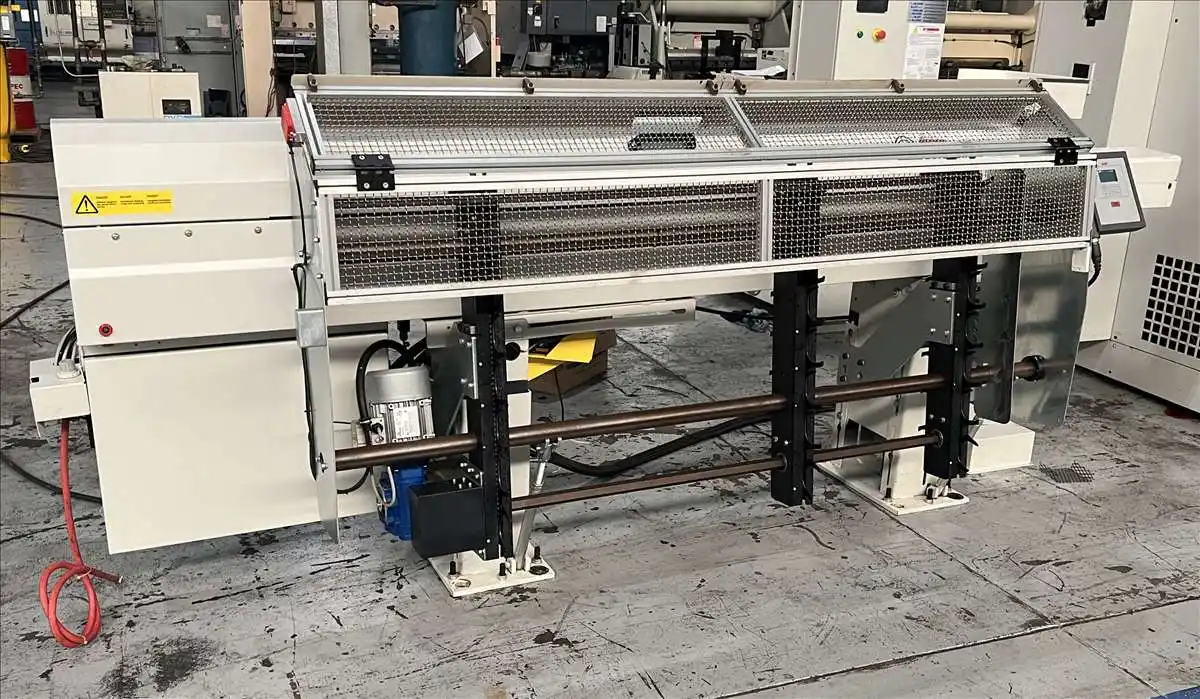

- LNS Quick Six S2 Bar Feeder

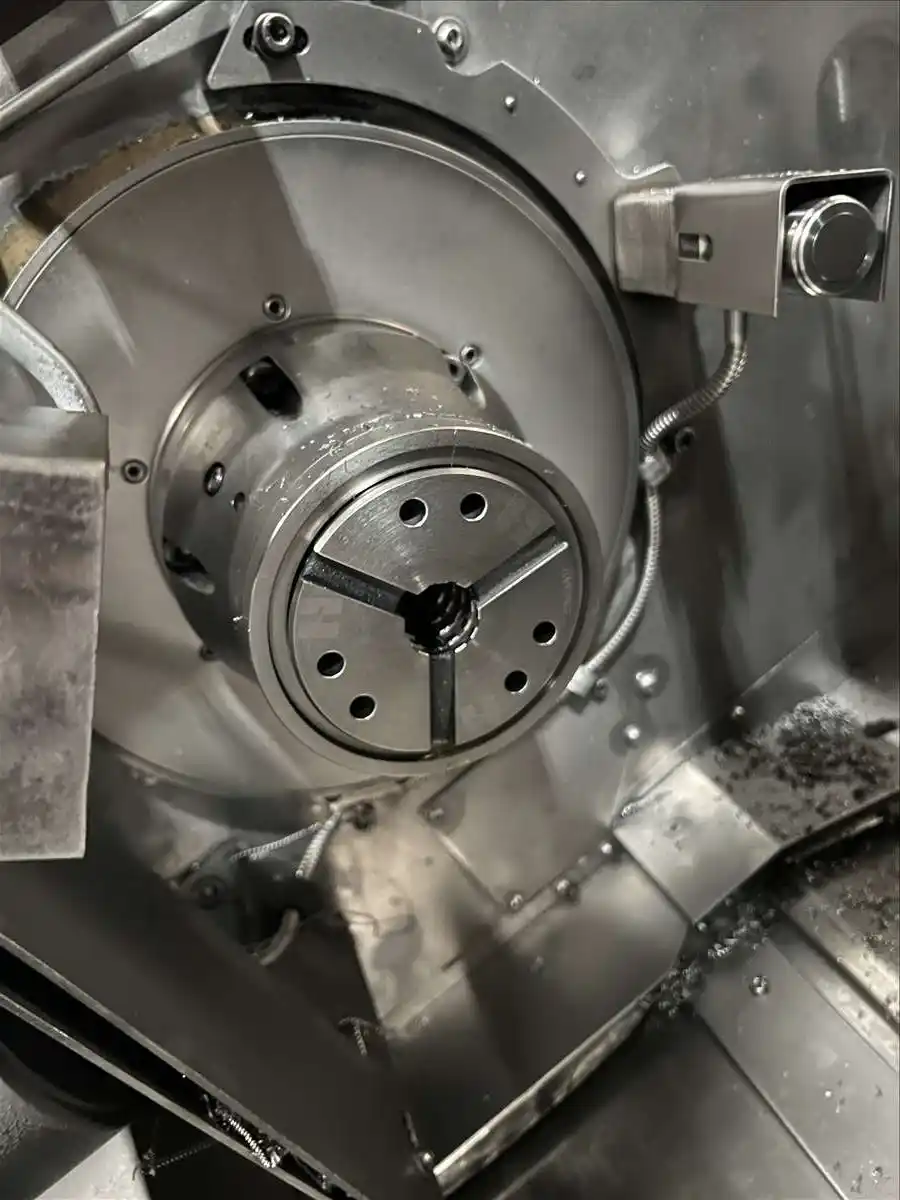

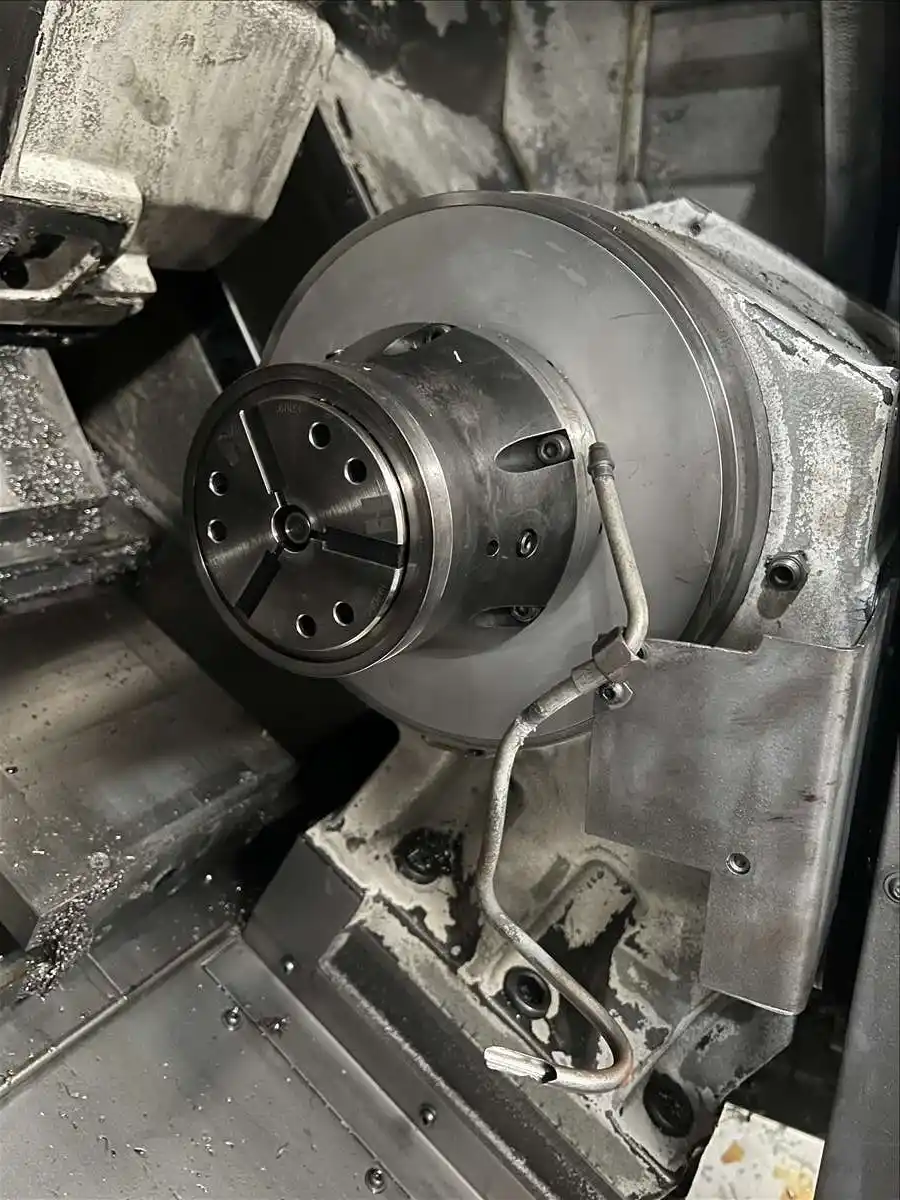

- (2) Hardinge FLEXC 65 Collet Chucks
- LNS Chip Conveyor

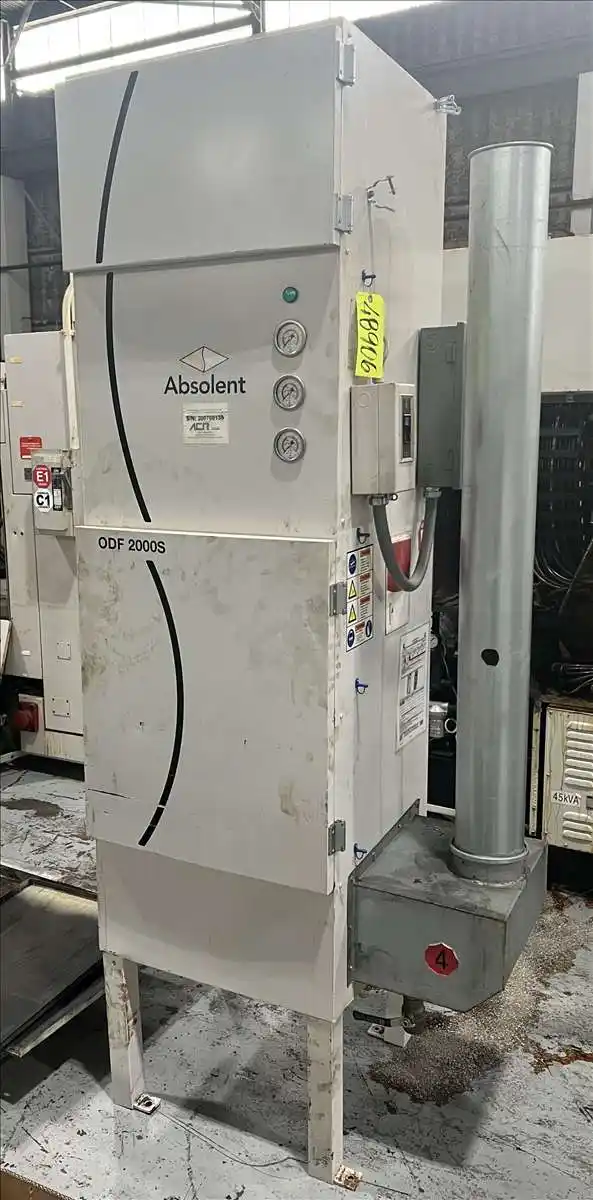

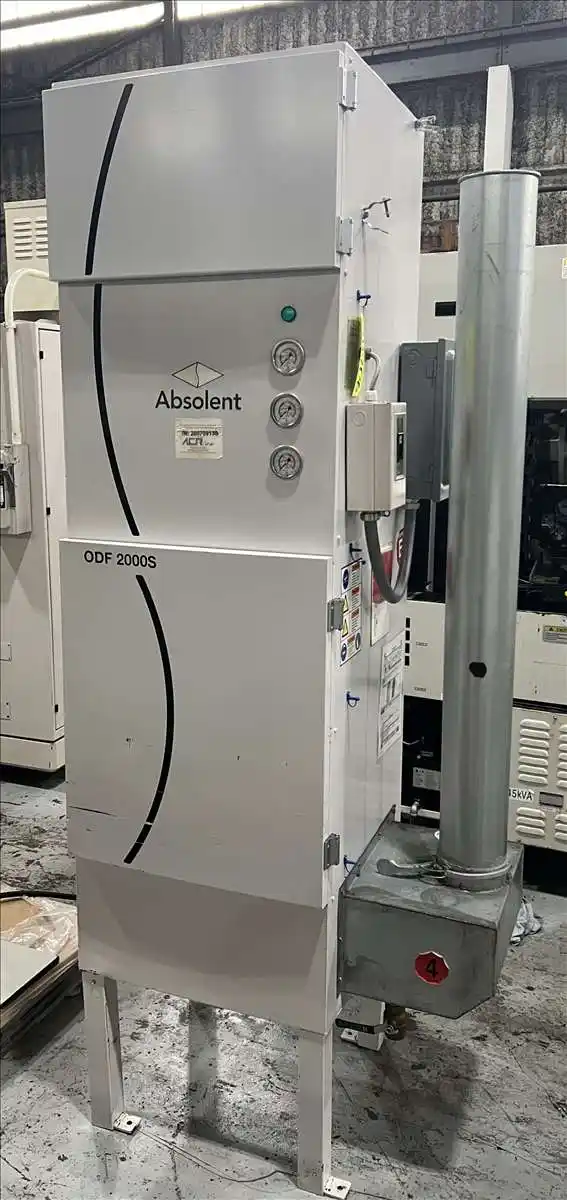

- Absolent ODF-200S Mist Collector
- Parts Catcher
- Show More
- Show Less
- NOTE: Specs provided may be impacted by currently installed components. Buyer encouraged to verify and inspect.
- Okuma OSP-P300LA CNC Control
- Kitagawa SR1670C Actuator
- Live & Static Tooling
- LNS Quick Six S2 Bar Feeder
- (2) Hardinge FLEXC 65 Collet Chucks
- LNS Chip Conveyor
- Absolent ODF-200S Mist Collector
- Parts Catcher
- Show More
- Show Less
More Info
Please Note: Published capacities are based on the manufacturer’s standard machine configuration. Installed parts-catching equipment and associated guarding may reduce the practical workpiece diameter and operating envelope. Buyer should verify clearances for the intended application.
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
