Inventory # 46344 Year: 2004

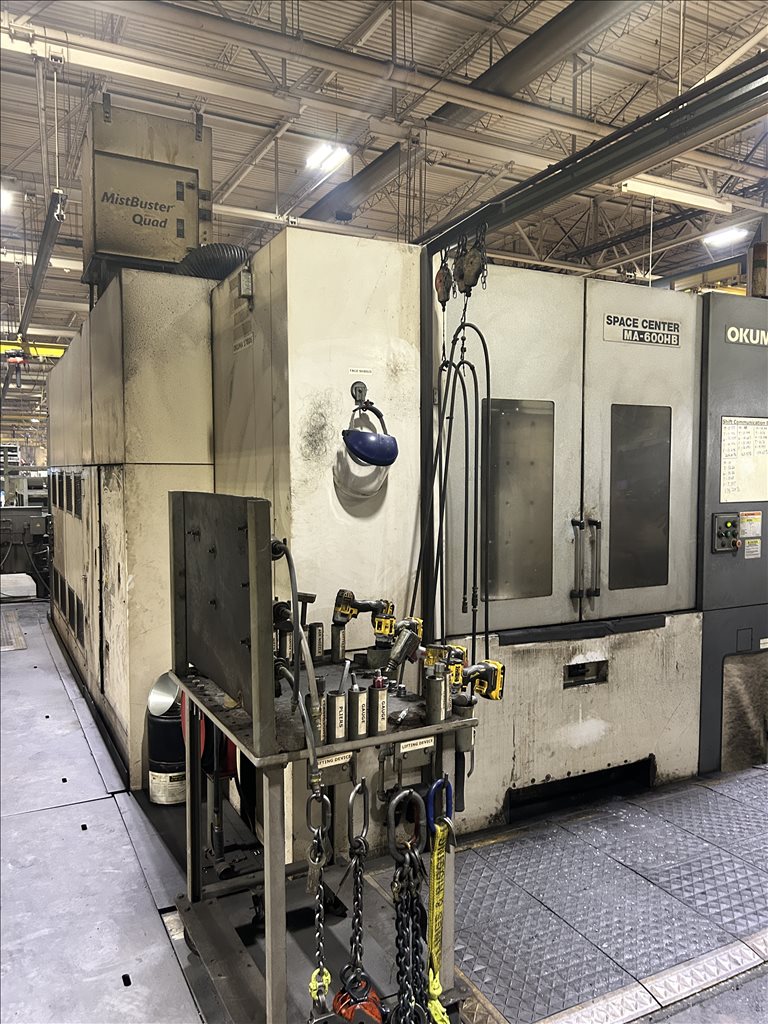

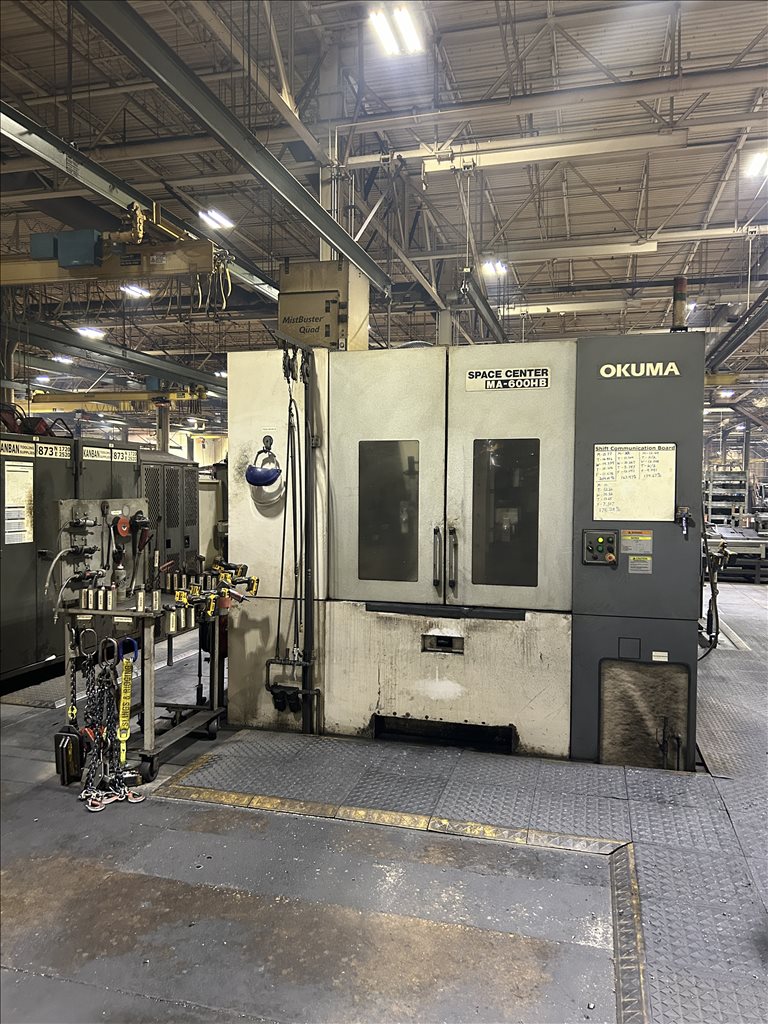

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com OKUMA MA-600HB CNC Horizontal Machining Center
Quotes Text 3.11.22
Specifications
- X-Travel: 39.37"
- Y-Travel: 37.40"
- Z-Travel: 39.37"
- Spindle Center to Table Upper Surface: 1.97" - 37.40"
- Spindle End to Table Center: 2.76" - 42.13"

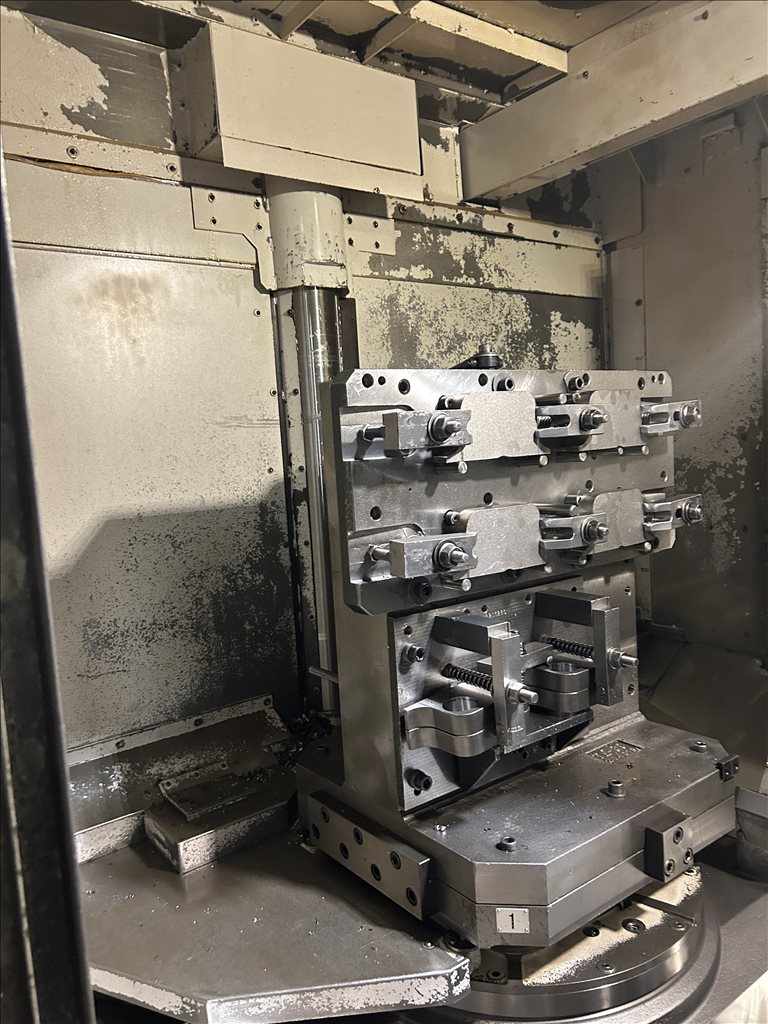

- Number of Pallets: 2
- Pallet Size: 24.80" x 24.80"
- Max. Load Capacity: 2640 lbs
- Max Spindle Speed: 6000 RPM
- Spindle Taper: NT No. 50
- Spindle Motor: 27/20 hp
- Rapid Feedrate: 2362.20 IPM

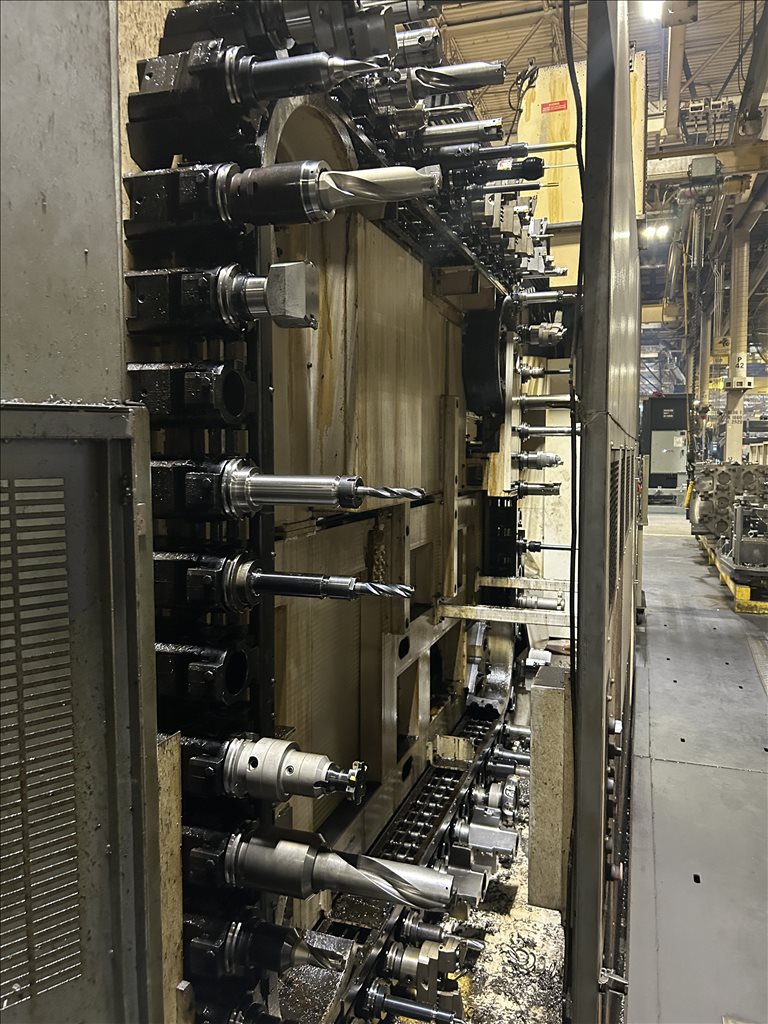

- Tool Changer: 60-ATC
- Max Tool Weight: 55 lbs
- Show More
- Show Less
- X-Travel: 1000.00mm
- Y-Travel: 949.96mm
- Z-Travel: 1000.00mm
- Spindle Center to Table Upper Surface: 50.04mm - 949.96mm
- Spindle End to Table Center: 70.10mm - 1070.10mm
- Number of Pallets: 2
- Pallet Size: 629.92mm x 629.92mm
- Max. Load Capacity: 1197.24 kg
- Max Spindle Speed: 6000 RPM
- Spindle Taper: NT No. 50
- Spindle Motor: 20/15 kW
- Rapid Feedrate: 60.00 m/min
- Tool Changer: 60-ATC
- Max Tool Weight: 24.94 kg
- Show More
- Show Less
Equipped With

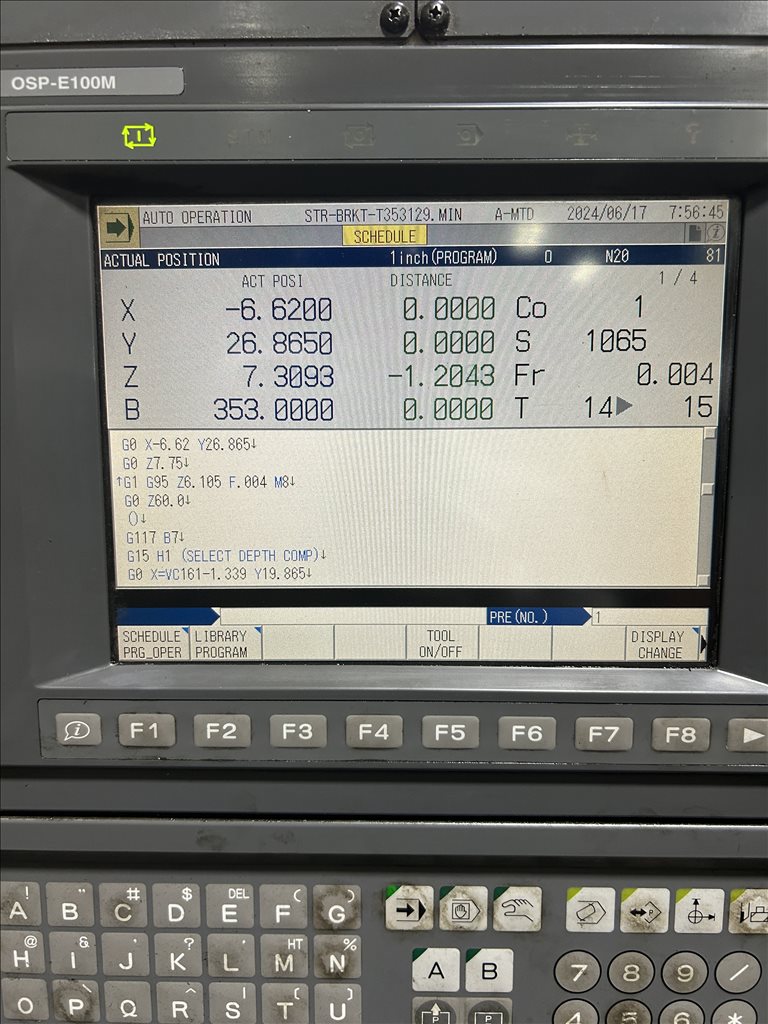

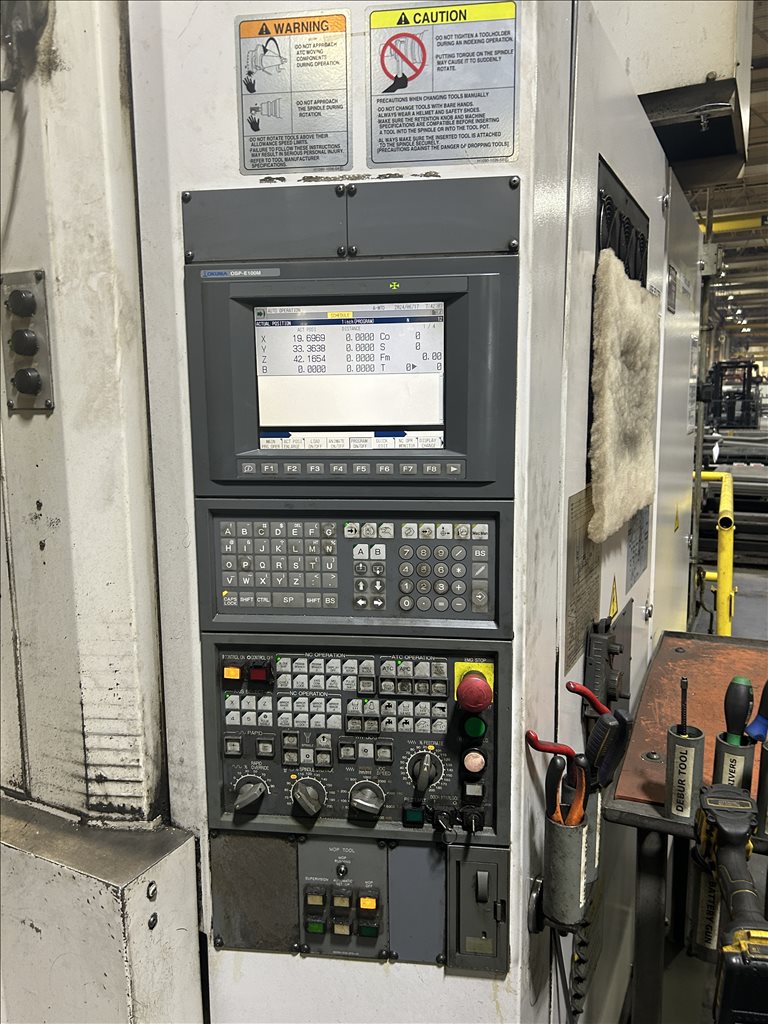

- Okuma OSP-E100M CNC Control

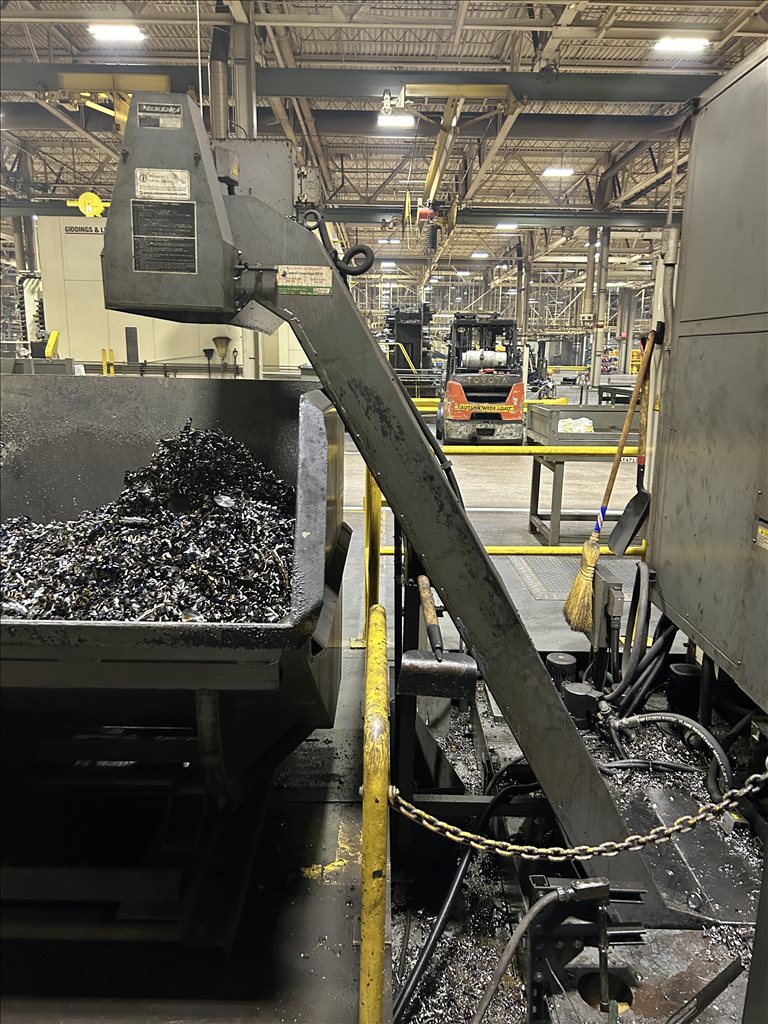

- Chip Conveyor

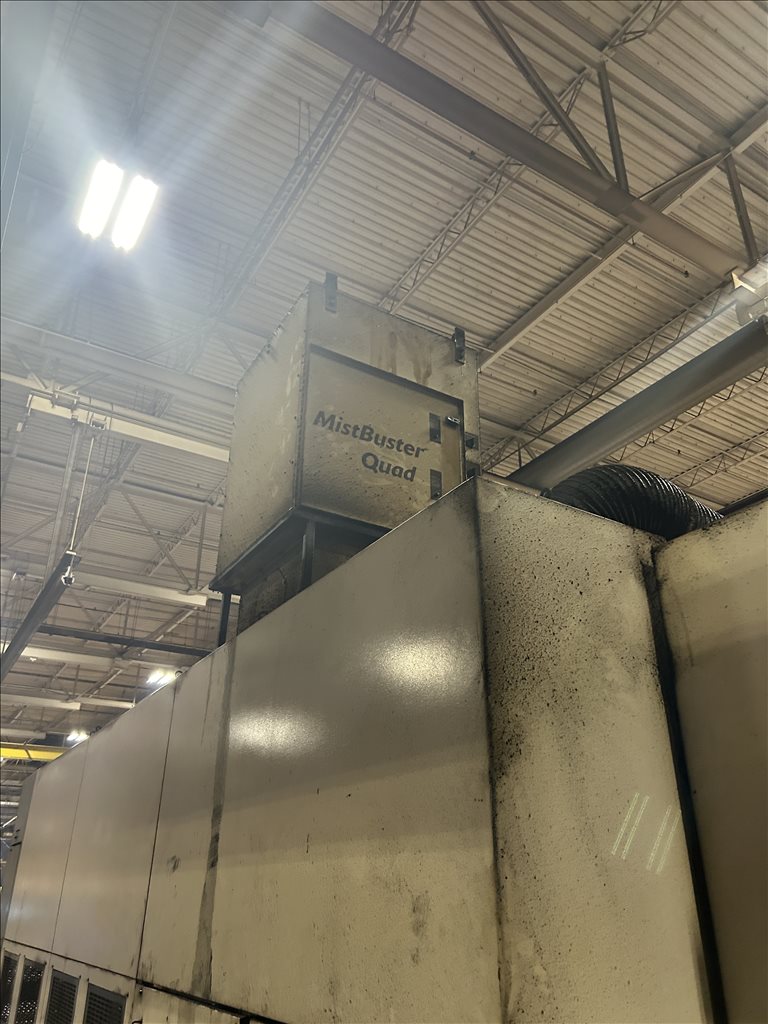

- MistBuster Quad Air Filtration System
- Okuma OSP-E100M CNC Control
- Chip Conveyor
- MistBuster Quad Air Filtration System
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
