Specifications
- X-Axis Travel: 148"
- Y-Axis Travel: 61"
- Z-Axis Travel: 11"
- Under Bridge Clearance: 14"
- Spindle Taper: HSK-63
- Max. Main Spindle Speed: 24,000 RPM
- Main Spindle Motor: 18 HP
- Secondary Spindle Speed: 18,000 RPM
- Secondary Spindle Motor: 25 HP
- Tooling: (2) 12-ATC
- Table Size
- Both Tables Put Together: 61" x 146"
- (2) Independent Tables: 61" x 97" & 61" x 49"
- (2) Same-Sized Independent Tables: 61" x 73"
- Show More
- Show Less
- X-Axis Travel: 3759.20mm
- Y-Axis Travel: 1549.40mm
- Z-Axis Travel: 279.40mm
- Under Bridge Clearance: 355.60mm
- Spindle Taper: HSK-63
- Max. Main Spindle Speed: 24,000 RPM
- Main Spindle Motor: 13.42 kw
- Secondary Spindle Speed: 18,000 RPM
- Secondary Spindle Motor: 18.64 kw
- Tooling: (2) 12-ATC
- Table Size
- Both Tables Put Together: 1549.40mm x 3708.40mm
- (2) Independent Tables: 1549.40mm x 2463.80mm & 1549.40mm x 1244.60mm
- (2) Same-Sized Independent Tables: 1549.40mm x 1854.20mm
- Show More
- Show Less
Equipped With

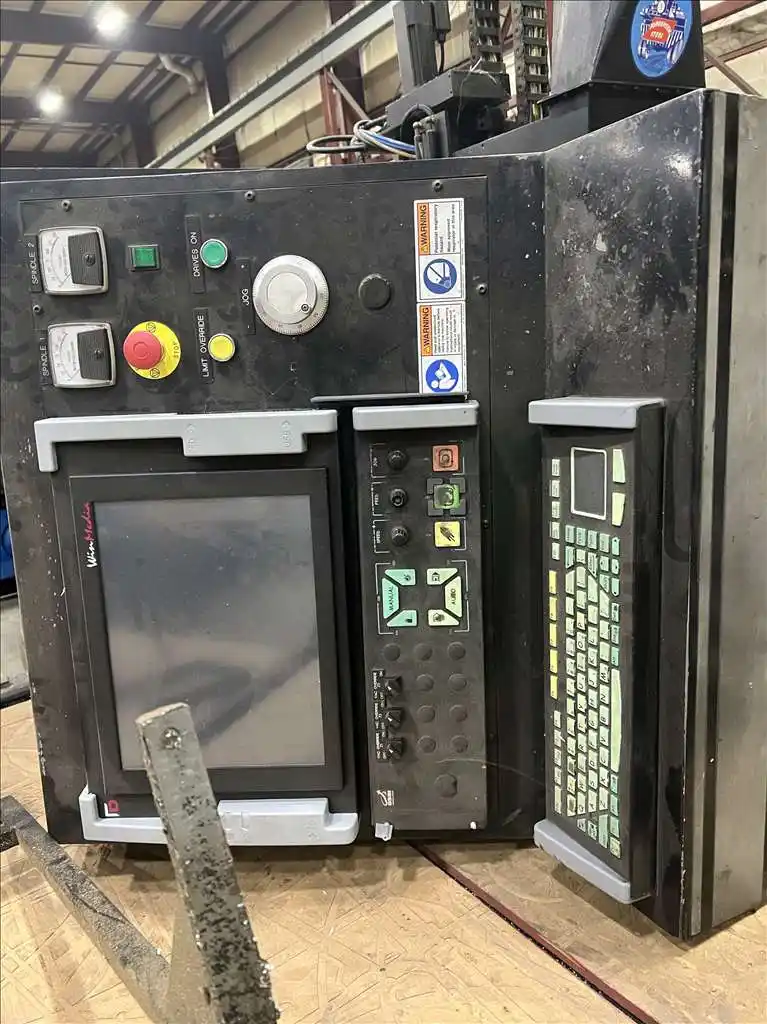

- OSAI Series 10/510i Control
- Hi-Torque Milling & Tapping Secondary Spindle
- Multi-Head Dual Process of Spindles
- Only (1) Spindle Currently Attached
- Four Pole Spindle Upgrade
- (10) Extra HSK-63 Tool Holders
- Isolation Transformer
- Digital Bench-Top Tool Setter
- (2) Aluminum Tables
- Aluminum Universal Vacuum Table System

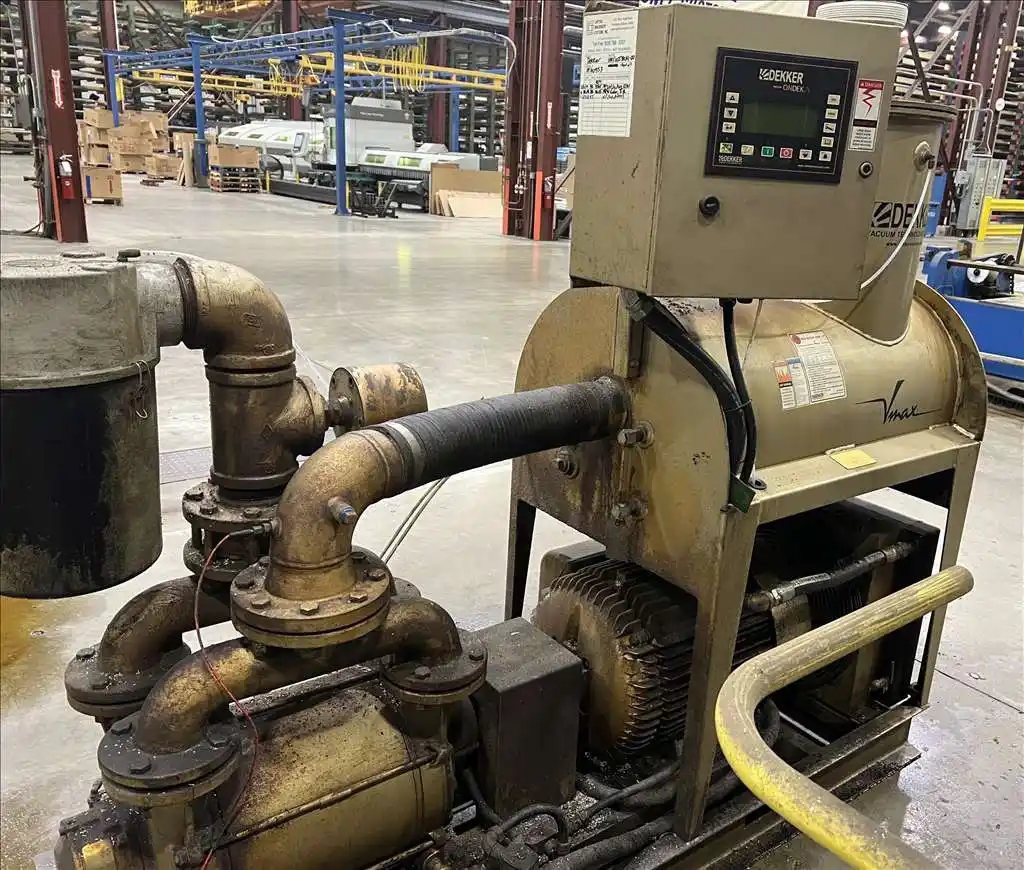

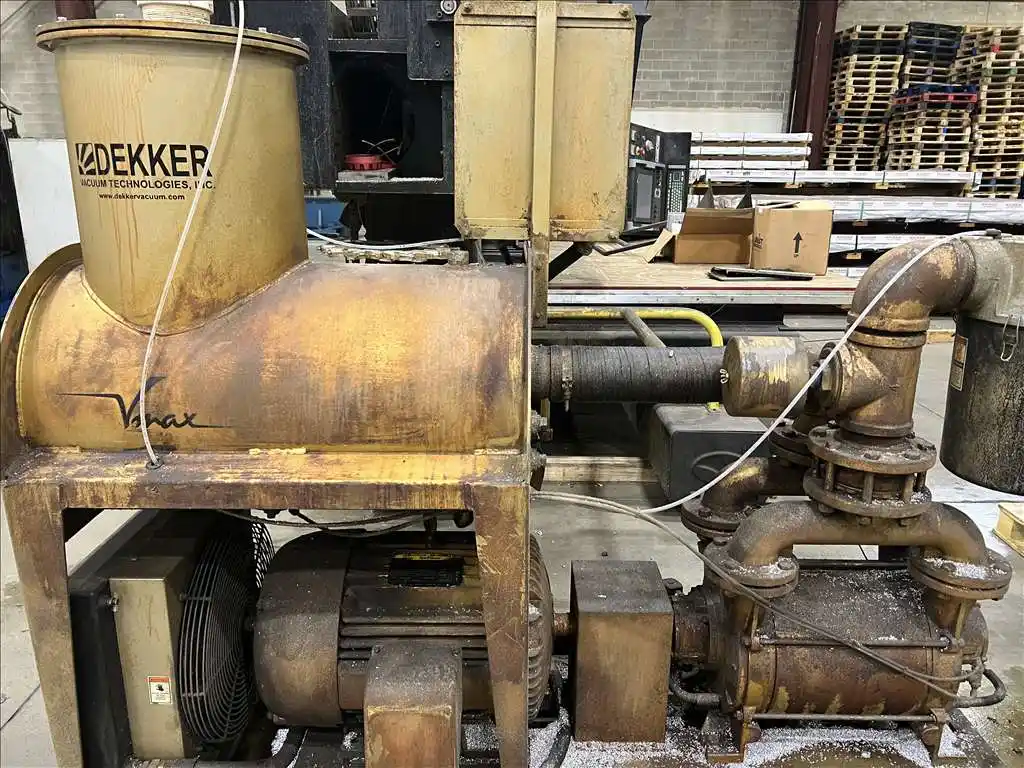

- 40 HP Dekker V-Max Liquid Ring Vacuum Pump
- Vortex Dust Transition System
- Show More
- Show Less
- OSAI Series 10/510i Control
- Hi-Torque Milling & Tapping Secondary Spindle
- Multi-Head Dual Process of Spindles
- Only (1) Spindle Currently Attached
- Four Pole Spindle Upgrade
- (10) Extra HSK-63 Tool Holders
- Isolation Transformer
- Digital Bench-Top Tool Setter
- (2) Aluminum Tables
- Aluminum Universal Vacuum Table System
- 29.83 kw Dekker V-Max Liquid Ring Vacuum Pump
- Vortex Dust Transition System
- Show More
- Show Less
More Info

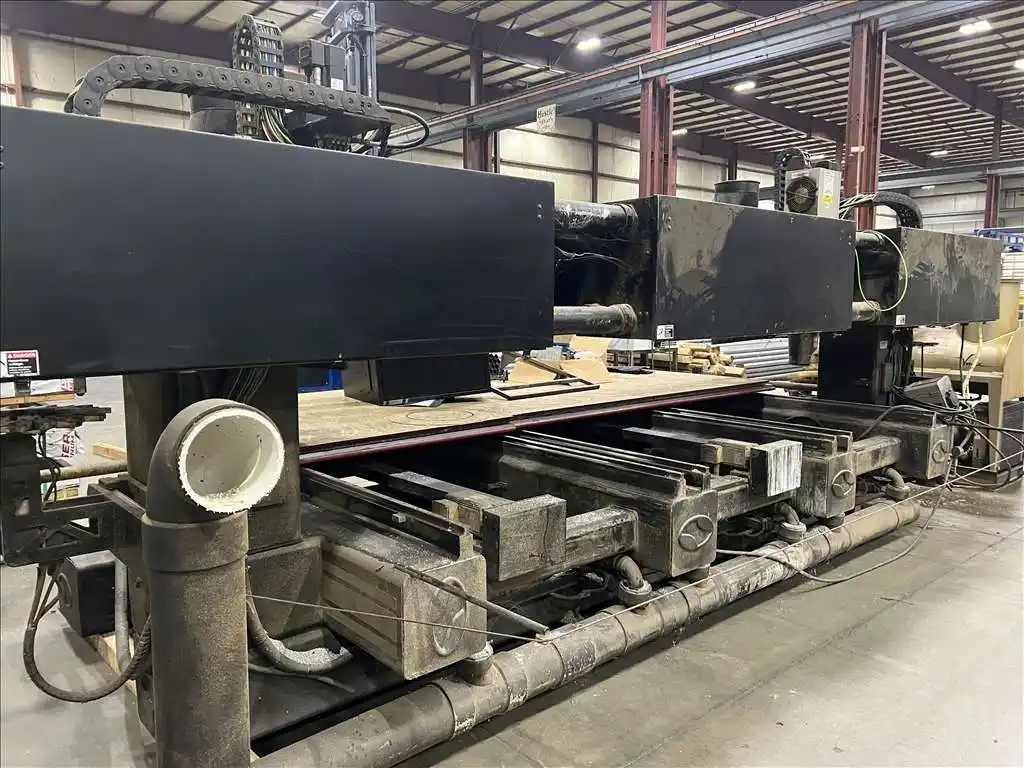

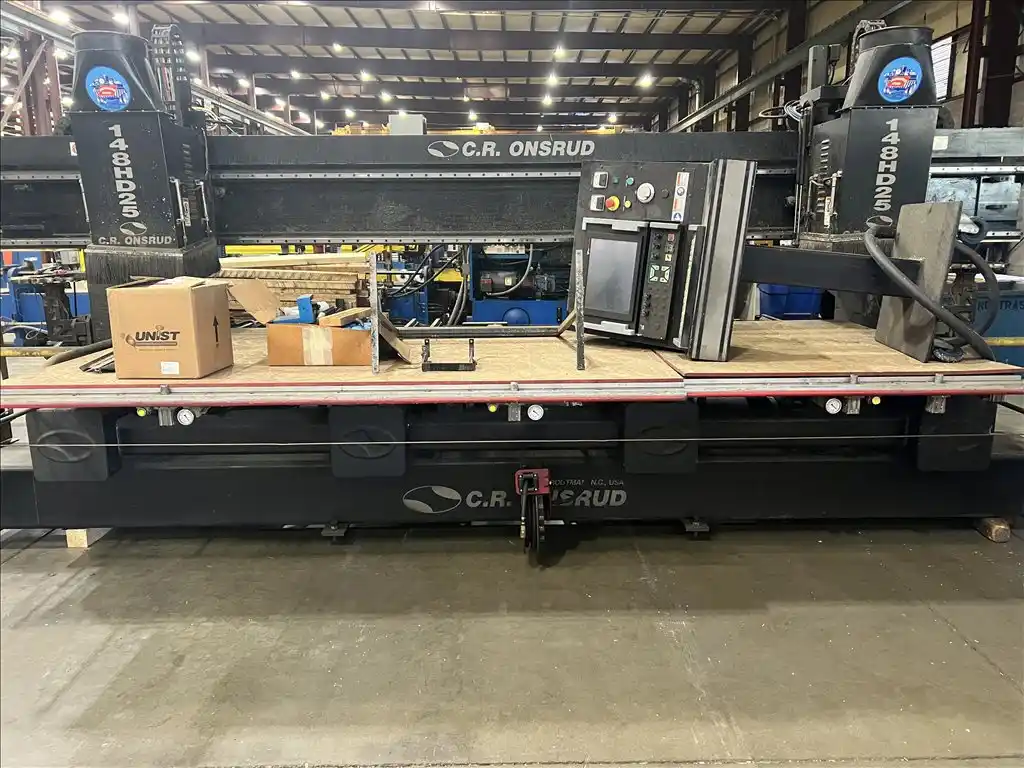

This C.R. Onsrud 148D25H2 CNC router is well suited for large-format routing, drilling, profiling, trimming, and light milling work on aluminum, nonferrous sheet and plate, plastics, composites, wood, and other routable industrial materials. The 148″ x 61″ x 11″ travel, 14″ under-bridge clearance, HSK-63 spindle interface, aluminum vacuum table system, and dual-table configuration support oversized workpieces, nested parts, fixture-based routing, and flexible production setups where large-bed capacity is required. With OSAI CNC control, available tool holders, digital tool setter, vacuum pump, and dust transition system, this machine can be a practical fit for metal service centers, industrial job shops, composite fabricators, panel processors, and manufacturers adding or replacing large-format CNC router capacity.
Contact Perfection Global to request a quote, schedule an inspection, or review additional used CNC routers for industrial routing and large-format panel processing.
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
