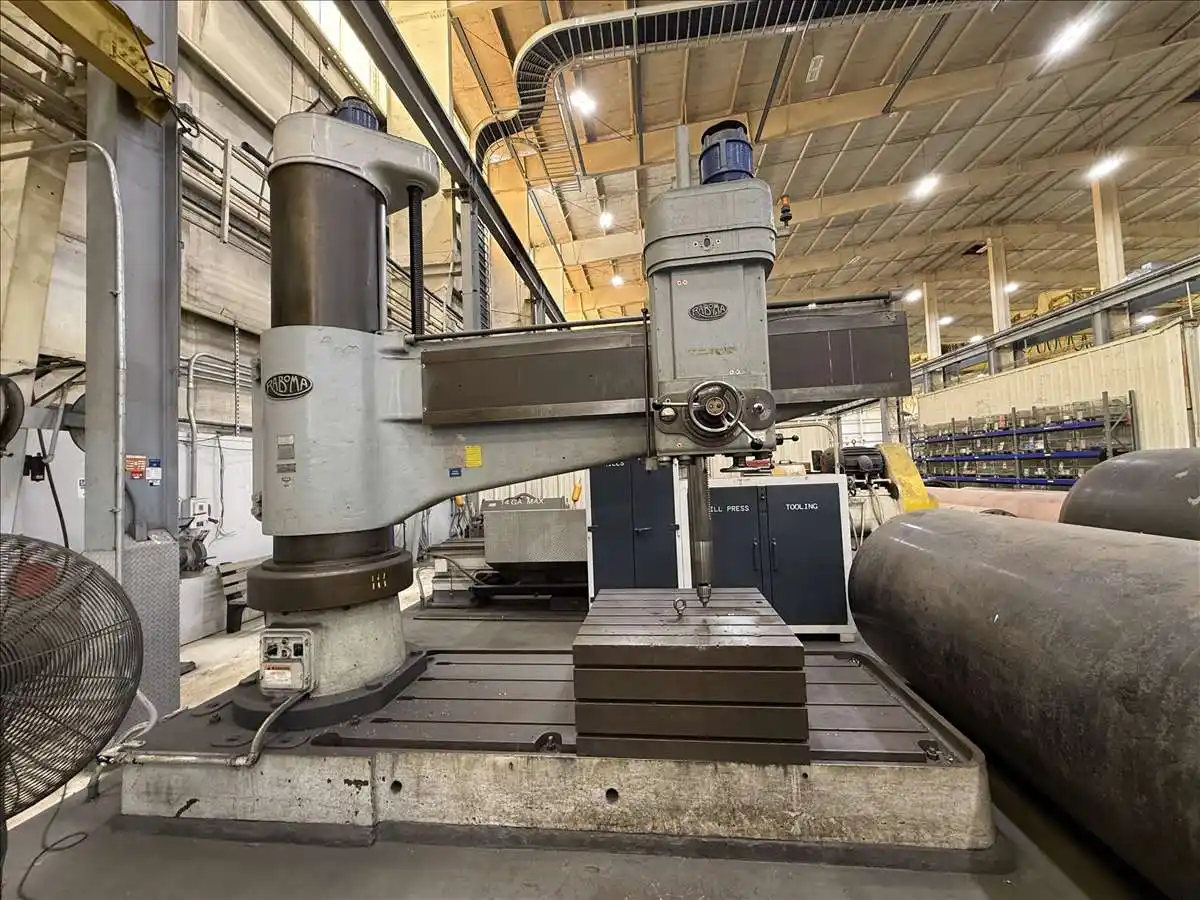

Specifications
- Arm Length: 120"
- Column Diameter: 24"

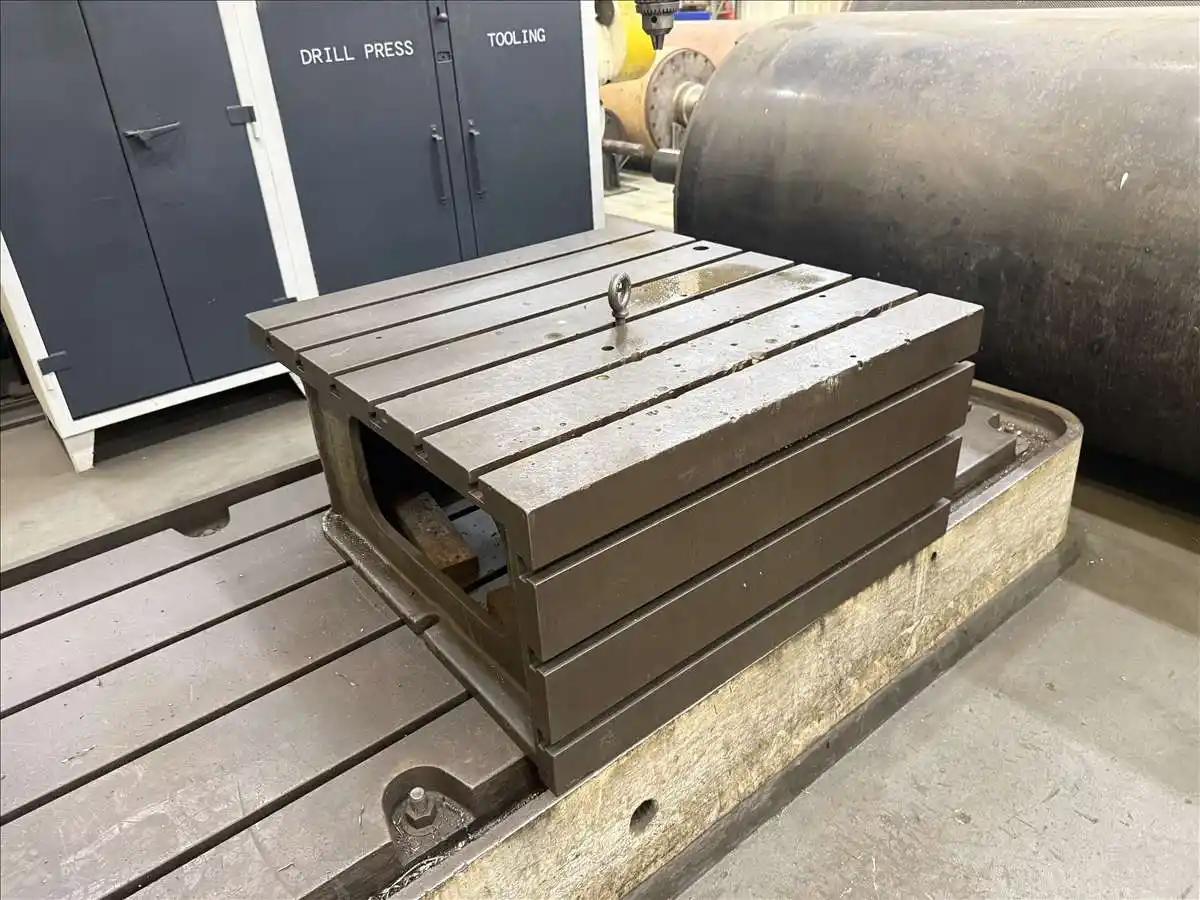

- Working Surface Of Base: 45" x 95"
- Distance From Face Of Column To Spindle: 20" - 113"
- Minimum Spindle to Base: 41"
- Horizontal Traverse Of Head On Arm: 93"
- Vertical Traverse Of Arm On Column: 43"

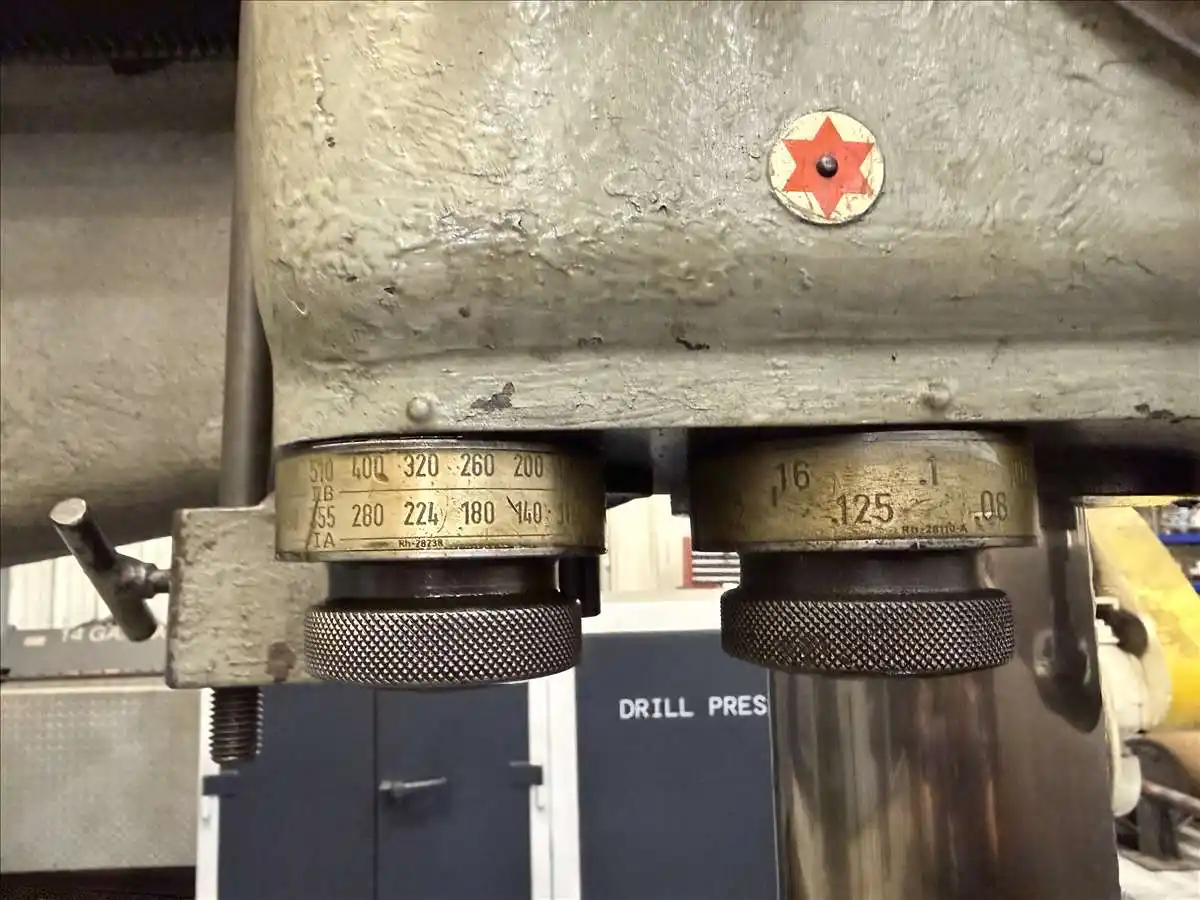

- Spindle Speeds: 60-1200 RPM
- Spindle Feeds: .004 IPR - .125 IPR
- Tap Leads: 8 - 27 TPI

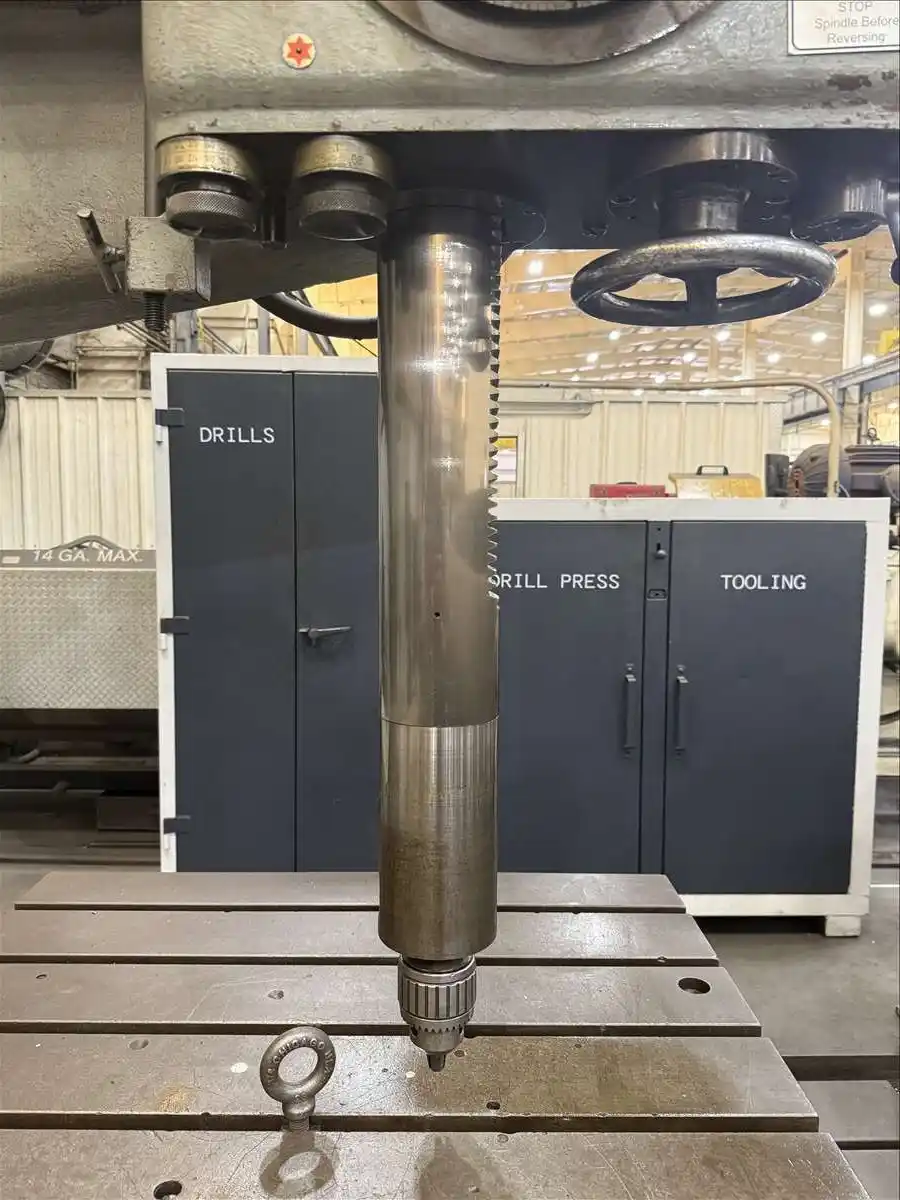

- Spindle Stroke: 24"
- Spindle Taper: #5MT
- Motor: 10 HP
- Electrical: 480V/3Ph/60Hz
- Show More
- Show Less
- Arm Length: 3050mm
- Column Diameter: 610mm
- Working Surface Of Base: 1143mm x 2413mm
- Distance From Face Of Column To Spindle: 508mm - 2870mm
- Minimum Spindle to Base: 1040mm
- Horizontal Traverse Of Head On Arm: 2362mm
- Vertical Traverse Of Arm On Column: 1092mm
- Spindle Speeds: 60-1200 RPM
- Spindle Feeds: .004 IPR - .125 IPR
- Tap Leads: 8 - 27 TPI
- Spindle Stroke: 610mm
- Spindle Taper: #5MT
- Motor: 7.5 kw
- Electrical: 480V/3Ph/60Hz
- Show More
- Show Less
Equipped With
- Power Column Clamping
- Power Elevation

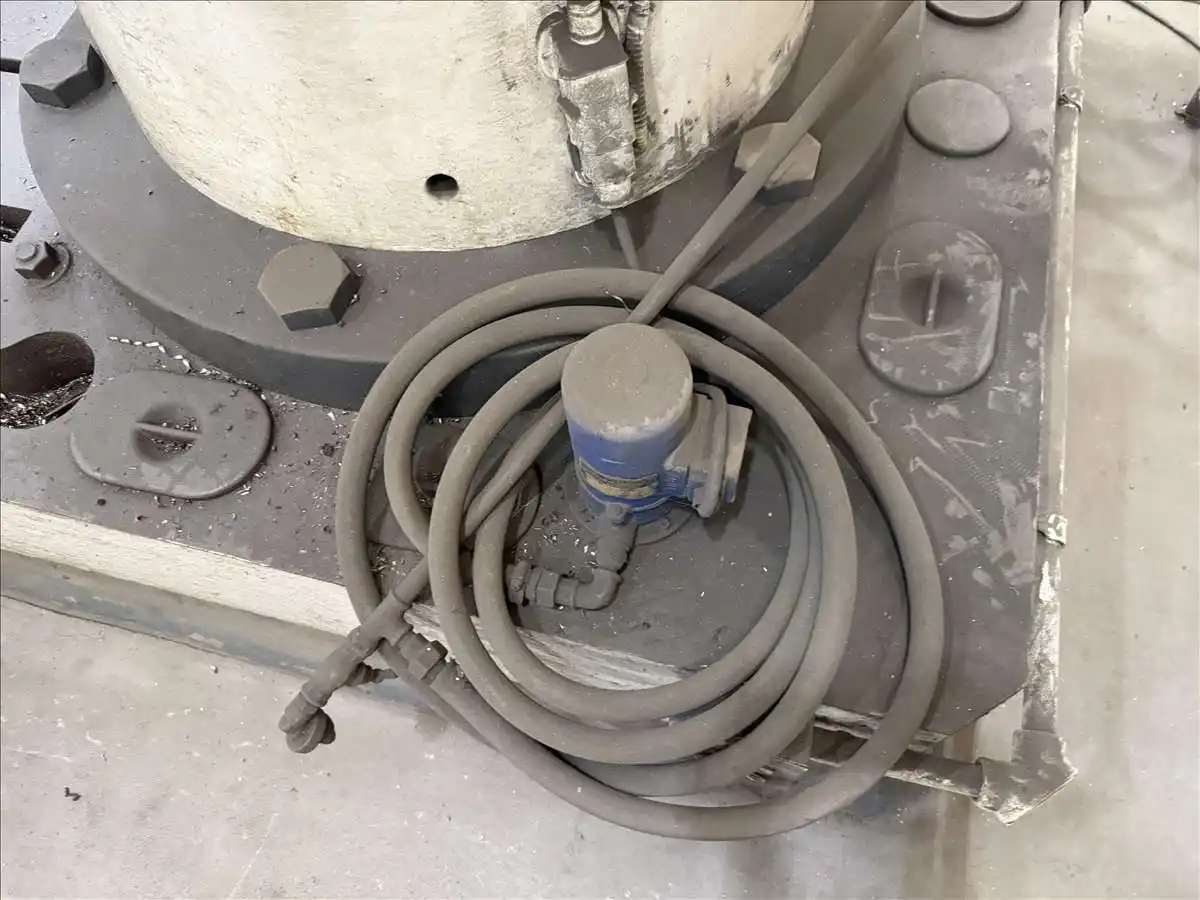

- Coolant
- Power Column Clamping
- Power Elevation
- Coolant
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
