Specifications
- Swing Over Bed: 7.87"
- Distance Between Centers: 15.75"
- Max. Weight Between Centers: 44 lb.
- Max. Grinding Length: 15.75"
- Max. Table Swivel: 15 Grad (13.5°)
- Z-Axis Travel: 16.5"
- X-Axis Travel: 6.1"
- Z-Axis Travel Speed: 393.7 IPM
- X-Axis Travel Speed: 393.7 IPM
- Grinding Wheel Size (Ø x Width x Bore): 13.75" x 2" x 5"
- Workhead Taper: Morse #4
- Tailstock Taper: Morse #2
- Show More
- Show Less
- Swing Over Bed: 200mm
- Distance Between Centers: 400mm
- Max. Weight Between Centers: 20 kg
- Max. Grinding Length: 400mm
- Max. Table Swivel: 15 Grad (13.5°)
- Z-Axis Travel: 420mm
- X-Axis Travel: 155mm
- Z-Axis Travel Speed: 10,000 mm/min
- X-Axis Travel Speed: 10,000 mm/min
- Grinding Wheel Size (Ø x Width x Bore): 350mm x 50mm x 127mm
- Workhead Taper: Morse #4
- Tailstock Taper: Morse #2
- Show More
- Show Less
Equipped With

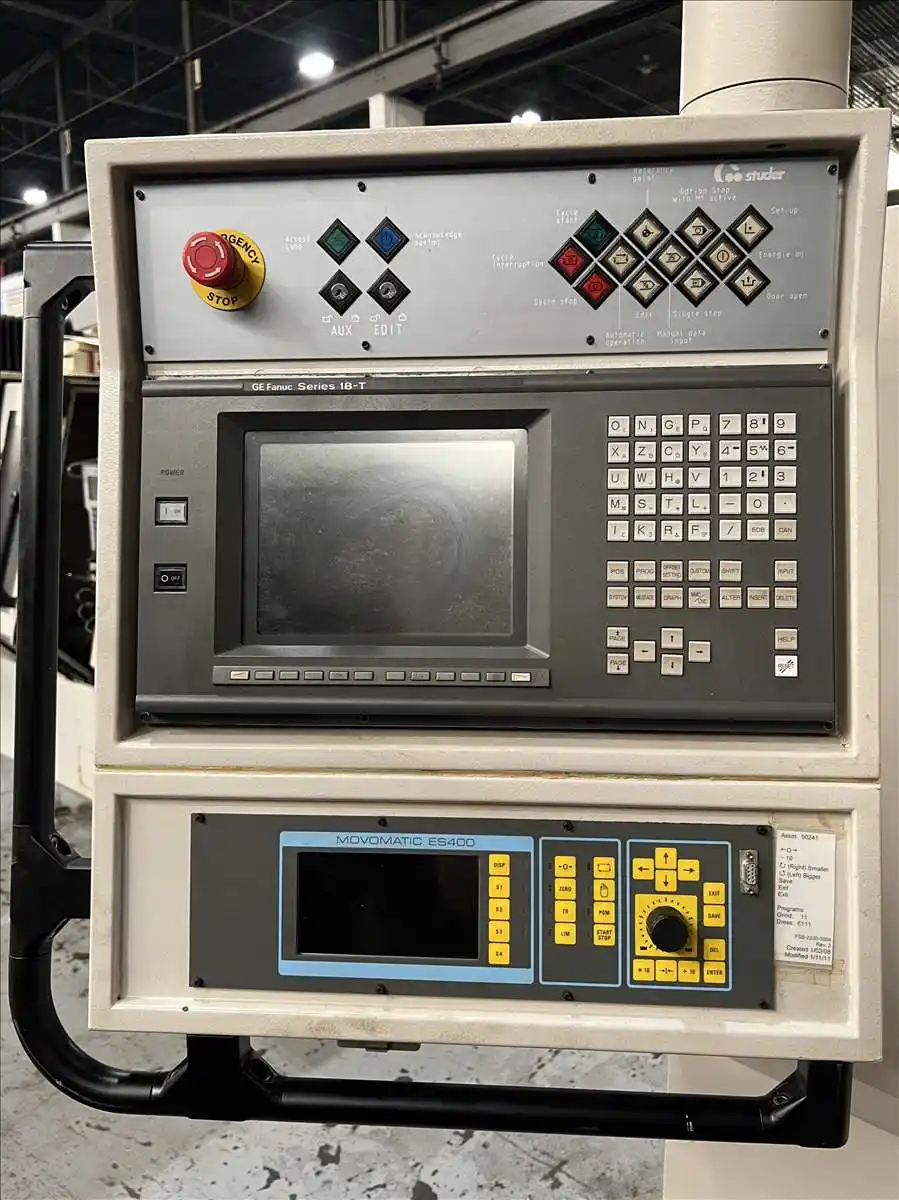

- Fanuc 18-T CNC Control

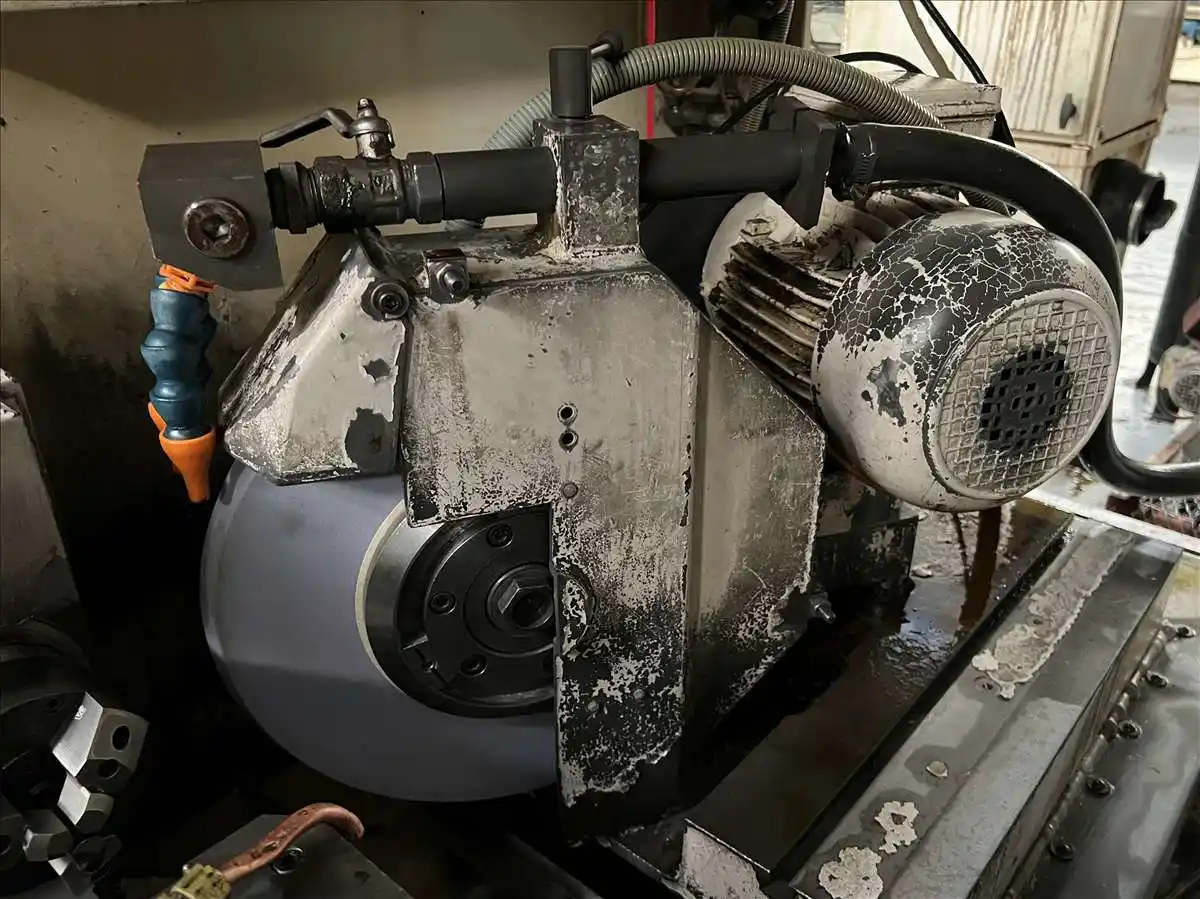

- Straight or 30° Wheelhead (Manually Adjusted)
- Movomatic ES400 Edge Locator & In-Process Gauging

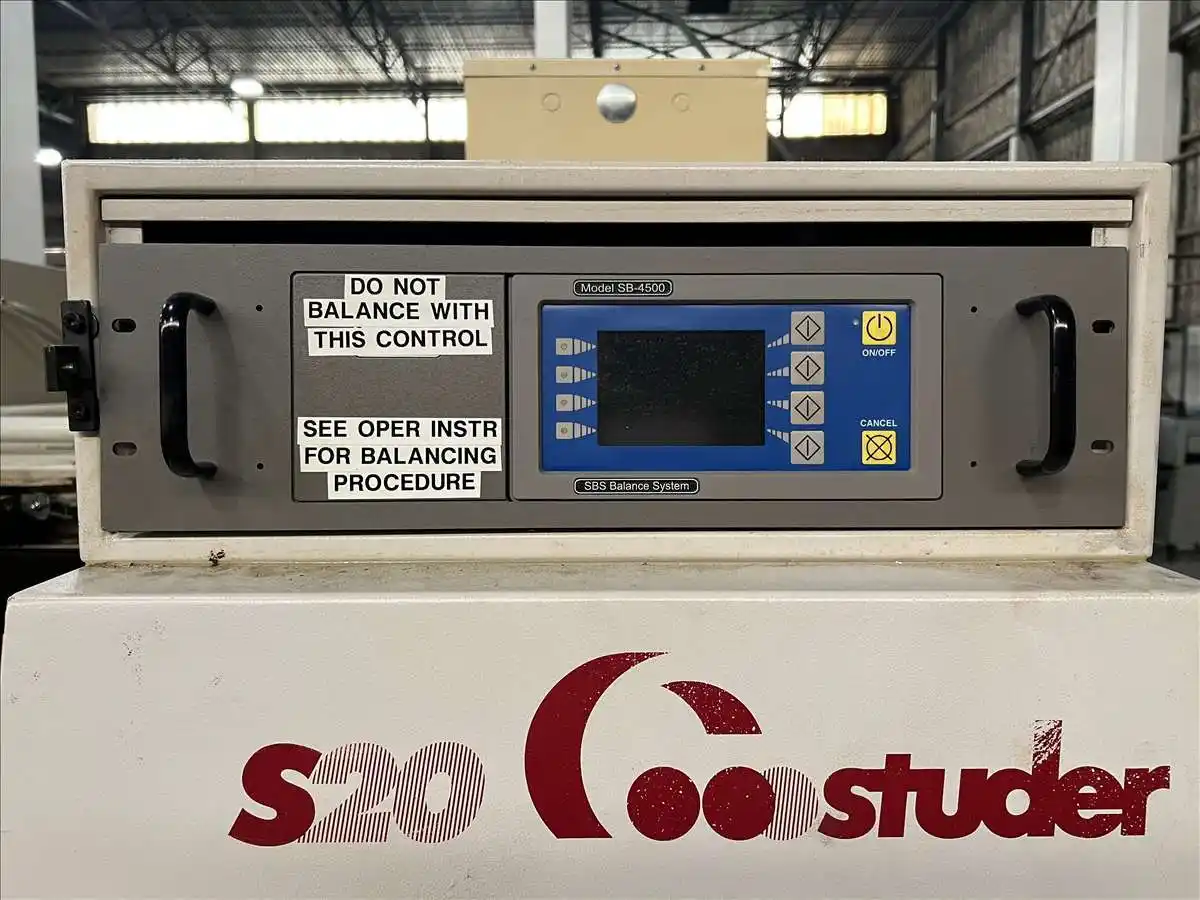

- SBS SB-4500 Wheel Balancer

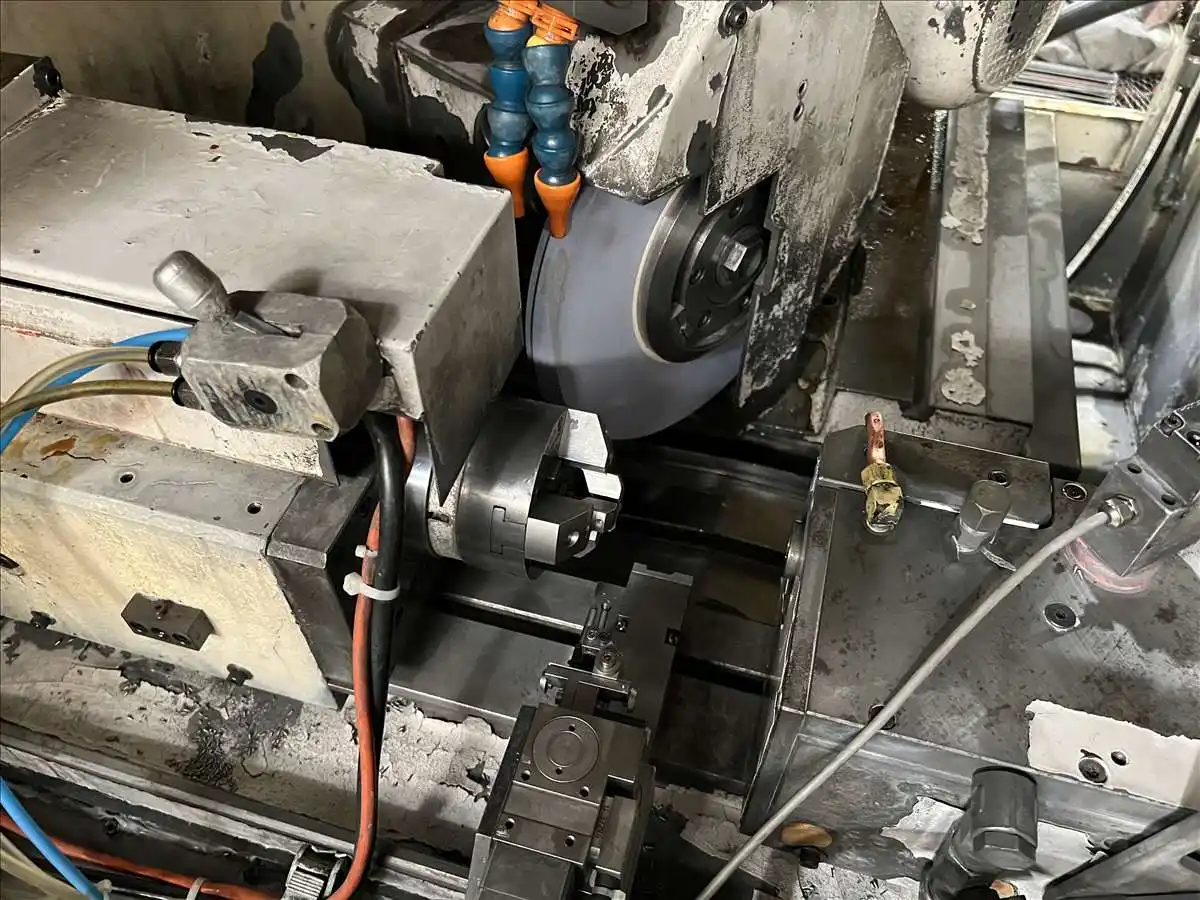

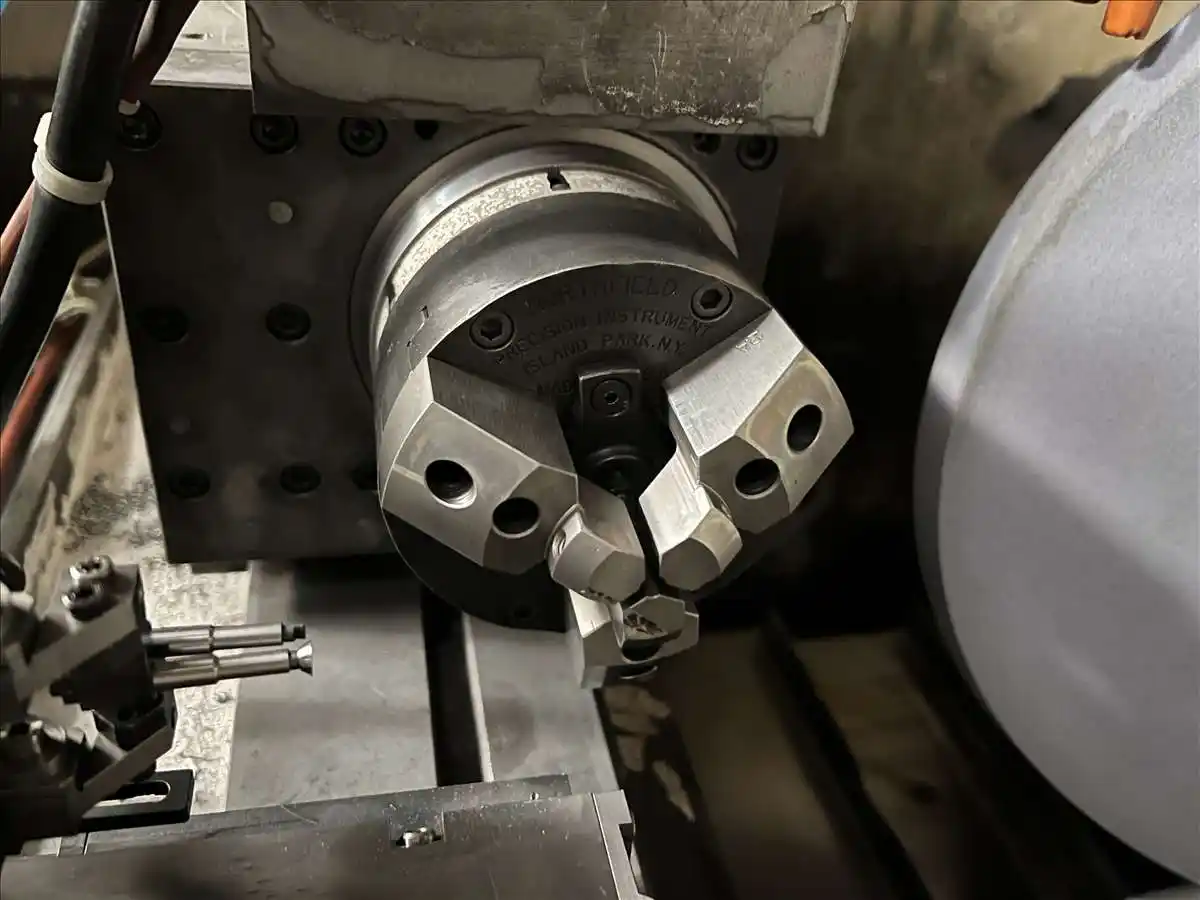

- 4" 3-Jaw Chuck

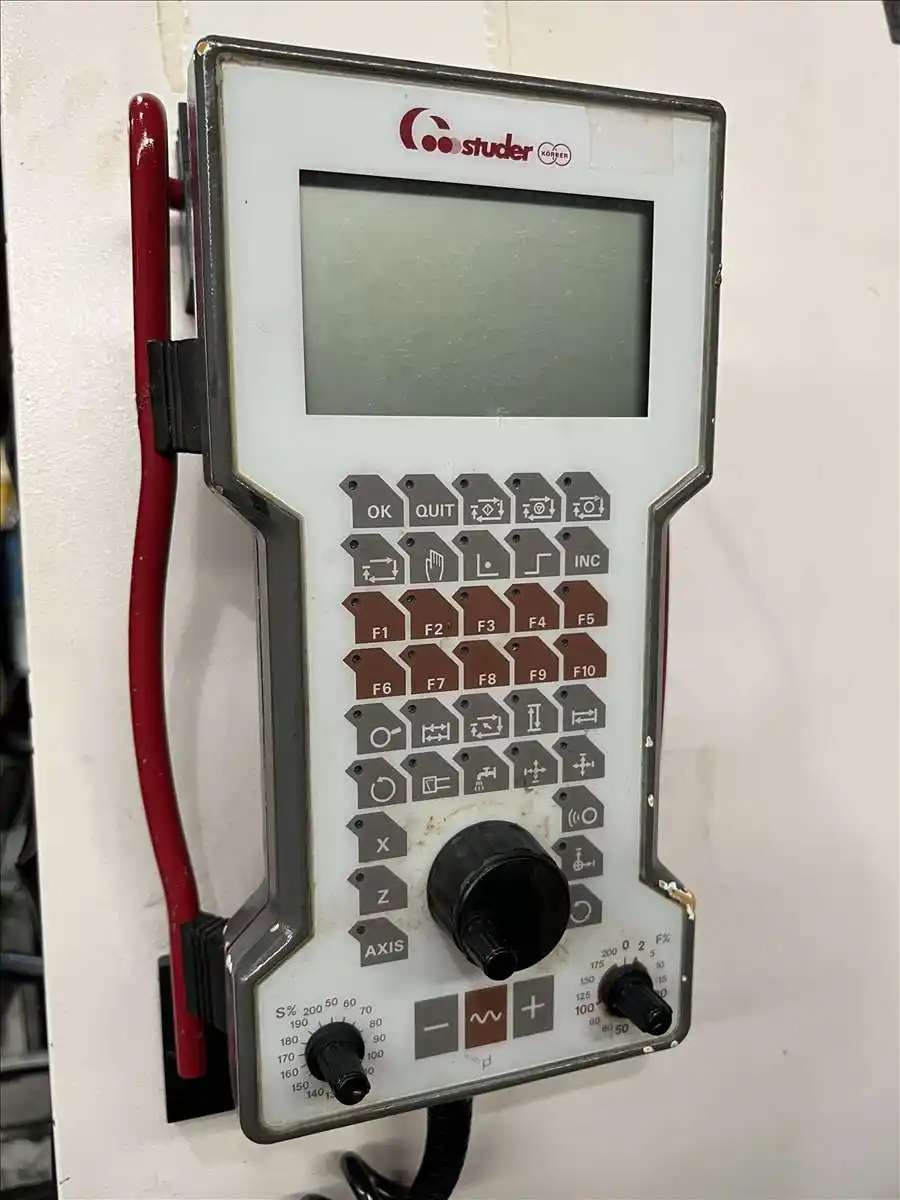

- Operators Hand-Held Remote Control Station w/ M.P.G.

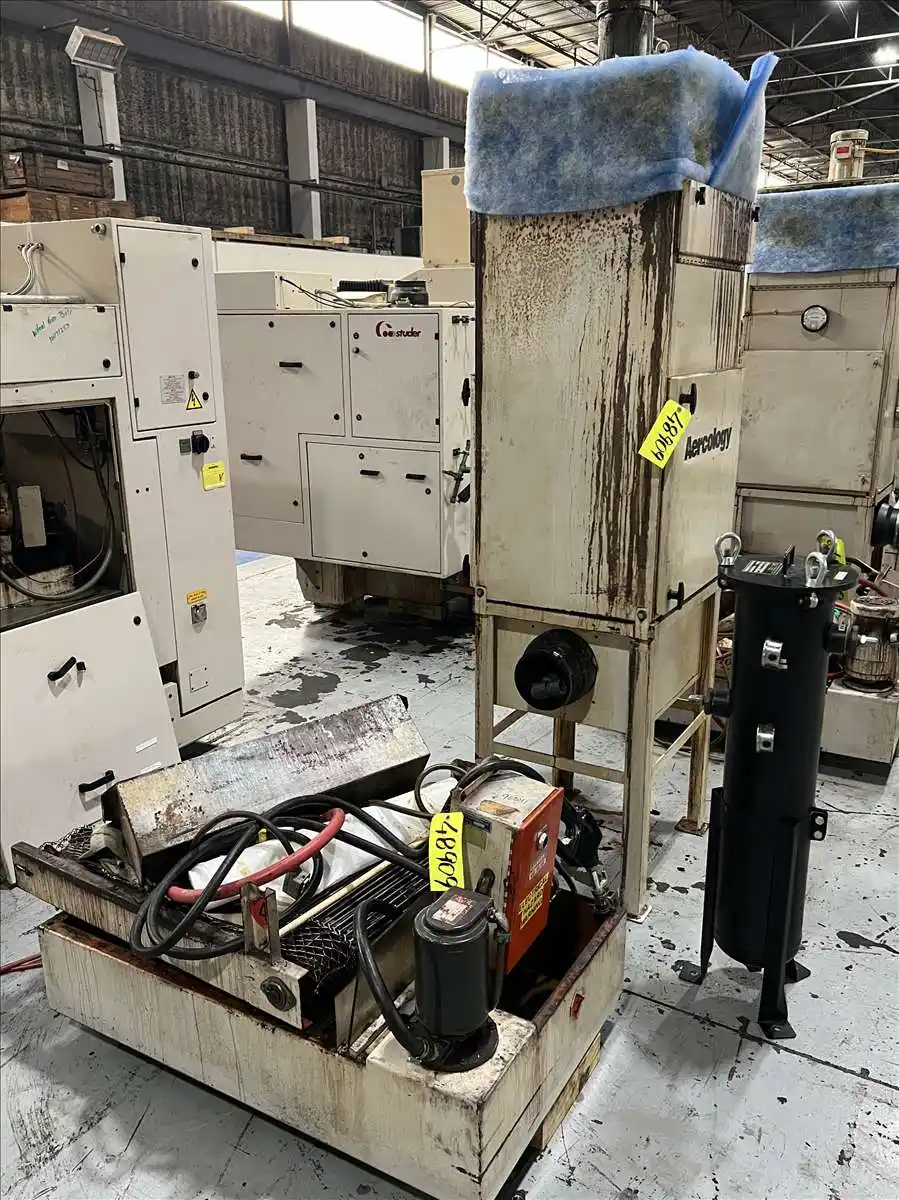

- Aerocology Mist Collector
- Cyclotron Paper Drag Out Coolant Filtration System
- Show More
- Show Less
- Fanuc 18-T CNC Control
- Straight or 30° Wheelhead (Manually Adjusted)
- Movomatic ES400 Edge Locator & In-Process Gauging
- SBS SB-4500 Wheel Balancer
- 101mm 3-Jaw Chuck
- Operators Hand-Held Remote Control Station w/ M.P.G.
- Aerocology Mist Collector
- Cyclotron Paper Drag Out Coolant Filtration System
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
