Inventory # 47073 Year: 2013

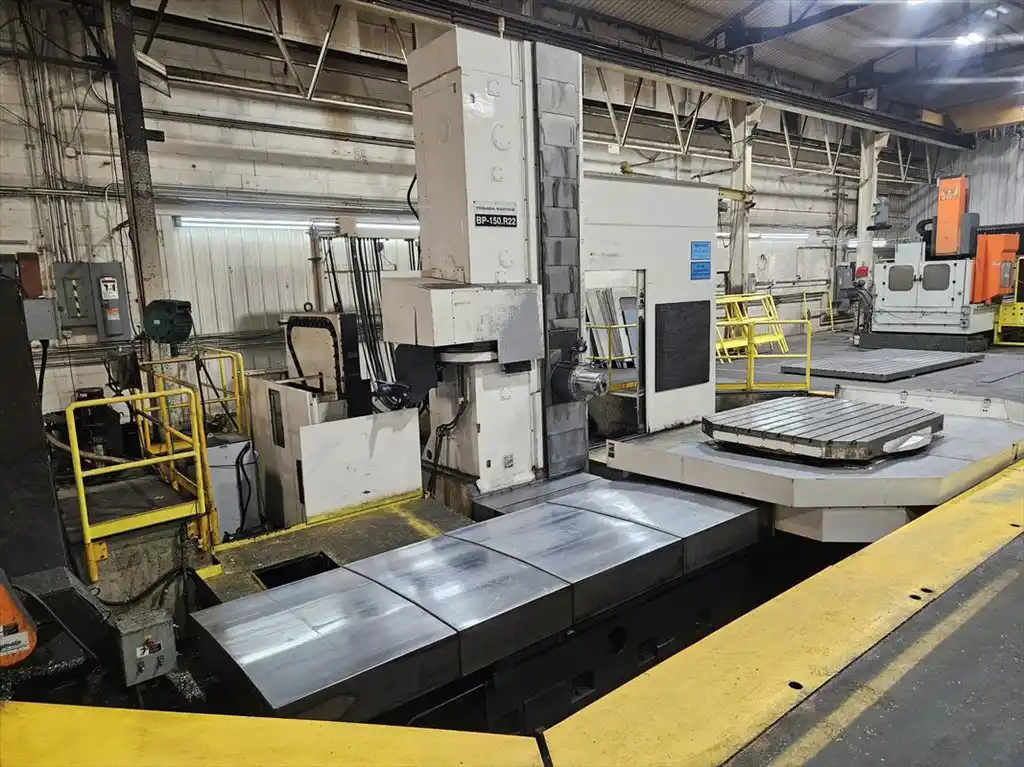

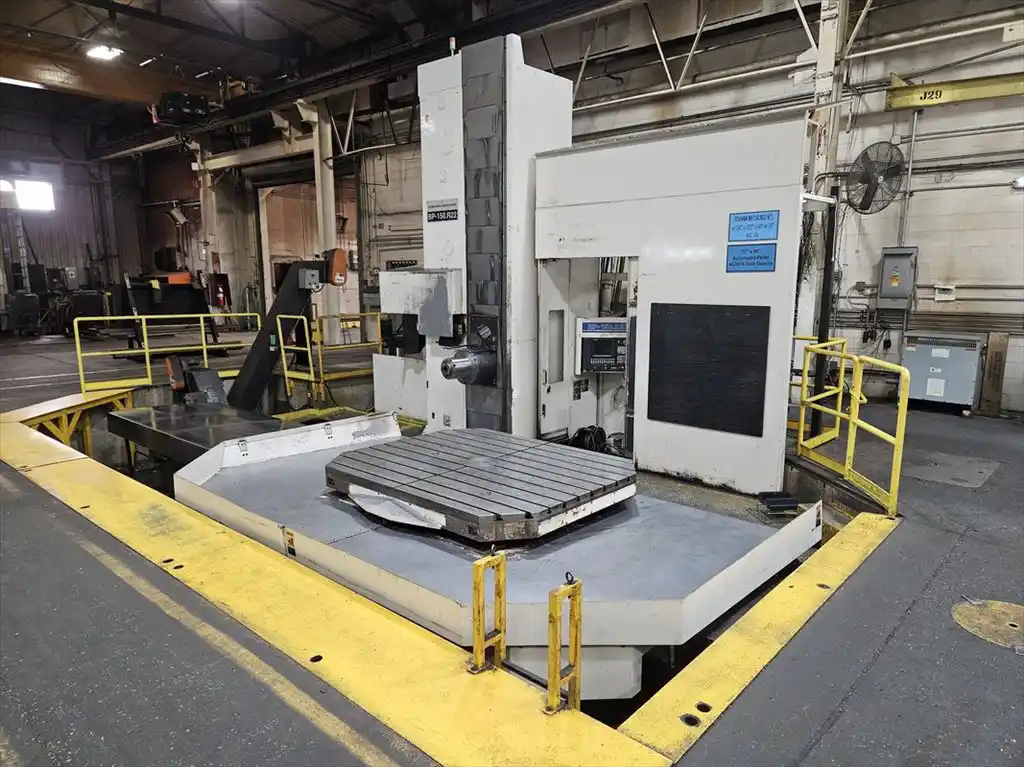

Toshiba BP-150.R22 4-Axis CNC Table Type Horizontal Boring Mill

Request a Quote
Measurement

Specifications
  • X-Axis: 160"
  • Y-Axis: 120"
  • Z-Axis (Column Infeed Travel): 60"
  • W-Axis (Spindle Travel): 28"
  • Spindle Diameter: 5.9"
  • Spindle Taper: CAT 50
  • Spindle Speed: 5 - 2500 RPM
  • Spindle Power: 50 HP
  • Table Size: 86.6" x 70.8"
  • Table Capacity: 44,000 lbs
  • Rapid Traverse (X, Y, Z Axes) 708 IPM
  • Rapid Traverse (B-Axis) 720°/min
  • Tool Changer: 60-ATC
  • Show More
  • Show Less
  • X-Axis: 4064.00mm
  • Y-Axis: 3048.00mm
  • Z-Axis (Column Infeed Travel): 1524.00mm
  • W-Axis (Spindle Travel): 711.20mm
  • Spindle Diameter: 149.86mm
  • Spindle Taper: CAT 50
  • Spindle Speed: 5 - 2500 RPM
  • Spindle Power: 37.29 kw
  • Table Size: 2199.64mm x 1798.32mm
  • Table Capacity: 19954.00 kg
  • Rapid Traverse (X, Y, Z Axes) 299.72 mm/sec
  • Rapid Traverse (B-Axis) 720°/min
  • Tool Changer: 60-ATC
  • Show More
  • Show Less
Equipped With

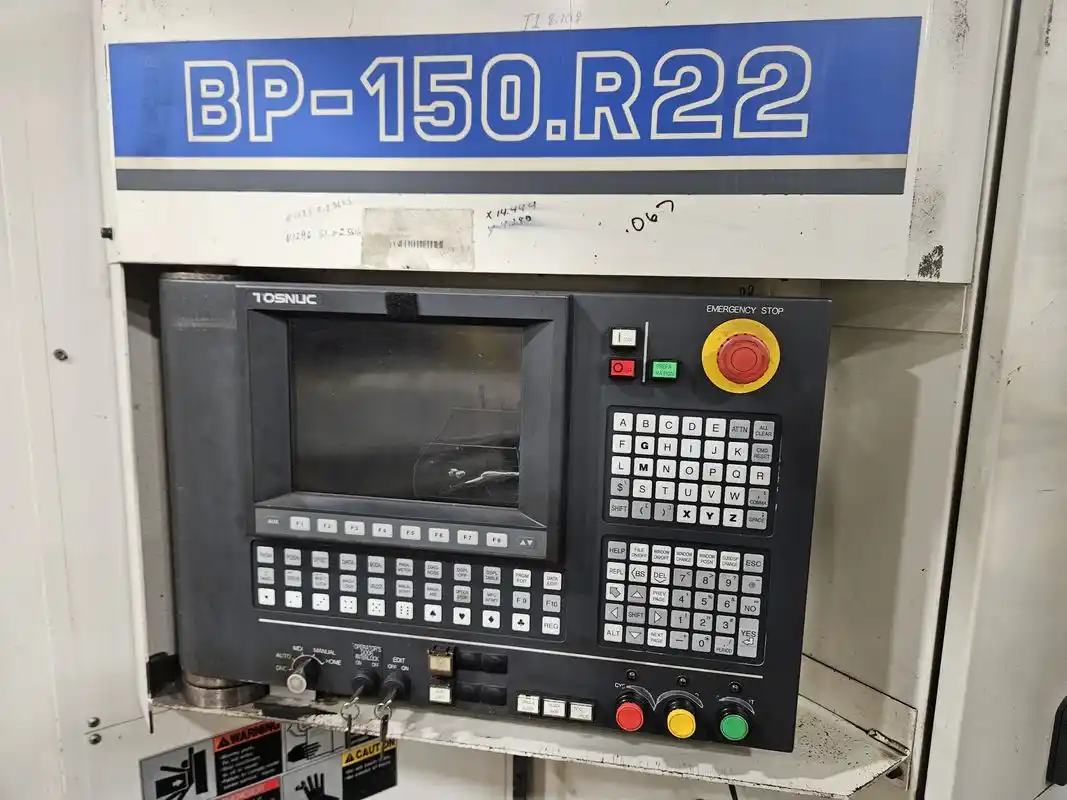

  • TOSNUC 999 4-Axis CNC Control

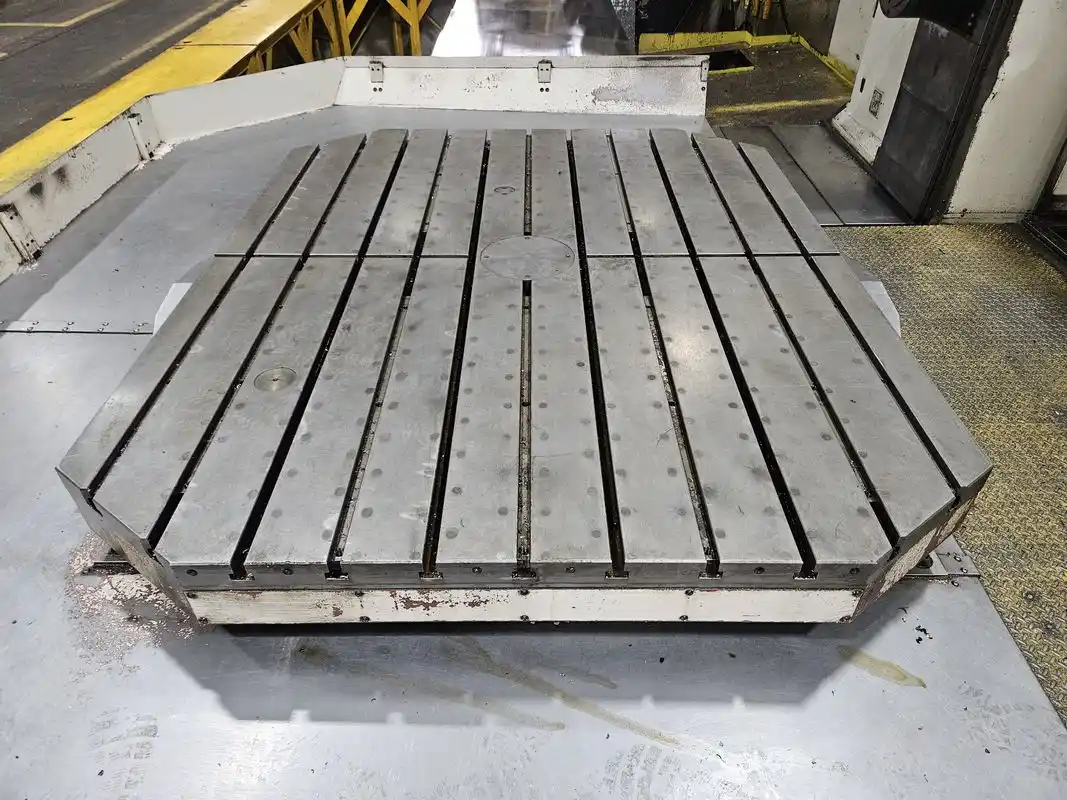

  • Built-In B-Axis Rotary Table

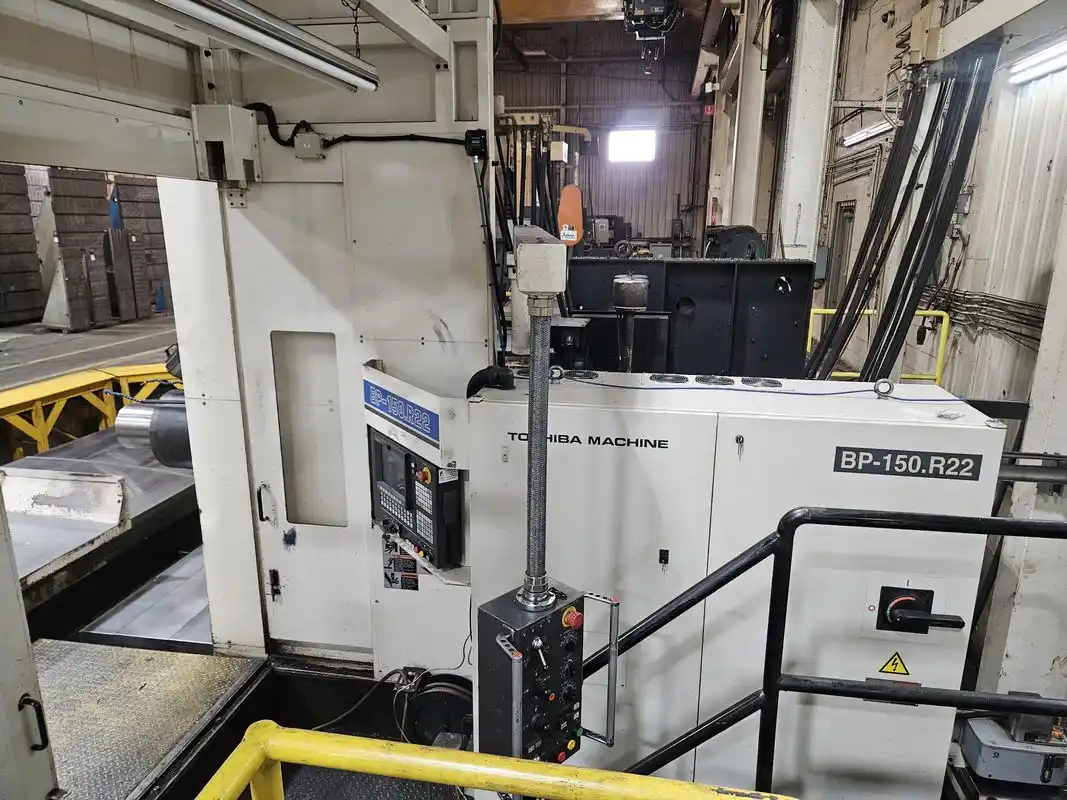

  • Full Pendant for Manual Operation
  • Thru-Spindle Coolant
  • Flood Coolant

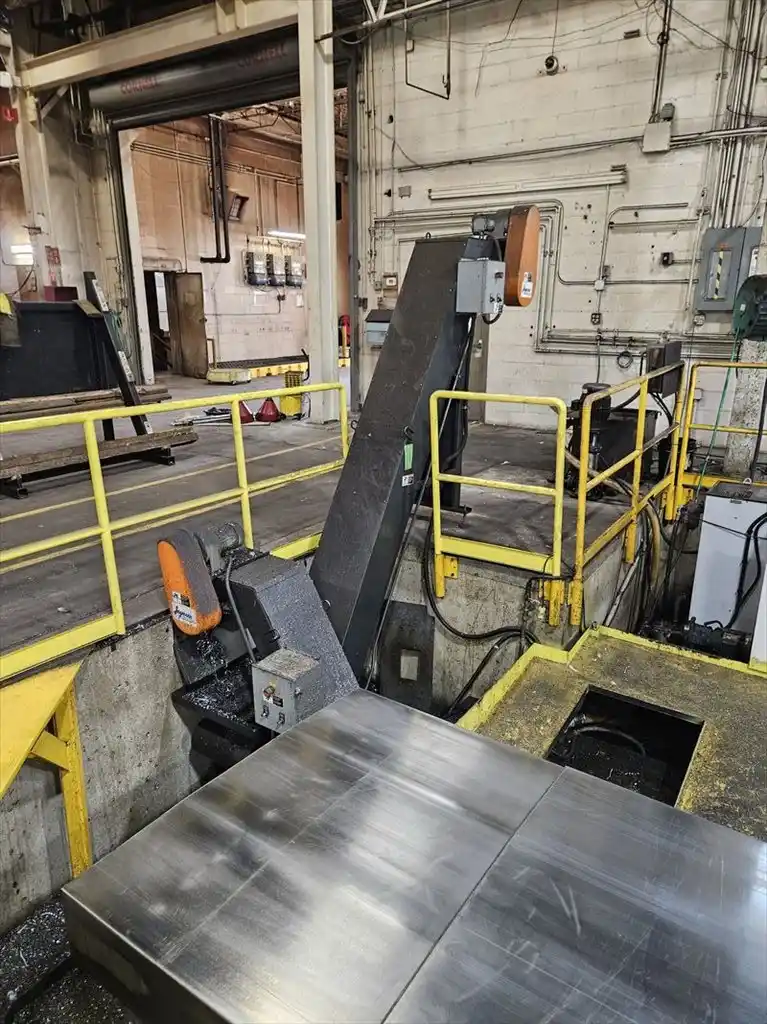

  • Chip Conveyor
  • Show More
  • Show Less
  • TOSNUC 999 4-Axis CNC Control
  • Built-In B-Axis Rotary Table
  • Full Pendant for Manual Operation
  • Thru-Spindle Coolant
  • Flood Coolant
  • Chip Conveyor
  • Show More
  • Show Less
More Info

This Toshiba BP-150.R22 is a CNC horizontal boring mill designed for large-part precision machining. With a 150mm spindle diameter, 78.7″ X-axis travel, and 78.7″ W-axis spindle stroke, this machine is capable of deep boring and multi-face machining on heavy components. It features a Fanuc 31i CNC control and a built-in B-axis rotary table, making it well-suited for applications that require repeatable, multi-sided positioning.

This unit offers a powerful combination of reach, rigidity, and control—ideal for manufacturers in heavy equipment, energy, and aerospace sectors. The machine is currently available and can be inspected by appointment.

Looking for similar equipment?
Explore Perfection Global’s inventory of used CNC horizontal boring mills for sale.

Location & Terms
  • Terms: As Is, Where Is
  • Location: Lester, PA
  • Disclaimer: Preliminary Specifications....
