Specifications

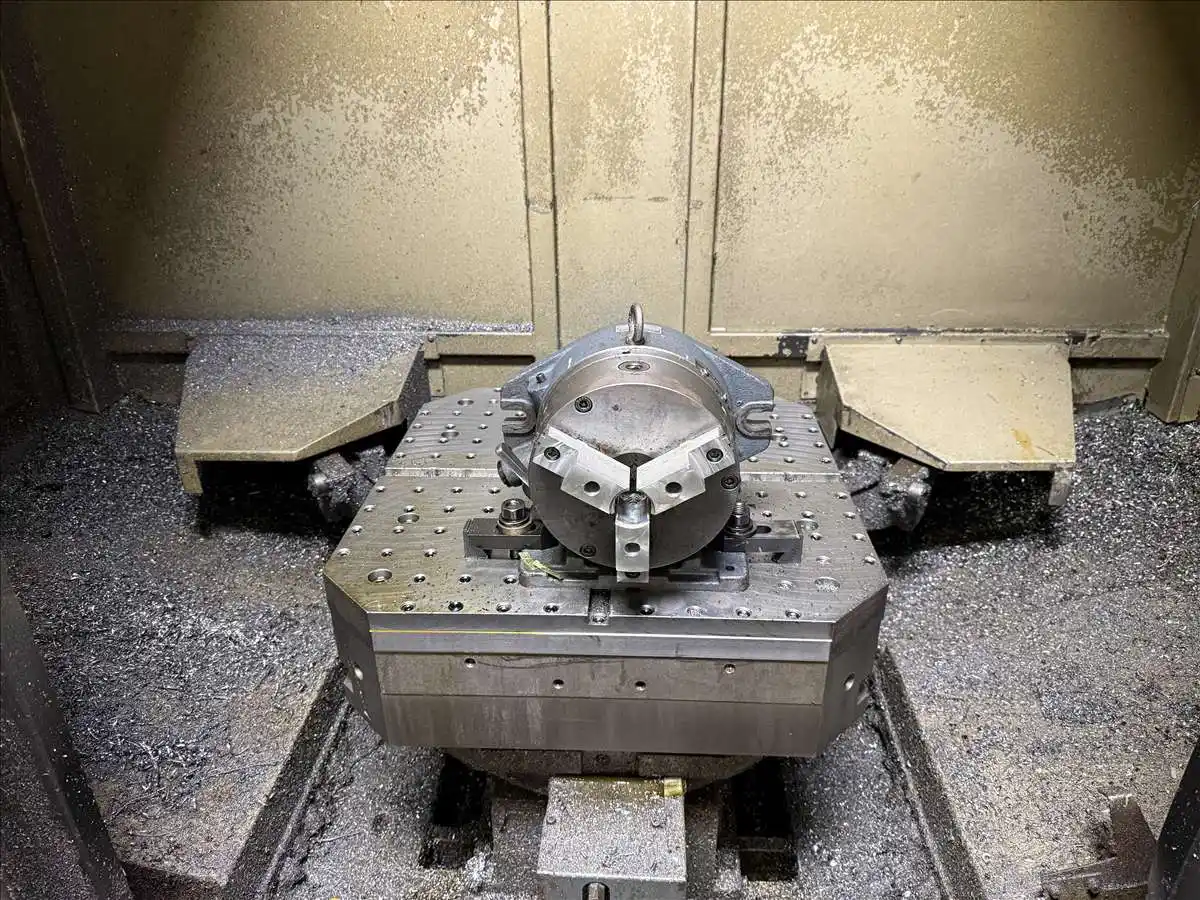

- Pallet Size: 24.8" x 24.8"
- Indexing: 1 Degree
- Number of Pallets: 2
- X-Axis Travel: 39.37"
- Y-Axis Travel: 31.5"
- Z-Axis Travel: 33.4"
- B-Axis .001 Degrees
- Spindle Speed: 4,000 RPM (Maximum)
- Spindle Tool Taper: CAT #50
- Rapid Traverse Rate: 1417 IPM

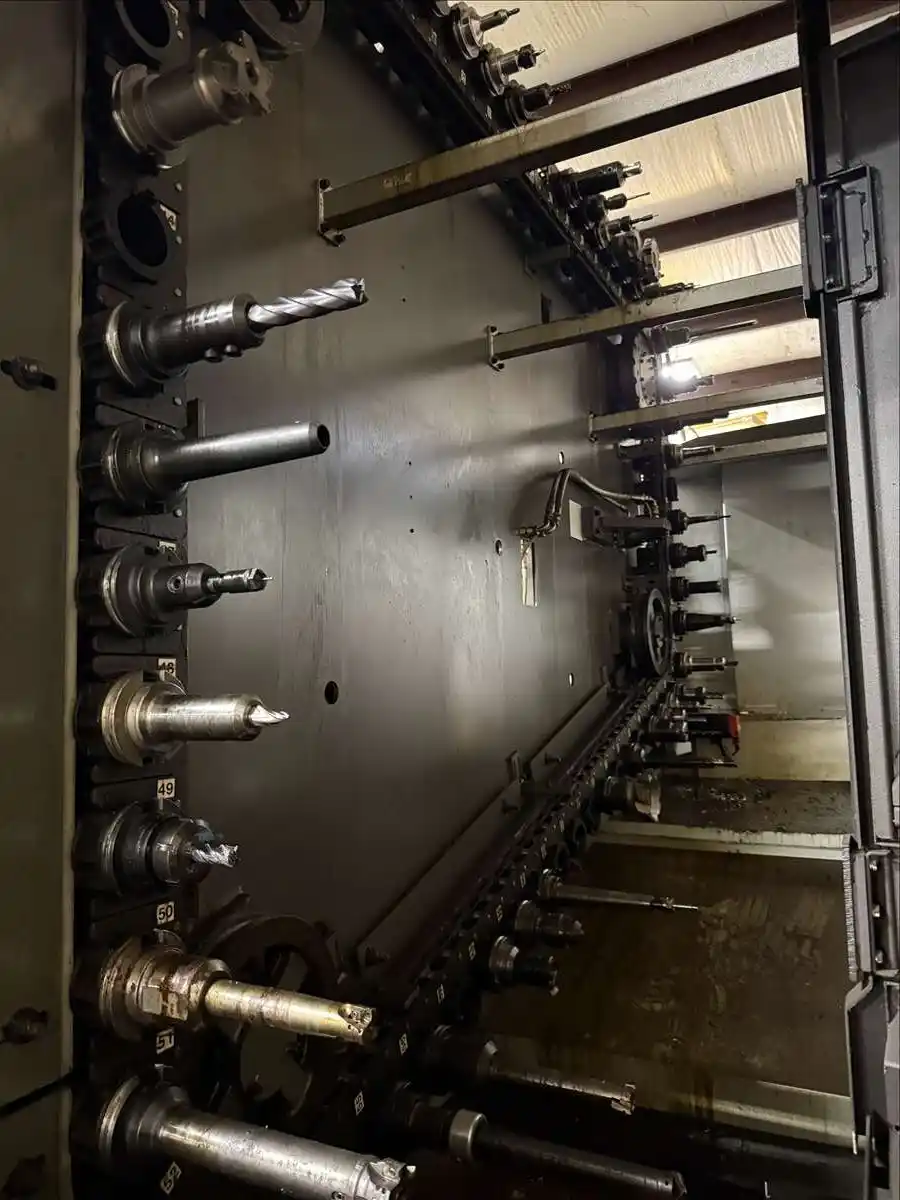

- Tool Changer Capacity: 60
- Tool to Tool Change Time: 30 Sec.
- Maximum Tool Diameter: 4.72"
- Maximum Tool Weight: 59.4 Lbs
- Maximum Tool Length: 15.75"
- Show More
- Show Less
- Pallet Size: 629.92mm x 629.92mm
- Indexing: 1 Degree
- Number of Pallets: 2
- X-Axis Travel: 1000.00mm
- Y-Axis Travel: 800.10mm
- Z-Axis Travel: 848.36mm
- B-Axis .001 Degrees
- Spindle Speed: 4,000 RPM (Maximum)
- Spindle Tool Taper: CAT #50
- Rapid Traverse Rate: 599.86 mm/sec
- Tool Changer Capacity: 60
- Tool to Tool Change Time: 30 Sec.
- Maximum Tool Diameter: 119.89mm
- Maximum Tool Weight: 26.94 kg
- Maximum Tool Length: 400.05mm
- Show More
- Show Less
Equipped With

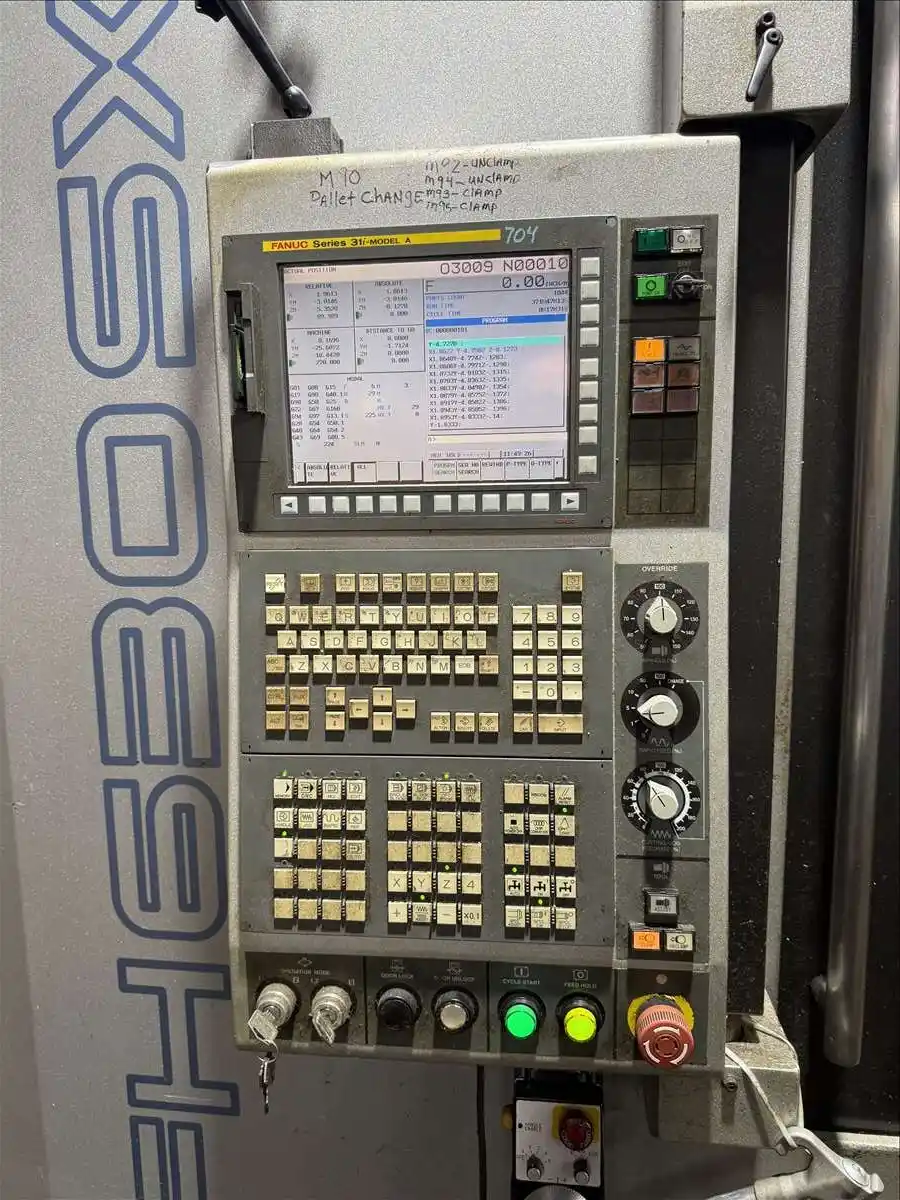

- Fanuc 31iA CNC Control
- Rotary Type Pallet Changer
- Rotary Pallet Load Station
- Rigid Tapping
- Plumbed for Thru Spindle Coolant
- Air Spindle Blow Out
- 40 HP AC Main Spindle Drive Motor
- Chip Conveyor

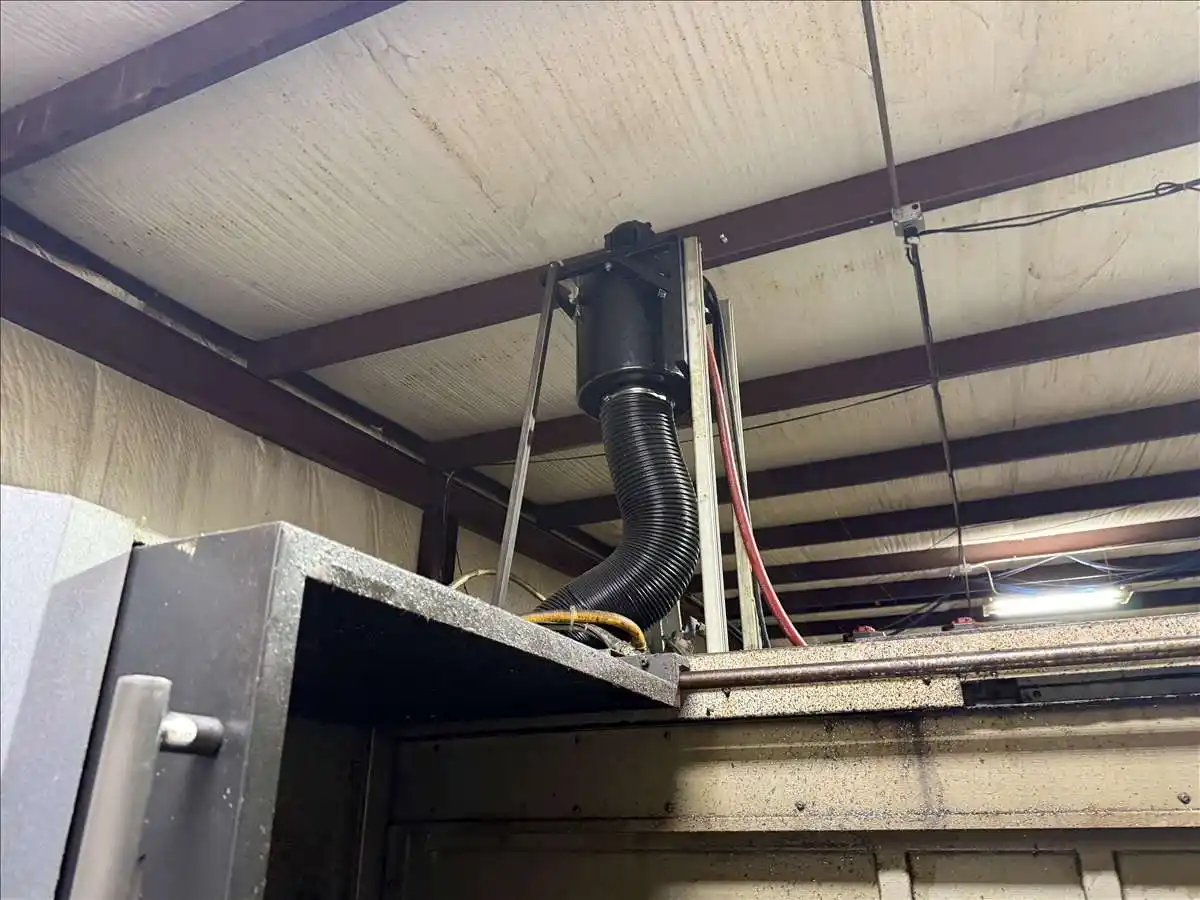

- Mist Collector
- Fixturing Pictured NOT INCLUDED
- Show More
- Show Less
- Fanuc 31iA CNC Control
- Rotary Type Pallet Changer
- Rotary Pallet Load Station
- Rigid Tapping
- Plumbed for Thru Spindle Coolant
- Air Spindle Blow Out
- 29.83 kw AC Main Spindle Drive Motor
- Chip Conveyor
- Mist Collector
- Fixturing Pictured NOT INCLUDED
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Location: New Waverly, TX
- Disclaimer: Preliminary Specifications....
