Inventory # 49003 Year: 2006

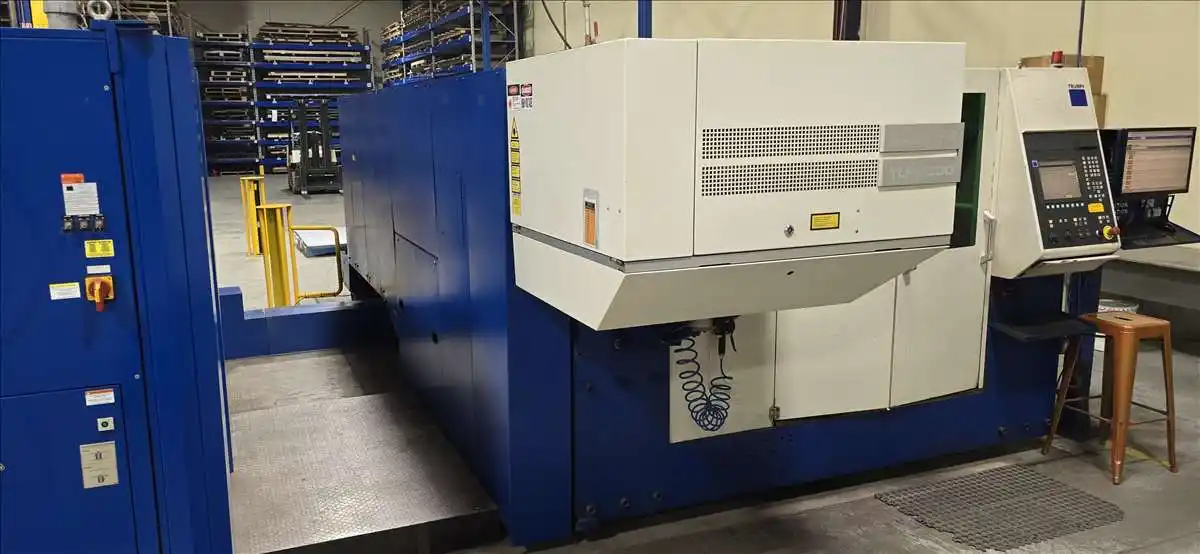

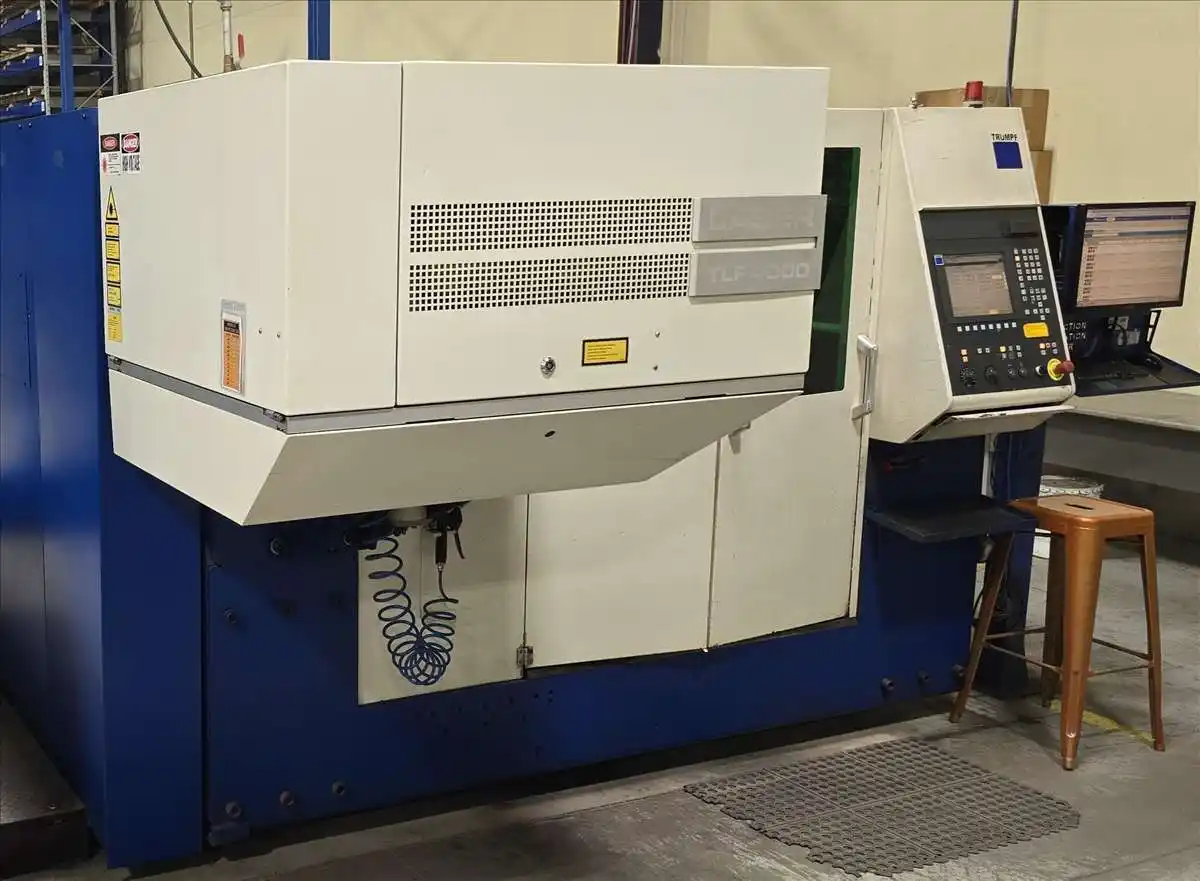

Trumpf Trumatic L3030S 4000W CNC Laser

Request a Quote
Measurement

Specifications
  • Laser Power: 4000W
  • Laser Type: CO2
  • Cutting Capacity
  • Mild Steel: 0.79"
  • Stainless Steel: 0.59"
  • Aluminum: 0.39"
  • X-Axis Travel: 118"
  • Y-Axis Travel: 59"
  • Z-Axis Travel: 4.5"
  • Pallet Size: 10' x 5'
  • Number of Pallets: 2
  • Max. Workpiece Weight: 1,565 lbs
  • Resonator Beam-On Time: 12,809 Hours
  • Resonator Laser-On Time: 45,207 Hours
  • Show More
  • Show Less
  • Laser Power: 4000W
  • Laser Type: CO2
  • Cutting Capacity
  • Mild Steel: 20mm
  • Stainless Steel: 15mm
  • Aluminum: 10mm
  • X-Axis Travel: 3,000mm
  • Y-Axis Travel: 1500mm
  • Z-Axis Travel: 115mm
  • Pallet Size: 3,050mm x 1,525mm
  • Number of Pallets: 2
  • Max. Workpiece Weight: 710 kg
  • Resonator Beam-On Time: 12,809 Hours
  • Resonator Laser-On Time: 45,207 Hours
  • Show More
  • Show Less
Equipped With
  • Siemens CNC Control
  • Trumpf TLF 4000 Turbo Laser

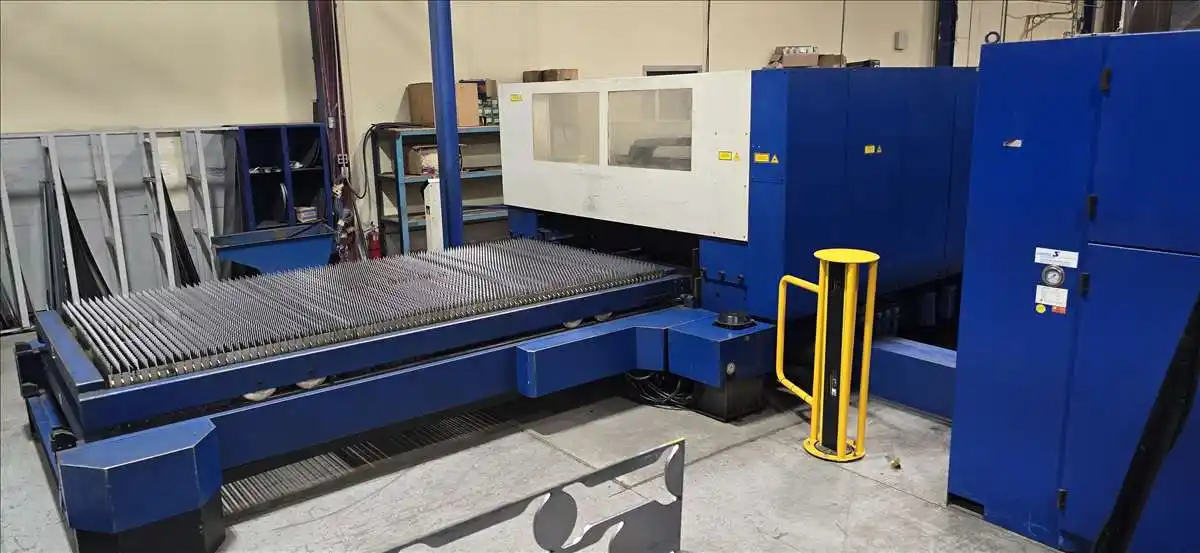

  • Automatic Shuttle Table
  • Includes All Available Manuals - Installation, Operator, Schematics, Parts, etc.
  • Siemens CNC Control
  • Trumpf TLF 4000 Turbo Laser
  • Automatic Shuttle Table
  • Includes All Available Manuals - Installation, Operator, Schematics, Parts, etc.
More Info

This TRUMPF Trumatic L3030S 4000W CNC laser cutting system is well suited for job shops, contract fabricators, and manufacturers cutting mild steel, stainless steel, and aluminum sheet on a 5′ x 10′ work envelope. Its 4,000-watt CO₂ resonator and automatic shuttle table support productive sheet processing for fabricated enclosures, panels, brackets, guards, and general production components. With only 12,809 beam-on hours, the machine shows relatively modest actual cutting time for its age, suggesting meaningful remaining service potential when supported by proper maintenance. It is currently under power and still in production, allowing prospective buyers to evaluate its operation and cut performance rather than purchasing an untested, disconnected system. For a shop seeking immediately available laser-cutting capacity without the capital commitment of a new machine, this TRUMPF can be a practical addition or replacement platform.

Contact Perfection Global to schedule an inspection, request a quote, or view additional used CNC laser cutting systems for sale.

Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
