Inventory # 47736 Year: 2011

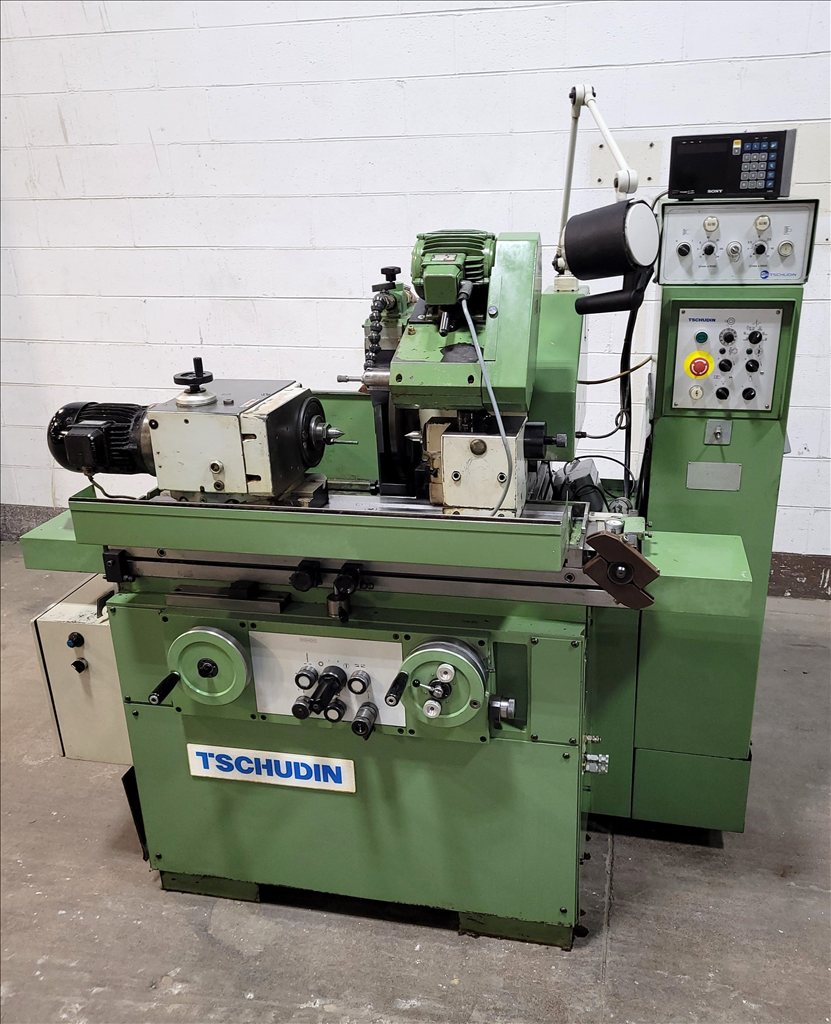

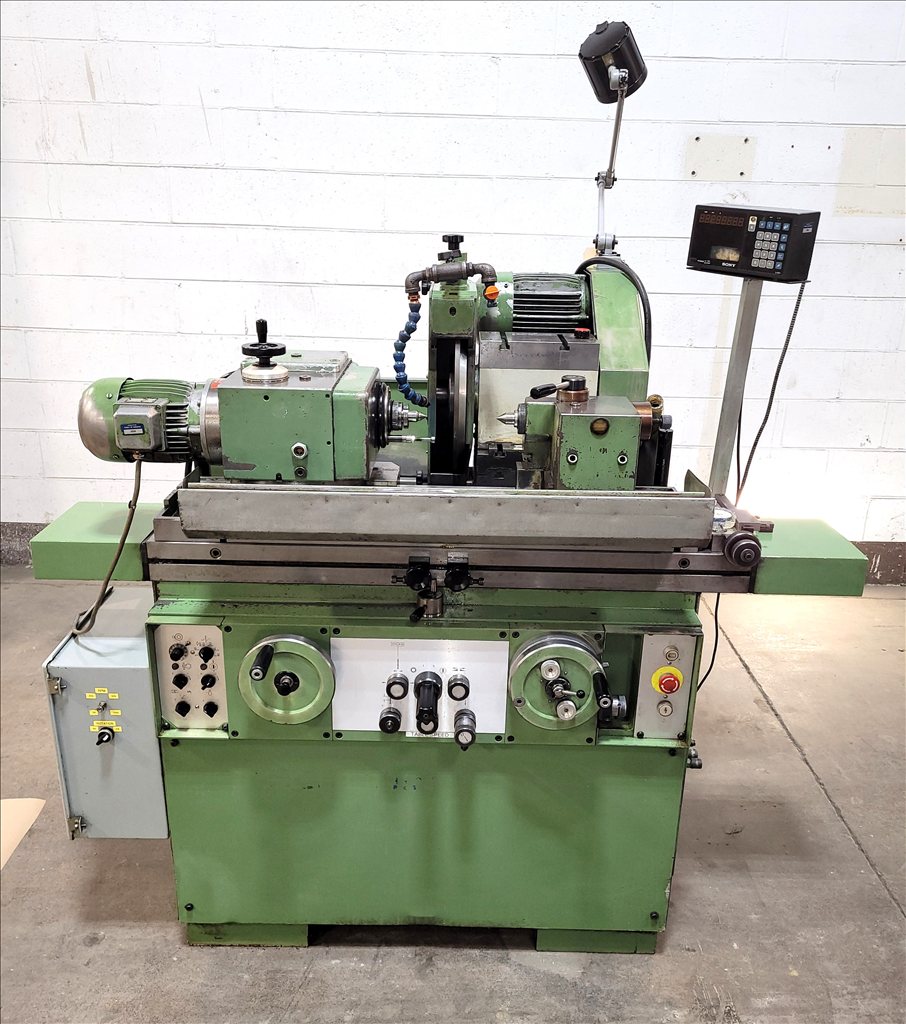

Tschudin HTG310 11.8" x 13.3" Universal ID/OD Cylindrical Grinder (2 Available)
Thank you for your interest, please note the following: THIS ITEM IS OFFERED FOR SALE BY "ONLINE AUCTION" and is part of the "Machinery Reconditioning and Warehousing Consolidation" auction. Lots from this online-only auction will begin closing at 10:00 AM CT on Tuesday, May 13.
Specifications
- Tschudin HTG310, Grinding Ø 11.8", Grinding Length 13.38”, Center Height 5.9", Work head Spindle Taper MT5, Work head Swivel Range 360°, Spindle Speed Range (Stepless) 50-500 RPM, Tailstock Barrel Taper MT3, Tailstock Barrel Travel .787”, Wheel head Wheel Ø (Nominal) 13.77”, Wheel head Wheel Width (MAX) 1.96”, Wheel Bore Ø 5”, Spindle Motor Power 3 kw, Internal Spindle Speeds 0 - 24000 RPM, Table Slide Travel 13.38”, Table Slide Speed Range 0-196 IPM, New as 2011 (2 Available)
- Tschudin HTG310, Grinding Ø 11.8", Grinding Length 13.38”, Center Height 5.9", Work head Spindle Taper MT5, Work head Swivel Range 360°, Spindle Speed Range (Stepless) 50-500 RPM, Tailstock Barrel Taper MT3, Tailstock Barrel Travel .787”, Wheel head Wheel Ø (Nominal) 13.77”, Wheel head Wheel Width (MAX) 1.96”, Wheel Bore Ø 5”, Spindle Motor Power 3 kw, Internal Spindle Speeds 0 - 24000 RPM, Table Slide Travel 13.38”, Table Slide Speed Range 0-196 IPM, New as 2011 (2 Available)
Location & Terms
- Terms: As Is, Where Is
- Location: Lake Bluff, IL
- Disclaimer: Preliminary Specifications....
