Inventory # 47066 Year: 1992

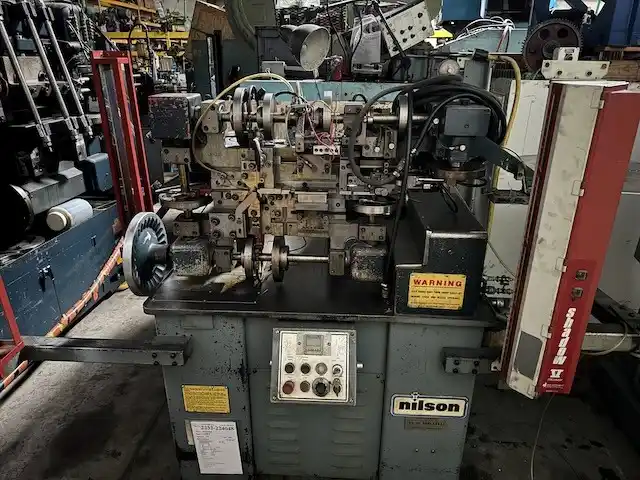

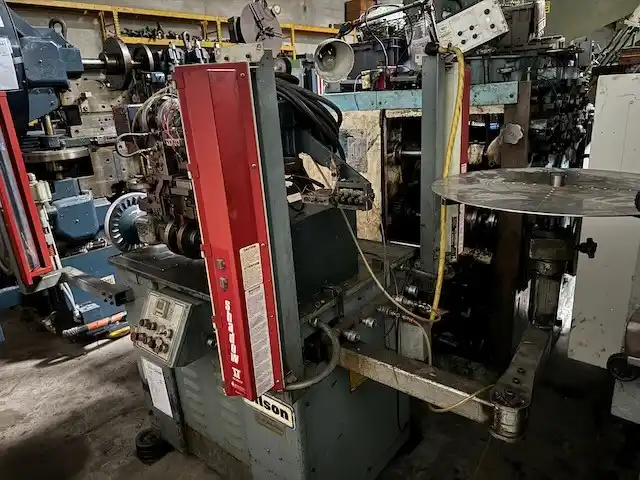

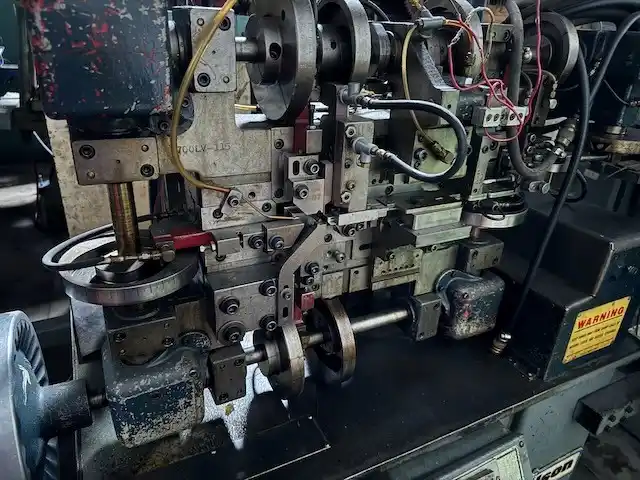

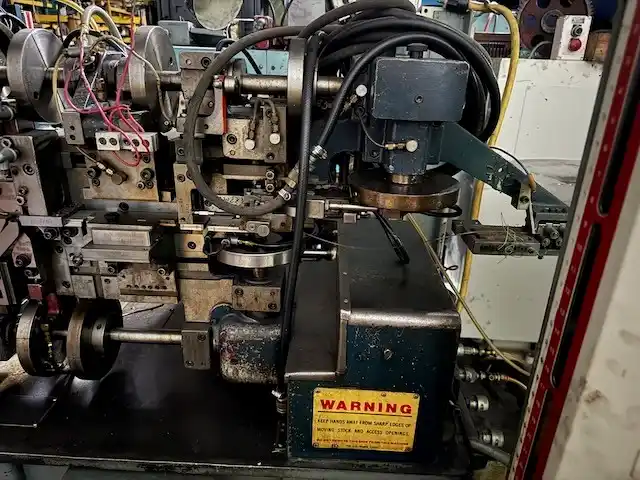

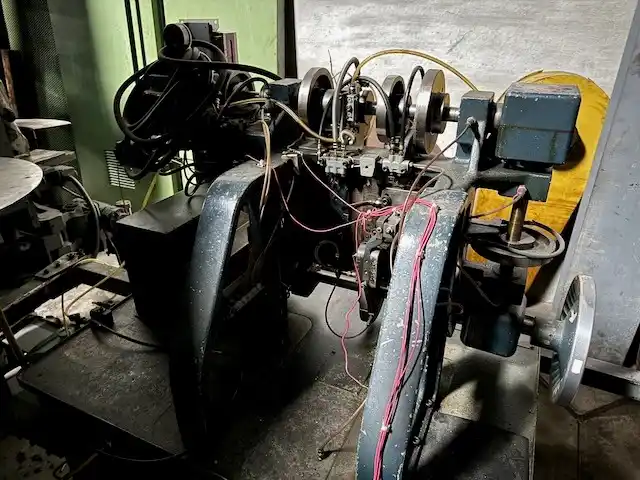

Nilson 700 LV Four-Slide

Request a Quote
Measurement

Specifications
  • Maximum Diameter Basic Wire: 1/32"
  • Maximum Width Strip Metal: 3/8"
  • Standard Feed Length: 3-3/8"
  • Standard Slide Strokes
  • Front: 7/16"
  • Sides: 1-1/16"
  • Back: 1/2"
  • Stroke of Stripper Rod: 5/16" - 1/2"
  • Press Data
  • Stroke: 3/32" - 1/8"
  • Die Set Length: 2-1/2" - 4-5/8"
  • Tonnage: 1/3 ton - 1 ton
  • Motor: 1.5 hp
  • Production: 20 - 540 SPM
  • Opening in Bed: 2" x 2"
  • Wire Line: 39-1/4"
  • Show More
  • Show Less
  • Maximum Diameter Basic Wire: 0.79mm
  • Maximum Width Strip Metal: 9.53mm
  • Standard Feed Length: 85.73mm
  • Standard Slide Strokes
  • Front: 11.11mm
  • Sides: 26.99mm
  • Back: 12.70mm
  • Stroke of Stripper Rod: 7.94mm - 12.70mm
  • Press Data
  • Stroke: 2.38mm - 3.18mm
  • Die Set Length: 63.50mm - 117.48mm
  • Tonnage: 0.3 metric ton - 0.91 metric ton
  • Motor: 1.12 kw
  • Production: 20 - 540 SPM
  • Opening in Bed: 50.80mm x 50.80mm
  • Wire Line: 996.95mm
  • Show More
  • Show Less
Equipped With
  • Electric Clutch and Brake
  • Split Type Cams
  • Stripper Arm
  • Press Attachment, Cutoff, Single Plane Straightener
  • Buckle Probe, Light Curtain
  • DC Variable Drive
  • 230 VAC
  • Show More
  • Show Less
  • Electric Clutch and Brake
  • Split Type Cams
  • Stripper Arm
  • Press Attachment, Cutoff, Single Plane Straightener
  • Buckle Probe, Light Curtain
  • DC Variable Drive
  • 230 VAC
  • Show More
  • Show Less
Location & Terms
  • Terms: F.O.B.
  • Location: LAKE FOREST, IL
  • Disclaimer: Preliminary Specifications....
