Inventory # 47068 Year: N/A

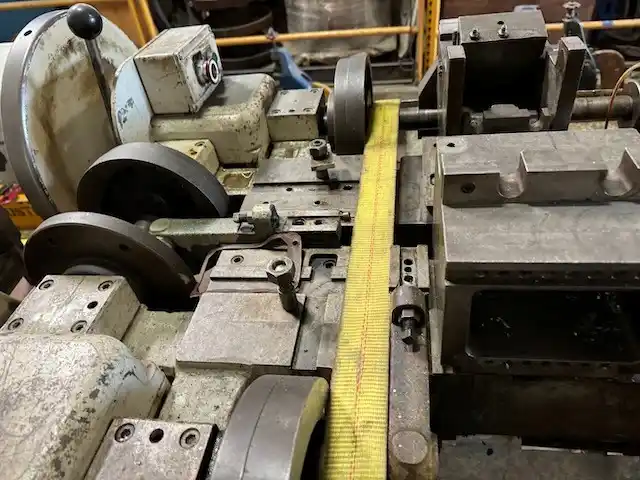

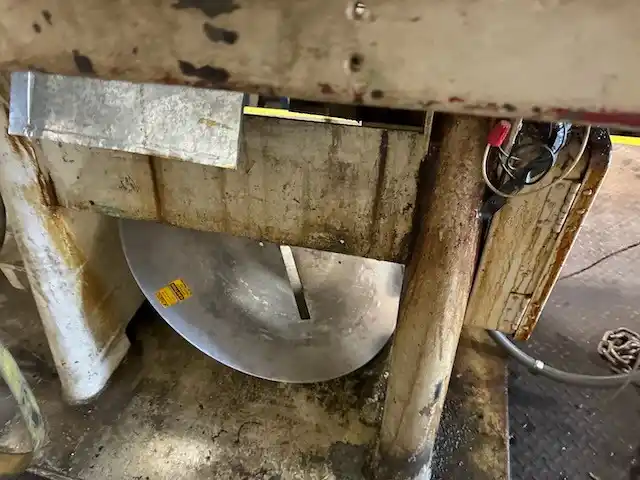

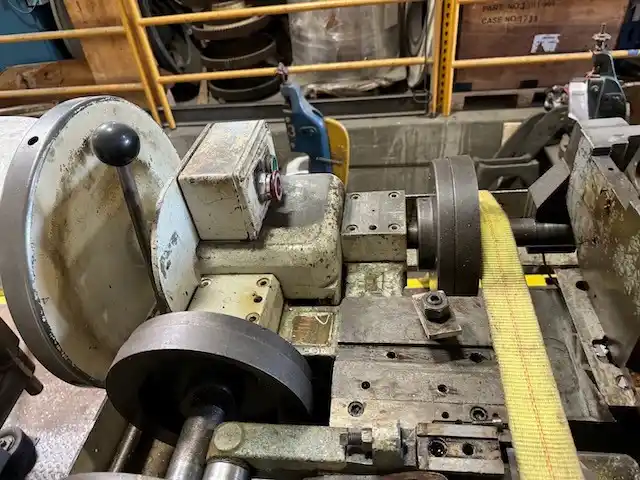

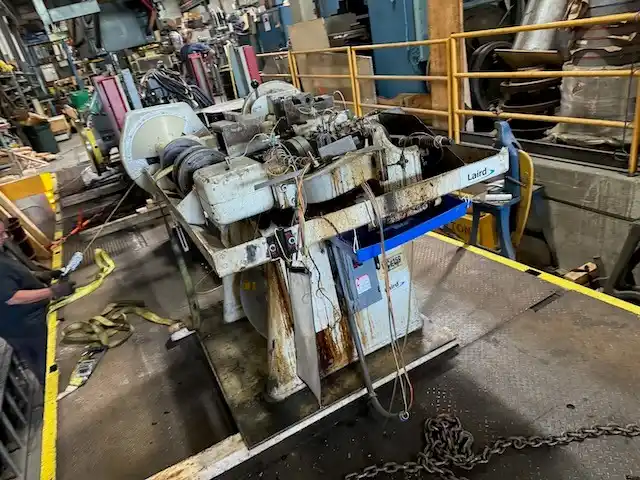

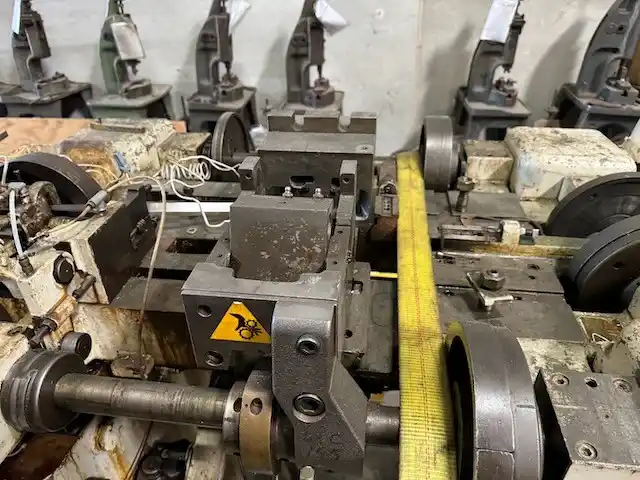

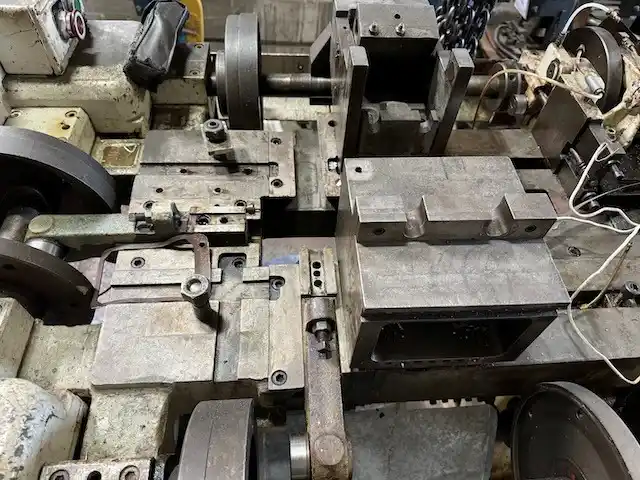

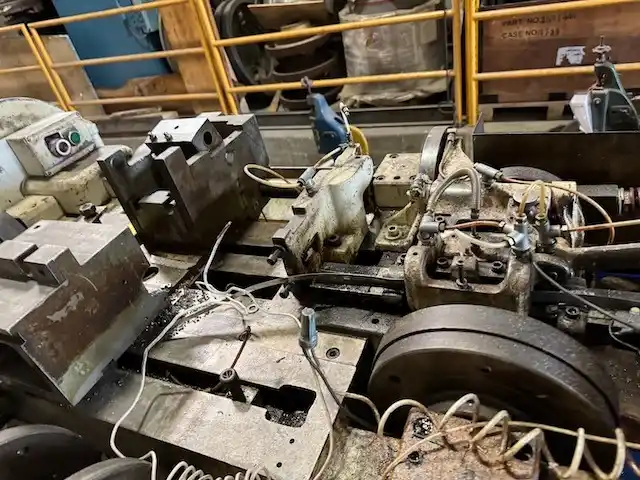

Baird RWI-1 Four-Slide
Specifications
- Maximum Wire Diameter: 3/32"
- Standard Width Coil Stock: 1-1/2"
- Roll Straightener Size: No. 2
- Maximum Feed Length: 8-1/2"
- Maximum Dia. of Ring That Can Be Set: 5/16"
- Operating Speed: 70 - 300 RPM
- Standard Stroke with Cams
- Front Slide: 1"
- Rear Slide: 1"
- Side Slides: 1-5/8"
- Vertical Motion: 57/64" to 1-21/32"
- Opening in Bed: 5-1/2" x 4-1/4"
- Diameter of Cam Shafts: 1-9/16"
- Motor Required: 1.5 hp
- Show More
- Show Less
- Maximum Wire Diameter: 2.38mm
- Standard Width Coil Stock: 38.10mm
- Roll Straightener Size: No. 2
- Maximum Feed Length: 215.90mm
- Maximum Dia. of Ring That Can Be Set: 7.94mm
- Operating Speed: 70 - 300 RPM
- Standard Stroke with Cams
- Front Slide: 25.40mm
- Rear Slide: 25.40mm
- Side Slides: 41.28mm
- Vertical Motion: 22.62mm to 42.07mm
- Opening in Bed: 139.70mm x 107.95mm
- Diameter of Cam Shafts: 39.69mm
- Motor Required: 1.12 kw
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: LAKE FOREST, IL
- Disclaimer: Preliminary Specifications....
