Inventory # 47677 Year: 2015

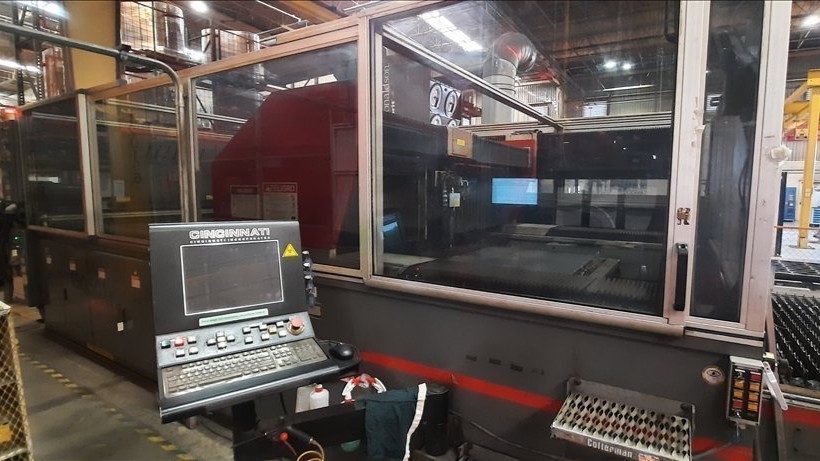

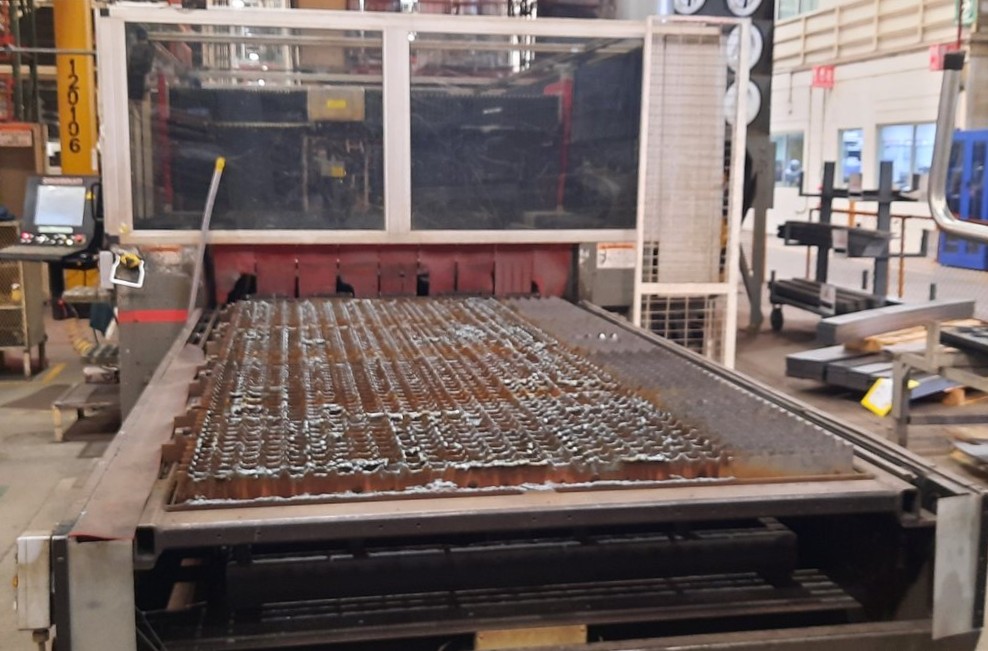

** ITEM IS SOLD - if you are looking for a similar item OR have a similar item to sell please contact us Phone 847-427-3333 or email scott@perfectionglobal.com Cincinnati CL-440 CO2 CNC Laser Cutting System
Specifications
- Rated Power: 4,000 W
- Table Size: 5' x 10'
- Max. Workpiece Thickness (For Clamping): .63"
- Max. Workpiece Dimensions (X x Y): 120" x 60"
- Table Load Capacity: 2,292 lb.
- Absolute Positioning (X & Y): +/- 0.001"
- Repeatability (X & Y): .001"
- Rapid Traverse Speed (X & Y): 8500 IPM
- Rapid Traverse Speed (Z): 1700 IPM
- Show More
- Show Less
- Rated Power: 4,000 W
- Table Size: 1524.00mmx3048.00mm
- Max. Workpiece Thickness (For Clamping): 16.00mm
- Max. Workpiece Dimensions (X x Y): 3048.00mm x 1524.00mm
- Table Load Capacity: 2,292 lb.
- Absolute Positioning (X & Y): +/- 0.03mm
- Repeatability (X & Y): 0.03mm
- Rapid Traverse Speed (X & Y): 215.90 m/min
- Rapid Traverse Speed (Z): 43.18 m/min
- Show More
- Show Less
Equipped With
- Cincinnati PC CNC Control HMI
- Donaldson Torit Dust Collector

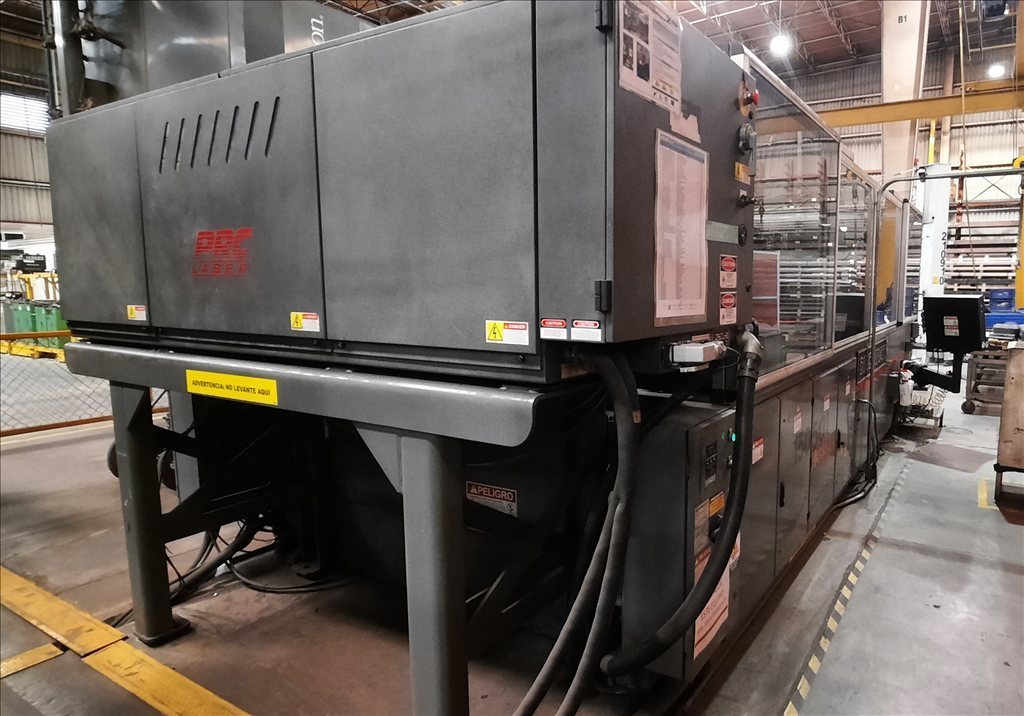

- PRC PLS4000 Resonator
- Chiller Dimplex Thermal Solutions
- Class IIIA Semiconductor Alignment Laser
- Show More
- Show Less
- Cincinnati PC CNC Control HMI
- Donaldson Torit Dust Collector
- PRC PLS4000 Resonator
- Chiller Dimplex Thermal Solutions
- Class IIIA Semiconductor Alignment Laser
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
