Inventory # 46680 Year: 2004

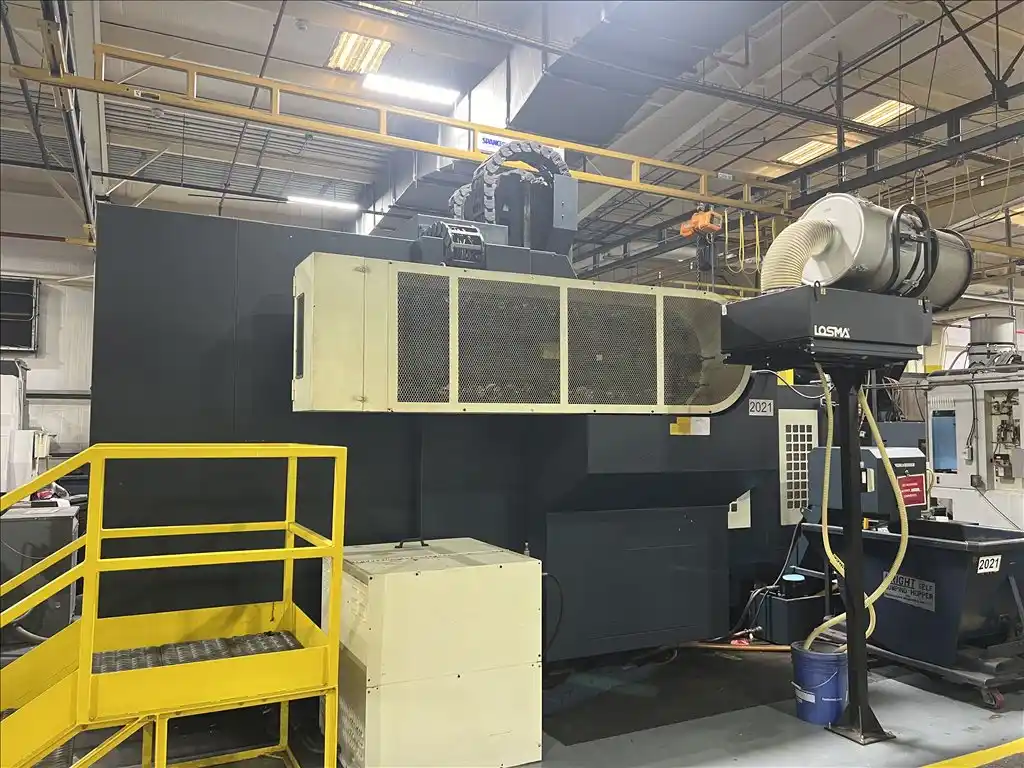

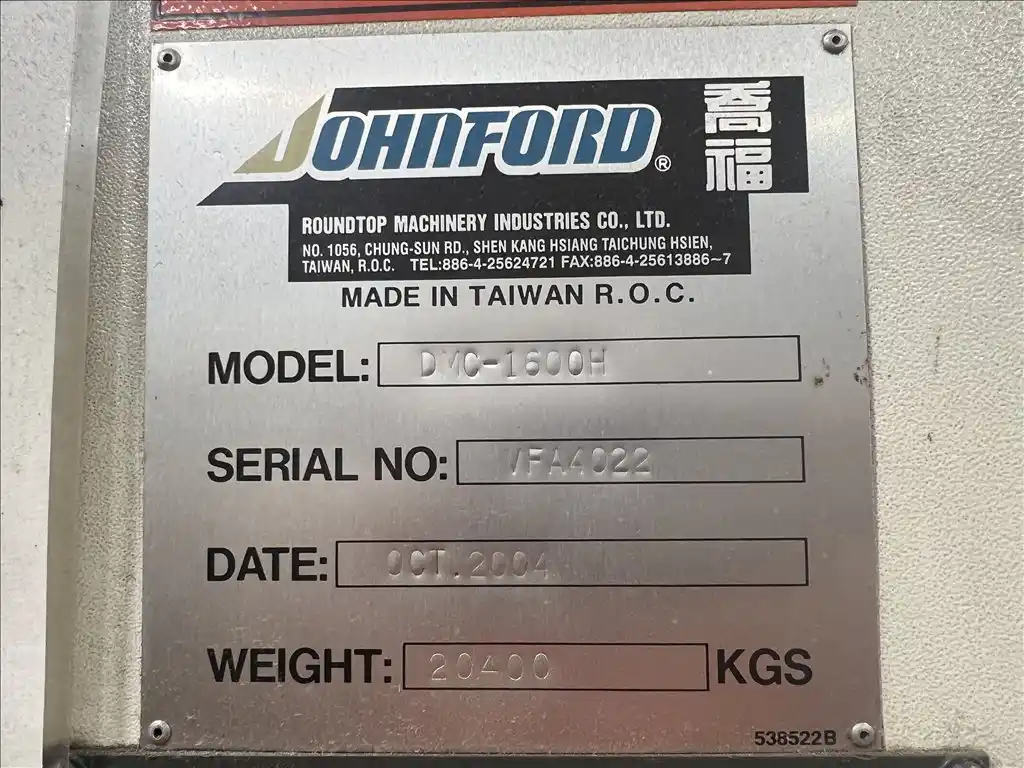

Johnford DMC-1600H Double Column Machining Center

Request a Quote
Measurement

Specifications
  • X-Axis Travel: 63"
  • Y-Axis Travel: 51"
  • Z-Axis Travel: 31.5"
  • Table to Spindle: 5.9" Min - 37.4" Max
  • Distance Between Columns: 53"
  • Table Working Surface: 43" x 66"
  • Max. Workload on Table: 13200 lbs

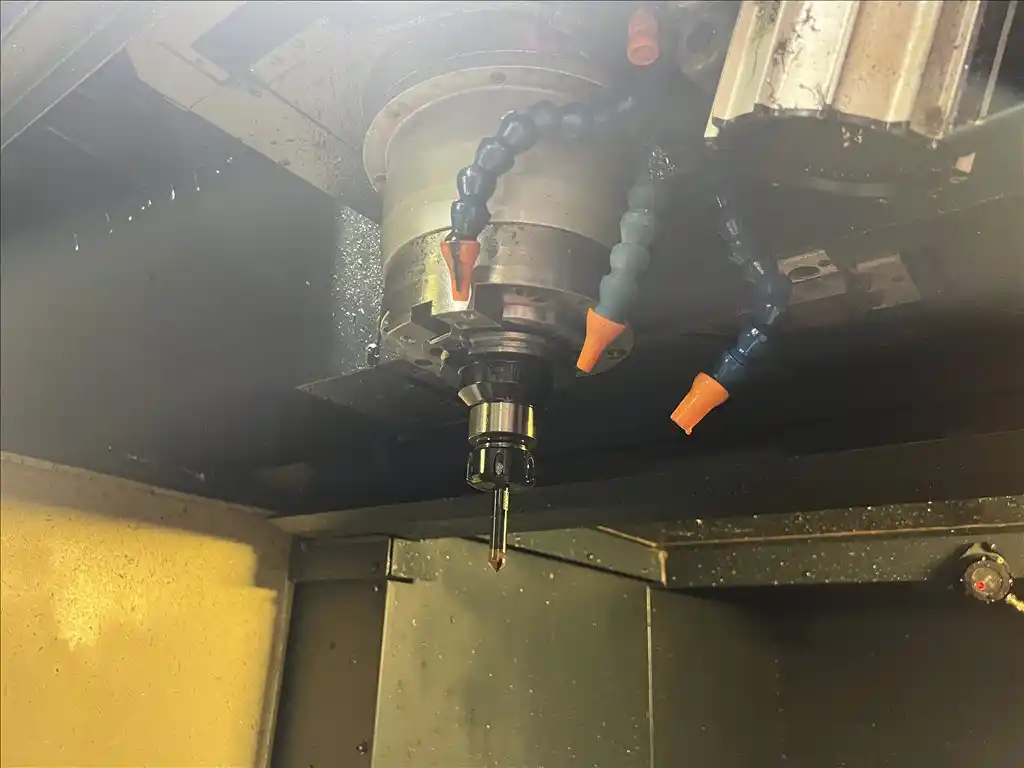

  • Spindle Taper: CAT 50
  • Spindle Speed: 0 - 6,000 RPM
  • Spindle Motor: 35 HP

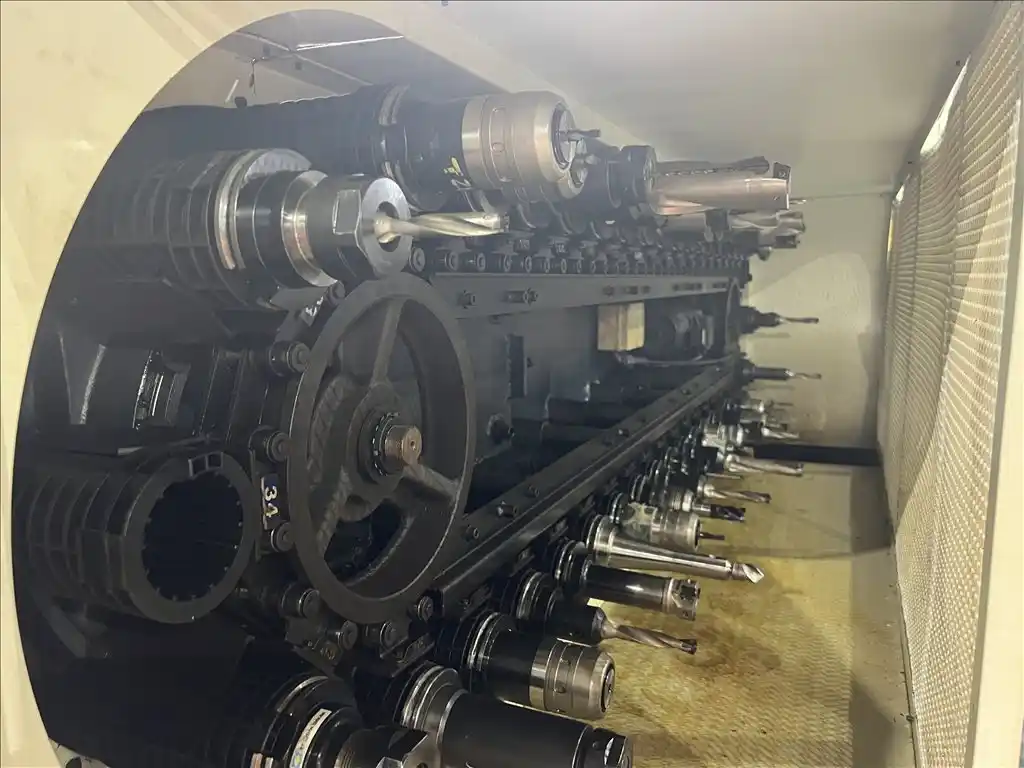

  • Number of Tools: 40-ATC
  • Max. Tool Diameter: 5.3" w/ Adjacent Tools
  • Max. Tool Length: 15.7"
  • Rapid Traverse Rate:
  • X-Axis: 590 IPM
  • Y-Axis: 590 IPM
  • Z-Axis: 472 IPM
  • Cutting Feed Rate: .01 IPM - 394 IPM
  • Spindle Coolant Pressure: 1000 PSI
  • Coolant Tank Capacity: 120 Gallon
  • Show More
  • Show Less
  • X-Axis Travel: 1600 mm
  • Y-Axis Travel: 1295 mm
  • Z-Axis Travel: 800 mm
  • Table to Spindle: 150 mm Min - 950 mm Max
  • Distance Between Columns: 1346 mm
  • Table Working Surface: 1090 mm x 1676 mm
  • Max. Workload on Table: 5986 kg
  • Spindle Taper: CAT 50
  • Spindle Speed: 0 - 6,000 RPM
  • Spindle Motor: 26 kw
  • Number of Tools: 40-ATC
  • Max. Tool Diameter: 134 mm w/ Adjacent Tools
  • Max. Tool Length: 398 mm
  • Rapid Traverse Rate:
  • X-Axis: 249.77 mm/sec
  • Y-Axis: 249.77 mm/sec
  • Z-Axis: 199.81 mm/sec
  • Cutting Feed Rate: 0.25 mm/sec - 166 mm/sec
  • Spindle Coolant Pressure: 70.30 kgs./sq.cm.
  • Coolant Tank Capacity: 454 liters
  • Show More
  • Show Less
Equipped With

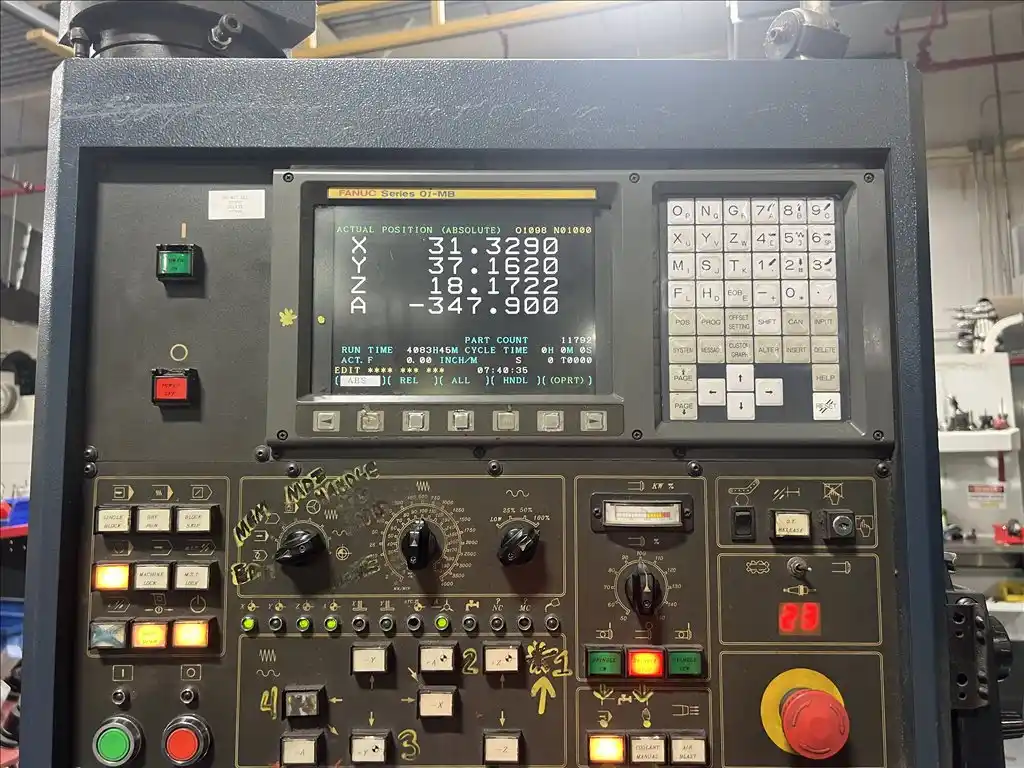

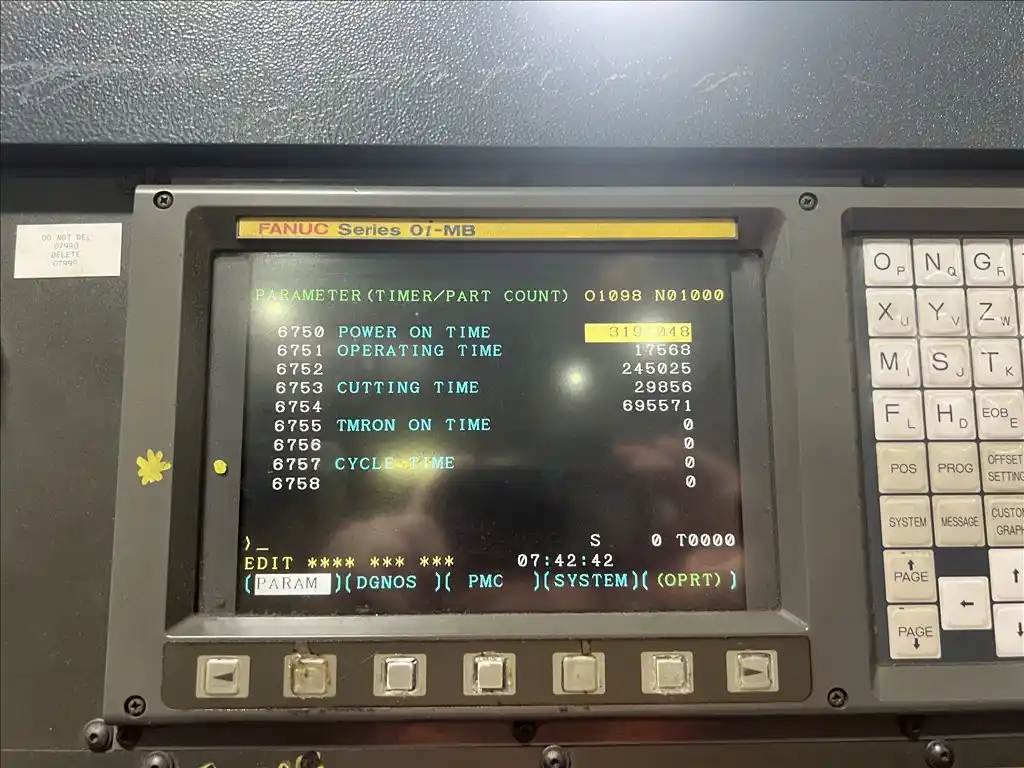

  • FANUC 0iM-B CNC Control

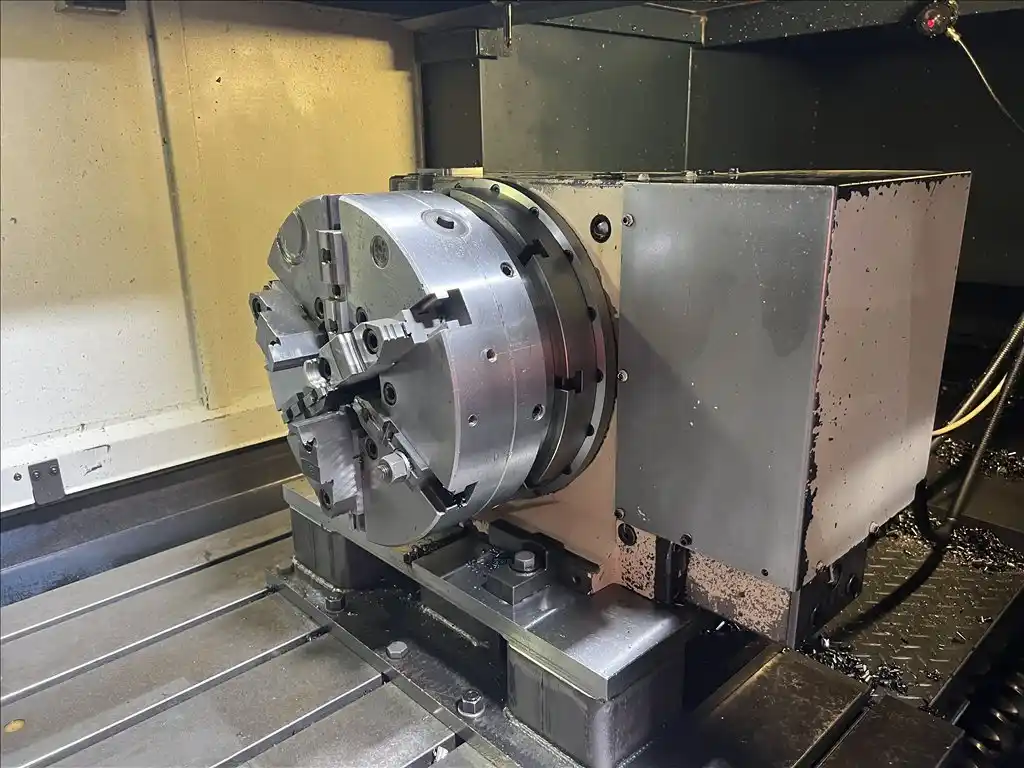

  • 18" 4th Axis Rotary Table
  • Flood Coolant System w/ Programmable Air Blast
  • Air Blast for Spindle

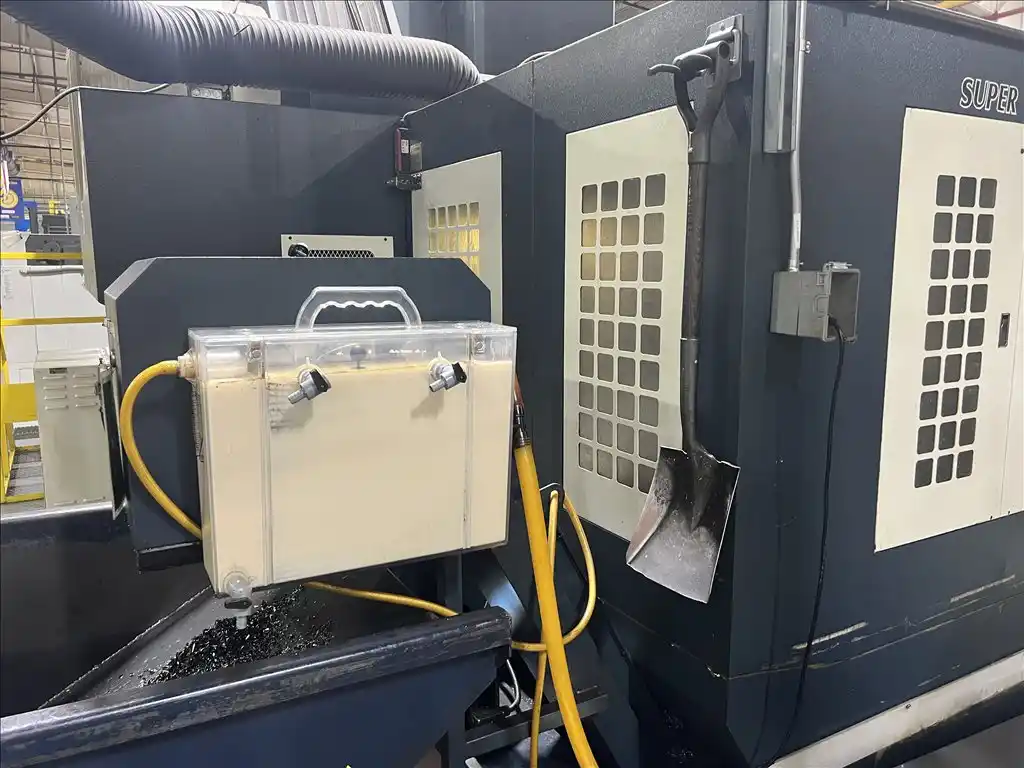

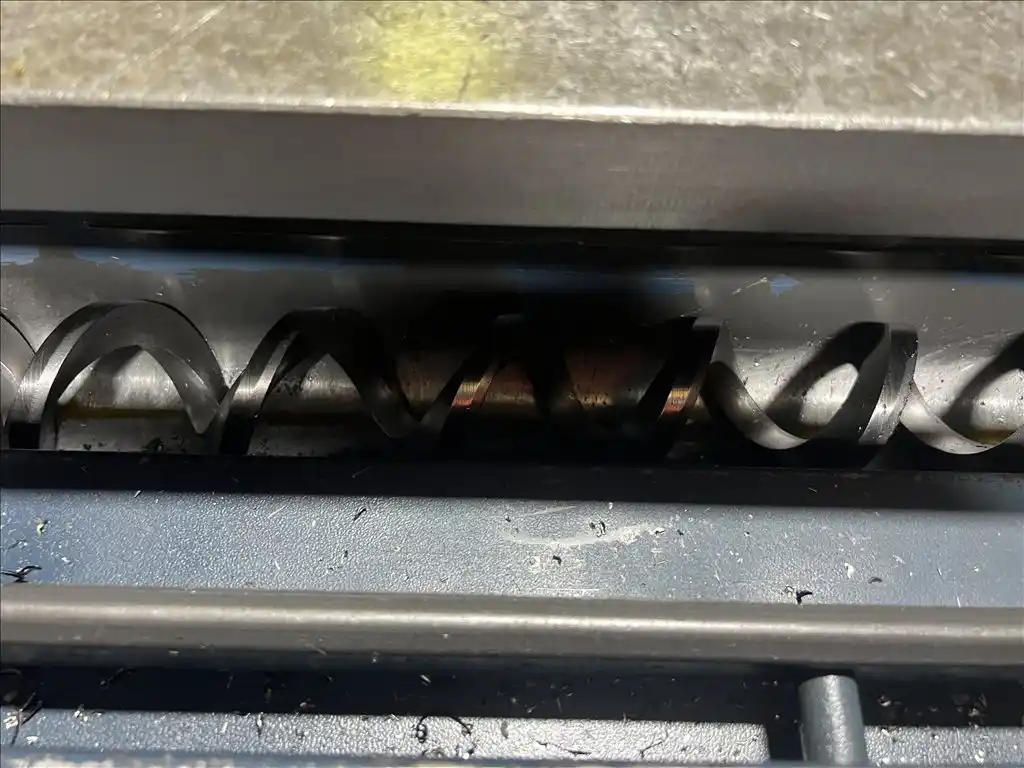

  • Chip Conveyor
  • Hydraulic Counterbalance for Headstock

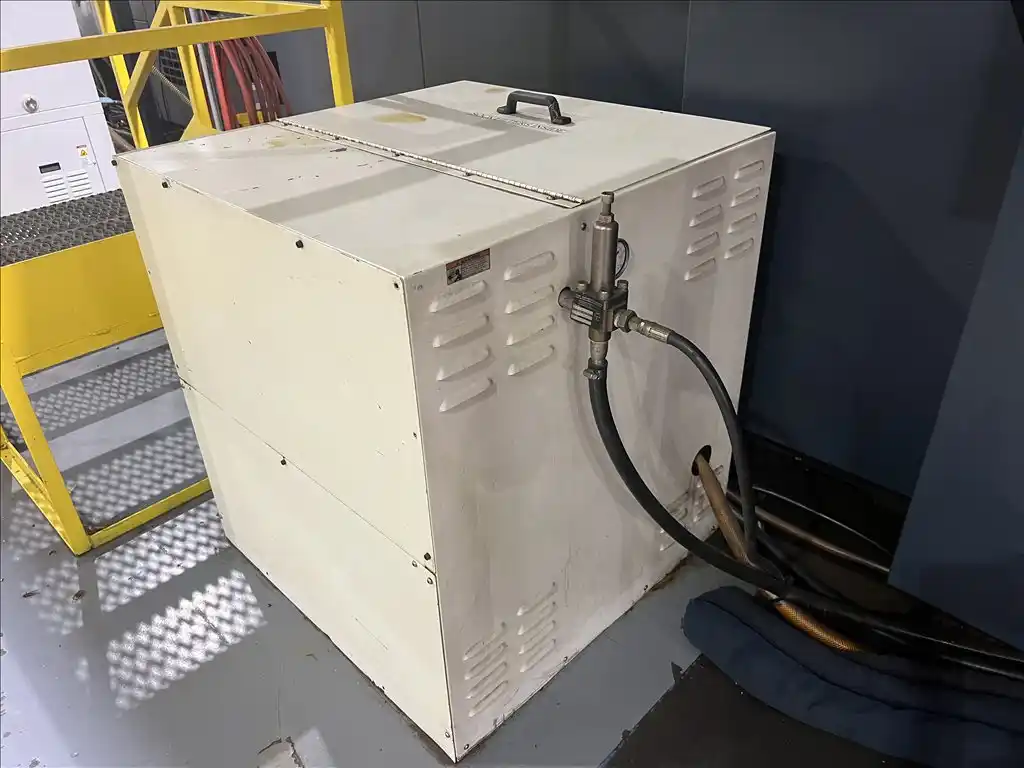

  • High Pressure Coolant Through Spindle

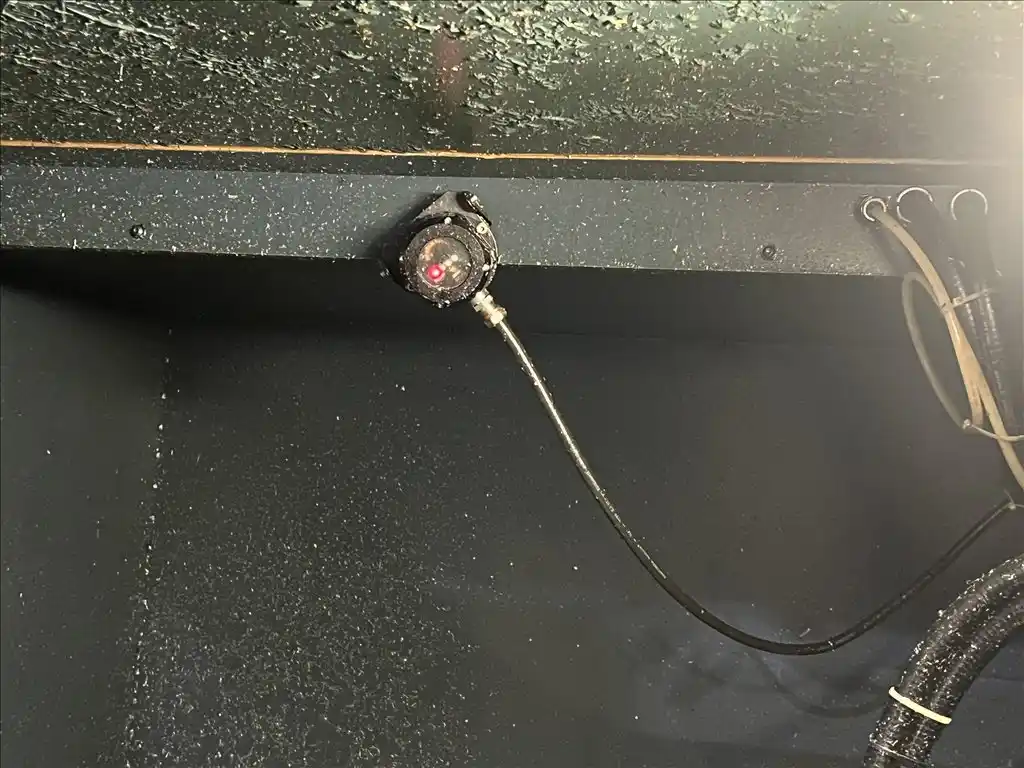

  • Renishaw Probing w/ Tool Probe
  • Mist Collector
  • Show More
  • Show Less
  • FANUC 0iM-B CNC Control
  • 457.20mm 4th Axis Rotary Table
  • Flood Coolant System w/ Programmable Air Blast
  • Air Blast for Spindle
  • Chip Conveyor
  • Hydraulic Counterbalance for Headstock
  • High Pressure Coolant Through Spindle
  • Renishaw Probing w/ Tool Probe
  • Mist Collector
  • Show More
  • Show Less
Location & Terms
  • Terms: As Is, Where Is
  • Location: Fort Worth, TX
  • Disclaimer: Preliminary Specifications....
