Inventory # 44305 Year: 2016

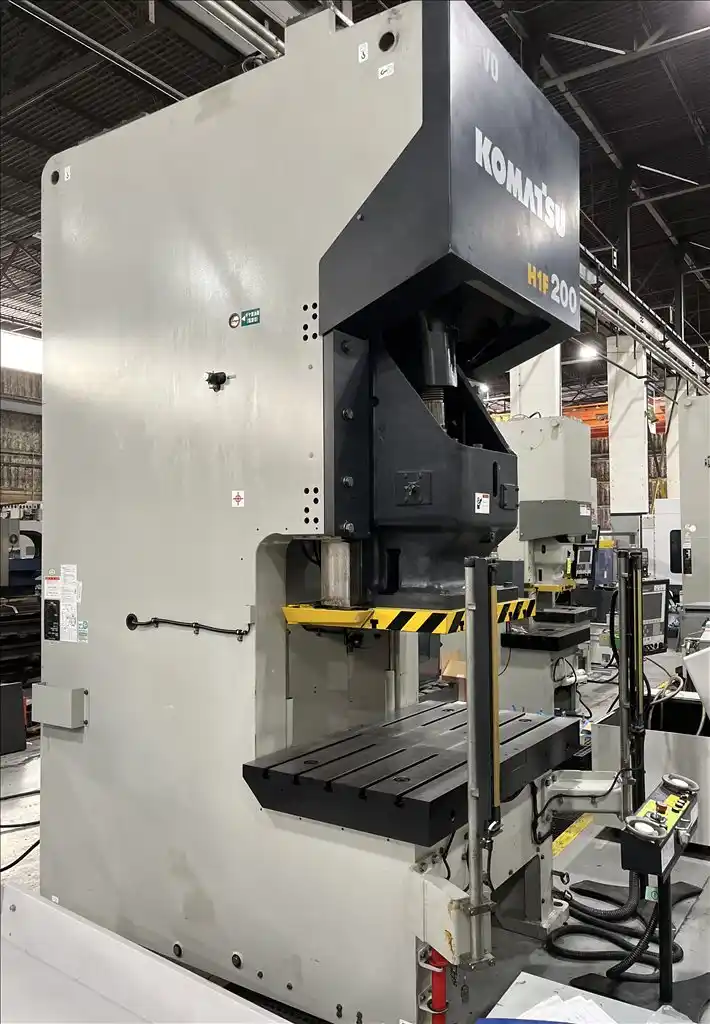

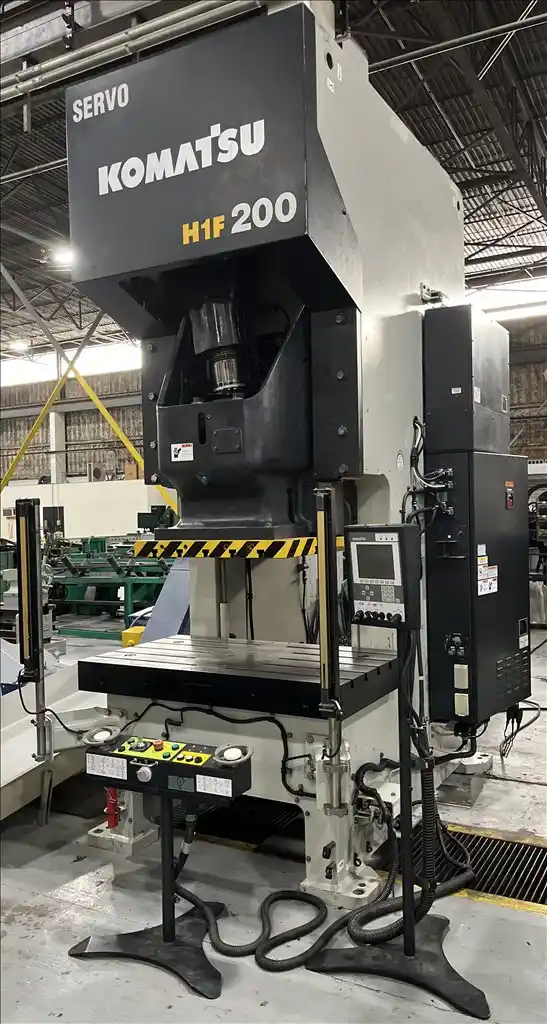

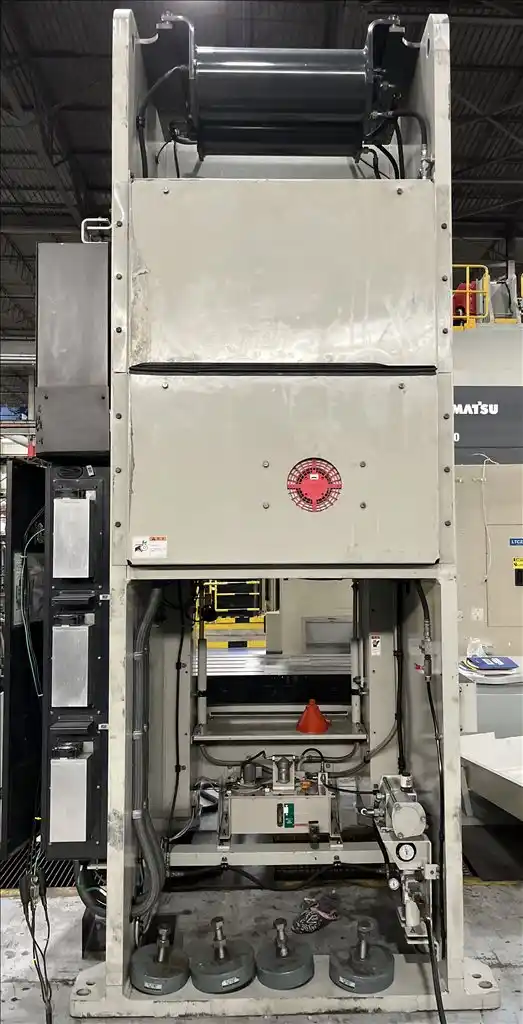

Komatsu H1F200-2CK3 Gap Frame Servo Press

Request a Quote
Measurement

Specifications
  • Capacity
  • Tonnage: 220 Ton
  • Rating Point, Above BDC: 0.24"
  • Working Energy: 36 kJ
  • Shut Height (Over Bolster), SDAU: 18.9"
  • Strokes Per Minute (Rotation): 50 SPM
  • Strokes Per Minute (Pendulum): 124 SPM
  • Slide Tooling Capacity (Max) at 71 PSI: 2205 lbs

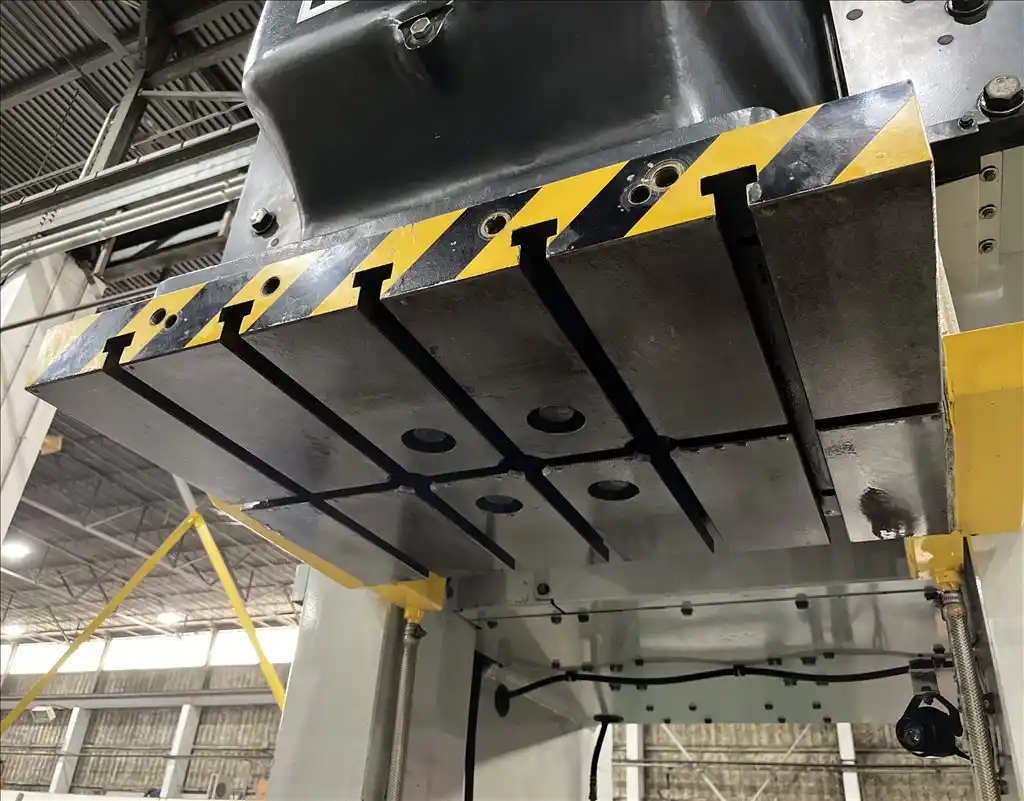

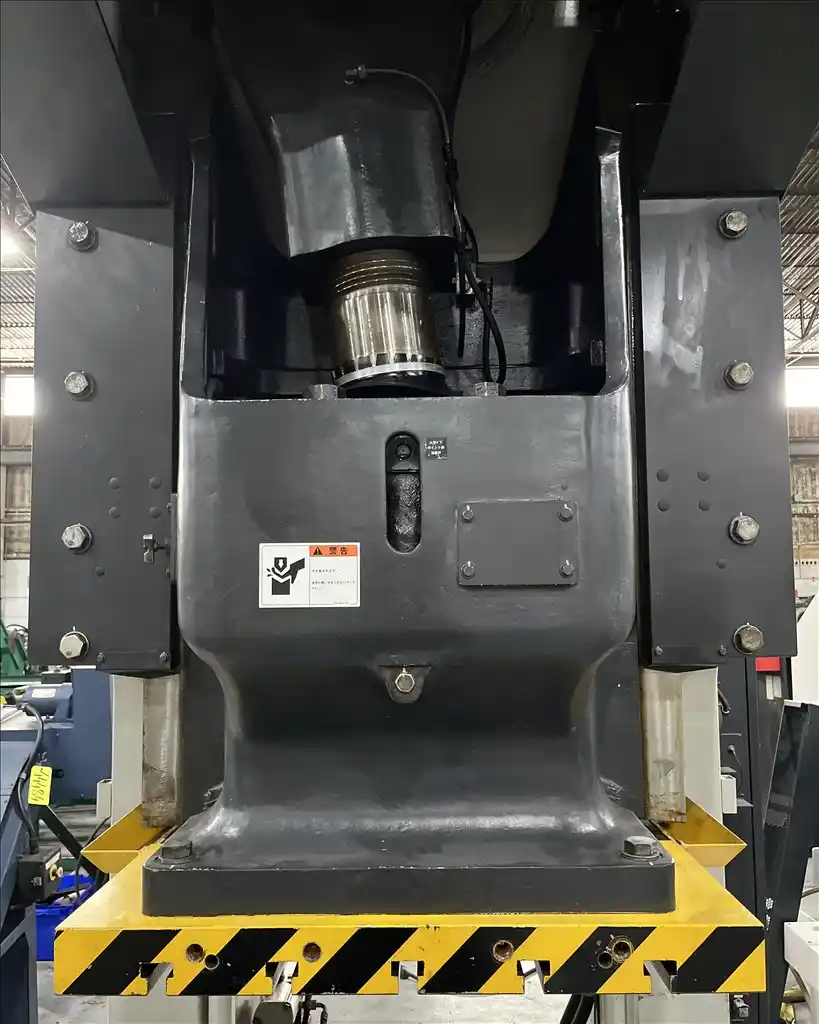

  • Slide
  • Stroke (Maximum - Rotation Mode): 11.8"
  • Stroke (Minimum - Pendulum Mode): 1.2"
  • Adjustment: 4.7"
  • Area: 33.5" x 25.6"

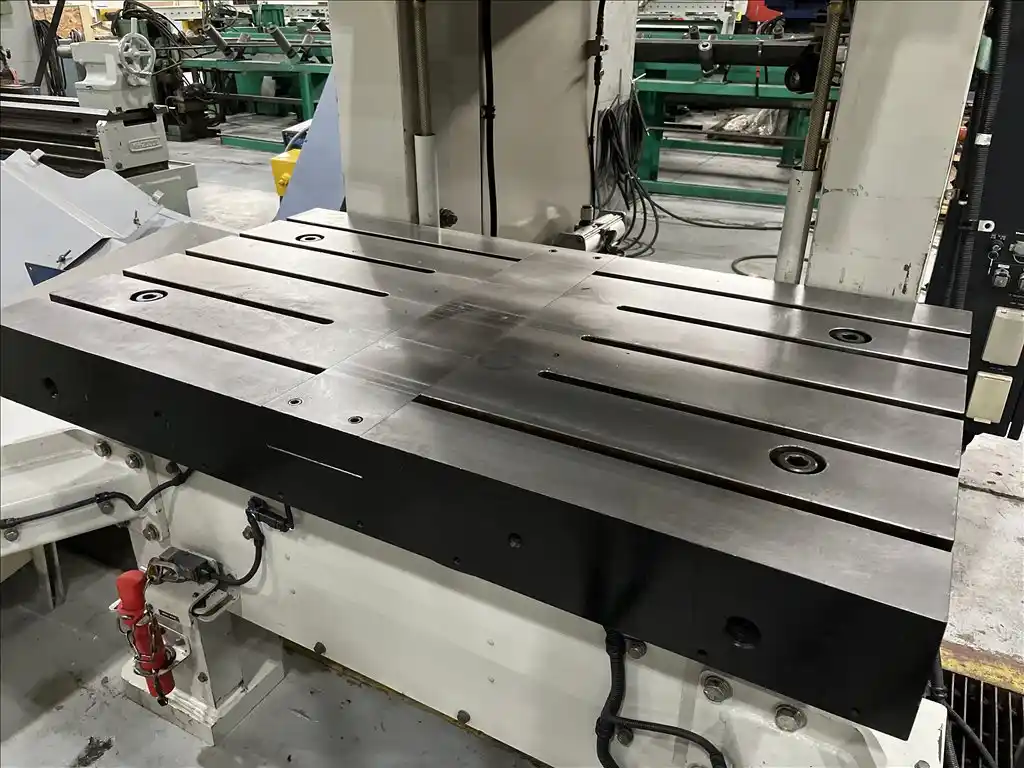

  • Bolster
  • Area: 57.1" xt 33.1"
  • Thickness: 7.1"
  • Material: Steel
  • Electrical
  • Main Motor: 80 HP
  • Electrical: 220V, 3Ph, 60Hz
  • Compressed Air: 71 PSI
  • Show More
  • Show Less
  • Capacity
  • Tonnage: 199.56 Metric Ton
  • Rating Point, Above BDC: 6.10mm
  • Working Energy: 36 kJ
  • Shut Height (Over Bolster), SDAU: 480.06mm
  • Strokes Per Minute (Rotation): 50 SPM
  • Strokes Per Minute (Pendulum): 124 SPM
  • Slide Tooling Capacity (Max) at 4.99 kgs./sq.cm. : 999.97 kg
  • Slide
  • Stroke (Maximum - Rotation Mode): 299.72mm
  • Stroke (Minimum - Pendulum Mode): 30.48mm
  • Adjustment: 119.38mm
  • Area: 850.90mm x 650.24mm
  • Bolster
  • Area: 1450.34mm xt 840.74mm
  • Thickness: 180.34mm
  • Material: Steel
  • Electrical
  • Main Motor: 59.66 kw
  • Electrical: 220V, 3Ph, 60Hz
  • Compressed Air: 4.99 kgs./sq.cm.
  • Show More
  • Show Less
Equipped With

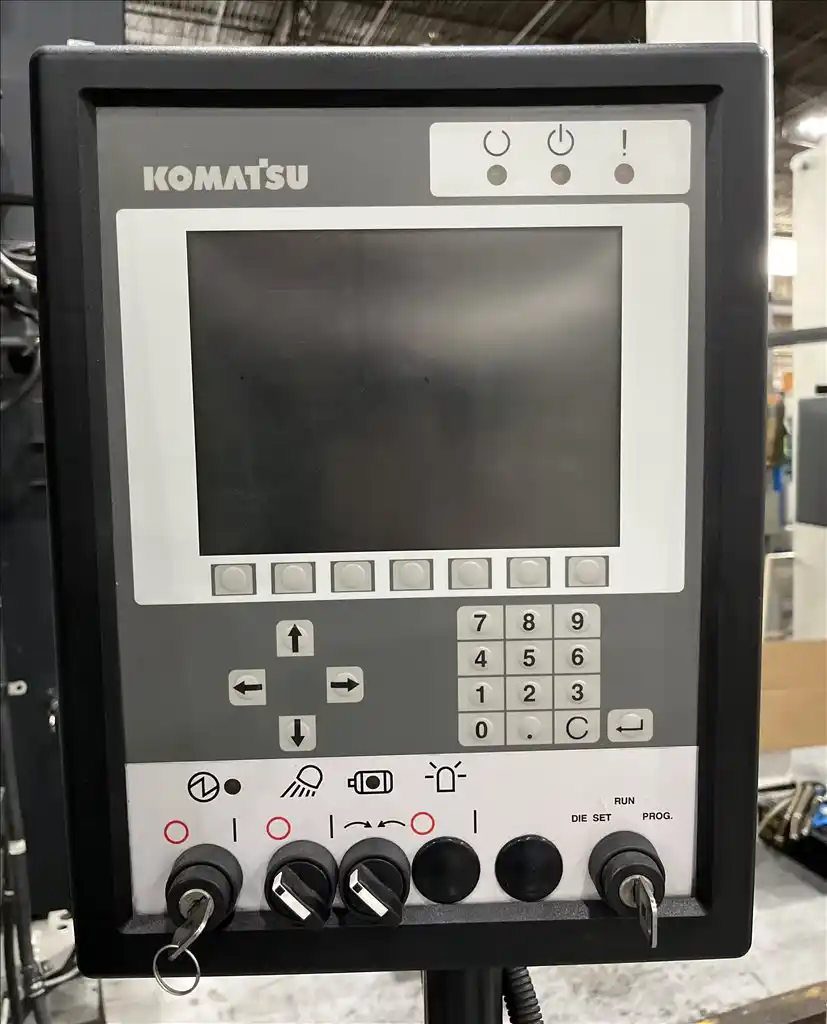

  • Advanced SIT-IV Solid State Control with Self-Checking Diagnostics

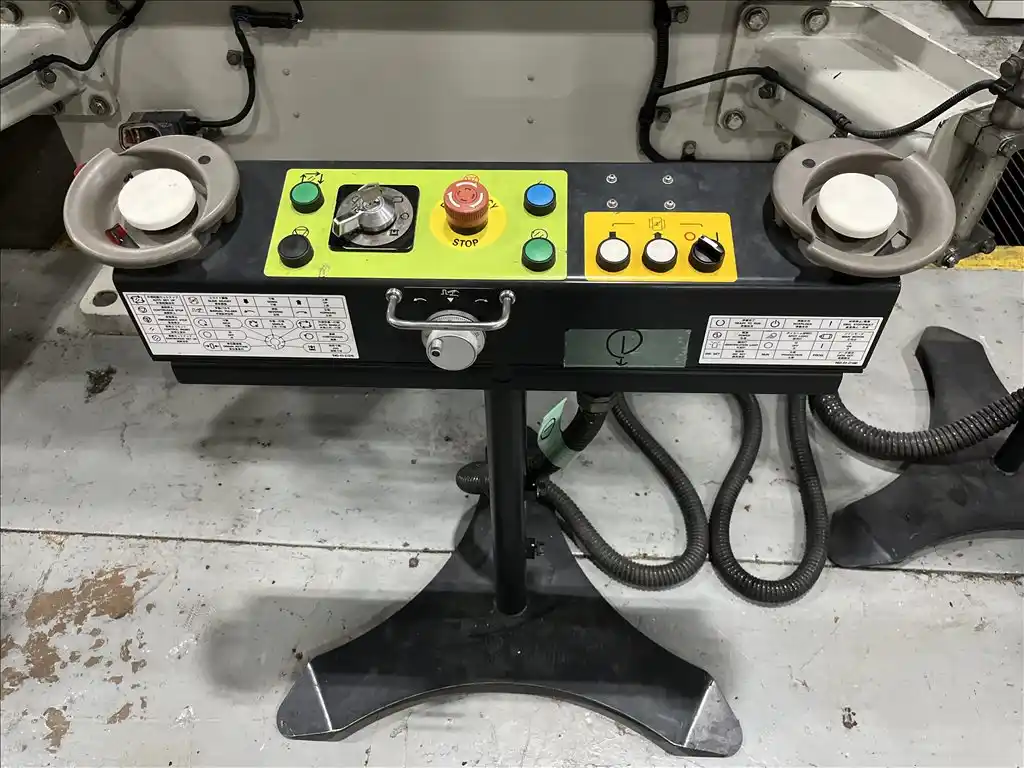

  • Operator T-Stand & Tonnage Monitor
  • Komatsu Patented Hybrid AC Servo Drive Featuring Fanuc
  • Hydraulic Overload Protection
  • Continous Recirculating Gib Lubrication
  • Six Point Gibbing
  • Motorized Slide Adjustment with Digital Displayed Die Height
  • Air Counterbalance
  • Hardened & Ground Helical Gears - Running in Oil
  • Free Motion Capability for Full Rotation or Pendulum Stroke
  • Show More
  • Show Less
  • Advanced SIT-IV Solid State Control with Self-Checking Diagnostics
  • Operator T-Stand & Tonnage Monitor
  • Komatsu Patented Hybrid AC Servo Drive Featuring Fanuc
  • Hydraulic Overload Protection
  • Continous Recirculating Gib Lubrication
  • Six Point Gibbing

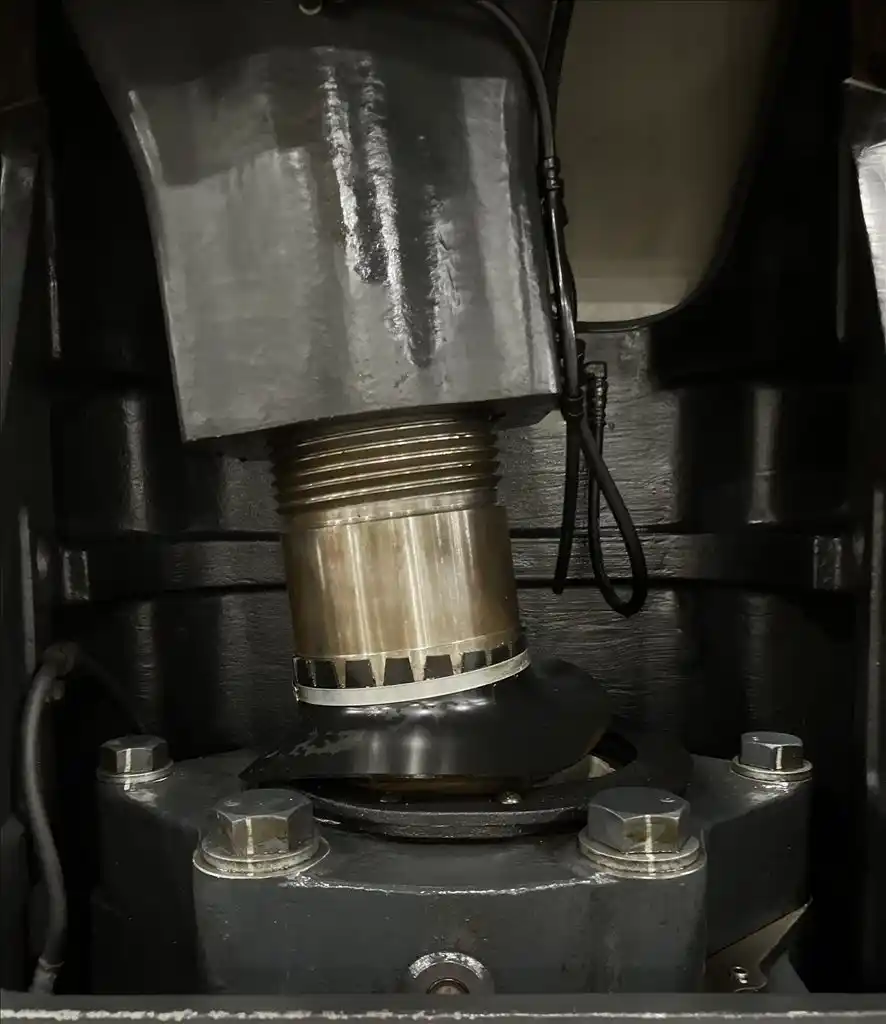

  • Motorized Slide Adjustment with Digital Displayed Die Height
  • Air Counterbalance
  • Hardened & Ground Helical Gears - Running in Oil
  • Free Motion Capability for Full Rotation or Pendulum Stroke
  • Show More
  • Show Less
Location & Terms
  • Terms: F.O.B.
  • Location: Elk Grove Village, IL
  • Disclaimer: Preliminary Specifications....
