Inventory # 44189 Year: 2022

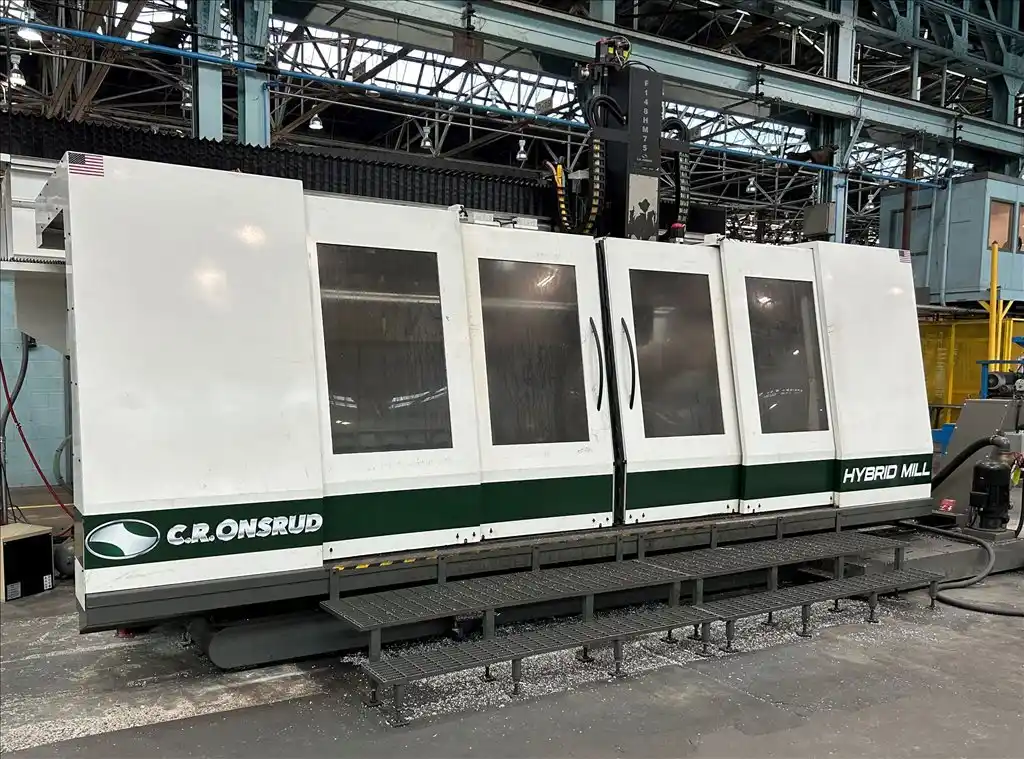

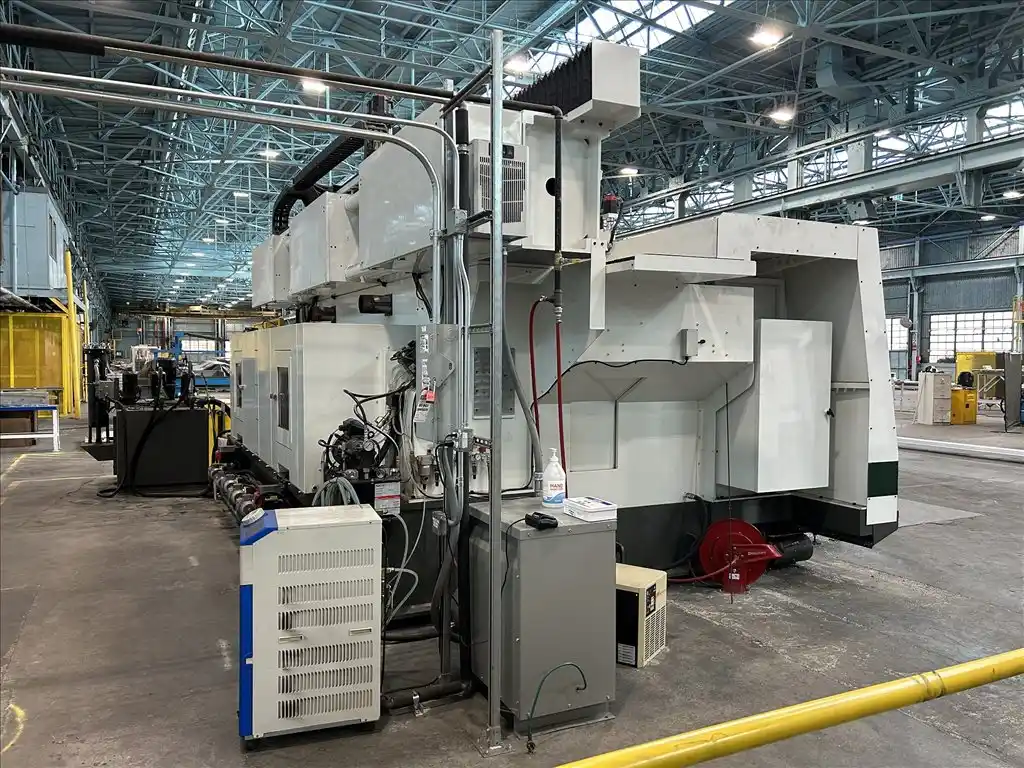

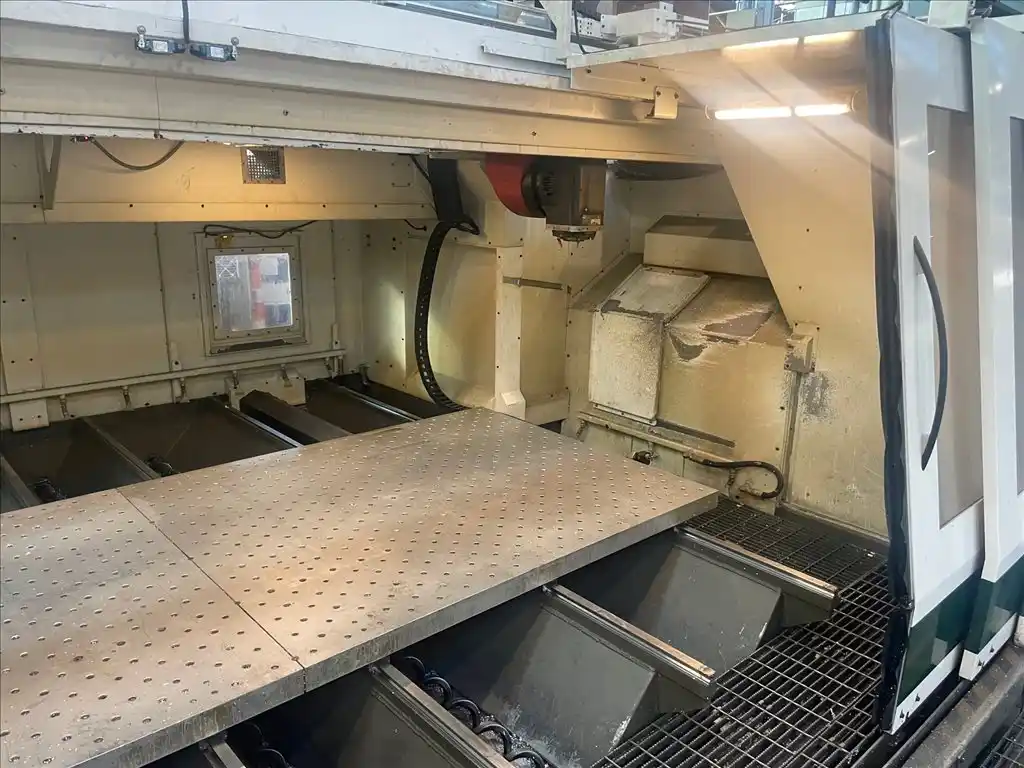

Onsrud F148HM 5-Axis High-Speed Vertical Machining Center
Specifications
- X-Axis Travel: 72"
- Y-Axis Travel: 144"
- Z-Axis Travel: 41"

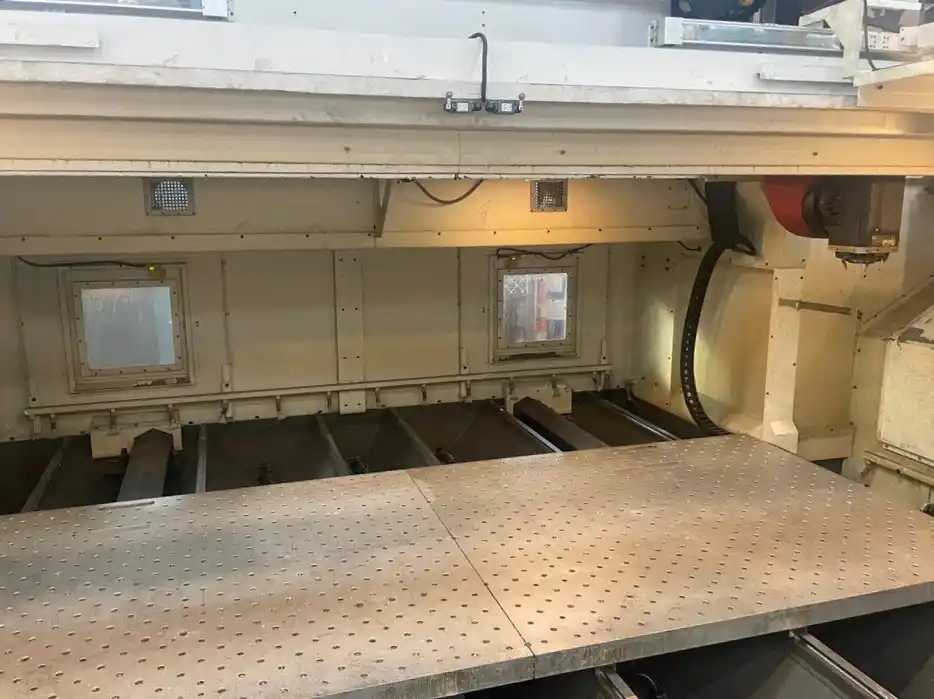

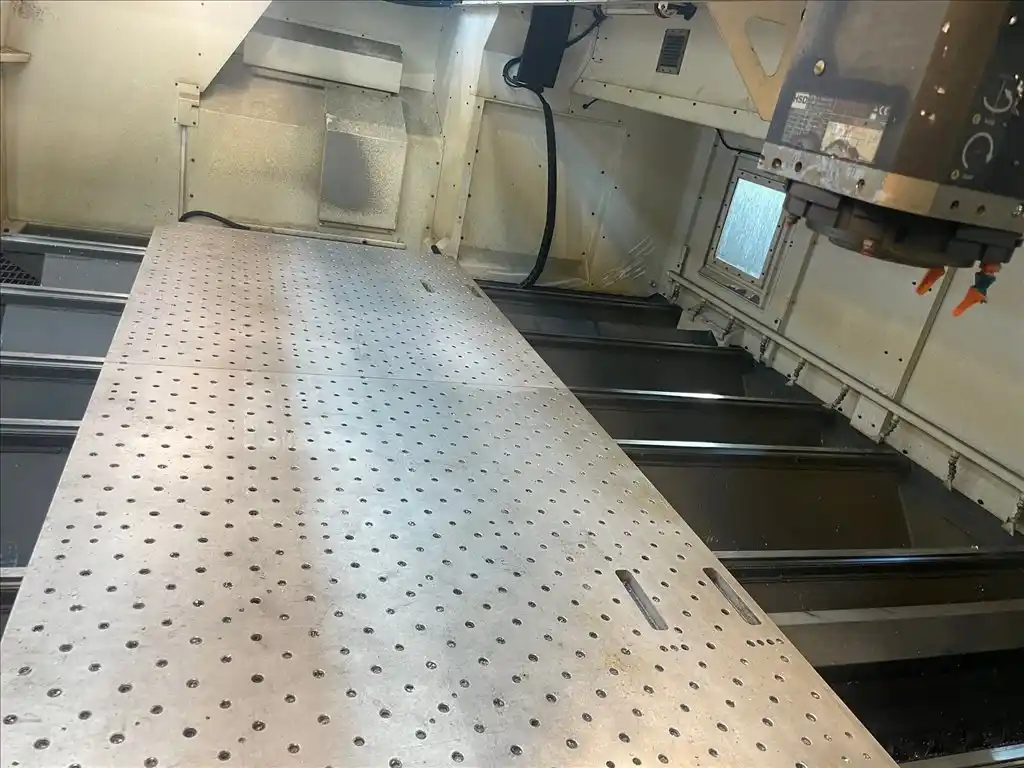

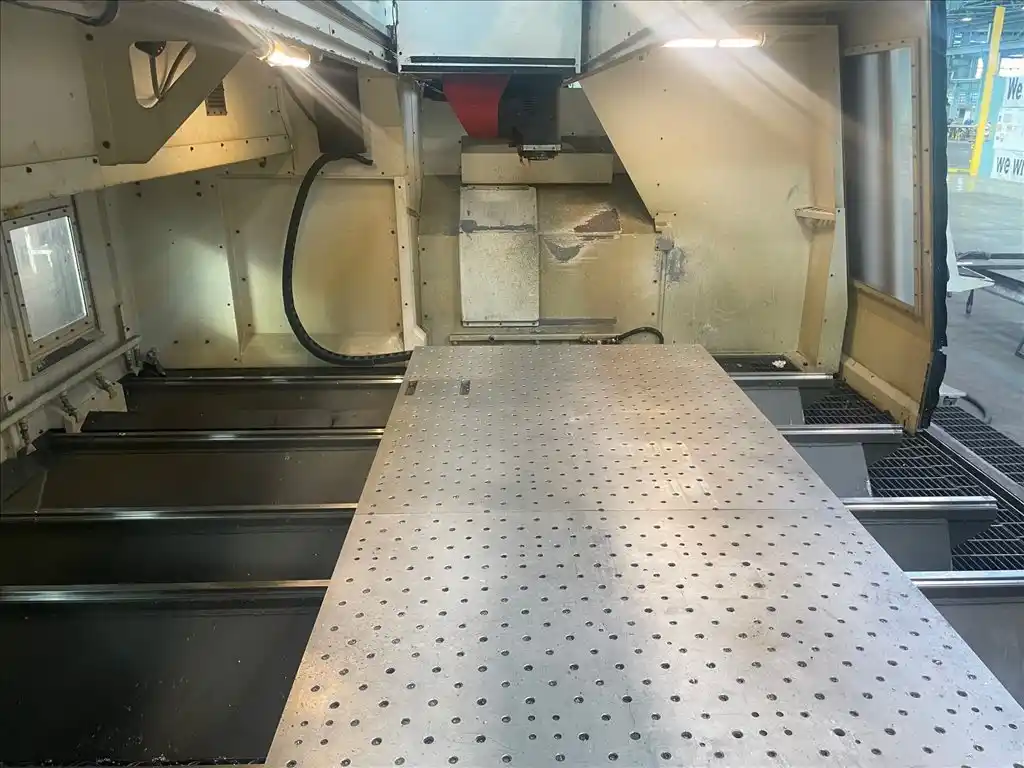

- Table: 144" x 72"
- Spindle: HSK63-A
- Spindle Speed: 24,000 RPM
- Spindle Power: 75 hp
- ATC: 24
- Spindle Tilt: +100° to -100°
- Spindle Rotation: +260° to -260°
- Machining Feed Rate: 3000 IPM
- X-Axis Rapid Traverse: 4200 IPM
- Y-Axis Rapid Traverse: 4200 IPM
- Show More
- Show Less
- X-Axis Travel: 1828.80mm
- Y-Axis Travel: 3657.60mm
- Z-Axis Travel: 1041.40mm
- Table: 3657.60mm x 1828.80mm
- Spindle: HSK63-A
- Spindle Speed: 24,000 RPM
- Spindle Power: 55.93 kw
- ATC: 24
- Spindle Tilt: +100° to -100°
- Spindle Rotation: +260° to -260°
- Machining Feed Rate: 76.20 m/min
- X-Axis Rapid Traverse: 106.68 m/min
- Y-Axis Rapid Traverse: 106.68 m/min
- Show More
- Show Less
Equipped With
- C.R. Onsrud Accessory Package 75W6

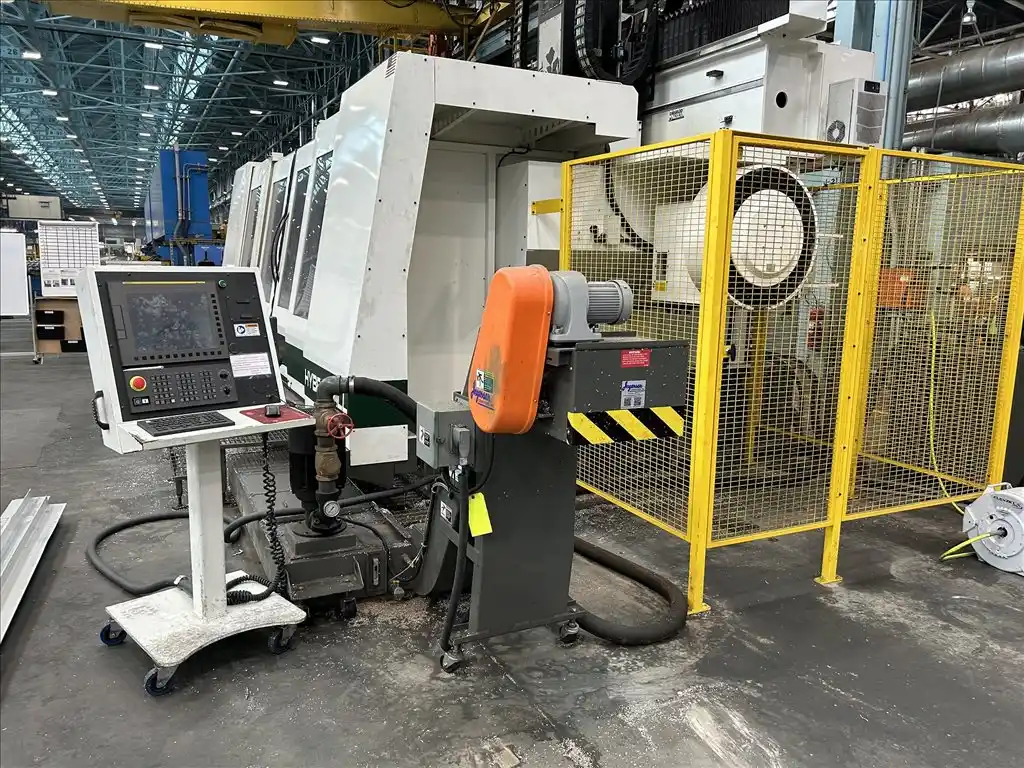

- Fanuc 31i-B5 Controller w/ Integrated PC Interface
- Fanuc HMOP Handheld Remote Jog Pendant
- Twin Table Design
- 5-Axis Laser Volumetric Compensation
- Enhanced Machine Accuracy
- Spindle Encoder Feedback for Rigid Tapping
- Roller Bearing Linear Motion All Axes
- RF Touch Probe System w/ RMI-Q RF Receiver

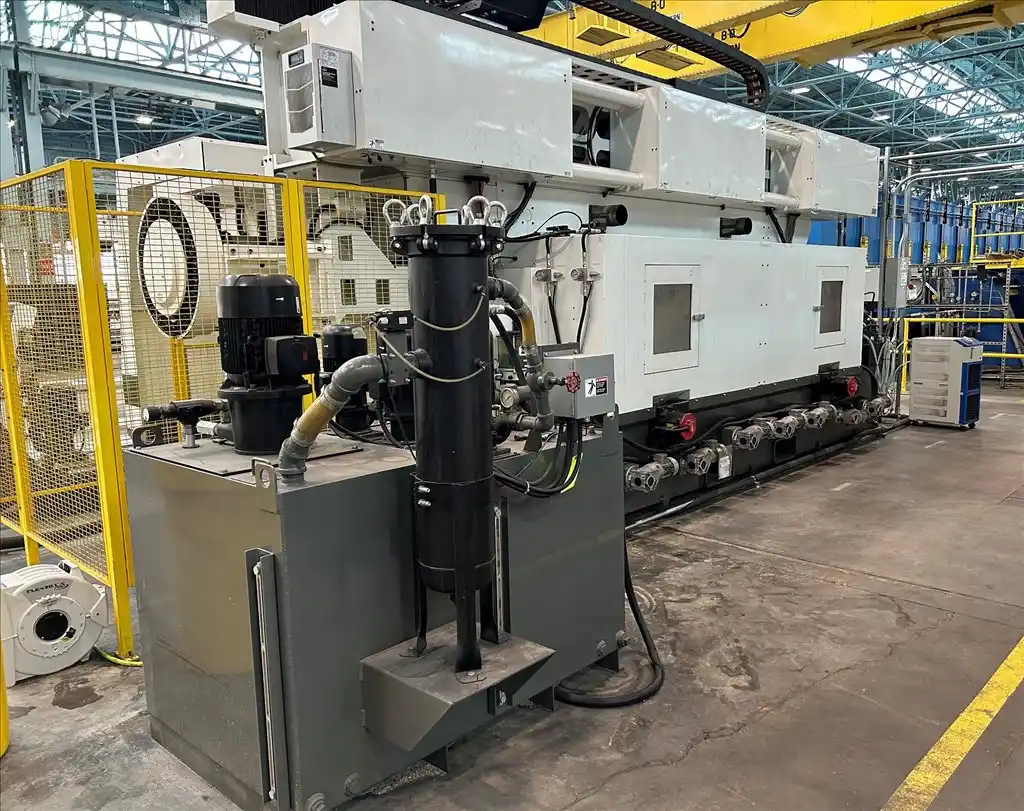

- 400 PSI Flood Coolant
- High-Capacity Chip Removal System
- Automatic Door Operation
- Automatic Lubrication System
- Air-Conditioned Electrical Cabinets
- Isolation Transformer
- Show More
- Show Less
- C.R. Onsrud Accessory Package 75W6
- Fanuc 31i-B5 Controller w/ Integrated PC Interface
- Fanuc HMOP Handheld Remote Jog Pendant
- Twin Table Design
- 5-Axis Laser Volumetric Compensation
- Enhanced Machine Accuracy
- Spindle Encoder Feedback for Rigid Tapping
- Roller Bearing Linear Motion All Axes
- RF Touch Probe System w/ RMI-Q RF Receiver
- 28.12 kgs./sq.cm. Flood Coolant
- High-Capacity Chip Removal System
- Automatic Door Operation
- Automatic Lubrication System
- Air-Conditioned Electrical Cabinets
- Isolation Transformer
- Show More
- Show Less
Location & Terms
- Terms: As Is, Where Is
- Disclaimer: Preliminary Specifications....
