Inventory # 46377 Year: 2008

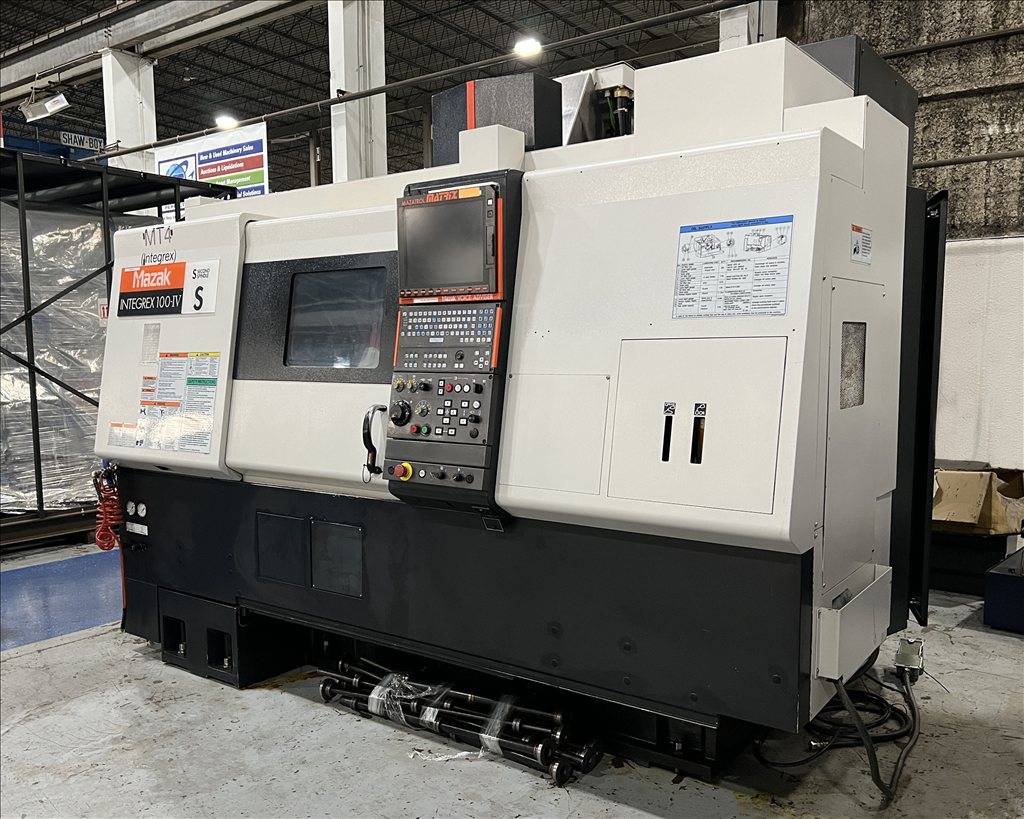

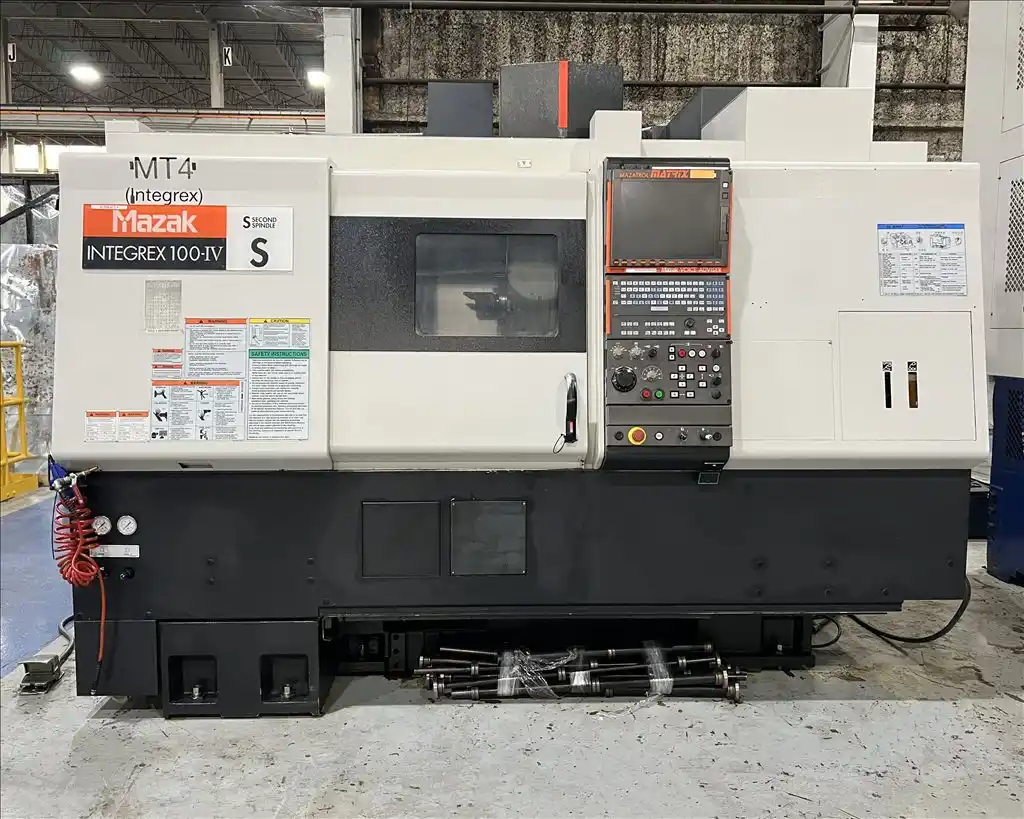

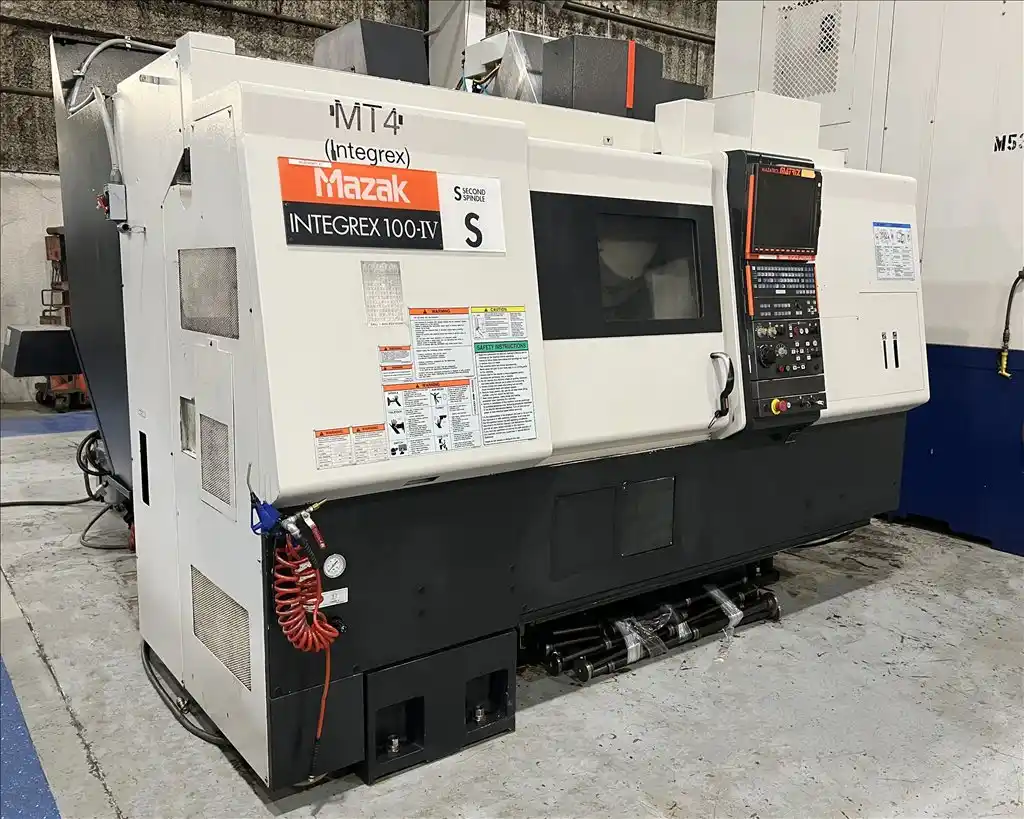

Mazak Integrex 100-IV S CNC Turning & Milling Machine
Specifications
- Maximum Swing: 21.46"
- Swing Over Cross Slide: 21.46"
- Swing During Y-Axis Process: 16.22" - 21.46"
- Maximum Machining Diameter: 21.46"
- Bar Work Capability: 2"
- Max Machining Length: 20.39"
- Maximum Support Weight (Chuck Work): 330 lbs
- Maximum Support Weight (Shaft Work): 441 lbs
- Rotating Speed: 35 - 6000 RPM
- Through-Hole Diameter: 2.4"
- Motor Output: 15 hp

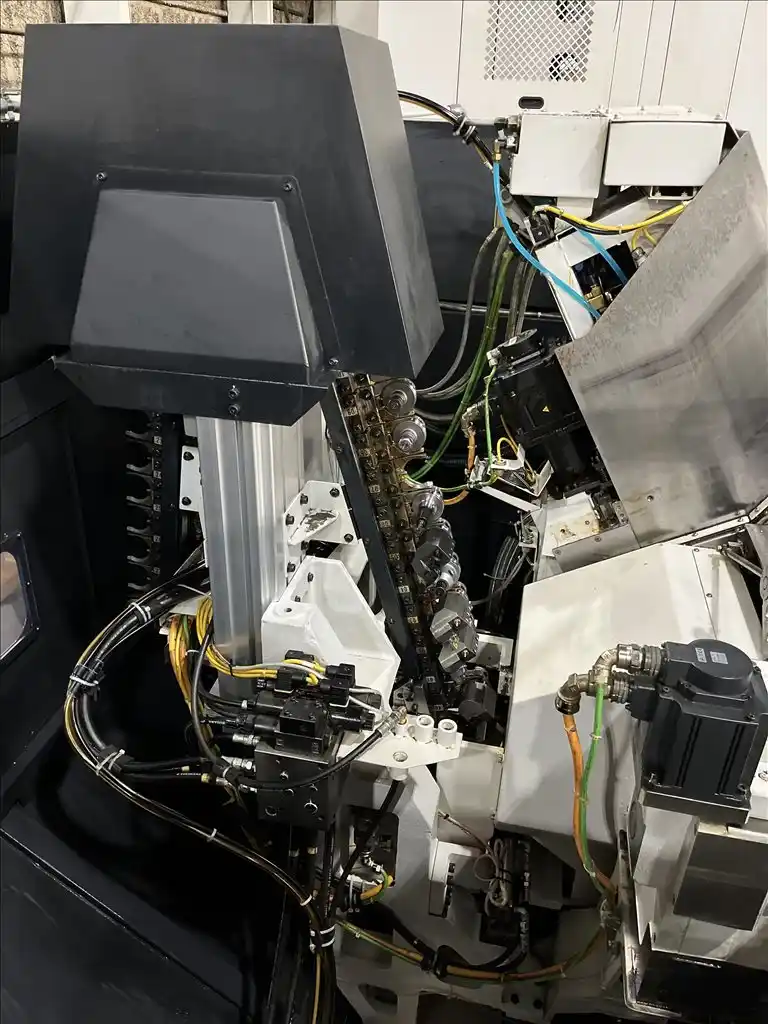

- Tool Changer: 40-ATC
- Tool Shank Type (Milling/Turning): KM63/CAPTO C6/BT40
- Milling Spindle Speed: 12,000 RPM
- Rapid Feed (X): 1181 IPM
- Rapid Feed (Z): 1299 IPM
- Rapid Feed (Y): 1023 IPM
- X-Axis: 16.14"
- Z-Axis: 22.44"
- Y-Axis: 5.51"
- Show More
- Show Less
- Maximum Swing: 545.08mm
- Swing Over Cross Slide: 545.08mm
- Swing During Y-Axis Process: 411.99mm - 545.08mm
- Maximum Machining Diameter: 545.08mm
- Bar Work Capability: 50.80mm
- Max Machining Length: 517.91mm
- Maximum Support Weight (Chuck Work): 149.66 kg
- Maximum Support Weight (Shaft Work): 199.99 kg
- Rotating Speed: 35 - 6000 RPM
- Through-Hole Diameter: 60.96mm
- Motor Output: 11.19 kw
- Tool Changer: 40-ATC
- Tool Shank Type (Milling/Turning): KM63/CAPTO C6/BT40
- Milling Spindle Speed: 12,000 RPM
- Rapid Feed (X): 499.96 mm/sec
- Rapid Feed (Z): 549.91 mm/sec
- Rapid Feed (Y): 433.07 mm/sec
- X-Axis: 409.96mm
- Z-Axis: 569.98mm
- Y-Axis: 139.95mm
- Show More
- Show Less
Equipped With

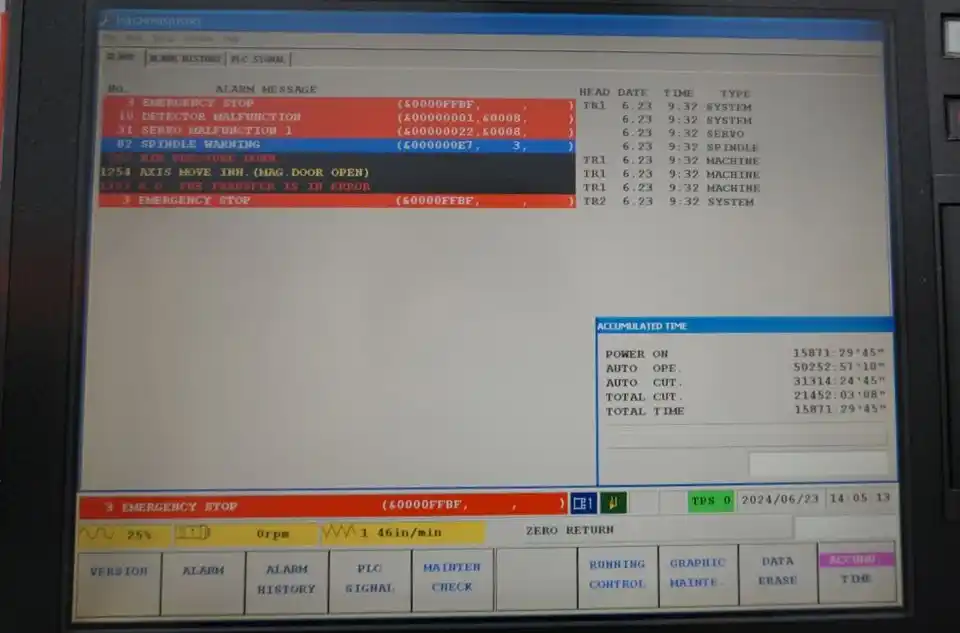

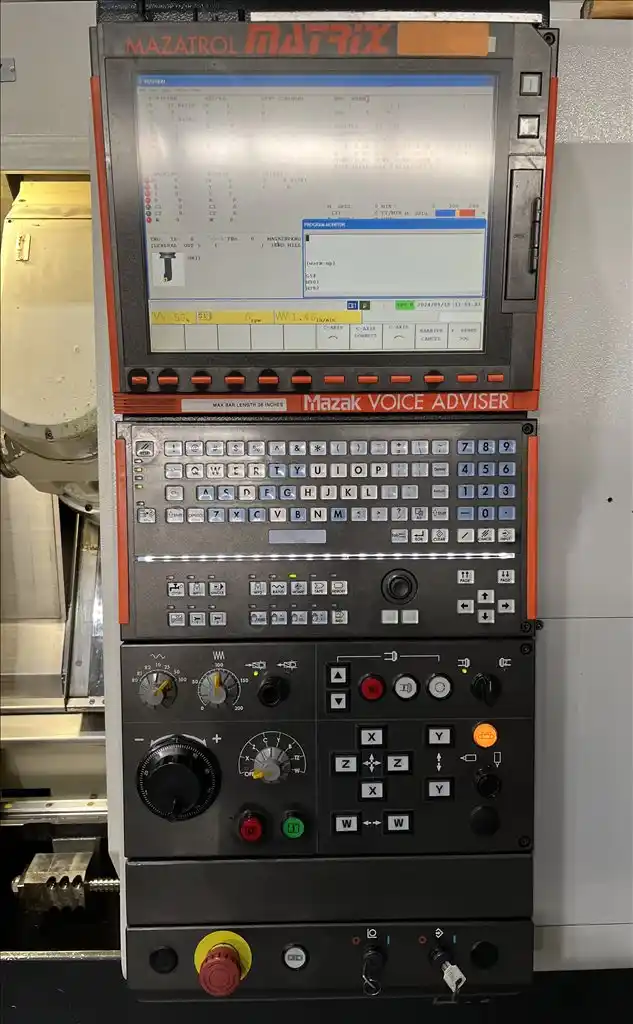

- Mazatrol Matrix Control

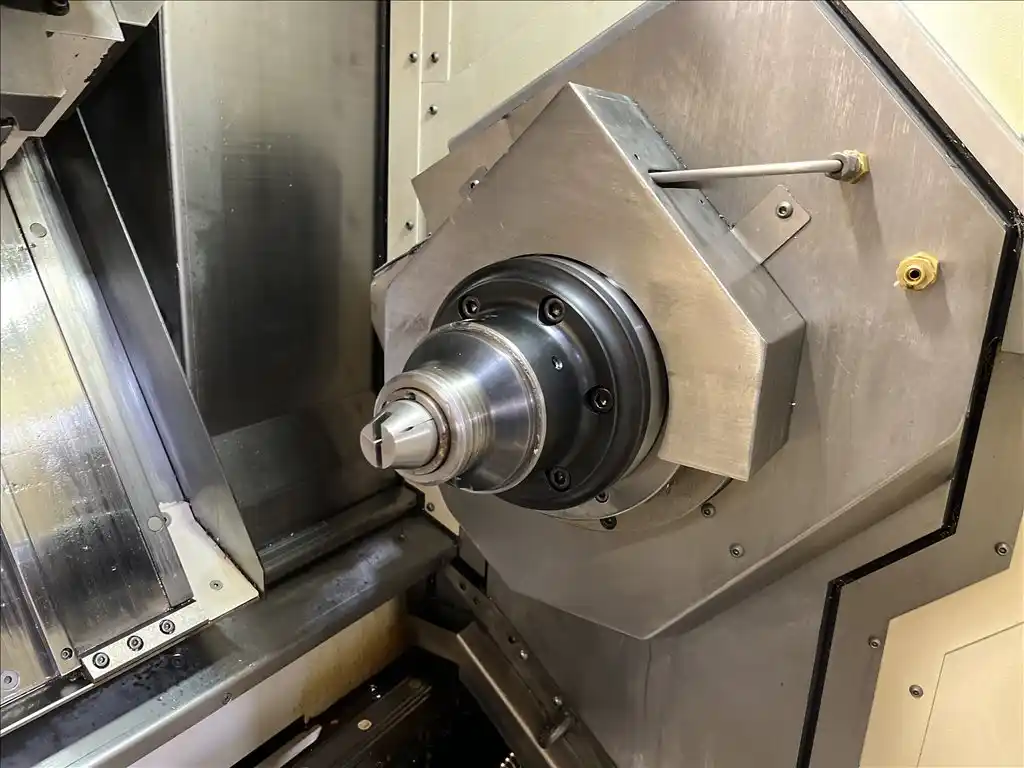

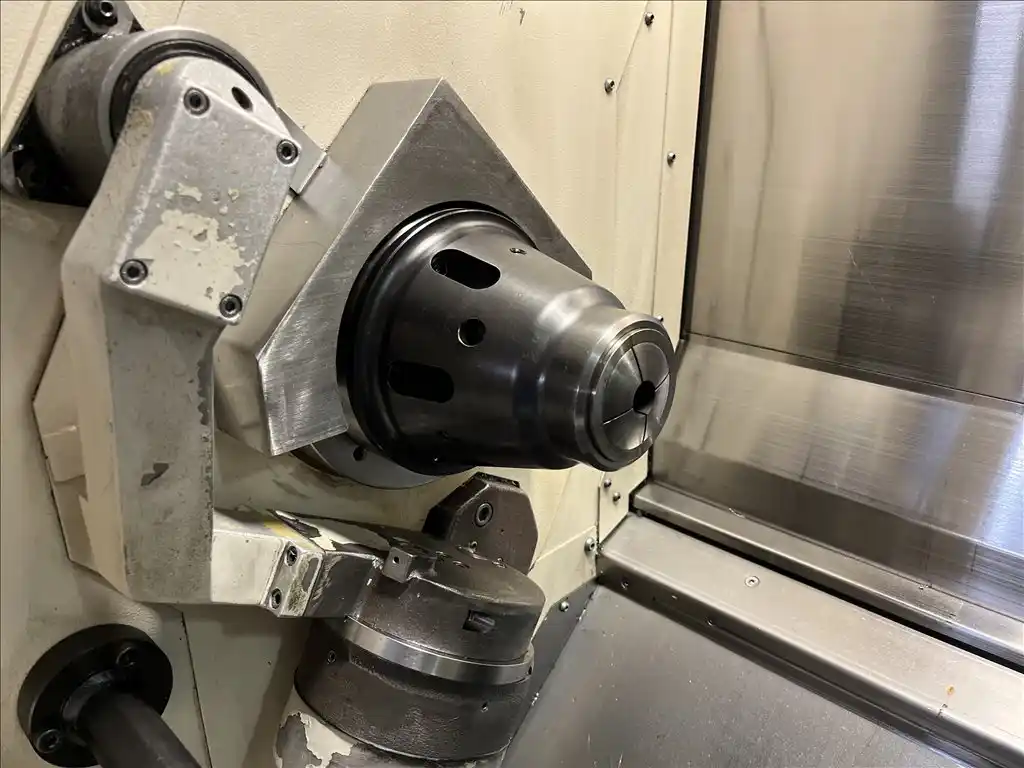

- Second Spindle

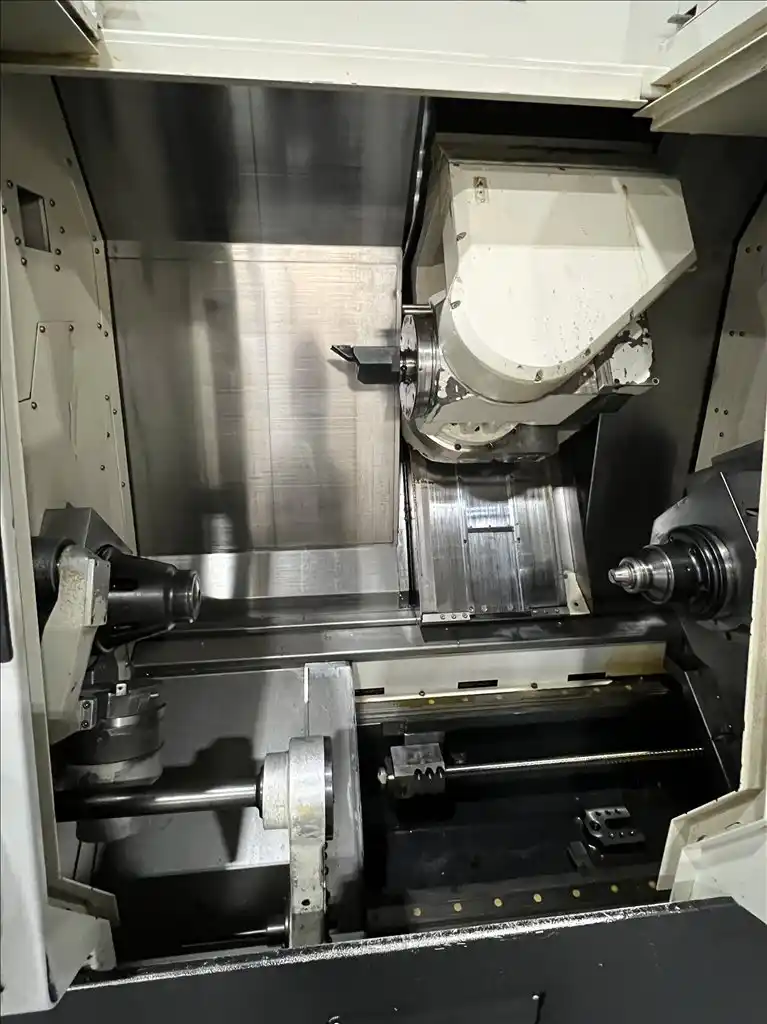

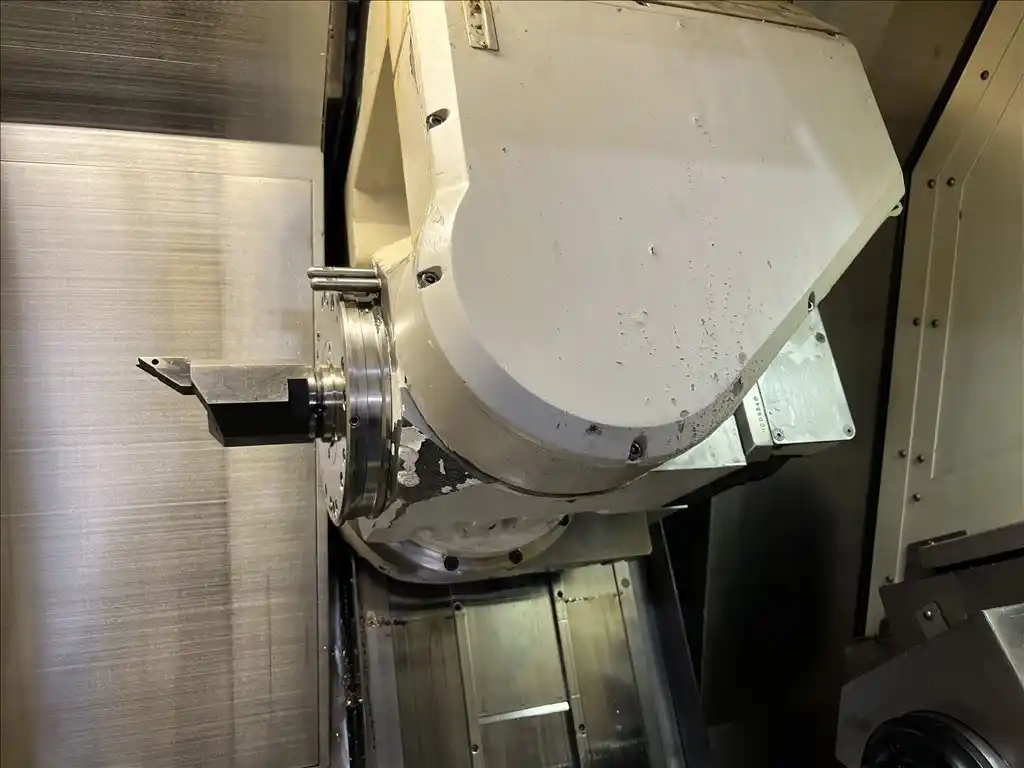

- B-Axis Head
- Collet Chucks
- Parts Catcher

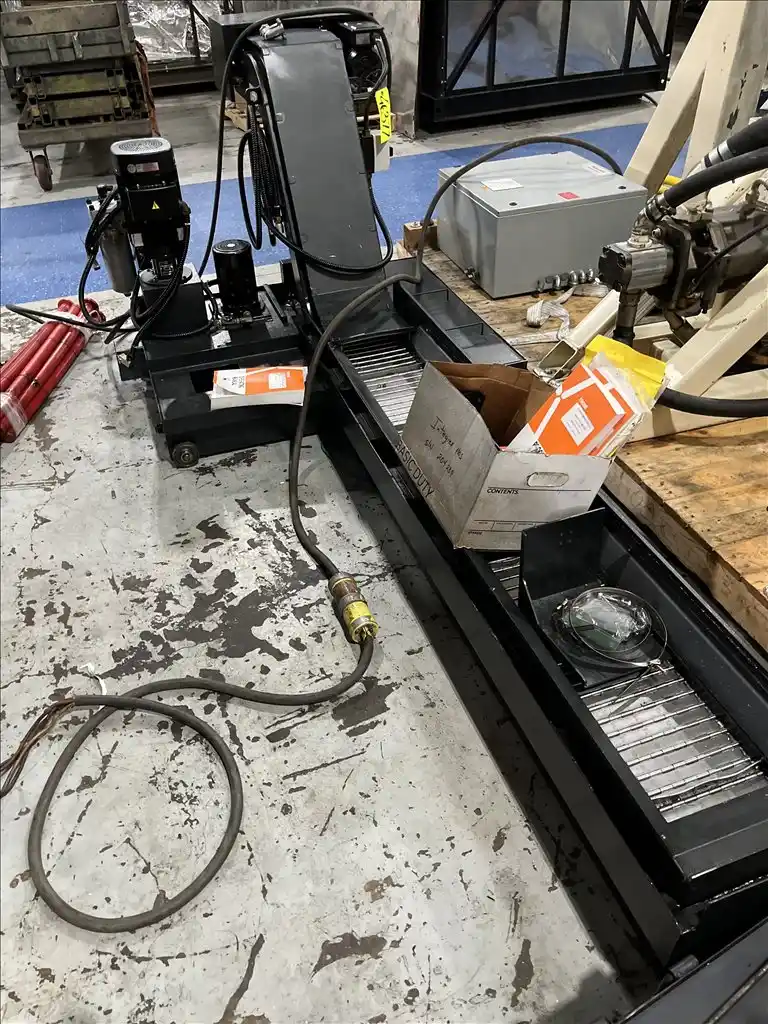

- Chip Conveyor

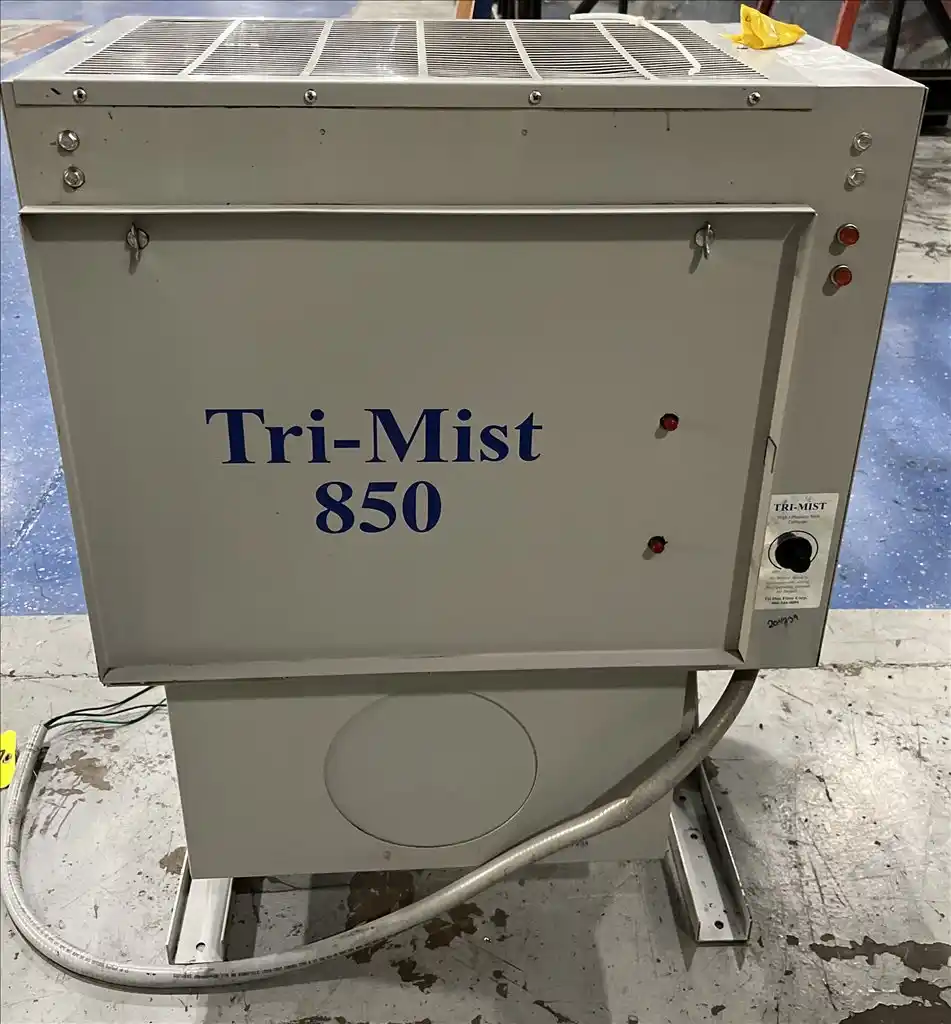

- Mist Collector
- Show More
- Show Less
- Mazatrol Matrix Control
- Second Spindle
- B-Axis Head
- Collet Chucks
- Parts Catcher
- Chip Conveyor
- Mist Collector
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
