Inventory # 44869 Year: 2018

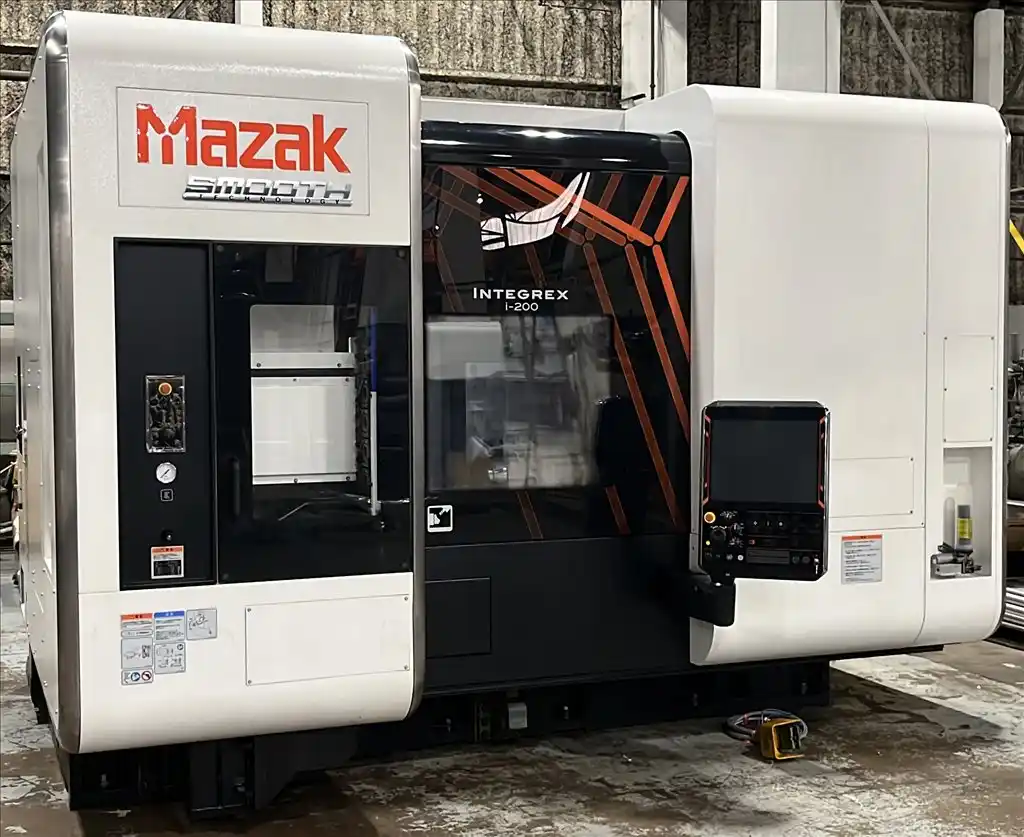

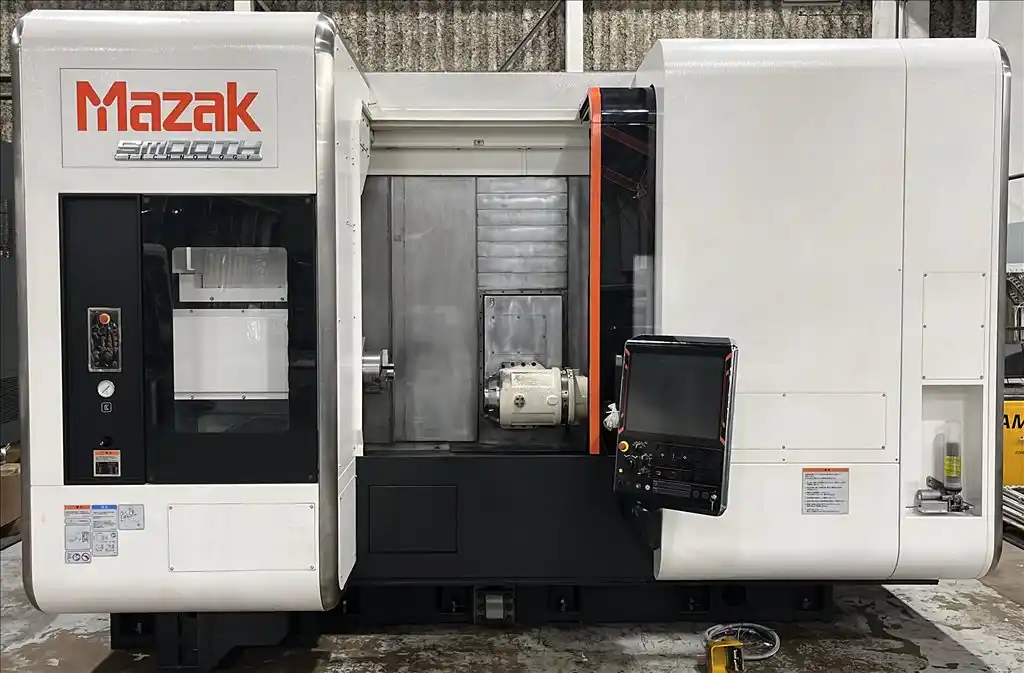

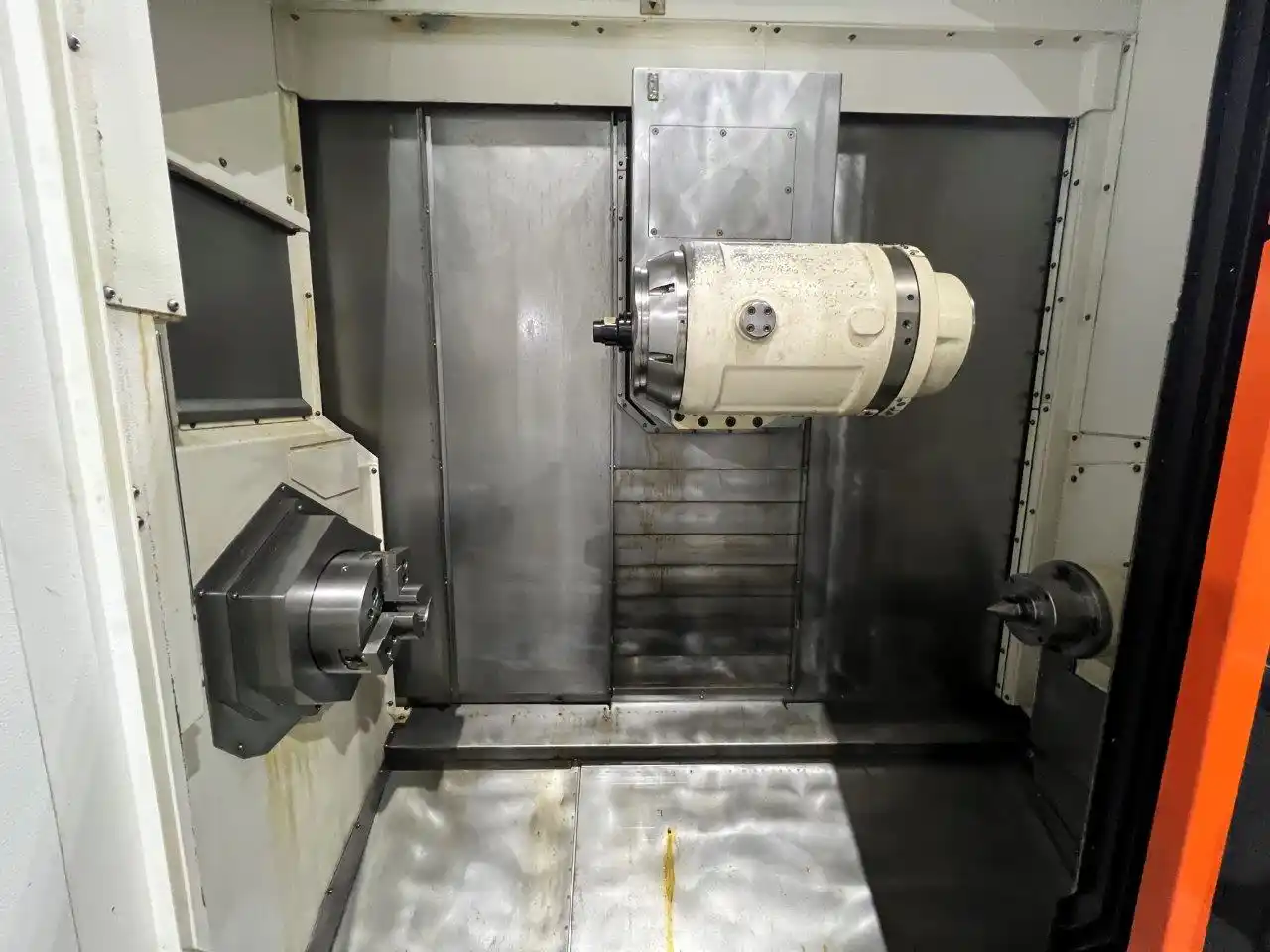

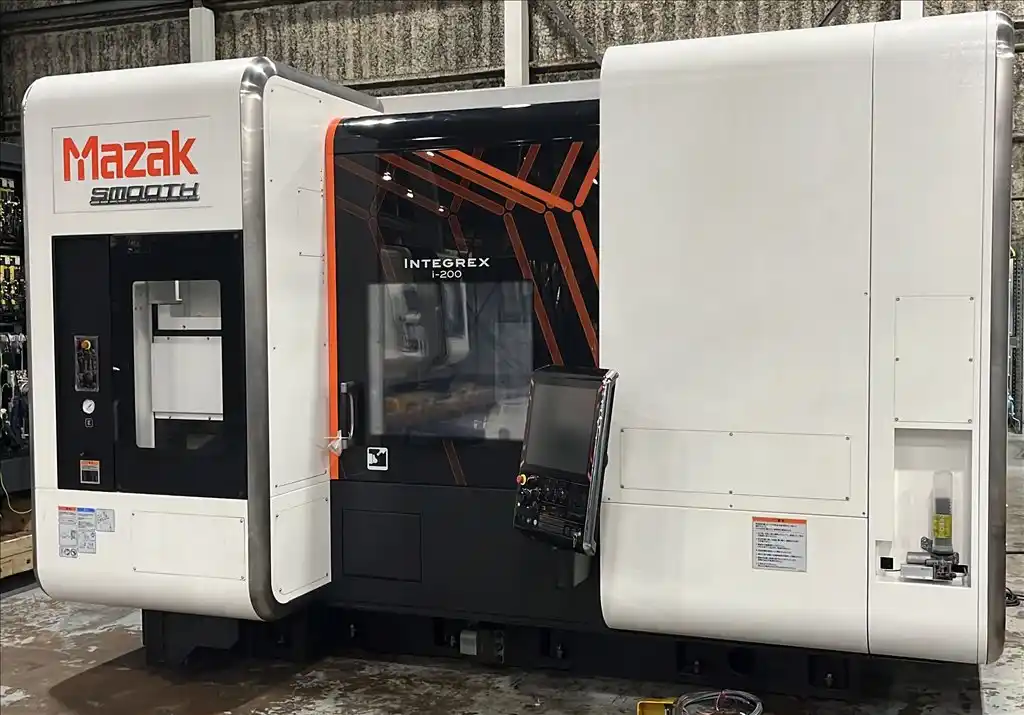

Mazak Integrex i-200 CNC Multitasking Turning Center
Specifications
- Max. Swing Over Bed: 25.9"
- Max. Turning Diameter: 25.9"
- Max. Turning Length: 39.8"

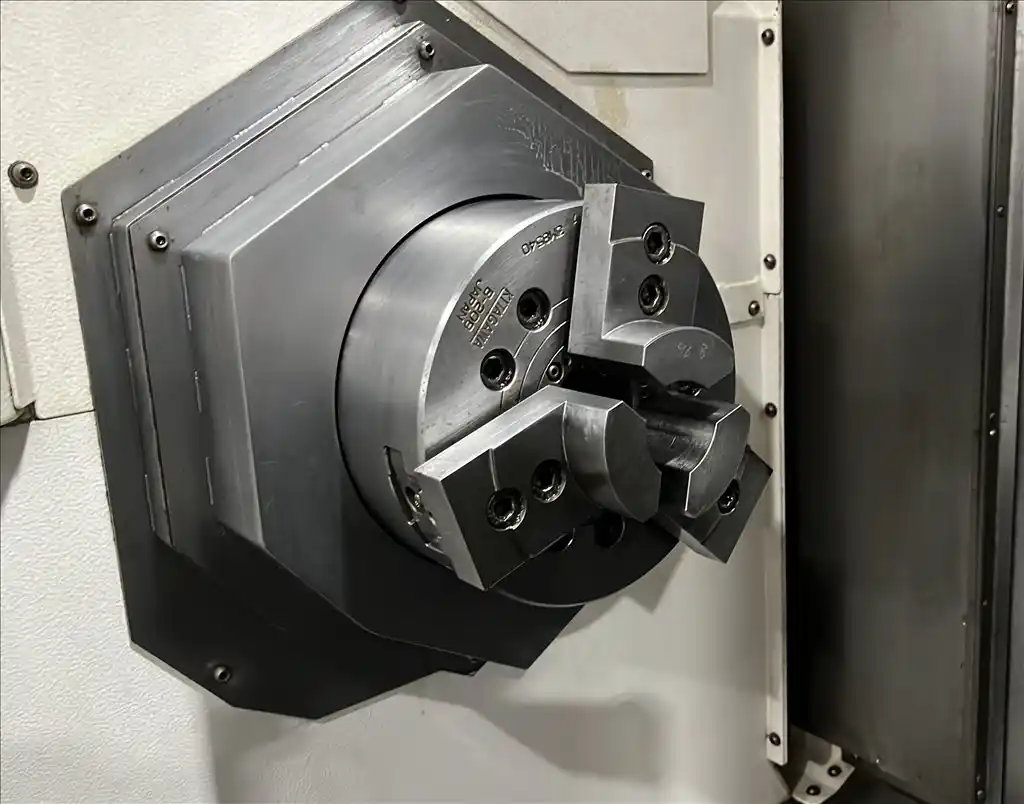

- Chuck Size: 8"
- Bar Capacity: 2.6"
- Spindle Nose: A2-6
- Spindle Bore Diameter: 3"
- Spindle Speed: 5,000 RPM
- Spindle Power: 30 HP
- B-Axis Travel: 240°
- B-Axis Milling Spindle Speed: 12,000 RPM
- B-Axis Milling Spindle Power: 30 HP

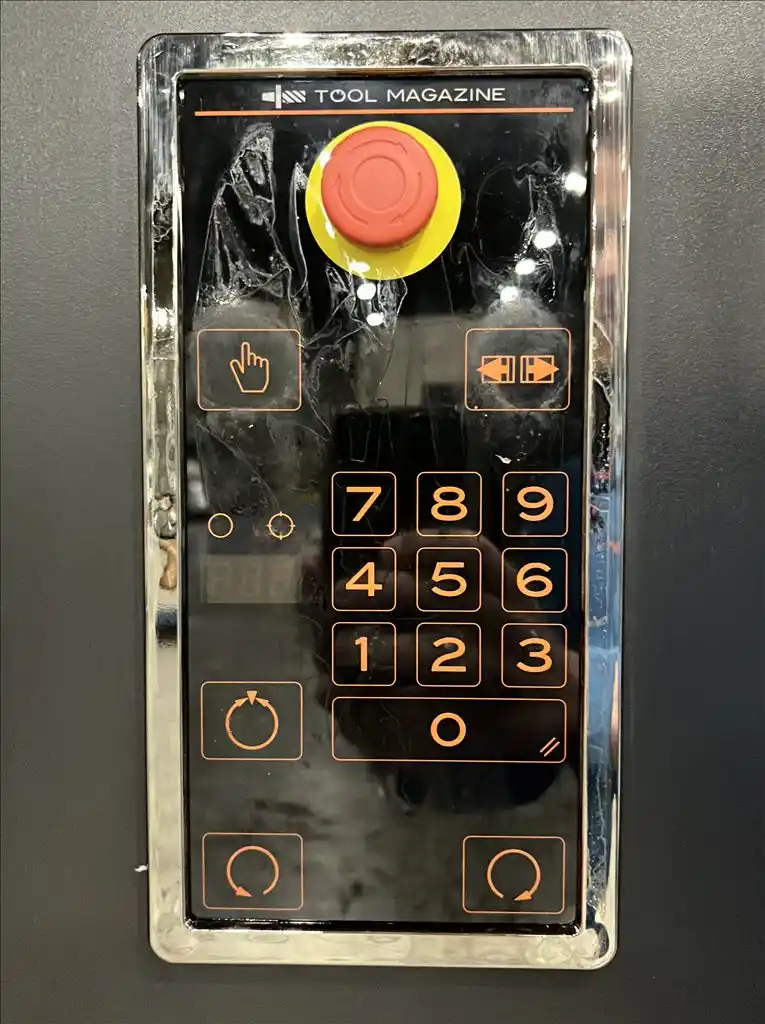

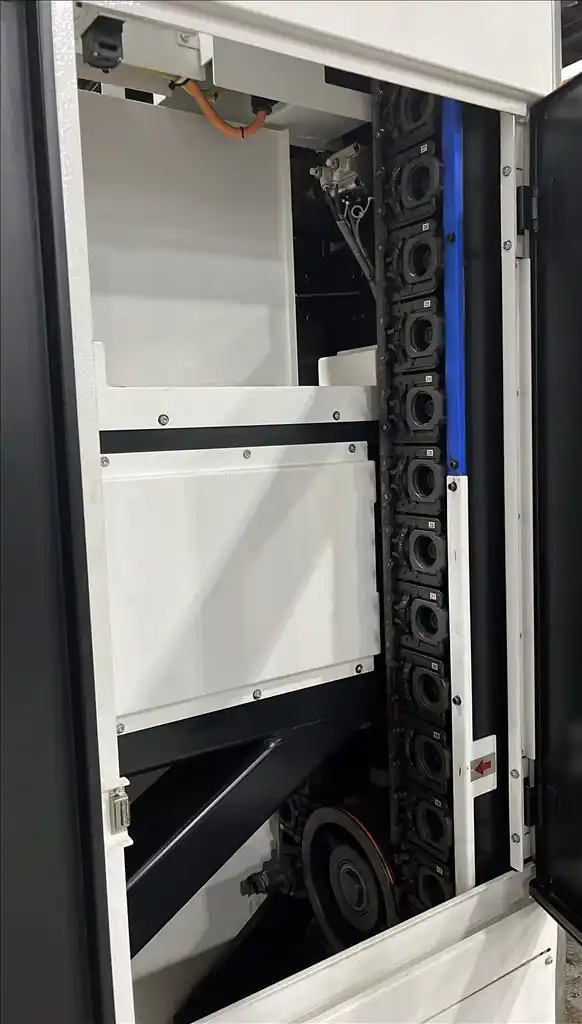

- ATC for Milling Spindle: 36-ATC
- Tool Diameter: 3.5" - 4.92"
- Tool Length: 15.8"
- X-Axis Travel: 24.2"
- Z-Axis Travel: 42.4"
- Y-Axis Travel: 10.2"
- W-Axis Travel: 40.4"
- Rapid Traverse Rates (X): 1,969 IPM
- Rapid Traverse Rates (Z): 1,969 IPM
- Rapid Traverse Rates (Y): 1,575 IPM
- Rapid Traverse Rates (W): 315 IPM
- Show More
- Show Less
- Max. Swing Over Bed: 657 mm
- Max. Turning Diameter: 657 mm
- Max. Turning Length: 1010 mm
- Chuck Size: 200 mm
- Bar Capacity: 66 mm
- Spindle Nose: A2-6
- Spindle Bore Diameter: 76 mm
- Spindle Speed: 5,000 RPM
- Spindle Power: 22.37 kw
- B-Axis Travel: 240°
- B-Axis Milling Spindle Speed: 12,000 RPM
- B-Axis Milling Spindle Power: 22 kw
- ATC for Milling Spindle: 36-ATC
- Tool Diameter: 88 mm - 125 mm
- Tool Length: 400 mm
- X-Axis Travel: 615 mm
- Z-Axis Travel: 1075 mm
- Y-Axis Travel: 260 mm
- W-Axis Travel: 1026 mm
- Rapid Traverse Rates (X): 1,410 mm/sec
- Rapid Traverse Rates (Z): 1,410 mm/sec
- Rapid Traverse Rates (Y): 1,243 mm/sec
- Rapid Traverse Rates (W): 133 mm/sec
- Show More
- Show Less
Equipped With

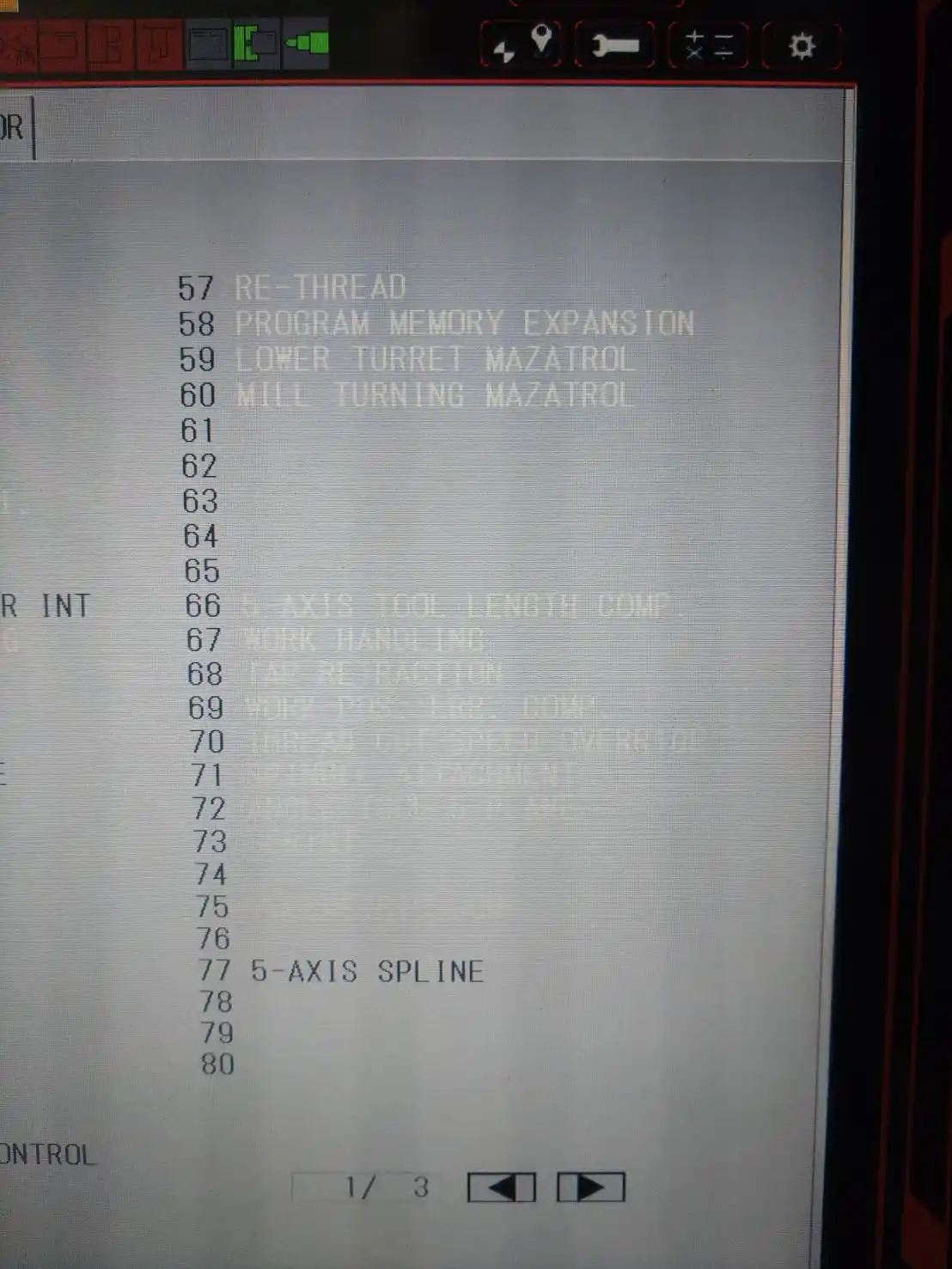

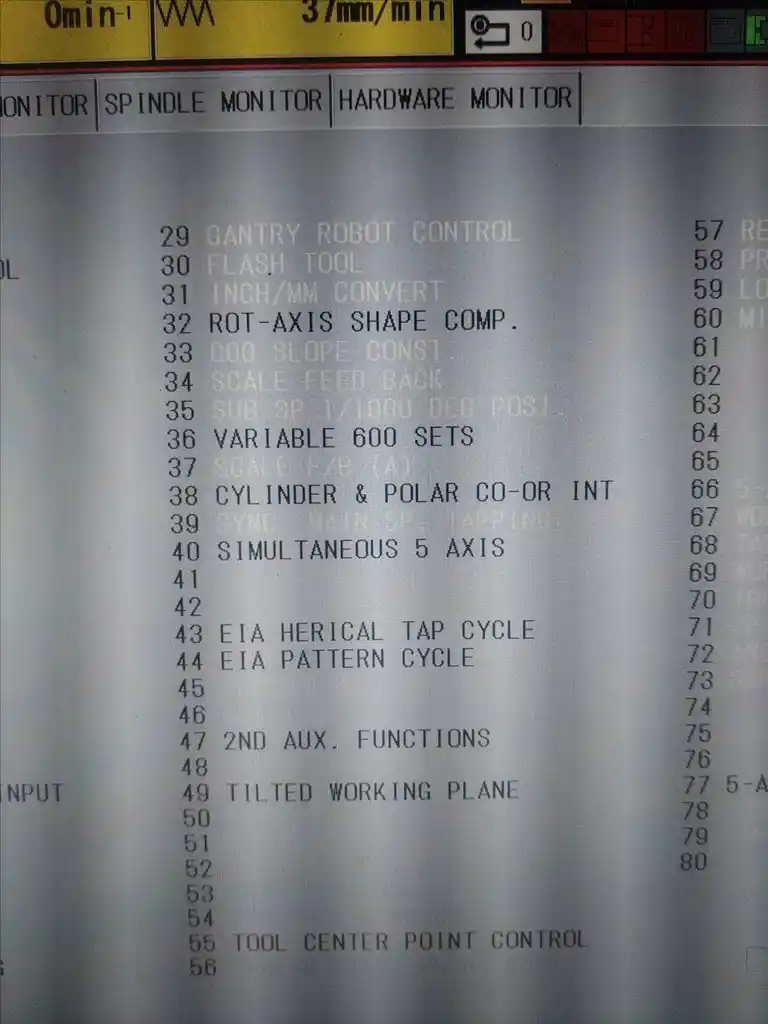

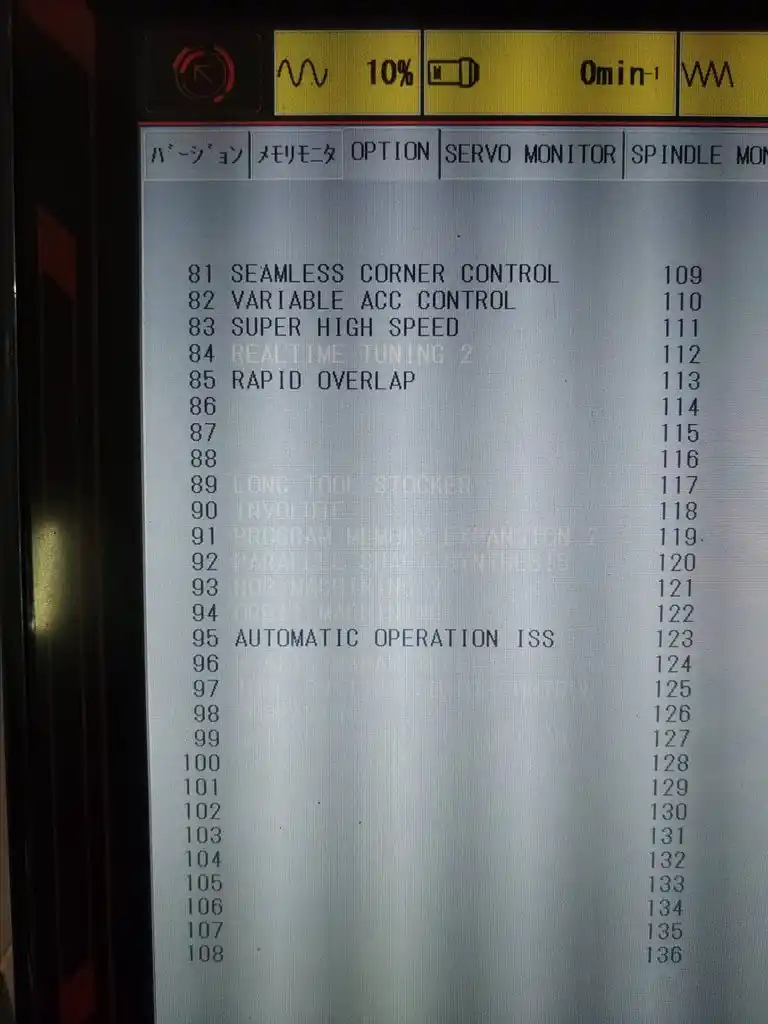

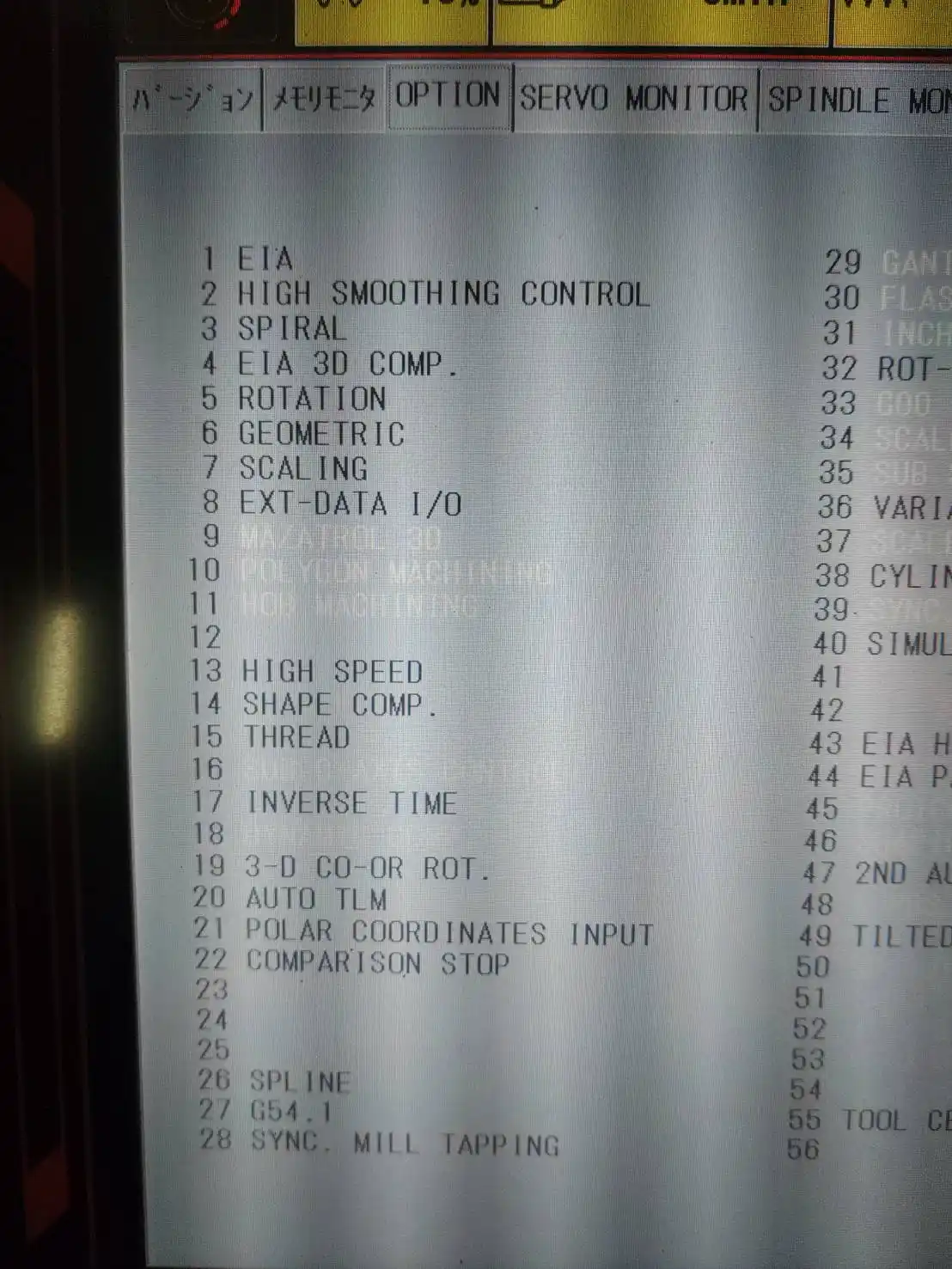

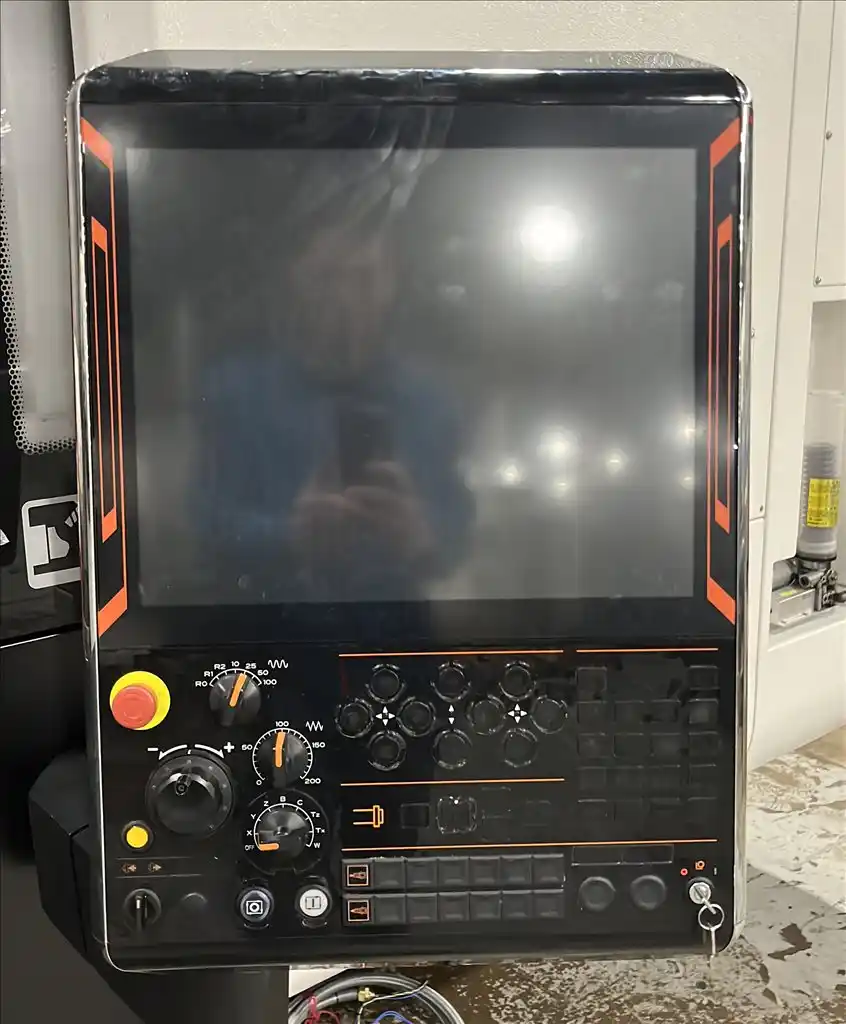

- Mazatrol SmoothX 5-Axis Package
- Smooth Synchronous Tap (Mill Axis)
- Tool Eye (Automatic)

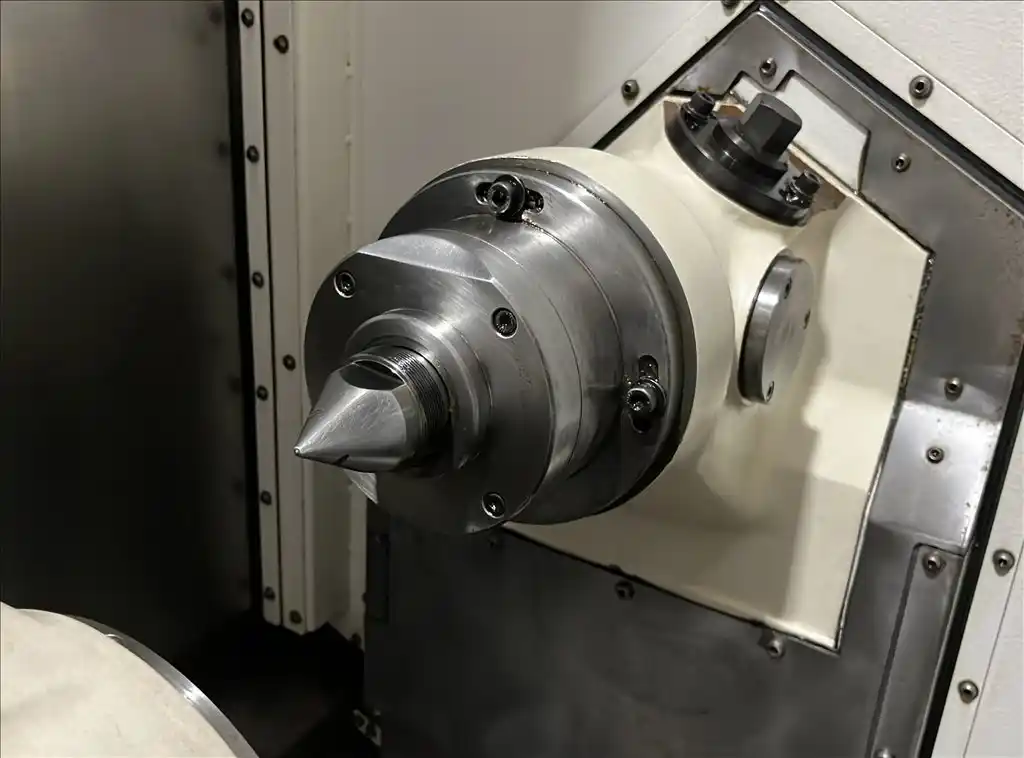

- NC Tail Stock

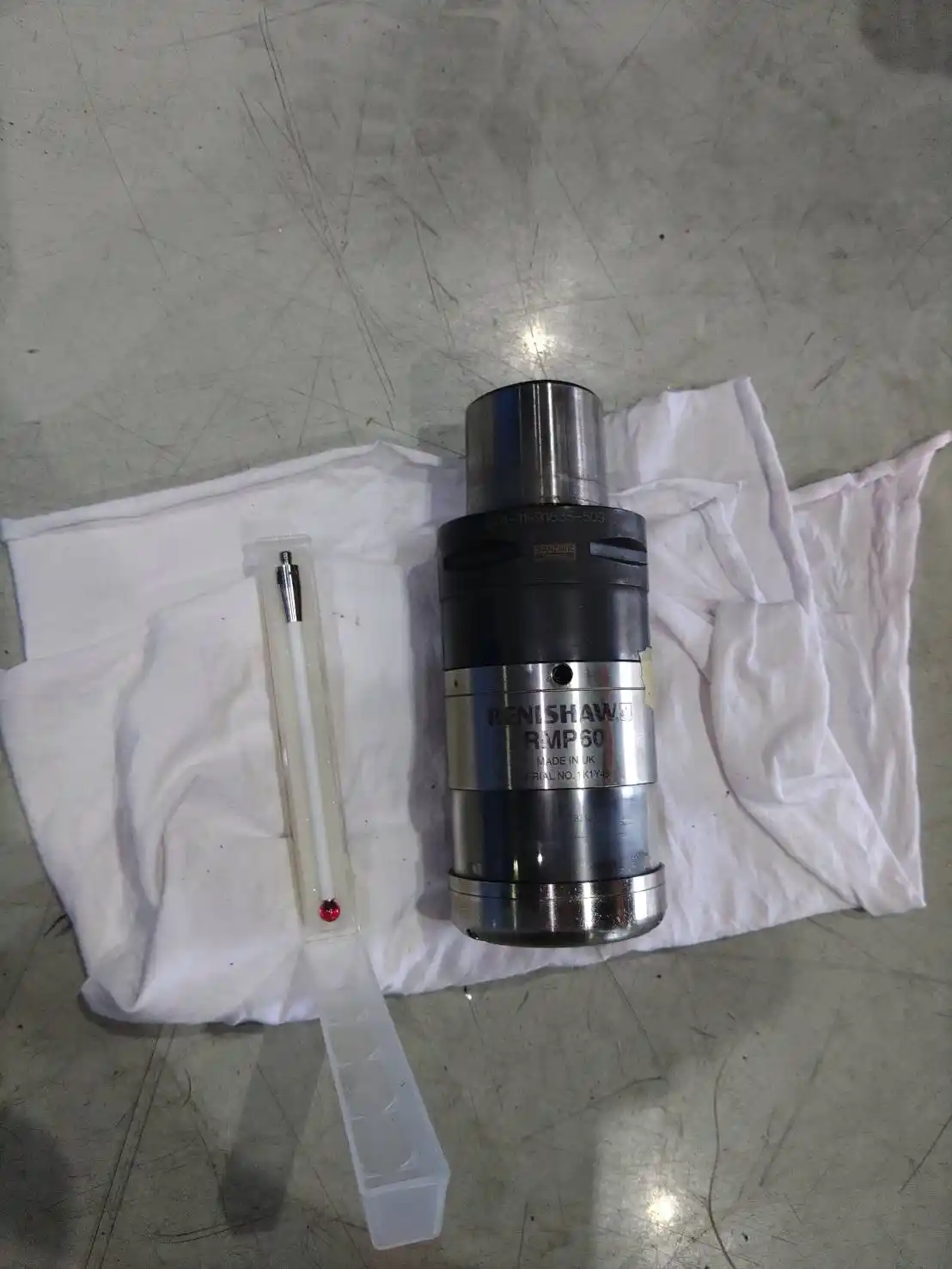

- Mazak Monitoring System B (RMP60)
- 3-Tier Signal Tower (Square)

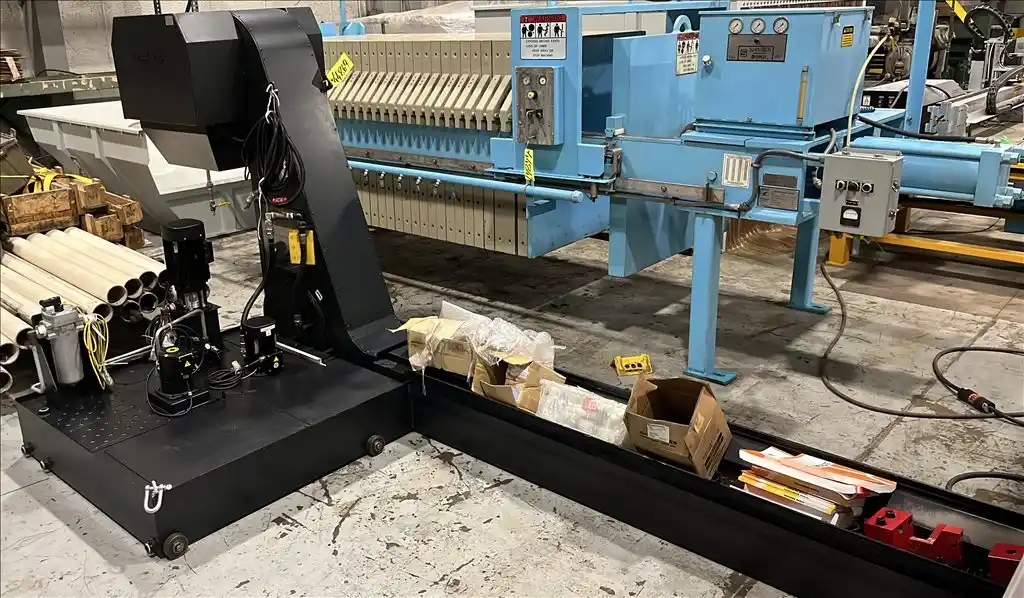

- Chip Conveyor (Side-Out)

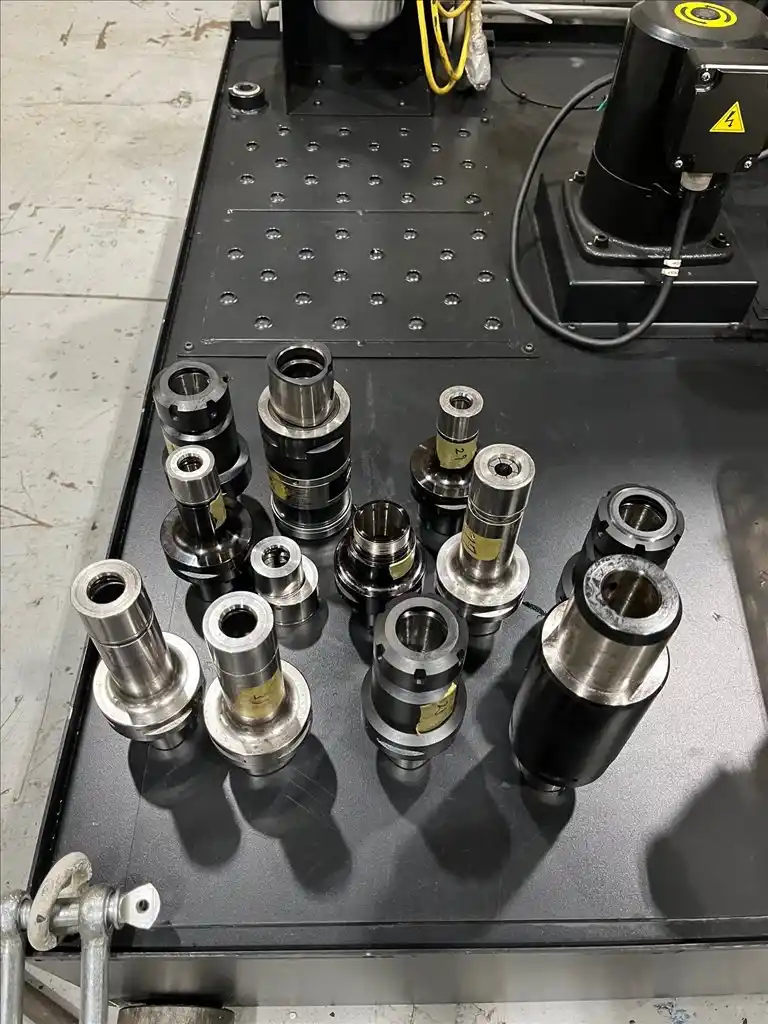

- Capto C6 Tool Shank Style (10 Tool Holders)
- Show More
- Show Less
- Mazatrol SmoothX 5-Axis Package
- Smooth Synchronous Tap (Mill Axis)
- Tool Eye (Automatic)
- NC Tail Stock
- Mazak Monitoring System B (RMP60)
- 3-Tier Signal Tower (Square)
- Chip Conveyor (Side-Out)
- Capto C6 Tool Shank Style (10 Tool Holders)
- Show More
- Show Less
Location & Terms
- Terms: F.O.B.
- Location: Elk Grove Village, IL
- Disclaimer: Preliminary Specifications....
