Inventory # 46664 Year: 1996

MORI-SEIKI SL-65B CNC TURNING CENTER*

Send a text message to yourself or a friend

Note: On submit, this will open your devices SMS application

Message will say:

Perfection Global Equipment: https://perfectionglobal.com/blog/the-top-8-cnc-machine-tool-for-manufacturers/?ProductNumber=46664

Inventory # 46664 Year: 1996
https://perfectionglobal.com/blog/the-top-8-cnc-machine-tool-for-manufacturers/?ProductNumber=46664

MORI-SEIKI SL-65B CNC TURNING CENTER*

Request a Quote
Measurement

Specifications
  • Maximum Turning Diameter: 35"
  • Maximum Turning Length: 39"
  • Swing Over Bed: 35"
  • Swing Over Saddle: 22"
  • X-Axis Travel: 13.8"
  • Z-Axis Travel: 33.9"
  • Spindle Speed: 4-900 RPM
  • Rapid Traverse Rate: X-Axis 196 IPM
  • Rapid Traverse Rate Y-Axis 315 IPM
  • Spindle Motor HP: 50 HP AC
  • Spindle Nose: A2-15
  • Spindle Hole Diameter: 6.3"
  • Number of Turret Positions: 12
  • Bar Capacity: 6"
  • Show More
  • Show Less
  • Maximum Turning Diameter: 889.00mm
  • Maximum Turning Length: 990.60mm
  • Swing Over Bed: 889.00mm
  • Swing Over Saddle: 558.80mm
  • X-Axis Travel: 350.52mm
  • Z-Axis Travel: 861.06mm
  • Spindle Speed: 4-900 RPM
  • Rapid Traverse Rate: X-Axis82.97 mm/sec
  • Rapid Traverse Rate Y-Axis133.35 mm/sec
  • Spindle Motor HP: 37.29 kw AC
  • Spindle Nose: A2-15
  • Spindle Hole Diameter: 160.02mm
  • Number of Turret Positions: 12
  • Bar Capacity: 152.40mm
  • Show More
  • Show Less
Equipped With
  • 18" 3-Jaw Chuck
  • MSC 516 CNC Control

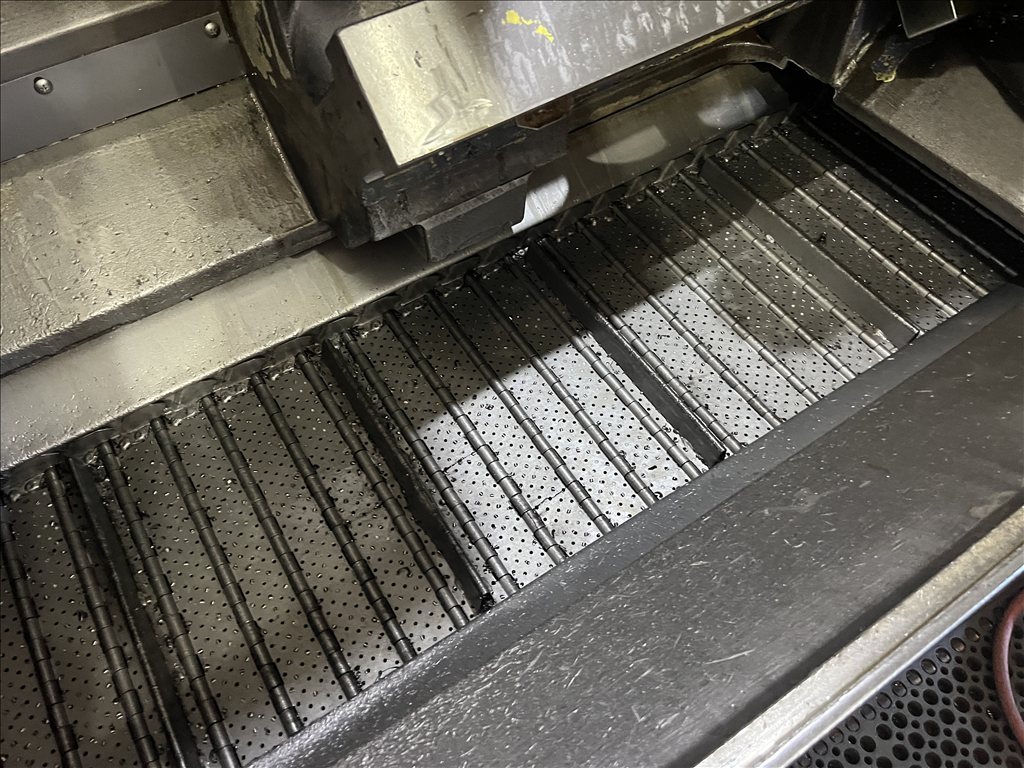

  • Chip Conveyor
  • Mist Collector
  • Coolant System
  • Show More
  • Show Less
  • 457.20mm 3-Jaw Chuck
  • MSC 516 CNC Control
  • Chip Conveyor
  • Mist Collector
  • Coolant System
  • Show More
  • Show Less
Location & Terms
  • Terms: As Is, Where Is
  • Disclaimer: Preliminary Specifications....
